SCHNEIDER ELECTRIC

	__ __
Description	Description __
Rating	Rating __
Color	Color __
	View full details

PCWORX

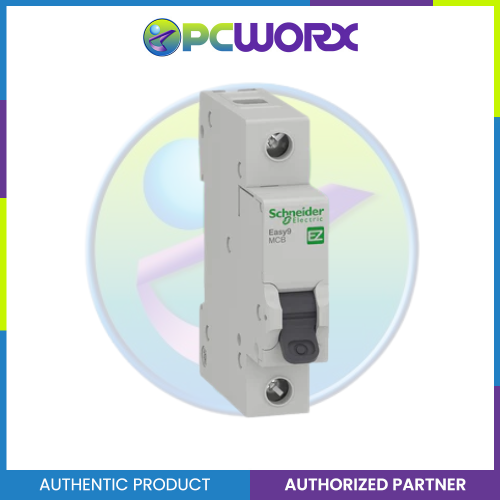

Easy9 IEC, 1-Pole 63A DIN-Rail Type Circuit Breaker 220/400V 10 KAIC by Schneider Electric EZ9F51163

(0)

₱316.68 ₱417.00

-24%

Specification	Details
Range	Easy9
Device Application	Distribution
Product or Component Type	Miniature circuit-breaker
Device Short Name	Easy9 MCB
Poles	1P
Number of Protected Poles	1
Rated Current [In]	63 A
Network Type	AC
Trip Unit Technology	Thermal-magnetic
Curve Code	C
Breaking Capacity	10 kA Icn at 230 V AC 50/60 Hz (IEC 60898-1)10 kA Icn at 400 V AC 50/60 Hz (IEC 60898-1)5 kA Icn at 60 V DC (IEC 60898-1)
Suitability for Isolation	Yes, conforming to IEC 60898-1

Out of stock

Receives in 5 days.

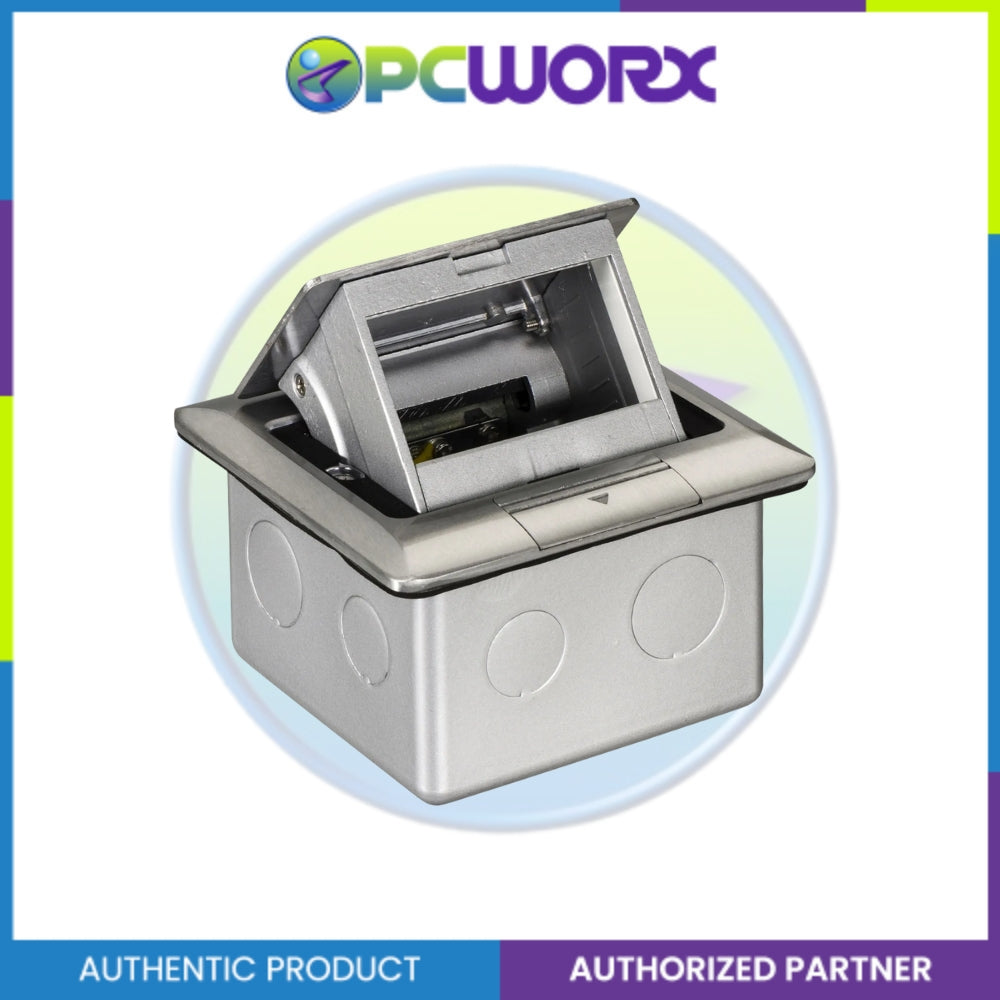

S-Flexi Aluminum Empty Floor Socket with Wall Box by Schneider Electric (E224F-ABE)

PCWORX

S-Flexi Aluminum Empty Floor Socket with Wall Box by Schneider Electric (E224F-ABE)

(0)

₱2,382.24 ₱3,083.00

-23%

Out of stock

Receives in 5 days.

Schneider A7031F_GY Switch 16AX 250V~ 1G 1W SW w Fluo E, GY

PCWORX

Schneider A7031F_GY Switch 16AX 250V~ 1G 1W SW w Fluo E, GY

(0)

₱172.50

In stock

Receives in 5 days.

Schneider A7031F_WE Switch 16AX 250V~ 1G 1W SW w Fluo E, WE

PCWORX

Schneider A7031F_WE Switch 16AX 250V~ 1G 1W SW w Fluo E, WE

(0)

₱136.06

Schneider Electric AvatarOn switch A7031F_WE is a complete product in color white. This is a 1-way switch with fluorescent lighting. And its rated current is 16AX. It is 120 mm in width, 70 mm in height, 33 mm in depth, with an embedding depth of 22 mm. Its matching mounting box can be recessed into the surface of the wall with flush type. It reaches IP20 degree of protection too. Its connection terminals are screwless type terminals. Being made of PC 10 % GF material, this switch is quite reliable and resistant. It obtained IEC, TIS certificate as well. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.

Category	Attribute	Value
Main	Range of product	AvatarOn A
Main	Product or component type	Switch
Main	Load type	Resistive load, Inductive, Fluorescent load
Main	Colour tint	White (WE)
Main	Colour tint	White
Complementary	Device presentation	Complete product
Complementary	Rated current	16 AX at 250 V AC 50 Hz
Complementary	Switch function	1-way
Complementary	Switch application	Control switch
Complementary	Number of gangs	1 gang
Complementary	Clamping connection capacity	2 × 1.5 mm² (solid), 2 × 2.5 mm² (stranded), 2 × 4 mm²
Complementary	Connections – terminals	Screwless type terminals
Complementary	Local signalling	Fluorescent (white)
Complementary	Material	PC (dolly), PC 10% GF (base & base cover)
Complementary	Device mounting	Flush
Complementary	Width	120 mm
Complementary	Height	70 mm
Complementary	Depth	33 mm
Complementary	Embedding depth	22 mm
Environment	IP degree of protection	IP20
Environment	Max ambient air temperature (operation)	45 °C
Environment	Ambient air temperature (storage)	-5…60 °C
Environment	Operating altitude	≤ 2000 m
Environment	Relative humidity	0…95%
Standards	Standards	IEC 60669-1
Standards	Product certifications	IEC, TIS
Packing Units	Unit Type of Package 1	PCE
Packing Units	Number of Units in Package 1	1
Packing Units	Package 1 Height	3.2 cm
Packing Units	Package 1 Width	7 cm
Packing Units	Package 1 Length	12 cm
Packing Units	Package 1 Weight	99 g

In stock

Receives in 5 days.

Schneider A7032F_BK Switch 16AX 250V~ 2G 1W SW w Fluo M, BK

PCWORX

Schneider A7032F_BK Switch 16AX 250V~ 2G 1W SW w Fluo M, BK

(0)

₱273.96

Schneider Electric AvatarOn switch A7032F_BK is a complete product in color black. This is a 1-way switch with fluorescent lighting. And its rated current is 16AX. It is 120 mm in width, 70 mm in height, 33 mm in depth, with an embedding depth of 22 mm. Its matching mounting box can be recessed into the surface of the wall with flush type. Besides, the IP rating of this device is IP20. The connection terminals of this switch are screwless type terminals. The switch is made of PC 10 % GF, making it as resistant as possible. It obtained IEC, TIS certificate as well. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.

Category	Attribute	Value
Main	Range of product	AvatarOn A
Main	Product or component type	Switch
Main	Load type	Resistive load, Inductive, Fluorescent load
Main	Colour tint	Black (BK)
Main	Colour tint	Black
Complementary	Device presentation	Complete product
Complementary	Rated current	16 AX at 250 V AC 50 Hz
Complementary	Switch function	1-way
Complementary	Switch application	Control switch
Complementary	Number of gangs	2 gangs
Complementary	Clamping connection capacity	2 × 1.5 mm² (solid), 2 × 2.5 mm² (stranded), 2 × 4 mm²
Complementary	Connections – terminals	Screwless type terminals
Complementary	Local signalling	Fluorescent (black)
Complementary	Material	PC: dolly; PC 10% GF: base; PC 10% GF: base cover
Complementary	Device mounting	Flush
Complementary	Width	120 mm
Complementary	Height	70 mm
Complementary	Depth	33 mm
Complementary	Embedding depth	22 mm
Environment	IP degree of protection	IP20
Environment	Maximum ambient air temperature (operation)	45 °C
Environment	Ambient air temperature (storage)	-5…60 °C
Environment	Operating altitude	≤ 2000 m
Environment	Relative humidity	0…95%
Standards	Standards	IEC 60669-1
Standards	Product certifications	IEC, TIS
Packing Units	Unit Type of Package 1	PCE
Packing Units	Number of Units in Package 1	1
Packing Units	Package 1 Height	3.2 cm
Packing Units	Package 1 Width	7 cm
Packing Units	Package 1 Length	12 cm
Packing Units	Package 1 Weight	117 g

In stock

Receives in 5 days.

Schneider A7032F_GY Switch 16AX 250V~ 2G 1W SW w Fluo M, GY

PCWORX

Schneider A7032F_GY Switch 16AX 250V~ 2G 1W SW w Fluo M, GY

(0)

₱273.96

Schneider Electric AvatarOn switch A7032F_GY is a complete product in color grey. This is a 1-way switch with fluorescent lighting. And its rated current is 16AX. It is 120 mm in width, 70 mm in height, 33 mm in depth, with an embedding depth of 22 mm. Its matching mounting box can be recessed into the surface of the wall with flush type. It reaches IP20 degree of protection too. The connection terminals of this switch are screwless type terminals. Being made of PC 10 % GF material, this switch is quite reliable and resistant. It obtained IEC, TIS certificate as well. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.

Category	Attribute	Value
Main	Range of product	AvatarOn A
Main	Product or component type	Switch
Main	Load type	Resistive load, Inductive, Fluorescent load
Main	Colour tint	Grey
Main	Colour tint	Grey
Complementary	Device presentation	Complete product
Complementary	Rated current	16 AX at 250 V AC 50 Hz
Complementary	Switch function	1-way
Complementary	Switch application	Control switch
Complementary	Number of gangs	2 gangs
Complementary	Clamping connection capacity	2 × 1.5 mm² (solid), 2 × 2.5 mm² (stranded), 2 × 4 mm²
Complementary	Connections – terminals	Screwless type terminals
Complementary	Local signalling	Fluorescent (grey)
Complementary	Material	PC: dolly; PC 10% GF: base; PC 10% GF: base cover
Complementary	Device mounting	Flush
Complementary	Width	120 mm
Complementary	Height	70 mm
Complementary	Depth	33 mm
Complementary	Embedding depth	22 mm
Environment	IP degree of protection	IP20
Environment	Maximum ambient air temperature (operation)	45 °C
Environment	Ambient air temperature (storage)	–5…60 °C
Environment	Operating altitude	≤ 2000 m
Environment	Relative humidity	0…95%
Standards	Standards	IEC 60669-1
Standards	Product certifications	IEC, TIS
Packing Units	Unit Type of Package 1	PCE
Packing Units	Number of Units in Package 1	1
Packing Units	Package 1 Height	3.2 cm
Packing Units	Package 1 Width	7 cm
Packing Units	Package 1 Length	12 cm
Packing Units	Package 1 Weight	117 g

In stock

Receives in 5 days.

PCWORX

Schneider A7033F_WE Switch 16AX 250V~ 3G 1W SW w Fluo S, WE

(0)

₱240.00

Schneider Electric AvatarOn 3-gang switch is a complete product in color white. This is a 1-way switch with fluorescent lighting. And its rated current is 16AX. It is 120 mm in width, 70 mm in height, 33 mm in depth, with an embedding depth of 22 mm. Its matching mounting box can be recessed into the surface of the wall with flush type. The IP rating of this device is IP20. Its connection terminals are screwless type terminals. The switch is made of PC 10 % GF, making it as resistant as possible. It obtained IEC, TIS certificate as well. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.


Range of product	AvatarOn A
Product or component type	Switch
load type	Resistive load Inductive Fluorescent load
Colour tint	White (WE)
Colour tint	White

Complementary
Device presentation	Complete product
Rated current	16 AX at 250 V AC 50 Hz
Switch function	1-way
Switch application	Control switch
Number of gangs	3 gangs
Clamping connection capacity	2 x 1.5 mm² for solid cable(s) 2 x 2.5 mm² for stranded cable(s) 2 x 4 mm²
Connections - terminals	Screwless type terminals
Local signalling	Fluorescent (white)
Material	PC: dolly PC 10 % GF: base PC 10 % GF: base cover
Device mounting	Flush
Width	120 mm
Height	70 mm
Depth	33 mm
Embedding depth	22 mm

Environment
IP degree of protection	IP20
Maximum ambient air temperature for operation	45 °C
Ambient air temperature for storage	-5…60 °C
Operating altitude	<= 2000 m
Relative humidity	0…95 %
Standards	IEC 60669-1
Product certifications	IEC TIS

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3.2 cm
Package 1 Width	7 cm
Package 1 Length	12 cm
Package 1 Weight	128 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	8.8 cm
Package 2 Width	18.5 cm
Package 2 Length	26.5 cm
Package 2 Weight	1.386 kg
Unit Type of Package 3	S03
Number of Units in Package 3	60
Package 3 Height	30 cm
Package 3 Width	30 cm
Package 3 Length	40 cm
Package 3 Weight	8.966 kg

In stock

Receives in 5 days.

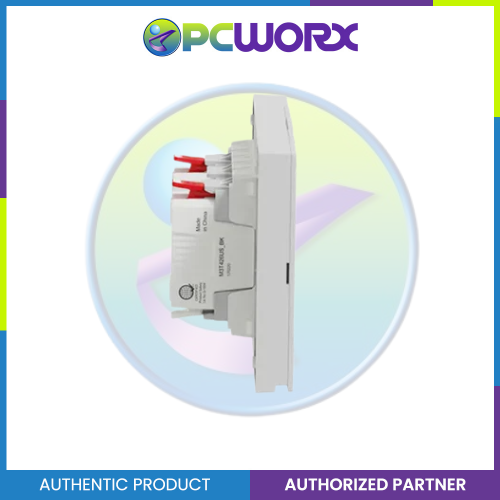

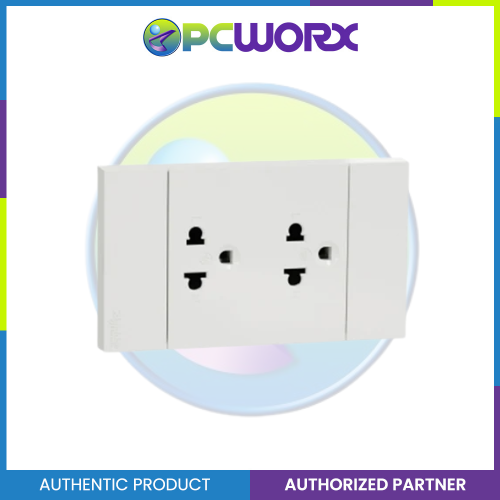

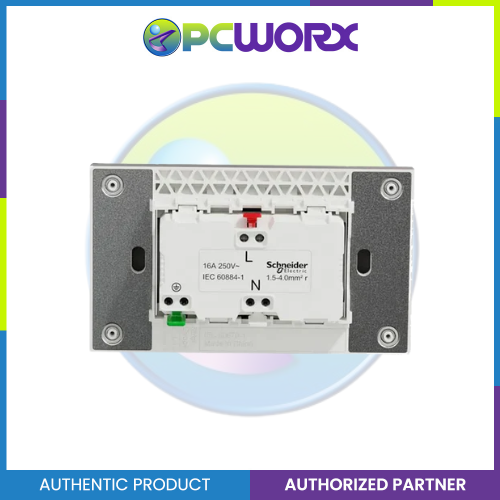

Schneider A70426US_BK Outlet 16A 250V~ 2G 2Pin Uni Skt, BK

PCWORX

Schneider A70426US_BK Outlet 16A 250V~ 2G 2Pin Uni Skt, BK

(0)

₱306.52

DESCRIPTION

Schneider Electric AvatarOn socket-outlet A70426US_BK is a complete product in color black. With 2 socket outlets. The pole configuration of the outlet is 2 x 2P. And its rated current is 16A. Its matching mounting box can be recessed into the surface of the wall with flush type. The connection terminals of this socket-outlet are screwless terminals. It is 120 mm in width, 70 mm in height, and 36.35 mm in depth. The IP rating of this device is IP20. Being made of polycarbonate material, this socket-outlet is quite reliable and resistant. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.

SPECIFICATIONS

Main
Range of product	AvatarOn A
Product or component type	Socket-outlet
Device presentation	Complete product
Colour tint	Black
Outlet poles configuration	2 x 2P
Colour tint	Black
Complementary
Rated current	16 A at 250 V AC 50...60 Hz
Socket number	2
Clamping connection capacity	2 x 1.5...2 x 4 mm² for solid cable(s)
Clamping connection capacity	2 x 1.5...2 x 4 mm² for stranded cable(s)
Connections - terminals	Screwless terminals
Material	Polycarbonate grid plate
Material	Polycarbonate cover
Device mounting	Flush
Width	120 mm
Height	70 mm
Depth	36.35 mm
Embedding depth	24.85 mm
Environment
IP degree of protection	IP20
Maximum ambient air temperature for operation	35 °C
Ambient air temperature for storage	-5…45 °C
Relative humidity	0…95 %
Operating altitude	< 2000 m
Standards	IEC 60884-1
Product certifications	IEC
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3.65 cm
Package 1 Width	7 cm
Package 1 Length	12 cm
Package 1 Weight	140 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	8.8 cm
Package 2 Width	18.5 cm
Package 2 Length	26.5 cm
Package 2 Weight	1.506 kg
Unit Type of Package 3	S03
Number of Units in Package 3	60
Package 3 Height	30 cm
Package 3 Width	30 cm
Package 3 Length	40 cm
Package 3 Weight	9.686 kg

In stock

Receives in 5 days.

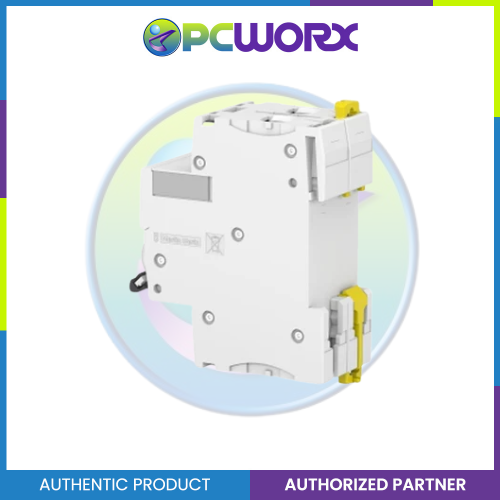

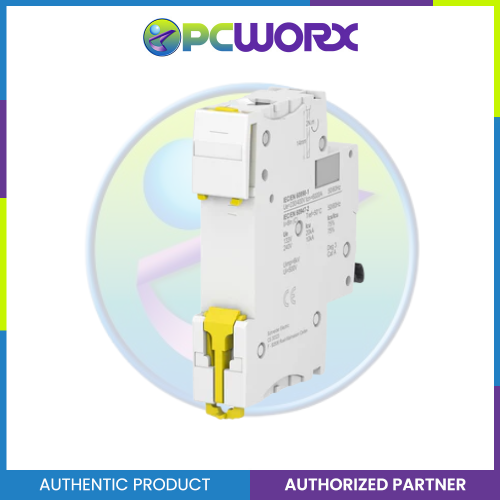

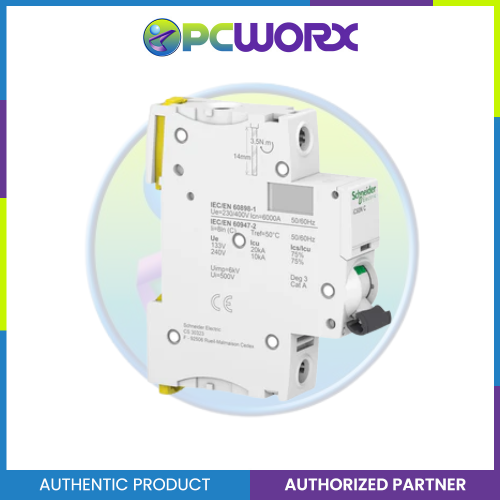

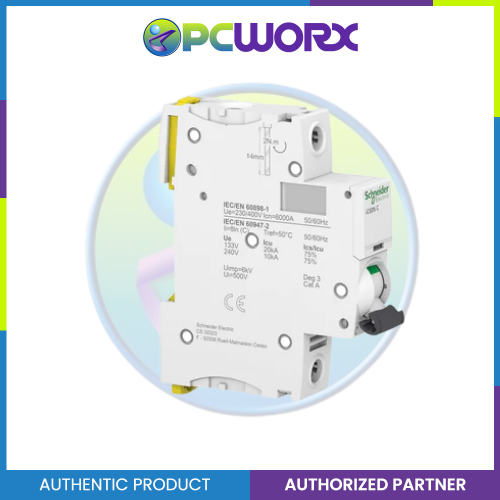

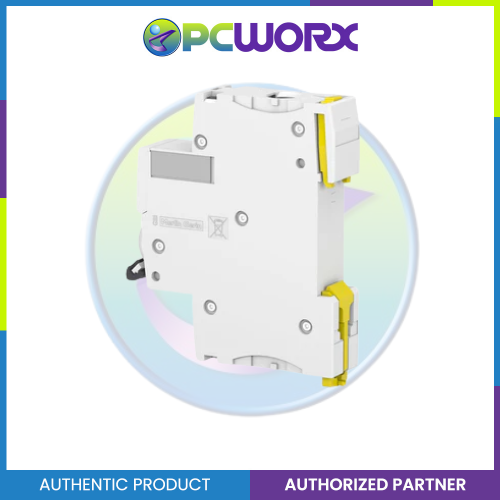

Schneider A9F74125 Mini Circuit Breaker Acti9 iC60N 1P C 25A MCB

PCWORX

Schneider A9F74125 Mini Circuit Breaker Acti9 iC60N 1P C 25A MCB

(0)

₱472.92

This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 25A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 230VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast-closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 78.5mm. The weight is 0.215kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.

SPECIFICATION

Device application:	Distribution
Range:	Acti9
product name:	Acti9 iC60
Product or component type:	Miniature circuit-breaker
Device short name:	IC60N
Poles description:	1P
Number of protected poles:	1
[In] rated current:	25 A
network type:	AC
	DC
Trip unit technology:	Thermal-magnetic
Curve code:	C
Breaking capacity:	6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
	10 kA Icu at <= 72 V DC conforming to EN/IEC 60947-2
	15 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2
	10 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
	36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2
	20 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
Utilisation category:	Category A conforming to EN 60947-2
	Category A conforming to IEC 60947-2
Suitability for isolation:	Yes conforming to EN 60898-1
	Yes conforming to EN 60947-2
	Yes conforming to IEC 60898-1
	Yes conforming to IEC 60947-2
Standards:	EN 60898-1
	EN 60947-2
	IEC 60898-1
	IEC 60947-2
Complementary
Network frequency:	50/60 Hz
Magnetic tripping limit:	8 x in +/- 20 %
[Ics] rated service breaking capacity:	27 kA 75 % conforming to EN 60947-2 - 12...60 V AC 50/60 Hz
	7.5 kA 75 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz
	27 kA 75 % conforming to IEC 60947-2 - 12...60 V AC 50/60 Hz
	7.5 kA 75 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz
	15 kA 75 % conforming to IEC 60947-2 - 100...133 V AC 50/60 Hz
	15 kA 75 % conforming to EN 60947-2 - 100...133 V AC 50/60 Hz
	6000 A 100 % conforming to EN 60898-1 - 230 V AC 50/60 Hz
	6000 A 100 % conforming to IEC 60898-1 - 230 V AC 50/60 Hz
	10 kA 100 % conforming to EN 60947-2 - 72 V DC
	10 kA 100 % conforming to IEC 60947-2 - 72 V DC
	15 kA 100 % conforming to EN 60947-2 - 12...60 V DC
	15 kA 100 % conforming to IEC 60947-2 - 12...60 V DC
Limitation class:	3 conforming to EN 60898-1
	3 conforming to IEC 60898-1
[Ui] rated insulation voltage:	500 V AC 50/60 Hz conforming to EN 60947-2
	500 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage:	6 kV conforming to EN 60947-2
	6 kV conforming to IEC 60947-2
Contact position indicator:	Yes
Control type:	Toggle
Local signalling:	Trip indicator
Mounting mode:	Fixed
Mounting support:	DIN rail
Comb busbar and distribution block compatibility:	Top or bottom: YES
9 mm pitches:	2
Height:	85 mm
Width:	18 mm
Depth:	78.5 mm
Product weight:	0.215 kg
Colour:	White
Mechanical durability:	20000 cycles
Electrical durability:	10000 cycles
Connections - terminals:	Single terminal (top or bottom) 1…25 mm² rigid
	Single terminal (top or bottom) 1…16 mm² flexible
Wire stripping length:	14 mm for top or bottom connection
Tightening torque:	2 N.m top or bottom
Earth-leakage protection:	Without
Environment:
IP degree of protection:	IP20 conforming to IEC 60529
	IP20 conforming to EN 60529
Pollution degree:	3 conforming to EN 60947-2
	3 conforming to IEC 60947-2
overvoltage category:	IV
Tropicalisation:	2 conforming to IEC 60068-1
Relative humidity:	95 % at 55 °C
Operating altitude:	0...2000 m
Ambient air temperature for operation:	-35…70 °C
Ambient air temperature for storage:	-40…85 °C
Packing Units:
Unit Type of Package 1:	PCE
Number of Units in Package 1:	1
Package 1 Height:	1.800 cm
Package 1 Width:	7.200 cm
Package 1 Length:	9.100 cm
Package 1 Weight:	116.000 g
Unit Type of Package 2	BB1
Number of Units in Package 2:	12
Package 2 Height:	8.000 cm
Package 2 Width:	9.500 cm
Package 2 Length:	22.500 cm
Package 2 Weight:	1.500 kg
Unit Type of Package 3:	S03
Number of Units in Package 3:	132
Package 3 Height:	30.000 cm
Package 3 Width:	30.000 cm
Package 3 Length:	40.000 cm
Package 3 Weight:	16.936 kg

Out of stock

Receives in 5 days.

Schneider A9F74163 Mini Circuit Breaker Acti9 iC60N 1P C 63A 230V MCB

PCWORX

Schneider A9F74163 Mini Circuit Breaker Acti9 iC60N 1P C 63A 230V MCB

(0)

₱787.92

This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 63A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 230VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast-closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 78.5mm. The weight is 0.215kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.

SPECIFICATIONS

Device application:	Distribution
Range:	Acti9
product name:	Acti9 iC60
Product or component type:	Miniature circuit-breaker
Device short name:	IC60N
Poles description:	1P
Number of protected poles:	1
[In] rated current:	63 A
network type:	DC
	AC
Trip unit technology:	Thermal-magnetic
Curve code:	C
Breaking capacity:	6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
	10 kA Icu at <= 72 V DC conforming to EN/IEC 60947-2
	15 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2
	10 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
	36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2
	20 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
Utilisation category:	Category A conforming to EN 60947-2
	Category A conforming to IEC 60947-2
Suitability for isolation:	Yes conforming to EN 60898-1
	Yes conforming to EN 60947-2
	Yes conforming to IEC 60898-1
	Yes conforming to IEC 60947-2
Standards:	IEC 60947-2
	EN 60947-2
	IEC 60898-1
	EN 60898-1
Complementary
Network frequency:	50/60 Hz
Magnetic tripping limit:	8 x In +/- 20 %
[Ics] rated service breaking capacity:	27 kA 75 % conforming to EN 60947-2 - 12...60 V AC 50/60 Hz
	7.5 kA 75 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz
	27 kA 75 % conforming to IEC 60947-2 - 12...60 V AC 50/60 Hz
	7.5 kA 75 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz
	15 kA 75 % conforming to IEC 60947-2 - 100...133 V AC 50/60 Hz
	15 kA 75 % conforming to EN 60947-2 - 100...133 V AC 50/60 Hz
	6000 A 100 % conforming to EN 60898-1 - 230 V AC 50/60 Hz
	6000 A 100 % conforming to IEC 60898-1 - 230 V AC 50/60 Hz
	10 kA 100 % conforming to EN 60947-2 - 72 V DC
	10 kA 100 % conforming to IEC 60947-2 - 72 V DC
	15 kA 100 % conforming to EN 60947-2 - 12...60 V DC
	15 kA 100 % conforming to IEC 60947-2 - 12...60 V DC
Limitation class:	3
[Ui] rated insulation voltage:	500 V AC 50/60 Hz conforming to EN 60947-2
	500 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage:	6 kV conforming to EN 60947-2
	6 kV conforming to IEC 60947-2
Contact position indicator:	Yes
control type:	Toggle
Local signalling:	Trip indicator
Mounting mode:	Fixed
Mounting support:	DIN rail
Comb busbar and distribution block compatibility:	Top or bottom: YES
9 mm pitches:	2
Height:	85 mm
Width:	18 mm
Depth:	78.5 mm
Product weight:	0.215 kg
Colour:	White
Mechanical durability:	20000 cycles
Electrical durability:	10000 cycles
Connections - terminals:	Single terminal (top or bottom) 1…35 mm² rigid
	Single terminal (top or bottom) 1…25 mm² flexible
Wire stripping length:	14 mm for top or bottom connection
Tightening torque:	3.5 N.m top or bottom
Earth-leakage protection:	Without
Environment
IP degree of protection:	3 conforming to EN 60947-2
	3 conforming to IEC 60947-2
Pollution degree:	3 conforming to IEC 60947-2
overvoltage category:	IV
Tropicalisation:	2 conforming to IEC 60068-1
Relative humidity:	95 % at 55 °C
Operating altitude:	0...2000 m
Ambient air temperature for operation:	-35…70 °C
Ambient air temperature for storage:	-40…85 °C
Packing Units:
Unit Type of Package 1:	PCE
Number of Units in Package 1:	1
Package 1 Height:	1.8 cm
Package 1 Width:	7.5 cm
Package 1 Weight:	9.5 cm
Package 1 Weight:	128 g
Unit Type of Package 2:	BB1
Number of Units in Package 2:	12
Package 2 Height:	7.8 cm
Package 2 Width:	9.8 cm
Package 2 Length:	22.2 cm
Package 2 Weight:	1.595 kg
Unit Type of Package 3:	S03
Number of Units in Package 3:	132
Package 3 Height:	30 cm
Package 3 Width:	30 cm
Package 3 Length:	40 cm
Package 3 Weight:	18.224 kg
Package 3 Weight:	18.224 kg

In stock

Receives in 5 days.

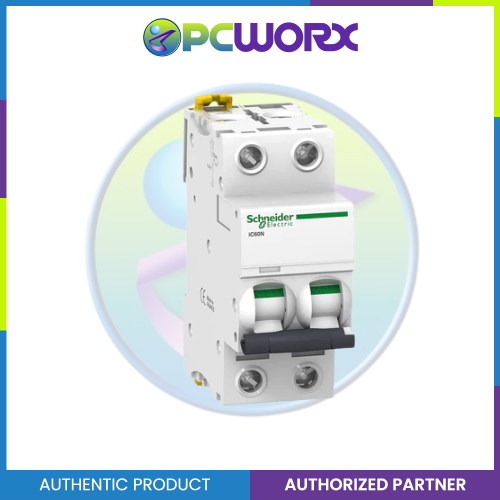

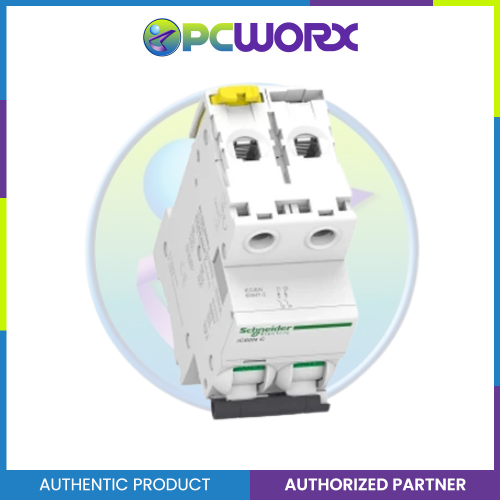

Schneider Acti9 IEC 2P 16A C DIN-Rail Type Miniature Circuit Breaker 230/400V (A9F74216)

PCWORX

Schneider Acti9 IEC 2P 16A C DIN-Rail Type Miniature Circuit Breaker 230/400V (A9F74216)

(0)

₱914.76

In stock

Receives in 5 days.

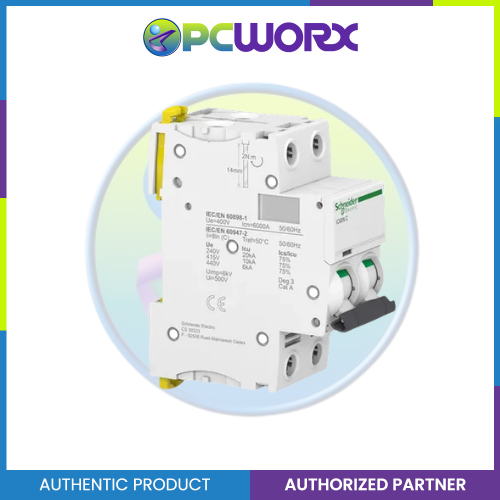

Schneider Acti9 IEC 2P 25A C DIN-Rail Type Miniature Circuit Breaker 440V 10kAIC (A9F74225)

PCWORX

Schneider Acti9 IEC 2P 25A C DIN-Rail Type Miniature Circuit Breaker 440V 10kAIC (A9F74225)

(0)

₱834.96

Category	Parameter	Specification
Main	Device application	Distribution
	Range	Acti9
	Product name	Acti9 iC60
	Product or component type	Miniature circuit-breaker
	Device short name	IC60N
	Poles description	2P
	Number of protected poles	2
	Rated current [In]	25 A
	Network type	AC / DC
	Trip unit technology	Thermal-magnetic
	Curve code	C
	Breaking capacity	6 kA Icn at 400 V AC 50/60 Hz (EN/IEC 60898-1)
		36 kA Icu at 12…133 V AC 50/60 Hz (EN/IEC 60947-2)
		20 kA Icu at 220…240 V AC 50/60 Hz (EN/IEC 60947-2)
		10 kA Icu at 380…415 V AC 50/60 Hz (EN/IEC 60947-2)
		6 kA Icu at 440 V AC 50/60 Hz (EN/IEC 60947-2)
		10 kA Icu at ≤125 V DC (EN/IEC 60947-2)
	Utilisation category	Category A (EN / IEC 60947-2)
	Suitability for isolation	Yes (EN / IEC 60898-1 & 60947-2)
	Standards	IEC 60898-1, IEC 60947-2, EN 60898-1, EN 60947-2
Complementary	Network frequency	50/60 Hz
	Magnetic tripping limit	8 × In ±20 %
	Rated service breaking capacity [Ics]	15 kA (75% Icu) at 220…240 V AC (EN/IEC 60947-2)
		7.5 kA (75% Icu) at 380…415 V AC (EN/IEC 60947-2)
		4.5 kA (75% Icu) at 440 V AC (EN/IEC 60947-2)
		27 kA (75% Icu) at 12…133 V AC (EN/IEC 60947-2)
		6 kA (100% Icn) at 400 V AC (EN/IEC 60898-1)
		10 kA (100%) at 72…125 V DC (EN/IEC 60947-2)
	Limitation class	Class 3 (EN / IEC 60898-1)
	Rated insulation voltage [Ui]	500 V AC 50/60 Hz (EN / IEC 60947-2)
	Rated impulse withstand voltage [Uimp]	6 kV (EN / IEC 60947-2)
	Contact position indicator	Yes
	Control type	Toggle
	Local signalling	Trip indicator
	Mounting mode	Fixed
	Mounting support	DIN rail
	Comb busbar compatibility	Top or bottom: Yes
	Number of 9 mm pitches	4
Dimensions & Physical	Height	85 mm
	Width	36 mm
	Depth	78.5 mm
	Net weight	0.25 kg
	Colour	White
	Mechanical durability	20,000 cycles
	Electrical durability	10,000 cycles
Connections	Terminal type	Single terminal (top or bottom)
	Rigid conductor size	1…25 mm²
	Flexible conductor size	1…16 mm²
	Wire stripping length	14 mm
	Tightening torque	2 N·m
	Earth-leakage protection	Separate block
Environment	IP degree of protection	IP20 (IEC / EN 60529)
	Pollution degree	3 (IEC / EN 60947-2)
	Overvoltage category	IV
	Tropicalisation	2 (IEC 60068-1)
	Relative humidity	95 % at 55 °C
	Operating altitude	0…2000 m
	Operating temperature	-35…70 °C
	Storage temperature	-40…85 °C

In stock

Receives in 5 days.

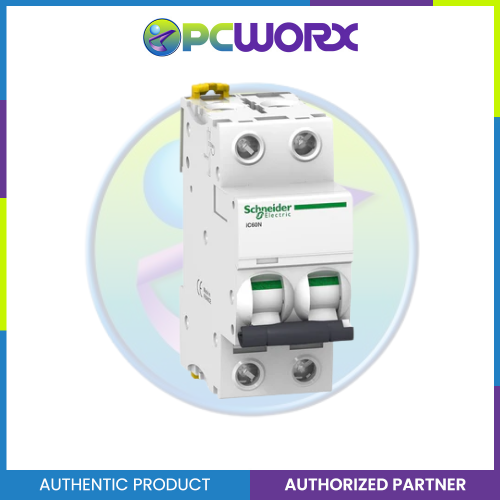

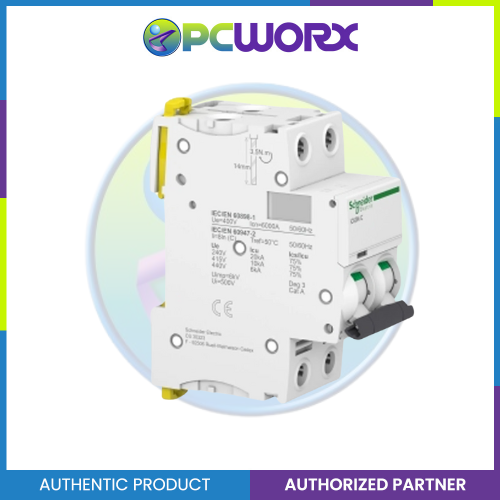

Schneider Acti9 IEC 2P 40A C DIN-Rail Type Miniature Circuit Breaker 230/400V 10kAIC (A9F74240)

PCWORX

Schneider Acti9 IEC 2P 40A C DIN-Rail Type Miniature Circuit Breaker 230/400V 10kAIC (A9F74240)

(0)

₱834.96

Category	Specification	Details
Main	Device application	Distribution
	Range	Acti9
	Product name	Acti9 iC60
	Product or component type	Miniature circuit-breaker
	Device short name	IC60N
	Poles description	2P
	Number of protected poles	2
	Rated current [In]	40 A
	Network type	AC / DC
	Trip unit technology	Thermal-magnetic
	Curve code	C
	Breaking capacity	6000 A Icn at 400 V AC (EN/IEC 60898-1)36 kA Icu at 12–133 V AC10 kA Icu ≤125 V DC10 kA Icu at 380–415 V AC20 kA Icu at 220–240 V AC6 kA Icu at 440 V AC
	Utilisation category	Category A (EN/IEC 60947-2)
	Suitability for isolation	Yes (EN/IEC 60898-1, EN/IEC 60947-2)
	Standards	EN 60898-1, EN 60947-2, IEC 60898-1, IEC 60947-2
Complementary	Network frequency	50/60 Hz
	Magnetic tripping limit	8 × In ±20%
	Rated service breaking capacity [Ics]	Up to 27 kA (75%) and 10 kA (100%) depending on voltage and standard
	Limitation class	Class 3 (EN/IEC 60898-1)
	Rated insulation voltage [Ui]	500 V AC
	Impulse withstand voltage [Uimp]	6 kV
	Contact position indicator	Yes
	Control type	Toggle
	Local signalling	Trip indicator
	Mounting mode	Fixed
	Mounting support	DIN rail
	Comb busbar compatibility	Top or bottom
	9 mm pitches	4
Physical	Height	85 mm
	Width	36 mm
	Depth	78.5 mm
	Net weight	0.25 kg
	Colour	White
Durability	Mechanical durability	20,000 cycles
	Electrical durability	10,000 cycles
Connections	Terminal type	Single terminal (top or bottom)
	Conductor size	1–35 mm² rigid / 1–25 mm² flexible
	Wire stripping length	14 mm
	Tightening torque	3.5 N·m
	Earth-leakage protection	Separate block
Environment	IP degree of protection	IP20 (IEC/EN 60529)
	Pollution degree	3
	Overvoltage category	IV
	Tropicalisation	Class 2
	Relative humidity	95% at 55 °C
	Operating altitude	0–2000 m
	Operating temperature	−35 to 70 °C
	Storage temperature	−40 to 85 °C
Packing Units	Package 1	PCE – 1 unit – 7.5 × 3.5 × 9.5 cm – 239 g
	Package 2	BB1 – 6 units – 8.0 × 9.6 × 22.5 cm – 1.493 kg
	Package 3	S03 – 66 units – 30 × 30 × 40 cm – 17.009 kg

In stock

Receives in 5 days.

Schneider Acti9 IEC, 1-Pole 20A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74120)

PCWORX

Schneider Acti9 IEC, 1-Pole 20A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74120)

(0)

₱473.00

Category	Specification
Device Application	Distribution
Range	Acti9
Product Name	Acti9 iC60
Product / Component Type	Miniature circuit-breaker
Device Short Name	IC60N
Poles Description	1P
Number of Protected Poles	1
Rated Current (In)	20 A
Network Type	AC / DC
Trip Unit Technology	Thermal-magnetic
Curve Code	C
Utilisation Category	Category A (EN 60947-2 / IEC 60947-2)
Suitability for Isolation	Yes (EN/IEC 60898-1, EN/IEC 60947-2)
Standards	EN 60898-1, EN 60947-2, IEC 60898-1, IEC 60947-2

Breaking & Protection Ratings

Parameter	Specification
Breaking Capacity (Icn)	6 kA at 230 V AC 50/60 Hz (EN/IEC 60898-1)
Breaking Capacity (Icu)	10 kA ≤ 72 V DC; 15 kA at 12–60 V DC; 10 kA at 220–240 V AC; 36 kA at 12–60 V AC; 20 kA at 100–133 V AC (EN/IEC 60947-2)
Rated Service Breaking Capacity (Ics)	Up to 27 kA (75 %) depending on voltage and standard
Limitation Class	Class 3 (EN/IEC 60898-1)
Magnetic Tripping Limit	8 × In ±20 %

Electrical Characteristics

Item	Specification
Network Frequency	50/60 Hz
Rated Insulation Voltage (Ui)	500 V AC
Rated Impulse Withstand Voltage (Uimp)	6 kV
Contact Position Indicator	Yes
Control Type	Toggle
Local Signalling	Trip indicator
Earth-leakage Protection	Without

Mechanical & Mounting Details

Item	Specification
Mounting Mode	Fixed
Mounting Support	DIN rail
Busbar Compatibility	Top or bottom: Yes
9 mm Pitches	2
Height	85 mm
Width	18 mm
Depth	78.5 mm
Net Weight	0.215 kg
Colour	White
Mechanical Durability	20,000 cycles
Electrical Durability	10,000 cycles

Connections

Item	Specification
Terminal Type	Single terminal (top or bottom)
Rigid Conductor Size	1–25 mm²
Flexible Conductor Size	1–16 mm²
Wire Stripping Length	14 mm
Tightening Torque	2 N·m

Environmental Specifications

Item	Specification
IP Degree of Protection	IP20 (IEC / EN 60529)
Pollution Degree	3 (IEC / EN 60947-2)
Overvoltage Category	IV
Tropicalisation	2 (IEC 60068-1)
Relative Humidity	95 % at 55 °C
Operating Altitude	0–2000 m
Operating Temperature	−35…70 °C
Storage Temperature	−40…85 °C

Packing Units

Package	Unit Type	Units per Package	Height	Width	Length	Weight
Package 1	PCE	1	1.8 cm	7.3 cm	9.5 cm	114 g
Package 2	BB1	12	8.0 cm	10.0 cm	22.5 cm	1.424 kg
Package 3	S03	132	30 cm	30 cm	40 cm	16.160 kg

In stock

Receives in 5 days.

Schneider Acti9 IEC, 1-Pole 32A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74132)

PCWORX

Schneider Acti9 IEC, 1-Pole 32A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74132)

(0)

₱496.00

Category	Specification
Device Application	Distribution
Range	Acti9
Product Name	Acti9 iC60
Product / Component Type	Miniature circuit-breaker
Device Short Name	IC60N
Poles Description	1P
Number of Protected Poles	1
Rated Current (In)	32 A
Network Type	AC / DC
Trip Unit Technology	Thermal-magnetic
Curve Code	C
Utilisation Category	Category A (EN / IEC 60947-2)
Suitability for Isolation	Yes (EN / IEC 60898-1, EN / IEC 60947-2)
Standards	EN 60947-2, IEC 60947-2, EN 60898-1, IEC 60898-1

Breaking & Protection Ratings

Parameter	Specification
Breaking Capacity (Icn)	6 kA at 230 V AC 50/60 Hz (EN/IEC 60898-1)
Breaking Capacity (Icu)	Up to 36 kA depending on voltage (EN/IEC 60947-2)
Rated Service Breaking Capacity (Ics)	Up to 27 kA (75 %) depending on voltage and standard
Limitation Class	Class 3 (EN / IEC 60898-1)
Magnetic Tripping Limit	8 × In ±20 %

Electrical Characteristics

Item	Specification
Network Frequency	50/60 Hz
Rated Insulation Voltage (Ui)	500 V AC
Rated Impulse Withstand Voltage (Uimp)	6 kV
Contact Position Indicator	Yes
Control Type	Toggle
Local Signalling	Trip indicator
Earth-leakage Protection	Without

Mechanical & Mounting Details

Item	Specification
Mounting Mode	Fixed
Mounting Support	DIN rail
Busbar Compatibility	Top or bottom: Yes
9 mm Pitches	2
Height	85 mm
Width	18 mm
Depth	78.5 mm
Net Weight	0.215 kg
Colour	White
Mechanical Durability	20,000 cycles
Electrical Durability	10,000 cycles

Connections

Item	Specification
Terminal Type	Single terminal (top or bottom)
Rigid Conductor Size	1–35 mm²
Flexible Conductor Size	1–25 mm²
Wire Stripping Length	14 mm
Tightening Torque	3.5 N·m

Environmental Specifications

Item	Specification
IP Degree of Protection	IP20 (IEC / EN 60529)
Pollution Degree	3 (IEC / EN 60947-2)
Overvoltage Category	IV
Tropicalisation	2 (IEC 60068-1)
Relative Humidity	95 % at 55 °C
Operating Altitude	0–2000 m
Operating Temperature	−35…70 °C
Storage Temperature	−40…85 °C

Packing Units

Package	Unit Type	Units per Package	Height	Width	Length	Weight
Package 1	PCE	1	2.0 cm	7.5 cm	9.5 cm	120.5 g
Package 2	BB1	12	8.0 cm	10.0 cm	22.5 cm	1.500 kg
Package 3	S03	132	30 cm	30 cm	40 cm	16.876 kg

In stock

Receives in 5 days.

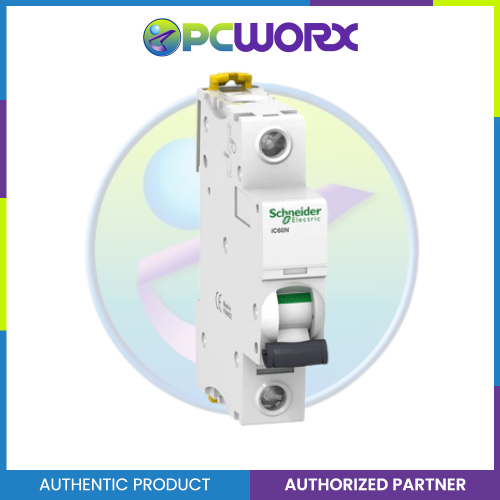

Schneider Acti9 IEC, 1-Pole 40A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74140)

PCWORX

Schneider Acti9 IEC, 1-Pole 40A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74140)

(0)

₱504.00

Category	Specification	Details
Main	Device application	Distribution
	Range	Acti9
	Product name	Acti9 iC60
	Product or component type	Miniature circuit-breaker
	Device short name	IC60N
	Poles description	1P
	Number of protected poles	1
	Rated current [In]	40 A
	Network type	AC / DC
	Trip unit technology	Thermal-magnetic
	Curve code	C
	Breaking capacity	6 kA Icn at 230 V AC (EN/IEC 60898-1)10 kA Icu ≤ 72 V DC15 kA Icu at 12–60 V DC10 kA Icu at 220–240 V AC36 kA Icu at 12–60 V AC20 kA Icu at 100–133 V AC
	Utilisation category	Category A (EN/IEC 60947-2)
	Suitability for isolation	Yes (EN/IEC 60898-1, EN/IEC 60947-2)
	Standards	EN 60898-1, IEC 60898-1, EN 60947-2, IEC 60947-2
Complementary	Network frequency	50/60 Hz
	Magnetic tripping limit	8 × In ±20%
	Rated service breaking capacity [Ics]	Up to 27 kA (75%) and 15 kA (100%) depending on voltage and standard
	Limitation class	Class 3 (EN/IEC 60898-1)
	Rated insulation voltage [Ui]	500 V AC
	Impulse withstand voltage [Uimp]	6 kV
	Contact position indicator	Yes
	Control type	Toggle
	Local signalling	Trip indicator
	Mounting mode	Fixed
	Mounting support	DIN rail
	Comb busbar compatibility	Top or bottom
	9 mm pitches	2
Physical	Height	85 mm
	Width	18 mm
	Depth	78.5 mm
	Net weight	0.215 kg
	Colour	White
Durability	Mechanical durability	20,000 cycles
	Electrical durability	10,000 cycles
Connections	Terminal type	Single terminal (top or bottom)
	Conductor size	1–35 mm² rigid / 1–25 mm² flexible
	Wire stripping length	14 mm
	Tightening torque	3.5 N·m
	Earth-leakage protection	Without
Environment	IP degree of protection	IP20 (IEC/EN 60529)
	Pollution degree	3
	Overvoltage category	IV
	Tropicalisation	Class 2 (IEC 60068-1)
	Relative humidity	95% at 55 °C
	Operating altitude	0–2000 m
	Operating temperature	−35 to 70 °C
	Storage temperature	−40 to 85 °C
Packing Units	Package 1	PCE – 1 unit – 7.5 × 1.8 × 9.5 cm – 119 g
	Package 2	BB1 – 12 units – 7.8 × 9.8 × 22.2 cm – 1.497 kg
	Package 3	S03 – 132 units – 30 × 30 × 40 cm – 16.976 kg

In stock

Receives in 5 days.

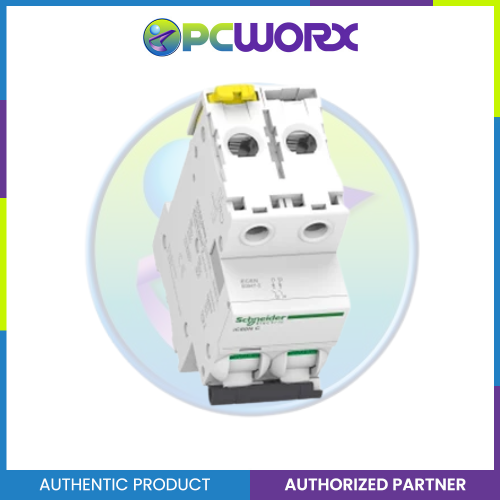

Schneider Acti9 IEC, 2-Pole 63A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74263)

PCWORX

Schneider Acti9 IEC, 2-Pole 63A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74263)

(0)

₱1,276.80

Specifications
Main
Device application
Distribution
Range
Acti9
Product name
Acti9 iC60
Product or component type
Miniature circuit-breaker
Device short name
IC60N
Poles description
2P
Number of protected poles
2
[In] rated current
63 A
Network type
DC
AC
Trip unit technology
Thermal-magnetic
Curve code
C
Breaking capacity
6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
36 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
10 kA Icu at <= 125 V DC conforming to EN/IEC 60947-2
10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
Utilisation category
Category A conforming to EN 60947-2
Category A conforming to IEC 60947-2
Suitability for isolation
Yes conforming to EN 60898-1
Yes conforming to EN 60947-2
Yes conforming to IEC 60898-1
Yes conforming to IEC 60947-2
Standards
IEC 60898-1
EN 60947-2
EN 60898-1
IEC 60947-2
Complementary
Network frequency
50/60 Hz
Magnetic tripping limit
8 x In +/- 20 %
[Ics] rated service breaking capacity
15 kA 75 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz
7.5 kA 75 % conforming to EN 60947-2 - 380...415 V AC 50/60 Hz
4.5 kA 75 % conforming to EN 60947-2 - 440 V AC 50/60 Hz
15 kA 75 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz
7.5 kA 75 % conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz
4.5 kA 75 % conforming to IEC 60947-2 - 440 V AC 50/60 Hz
27 kA 75 % conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz
27 kA 75 % conforming to EN 60947-2 - 12...133 V AC 50/60 Hz
6000 A 100 % conforming to EN 60898-1 - 400 V AC 50/60 Hz
6000 A 100 % conforming to IEC 60898-1 - 400 V AC 50/60 Hz
10 kA 100 % conforming to IEC 60947-2 - 72...125 V DC
10 kA 100 % conforming to EN 60947-2 - 72...125 V DC
Limitation class
3
[Ui] rated insulation voltage
500 V AC 50/60 Hz conforming to EN 60947-2
500 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage
6 kV conforming to EN 60947-2
6 kV conforming to IEC 60947-2
Contact position indicator
Yes
Control type
Toggle
Local signalling
Trip indicator
Mounting mode
Fixed
Mounting support
DIN rail
Comb busbar and distribution block compatibility
Top or bottom: YES
9 mm pitches
4
Height
85 mm
Width
36 mm
Depth
78.5 mm
Net weight
0.25 kg
Colour
White
Mechanical durability
20000 cycles
Electrical durability
10000 cycles
Connections - terminals
Single terminal (top or bottom) 1…35 mm² rigid
Single terminal (top or bottom) 1…25 mm² flexible
Wire stripping length
14 mm for top or bottom connection
Tightening torque
3.5 N.m top or bottom
Earth-leakage protection
Separate block
Environment
IP degree of protection
IP20 conforming to IEC 60529
IP20 conforming to EN 60529
Pollution degree
3 conforming to EN 60947-2
3 conforming to IEC 60947-2
Overvoltage category
IV
Tropicalisation
2 conforming to IEC 60068-1
Relative humidity
95 % at 55 °C
Operating altitude
0...2000 m
Ambient air temperature for operation
-35…70 °C
Ambient air temperature for storage
-40…85 °C
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
7.500 cm
Package 1 Width
3.600 cm
Package 1 Length
9.500 cm
Package 1 Weight
252.000 g
Unit Type of Package 2
BB1
Number of Units in Package 2
6
Package 2 Height
8.000 cm
Package 2 Width
10.000 cm
Package 2 Length
22.500 cm
Package 2 Weight
1.572 kg
Unit Type of Package 3
S03
Number of Units in Package 3
66
Package 3 Height
30.000 cm
Package 3 Width
30.000 cm
Package 3 Length
40.000 cm
Package 3 Weight
17.900 kg

Out of stock

Receives in 5 days.

Schneider Acti9 IEC, 2-Pole 6A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74206)

PCWORX

Schneider Acti9 IEC, 2-Pole 6A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74206)

(0)

₱787.92

Specification	Details
Device Application	Distribution
Range	Acti9
Product Name	Acti9 iC60
Product Type	Miniature circuit-breaker
Device Short Name	IC60N
Poles Description	2P
Number of Protected Poles	2
Rated Current [In]	6 A
Network Type	AC, DC
Trip Unit Technology	Thermal-magnetic
Curve Code	C
Breaking Capacity	6000 A Icn at 400 V AC 50/60 Hz (EN/IEC 60898-1) 36 kA Icu at 12–133 V AC 50/60 Hz (EN/IEC 60947-2) 10 kA Icu ≤125 V DC (EN/IEC 60947-2) 10 kA Icu at 380–415 V AC 50/60 Hz (EN/IEC 60947-2) 20 kA Icu at 220–240 V AC 50/60 Hz (EN/IEC 60947-2) 6 kA Icu at 440 V AC 50/60 Hz (EN/IEC 60947-2)
Utilisation Category	Category A (EN 60947-2, IEC 60947-2)
Suitability for Isolation	Yes (EN/IEC 60898-1, EN/IEC 60947-2)
Standards	EN 60898-1, IEC 60898-1, EN 60947-2, IEC 60947-2
Network Frequency	50/60 Hz
Magnetic Tripping Limit	8 × In ±20%
Rated Service Breaking Capacity [Ics]	See Breaking Capacity table above for details (various % and voltages)
Limitation Class	3 (EN/IEC 60898-1)
Rated Insulation Voltage [Ui]	500 V AC 50/60 Hz (EN/IEC 60947-2)
Rated Impulse Withstand Voltage [Uimp]	6 kV (EN/IEC 60947-2)
Contact Position Indicator	Yes
Control Type	Toggle
Local Signalling	Trip indicator
Mounting Mode	Fixed
Mounting Support	DIN rail
Comb Busbar & Distribution Block Compatibility	Top or bottom: Yes
9 mm Pitches	4
Dimensions (HxWxD)	85 × 36 × 78.5 mm
Net Weight	0.25 kg
Colour	White
Mechanical Durability	20,000 cycles
Electrical Durability	10,000 cycles
Connections – Terminals	Single terminal (top/bottom) 1–25 mm² rigid, 1–16 mm² flexible
Wire Stripping Length	14 mm
Tightening Torque	2 N.m (top/bottom)
Earth-Leakage Protection	Separate block
IP Degree of Protection	IP20 (IEC/EN 60529)
Pollution Degree	3 (EN/IEC 60947-2)
Overvoltage Category	IV
Tropicalisation	2 (IEC 60068-1)
Relative Humidity	95% at 55 °C
Operating Altitude	0–2000 m
Ambient Air Temperature for Operation	-35…70 °C
Ambient Air Temperature for Storage	-40…85 °C
Packing Units – PCE	1 unit, 7.5 × 3.7 × 9.5 cm, 213 g
Packing Units – BB1	6 units, 8.5 × 10 × 22.5 cm, 1.346 kg
Packing Units – S03	66 units, 30 × 30 × 40 cm, 15.293 kg

In stock

Receives in 5 days.

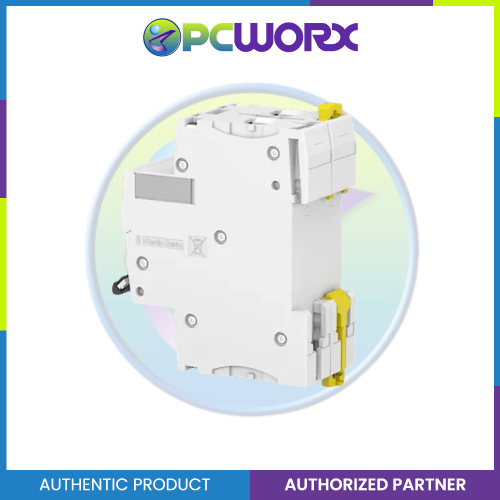

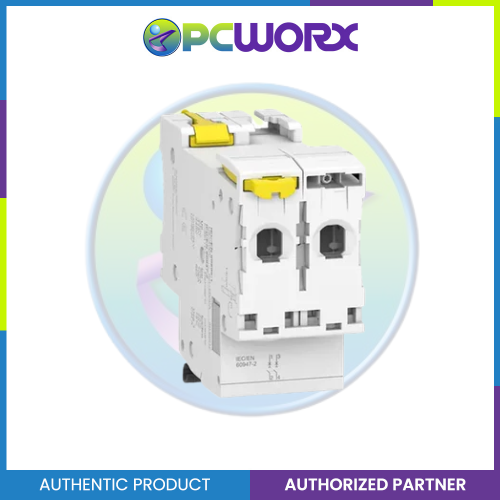

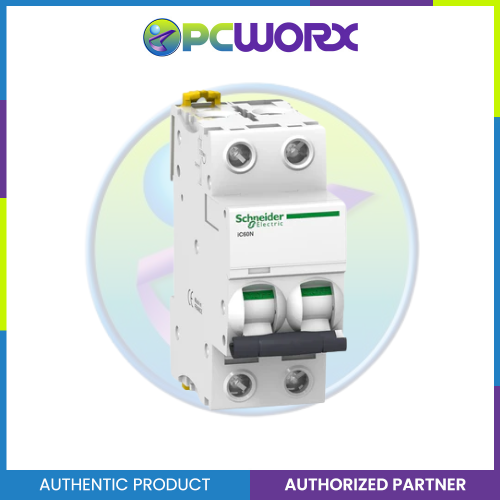

Schneider Acti9 IEC, 50A 2-Pole DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74250)

PCWORX

Schneider Acti9 IEC, 50A 2-Pole DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74250)

(0)

₱1,050.84

Specification	Details
Rated Current	50 A
Poles	2P
Rated Operational Voltage (Ue)	Up to 440 V AC
Interrupting Capacity	10 kA
Standards Compliance	IEC/EN 60898-1, IEC/EN 60947-2
Manufacturer	Schneider Electric (100% designed and manufactured)
Electrical Life	10,000 cycles
Mechanical Life	20,000 cycles
Mounting Type	DIN-rail
Communication	Compatible with Acti9 Smartlink

In stock

Receives in 5 days.

Schneider AvatarOn A 1 gang Grid Plate - BLACK M3T01-BK

PCWORX

Schneider AvatarOn A 1 gang Grid Plate - BLACK M3T01-BK

(0)

₱64.68

Main Specifications

Parameter	Value
Range of product	AvatarOn A
Product or component type	Grid plate
Number of gangs	1 gang
Colour tint	Black

Complementary Information

Parameter	Value
Material	PC (grid plate), PC (side panels)
Device mounting	Flush
Width	120 mm
Height	70 mm
Depth	22.7 mm

Environmental Specifications

Parameter	Value
Operating temperature	-5…45 °C
Relative humidity	0…95 %

Packing Units

Package 1

Parameter	Value
Unit type	PCE
Units per package	1
Dimensions (H × W × L)	2.37 × 7 × 12 cm
Weight	76 g

Out of stock

Receives in 5 days.

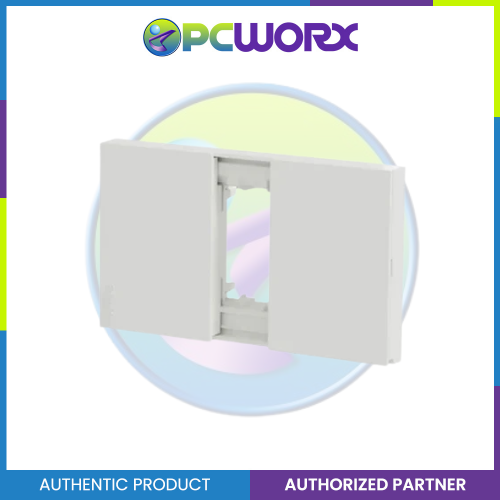

Schneider AvatarOn A 1 gang Grid Plate - GREY M3T01-GY

PCWORX

Schneider AvatarOn A 1 gang Grid Plate - GREY M3T01-GY

(0)

₱64.68

Specifications – AvatarOn A Grid Plate (1 Gang)

Main

Parameter	Specification
Range of product	AvatarOn A
Product or component type	Grid plate
Number of gangs	1 gang
Colour tint	Grey

Complementary

Parameter	Specification
Material	PC: grid plate PC: side panels
Device mounting	Flush
Width	120 mm
Height	70 mm
Depth	22.7 mm

Environment

Parameter	Specification
Ambient air temperature for operation	−5…45 °C
Relative humidity	0…95 %

Packing Units

Package	Details
Package 1	Unit type: PCE Units: 1 Height: 2.37 cm Width: 7 cm Length: 12 cm Weight: 76 g

Out of stock

Receives in 5 days.

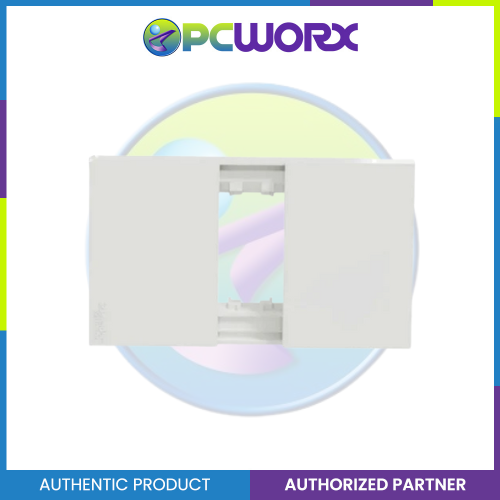

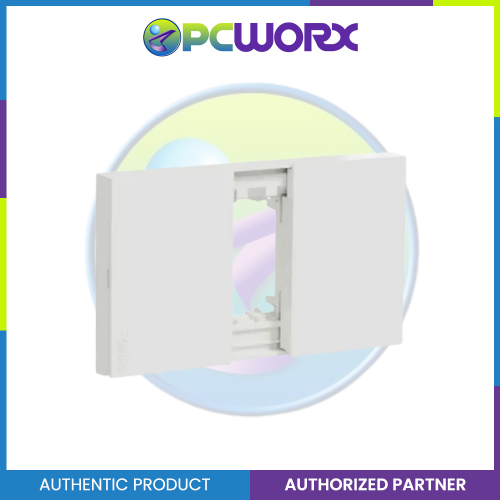

Schneider AvatarOn A 1 gang Grid Plate - WHITE M3T01-WE

PCWORX

Schneider AvatarOn A 1 gang Grid Plate - WHITE M3T01-WE

(0)

₱48.00

Category	Parameter	Specification
Main	Range of product	AvatarOn A
	Product or component type	Grid plate
	Number of gangs	1 gang
	Colour tint	White
Complementary	Material	PC (grid plate)
		PC (side panels)
	Device mounting	Flush
Dimensions	Width	120 mm
	Height	70 mm
	Depth	22.7 mm
Environment	Ambient air temperature for operation	-5…45 °C
	Relative humidity	0…95 %
Packing Units	Unit type of Package 1	PCE
	Number of units in Package 1	1
	Package 1 height	2.4 cm
	Package 1 width	7 cm
	Package 1 length	12 cm
	Package 1 weight	77 g

In stock

Receives in 5 days.

Schneider AvatarOn A 1 USB port 5 V AC-DC USB Charger Outlet - GREY M3T-USB-GY | USB Outlet

PCWORX

Schneider AvatarOn A 1 USB port 5 V AC-DC USB Charger Outlet - GREY M3T-USB-GY | USB Outlet

(0)

₱867.72

Specification	Detail
Range of Product	AvatarOn A
Product / Component Type	USB charger
Mounting Mode	Flush-mounted
Integrated Connection Type	1 USB port 5 V AC/DC, maximum load current: 2.1 A
Device Presentation	Complete product
Colour Tint	Grey
Surface Finish	Matt
Surface Treatment	Painted
Ambient Air Temperature (Operation)	-5…45 °C
Ambient Air Temperature (Storage)	-5…60 °C
Relative Humidity	0…95 %
Rated Operational Voltage [Ue]	110…220 V 50…60 Hz
Input Power	10.5 W
Maximum Load Current (2 outputs used simultaneously)	2.1 A
Material	PC (UL94 V-0)
Clamping Connection Capacity	0.5…4 mm² for solid or flexible cable(s)
Standards	IEC 62368-1
Product Certifications	IEC
IP Degree of Protection	IP20
Height	69.3 mm
Width	23.1 mm
Depth	35.5 mm
Embedding Depth	24.5 mm

Out of stock

Receives in 5 days.

Schneider AvatarOn A 1 USB port 5 V AC-DC USB Charger Outlet - WHITE M3T-USB-WE

PCWORX

Schneider AvatarOn A 1 USB port 5 V AC-DC USB Charger Outlet - WHITE M3T-USB-WE

(0)

₱826.56

Main

Parameter	Specification
Range of product	AvatarOn A
Product or component type	USB charger
Mounting mode	Flush-mounted
Integrated connection type	1 USB port 5 V AC/DC, maximum load current: 2.1 A

Complementary

Parameter	Specification
Device presentation	Complete product
Colour tint	White
Surface finish	Gloss
Ambient air temperature for operation	−5…45 °C
Ambient air temperature for storage	−5…60 °C
Relative humidity	0…95 %
Rated operational voltage $[Ue]$	110…220 V 50…60 Hz
Input power	10.5 W
Maximum load current with 2 outputs used simultaneously	2.1 A
Material	PC (UL94 V-0)
Clamping connection capacity	0.5…4 mm² for solid or flexible cable(s)
Height	69.3 mm
Width	23.1 mm
Depth	35.5 mm
Embedding depth	24.5 mm

Environment

Parameter	Specification
Standards	IEC 62368-1
Product certifications	IEC
IP degree of protection	IP20

Packing Units

Package	Details
Package 1	Unit type: PCE Units: 1 Height: 3.6 cm Width: 2.3 cm Length: 7.0 cm Weight: 35 g

Out of stock

Receives in 5 days.

Schneider AvatarOn A 16A 250V 2G 2 Pin Universal Socket-outlet Grey A70426US-GY | Switch Outlet

PCWORX

Schneider AvatarOn A 16A 250V 2G 2 Pin Universal Socket-outlet Grey A70426US-GY | Switch Outlet

(0)

₱322.56

Out of stock

Receives in 5 days.

Schneider AvatarOn A 16A 250V 2G 2 Pin Universal Socket-outlet White A70426US-WE | Switch Outlet

PCWORX

Schneider AvatarOn A 16A 250V 2G 2 Pin Universal Socket-outlet White A70426US-WE | Switch Outlet

(0)

₱258.00

Category	Specification
Range of Product	AvatarOn A
Product / Component Type	Socket-outlet
Device Presentation	Complete product
Colour Tint	Grey
Outlet Poles Configuration	2 × 2P
Rated Current	16 A at 250 V AC, 50…60 Hz
Socket Number	2
Clamping Connection Capacity	2 × 1.5…4 mm² (solid cables); 2 × 1.5…4 mm² (stranded cables)
Connections – Terminals	Screwless terminals
Material	Polycarbonate grid plate; Polycarbonate cover
Device Mounting	Flush
Width	120 mm
Height	70 mm
Depth	36.35 mm
Embedding Depth	24.85 mm
IP Degree of Protection	IP20
Maximum Ambient Temperature (Operation)	35 °C
Ambient Temperature (Storage)	−5…45 °C
Relative Humidity	0…95 %
Operating Altitude	< 2000 m
Standards	IEC 60884-1
Product Certifications	IEC

Package	Unit Type	Units per Package	Height	Width	Length	Weight
Package 1	PCE	1	3.65 cm	7 cm	12 cm	140 g
Package 2	BB1	10	8.8 cm	18.5 cm	26.5 cm	1.506 kg
Package 3	S03	60	30 cm	30 cm	40 cm	9.686 kg

In stock

Receives in 5 days.

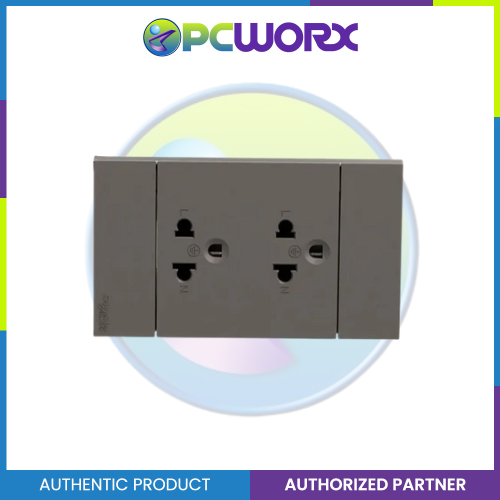

Schneider AvatarOn A 16A 250V 2G 3 Pin Universal Socket-outlet Black A70426UST-BK

PCWORX

Schneider AvatarOn A 16A 250V 2G 3 Pin Universal Socket-outlet Black A70426UST-BK

(0)

₱358.80

In stock

Receives in 5 days.

Schneider AvatarOn A 16A 250V 2G 3 Pin Universal Socket-outlet Grey A70426UST-GY

PCWORX

Schneider AvatarOn A 16A 250V 2G 3 Pin Universal Socket-outlet Grey A70426UST-GY

(0)

₱395.00

Category	Parameter	Specification
Main	Range of product	AvatarOn A
	Product or component type	Socket-outlet
	Device presentation	Complete product
	Colour tint	Grey
	Outlet poles configuration	2P + E
Complementary	Rated current	16 A at 250 V AC, 50…60 Hz
	Socket number	1
	Clamping connection capacity (solid)	2 × 1.5…2 × 4 mm²
	Clamping connection capacity (stranded)	2 × 1.5…2 × 4 mm²
	Connections – terminals	Screwless terminals
	Material (grid plate)	Polycarbonate
	Material (cover)	Polycarbonate
	Device mounting	Flush
	Width	120 mm
	Height	70 mm
	Depth	30.3 mm
	Embedding depth	19 mm
Environment	IP degree of protection	IP20
	Maximum ambient air temperature (operation)	35 °C
	Ambient air temperature (storage)	-5…45 °C
	Relative humidity	0…95 %
	Operating altitude	< 2000 m
Standards	Standards	IEC 60884-1
	Product certifications	IEC
Packing	Unit type of package 1	PCE
	Number of units in package 1	1
	Package 1 height	3 cm
	Package 1 width	7 cm
	Package 1 length	12 cm
	Package 1 weight	137 g

Out of stock

Receives in 5 days.

Schneider AvatarOn A 16A 250V 2G 3Pin Universal Socket Outlet White A70426UST-WE

PCWORX

Schneider AvatarOn A 16A 250V 2G 3Pin Universal Socket Outlet White A70426UST-WE

(0)

₱288.00

In stock

Receives in 5 days.

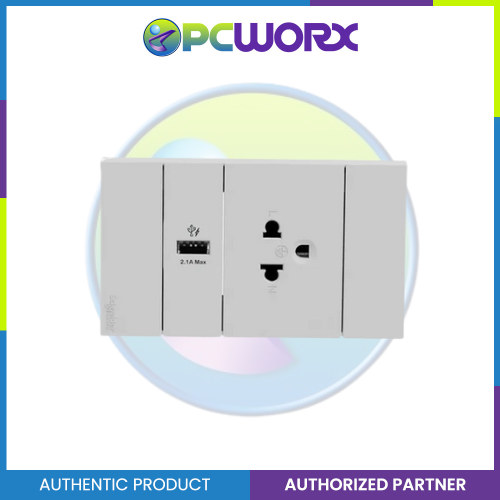

Schneider AvatarOn A 16A 250V 3 Pin USB Charger Universal Socket Grey A70426USB-UST-GY

PCWORX

Schneider AvatarOn A 16A 250V 3 Pin USB Charger Universal Socket Grey A70426USB-UST-GY

(0)

₱1,087.80

Out of stock

Receives in 5 days.

Specifications:
Product Name:	S-Flexi Aluminum Empty Floor Socket with Wall Box
Model Number:	E224F-ABE
Product Range:	S-Flexi
Floor Box Shape:	Rectangular
Color:	Aluminum (brushed finish)
Material:	Zinc alloy
Application:	Floor Outlet Box
Protection Rating:	IP44
Embedding Depth:	6.5 cm
Installation:	Easy installation in carpeted or hard floor settings
Other Features:
Special grid plate for versatile module combinations
Durable construction for reliability
Suitable for flush or surface-mounted installations

Specifications
Model:	Acti9 iC60N
Catalog Number:	A9F74216
Poles:	2P
Rated Current:	16A
Tripping Characteristic:	Type C
Nominal AC Voltage:	500V AC
Rated AC Voltage (Ue):	Up to 440 VAC
Performance & Electrical Features
Interrupting Capacity:	10 kA (IEC 60947-2)
Breaking Capacity (IEC 60898-1):	6kA at 400V AC
Electrical Life:	10,000 cycles
Mechanical Life:	20,000 cycles
VisiTrip™:	Indicates the faulty circuit for quick diagnosis
VisiSafe™:	Ensures the downstream circuit is always safe
Communication Ready:	With Acti9 Smartlink
Installation & Environmental
Mounting:	DIN-rail mount
Dimensions:	36mm (W) x 85mm (H) x 78.5mm (D)
Operating Temperature:	-35°C to 70°C
Storage Temperature:	-40°C to 85°C
Degree of Protection (IP):	IP20
Standards Compliance
Industry Standards:	Fully compliant with IEC/EN 60898-1 and IEC/EN 60947-2

Main menu

Product comparison

Specifications
Product Name:	AvatarOn A Switch
Model:	A7031F_GY
Color:	Grey
Rating:	16AX, 250V~
Number of Gangs:	1
Number of Ways:	1
Local Signalling:	Fluorescent (black)
Terminals:	Screwless type
Material:	PC 10% GF
Dimensions:
Width:	120 mm
Height:	70 mm
Depth:	33 mm
Embedding Depth:	22 mm
IP Rating:	IP20
Mounting: Flush type mounting box required	IP20
Certifications:	IEC, TIS

Main menu

MAXIMIZEBF

Explore Related Collections
