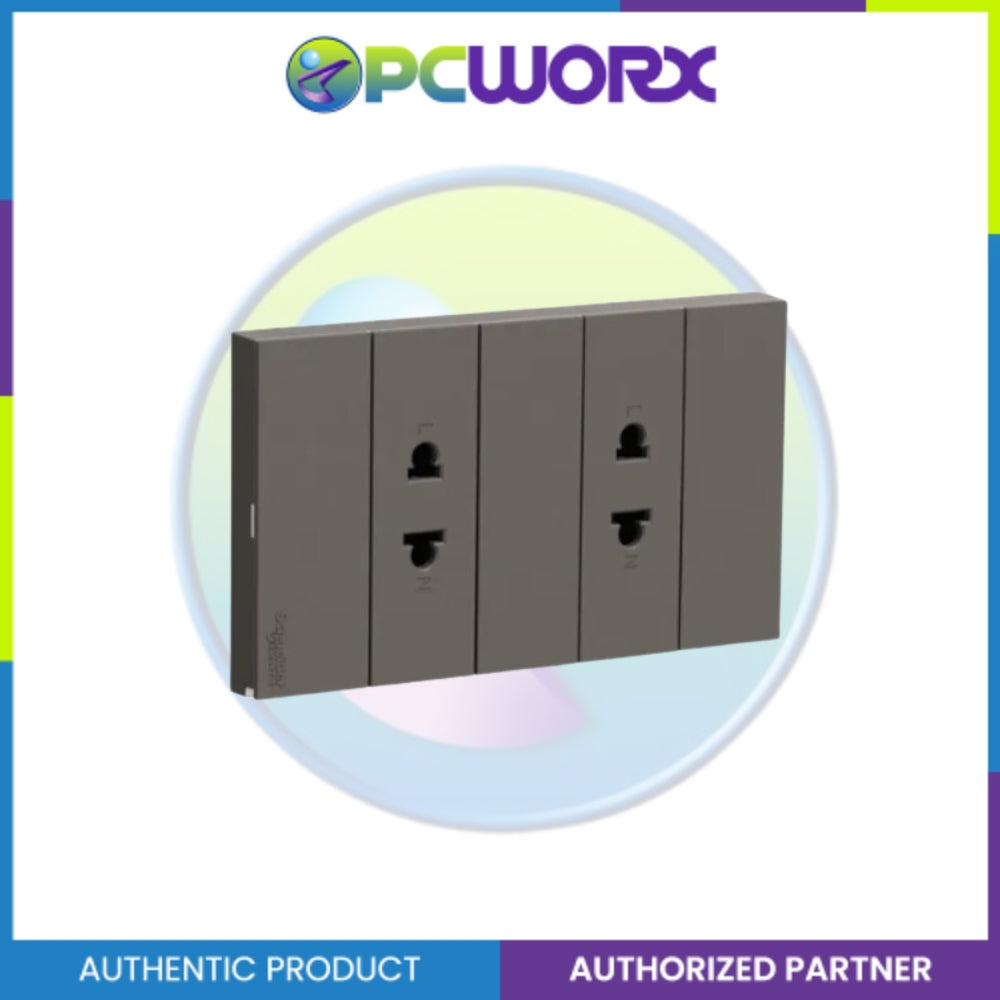

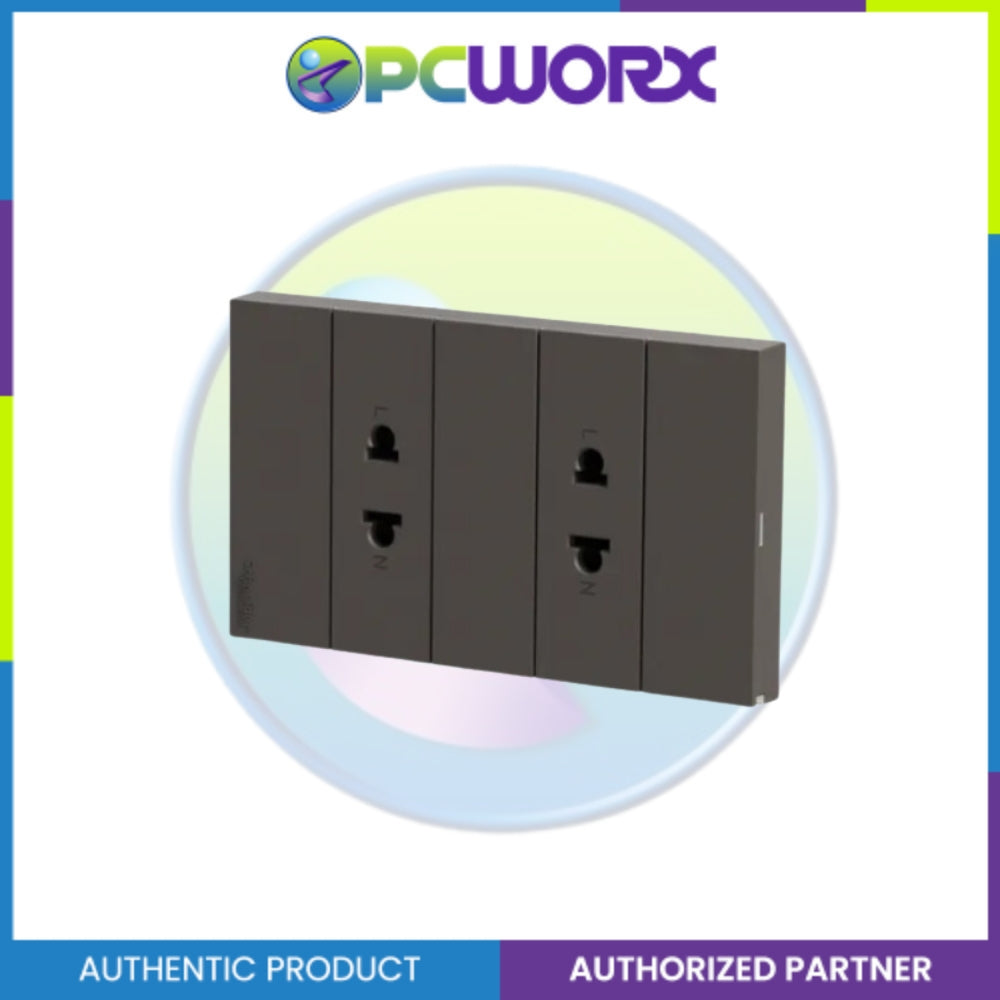

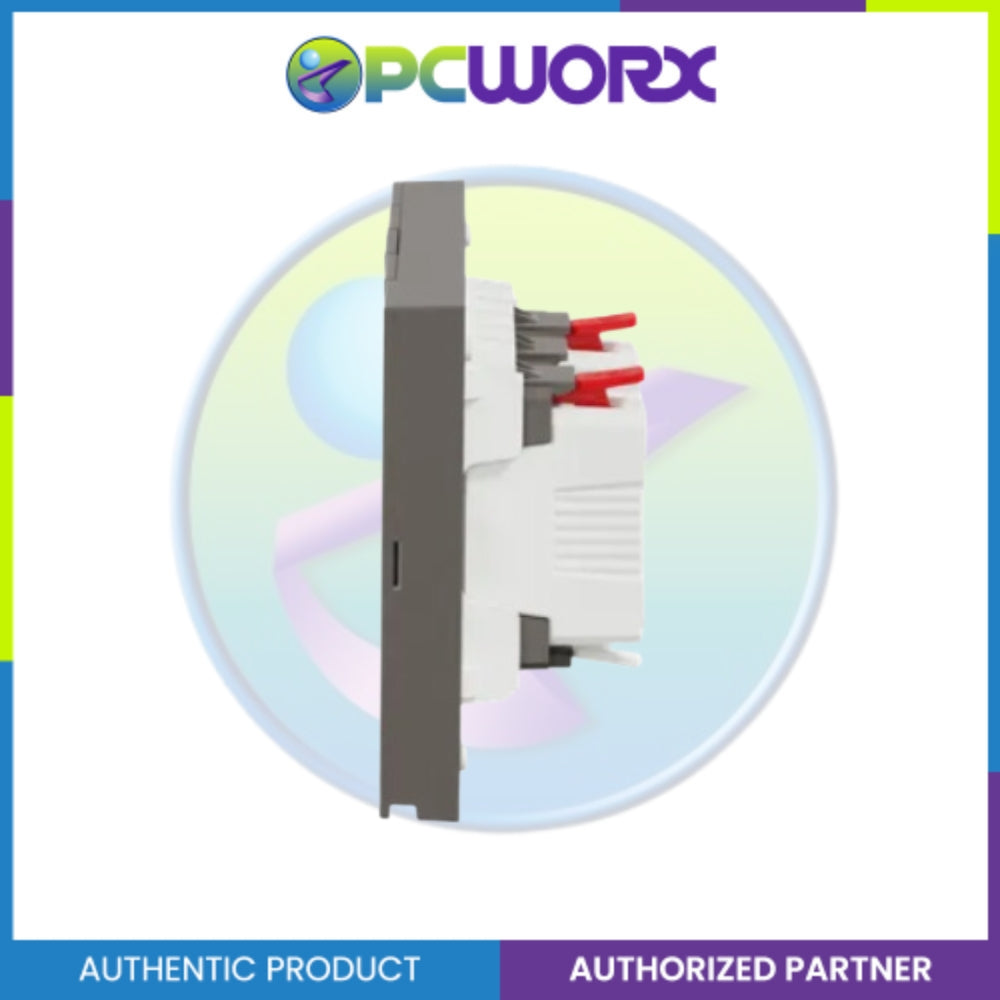

Schneider A70426US_BK Outlet 16A 250V~ 2G 2Pin Uni Skt, BK
DESCRIPTION
Schneider Electric AvatarOn socket-outlet A70426US_BK is a complete product in color black. With 2 socket outlets. The pole configuration of the outlet is 2 x 2P. And its rated current is 16A. Its matching mounting box can be recessed into the surface of the wall with flush type. The connection terminals of this socket-outlet are screwless terminals. It is 120 mm in width, 70 mm in height, and 36.35 mm in depth. The IP rating of this device is IP20. Being made of polycarbonate material, this socket-outlet is quite reliable and resistant. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.
SPECIFICATIONS
| Main | |
| Range of product | AvatarOn A |
| Product or component type | Socket-outlet |
| Device presentation | Complete product |
| Colour tint | Black |
| Outlet poles configuration | 2 x 2P |
| Colour tint | Black |
| Complementary | |
| Rated current | 16 A at 250 V AC 50...60 Hz |
| Socket number | 2 |
| Clamping connection capacity | 2 x 1.5...2 x 4 mm² for solid cable(s) |
| 2 x 1.5...2 x 4 mm² for stranded cable(s) | |
| Connections - terminals | Screwless terminals |
| Material | Polycarbonate grid plate |
| Polycarbonate cover | |
| Device mounting | Flush |
| Width | 120 mm |
| Height | 70 mm |
| Depth | 36.35 mm |
| Embedding depth | 24.85 mm |
| Environment | |
| IP degree of protection | IP20 |
| Maximum ambient air temperature for operation | 35 °C |
| Ambient air temperature for storage | -5…45 °C |
| Relative humidity | 0…95 % |
| Operating altitude | < 2000 m |
| Standards | IEC 60884-1 |
| Product certifications | IEC |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.65 cm |
| Package 1 Width | 7 cm |
| Package 1 Length | 12 cm |
| Package 1 Weight | 140 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 8.8 cm |
| Package 2 Width | 18.5 cm |
| Package 2 Length | 26.5 cm |
| Package 2 Weight | 1.506 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 9.686 kg |
