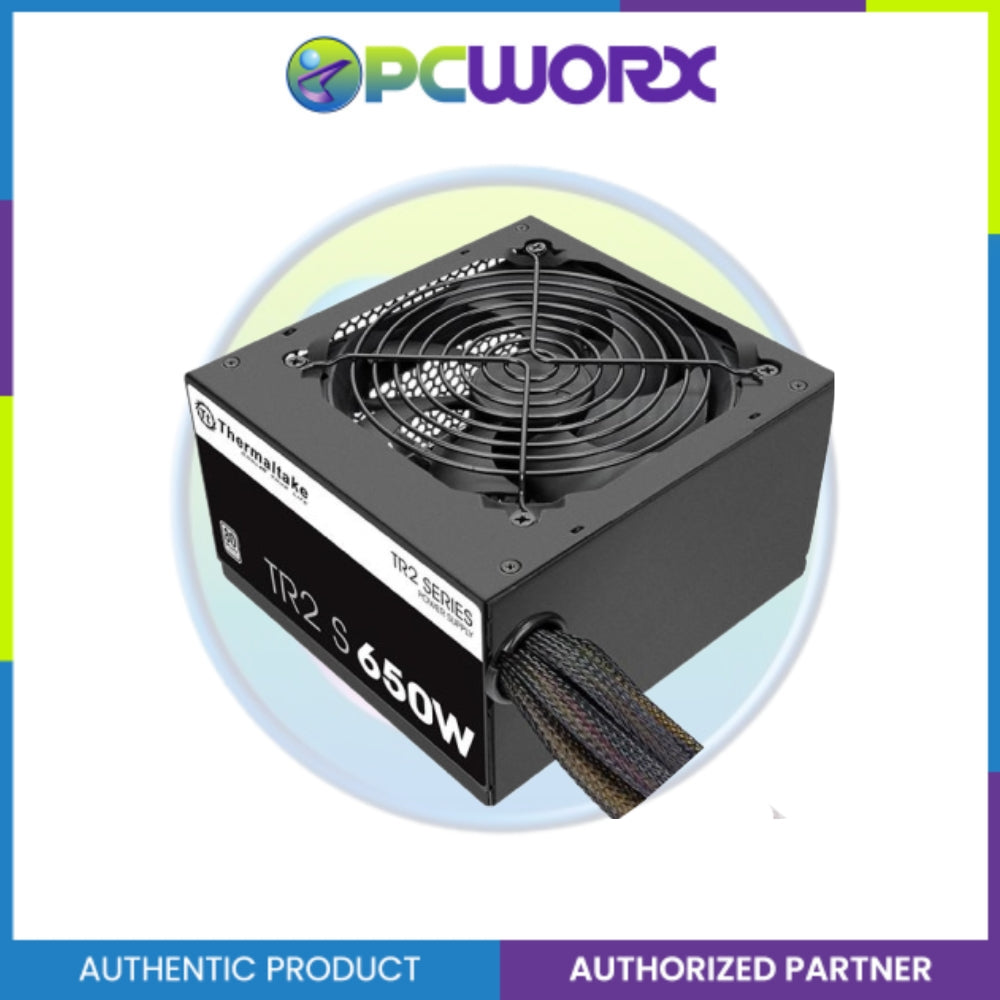

KEY FEATURES 650W continuous output at 30°C/86°F operating environment. 80 PLUS 230V EU certified, deliver great efficiency under real world condition. Low-profile flat cables. Ultra Quiet 120mm fluid bearing fan delivers excellent airflow. High amperage single +12V rail design.  DC-DC design for more precise electrical output. Intel C6/C7 states & ErP ready. Built-in industry grade protections: OVP, OPP, SCP Compact Sizing: 150mm(W)x86mm(H)x140mm(D).  Thermaltake TR2 S 650W Incorporating various high-quality components, the new TR2 S Series – models are rated from 350W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance. Product details of PS-TRS-0650NNSAWU-P - Thermaltake TR2 SP 650W 80PLUS® APFC Non-Modular Power Supply PS-TRS-0650NNSAWU-P - Thermaltake TR2 SP 650W 80PLUS® APFC Non-Modular Power Supply Thermaltake TR2 S 650WIncorporating various high-quality components, the new TR2 S Series – models are rated from 350W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance. Ultra Quiet FanTR2 S Series adopts 120mm cooling fan with intelligent RPM control guarantees cool performance and silent operation. Multiple Connectors The cables used for TR2 S Series are all sleeved, users are able to properly route the cables in optimal location to prevent airflow blockage. High-Quality Components High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage. SPECIFICATIONS AC Input Input Voltage: 200 - 240V~ Input Current: 6.3A Frequency: 50Hz/60Hz DC Output +3.3V Max Output Current: 18A Max Output Power: 110W +5V Max Output Current: 18A Max Output Power: 110W +12V Max Output Current: 54.2A Max Output Power: 650W -12V Max Output Current: 0.3A Max Output Power: 3.6W +5VSB Max Output Current: 3A Max Output Power: 15W Total Power 650W General Info P/N PS-TRS-0650NNSAWU-P Model TRS-650AH2NLW-T PFC Active PFC Power Good Signal 100-250 msec Hold-Up Time > 17 msec within 80% load Cooling System 12cm FDB Fan Dimension 150mm(W)x86mm(H)x140mm(D) Environment Operating Temperature +5°C to +30°C Operating Humidity 20% to 85%, non-condensing Storage Temperature -40°C to +55°C Storage Humidity 10% to 95%, non-condensing Miscellaneous Efficiency Meet 80 PLUS® 230V EU MTBF 100,000 hrs minimum Safety Approval CE/LVD/CB/TUV PCIe 6+2pin 2 Protections Voltage Source +3.3V, +5V, +12V Over Voltage Protection +3.3V: 3.764.3V, +5V: 5.747.0V, +12V: 13.4~15.6V Over Power Protection 120%~160% over peak load Short Circuit Protection Short circuit on +5V, +12V, +3.3V, -12V will latch off, +5VSB auto-recovery

Read more less

• 800 Watts Power Supply• Compliant with ATX 12V version 2.2• Compliant with latest multi-core CPU motherboards and high-end graphic cards• Dual 12V rails design provides independent output currents for CPUs• Volts: ATX 12V

Read more less

Product Descriptions: Certified Full Modular Power Supply 550W, 80 PLUS Bronze Full Modular Flat Copper Cables (Black Color) 14cm Hydraulic Bearing PWM Fan Low Ripple Noise; Active PFC Type DC-DC High Quality Voltage Outputs. Brand: Darkflash Model: GS 550 Dimensions: 160*150*86 (WxDxH) Fan Dimensions: 140mm Input Voltage: 100-240VAC Input Current: 10A Input Frequency: 50/60Hz 80plus: BRONZE Protection Measures:  OVP, UVP, OCP, OPP, OTP, SCP ATX 4pin: 1 EPS 4+4pin: 2 PCIE 6+2pin: 4 SATA: 6 PETA: 3

Read more less

KEY FEATURES 80 PLUS Bronze certified 120mm Silent Hydraulic Bearing (HYB) Fan Reliable flat cable Single +12V rail OVP/OPP/SCP/UVP/OCP/OTP protection 80 PLUS BRONZE CERTIFIED 80 Plus Bronze certified ensures to deliver 85% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. Reliable Flat Cable P550B provides the best solution for the system builds. The flat cable reduces the clutter and improves the airflow in the case. 120mm Silent Hydraulic Bearing (HYB) Fan 120mm Silent Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable lifetime. SINGLE +12V RAIL Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking. PROTECTION In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries. SPECIFICATIONS Model P550B Type Intel Form Factor ATX 12V v2.31 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 8-4A Input Frequency 60-50 Hz Output Capacity  550W Dimension 150 x 140 x 86 mm Fan Type 120 mm Hydraulic Bearing (HYB) Fan 80 PLUS  Gold Efficiency  85% at typical load MTBF >100,000 hours Protection  OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All black  Connectors ATX/MB 20+4 Pin x 1: 550mm*1  CPU/EPS 4+4 Pin x 1: 600mm*2 PCI-e 6+2 Pin x 2: 550mm+150mm*1 SATA X 6: 500mm+120mm+120mm*2 4 Pin Peripheral x 3+4- Pin floppy x1: 500mm+120mm+120mm+120mm*1

Read more less

KEY FEATURES 80 PLUS Bronze certified 120mm Silent Hydraulic Bearing (HYB) Fan Reliable flat cable Single +12V rail OVP/OPP/SCP/UVP/OCP/OTP protection 80 PLUS BRONZE CERTIFIED 80 Plus Bronze certified ensures to deliver 85% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. Reliable Flat Cable P450B provides the best solution for the system builds. The flat cable reduces the clutter and improves the airflow in the case. The life of the Hydraulic Bearing fan is more than 4 years 120mm Silent Hydraulic Bearing (HYB) Fan 120mm Silent Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time. SINGLE +12V RAIL Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking. PROTECTION In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries. SPECIFICATIONS Model P450B Type Intel Form Factor ATX 12V v2.31 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac(full range) Input Current 8-4 A Input Frequency 60-50 Hz Output Capacity  450W Dimension 150 x 140 x 86 mm Fan Type 120 mm Hydraulic Bearing (HYB) Fan 80 PLUS Bronze Efficiency  85% at typical load MTBF >100,000 hours Protection  OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal  100-500ms  Hold Up Time >16ms Cable Type  Flat, All black Connectors ATX/MB 20+4 Pin x 1: 550 mm*1 CPU/EPS 4+4 Pin x1: 600 mm*1  PCI-e+2 Pin x2: 550 mm+150 mm*1 SATA x 6: 500mm+120mm+120mm*2 4 Pin Peripheral x 3 + 4-Pin floppy x 1: 500mm+120mm+120mm+120mm*1

Read more less

CORSAIR CX750 ATX POWER SUPPLIES 80 PLUS BRONZE POWER Delivers consistent power to your PC with up to 88% operational efficiency, generating less heat and lowering your energy costs. 120mm LOW-NOISE FAN Fitted with a thermally controlled fan that only spins at high speed when your power supply is under heavy load, automatically slowing down for quieter operation at lower loads. AN EASY FIT A compact 125mm-long casing ensures an easy fit in almost all modern PC cases. WORLD-CLASS SUPPORT Our award-winning service means you can enjoy your gear worry-free. SPECIFICATIONS ATX Connector 1 ATX12V Version v2.31 Cable Type Type 4 Continuous Power W 750 Watts EPS Connector 1 Fan Bearing Technology Sleeve Fan Size MM 120mm SATA Connector 3 Modular No PCIe Connector 2 MTBF Hours 100,000 hours PSU Form Factor ATX 80 PLUS Efficiency Bronze Weight 2.335

Read more less

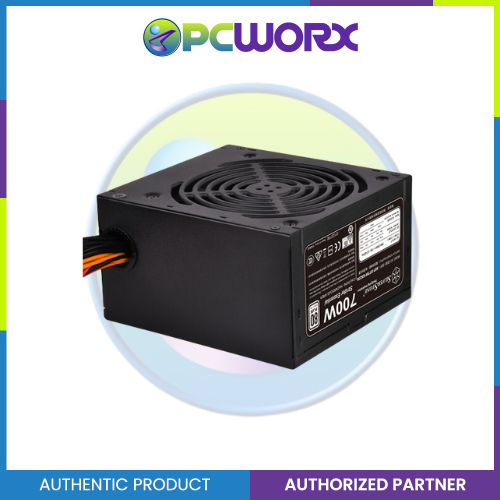

  Designed for 80 PLUS level of efficiency to reduce wasted heat and save on electricity.   Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use.          Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.   Compact 140mm depth design for easier installation in small from factor. Product Specifications Product No. SST-ST70F-ES230 Color Black（Lead-Free Paint） Max. DC Output 700W Power density 388W per liter Load Range Output +3.3V +5V +12V +5VSB -12V Max.(Amps) 22A 22A 54A 2.5A 0.3A Peak (Amps) / / / / / Min.(Amps) 0A 0A 0A 0A 0A Range (%) ±5% ±5% ±5% ±5% ±10% Line Reg.(%) ±1% ±1% ±1% ±1% ±1% Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV Combined +3.3V & +5V 130W Combined +12V 648W Input Voltage 180V~264V Input Frequency Range 47Hz~63Hz PFC Active PFC（PF>0.9 at full load） Efficiency 82% ~ 85% at 20% ~ 100% loading MTBF 100,000 hours Operating temperature 0°C ~ 40°C Protection Over power protectionOver voltage protectionShort circuit protection Connectors 1 x 24 / 20-Pin motherboard connector（500mm）1 x 8 / 4-Pin EPS / ATX 12V connector（750mm）4 x 8 / 6-Pin PCIE connector（"500mm / 150mm" x 2）4 x SATA connector（"500mm / 150mm" x 2）3 x 4-Pin Peripheral connector（500mm / 150mm / 150mm）1 x 4-Pin Floppy connector（500mm / 150mm / 150mm / 150mm） Cooling System Single 120mm silent fan Noise Level 18 dBA minimum Certification 80 PLUS Form factor ATX Dimension 150 mm (W) x 86 mm (H) x 140 mm (D) Weight 1.43 kg Other High efficiency with 80 PLUS certification 24/7 continuous power output with 40℃ operating temperature Class-leading single +12V rail Active PFC Circuitry PCI-E 8pin and PCI-E 6pin connector support Silent running 120mm fan with 18dBA

Read more less

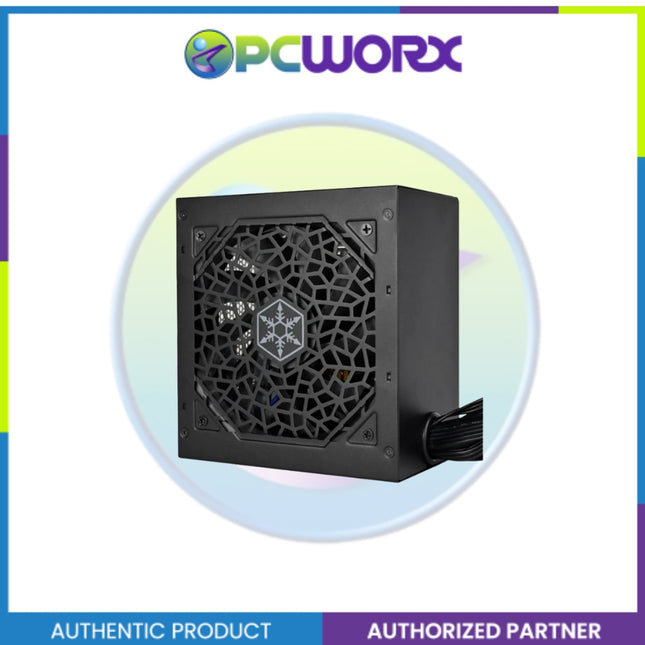

Wattage: 650 W Efficiency / Certification: 80 PLUS (EF / EFA series) Input Voltage Range: 180 V to 264 V AC Input Frequency: 47 Hz – 63 Hz PFC: Active PFC (power factor > 0.9 at full load) +12V Rail: Single +12V rail +12V Capacity: ~576 W on +12V rail (48 A) +3.3V & +5V Combined: 100 W Ripple & Noise: ~50 mV on +3.3V / +5V, ~120 mV on +12V (typical) Regulation: ±5% for +3.3V / +5V / +12V Protections: Over Power (OPP), Over Voltage (OVP), Under Voltage (UVP), Short Circuit (SCP) Cooling: Single 120 mm fan Noise Level: ~18 dBA (minimum) MTBF: 100,000 hours Operating Temperature: 0 °C to 40 °C continuous rated Connectors: Specification Details Motherboard Connector 1 × 20+4 pin ATX (≈ 500 mm) CPU Power Connector 1 × 8 (4+4) EPS / CPU (≈ 750 mm) PCIe Connectors 2 × PCIe 6+2 pin SATA Connectors 6 × SATA Molex / Peripheral 2 × 4-pin Molex Floppy Connector 1 × 4-pin floppy (via adaptor) Form Factor ATX Brand SilverStone Model SST-ST650-EFA Wattage Rating 650W Efficiency Rating 80 PLUS (EF / EFA Series) RGB Lighting No SKU 5266684268_PH-31274276426

Read more less

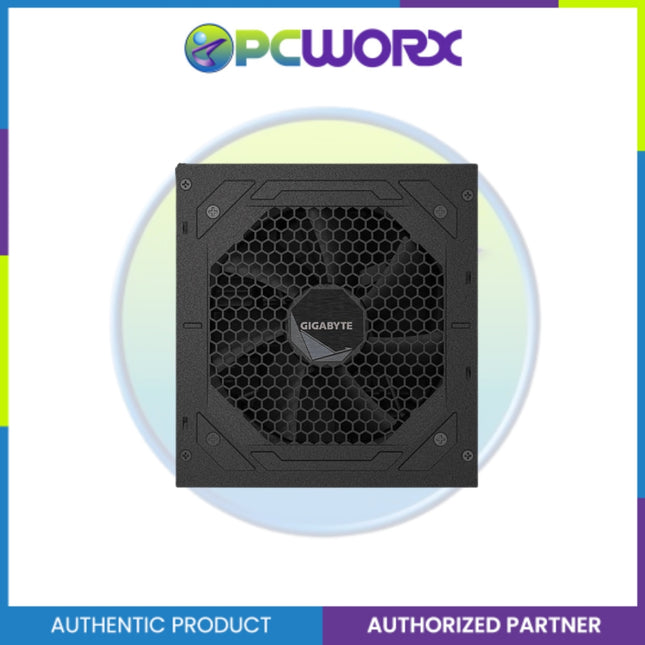

FULLY MODULAR DESIGN Connect only the cables you need using the sleek black embossed cables with a fully modular design, reducing clutter, improving airflow, and enhancing chassis thermal performance.   Specification: Model GP-UD850GM PG5 V2 Type Intel Form Factor ATX 12V v3.1 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 15-6.5A Input Frequency 60-50 Hz Output Capacity 850W Dimensions 150 x 140 x 86 mm Fan Type 120mm Hydraulic Bearing(HYB) Fan 80 PLUS Gold Efficiency 90% at typical load MTBF >100,000 hours Protections OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Embossed, All black Connectors ATX/MB 20+4 Pin x 1 : 610mm*1CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1PCI-e 6+2 Pin x 4 : 600mm+150mm*2PCI-e 12+4 Pin x 1:700mm*1SATA x 8 : 600mm+150mm+150mm+150mm*24 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1

Read more less

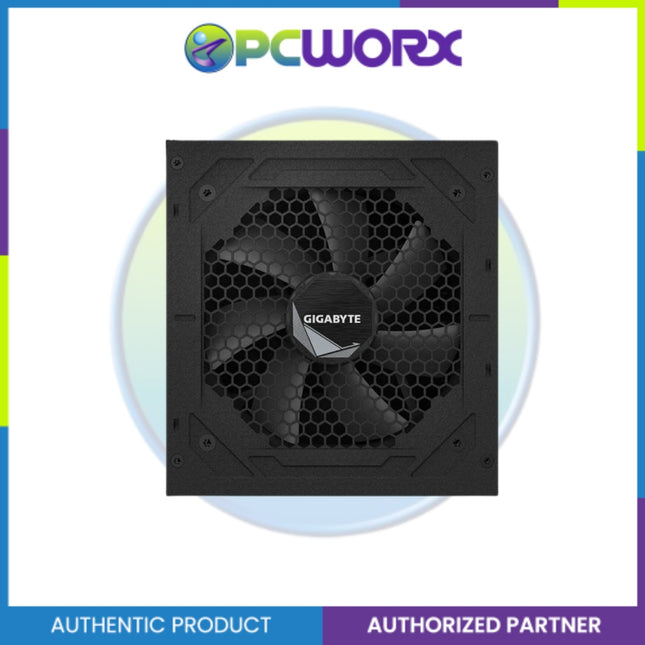

Description UD1000GM PG5 (rev. 2.0) KEY FEATURE Ultra Durable  Main Japanese capacitors  Enhanced thermal solution  120mm smart hydraulic bearing (HYB) fan  OVP/OPP/SCP/UVP/OCP/OTP protection Support PCIe Gen 5.0 graphics cards Support Intel ATX 3.0 standard 80 PLUS Gold certified Fully modular design Compact design Support PCIe Gen 5.0 graphics cards The UD1000GM PCIE 5.0 has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card. Support Intel ATX 3.0 standard The UD1000GM PG5 can sustain up to 3x GPU power excursion and 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standa Category Specification Model GP-UD1000GM PG5 Type Intel Form Factor ATX 12V v3.0 PFC Active PFC (>0.9 typical) Input Voltage 100–240 Vac (Full Range) Input Current 15–6.5A Input Frequency 50–60 Hz Output Capacity 1000W Dimensions 150 × 140 × 86 mm Fan Type 120mm Hydraulic Bearing (HYB) Fan 80 PLUS Certification Gold Efficiency 90% (Typical Load) MTBF >100,000 hours Protection Features OVP / OPP / SCP / UVP / OCP / OTP Power Good Signal 100–150 ms Hold Up Time >16 ms Cable Type Flat, All Black Connectors ATX/MB 20+4 Pin: 610 mm × 1CPU/EPS 4+4 Pin: 600 mm + 200 mm × 1PCI-E 16 Pin: 700 mm × 1PCI-E 6+2 Pin: 600 mm + 150 mm × 2SATA (x8): 600 mm + 150 mm + 150 mm + 150 mm × 24-Pin Peripheral (x3) + 4-Pin Floppy (x1): 500 mm + 120 mm + 120 mm + 150 mm × 1
