Model: Adata AD-ALEG-710-512GCS Legend 710 512GB PCIe GEN3 x4 M.2 NVME 2280 SSD Capacity 512GB  Form factor M.2 2280 NAND Flash 3D NAND Controller RTS5766DL Dimensions (L x W x H) 80 x 22 x 3.13mm / 3.15 x 0.87 x 0.13inch (with heat sink)80 x 22 x 2.15mm / 3.15 x 0.87 x 0.09inch (without heat sink) Weight 9g / 0.32oz (with heat sink)6.2g / 0.22oz (without heat sink) Interface PCIe Gen3 x4 Sequential Read (Max) Up to 2,400MB/s* Sequential Write (Max) Up to 1,800MB/s* 4KB Random Read IOPS(Max) Up to 200K* 4KB Random Write IOPS(Max) Up to 150K* Operating temperature 0°C - 70°C Storage temperature -40°C - 85°C Shock resistance 1500G/0.5ms MTBF 1,500,000 hours Terabytes Written (TBW) 520TB**

Read more less

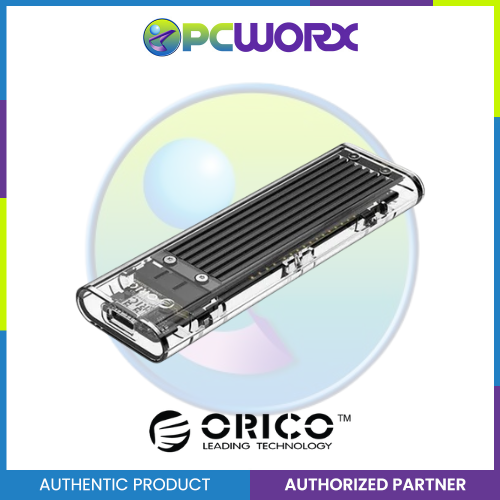

Specification  Details Product Model Orico TCM2-C3 Material Transparent PC + Aluminum Alloy Color Black (with other color options available) Output Interface USB 3.1 Type-C Chipset JMS583 Speed USB 3.1 Gen2 10Gbps Supported Capacity Up to 2TB or 8TB (check seller) Dimensions $108 \times 34 \times 11.5$mm Supported Systems Windows, Mac, Linux

Read more less

DESCRIPTIONS:  Gen 4x4 NVMe PCIe performance Upgrade your system with read/write speeds up to 6,000/5,000MB/s. Ideal for systems with limited space Easily integrate into designs with M.2 connectors. Perfect for thin laptops and small form factor PCs. Increased storage space Available in a variety of high capacities up to 4TB providing ample space to store files, videos, documents, and games with room to spare. Feature  1TB (SNV3S/1000G) 2TB (SNV3S/2000G) Capacity 1TB 2TB Interface PCIe 4.0 x4 NVMe PCIe 4.0 x4 NVMe Sequential Read/Write Up to 6,000/4,000 MB/s Up to 6,000/5,000 MB/s Form Factor M.2 2280 M.2 2280 NAND 3D 3D Endurance (Total Bytes Written) 320TBW 640TBW Operating Temperature 0∘C0 raised to the composed with power cap C 0∘C0 raised to the composed with power cap C 0∘𝐶 0∘𝐶 to  to  70∘C70 raised to the composed with power cap C 70∘C70 raised to the composed with power cap C 70∘𝐶 70∘𝐶 Storage Temperature -40∘Cnegative 40 raised to the composed with power cap C -40∘Cnegative 40 raised to the composed with power cap C −40∘𝐶 −40∘𝐶 to  to  85∘C85 raised to the composed with power cap C 85∘C85 raised to the composed with power cap C 85∘𝐶 85∘𝐶 Dimensions 22mm x 80mm x 2.3mm 22mm x 80mm x 2.3mm Weight 7g 7g

Read more less

CAPACITY: 1TB OVERVIEW  Interface PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0 Application  Client PCs Weight  Max 9.0g Weight Dimensions  Max 80.15 x Max 22.15 x Max 2.38 mm GENERAL FEATURES Application  Client PCs Capacity 1,000GB (1GB=1 billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise. Form Factor  M.2 (2280) Interface PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0 Storage Memory Samsung V-NAND TLC Controller Samsung in-house Controller Cache Memory HMB(Host Memory Buffer) SPECIAL FEATURES TRIM Support Supported S.M.A.R.T. Support Supported GC (Garbage Collection) Auto Garbage Collection Algorithm Encryption Support AES 256-bit Encryption (Class 0) TCG/Opal IEEE1667 (Encrypted drive) WWN Support Not supported Device Sleep Mode Support Yes PERFORMANCE Sequential Read Up to 7,150 MB/s * Performance may vary based on system hardware & configuration Sequential Write Up to 6,300 MB/s * Performance may vary based on system hardware & configuration Random Read Up to 850,000 IOPS * Performance may vary based on system hardware & configuration Random Write Up to 1,350,000 IOPS * Performance may vary based on system hardware & configuration ENVIRONMENT  Average Power Consumption  Average: Read 4.3 W / Write 4.2 W* Actual power consumption may vary depending on system hardware & configuration Power Consumption (Idle)  Typical 60 mW * Actual power consumption may vary depending on system hardware & configuration Power Consumption (Device Sleep)  Typical 5 mW * Actual power consumption may vary depending on system hardware & configuration Allowable Voltage 3.3 V ± 5 % Allowable voltage Reliability  1.5 million Hours Reliability (MTBF) Operating Temperature 0 - 70 ℃ Operating Temperature Shock  1,500 G & 0.5 ms (Half sine)   CAPACITY: 2TB  OVERVIEW  Interface PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0 Application  Client PCs Weight  Max 9.0g Weight Dimensions  Max 80.15 x Max 22.15 x Max 2.38 mm GENERAL FEATURES Application  Client PCs Capacity 2,000GB (1GB=1 billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) Form Factor  M.2 (2280) Interface PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0 Storage Memory Samsung V-NAND TLC Controller Samsung in-house Controller Cache Memory HMB (Host Memory Buffer) SPECIAL FEATURES TRIM Support Supported S.M.A.R.T. Support Supported GC (Garbage Collection) Auto Garbage Collection Algorithm Encryption Support AES 256-bit Encryption (Class 0) TCG/Opal IEEE1667 (Encrypted drive) WWN Support Not supported Device Sleep Mode Support Yes PERFORMANCE Sequential Read Up to 7,250 MB/s * Performance may vary based on system hardware & configuration Sequential Write Up to 6,300 MB/s * Performance may vary based on system hardware & configuration Random Read Up to 1,000,000 IOPS * Performance may vary based on system hardware & configuration Random Write Up to 1,350,000 IOPS * Performance may vary based on system hardware & configuration ENVIRONMENT  Average Power Consumption  Average: Read 4.6 W / Write 4.2 W* Actual power consumption may vary depending on system hardware & configuration Power Consumption (Idle)  Typical 60 mW * Actual power consumption may vary depending on system hardware & configuration Power Consumption (Device Sleep)  Typical 5 mW * Actual power consumption may vary depending on system hardware & configuration Allowable Voltage 3.3 V ± 5 % Allowable voltage Reliability  1.5 million Hours Reliability (MTBF) Operating Temperature 0 - 70 ℃ Operating Temperature Shock  1,500 G & 0.5 ms (Half sine)

Read more less

DESCRIPTIONS:  Gen 4x4 NVMe PCIe performance Upgrade your system with read/write speeds up to 6,000/5,000MB/s. Ideal for systems with limited space Easily integrate into designs with M.2 connectors. Perfect for thin laptops and small form factor PCs. Increased storage space Available in a variety of high capacities up to 4TB providing ample space to store files, videos, documents, and games with room to spare. Brand ‎Kingston Series ‎SNV3S500G SNV3S1000G SNV3S2000G Item model number ‎SNV3S/500G SNV3S1000G SNV3S2000G Item Weight ‎0.232 ounces Product Dimensions ‎3.15 x 0.15 x 0.89 inches Item Dimensions LxWxH ‎3.15 x 0.15 x 0.89 inches Color ‎blue Computer Memory Type ‎DIMM Flash Memory Size ‎500 GB Hard Drive Interface ‎NVMe

Read more less

Digital Storage Capacity 512 GB Hard Disk Interface PCIE x 4 Connectivity Technology PCIe Brand TEAMGROUP Special Feature Portable Hard Disk Form Factor 2280 Inches Hard Disk Description Solid State Drive Compatible Devices Laptop, Desktop Installation Type Internal Hard Drive Hard Disk Size 512 GB

Read more less

SPECIFICATIONS Capacity:  1TB Form factor:  M.2 2280 NAND Flash:  3D NAND Controller:  SMI SM2264 Dimensions:  (L x W x H) 80.6 x 23.2 x 10.65mm / 3.17 x 0.91 x 0.42inch(with heat sink) 80 x 22 x 3.3mm / 3.15 x 0.87 x 0.13inch (without heat sink) Weight:  36.6g /1.3oz (with heat sink) 7.3g /0.26oz (without heat sink) Interface:  PCIe Gen4 x4 Sequential Read (Max):  Up to 7,400MB/s (PC/Laptop)*, Up to 6,400MB/s (PS5) Sequential Write (Max):  Up to 6,800MB/s* 4KB Random Read IOPS(Max):  Up to 750K* 4KB Random Write IOPS(Max):  Up to 630K* Operating temperature:  0°C - 70°C Storage temperature:  -40°C-85°C Shock resistance:  1,500G/0.5ms MTBF:  1,500,000 hours Terabytes Written (TBW):  3,120TB** _____________________________________________________Warranty Information:• Item compatibility is buyer’s responsibility.• For security purposes: Kindly secure unboxing video incase wrong item and defective upon received.• Check all items upon receipt.• All items/claims for warranty are carry-in.• Tampered warranty sticker voids the warranty.• Overclocking may void the warranty.• Items for warranty must be complete with original contents/packaging and accompanied by warranty receipt.• Defective items for warranty are subject for pull out and RMA services. (Shipping fee should be shoulder by customer)
