Specifications CPU Socket:  LGA 1700  Chipset:  Intel H610 Express Chipset  Form Factor:  Micro ATX  Memory Support:  Dual Channel DDR4, up to 3200 MHz  Expansion Slots: 1 x PCI Express x16 slot (PCIe 4.0)  1 x PCI Express x1 slot (PCIe 3.0)  Storage: 1 x M.2 Connector (Socket 3, M key, supporting PCIe 3.0 x4/x2 SSDs)  4 x SATA 6Gb/s Connectors  Networking:  Realtek GbE LAN chip (1 Gbps)  Audio:  Realtek Audio CODEC, High Definition Audio  Integrated Graphics:  Integrated Intel HD Graphics (via D-Sub and HDMI ports)  USB Ports:  Multiple USB 3.2 Gen 1 and USB 2.0/1.1 ports  Features Intel 12th/13th/14th Gen Support:  Compatible with Intel Core, Pentium, and Celeron processors.  DDR4 Memory:  Utilizes cost-effective DDR4 memory.  PCIe 4.0 x16:  Offers high bandwidth for graphics cards.  NVMe M.2 Slot:  Supports fast M.2 SSDs for quick boot and transfer speeds.  Smart Fan 6:  Intelligent fan control with features like Fan Stop.  Anti-Sulfur Resistors:  Design to protect against circuit corrosion.

Read more less

Brand Gigabyte Form Factor mATX Memory Type DDR4 Socket AM4 CPU AMD Socket AM4 Chipset AMD B450 Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Onboard Graphics Port 1 x HDMI port* Support for HDMI 2.1 version and HDCP 2.2 Audio Realtek® Audio codec LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCI Express 3.0)1 x PCI Express x16 slot, running at x1 (PCI Express 3.0)1 x PCI Express x1 slot (PCI Express 2.0) Storage Interface 1 x M.2 connector (PCI Express 3.0)4 x SATA 6Gb/s connectors USB 2 x USB 3.1 Gen 1 ports available through the internal USB header6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)4 x USB 3.1 Gen 1 ports on the back panel Internal I/O Connectors 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x system fan header1 x CPU cooler LED strip/RGB LED strip header1 x RGB LED strip header2 x addressable LED strip headers1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.1 Gen 1 header1 x USB 2.0/1.1 header1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)1 x serial port header1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port1 x HDMI port4 x USB 3.1 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks Operating System Support for Windows 11 64-bitSupport for Windows 10 64-bitSupport for Windows 7 64-bit Form Factor Micro ATX Form Factor; 24.4cm x 21.5cm

Read more less

Specifications Form Factor:  Micro-ATX  CPU Socket:  LGA 1200  Chipset:  Intel® H510 Express Chipset  Processor Support:  11th Gen (Core™ i9/i7/i5) and 10th Gen (Core™ i9/i7/i5/i3, Pentium®, Celeron®) Intel® processors  Memory:  2 x DDR4 DIMM sockets, supporting up to 64GB, dual-channel architecture, and speeds up to DDR4 3200 MHz (with 11th Gen)  Expansion Slots:  1 x PCI Express x16 (PCIe 3.0 x16), 1 x PCI Express x1 (PCIe 3.0 x1)  Storage:  1 x M.2 connector (SATA & PCIe Gen3 x4 SSD support)  Onboard Graphics:  Integrated Graphics Processor with Intel® HD Graphics support, 1 x HDMI port (up to 4096x2160@30 Hz)  Audio:  Realtek® 8-channel HD Audio  LAN:  Realtek® GbE LAN chip  USB Ports:  2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 ports (on back panel), with additional ports available via internal headers  Unique Features: Smart Fan 5 with multiple temperature sensors and hybrid fan headers for advanced fan control  GIGABYTE APP Center for easy system management  Anti-Sulfur Resistors for enhanced protection against environmental damage

Read more less

 Specifications: Form Factor:  Micro-ATX (m-ATX)  Socket:  AMD AM4  Chipset:  AMD B450  CPU Support:  Compatible with AMD Ryzen™ processors (5000, 4000, 3000, 2000, 1000 series) and Athlon™ processors  Memory: Four DDR4 DIMM sockets  Up to 128GB system memory  Dual-channel memory architecture  Supports DDR4 2933/2667/2400/2133 MT/s and XMP profiles  Expansion Slots: 1x PCIe 3.0 x16 slot  Additional PCIe slots for expansion  Storage: 1x M.2 slot (PCIe 3.0 x4) for high-speed SSDs, supporting up to 32Gb/s  4x SATA 6Gb/s ports  Supports RAID 0, 1, and 10  Networking:  Realtek® GbE LAN chip (1 Gbps)  Audio:  Realtek® Audio codec for 2/4/5.1/7.1-channel high definition audio  Rear Panel Ports: HDMI (HDMI 2.1) for video output  USB 3.0 ports  USB 2.0 ports  Audio and LAN ports

Read more less

AMD A520 Ultra Durable Motherboard with Digital VRM Solution, GbE LAN, Smart Fan 5 with FAN STOP Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs Ultra Durable™ PCIe 3.0 x16 Slot NVMe PCIe 3.0 M.2 Connectors High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality GbE LAN with Bandwidth Management Rear DisplayPort and HDMI for Multi-display Support Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Anti-Sulfur Resistors Design PERFORMANCE GIGABYTE UD series motherboards use pure digital PWM + Low RDS (on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. CONNECTIVITY NVMe PCIe Gen3 x4 M.2 Connector GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential. GbE LAN with Bandwidth Management GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments. SPECIFICATIONS CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors (Please refer "CPU Support List" for more information.) Chipset AMD A520 Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR. Maximum shared memory:  16 GB Audio Realtek® Audio CODEC High-Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps) Expansion Slots 1 x PCI Express x16 slot, integrated in the CPU: Supporting PCIe 3.0 x16 mode 1 x PCI Express x1 slot, integrated in the Chipset: Supporting PCIe 3.0 x1 mode Storage Interface 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Supporting for RAID 0, RAID 1, and RAID 10 USB CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x DisplayPort 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Read more less

AMD A520 Ultra Durable Motherboard with GbE LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5, Anti-Sulfur Resistors Design Brand Gigabyte Memory Type DDR4 Form Factor mATX Socket AM4 CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors Chipset AMD A520 Memory 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Onboard Graphics Integrated Graphics Processor:1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR. Audio Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps) Expansion Slots CPU:1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16Chipset:1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Storage Interface CPU:1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)Chipset:4 x SATA 6Gb/s connectors USB CPU:4 x USB 3.2 Gen 1 ports on the back panelChipset:2 x USB 3.2 Gen 1 ports available through the internal USB header6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x system fan header1 x M.2 Socket 3 connector4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)1 x speaker header1 x Clear CMOS jumper1 x chassis intrusion header Back Panel Connectors 1 x PS/2 keyboard/mouse port1 x D-Sub port1 x HDMI port4 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks Form Factor Micro ATX Form Factor; 23.3cm x 19.8cm

Read more less

Supports Intel® Core™ Ultra processors (Series 2) Digital twin 14+1+2 phases VRM solution D5 Bionic Corsa for Infinite Memory Performance AI Perfdrive : Provides optimal and customized BIOS preset profile for users Premium Compatibility : 4*DDR5 with XMP Memory Module Support WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click : M.2 heatsinks with screwless design Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW New Power Monitor in  HWinfo for real-time monitoring on CPU power phases Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4 Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Fast Networking : 2.5GbE LAN & Wi-Fi 7 Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card SPECIFICATION CPU  LGA1851 socket: Support for Intel® Core™ Ultra ProcessorsL3 cache varies with CPU* Please refer to "CPU Support List" for more information. Chipset Intel® Z890 Express Chipset Memory Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modulesSupport CUDIMM memory module(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 2.1 version- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 2.1 version(Graphics specifications may vary depending on CPU support.) Audio  Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.4- Support for 11be 160MHz wireless standardRealtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.4- Support for 11be 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.)* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. Expansion Slots  CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2) Storage Interface CPU:- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)Chipset:- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB CPU:- 1 x USB4® USB Type-C® port on the back panelChipset:- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs:- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors  1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x CPU fan/water cooling pump header3 x system fan headers1 x system fan/water cooling pump header3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header4 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x power button1 x Q-Flash Plus button1 x reset button1 x reset jumper1 x Clear CMOS jumper Back Panel Connectors  1 x USB4® USB Type-C® port (DisplayPort (Note))2 x USB 3.2 Gen 2 Type-A ports (red)3 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x DisplayPort (Note)2 x antenna connectors (2T2R)1 x RJ-45 port3 x audio jacks(Note) Actual support may vary by CPU. I/O Controller iTE® I/O Controller Chip H/W Monitoring  Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS  1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features  Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup Operating System Support for Windows 11 64-bit Form Factor ATX Form Factor; 30.5cm x 24.4cm

Read more less

Category Details Panel Size (diagonal) 27" SS IPS Display Viewing Area (HxV) 596.74 × 335.66 mm Panel Backlight / Type Edge Display Surface Non-glare Color Saturation 100% sRGB True Resolution 2560 × 1440 (QHD) Pixel Pitch 0.2331 × 0.2331 mm Brightness 300 cd/m² (TYP) Contrast Ratio 41,667:1 Viewing Angle 178° (H) / 178° (V) Display Colors 16.7M Response Time 1ms (MPRT) Refresh Rate 165Hz / OC 170Hz HDR HDR Ready Flicker-free Yes Connectivity 2 × HDMI 2.0, 1 × DisplayPort 1.4, 1 × Earphone Jack Speaker N/A CPU Support LGA1700, 12th–14th Gen Intel Core, Pentium Gold, Celeron; L3 cache varies with CPU Chipset Intel® Z790 Express Memory Support DDR5 4000–7600(O.C.), 4 × DIMM up to 192 GB, dual channel, ECC/non-ECC support, XMP support Onboard Graphics Intel HD Graphics: HDMI max 4096×2160@60Hz, DisplayPort max 4096×2304@60Hz Audio Realtek ALC1220, HD Audio, 2/4/5.1/7.1-channel, S/PDIF Out LAN Realtek 2.5GbE LAN Wireless Intel Wi-Fi 6E AX211 or Realtek RTL8852CE, Bluetooth 5.3, 2.4/5/6 GHz, 11ax 160MHz Expansion Slots CPU: 1 × PCIe x16 (PCIe 5.0, x16) Chipset: 1 × PCIe x16 (PCIe 4.0, x4) Storage Interface CPU: 1 × M.2 PCIe 4.0 x4/x2 Chipset: 2 × M.2 PCIe 4.0 x4/x2, 6 × SATA 6Gb/s, RAID 0/1/5/10 USB Ports 1 × USB-C 3.2 Gen 2x2 (back), 1 × USB-C 3.2 Gen 2 (internal), 1 × USB 3.2 Gen 2 Type-A (red, back), 6 × USB 3.2 Gen 1, 8 × USB 2.0 Internal I/O Connectors 24-pin ATX, 8-pin + 4-pin CPU, CPU fan headers, system fan headers, RGB headers, M.2 connectors, SATA connectors, front panel headers, USB headers, Thunderbolt connectors, TPM, serial, reset/Q-Flash/Clear CMOS buttons Back Panel Connectors USB-C, USB-A, USB 3.2 Gen 1/2, USB 2.0, SMA antennas, HDMI 2.0, DisplayPort, RJ-45, optical S/PDIF, 2 × audio jacks I/O Controller iTE I/O Controller Chip H/W Monitoring Voltage, temperature, fan speed, water flow, fan fail warning, fan/pump speed control BIOS GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup Bundled Software Norton Internet Security OEM, LAN bandwidth management software Operating System Windows 11 / 10 64-bit Form Factor Micro ATX, 24.4 × 24.4 cm

Read more less

Intel® Socket LGA 1700: Support 13th and 12th Gen Series Processors Unparalleled Performance: Direct 10+1+2 Phases Digital VRM Solution Dual Channel DDR5: 2*SMD DIMMs with XMP 3.0 Memory Module Support Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard III:  To Ensure VRM Power Stability & M.2 SSD Performance EZ-Latch Plus: M.2 Connectors with Quick Release & Screwless Design Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax Extended Connectivity: DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card OUTSTANDING THERMAL DESIGN GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance. CONNECTIVITY GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.   Model Brand GIGABYTE Model Z790I AORUS ULTRA Supported CPU CPU Socket Type  LGA 1700 CPU Type Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold Chipsets Chipset  Intel Z790 Memory Number of Memory Slots 2x288pin (DDR5) Memory Standard DDR5 8000(O.C.) / 7800(O.C.) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4400 Maximum Memory Supported 96GB Channel Supported  Dual Channel Memory Feature Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules Expansion Slots PCI Express 5.0 x16 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 Storage Devices Serial ATA (SATA)  2 x SATA 6Gb/s M.2 1 x M.2 connector on the back of the GC-Z790I BTB PLUG (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)1 x M.2 connector on the front of GC-Z790I BTB PLUG (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) SATA RAID RAID 0 and RAID 1 support for SATA storage devices Additional RAID Controller RAID 0 and RAID 1 support for NVMe SSD storage devices Onboard Audio Audio Chipset  Realtek ALC4080 Onboard LAN Max LAN Speed 2.5Gbps Wireless LAN Intel Killer Wi-Fi 6E AX1690 Bluetooth Bluetooth 5.3 Rear Panel Ports Back I/O Ports 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Q-Flash Plus Button / 1 x USB 3.2 Gen 2x2 Type-C / 2 x Antenna Bracket / 2 x Audio Jacks / 2 x USB 2.0/1.1 / 2 x USB 3.2 Gen 1 / 3 x USB 3.2 Gen 2 Type-A Internal I/O Connectors Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header (Note 1) Other Connectors 1 x external power connector (Note 1)1 x CPU fan header1 x fan/water cooling pump header2 x system fan headers (SYS_FAN1/SYS_FAN2 (Note 1))1 x addressable LED strip header (Note 1)1 x RGB LED strip header2 x M.2 Socket 3 connectors (M2A_CPU (Note 2)/M2P_SB (Note 1))2 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header (routed from the adapter card on the rear panel)1 x speaker header1 x reset button (Note 1)1 x reset jumper1 x Clear CMOS jumper(Note 1) The connector is on the front of GC-Z790I BTB PLUG.(Note 2) The connector is on the back of GC-Z790I BTB PLUG. Software Feature Windows 11 Supported Physical Spec Form Factor Mini ITX Dimensions (W x L) 6.7" x 6.7" Power Pin 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector Features Features Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup

Read more less

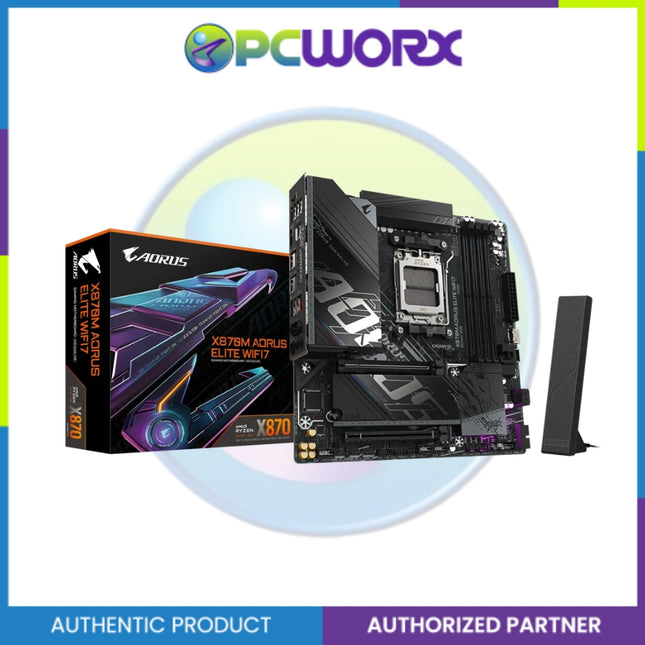

Gigabyte X870M Aorus Elite WiFi7 DDR5 AMD Gaming Motherboard Key Features X3D Turbo Mode：Unleash new era gaming performance DDR5 OC up to 8200MT/s AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors Digital twin 14+2+2 phases VRM solution Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support WIFI EZ-Plug：Quick and easy design for Wi-Fi antenna installation D5 Bionic Corsa for Infinite Memory Performance EZ-Latch：PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click：M.2 heatsinks with screwless design Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup Friendly UI：Multi-Theme, AIO Fan Control, and Q-Flash Auto ScaninBIOS and SW Ultra-Fast Storage：2*M.2 slots, including PCIe 5.0 x4 Efficient Thermal：VRM Thermal Armor Advanced& M.2 Thermal Guard Ext. Fast Networking：2.5GbE LAN & Wi-Fi 7 Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card   Specification: CPU AMD Socket AM5, support for: Ryzen 9000 / 8000 / 7000 Series Processors Chipset AMD X870 Memory DDR5 8200(O.C) to 4400 MT/s supported4 x DDR5 DIMM sockets, up to 256 GBDual channel architectureSupports AMD EXPO™ and XMP profiles Onboard Graphics Integrated AMD Radeon™ Graphics2 x USB4 Type-C (3840x2160@240Hz)1 x HDMI (4096x2160@60Hz)1 x front HDMI (1920x1080@30Hz) Audio Realtek ALC1220 CODEC, DSD Audio7.1-channel HD AudioS/PDIF Out supported LAN Realtek 2.5GbE LAN Wireless Realtek Wi-Fi 7 RTL8922AEBluetooth 5.4Supports 2.4/5/6 GHz bands*Requires Windows 11 SV3 Expansion Slots 1 x PCIe x16 (CPU):- Ryzen 9000/7000: PCIe 5.0 x16- Ryzen 8000 Phoenix 1: PCIe 4.0 x8- Phoenix 2: PCIe 4.0 x41 x PCIe x4 (Chipset): PCIe 4.0 x4 Storage Interface 1 x M.2 (M2A_CPU): PCIe 5.0/4.0 x4/x21 x M.2 (M2C_SB): PCIe 4.0 x22 x SATA 6Gb/sRAID 0/1/5/10 (NVMe), RAID 0/1 (SATA)*RAID 5 only on Ryzen 9000 USB Rear:- 2 x USB4 Type-C- 1 x USB 3.2 Gen 2 Type-A (red)- 4 x USB 2.0- 4 x USB 3.2 Gen 1Internal:- 1 x USB 3.2 Gen 2x2 Type-C- 1 x USB 3.2 Gen 2 Type-A- 2 x USB 3.2 Gen 1- 4 x USB 2.0 Internal I/O 1 x 24-pin ATX1 x 8-pin ATX 12V1 x CPU fan / 1 x pump header3 x system fan / 1 x pump header3 x ARGB Gen2 / 1 x RGB header2 x M.2 Socket 32 x SATA 6Gb/sFront panel, audio, TPM, HDMI headersUSB 3.2 Gen 2x2, USB 3.2 Gen 1, USB 2.0 Back Panel I/O 1 x Clear CMOS / Q-Flash Plus button1 x HDMI4 x USB 2.0 / 4 x USB 3.2 Gen 12 x USB 3.2 Gen 2 Type-A (red)2 x USB4 Type-C (DisplayPort capable)1 x RJ-452 x antenna connectors2 x audio jacks + Optical S/PDIF Out Monitoring Voltage / Temp / Fan / Water flowFan fail warning / Fan control BIOS 256 Mbit AMI UEFI BIOSSupports PnP, DMI 2.7, ACPI 5.0 Unique Features GIGABYTE Control CenterQ-Flash / Q-Flash PlusSmart Backup Software Norton Internet Security (OEM) OS Support Windows 11 64-bit Form Factor Micro ATX (24.4 x 24.4 cm)
