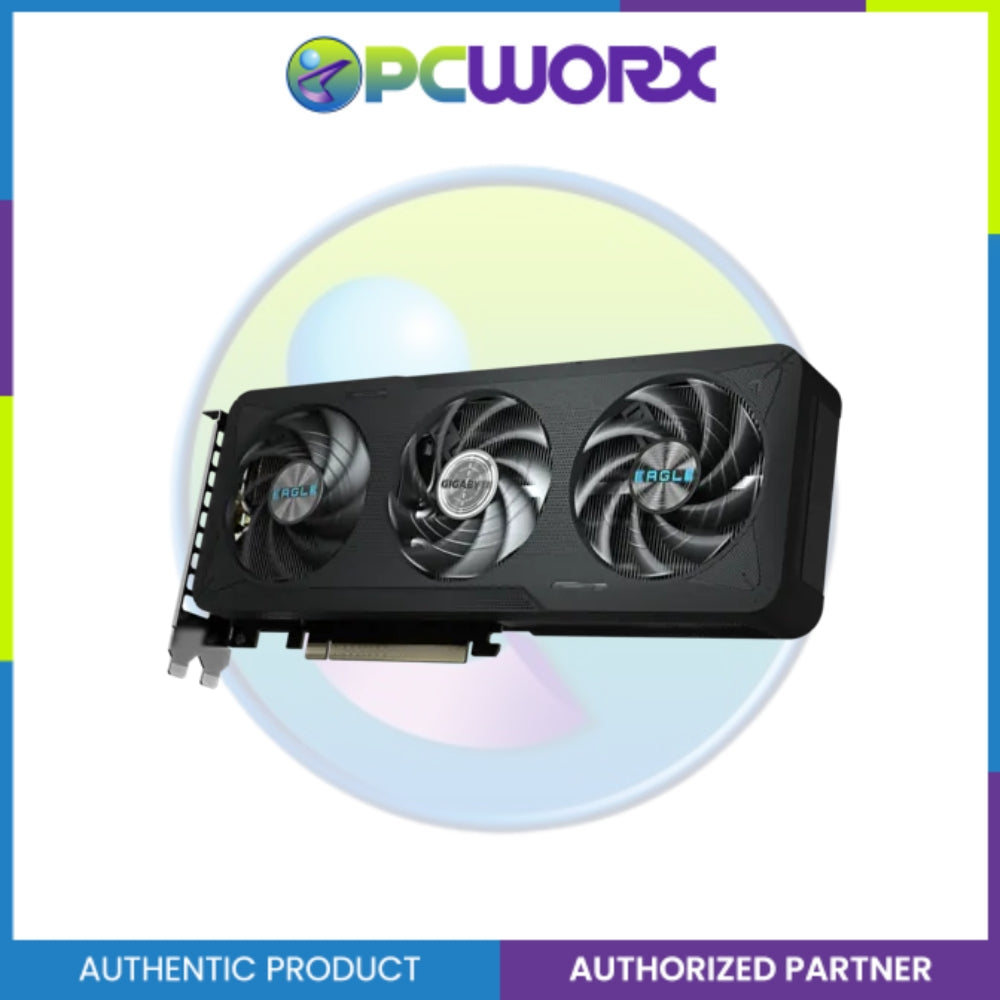

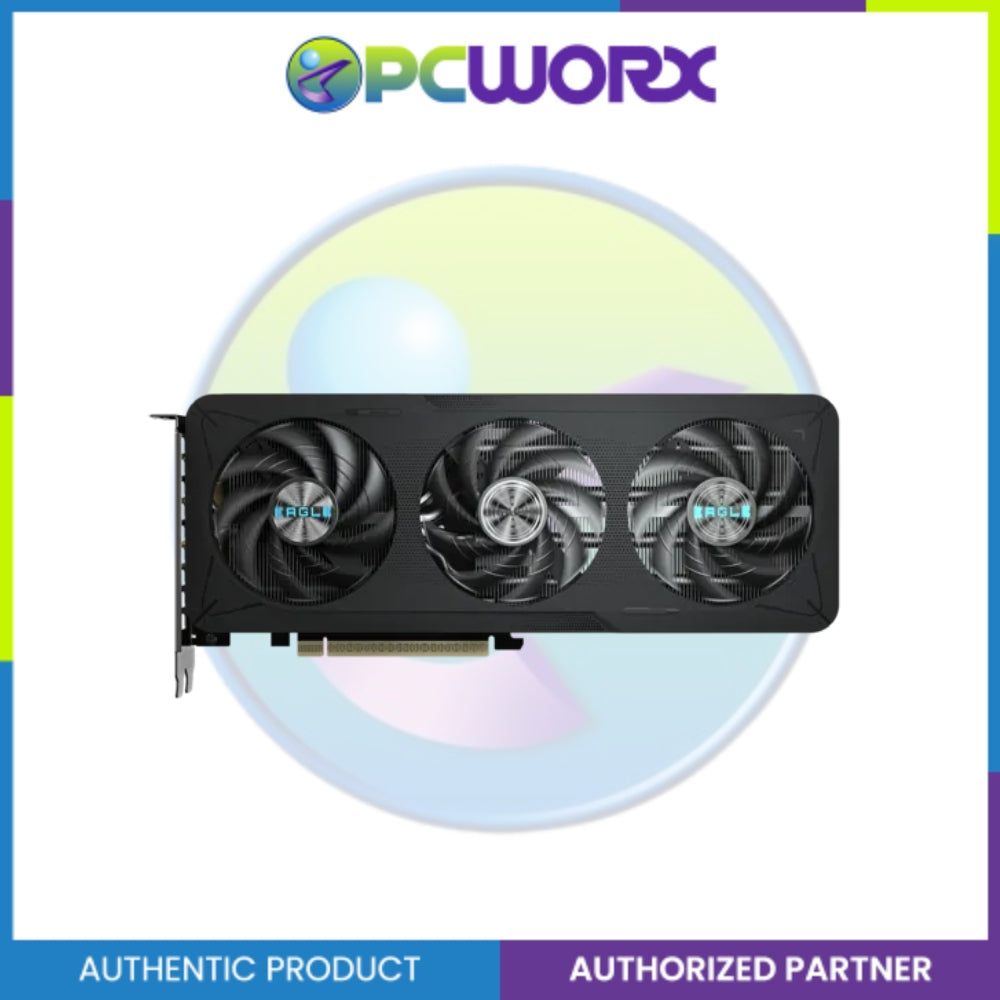

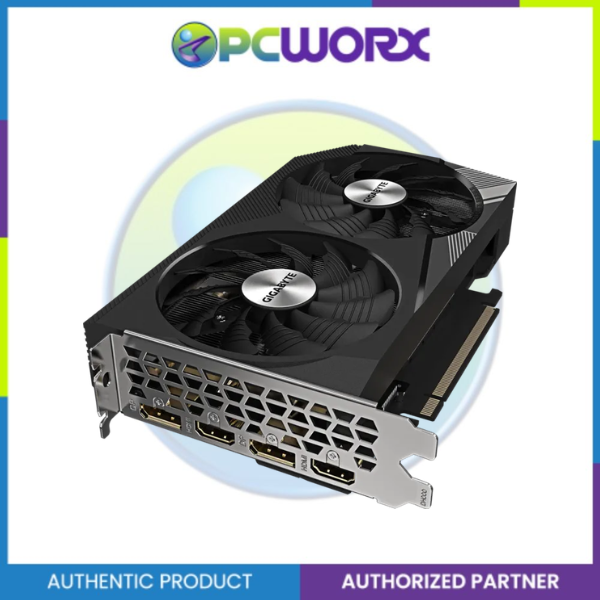

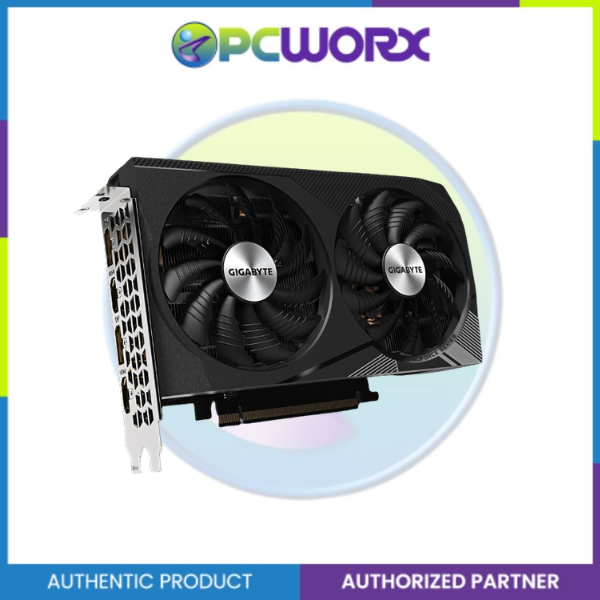

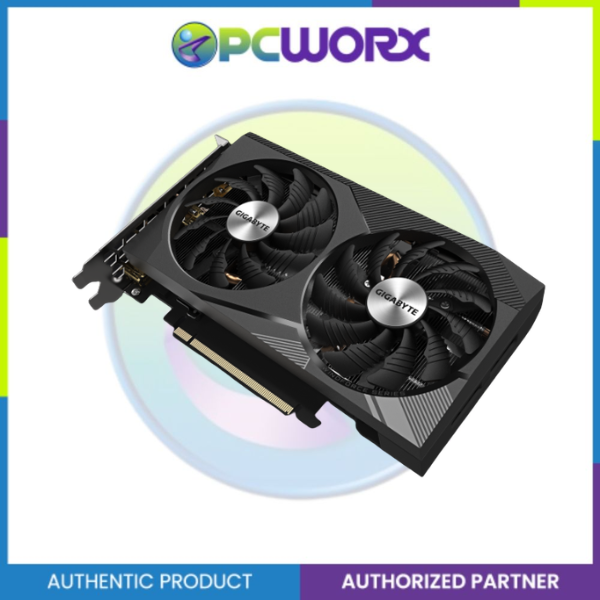

GIGABYTE NVIDIA® GeForce RTX™ 3060 Gaming OC 12GB GDDR6 192-bit Graphics Card

(0)

₱16,999.00

Specification	Details
Graphics Processing	GeForce RTX 3060
Core Clock	1837 MHz (Reference: 1777 MHz)
CUDA Cores	3584
Memory Clock	15000 MHz
Memory Size	12 GB
Memory Type	GDDR6
Memory Bus	192-bit
Memory Bandwidth	360 GB/s
Card Bus	PCI-E 4.0 x16
Digital Max Resolution	7680 × 4320 @ 60Hz
Multi-view	4
Card Size	L=282 mm, W=117 mm, H=41 mm
PCB Form	ATX
DirectX	12 Ultimate
OpenGL	4.6
Recommended PSU	550W
Power Connectors	8-pin ×1
Output	DisplayPort 1.4a ×2 / HDMI 2.1 ×2
SLI Support	N/A
Accessories	Quick guide

Out of stock

Receives in 5 days.

Gigabyte NVIDIA® GeForce RTX™ 5060 Ti WindForce Max OC 16GB GDDR7 Graphics Card

PCWORX

Gigabyte NVIDIA® GeForce RTX™ 5060 Ti WindForce Max OC 16GB GDDR7 Graphics Card

(0)

₱31,899.00

Out of stock

Receives in 5 days.

Gigabyte GA-H510M-K-V2 LGA1200 DDR4 mATX Mother board | Mobo | Gigabyte Motherboard

PCWORX

Gigabyte GA-H510M-K-V2 LGA1200 DDR4 mATX Mother board | Mobo | Gigabyte Motherboard

(0)

₱4,008.00

Low in stock

Receives in 5 days.

Gigabyte GP-GS27QCA-AP 27" VA HDMI/DP 180Hz Curved Gaming Monitor

PCWORX

Gigabyte GP-GS27QCA-AP 27" VA HDMI/DP 180Hz Curved Gaming Monitor

(0)

₱10,687.50

Low in stock

Receives in 5 days.

Gigabyte GA-A520I-AC Rev 1 AM4 DDR4 Mini-ITX Motherboard

PCWORX

Gigabyte GA-A520I-AC Rev 1 AM4 DDR4 Mini-ITX Motherboard

(0)

₱6,842.50

AMD A520 Mini-ITX Ultra Durable Motherboard with Direct 6 Phases Digital VRM, Onboard 802.11ac WIFI, Realtek GbE LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
Direct 6 Phases Digital VRM Solution with 55A DrMOS
Ultra-Fast NVMe PCIe 3.0 x4 M.2
Onboard Dual Band 802.11ac WIFI & BT 4.2 with Ultra Durable™ Antenna
Realtek GbE LAN with Bandwidth Management
DisplayPort, Dual HDMI for for Multiple Display
RGB FUSION 2.0 with Addressable LED & RGB LED Strips Support
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Anti-Sulfur Resistors Design

Realtek GbE LAN with Bandwidth Management

Realtek Gigabit LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

NVMe PCIe Gen3 x4 M.2 Connector

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

Dual HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support

HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.

SPECIFICATIONS

CPU
	AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
	(Please refer "CPU Support List" for more information.)
Chipset	AMD A520
Memory	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
	Support for DDR4 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
	* ECC memory (ECC mode) support varies by CPU
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	(Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support:
	1 x DisplayPort port, supporting a maximum resolution of 5120x2880@60 Hz
	* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
	2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
	Support for up to 3 displays at the same time
Maximum shared memory	16 GB
Audio	Realtek® Audio CODEC
	High-Definition Audio
	2/4/5.1/7.1-channel
	* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN	Realtek® GbE LAN chip (10/100/1000 Mbit)
Wireless Communication module	Intel® Wi-Fi AC 3168 (For PCB rev. 1.0/1.2/1.3)/Intel® Wi-Fi AC 9260 (For PCB rev. 1.1)/ Realtek® Wi-Fi AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) (For PCB rev. 1.4)
	WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
	BLUETOOTH 4.2
	Support for 11ac wireless standard
	* Actual data rate may vary depending on environment and equipment.
Expansion Slots
Integrated in the CPU:	1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
	Storage Interface
	Integrated in the CPU:
	1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
	Chipset:
	4 x SATA 6Gb/s connectors
	Support for RAID 0, RAID 1, and RAID 10
Chipset:	4 x SATA 6Gb/s connectors
USB
Integrated in the CPU:	4 x USB 3.2 Gen 1 ports on the back panel
Chipset:	2 x USB 3.2 Gen 1 ports available through the internal USB header
	4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	2 x system fan headers
	1 x addressable LED strip header
	1 x RGB LED strip header
	1 x M.2 Socket 3 connector
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x speaker header
	1 x USB 3.2 Gen 1 header
	1 x USB 2.0/1.1 header
	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
	1 x serial port header
	1 x Clear CMOS jumper
	＊All fan headers are subject to support AIO Pump, Pump and high-performance fan with the capability of delivering up to 2A/12V @ 24W.
Back Panel Connectors	1 x DisplayPort
	2 x HDMI ports
	4 x USB 3.2 Gen 1 ports
	2 x USB 2.0/1.1 ports
	1 x Q-Flash Plus button
	1 x RJ-45 ports
	2 x SMA antenna connectors (1T1R)
	3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
	H/W Monitoring
	Voltage detection
	Temperature detection
	Fan speed detection
	Overheating warning
	Fan fail warning
	Fan speed control
	* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 128 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS	EasyTune
	RGB Fusion
	Smart Backup
	System Information Viewer
	Support for Q-Flash Plus
	Support for Q-Flash
	Bundled Software
	Norton® Internet Security (OEM version)
	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
	Support for Windows 10 64-bit
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm

Low in stock

Receives in 5 days.

Gigabyte GP-GSTFS31100TNTD 1TB 2.5” Solid State Drive

PCWORX

Gigabyte GP-GSTFS31100TNTD 1TB 2.5” Solid State Drive

(0)

₱3,220.00

Out of stock

Receives in 5 days.

Gigabyte GA-H610M-H-V3 DDR4 LGA1700 m-ATX Motherboard

PCWORX

Gigabyte GA-H610M-H-V3 DDR4 LGA1700 m-ATX Motherboard

(0)

₱4,312.50 ₱5,460.00

-21%

SPECIFICATION

CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
	L3 cache varies with CPU
	(Please refer "CPU Support List" for more information.)
Chipset	Intel H610 Express Chipset
Memory	Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
	- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version and HDCP 2.3.
	** Support native HDMI 2.1 TMDS compatible ports.

	(Graphics specifications may vary depending on CPU support.)
Audio	Realtek® Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Expansion Slots	CPU:
	- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
	Chipset:
	- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	Chipset:
	- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD
	support)
	- 4 x SATA 6Gb/s connectors
USB	Chipset:
	- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
	- 4 x USB 2.0/1.1 ports on the back panel
	Chipset+USB 2.0 Hub:
	- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	2 x system fan headers
	1 x M.2 Socket 3 connector
	4 x SATA 6Gb/s connectors
	1 x RGB LED strip header
	1 x front panel header
	1 x front panel audio header
	1 x speaker header
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
	1 x serial port header
	1 x Clear CMOS jumper
	1 x chassis intrusion header

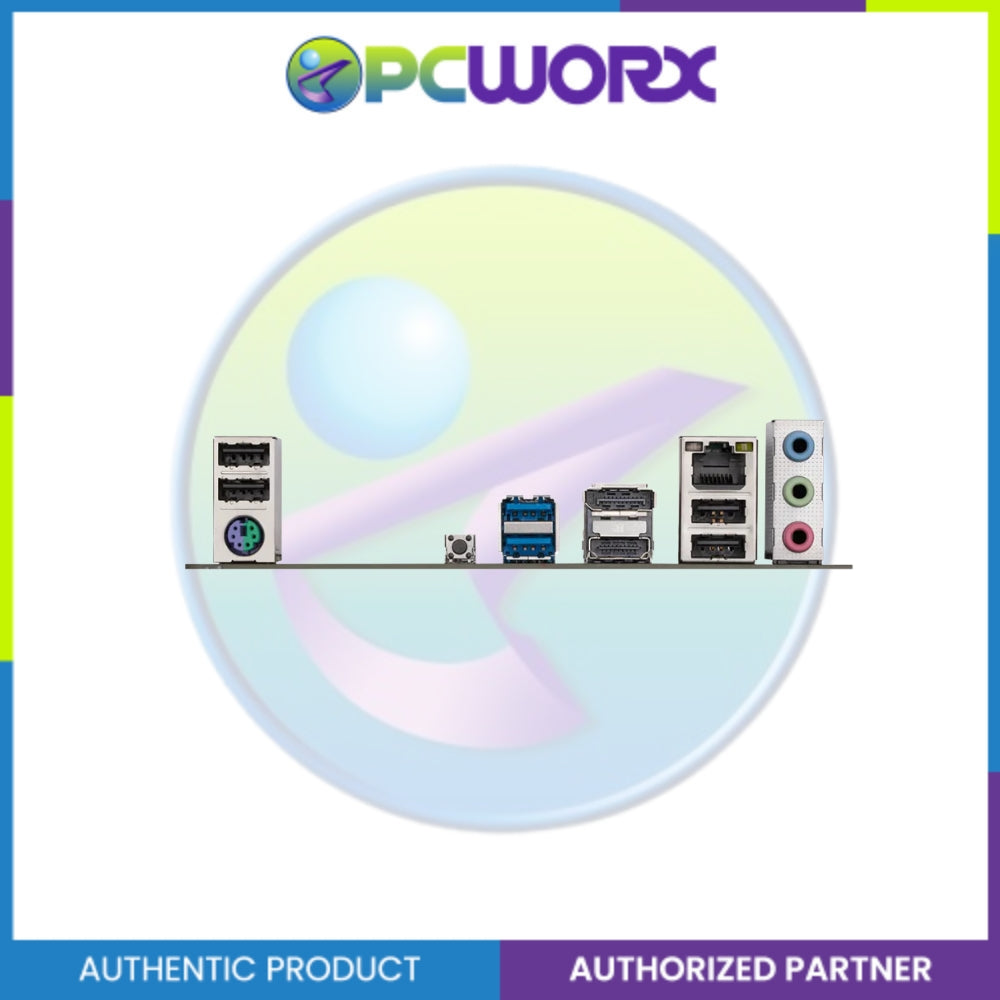

Back Panel Connectors	1 x PS/2 keyboard/mouse port
	1 x D-Sub port
	1 x HDMI port
	2 x USB 3.2 Gen 1 ports
	4 x USB 2.0/1.1 ports
	1 x RJ-45 port
	3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

	- @BIOS
	- EasyTune
	- Smart Backup
	- System Information Viewer
	Support for Q-Flash
Bundled Software	Norton® Internet Security (OEM version)
Bundled Software	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Operating System	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 22.3cm x 19.3cm

In stock

Receives in 5 days.

Gigabyte GP-GS27F-AP 27” 165Hz 1920x1080 FHD Gaming Monitor

PCWORX

Gigabyte GP-GS27F-AP 27” 165Hz 1920x1080 FHD Gaming Monitor

(0)

₱10,470.00

Low in stock

Receives in 5 days.

Gigabyte GP-UD850GM-PG5-V2 850W 80+ Gold ATX 3.1 PSU

PCWORX

Gigabyte GP-UD850GM-PG5-V2 850W 80+ Gold ATX 3.1 PSU

(0)

₱6,773.50

Low in stock

Receives in 5 days.

GIGABYTE NVIDIA® GeForce RTX™ 5060 AERO OC 8GB GDDR7 PCIe Graphics Card

PCWORX

GIGABYTE NVIDIA® GeForce RTX™ 5060 AERO OC 8GB GDDR7 PCIe Graphics Card

(0)

₱28,769.00

Out of stock

Receives in 5 days.

Gigabyte GA-B550M-DS3H-R2 AM4 DDR4 m-ATX Motherboard

PCWORX

Gigabyte GA-B550M-DS3H-R2 AM4 DDR4 m-ATX Motherboard

(0)

₱5,476.37

AMD Socket AM4：Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
Digital 5+3 phases VRM solution
Dual Channel DDR4：4*DIMMs
EZ-Latch：PCIe slots with Quick Release Design
Ultra-Fast Storage：2*M.2 slots, including PCIe 4.0 x1
Efficient Thermal：VRM Thermal Armor Advanced
Fast Networking：GbE LAN
Extended Connectivity：HDMI, Displayport
PCIe UD Slot：PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

Specification:

CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)
Chipset	AMD B550
Memory	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) Maximum shared memory of 16 GB
Audio	Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4 - 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1
Storage Interface	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button
Back Panel Connectors	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU.
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. - @BIOS - EasyTune - RGB Fusion - Smart Backup - System Information Viewer Support for Q-Flash Plus Support for Q-Flash
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm

In stock

Receives in 5 days.

GIGABYTE NVIDIA® GeForce RTX™ 3050 WINDFORCE OC V2 6G GDDR6 Graphics Card

PCWORX

GIGABYTE NVIDIA® GeForce RTX™ 3050 WINDFORCE OC V2 6G GDDR6 Graphics Card

(0)

₱14,950.00

GV-N3050WF2OCV2-6GD

Category	Specification
Model	GV-N3050WF2OCV2-6GD
Graphics Processing Unit	NVIDIA GeForce RTX 3050
GPU Architecture	NVIDIA Ampere
CUDA Cores	2304
Core Clock	1477 MHz (Reference: 1470 MHz)
RT Cores	2nd Generation
Tensor Cores	3rd Generation
Memory Size	6 GB
Memory Type	GDDR6
Memory Clock	14,000 MHz
Memory Bus	96-bit
Memory Bandwidth	~168 GB/s
Interface	PCI Express 4.0 x8
DirectX Support	DirectX 12 Ultimate
OpenGL Support	OpenGL 4.6
Maximum Digital Resolution	7680 × 4320 (8K)
Maximum Displays	4 monitors
Outputs	2 × DisplayPort 1.4a, 2 × HDMI 2.1
Cooling System	WINDFORCE dual-fan cooling
Fan Features	Alternate spinning, 3D Active Fan (semi-passive)
Cooling Technology	Graphene nano-lubricant fan bearings
Card Size	191 × 111 × 36 mm
Slot Size	2-slot
Power Consumption	~70–115 W
Power Connector	None (powered by PCIe slot)
Recommended PSU	300 W
PCB Form Factor	ATX
Special Features	Ray Tracing, DLSS, NVIDIA Reflex, NVIDIA Broadcast, G-SYNC
Accessories	Quick installation guide

In stock

Receives in 5 days.

Gigabyte AMD GA-A520M-DS3H V2 AM4 DDR4 mATX Motherboard

PCWORX

Gigabyte AMD GA-A520M-DS3H V2 AM4 DDR4 mATX Motherboard

(0)

₱3,967.50

AMD A520 Ultra Durable Motherboard with Digital VRM Solution, GbE LAN, Smart Fan 5 with FAN STOP

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
Ultra Durable™ PCIe 3.0 x16 Slot
NVMe PCIe 3.0 M.2 Connectors
High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
GbE LAN with Bandwidth Management
Rear DisplayPort and HDMI for Multi-display Support
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Anti-Sulfur Resistors Design

PERFORMANCE

GIGABYTE UD series motherboards use pure digital PWM + Low RDS (on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

CONNECTIVITY

NVMe PCIe Gen3 x4 M.2 Connector GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

GbE LAN with Bandwidth Management

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

Category	Specification
CPU Support	AMD Socket AM4; supports AMD Ryzen™ 5000 Series, Ryzen™ 5000 G-Series, Ryzen™ 4000 G-Series, Ryzen™ 3000 Series, and Ryzen™ 3000 G-Series processors
Chipset	AMD A520
Memory	4 × DDR4 DIMM slots, up to 128 GB (32 GB per DIMM)
Memory Speed	DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
Memory Architecture	Dual-channel
Memory Type Support	ECC Un-buffered DIMM 1Rx8/2Rx8, Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
Memory Features	Supports Extreme Memory Profile (XMP)
Onboard Graphics	Requires CPU with integrated graphics
Display Outputs	1 × DisplayPort 1.4 (max 5120×2880@60 Hz), 1 × HDMI 2.1 (max 4096×2160@60 Hz)
Maximum Shared Graphics Memory	16 GB
Audio	Realtek® Audio CODEC, High-Definition Audio, 2 / 4 / 5.1 / 7.1-channel
LAN	Realtek® Gigabit Ethernet (1 Gbps / 100 Mbps)
Expansion Slots	1 × PCIe 3.0 x16 slot (CPU), 1 × PCIe 3.0 x1 slot (chipset)
Storage Interface	1 × M.2 Socket 3 (2280) supporting SATA & PCIe 3.0 x4/x2 SSDs; 4 × SATA 6 Gb/s connectors
RAID Support	RAID 0, 1, 10
USB (Rear / Internal)	4 × USB 3.2 Gen1 (rear), 2 × USB 3.2 Gen1 (internal header), 6 × USB 2.0/1.1 (4 rear, 2 internal)
Internal I/O Connectors	24-pin ATX power, 8-pin ATX 12V power, CPU fan header, system fan header, M.2 connector, 4 × SATA connectors, front panel header, front audio header, USB 3.2 Gen1 header, USB 2.0 header, TPM header (2×6), Clear CMOS jumper
Back Panel Connectors	PS/2 keyboard/mouse port, DisplayPort, HDMI, 4 × USB 3.2 Gen1, 2 × USB 2.0, RJ-45 LAN, 3 × audio jacks
I/O Controller	iTE® I/O Controller Chip
Hardware Monitoring	Voltage detection, temperature detection, fan speed detection, fan fail warning, fan speed control
BIOS	1 × 128 Mbit Flash, AMI UEFI BIOS
BIOS Features	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	APP Center, @BIOS, EasyTune, Smart Backup, System Information Viewer, Q-Flash, Xpress Install
Bundled Software	Norton® Internet Security (OEM), LAN bandwidth management software
Operating System Support	Windows 11 (64-bit), Windows 10 (64-bit)
Form Factor	Micro-ATX, 24.4 cm × 24.4 cm

Out of stock

Receives in 5 days.

Gigabyte GP-AG450E500G-G 500GB AORUS GEN4 5000E PCIe4.0 M.2 NVME 2280 SSD

PCWORX

Gigabyte GP-AG450E500G-G 500GB AORUS GEN4 5000E PCIe4.0 M.2 NVME 2280 SSD

(0)

₱3,444.25

Out of stock

Receives in 5 days.

GIGABYTE NVIDIA® GeForce RTX™4090 AERO OC 24G VGA White 24GB GDDR6X Graphics Card

PCWORX

GIGABYTE NVIDIA® GeForce RTX™4090 AERO OC 24G VGA White 24GB GDDR6X Graphics Card

(0)

₱128,673.00

GV-N4090AERO-OC-24GD

NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency

4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering

3rd Generation RT Cores: Up to 2X ray tracing performance

Powered by GeForce RTX™ 4090

Integrated with 24GB GDDR6X 384-bit memory interface

WINDFORCE cooling system

RGB Fusion

Dual BIOS

Protection metal back plate

Anti-sag bracket

Category	Specification
GPU Model	NVIDIA GeForce RTX™ 4090
Architecture	Ada Lovelace
Streaming Multiprocessors	Up to 2× performance & power efficiency
Tensor Cores	4th Gen (up to 4× performance with DLSS 3)
RT Cores	3rd Gen (up to 2× ray tracing performance)
CUDA Cores	16,384
Core Clock	2535 MHz (Reference: 2520 MHz)
Memory Size	24 GB
Memory Type	GDDR6X
Memory Clock	21 Gbps
Memory Bus	384-bit
Interface	PCIe 4.0
Max Resolution	7680 × 4320 (8K)
Multi-Display Support	Up to 4 displays
Outputs	3× DisplayPort 1.4, 1× HDMI 2.1
Cooling System	WINDFORCE cooling
Special Features	RGB Fusion, Dual BIOS, Metal backplate, Anti-sag bracket
Card Dimensions	342 × 150 × 75 mm
PCB Form	ATX
DirectX Support	DirectX 12 Ultimate
OpenGL Support	OpenGL 4.6
Recommended PSU	1000W
Power Connector	16-pin (1x)
Accessories Included	Quick guide, Warranty registration, Anti-sag bracket + guide, 16-pin to 4×8-pin adapter

Out of stock

Receives in 5 days.

GIGABYTE GA-H610M-K DDR4 LGA1700 m-ATX| Gigabyte Motherboard

PCWORX

GIGABYTE GA-H610M-K DDR4 LGA1700 m-ATX| Gigabyte Motherboard

(0)

₱4,220.50

H610M K DDR4 PCIe 4.0* Design, Gen3 x4 M.2, GbE LAN, Anti-Sulfur Resistor, Smart Fan 6

Supports 13th/12th Gen Intel^® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
GbE LAN with Bandwidth Management
NVMe PCIe 3.0 x4 M.2
High Quality Audio Capacitors and Audio Noise Guard
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

SPECIFICATIONS:

CPU	LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU
Chipset	Intel® H610 Express Chipset
Memory	Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 2 x SATA 6Gb/s connectors
USB	Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Clear CMOS jumper
Back Panel Connectors	1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 22.6cm x 18.5cm

In stock

Receives in 5 days.

Gigabyte GP-G325E1TB Gen3 2500E 1TB M.2 2280 PCIe 3.0x4, NVMe1.3 interface SSD

PCWORX

Gigabyte GP-G325E1TB Gen3 2500E 1TB M.2 2280 PCIe 3.0x4, NVMe1.3 interface SSD

(0)

₱3,220.00

Out of stock

Receives in 5 days.

Gigabyte GP-GSTFS31480GNTD 480GB 2.5” Solid State Drive

PCWORX

Gigabyte GP-GSTFS31480GNTD 480GB 2.5” Solid State Drive

(0)

₱5,230.00

Specification	Details
Product	Gigabyte GP‑GSTFS31480GNTD 480GB 2.5″ SSD
Form Factor	2.5‑inch internal solid state drive
Interface	SATA III 6.0 Gb/s
Connection Type	SATA data + SATA power (standard internal SATA connection)
Storage Capacity	480 GB
Flash Type	NAND flash
Sequential Read Speed	Up to ~550 MB/s
Sequential Write Speed	Up to ~480 MB/s
Random Read IOPS	Up to ~75,000 IOPS
Random Write IOPS	Up to ~70,000 IOPS
Power Consumption (Active, Read)	~2.24 W
Power Consumption (Active, Write)	~2.61 W
Power Consumption (Idle)	~0.17 W
Operating Temperature	0 °C – 70 °C
Storage Temperature	-40 °C – 85 °C
MTBF	~2,000,000 hours
Dimensions (W × H × L)	~69.85 mm × 7 mm × 100 mm
Weight	~85 g
Supported Features	TRIM, S.M.A.R.T support

In stock

Receives in 5 days.

Gigabyte GA-B450M-DS3H-WIFI 4-DIMM DDR4 AM4 MATX Mother board Gigabyte Mobo Gigabyte Motherboard

PCWORX

Gigabyte GA-B450M-DS3H-WIFI 4-DIMM DDR4 AM4 MATX Mother board Gigabyte Mobo Gigabyte Motherboard

(0)

₱5,016.00

AMD B450 Ultra Durable Motherboard with Realtek® GbE LAN with cFosSpeed, PCIe Gen3 x4 M.2, RGB FUSION 2.0, Intel® Dual Band 802.11ac WIFI, CEC 2019 ready

Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

Intel® Dual Band 802.11ac WIFI & BT 4.2

Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support

High Quality Audio Capacitors and Audio Noise Guard Design

RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support

Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software

Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

APP Center Including EasyTune™ and Cloud Station™ Utilities

CEC 2019 Ready, Save Power with a Simple Click

Category	Specification
CPU Socket	AM4 (Supports AMD Ryzen™ 5000/5000 G-Series, 3rd/2nd/1st Gen Ryzen, Athlon with Radeon™ Vega Graphics)
Chipset	AMD B450
Memory	4 × DDR4 DIMM sockets, up to 128 GB, Dual ChannelSupports DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHzSupports ECC (non-ECC mode) and XMP
Onboard Graphics	HDMI port (max 4096×2160@60 Hz), max shared memory 16 GB
Audio	Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1‑channel, S/PDIF Out support
LAN	Realtek® GbE LAN (1 Gbps)
Wireless	Realtek® Wi-Fi RTL8821CE, Wi-Fi 802.11a/b/g/n/ac, 2.4/5 GHz, Bluetooth 5.0
Expansion Slots	1 × PCIe x16 (x16 mode), 1 × PCIe x16 (x1 mode), 1 × PCIe x1
Storage Interfaces	1 × M.2 Socket 3 (2242/2260/2280/22110, SATA/PCIe x4/x2)*4 × SATA 6 Gb/s, RAID 0/1/10
USB Ports	Back Panel: 4 × USB 3.1 Gen 1, 4 × USB 2.0/1.1Internal Headers: 2 × USB 3.1 Gen 1, 2 × USB 2.0/1.1
Internal I/O Connectors	24-pin ATX, 8-pin 12V, CPU fan, system fan, M.2, 4 × SATA 6 Gb/s, front panel, front audio, S/PDIF, RGB/LED headers, TPM header, serial, Clear CMOS jumper
Back Panel Connectors	1 × PS/2, 1 × HDMI, 4 × USB 3.1 Gen 1, 4 × USB 2.0/1.1, 2 × SMA antenna, 1 × RJ‑45, 3 × audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage, temperature, fan speed, overheating warning, fan fail warning, fan speed control
BIOS	128 Mbit AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features / Software	APP Center, @BIOS, EasyTune, RGB Fusion, Smart Backup, Q-Flash, Xpress InstallBundled: Norton Internet Security, cFosSpeed
OS Support	Windows 10 64-bit, Windows 7 64-bit*
Form Factor	Micro ATX, 24.4 cm × 21.5 cm

In stock

Receives in 5 days.

Gigabyte GeForce® GTX 1650 D6 4GB Graphic Card

PCWORX

Gigabyte GeForce® GTX 1650 D6 4GB Graphic Card

(0)

₱13,440.00

Out of stock

Receives in 5 days.

Gigabyte A520M-K V2 DDR4 AM4 A/L mATX Motherboard

PCWORX

Gigabyte A520M-K V2 DDR4 AM4 A/L mATX Motherboard

(0)

₱3,220.00

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
GbE LAN with Bandwidth Management
8-Channel HD Audio with High Quality Audio Capacitors
Rear HDMI and D-sub for Multi-display Support
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use

SPECIFICATION

CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
CPU	(Please refer "CPU Support List" for more information.)
Chipset	AMD A520
Memory	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
	Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	(Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support:
	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
	Maximum shared memory of 16 GB
Audio	Realtek® Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots	CPU:
	1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
	Chipset:
	1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	CPU:
	1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
	Chipset:
	4 x SATA 6Gb/s connectors
	Support for RAID 0, RAID 1, and RAID 10
USB	CPU:
	4 x USB 3.2 Gen 1 ports on the back panel
	Chipset:
	2 x USB 3.2 Gen 1 ports available through the internal USB header
	6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	1 x system fan header
	1 x M.2 Socket 3 connector
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
	1 x speaker header
	1 x Clear CMOS jumper
	1 x chassis intrusion header
Back Panel Connectors	1 x PS/2 keyboard/mouse port
	1 x D-Sub port
	1 x HDMI port
	4 x USB 3.2 Gen 1 ports
	2 x USB 2.0/1.1 ports
	1 x RJ-45 port
	3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Fan fail warning
	Fan speed control
	* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 128 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	@BIOS
	EasyTune
	Smart Backup
	System Information Viewer
	Support for Q-Flash
Operating System	Support for Windows 11 64-bit
Operating System	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 23.3cm x 19.8cm

In stock

Receives in 5 days.

Gigabyte GA-B650-EAGLE-AX AM5 DDR5 ATX Motherboard

PCWORX

Gigabyte GA-B650-EAGLE-AX AM5 DDR5 ATX Motherboard

(0)

₱10,896.00

AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
Unparalleled Performance：12+2+2 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
SuperSpeed Storage：1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot with Quick Release Design
Fast Networks：Wi-Fi 6E 802.11ax & GbE LAN
Extended Connectivity：DP, HDMI, Rear USB® 10Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Category	Details
CPU	AMD Socket AM5; supports AMD Ryzen™ 7000 / 8000 / 9000 Series processors
Chipset	AMD B650
Memory	4× DDR5 DIMM slots, up to 256GB; speeds up to 8000(OC); Dual-channel; supports EXPO™ & XMP; Non-ECC Unbuffered DIMMs
Onboard Graphics	Integrated AMD Radeon™ Graphics (via CPU); 1× DisplayPort (4K@144Hz), 1× HDMI 2.1 (4K@60Hz)
Audio	Realtek® HD Audio CODEC; 2/4/5.1/7.1-channel
LAN	Realtek® Gigabit LAN (10/100/1000 Mbps)
Wireless	Wi-Fi 6E (Realtek RTL8852CE or Intel AX210 depending on revision), Bluetooth 5.3
Expansion Slots	1× PCIe x16 (Gen4, varies by CPU); 3× PCIe x1 (Gen3)
Storage Interface	3× M.2 slots (PCIe 5.0 + PCIe 4.0); 4× SATA 6Gb/s; RAID 0/1/10 supported
USB (Rear + Internal)	USB 3.2 Gen2 Type-A, USB 3.2 Gen1 Type-A & Type-C, USB 2.0 (multiple via rear and headers)
Internal I/O Connectors	24-pin ATX, 8-pin CPU power, fan headers, RGB/ARGB headers, 3× M.2, 4× SATA, USB headers, TPM header, Q-Flash Plus button, CMOS jumper
Back Panel Connectors	DisplayPort, HDMI, PS/2, USB-C, USB-A (Gen2 + Gen1 + USB2.0), RJ-45 LAN, WiFi antenna connectors, 3× audio jacks
I/O Controller	iTE® I/O Controller Chip
Hardware Monitoring	Voltage, temperature, fan speed, water cooling flow detection, fan control & warnings
BIOS	256 Mbit flash; AMI UEFI BIOS; supports PnP, DMI, WfM, SMBIOS, ACPI
Unique Features	GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM), LAN bandwidth management software
Operating System Support	Windows 11 (64-bit), Windows 10 (64-bit)
Form Factor	ATX (30.5 cm × 24.4 cm)

Low in stock

Receives in 5 days.

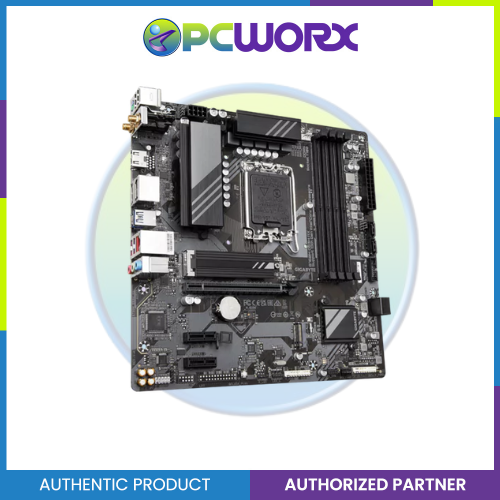

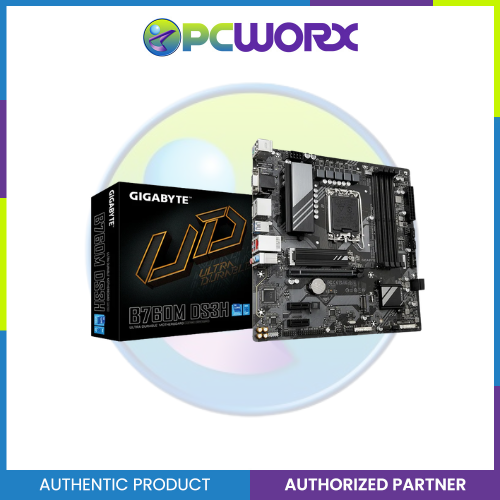

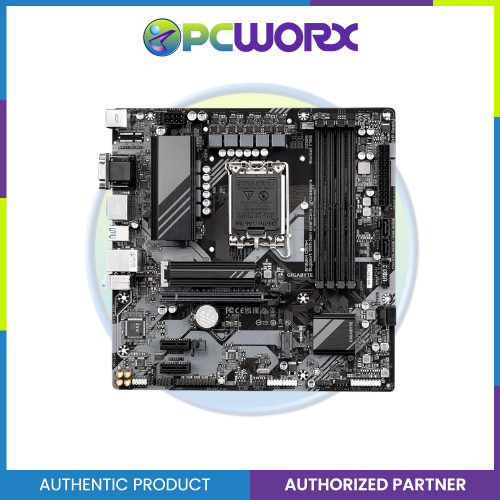

Gigabyte GA-B760M-DS3H DDR5 LGA1700 m-ATX

PCWORX

Gigabyte GA-B760M-DS3H DDR5 LGA1700 m-ATX

(0)

₱8,160.00

Category	Specification
CPU	LGA1700 socket; supports Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, Celeron®; L3 cache varies by CPU
Chipset	Intel® B760 Express Chipset
Memory	DDR5 up to 7600(OC); 4× DIMM, max 256GB; dual-channel; ECC (non-ECC mode) & non-ECC support; XMP supported
Onboard Graphics	Intel® HD Graphics (via CPU); 1× D-Sub (1920×1200@60Hz), 1× HDMI 2.1 (4K@60Hz), 2× DisplayPort (4K@60Hz); quad-display support
Audio	Realtek® HD Audio CODEC; 2/4/5.1/7.1-channel; S/PDIF support
LAN	Realtek® 2.5GbE LAN
Expansion Slots	1× PCIe 4.0 x16, 2× PCIe 3.0 x1
Storage Interface	2× M.2 PCIe 4.0, 4× SATA 6Gb/s; RAID 0/1/5/10 (SATA)
USB	USB-C (Gen2), USB 3.2 Gen1, USB 2.0 (rear & internal headers)
Internal I/O Connectors	24-pin ATX, 8-pin CPU, fan headers, RGB/ARGB headers, 2× M.2, 4× SATA, USB headers, TPM, serial/parallel headers, S/PDIF, Q-Flash Plus
Back Panel Connectors	USB-C, USB-A, HDMI, 2× DP, D-Sub, LAN, PS/2, audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage, temperature, fan speed, water cooling flow, fan fail warning, fan control
BIOS	128 Mbit AMI UEFI BIOS
Unique Features	GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM), LAN bandwidth management
Operating System	Windows 10 / 11 (64-bit)
Form Factor	Micro ATX (24.4 × 24.4 cm)

Low in stock

Receives in 5 days.

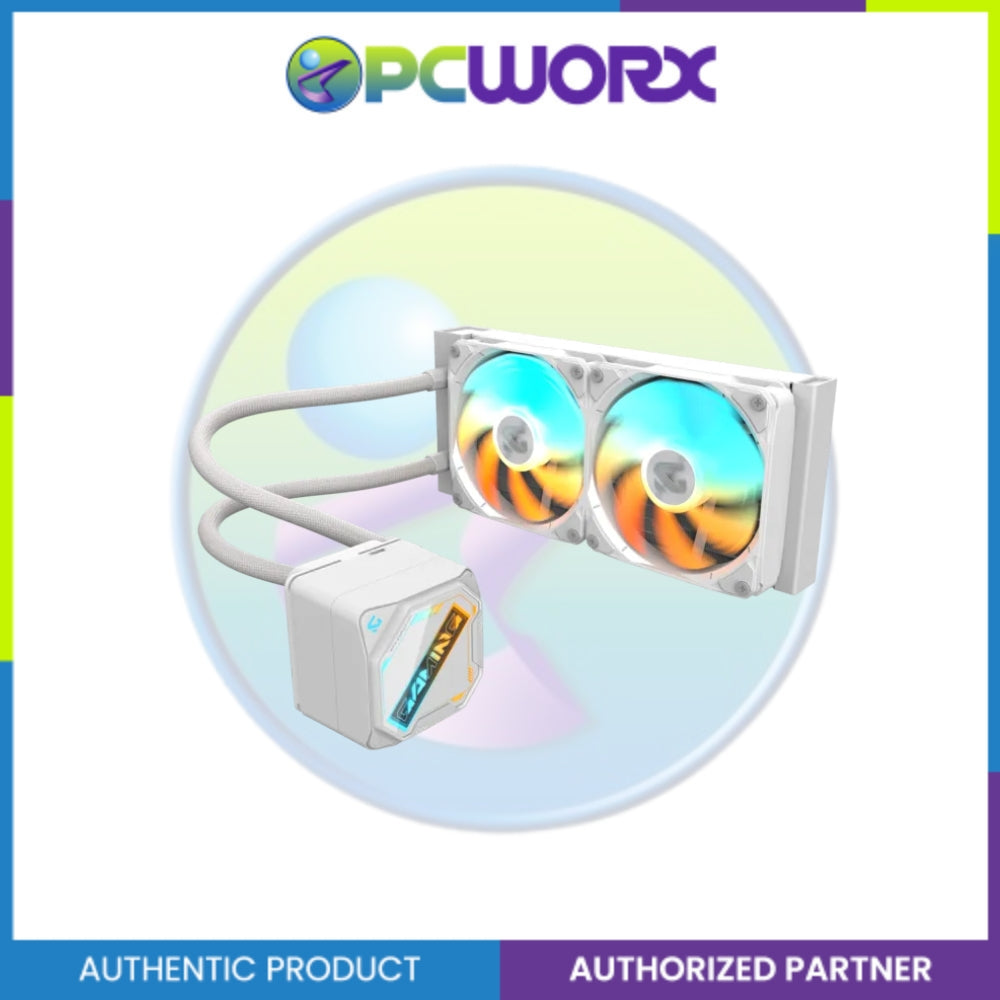

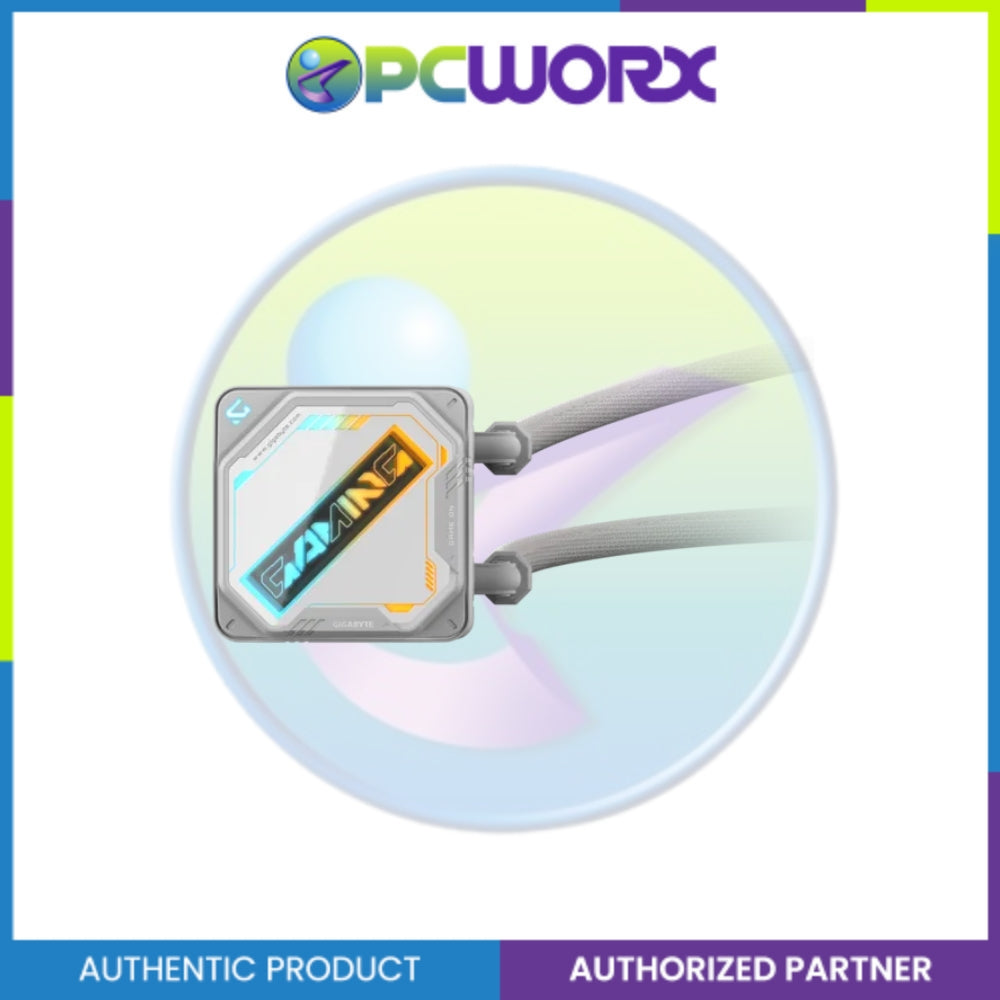

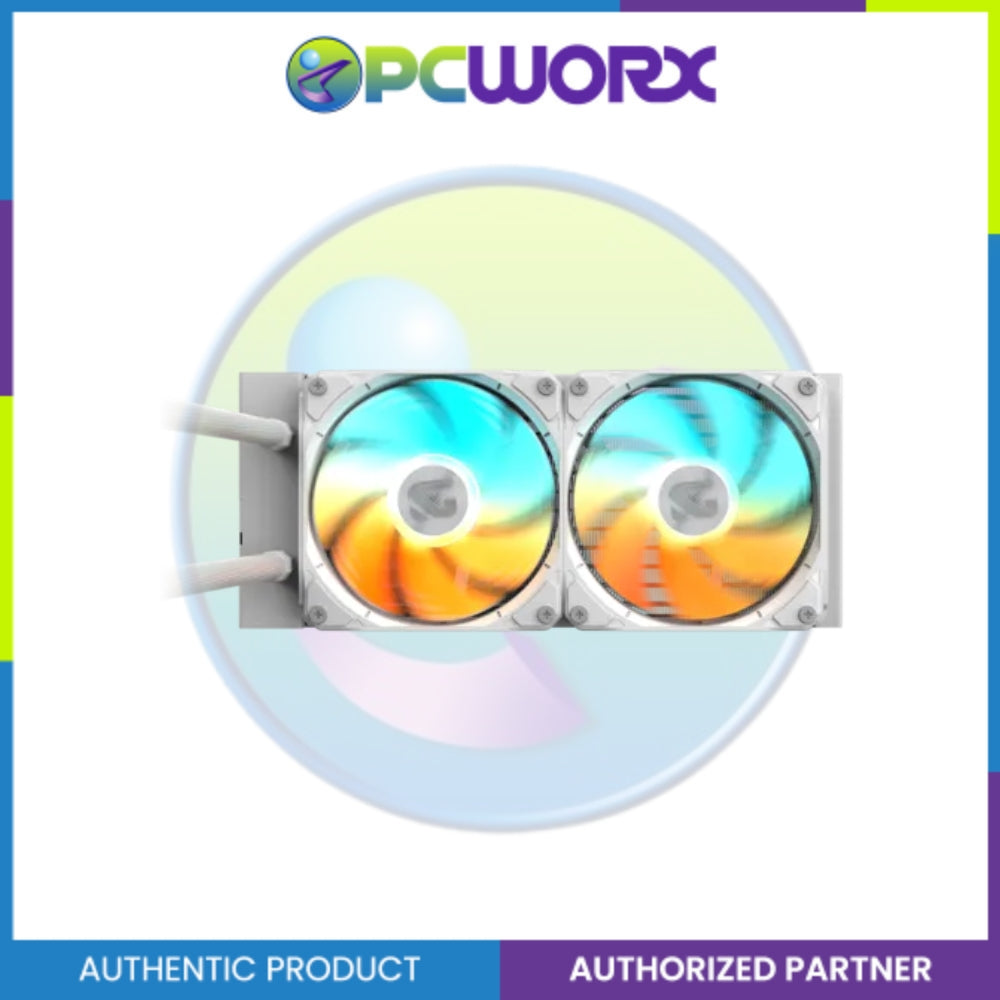

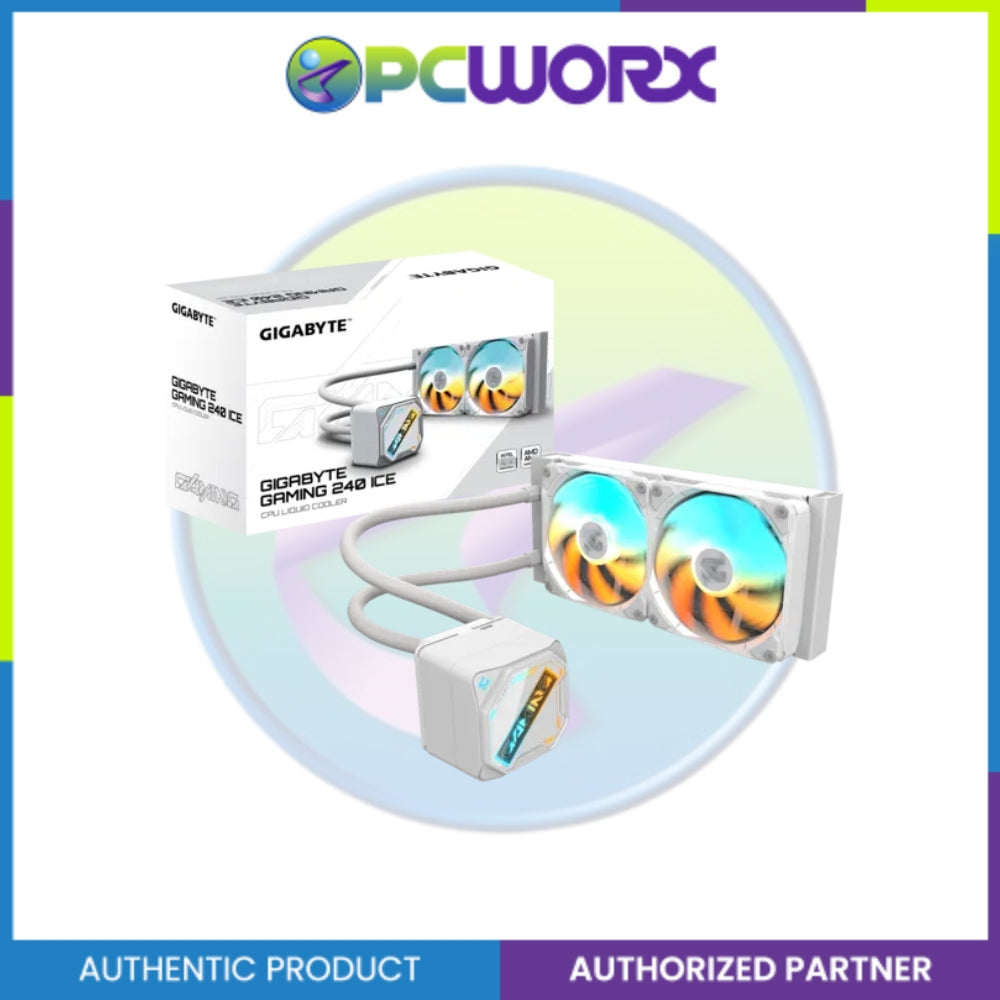

Gigabyte Gaming GP-GIGABYTE-GME-240I ICE AIO 3x120MM EZ-CHAIN ARGB Fan White

PCWORX

Gigabyte Gaming GP-GIGABYTE-GME-240I ICE AIO 3x120MM EZ-CHAIN ARGB Fan White

(0)

₱4,008.00

Cool Without Compromise

The GIGABYTE GAMING 240 high-performance all-in-one liquid cooler delivers exceptional performance with an effortless installation design, allowing enthusiasts to unleash their creativity and build without limits.

Specifications:

Tube	Length: 395mm Material: FEP Tube with Nylon Sleeve
Radiator & Block	Dimensions: 284 x 120 x 35mm Pump Dimensions: 66 x 66 x 63 mm Radiator Material: Aluminum Block Material: Copper
CPU Socket	Intel 1851 / 1700 / 115X / 1200 AMD AM5 / AM4
Pump	Dimensions: 66 x 66 x 63mm Speed: 4500 RPM +/-10%
Fan	Spec: 2 x 120mm ARGB Fan Speed: 500~2200 RPM +/-10% Bearing Type: Double Ball Bearing Air Flow: Max 61.61 CFM Pressure: Max 2.73 mmH2O Noise Level: 13.8 ~ 35.8 dBA
Color	WHITE

Specification	Details
Product	Gigabyte Gaming 240 ICE AIO 3×120 mm ARGB Liquid CPU Cooler
Tube Shielding / Cable Shielding	N/A (internal liquid tubes; no electrical shielding specified)
Network Cable Interface	N/A (no networking hardware)
80 Plus Rating	N/A (not a PSU)
Cable Type	EZ‑Chain daisy‑chain power connectors for fans; standard PWM fan/pump power leads (not individually detailed)
Dimensions (Radiator)	284 × 120 × 35 mm
Pump Dimension	66 × 66 × 63 mm
Fan Dimensions	120 × 120 × 25 mm (2 fans)
Efficiency (Thermal)	Rated ~300 W TDP cooling capacity (typical performance class)
Bearing Type (Pump)	Ceramic bearing (internal pump)
Bearing Type (Fans)	Double ball bearing
Fan Connector	Standard 4‑pin PWM headers via EZ‑Chain (connects fans to motherboard)
Form Factor	240 mm AIO liquid cooler (fits 240 mm radiator mounts)
Heat Pipe	N/A (uses liquid loop; no heat pipes)
Heatsink Material	Radiator: Aluminum; Cold‑plate: Copper
Heatsink Dimension	Radiator: 284 × 120 × 35 mm
Input Frequency / Voltage	12 V DC standard for fan/pump headers (typical AIO)
MTBF (Mean Time Between Failures)	Not specified by manufacturer
Output Capacity	N/A (not a power supply)
Power Factor Correction (PFC)	N/A (not a power supply)
Power Connectors	Standard PWM 4‑pin for fans/pump via EZ‑Chain system
Weight	~1.36 kg (unit) / ~1.54 kg (with packaging)
Pump Speed	Up to 4500 RPM ±10 %
Fan Speed	500–2200 RPM ±10 %
Fan Air Flow	Max 61.61 CFM
Fan Air Pressure	Max 2.73 mmH₂O
Fan Noise Level	13.8–35.8 dBA
ARGB Lighting	Yes – synchronized ARGB lighting supported via motherboard/Control Center
Socket Support	Intel LGA1851/1700/115X/1200; AMD AM5/AM4

Low in stock

Receives in 5 days.

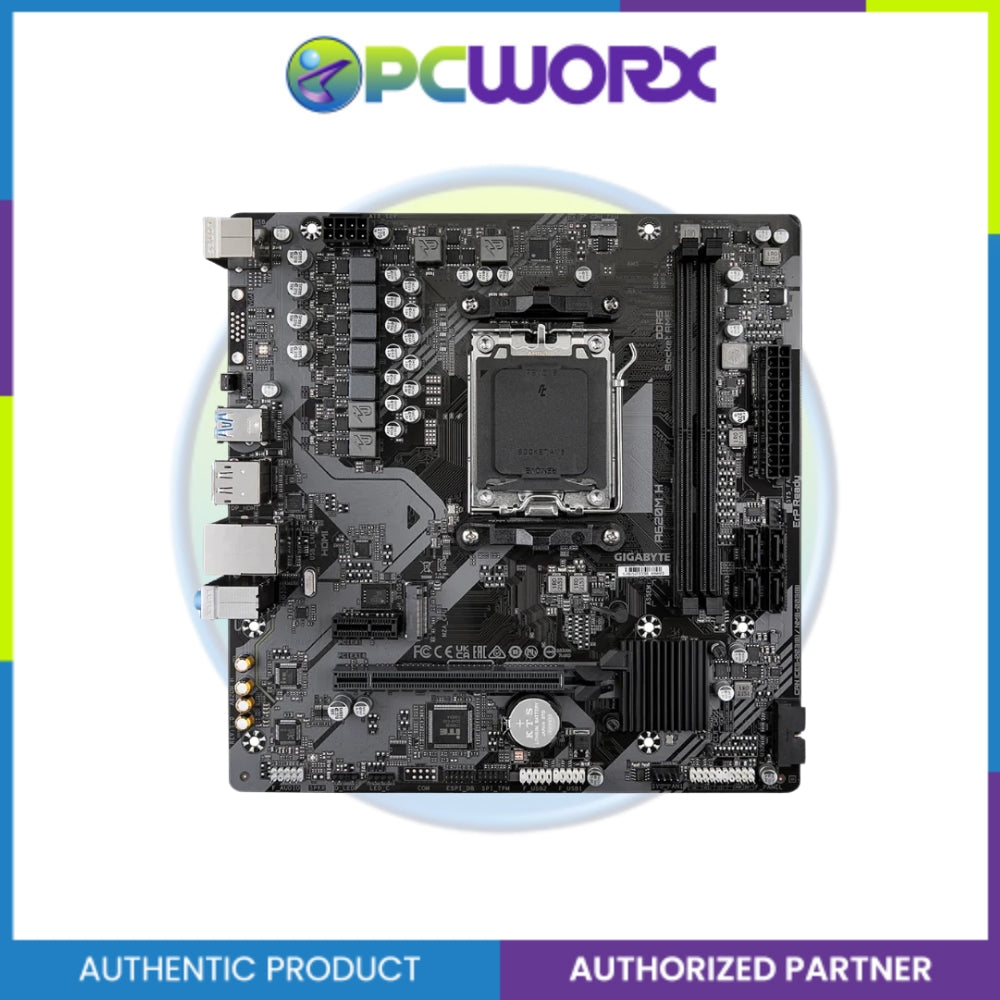

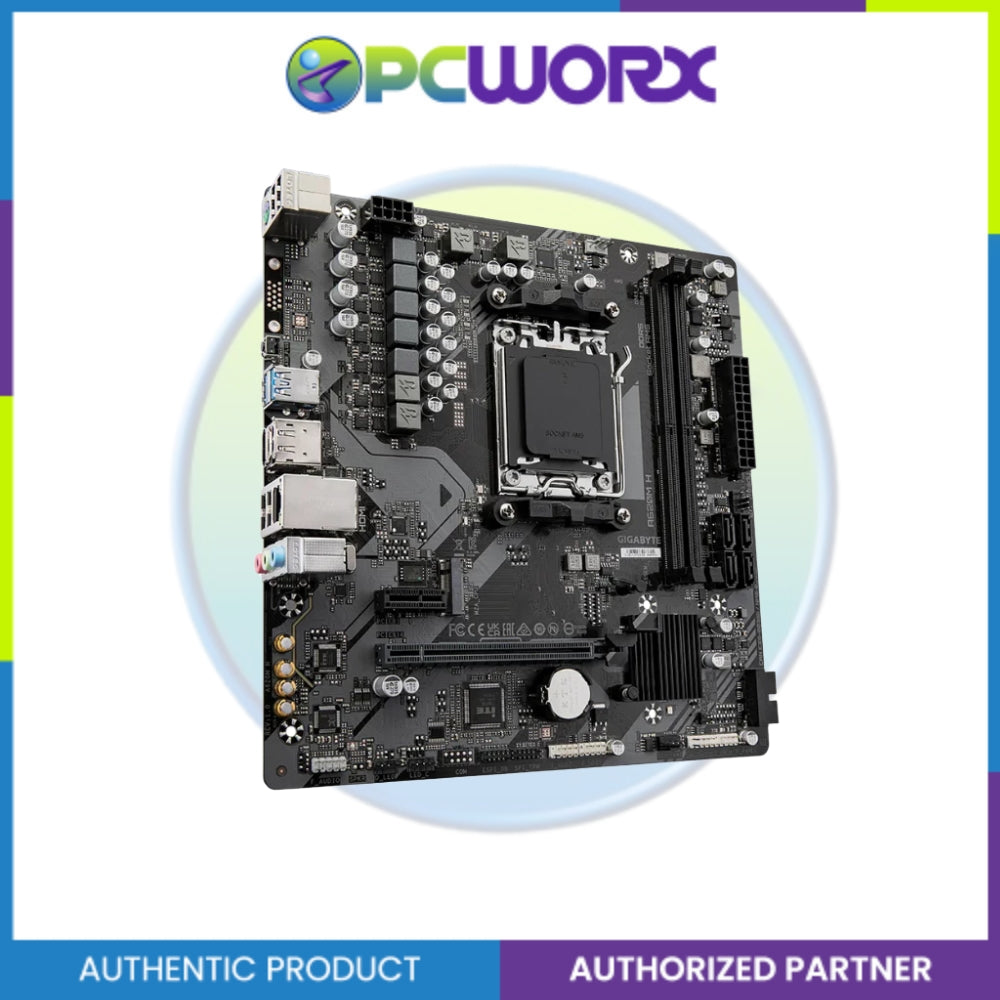

Gigabyte GA-A620M-H AMD AM5 Micro-ATX Motherboard

PCWORX

Gigabyte GA-A620M-H AMD AM5 Micro-ATX Motherboard

(0)

₱5,388.00

CPU Support:
- AMD Ryzen™ 7000 / 8000 / 9000 Series processors
- Socket AM5
Chipset: AMD A620
Memory:
- 2× DDR5 DIMM slots (Dual Channel)
- Up to 128GB
- Supports speeds up to 6400+ MT/s (OC)
- AMD EXPO™ & Intel® XMP ready
Storage:
- 1× M.2 PCIe 4.0 x4 slot (2280)
- 4× SATA 6Gb/s ports
- RAID 0/1/10 support
Expansion Slots:
- 1× PCIe 4.0 x16 (EZ-Latch)
- 1× PCIe 3.0 x1
Graphics Outputs:
- 1× HDMI 2.1 (4096×2160 @60Hz)
- 1× DisplayPort 1.4 (3840×2160 @144Hz)
Audio:
- Realtek® HD Audio Codec
- Supports 2/4/5.1/7.1-channel HD Audio
- High-End Audio Capacitors & Noise Guard
Networking:
- Realtek® GbE LAN (1 Gbps)
USB Ports:
- Rear I/O: 2× USB 3.2 Gen 1, 4× USB 2.0, 1× PS/2
- Internal: 2× USB 3.2 Gen 1 headers, 4× USB 2.0 headers
Cooling & Monitoring:
- Smart Fan 6
- 3× PWM/DC Fan Headers
- Dual Fan Curve Mode
- FAN STOP feature
Special Features:
- PCIe EZ-Latch for quick GPU release
- Q-Flash Plus: BIOS update without CPU, RAM, or GPU
- RGB Fusion: 1× Addressable LED Header, 1× RGB LED Header
Form Factor: Micro-ATX (23.0 cm × 22.5 cm)
OS Support: Windows 11/10 64-bit.

Category	Specification
CPU Support	AMD Socket AM5; supports Ryzen 7000 / 8000 / 9000 series
Chipset	AMD A620
Memory	2× DDR5 DIMM, up to 128GB; speeds: 6400(OC)–4400 MT/s; Dual-channel; supports EXPO & XMP
Graphics (iGPU)	1× DisplayPort (4K @144Hz), 1× HDMI (4K @60Hz); up to 3 displays
Audio	Realtek HD Audio; 2/4/5.1/7.1-channel
LAN	Realtek GbE (1 Gbps)
Expansion Slots	1× PCIe x16 (Gen4, varies by CPU); 1× PCIe x1 (Gen3)
Storage	1× M.2 (PCIe 4.0 x4/x2); 4× SATA 6Gb/s; RAID 0/1/10 (NVMe & SATA)
USB (Rear + Internal)	USB 3.2 Gen1 + USB 2.0 ports (total up to 12 via rear + headers)
Internal Connectors	24-pin ATX, 8-pin CPU, fan headers, RGB/LED headers, M.2, SATA, USB headers, TPM, CMOS jumper
Back Panel I/O	USB ports, PS/2, DisplayPort, HDMI, RJ-45 LAN, audio jacks, Q-Flash Plus button
I/O Controller	iTE I/O Controller Chip
Monitoring	Voltage, temperature, fan speed, flow rate, fan fail warning
BIOS	256 Mbit AMI UEFI BIOS
Special Features	GIGABYTE Control Center, Q-Flash Plus, Q-Flash
Software	Norton Internet Security (OEM), LAN management software
OS Support	Windows 11 & Windows 10 (64-bit)
Form Factor	Micro-ATX (23.0 × 22.5 cm)

Low in stock

Receives in 5 days.

Gigabyte GA-X870-A-STEALTH-ICE AM5 DDR5 Motherboard

PCWORX

Gigabyte GA-X870-A-STEALTH-ICE AM5 DDR5 Motherboard

(0)

₱22,392.00

CPU Support	AMD Socket AM5 Supports Ryzen™ 9000 / 8000 / 7000 Series Processors
Chipset	AMD X870
Memory	4× DDR5 DIMM, up to 256GB Up to DDR5-8200 (OC) Supports Dual Channel, ECC/Non-ECC Un-buffered DIMMs Supports AMD EXPO™ & XMP profiles
Integrated Graphics	With AMD Radeon™ Graphics: – 2× USB4® Type-C® (DP output, 3840×2160@240Hz) – 1× HDMI 2.1 (4096×2160@60Hz) Supports DP 1.4, HDCP 2.3, HDR Graphics support varies by CPU
Audio	Realtek® ALC1220 7.1-Channel HD Audio, S/PDIF Out DSD audio via rear line out
LAN	Realtek® 5GbE LAN
Wireless	Qualcomm® Wi-Fi 7 QCNCM865 Bluetooth 5.3 Supports 2.4/5/6GHz bands Wi-Fi 7 requires Windows 11 SV3
Expansion Slots	1× PCIe x16 (CPU): – Ryzen 9000/7000: PCIe 5.0 x16 – Ryzen 8000 Phoenix 1: PCIe 4.0 x8 – Ryzen 8000 Phoenix 2: PCIe 4.0 x4 1× PCIe 4.0 x4 (Chipset) PCIEX4 disables with M2D_SB in use
Storage	4× M.2: – 2× (CPU): PCIe 5.0/4.0 x4/x2 – 2× (Chipset): PCIe 4.0 x4/x2 2× SATA 6Gb/s Supports RAID 0/1/5/10 (NVMe), RAID 0/1 (SATA) RAID 5 for Ryzen 9000 only
USB Ports	Back Panel: – 2× USB4® Type-C® (ASMedia) – 1× USB 3.2 Gen 2 Type-C® – 2× USB 3.2 Gen 2 Type-A – 4× USB 3.2 Gen 1 – 4× USB 2.0 Internal: – 1× USB 3.2 Gen 2×2 Type-C® header – 2× USB 3.2 Gen 1 – 4× USB 2.0
Internal Connectors	1× 24-pin ATX, 1× 8-pin + 1× 4-pin ATX 12V 4× M.2 slots 2× SATA ports Multiple fan/pump/RGB headers Noise sensor, TPM, Q-Flash Plus, etc.
Back Panel I/O	1× HDMI, 2× USB4® Type-C®, 1× USB 3.2 Gen 2 Type-C®, 2× USB 3.2 Gen 2 Type-A, 4× USB 3.2 Gen 1, 4× USB 2.0, 1× RJ-45 (5GbE), Optical S/PDIF, 2× Audio jacks, 2× Wi-Fi Antenna
I/O Controller	iTE® I/O Controller
Monitoring	Voltage, Temp, Fan speed, Water flow Fan fail warning & control
BIOS	AMI UEFI BIOS, 512 Mbit Flash Supports Q-Flash, Q-Flash Plus
Software	Norton® Internet Security OEM GIGABYTE Control Center
OS Support	Windows 11 64-bit only
Form Factor	ATX (30.5cm x 24.4cm)

Category	Specification
CPU	AMD Socket AM5Supports: Ryzen™ 9000 / 8000 / 7000 Series Processors
Chipset	AMD X870
Memory	4× DDR5 DIMM slots (Up to 256GB)DDR5 8200(O.C.) down to 4400 MT/sDual Channel ArchitectureSupports EXPO™ & XMPNon-ECC Unbuffered DIMM (1Rx8/2Rx8/1Rx16)
Onboard Graphics	Integrated AMD Radeon™ Graphics2× USB4 Type-C (up to 3840×2160@240Hz, DP 1.4, HDR)1× HDMI 2.1 (4096×2160@60Hz, HDCP 2.3, HDR)
Audio	Realtek® ALC1220 Codec2/4/5.1/7.1-channel HD AudioS/PDIF Out
LAN	Realtek® 5GbE LAN (5G/2.5G/1G/100M)
Wireless	Qualcomm® Wi-Fi 7 QCNCM865802.11 a/b/g/n/ac/ax/be (2.4/5/6GHz)Bluetooth 5.4
Expansion Slots	1× PCIe x16 (Gen5/Gen4 depending on CPU)1× PCIe x16 (Gen4 x4, from chipset)
Storage	4× M.2 (PCIe 5.0/4.0 depending on CPU)2× SATA 6Gb/sSupports RAID 0/1/5/10 (NVMe), RAID 0/1 (SATA)
USB (Rear + Internal)	2× USB4 Type-CUSB 3.2 Gen2x2 / Gen2 / Gen1USB 2.0/1.1 (Multiple rear & internal headers)
Internal Connectors	24-pin ATX8-pin + 4-pin CPU powerMultiple fan/pump headersRGB & ARGB headersTPM headerTemperature sensor headers
Back Panel I/O	HDMI2× Antenna connectors2× USB4 Type-CUSB 3.2 Gen2 & Gen1USB 2.0RJ-45 (5GbE)Optical S/PDIFAudio jacks
I/O Controller	iTE® I/O Controller
H/W Monitoring	Voltage, Temperature, Fan speed, Pump flow, Fan fail warning
BIOS	512 Mbit FlashAMI UEFI BIOS
Software Features	GIGABYTE Control Center (GCC)Q-Flash / Q-Flash PlusSmart Backup
Bundled Software	Norton® Internet Security (OEM)
OS Support	Windows 11 64-bit
Form Factor	ATX (30.5cm × 24.4cm)

Low in stock

Receives in 5 days.

Gigabyte GA-B850M-EAGLE-WF6E-ICE DDR5 AM5 M-ATX

PCWORX

Gigabyte GA-B850M-EAGLE-WF6E-ICE DDR5 AM5 M-ATX

(0)

₱12,228.00

Category	Specifications
CPU	AMD Socket AM5Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Chipset	AMD B850
Memory	4× DDR5 DIMM slots, up to 256GB (64GB per DIMM)Dual-channel architectureSupports DDR5 8200(O.C.) down to 4400 MT/sSupports AMD EXPO™ & XMPNon-ECC Unbuffered DIMM (1Rx8/2Rx8/1Rx16)
Onboard Graphics (CPU dependent)	1× HDMI (4096×2160 @ 60Hz, HDMI 2.1, HDCP 2.3, HDR)2× DisplayPort (3840×2160 @ 144Hz, DP 1.4)Triple display support
Audio	Realtek® HD Audio CODEC2 / 4 / 5.1 / 7.1-channel
LAN	Realtek® 2.5GbE LAN (2.5G / 1G / 100M)
Wi-Fi / Bluetooth	Realtek® Wi-Fi 6E RTL8852CESupports 2.4 / 5 / 6 GHz802.11 a/b/g/n/ac/ax (160MHz)Bluetooth 5.3
Expansion Slots	1× PCIe x16 (CPU-dependent: PCIe 5.0/4.0)1× PCIe x16 (PCIe 3.0 x4 via chipset)
Storage	2× M.2 Socket 3 (PCIe 5.0/4.0 depending on CPU)4× SATA 6Gb/sNVMe RAID 0/1/5/10 (RAID 5 = Ryzen 9000 only)SATA RAID 0/1/10
USB (Rear + Internal)	Rear:• 1× USB-C 3.2 Gen2• 1× USB 3.2 Gen2 Type-A• 2× USB 3.2 Gen1• 4× USB 2.0Internal:• 1× USB-C Gen2 header• 1× USB 3.2 Gen1 header• 2× USB 2.0 headers
Internal I/O	24-pin ATX + 8-pin CPU power2× M.2 connectors4× SATACPU/System fan & pump headersRGB + ARGB headersTPM headerFront panel + audio headers
Back Panel I/O	1× HDMI2× DisplayPort1× Q-Flash Plus button1× PS/21× USB-C Gen21× USB 3.2 Gen2 Type-A2× USB 3.2 Gen14× USB 2.01× RJ-45 LAN2× Wi-Fi antenna connectors3× audio jacks
BIOS	256 Mbit FlashAMI UEFI BIOS
H/W Monitoring	Voltage / Temperature detectionFan speed control & warningWater cooling flow detection
Software Features	GIGABYTE Control Center (GCC)Q-Flash & Q-Flash PlusSmart Backup
Bundled Software	Norton® Internet Security (OEM)LAN bandwidth management software
Operating System	Windows 11 64-bitWindows 10 64-bit
Form Factor	Micro-ATX24.4 cm × 24.4 cm

Out of stock

Receives in 5 days.

Gigabyte GA-B760M-DS3H-WF6E-GEN5 LGA1700 DDR5 m-ATX Mobo

PCWORX

Gigabyte GA-B760M-DS3H-WF6E-GEN5 LGA1700 DDR5 m-ATX Mobo

(0)

₱8,724.00

PCIe Gen5 Performance : Perfect Sync to Win
Supports Intel® Core™ 14th/ 13th /12th processors
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal.
EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
Unparalleled Performance : Hybrid 6+2+1 Phases VRM Solution
Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support
Fast Networks : 2.5 GbE LAN & Wi-Fi 802.11ax
Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
Extended Connectivity : Rear USB-C® 10Gb/s, DP, HDMI
Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card

Category	Specifications
CPU	LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors. L3 cache varies with CPU. (Check GIGABYTE's website for latest CPU support list.)
Chipset	Intel® B760 Express Chipset
Memory	- 14th/13th Gen Intel® Core™ i9/i7: DDR5 7600(O.C.)/7400(O.C.)/7200(O.C.)/7000(O.C.)/6800(O.C.)/6600(O.C.)/6400(O.C.)/6200(O.C.)/6000(O.C.)/5800(O.C.)/5600/5200/4800/4400 MT/s - 13th Gen i5/i3 & 12th Gen Core, Pentium Gold, Celeron: DDR5 4800/4400 MT/s - 4 x DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) - Dual-channel architecture - Support for ECC & non-ECC UDIMMs - XMP memory modules supported
Onboard Graphics	Integrated Intel® HD Graphics support - 1 × HDMI (max 4096×2160@60 Hz, HDMI 2.1 & HDCP 2.3) - 2 × DisplayPort (max 4096×2304@60 Hz, DP 1.2) - Triple-display support (CPU dependent)
Audio	Realtek® Audio CODEC, High Definition Audio 2/4/5.1/7.1-channel S/PDIF Out support
LAN	Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)
Wireless	Intel® Wi-Fi 6E AX210 - 802.11a/b/g/n/ac/ax, 2.4/5/6 GHz - Bluetooth 5.3 - 11ax 160 MHz support
Expansion Slots	CPU: 1 × PCIe 5.0 x16 Chipset: 2 × PCIe 3.0 x1
Storage Interface	CPU: 1 × M.2 Socket 3 (2280, PCIe 4.0 x4/x2) Chipset: 1 × M.2 Socket 3 (2280, PCIe 4.0 x4/x2) 4 × SATA 6 Gb/s, RAID 0/1/5/10
USB	Back Panel: 1 × USB Type-C (USB 3.2 Gen2), 3 × USB 3.2 Gen1, 2 × USB 2.0/1.1 Internal: 2 × USB 2.0/1.1 headers (4 ports), 1 × USB 3.2 Gen1 header (2 ports)
Internal Connectors	24-pin ATX, 8-pin CPU, 1 × CPU fan, 3 × system fan, 2 × Addressable RGB Gen2 headers, 1 × RGB LED header, 2 × M.2, 4 × SATA 6 Gb/s, front panel header, front audio, USB 3.2 Gen1 header, 2 × USB 2.0 headers, TPM header, S/PDIF Out, Q-Flash Plus button, Reset jumper, Clear CMOS jumper
Back Panel Connectors	2 × USB 2.0/1.1, 1 × PS/2, 2 × antenna connectors, 1 × HDMI, 2 × DisplayPort, 3 × USB 3.2 Gen1, 1 × USB Type-C (USB 3.2 Gen2), 1 × RJ-45, 3 × audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage, temperature, fan speed, water cooling flow, fan fail warning, fan speed control (fan dependent)
BIOS	128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
Bundled Software	Norton® Internet Security (OEM)
Operating System	Windows 11 64-bit, Windows 10 64-bit
Form Factor	Micro ATX (24.4 cm × 24.4 cm)

Low in stock

Receives in 5 days.

Gigabyte GA-B760-DS3H-AX-DDR4 Motherboard

PCWORX

Gigabyte GA-B760-DS3H-AX-DDR4 Motherboard

(0)

₱10,152.00

Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution
Dual Channel DDR4：4*DIMMs XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
M.2 Thermal Guard：To Ensure M.2 SSD Performance
EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
Fast Networks：2.5GbE LAN & Intel® Wi-Fi 6E 802.11ax
Extended Connectivity：Rear USB-C® 10Gb/s, DP, HDMI
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

SPECIFICATIONS:

CPU	LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset	Intel® B760 Express Chipset
Memory	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	AMD Wi-Fi 6E RZ608 (MT7921K) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands LUETOOTH 5.2 Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate (Actual data rate may vary depending on environment and equipment.)
Expansion Slots	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage Interface	CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Back Panel Connectors	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm

Low in stock

Receives in 5 days.

Gigabyte GA-X870M-A-ELITE-WF7-ICE AM5 DDR5 Motherboard

PCWORX

Gigabyte GA-X870M-A-ELITE-WF7-ICE AM5 DDR5 Motherboard

(0)

₱15,888.00

Low in stock

Receives in 5 days.

Specifications
Form Factor:	Micro-ATX
CPU Socket:	LGA 1200
Chipset:	Intel® H510 Express Chipset
Processor Support:	11th Gen (Core™ i9/i7/i5) and 10th Gen (Core™ i9/i7/i5/i3, Pentium®, Celeron®) Intel® processors
Memory:	2 x DDR4 DIMM sockets, supporting up to 64GB, dual-channel architecture, and speeds up to DDR4 3200 MHz (with 11th Gen)
Expansion Slots:	1 x PCI Express x16 (PCIe 3.0 x16), 1 x PCI Express x1 (PCIe 3.0 x1)
Storage:	1 x M.2 connector (SATA & PCIe Gen3 x4 SSD support)
Onboard Graphics:	Integrated Graphics Processor with Intel® HD Graphics support, 1 x HDMI port (up to 4096x2160@30 Hz)
Audio:	Realtek® 8-channel HD Audio
LAN:	Realtek® GbE LAN chip
USB Ports:	2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 ports (on back panel), with additional ports available via internal headers
Unique Features:
Smart Fan 5 with multiple temperature sensors and hybrid fan headers for advanced fan control
GIGABYTE APP Center for easy system management
Anti-Sulfur Resistors for enhanced protection against environmental damage

Panel Size (diagonal)	27" VA 1500R
Display Viewing Area (HxV)	596.736 x 335.664 (mm)
Panel Backlight/ Type	Edge
Display Surface(non-glare/ glare)	Non-glare
Color Saturation	122% sRGB
True Resolution	2560 x 1440 (QHD)
Pixel Pitch	0.2331*0.2331
Brightness	250 cd/m2 (TYP)
Contrast Ratio	5000:01:00
Viewing Angle	178°(H)/178°(V)
Display Colors	16.7M
Response Time	1ms (MPRT)
Refresh Rate	180Hz
HDR	HDR Ready
Flicker-free	Yes
HBR3	Yes
Connectivity	2 x HDMI 2.0
	1 x Displayport 1.4
	1 x Earphone Jack
Speaker	N/A
Unique Features	OSD Sidekick*
	Aim Stabilizer
	Black Equalizer
	Crosshair
	Timer
Power Type	Power Board Build-in
Power Consumption	26W**
Power Saving Mode	<0.5W
Power Off Mode	<0.3W
Voltage	AC 100-240V ~ 50/60Hz
Tilt(angle)	-5°~+20°
Swivel(angle)	N/A
Pivot(angle/direction)	N/A
Height Adjustment (mm)	N/A
VESA Wall Mounting(mm)	100*100 mm
Kensington lock	Yes
Phys. Dimension with Stand(WxHxD)	610.5441208 mm
Phys. Dimension w/o stand (WxHxD)	610.5362.578.3 mm
Box Dimension (WxHxD)	688448148 mm
Net Weight with stand (Esti.)	4.53 kg
Net Weight without stand (Esti.)	3.62 kg
Gross Weight (Esti.)	7.1 kg
Accessories	Power cable/DP cable/QSG/Warranty card
Note	*To enable OSD Sidekick (integrated in GCC), it requires connection between PC and monitor with HDMI/DP cable.
Note	**The test condition follows CEC standards.

Form Factor:	2.5-inch internal SSD
Interface:	SATA 6.0Gb/s
Total Capacity:	1TB*
Sequential Read speed:	up to 550 MB/s**
TRIM & S.M.A.R.T supported

Brand:	Gigabyte
Model:	GP-GSTFS31100TNTD
Total Capacity:	1TB
Interface:	SATA 6.0Gb/s
Form Factor:	2.5-inch internal SSD
NAND:	3D NAND Flash
External DDR Cache:	N/A
Sequential Read speed:	Up to 550 MB/s
Sequential Write speed:	Up to 500 MB/s
Random Read IOPS:	up to 75k
Random Write IOPS:	up to 85k
Dimension:	69.85 x 7 x 100 mm
Mean time between failure (MTBF):	2M hours
Power Consumption (Active): Average:	R: 2240mW; W: 2610mW
Power Consumption (Idle):	AVG. 330mW
Temperature (Operating):	0°C to 70°C
Temperature (Storage):	40°C to 85°C

Panel Size (diagonal)	27" SS IPS
Display Viewing Area (HxV)	596.74 x 335.66 (mm)
Panel Backlight/ Type	Edge
Display Surface(non-glare/ glare)	Non-glare
Color Saturation	105% sRGB
True Resolution	1920 x 1080(FHD)
Pixel Pitch	0.3108*0.3108
Brightness	300 cd/m2 (TYP)
Contrast Ratio	1000:1
Viewing Angle	178°(H)/178°(V)
Display Colors	16.7M
Response Time	1ms (MPRT)
Refresh Rate	165Hz/OC 170Hz
HDR	HDR Ready
Flicker-free	Yes
Connectivity	2 x HDMI 2.0 1 x Displayport 1.4 1 x Earphone Jack
Earphone Jack	Yes
Speaker	N/A
Unique Features	OSD Sidekick * Aim Stabilizer Black Equalizer Crosshair Timer
Power Type	Power Board Build-in
Power Consumption	32W
Power Saving Mode	0.5W
Power Off Mode	0.3W
Voltage	AC 100-240V ~ 50/60Hz
Tilt(angle)	-5°~+20°
Swivel(angle)	N/A
Pivot(angle/direction)	N/A
Height Adjustment (mm)	N/A
VESA Wall Mounting(mm)	100*100mm
Kensington lock	Yes
Phys. Dimension with Stand(WxHxD)	619447172 mm
Phys. Dimension w/o stand (WxHxD)	619365.550.2 mm
Box Dimension (WxHxD)	740156500 mm
Net Weight with stand (Esti.)	5.02 kg
Net Weight without stand (Esti.)	4.1 kg
Gross Weight (Esti.)	6.91 kg

Main menu

Product comparison

Key specifications
Specification	Detail
Graphics Processing	GeForce RTX™ 5060 Ti
Core Clock	2587 MHz (Reference clock: 2572 MHz)
CUDA® Cores	4608
Memory Size	16 GB
Memory Type	GDDR7
Memory Clock	28 Gbps
Memory Bus	128 bit
Card Bus	PCI-E 5.0
Digital Max Resolution	7680x4320
Multi-view	4
Power Connectors	1x 8 Pin
Recommended PSU	650W
Output	3x DisplayPort 2.1b, 1x HDMI 2.1b
Card Size	L=208 W=120 H=40 mm
PCB Form	ATX
DirectX	12 API
OpenGL	4.6
Cooling	WINDFORCE cooling system with Hawk fans, 3D active fans, and screen cooling

Model	GP-UD850GM PG5 V2
Type	Intel Form Factor ATX 12V v3.1
PFC	Active PFC (>0.9 typical)
Input Voltage	100-240 Vac (full range)
Input Current	15-6.5A
Input Frequency	60-50 Hz
Output Capacity	850W
Dimensions	150 x 140 x 86 mm
Fan Type	120mm Hydraulic Bearing(HYB) Fan
80 PLUS	Gold
Efficiency	90% at typical load
MTBF	>100,000 hours
Protections	OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal	100-150ms
Hold Up Time	>16ms
Cable Type	Embossed, All black
Connectors	ATX/MB 20+4 Pin x 1 : 610mm1 CPU/EPS 4+4 Pin x 2 : 650mm+200mm1 PCI-e 6+2 Pin x 4 : 600mm+150mm2 PCI-e 12+4 Pin x 1:700mm1 SATA x 8 : 600mm+150mm+150mm+150mm2 4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm1

Core Clock	2595 MHz (Reference card : 2497MHz)
CUDA® Cores	3840
Memory Clock	28 Gbps
Memory Size	8 GB
Memory Type	GDDR7
Memory Bus	128 bit
Card Bus	PCI-E 5.0
Digital max resolution	7680x4320
Multi-view	4
Card size	L=281 W=117 H=40
PCB Form	ATX
DirectX	DirectX 12 API
OpenGL	4.6
Recommended PSU	500W
Power Connectors	8 Pin*1
Output	DisplayPort 2.1b 3 HDMI 2.1b 1
Accessories	Quick guide

Interface	PCI-Express 4.0x4, NVMe 1.4
Form Factor	M.2 2280
Total Capacity	500GB
NAND	3D TLC NAND Flash
Sequential Read speed	Up to 5,000 MB/s
Sequential Write speed	Up to 3,800 MB/s
Dimension	80 x 22 x 2.3 mm
Mean time between failure (MTBF)	1.5 million hours
Power Consumption (Active)	Average : R : 4W / W : 4W
Power Consumption(Idle)(ASPT on)	20mW
Temperature (Operating)	0°C to 70°C
Temperature (Storage)	-40°C to 85°C

Core Specifications
Socket:	AM5 (supports Ryzen 9000/8000/7000)
Chipset:	AMD X870
Form Factor:	Micro ATX
Memory:	4x DDR5 DIMM, up to 256 GB, supports up to 8200(O.C.) MT/s
VRM:	14+2+2 Twin Digital VRM Design
Expansion and Storage
PCIe Slot:	1x PCIe 5.0 x16 (UD Slot X)
M.2 Slots:	2 slots (1x PCIe 5.0, 1x PCIe 4.0)
SATA:	2x SATA 6Gb/s
Connectivity
Networking:	Realtek Wi-Fi 7 (802.11be), 2.5 GbE LAN
USB Ports:	2x USB4 Type-C (up to 40Gbps), multiple USB 3.2 Gen 1/2
Video Output:	2x USB4 Type-C (DisplayPort), 1x HDMI 2.1, 1x front HDMI
Key Features
Design:	White aesthetic
DIY Friendly:	EZ-Latch (PCIe/M.2), WIFI EZ-Plug
Audio:	Realtek ALC1220
BIOS:	Q-Flash Plus Button

Main menu

MAXIMIZEBF

Explore Related Collections
