Hardware Specifications
CPU
CPU Model
Realtek RTD1619B
CPU Architecture
ARM64 64-bit
CPU Frequency
Quad-Core 1.7GHz
Memory
Memory
2GB DDR4
Memory Expandable up to
not expandable
Flash Memory
8GB eMMC
Storage
Drive Bays
4
Compatible Drive Type
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
Maximum Drive Bays with Expansion Unit
16
Supports Hot Swappable Drives
External Ports
Expansion
3x USB 3.2 Gen 1
Network
1x 2.5 Gigabit Ethernet (2.5G/1G/100M)
Multimedia Output
N/A
Others
System Fan
1x 120mm
Power Supply Unit / Adapter
90W x1
Input Power Voltage
100V to 240V AC
Certification
FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC
Warranty
3 Years
Operation
Power Consumption
25.1W (Operation) 8.4W (Disk Hibernation);
Noise Level
19.7dB (HDD idle)
Operation Temperature
0°C~40°C (32°F~104°F)
Storage Temperature
-20°C~70°C (-4°F~158°F)
Humidity
5% to 95% RH
Size and Weight
Size
170(H) x 174(W) x 230(D) mm
Weight
2.2 kg / 4.85 lbs
Key specifications
Capacity:
2TB
Form Factor:
2.5-inch
Interface:
SATA 6Gb/s
Rotational Speed:
5400 RPM
Cache:
128MB
Height:
7mm
Weight:
Approximately 90g
Max Data Transfer Rate:
Up to 140 MB/s
Bytes per Sector:
4096
Power:
5V DC
_____________________________________________________
Warranty Information:
• Item compatibility is buyer’s responsibility.
• For security purposes: Kindly secure unboxing video incase wrong item and defective upon received.
• Check all items upon receipt.
• All items/claims for warranty are carry-in.
• Tampered warranty sticker voids the warranty.
• Overclocking may void the warranty.
• Items for warranty must be complete with original contents/packaging and accompanied by warranty receipt.
• Defective items for warranty are subject for pull out and RMA services. (Shipping fee should be shoulder by customer)
Specification
Details
Capacity
2TB | 4TB | 6TB | 8TB | 10TB | 12TB
Dimensions (H x W x D)
20.20 mm / 0.795 in × 101.6 mm / 4.00 in × 146.99 mm / 5.787 in
Weight
415 g / 0.915 lb
SPECIFICATION
Capacity
2 TB
Device Type Hard drive -
internal
Features 24x7 availability,
ImagePerfect firmware
Interface
SATA 6Gb/s
Buffer Size
64 MB
Weight
21.51 oz
ManufacturerSeagate Technology
INTERFACE PROVIDED
Qty 1
Connector
Type 7 pin Serial ATA
Storage Interface
Serial ATA-600
MISCELLANEOUS
MTBF
1000000 sec
Color Category silver
EXPANSION &
CONNECTIVITY
Interfaces 1 x
SATA 6 Gb/s - 7 pin Serial ATA
PERFORMANCE
Internal Data Rate
180 MBps
Drive Transfer Rate
600 MBps (external)
Spindle Speed
5900 rpm
HARD DRIVE
Form Factor 3.5"
Spindle Speed 5400 rpm
Features 24x7 availability, ImagePerfect firmware
Hard Drive Type internal hard drive
Form Factor (Short) 3.5"
Form Factor (metric) 8.9 cm
Form Factor (Short) (metric) 8.9 cm
Storage Interface Serial ATA-600
Interface Serial ATA-600
Data Transfer Rate 600 MBps
Internal Data Rate 180 MBps
Buffer Size 64 MB
Non-Recoverable Errors 1 per 10^14
HEADER
Brand Seagate
Product Line Seagate SkyHawk Surveillance HDD
Model ST2000VX015
Packaged Quantity 1
Compatibility PC
DIMENSIONS & WEIGHT
Width 4 in/10.16cm
Depth 5.8 in/14.732cm
Height 1 in/2.54cm
Weight 21.51 oz/0.60979824242kg
_____________________________________________________Warranty Information:• Item compatibility is buyer’s responsibility.• For security purposes: Kindly secure unboxing video incase wrong item and defective upon received.• Check all items upon receipt.• All items/claims for warranty are carry-in.• Tampered warranty sticker voids the warranty.• Overclocking may void the warranty.• Items for warranty must be complete with original contents/packaging and accompanied by warranty receipt.• Defective items for warranty are subject for pull out and RMA services. (Shipping fee should be shoulder by customer)
Digital Storage Capacity
10 TB
Hard Disk Interface
Serial ATA
Connectivity Technology
SATA
Brand
Seagate
Special Feature
Portable
Hard Disk Form Factor
3.5 Inches
Hard Disk Description
Mechanical Hard Disk
Compatible Devices
Desktop
Specifications
1 TB
Model Numbers
ST1000LM048
Bytes per Sector (logical/physical)
512/4,096
Performance
Interface
SATA 6 Gb/s
Data Transfer Rate (MB/s)
Up to 140
Cache (MB)
128
Spindle Speed (RPM)
5,400
Reliability/Data Integrity
Load/Unload Cycles
600,000
Head-Rest Method
QuietStep Ramp Load
Non-recoverable Read Errors per Bits Read, Max
1 per 1014
Limited Warranty
2
Power Management
Startup Current (+5 V, A)
1
Read/Write Power, Average (W)
1.6/1.7
Idle Power, Average (W)
0.45
Environmental
Temperature, Operating (°C)
0 to 60
Temperature, Non-operating (°C)
–40 to 70
Shock, Operating: 2 ms (Gs)
400
Shock, Non-operating: 1ms (Gs)
1,000
Acoustics, Idle, Typical (bels—sound power)
2
Acoustics, Seek, Typical (bels—sound power)
2.2
Physical
Height (mm/in)
7.0/0.276
Width (mm/in)
69.85/2.750
Depth (mm/in)
100.35/3.951
Weight (g/lb, max)
90/0.198
Special Features
Multi-Tier Caching Technology™
Yes
Halogen-free
Yes
RoHS compliance
Yes
_____________________________________________________
Warranty Information:
• Item compatibility is buyer’s responsibility.
• For security purposes: Kindly secure unboxing video incase wrong item and defective upon received.
• Check all items upon receipt.
• All items/claims for warranty are carry-in.
• Tampered warranty sticker voids the warranty.
• Overclocking may void the warranty.
• Items for warranty must be complete with original contents/packaging and accompanied by warranty receipt.
• Defective items for warranty are subject for pull out and RMA services. (Shipping fee should be shoulder by customer)
The Seagate 16TB ST16000VE002 SkyHawk AI is a high-capacity hard disk drive designed specifically for artificial intelligence (AI) and video surveillance applications. Its impressive 16TB storage capacity and advanced features make it an ideal choice for demanding workloads.
Key Features:
16TB Capacity: Provides ample storage for extensive AI training data and video surveillance footage.
7200 RPM Spindle Speed: Delivers fast data transfer rates for efficient AI processing and video playback.
256MB Cache: Improves data access times, enhancing overall performance.
Seagate Image Perfect Firmware: Optimizes drive performance for AI and surveillance workloads.
Rotational Vibration Tolerance: Minimizes data corruption caused by vibrations from multiple cameras.
24x7 Workload Rating: Designed for continuous operation, ensuring uninterrupted AI training and surveillance.
3-Year Limited Warranty: Provides peace of mind with reliable customer support.
Ideal Applications:
AI Training: Store and process large datasets for machine learning and deep learning models.
Video Analytics: Analyze video footage for object detection, facial recognition, and behavior analysis.
Smart City Surveillance: Monitor public areas with numerous cameras for enhanced safety and security.
Data Centers: Store and manage vast amounts of data for AI and machine learning applications.
SPECIFICATIONS
Capacity:
16TB
Interface:
SATA III (6 Gb/s)
Spindle Speed:
7200 RPM
Cache:
256MB
Form Factor:
3.5-inch
Dimensions:
147mm x 100mm x 26.5mm
Weight:
620 grams
Operating Temperature:
5°C to 60°C
Non-Operating Temperature:
-40°C to 70°C
Acoustic Noise:
22 dBA
Rotational Vibration Tolerance:
3.5mm peak-to-peak
Shock Tolerance:
200G (5ms duration)

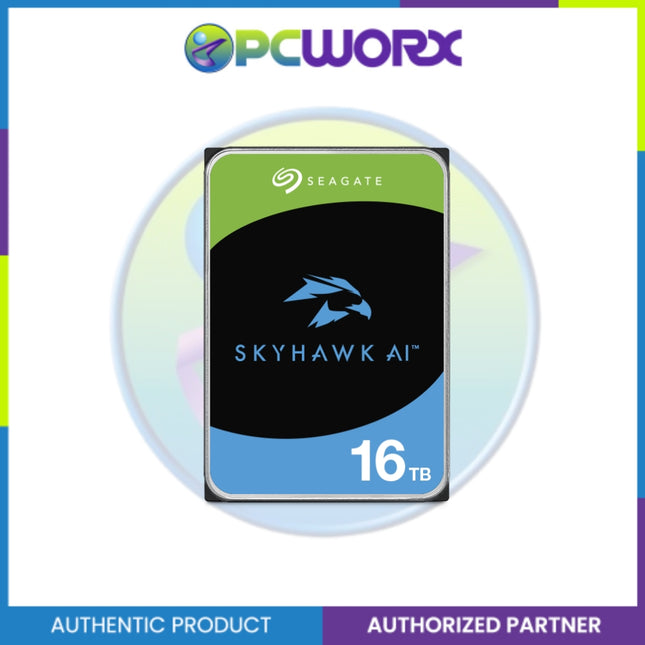

Seagate SkyHawk AI ST16000VE004 is a 16TB internal 3.5-inch hard disk drive
Internal, 3.5" HDD with excellent performance.
The disk is designed for reliable 24-hour operation in CCTV surveillance systems. Serial ATA interface connection.
Product information
The Seagate SkyHawk AI hard drive, model ST16000VE004, redefines storage solutions for AI-enhanced surveillance and data-intensive workloads. Designed to operate in a wide range of environmental conditions, with operating temperatures from 5 °C to 65 °C, it ensures reliability and durability in various settings. This 3.5" internal hard drive boasts a substantial 16 TB capacity, coupled with a 512 MB buffer size, to accommodate extensive video footage and analytics data.
Its specialized ImagePerfect firmware is tailored for continuous, 24/7 surveillance recording, significantly reducing dropped frames and downtime. The hard drive's helium sealed-drive design not only increases reliability but also optimizes power efficiency, with an average power consumption of just 7.8 W. Additionally, the inclusion of RV sensors mitigates the impact of rotational vibrations, ensuring steady performance in multi-drive systems.
16 TB capacity meets the most demanding storage needs
Helium sealed-drive design enhances reliability and performance
ImagePerfect firmware optimizes surveillance system integrity
Built-in RV sensors detect and compensate for rotational vibrations
Supports a high data transfer rate of up to 285 MB/s for efficient operations
Enhanced durability
The Seagate SkyHawk AI is engineered with a helium sealed-drive design and tarnish-resistant components, ensuring long-term reliability and performance in demanding environments.
Optimized for surveillance
Featuring ImagePerfect firmware, the Seagate SkyHawk AI hard drive is specifically designed to minimize dropped frames and downtime in surveillance applications, making it ideal for security systems.
High capacity storage
With a massive 16 TB capacity, this hard drive provides ample space for storing large volumes of data, making it perfect for AI-enhanced surveillance, video analytics, and other data-intensive workloads.
Seagate SkyHawk AI ST16000VE004 - Hard drive - 16 TB - internal - 3.5" - SATA 6Gb/s - buffer: 512 MB - with 3 years Seagate Rescue Data Recovery
Category
Details
Capacity
16 TB
Interface
SATA 6 Gb/s
Form Factor / Size
3.5"
Cache Memory
512 MB
Rotational Speed
7200 RPM
Technology Features
• ImagePerfect™ AI firmware for zero dropped frames• Built-in data recovery function for uninterrupted video streaming• Supports workload rate up to 550 TB/year• Optimized for up to 64 single-stream HD cameras• Optimized for up to 32 concurrent AI streams
Designed for 24/7 Operation
Yes
MTBF
2,500,000 hours
Power Consumption (Avg Read/Write)
7.8 W
Dimensions (H × W × D)
26.1 mm × 101.85 mm × 147.0 mm
Weight
685 g (0.685 kg / 1.51 lb)
Manufacturer / Brand
Seagate
Cost-effective storage upgrade for laptop or desktop computers
Store all your games, music, movies and more with up to 4TB of storage
SATA 6Gb/s interface optimizes burst performance
Seagate Secure models for hardware-based data security
Instant Secure Erase allows safe and easy drive retirement; protect data with Self-Encrypting Drive (SED) models
Standard Model Numbers
ST2000DM008
Capacity
2TB / 2000GB
Bytes per Sector
4096 / Emulated 512e
Performance
- Interface
SATA 6Gb/s
- SATA Transfer Rates Supported (Gb/s)
6.0/3.0/1.5
- Max. Sustained Transfer Rate OD (MB/s)
190MB/s
- Cache, Multisegmented (MB)
256
- Rotational Speed (RPM)
5400
Reliability/Data Integrity
- Load/Unload Cycles
600,000
- Power-On Hours per Year (24×7)
2400
- Nonrecoverable Read Errors per Bits Read, Max
1 per 10E15
- Workload Rate Limit (TB/Year)
55
Power Management
- Startup Power (A)
2.0
- Operating Mode, Typical (W)
3.7
- Idle Average (W)
2.5W
- Standby Mode/Sleep Mode, Typical (W)
0.25/0.25
- Voltage Tolerance, Inc. Noise (5V)
±5%
- Voltage Tolerance, Inc. Noise (12V)
±10%
Environmental Temperature
- Operating (ambient, min)
0°C
- Operating (drive case, max)
60°C
- Nonoperating (ambient)
-40°C – 70°C
- Halogen Free
Yes
- RoHS Compliance
Yes
Physical
- Height (mm/in)
20.20mm/0.795in
- Width (mm/in)
101.85mm/4.010in
- Depth (mm/in)
146.99mm/5.787in
- Weight (g/lb)
490g/1.08lb
_____________________________________________________
Warranty Information:
• Item compatibility is buyer’s responsibility.
• For security purposes: Kindly secure unboxing video incase wrong item and defective upon received.
• Check all items upon receipt.
• All items/claims for warranty are carry-in.
• Tampered warranty sticker voids the warranty.
• Overclocking may void the warranty.
• Items for warranty must be complete with original contents/packaging and accompanied by warranty receipt.
• Defective items for warranty are subject for pull out and RMA services. (Shipping fee should be shoulder by customer)
Description
Description
IronWolf
2TB, 3.5". SATA 6Gb/s, 256 MB
Seagate IronWolfST2000VN003. HDD size:
3.5", HDD capacity: 2000 GB, HDD speed: 5400 RPM
Tough. Ready. Scalable
Purpose-built for Connected-Home,
SOHO
and Small-to-Medium Business NAS Environments
IronWolf™ is designed for consumer and commercial NAS.
Delivering Tough, Ready and Scalable 24x7 performance in multibay, networked environments.
Optimised for NAS with AgileArray™
AgileArray enables Dual-Plane Balancing and
Time-Limited Error Recovery to deliver best-in-class
RAID performance in multi-bay systems
Tough. Ready. Scalable.
For everything NAS, theres IronWolf and IronWolf Pro. Always on and always working,
IronWolf is enhanced with AgileArray technology for optimal reliability and system agility.
Multi-user technology and extreme workload rates allow IronWolf to perform and scale up with your enterprise.
IronWolf + the Power of AgileArray
NAS-optimized hard drive for the best-possible user experience
IronWolf Health Management in Synology NAS1 continuously helps to safeguard the health of your data
Drive balance with Rotational Vibration (RV) sensors manage multi-bay vibration for long-term consistent performance and reliability
RAID performance optimized that maximizes responsiveness and uptime with NAS-aware Error Recovery Control
Advanced power management saves energy and delivers the right power at the right time
1. IronWolf Health Management Beta is only available in capacities of 4TB and up.
Actively Protect Your Data with IronWolf Health Management in Synology DiskStations
IronWolf Health Management is designed to operate on enabled Synology DiskStation NAS,
populated with supported IronWolf or IronWolf Pro HDDs.1 It improves the overall system
reliability by displaying actionable prevention, intervention or recovery options for the user.
Prevention. IHM monitors the user environment and recommends preventative actions
to enable superior NAS experience.
Intervention. Analyzes hundreds of parameters and recommends backup ahead of any
potential catastrophic data loss events.
Recovery. Access to Seagate® Data Recovery Services (included with IronWolf Pro for two years),
helps to ensure a secure environment for data recovery in the event of failure.
1. IronWolf Health Management features subject to change.
2. Synology DiskStation may vary in compatibility with IronWolf Health Management. Contact your Seagate sales representative for further details.
Multi-Bay and NAS-Ready With Built-In RV Sensor
First in its class, IronWolf drives are equipped with RV sensors on high capacity drives to
maintain performance in multi-bay NAS enclosures. RV sensors on IronWolf Pro come
standard, helping business and creative pros to have consistent performance for years to come.
Do More With Multi-User Optimization
Do more with your NAS with multi-user optimization. Enabling user workloads of up to
180 TB/year on IronWolf and 300TB/year with IronWolf Pro, multiple users can confidently
upload and download data to a NAS server. Whether youre a creative pro or a small business,
IronWolf is on your side.
IronWolf Pro Comes With 2-year Rescue Data Recovery Service1
Your data is important and a Rescue plan provides peace of mind in case of unexpected data loss
due to accidents or mechanical damage. The Rescue plan gives you access to a global team of
world-class data recovery experts with 95% customer satisfaction rating.
Purchase and register an IronWolf Pro drive to activate your free Rescue plan and y
Home Security Systems: Store video footage from home surveillance cameras.
Small Business Surveillance: Monitor business premises with multiple cameras.
Retail Surveillance: Record customer interactions and prevent theft.
Public Safety: Support surveillance initiatives in public areas.
Specification
Details
Capacity
2TB
Interface
SATA III (6 Gb/s)
Spindle Speed
5400 RPM
Cache
256 MB
Form Factor
3.5-inch
Dimensions (L × W × H)
147 × 100 × 26.5 mm
Weight
620 g
Operating Temperature
5°C to 60°C
Non-Operating Temperature
-40°C to 70°C
Acoustic Noise
22 dBA
Rotational Vibration Tolerance
3.5 mm peak-to-peak
Shock Tolerance
200G (5 ms duration)
