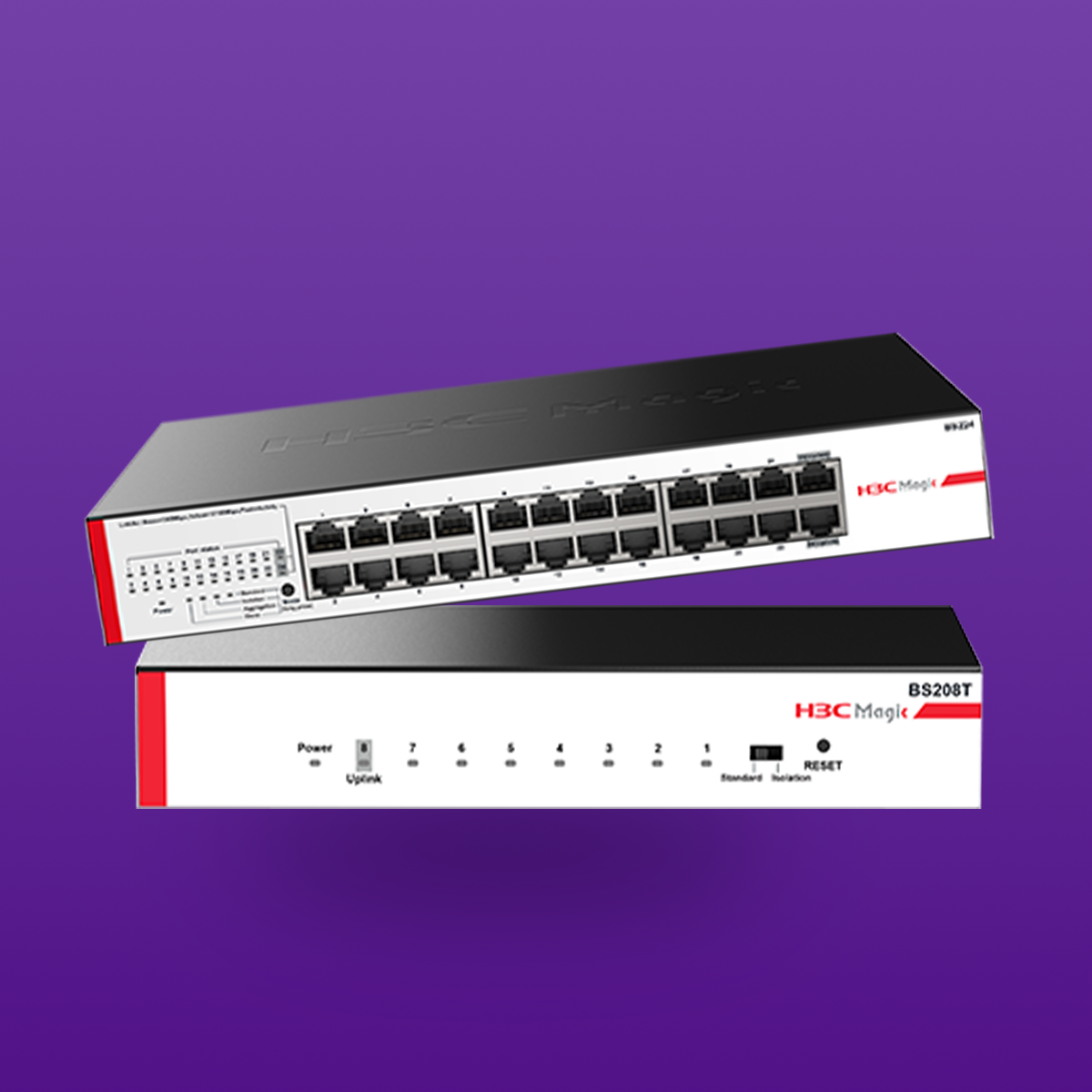

SWITCHES

	__ __
Description	Description __
Rating	Rating __
Color	Color __
	View full details

Aten CS-1316A 16port USB-PS/2 KVM Switch w/ Rack Mount Kit

PCWORX

Aten CS-1316A 16port USB-PS/2 KVM Switch w/ Rack Mount Kit

(0)

₱19,837.50

Out of stock

Receives in 5 days.

Aten US434 4 x 4 USB 3.1 Gen1 Peripheral Sharing Switch

PCWORX

Aten US434 4 x 4 USB 3.1 Gen1 Peripheral Sharing Switch

(0)

₱8,970.00

Low in stock

Receives in 5 days.

Cisco CBS350-24T-4X-EU 24-Port GE, 4x10G SFP+ Managed Switch

My Store

Cisco CBS350-24T-4X-EU 24-Port GE, 4x10G SFP+ Managed Switch

(0)

₱52,670.00

CBS350-24T-4X Specification

CBS350-24T-4X Specification
Feature	Description
Capacity in Millions of Packets per Second (mpps) (64-byte packets)	95.23
Switching Capacity in Gigabits per Second (Gbps)	128.0
Total System Ports	24 x Gigabit Ethernet + 4 x 10G
RJ-45 Ports	24 x Gigabit Ethernet
Combo Ports (RJ45 + Small form-factor pluggable [SFP])	4 x SFP+
Packet Buffer	1.5 MB
Unit dimensions (W x D x H)	445 x 240 x 44 mm (17.5 x 9.45 x 1.73 in)
Layer 3
IPv4 routing	Wirespeed routing of IPv4 packets Up to 990 static routes and up to 128 IP interfaces
IPv6 routing	Wirespeed routing of IPv6 packets
Layer 3 Interface	Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface
Classless Interdomain Routing (CIDR)	Support for classless interdomain routing
RIP v2	Support for Routing Information Protocol version 2 for dynamic routing
Policy-Based Routing (PBR)	Flexible routing control to direct packets to different next hop based on IPv4 or IPv6 Access Control List (ACL)
DHCP Server	Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes Support for DHCP options
DHCP relay at Layer 3	Relay of DHCP traffic across IP domains
User Datagram Protocol (UDP) relay	Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BOOTP)/DHCP packets
Quality of Service
Priority levels	8 hardware queues
Scheduling	Strict priority and Weighted Round-Robin (WRR)
Rate limiting	Ingress policer; egress shaping and rate control; per VLAN, per port, and flow based; 2R3C policing
Congestion avoidance	A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization
iSCSI traffic optimization	A mechanism for giving priority to iSCSI traffic over other types of traffic
Green (power efficiency)
Energy Detect	Automatically turns power off on RJ-45 port when detecting link down. Active mode is resumed without loss of any packets when the switch detects the link up
Cable length detection	Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables.
EEE Compliant (802.3az)	Supports IEEE 802.3az on all copper Gigabit Ethernet ports
Disable port LEDs	LEDs can be manually turned off to save on energy
Time-based port operation	Link up or down based on user-defined schedule (when the port is administratively up)
Time-based PoE	PoE power can be on or off based on user-defined schedule to save energy
General
Jumbo frames	Frame sizes up to 9K bytes. The default MTU is 2K bytes
MAC table	16K addresses
Hardware
USB slot	USB Type-A slot on the front panel of the switch for easy file and image management
Buttons	Reset button
Cabling type	Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs	System, Link/Act, PoE, Speed
Flash	256 MB
CPU	800 MHz ARM
DRAM	512 MB
Environmental
Storage temperature	-13° to 158°F (-25° to 70°C)
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	10% to 90%, relative, noncondensing
Warranty	Limited lifetime with next business day advance replacement (where available)
Package Contents
● Cisco Business 350 Series Managed Switch ● Power Cord (Power adapter for select 8-port and 16-port SKUs) ● Mounting Kit ● Quick Start Guide

Minimum Requirements

● Web browser: Chrome, Firefox, Edge, Safari

● Category 5e Ethernet network cable

● TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed

Warranty Limited Lifetime

Low in stock

Receives in 5 days.

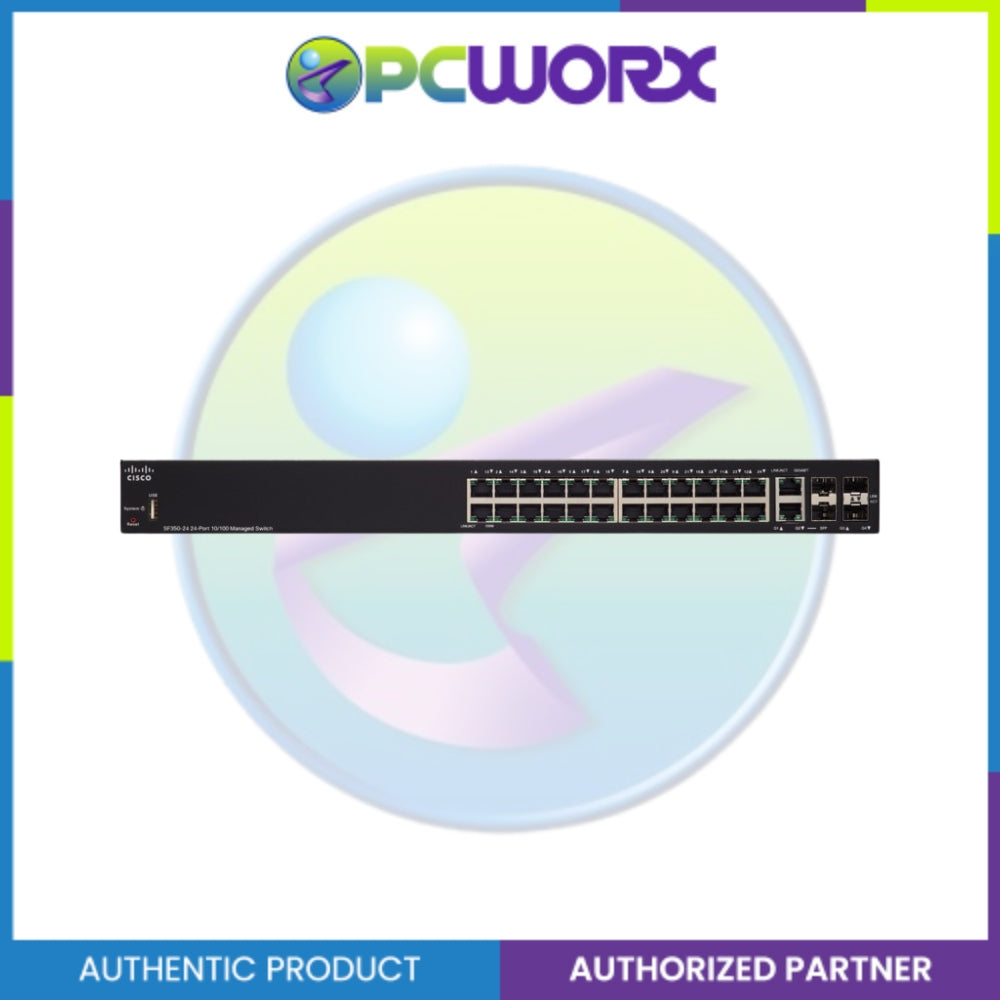

Cisco SF350-24-K9-EU 24-port 10/100 Managed Switch

My Store

Cisco SF350-24-K9-EU 24-port 10/100 Managed Switch

(0)

₱15,122.50

Brand Name: CISCO
Part Number:	SF350-24-K9-EU
GENERAL
Enclosure:	Type Rack-mountable 1U
Subtype:	Fast Ethernet
Ports:	24 x 10/100 10/100/1000 + 2 x combo Gigabit SFP
PowerOver:	Ethernet
Jumbo Frame Support:	9216 bytes
Authentication Method:	RADIUS, Secure Shell (SSH), TACACS+
MAC Address Table Size:	16K entries
Authentication Method:	Secure Shell (SSH), RADIUS, TACACS+
Power Over Ethernet
Status Indicators:	Link/activity
Encryption Algorithm:	SSL
Routing Protocol:	Static IPv4 routing, CIDR
Jumbo Frame Support:	9216 bytes
PoE Budget:	185 W
Manufacturer:	Cisco
CAMERA
Installed Size:	256 MB
POWER DEVICE
Nominal Voltage:	AC 120/230 V
Frequency Required:	50/60 Hz
Type:	internal power supply
NETWORKING
MAC Address Table Size:	16K entries
Subcategory:	network hubs and switches
Subtype:	Fast Ethernet
Form Factor:	rack-mountable
Type:	Switch
Advanced Switching:	Layer 3

Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Jumbo Frame Support:	9216 bytes
Ports Qty: 24
Manageable:	Yes
Routing Protocol:	CIDR, static IPv4 routing
PoE Budget:	185 Watt
Remote Management Protocol:	CLI, HTTP, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, TFTP, Telnet
Power Over Ethernet
MISCELLANEOUS
Encryption Algorithm:	SSL
MTBF 293029 hour(s)
Height (Rack Units):	1 m
Color Category:	black
MTBF:	293,029 hours
INTERFACE PROVIDED
Qty: 1, 2, 24
PoE Power:	185 Watt
Comments:	PoE+, management
ENVIRONMENTAL PARAMETERS
Humidity Range Storage:	10 – 90% (non-condensing)
Min Storage Temperature:	-4 °F
Max Storage Temperature:	158 °F
Min Operating Temperature:	32 °F
Max Operating Temperature:	122 °F
Humidity Range Operating:	10 – 90% (non-condensing)
HEADER
Brand:	Cisco
Product Line Cisco Small Business
Model:	SF350-24P
Country:	Kits North America
Packaged Quantity:	1
DIMENSIONS & WEIGHT
Width 17.3 in
Depth 10.1 in
Height 1.7 in
Weight 8.99 lbs
Warranty:	Limited Lifetime

Out of stock

Receives in 5 days.

My Store

Cisco SF95-24-AS 24-Port 10/100 Switch

(0)

₱5,405.00

Out of stock

Receives in 5 days.

D-Link DES-1005C 5-port 10/100Mbps Unmanaged Fast Ethernet Switch (Plastic)

PCWORX

D-Link DES-1005C 5-port 10/100Mbps Unmanaged Fast Ethernet Switch (Plastic)

(0)

₱382.00

Fast Networking Made Easy

With data transfer speeds of up to 200 Mbps at full duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. They feature easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto MDI/MDIX crossover makes connection a cinch; just plug in your cables and you’re ready to go.

Economical, Plug-and-play Networking Switch

The DES-1005C 10/100 Mbps Unmanaged Switch is an economical, plug-and-play networking switch for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Fast Ethernet. It gives you five 10/100 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.

Conserve Energy

The DES-1005C implements 802.3az Energy Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switches can detect when a connected computer is shut down or when there is no Ethernet traffic, and will put the port in standby mode, saving a substantial amount of power. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.

Reliable Plug and Play Installation

The DES-1005C is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x ﬂow control on each port minimizes dropped packets when the port’s receiving buﬀer is full, giving you a more reliable connection for all of your connected devices.

Specification

Interfaces	5 x 100Base-TX
Auto MDI/MDIX	Yes
Switching Capacity	1 Gbps
Max. Packet Forwarding Rate	0.74 Mpps
Store & Forwarding Forwading	Yes
Dimensions	88x48x21.45mm
Weight	434 g
Operating Temperature	0 ~ 40 °C
Storage Temperature	- 40 ~ 70 °C
Operating Humidity	10% ~ 90% RH
Storage Humidity	5% ~ 95% RH
Maximum Power Consumption	0.784 W
Standby Power Consumption	0.4 W
Maximum Heat Dissipation	0.406 BTU/h
MTBF	1,785,631 hours
Power Input	DC: 5V, 0.55A
Packet Buffer Size	96KBytes
FAN	Fanless
Energy Efficiency Ethernet (EEE)	Yes
Power Saving By Link Status	YES
MAC Address Table Size	2,000
Control	802.3x Flow
Head-of-line (HOL) Blocking Prevention	Yes
Jumbo Frame	2048 Bytes

Low in stock

Receives in 5 days.

My Store

D-Link DGS-1008A 8-port Gigabit Switch

(0)

₱1,040.00

Fast and Reliable Networking

The D-Link DGS-1008A 8-Port Gigabit Easy Desktop Switch creates a blazing fast network for your office, as its Gigabit Ethernet ports provide high-speed wired connections for up to eight PCs or other devices. The DGS-1008A also features QoS, which prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic.

Conserve Energy

The 8-Port Gigabit Easy Desktop Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save a substantial amount of power by cutting power usage for unused ports or ports connected to computers that have been shut down.

Environmentally Friendly

The 8-Port Gigabit Easy Desktop Switch was designed with the environment in mind, and is compliant with Energy Star Level V, as well as with the stringent CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimize use of hazardous materials, and uses recyclable packaging that helps reduce waste, complying with the WEEE directive.

Specification

Interfaces	8 x 1000Base-T
Auto MDI/MDIX	Yes
Switching Capacity	16 Gbps
Max. Packet Forwarding Rate	11.90 Mps
Store & Forwarding Forwading	Yes
Dimensions	130 x 79 x 22mm
Weight	130 g
Operating Temperature	0 ~ 40 °C
Storage Temperature	- 10 ~ 70 °C
Operating Humidity	0% ~ 95% RH
Storage Humidity	0% ~ 95% RH
Operating Altitude	2000m
Maximum Power Consumption	4.80 W
Standby Power Consumption	0.7 W
Maximum Heat Dissipation	16.368 BTU/h
MTBF	1,061,267 hours
Power Input	AC：100 ~ 240 V
Flash Memory Size	64KBytes
Packet Buffer Size	192KBytes
FAN	Fanless
Comply with RoHS 6	Yes
Energy Efficiency Ethernet (EEE)	Yes
Power Saving By Link Status	YES
Power Saving By Cable Length	Yes
MAC Address Table Size	4,000
Control	802.3x Flow
Head-of-line (HOL) Blocking Prevention	Yes
Jumbo Frame	9,720 Bytes
Surge/Lightning Protection	AC Power Inet: 1kV All Ethernet Ports: 1kV
Air Discharge	8kV
Switch intelligence	Unmanaged
Contact Discharge	4kV

In stock

Receives in 5 days.

D-LINK DGS-1016C 16-Port Gigabit Ethernet Unmanaged Switch

My Store

D-LINK DGS-1016C 16-Port Gigabit Ethernet Unmanaged Switch

(0)

₱3,047.50

DGS‑1016C

Acoustic	0 dB
Comply with RoHS 6	Yes
Control	802.3x Flow
Dimensions	282.2 x 178 x 44.5 mm (11.11 in. x 7.01 in. x 1.75 in.)
Energy Efficiency Ethernet (EEE)	Yes
FAN	Fanless
Head-of-line (HOL) Blocking Prevention	Yes
Humidity	Operating: 10% ~ 90% RH Storage: 5% ~ 95% RH
Interfaces	16 x 1000Base-T Auto MDI/MDIX
Jumbo Frame	9,216 Bytes
MAC Address Table Size	8000
Maximum Forwarding Rate	23.808 Mpps
Maximum Heat Dissipation	33.554 BTU/h
Maximum Power Consumption	9.3 watts
MTBF	208,124 hours
Packet Buffer Size	256KBytes
Power Input	AC：100 ~ 240 V
Standby Power Consumption	4.48 watts
Switching Capacity	32 Gbps
Temperature	Operating: 0 ~ 40 °C Storage: - 40 ~ 70 °C
Weight	1.06 kg

Out of stock

Receives in 5 days.

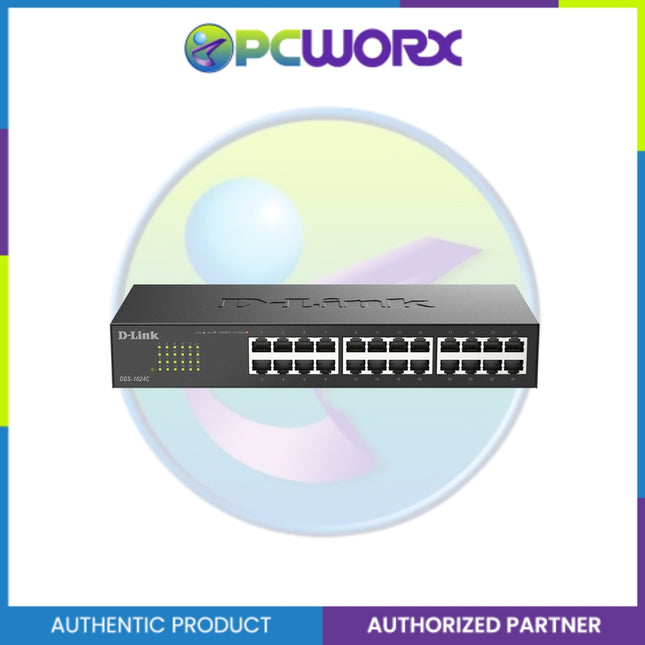

D-LINK DGS-1024C 24-port UTP 10/100/1000Mbps Unmanaged Switch

PCWORX

D-LINK DGS-1024C 24-port UTP 10/100/1000Mbps Unmanaged Switch

(0)

₱4,577.00

Upgrade to Gigabit Networking

With data transfer speeds of up to 2000 Mbps at full-duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. They feature easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status.

Conserve Energy

The DGS-1024C supports IEEE 802.3az Energy-Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switches can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port, cutting power usage substantially.

Reliable Plug and Play Installation

The DGS-1024C is a plug-and-play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment.

Smooth Streaming

These switches support QoS, which prioritizes network traffic so that time sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls.

SPECIFICATION

Interfaces	24 x 1000Base-T
	Auto MDI/MDIX
	120G CXP
Switching Capacity	48Gbps
Maximum Forwarding Rate	35.712 Mpps
Store & Forwarding Forwading	Yes
Dimensions	282.2 x 178 x 44.5 mm (11.11 in. x 7.01 in. x 1.75 in.)
Weight	1.14 kgs
Max Power Consumption	13.5 watts
Standby Power Consumption	6.5 watts
Maximum Heat Dissipation	46.035 BTU/h
MTBF	247,291 hours
Power Input	AC:100 ~ 240 V
Packet Buffer Size	512KBytes
FAN	Fanless
Comply with RoHS 6	Yes
Energy Efficiency Ethernet (EEE)	Yes
MAC Address Table Size	16000
Control	802.3x Flow
Head-of-line (HOL) Blocking Prevention	Yes
Jumbo Frame	9,216 Bytes
Switch intelligence	Unmanaged
Acoustic	0 dB
Humidity	Storage: 5% ~ 95% RH
Humidity	Operating: 10% ~ 90% RH
Temperature	Operating: 0 ~ 40 °C
Temperature	Storage: - 40 ~ 70 °C
Power Saving	By Link Status
Power Saving	By Cable Length

Low in stock

Receives in 5 days.

D-Link DGS-1100-08 8-Port EasySmart Gigabit Ethernet Switch

PCWORX

D-Link DGS-1100-08 8-Port EasySmart Gigabit Ethernet Switch

(0)

₱2,850.00

Advanced Security Features

The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (static). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.

Simplify Network Management

D-Link’s free Network Assistant (DNA) displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.

Easy Troubleshooting

The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.

Green Technology

D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).

Specification	Details
Interfaces	8 x 1000Base-T; Auto MDI/MDIX; 8 x 10/100/1000BASE-T PoE ports
Switching Capacity	16 Gbps
Maximum Forwarding Rate	11.9 Mpps
Dimensions	145 x 82 x 28 mm
Temperature	Operating: 0 ~ 40 °C; Storage: -40 ~ 70 °C
Weight	0.34 kg
Humidity	Operation: 0% - 90% RH; Storage: 0% - 95% RH
Operating Altitude	2000 m
Max Power Consumption	4.94 W
Standby Power Consumption	1.93 W
Maximum Heat Dissipation	16.85 BTU/hr

Low in stock

Receives in 5 days.

D-Link DMS-108/E 8-port Unmanaged Multi-Gigabit (MG) Switch

PCWORX

D-Link DMS-108/E 8-port Unmanaged Multi-Gigabit (MG) Switch

(0)

₱12,999.00

Low in stock

Receives in 5 days.

PCWORX

H3C Magic BS205 Ethernet Switch (5GE, DC), Overseas Version (US)

(0)

₱1,092.08

Out of stock

Receives in 5 days.

H3C Magic BS205T-P Ethernet Switch (5GE+PoE, DC), Overseas Version (US)

PCWORX

H3C Magic BS205T-P Ethernet Switch (5GE+PoE, DC), Overseas Version (US)

(0)

₱3,512.40

Out of stock

Receives in 5 days.

PCWORX

H3C Magic BS208 Ethernet Switch (8GE, DC), Overseas Version (US)

(0)

₱1,573.99

Out of stock

Receives in 5 days.

H3C Magic BS208T Ethernet Switch (8GE, DC), Overseas Version (US)

PCWORX

H3C Magic BS208T Ethernet Switch (8GE, DC), Overseas Version (US)

(0)

₱1,938.41

Out of stock

Receives in 5 days.

H3C Magic BS210T-HP Ethernet Switch (10GE+PoE, DC), Overseas Version (US)

PCWORX

H3C Magic BS210T-HP Ethernet Switch (10GE+PoE, DC), Overseas Version (US)

(0)

₱8,552.04

Out of stock

Receives in 5 days.

PCWORX

H3C Magic BS216 Ethernet Switch (16GE, AC), Overseas Version (US)

(0)

₱5,169.11

Out of stock

Receives in 5 days.

PCWORX

H3C Magic BS218F-HP Ethernet Switch (16GE+2SFP+PoE, AC), Overseas Version (US)

(0)

₱15,742.28

Out of stock

Receives in 5 days.

PCWORX

H3C Magic BS224 Ethernet Switch (24GE, AC), Overseas Version (US)

(0)

₱8,223.58

Out of stock

Receives in 5 days.

PCWORX

H3C S1850V2-10P-EI L2 Ethernet Switch with Ports

(0)

₱9,230.55

Out of stock

Receives in 5 days.

PCWORX

H3C S1850V2-10P-HPWR-EI L2 Ethernet Switch with 8*10/100/1000BASE-T PoE+ Ports (AC 125W) and 2*1000BASE-X SFP Ports,(AC)

(0)

₱14,025.64

Out of stock

Receives in 5 days.

PCWORX

H3C S1850V2-10P-HPWR-EI L2 Ethernet Switch with Ports

(0)

₱14,025.64

Out of stock

Receives in 5 days.

PCWORX

H3C S1850V2-28P-EI L2 Ethernet Switch with 24*10/100/1000BASE-T Ports and 4*1000BASE-X SFP Ports,(AC)

(0)

₱13,546.13

Out of stock

Receives in 5 days.

PCWORX

H3C S1850V2-28P-EI L2 Ethernet Switch with Ports

(0)

₱13,546.13

Out of stock

Receives in 5 days.

PCWORX

H3C S1850V2-28P-HPWR-EI L2 Ethernet Switch with Ports

(0)

₱25,294.10

Out of stock

Receives in 5 days.

PCWORX

H3C S1850V2-52P-EI L2 Ethernet Switch with Ports

(0)

₱24,215.20

Out of stock

Receives in 5 days.

PCWORX

H3C S5120V3-20P-LI L3 Ethernet Switch with Ports

(0)

₱16,303.30

Out of stock

Receives in 5 days.

PCWORX

H3C S5120V3-28P-HPWR-LI L3 Ethernet Switch with Parts

(0)

₱41,717.28

Out of stock

Receives in 5 days.

PCWORX

H3C S5120V3-28P-LI L3 Ethernet Switch with Ports

(0)

₱17,741.83

Out of stock

Receives in 5 days.

PCWORX

H3C S5120V3-28P-PWR-LI L3 Ethernet Switch with Ports

(0)

₱38,120.96

Out of stock

Receives in 5 days.

Key specifications

Ports:	16 computer ports
Keyboard/Mouse:	Supports both USB and PS/2
Video:	VGA connection type
Maximum Resolution:	2048×1536
pixels; DDC2B support
Computer Control:
Direct:	16 computers
Cascading:	Can control up to 256 computers
Computer Selection:	Push button, hotkeys, or On-Screen Display (OSD)
Features:	Auto Scan
Hot-plug support
Firmware upgradeable
Physical:
Chassis:	1U rack-mountable with metal housing
Dimensions:
43.72×16.13×4.40cm
17.21×6.35×1.73in.
Weight: Approximately	2.1kg
Power:	DC power source
Compatibility:	Supports Windows, Mac, and Linux operating systems

Technical specifications
Device and computer connections:
Device Ports:	4 x USB Type-A Female (USB 3.1 Gen 1)
Computer Ports:	4 x USB Type-B Female (USB 3.1 Gen 1)
Data transfer rate:	Up to 5 Gbps (SuperSpeed)
Backward compatible with USB 2.0 and USB 1.1
Power:
Bus-powered (can be powered by the connected computers)
Optional external power supply via a Micro USB port
Port selection:
Includes a remote port selector
LED indicators show the active computer connection
Compatibility:
Supports Windows, macOS, and Linux
Plug-and-play (hot-pluggable, no drivers or software required)
Physical:
Dimensions:
9.37 cm×9.30 cm×2.68 cm
3.69 in×3.66 in×1.06 in
Weight:	0.13 kg
Housing:	Plastic
Environmental:
Operating Temperature:	0 to 40∘𝐶
Storage Temperature:	−20 to 60∘𝐶
Humidity:	0 to 80% RH, Non-condensing

SPECIFICATION
Standards and Protocols:	802.3 10BASE-T Ethernet
802.3u 100BASE-TX Fast Ethernet
802.3ab 1000BASE-T Gigabit Ethernet
802.3z Gigabit Ethernet
802.3x flow Control
802.1p Priority
802.3az, Energy Efficient Ethernet.

Ports:	24 RJ-45 connectors for 10BASE-T / 100BASE-TX.
LED Indicators:	System / PWR, Link / Activity, 100M, * Gigabit, *.
Power:	00-240VAC, 50-60 Hz, internal, universal.
Dimensions :	(W * D * H). 11 x 1.75 x 6.7 inches (279.4 x 44.5 x 170 mm).
Operating Temperature:	32 ° to 104 ° F (0 ° to 40 ° C).
Storage Temperature:	-4 ° to 158 ° F (-20 ° to 70 ° C).
Operating Humidity:	10% to 90%, relative, non-condensing.
Storage Humidity:	10% to 90%, relative, non-condensing.
Certifications:	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47)
(CFR 47) Class A.
Brand:	CISCO

Item	Specification
Dimensions (H ×W ×D)	27 ×120 ×90 mm (1.06 ×4.72 ×3.54 in)
Ports	5 ×10/100/1000BASE-T copper ports
MAC address entries	2K
Switching capacity	10 Gbps
Forwarding capacity	7.4 Mpps
Packet buffering	1 Mbit
Power	5 V DC, 0.6 A
Auto-MDI/MDIX	Yes
Cooling method	Natural cooling
Weight	≤ 0.2 kg (0.44 lb)
Operating temperature/storage	0°C to 40°C (32°F to 104°F)/–40°C to +70°C (–40°F to +158°F)
Storage/operating humidity	5% to 95% RH, noncondensing
Certifications	CE,RoHS
MTBF	> 50000 H
Installation method	Desktop-mount

Item	Specification
Dimensions (H ×W ×D)	27 × 155 × 58 mm (1.06 × 6.10 × 2.28 in)
Ports	5 × 10/100/1000BASE-T copper ports
Operating mode	Standard / Isolation
MAC address entries	2K
Switching capacity	10 Gbps
Forwarding capacity	7.4 Mpps
Packet caching	1 Mbit
Switching mode	Store-and-forward switching
PoE+	PoE+ supported Supports PoE Power up to 57 W for all PoE ports (4 PoE ports)
	Supports PoE Power up to 57 W for all PoE ports (4 PoE ports)
	Supports PoE Power up to 30 W for each PoE port
Power	54 V DC, 1.17 A
Auto-MDI/MDIX	Yes
Cooling method	Natural cooling
Operating temperature/storage temperature	0°C to 40°C (32°F to 104°F)/–40°C to +70°C (–40°F to +158°F)
Operating humidity/storage humidity	5% to 95% RH, noncondensing
Certifications	CE, RoHS
MTBF	> 50000 H
Installation method	Desktop-mount and wall-mount

Main menu

Product comparison

Key specifications
Feature	Specification
Ports	8 x 2.5GBASE-T Ethernet ports
Switching Capacity	40 Gbps
LAN Transfer Rate	10/100/1000/2500 Mbps
MAC Address Table	4K entries
Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3x, 802.1p, 802.3az
Features	IGMP Snooping, Quality of Service (QoS), Flow Control, Auto MDI/MDIX, Energy-Efficient Ethernet (EEE)
Installation	Plug-and-play, no configuration required
Design	Durable metal casing, fanless, desktop or wall-mount design
Dimensions	145×82×28145 cross 82 cross 28
	145×82×28
	mm
Weight	343 g
Power	12V/1A; Max consumption: 8.586 W
Operating Temperature	0
	0
	to
	4040
	40
	°C

Feature	S1850V2-10P-EI
Switching capacity	20 Gbps
Forwarding capacity	15Mpps
CPU	1 Core, 800MHz
Flash/SDRAM	256MB/512MB
Dimensions (W × D × H)	266×161×43.6mm
Weight	≤ 1.5 kg
Management port	1 console port
Networking interface	8 10/100/1000Base-T electrical ports
Networking interface	2 1000Base-X SFP optical port
Port Surge	6KV
Input voltage	AC: The rated voltage range is 100V to 240V, 50/60Hz.
Total power consumption	MIN:
	AC: 8W
	MAX:
	AC: 15W
Fan number	Fan-less
MTBF(Year)	140.82
MTTR(Hour)	1

Operating temperature	-5℃ ~ 50℃(normal operating temperature)
	-5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km)
	-5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)
Storage temperature	-40℃ ~ 70℃
Relative humidity (non-condensing)	5% RH to 95% RH, non-condensing

Hardware Specifications
Feature	S1850V2-10P-HPWR-EI
Switching capacity	20 Gbps
Forwarding capacity	15Mpps
CPU	1 Core, 800MHz
Flash/SDRAM	256MB/512MB
Dimensions (W × D × H)	330×230×43.6mm
Weight	≤ 3 kg
Management port	1 console port
Networking interface	8 10/100/1000Base-T electrical ports
Networking interface	2 1000Base-X SFP optical port
Port Surge	6KV
Input voltage	AC: The rated voltage range is 100V to 240V, 50/60Hz.
Total power consumption	MIN:
	AC: 14W
	MAX:
	AC: 156W (PoE 125W)
Fan number	Fan-less
MTBF(Year)	117.08
MTTR(Hour)	1
Operating temperature	-5℃ ~ 50℃(normal operating temperature)
	-5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km)
	-5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)
Storage temperature	-40℃ ~ 70℃
Relative humidity (non-condensing)	5% RH to 95% RH, non-condensing

Hardware Specifications
Feature	S1850V2-28P-EI
Switching capacity	56 Gbps
Forwarding capacity	42 Mpps
CPU	1 Core, 800MHz
Flash/SDRAM	256MB/512MB
Dimensions (W × D × H)	440×160×43.6mm
Weight	≤ 2.5 kg
Management port	1 console port
Networking interface	24 10/100/1000Base-T electrical ports
Networking interface	4 1000Base-X SFP optical port
Port Surge	6KV
Input voltage	AC: The rated voltage range is 100V to 240V, 50/60Hz.
Total power consumption	MIN:
	AC: 9W
	MAX:
	AC: 23W
Fan number	Fan-less
MTBF(Year)	150.86
MTTR(Hour)	1
Operating temperature	-5℃ ~ 50℃(normal operating temperature)
	-5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km)
	-5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)
Storage temperature	-40℃ ~ 70℃
Relative humidity (non-condensing)	5% RH to 95% RH, non-condensing

Feature	S1850V2-52P-EI
Switching capacity	104 Gbps
Forwarding capacity	78 Mpps
CPU	1 Core, 800MHz
Flash/SDRAM	256MB/512MB
Dimensions (W × D × H)	440×230×43.6mm
Weight	≤ 3.5 kg
Management port	1 console port
Networking interface	48 10/100/1000Base-T electrical ports
Networking interface	4 1000Base-X SFP optical port
Port Surge	6KV
Input voltage	AC: The rated voltage range is 100V to 240V, 50/60Hz.
Total power consumption	MIN:
	AC: 18W
	MAX:
	AC: 41W
Fan number	1
MTBF(Year)	115.68
MTTR(Hour)	1

Feature	S1850V2-28P-HPWR-EI
Switching capacity	56 Gbps
Forwarding capacity	42 Mpps
CPU	1 Core, 800MHz
Flash/SDRAM	256MB/512MB
Dimensions (W × D × H)	440×260×43.6mm
Weight	≤ 6 kg
Management port	1 console port
Networking interface	24 10/100/1000Base-T electrical ports
	4 1000Base-X SFP optical port
Port Surge	6KV
Input voltage
Total power consumption	MIN:
	AC: 19W
	MAX:
	AC: 448W (PoE 370W)
Fan number	1
MTBF(Year)	52.81
MTTR(Hour)	1
Operating temperature	-5℃ ~ 50℃(normal operating temperature)
	-5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km)
	-5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)
Storage temperature	-40℃ ~ 70℃
Relative humidity (non-condensing)	5% RH to 95% RH, non-condensing

Feature	S5120V3-20P-LI
Switching capacity	40Gbps
Forwarding capacity	30Mpps
CPU	1 Core, 800MHz
Flash/SDRAM	256MB/512MB
Dimensions (W × D × H)	330×230×43.6 mm
Weight	≤ 2 kg
Management port	1 console port
Networking interface	16×10/100/1000TX+4×SFP
Maximum Stacking bandwidth	16Gbps
Maximum stacking num	9
Port Surge	6KV
Input voltage	AC: The rated voltage range is 100V to 240V, 50/60Hz.
Total power consumption	MIN:
	AC: 9W
	MAX:
	AC: 19W
Fan number	Fan-less
MTBF(Year)	136.24
MTTR(Hour)	1
Operating temperature	-5℃ ~ 50℃(normal operating temperature)
	-5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km)
	-5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)
Storage temperature	- 40℃ ~ 70℃
Relative humidity (non-condensing)	5% RH to 95% RH, non-condensing

Feature	S5120V3-28P-HPWR-LI
Switching capacity	56Gbps
Forwarding capacity	41.7Mpps
CPU	1 Core, 800MHz
Flash/SDRAM	256MB/512MB
Dimensions (W × D × H)	440×260×43.6 mm
Weight	≤4 kg
Management port	1 console port
Networking interface	24×10/100/1000TX+4×SFP(4Combo)
Maximum Stacking bandwidth	16Gbps
Maximum stacking num	9
Port Surge	6KV
Input voltage	AC: The rated voltage range is 100V to 240V, 50/60Hz.
Total power consumption	MIN:
	AC: 12W
	MAX:
	AC single 400W (PoE 370W)
Fan number	3
MTBF(Year)	52.81
MTTR(Hour)	1
Operating temperature	-5℃ ~ 50℃(normal operating temperature)
	-5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km)
	-5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)
Storage temperature	-40℃ ~ 70℃
Relative humidity (non-condensing)	5% RH to 95% RH, non-condensing

Feature	S5120V3-28P-LI
Switching capacity	56Gbps
Forwarding capacity	41.7Mpps
CPU	1 Core, 800MHz
Flash/SDRAM	256MB/512MB
Dimensions (W × D × H)	440×160×43.6 mm
Weight	≤ 2.5 kg
Management port	1 console port
Networking interface	24×10/100/1000TX+4×SFP
Maximum Stacking bandwidth	16Gbps
Maximum stacking num	9
Port Surge	6KV
Input voltage	AC: The rated voltage range is 100V to 240V, 50/60Hz.
Total power consumption	MIN:
	AC: 9W
	MAX:
	AC: 23W
Fan number	Fan-less
MTBF(Year)	150.86
MTTR(Hour)	1
Operating temperature	-5℃ ~ 50℃(normal operating temperature)
	-5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km)
	-5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)
Storage temperature	- 40℃ ~ 70℃
Relative humidity (non-condensing)	5% RH to 95% RH, non-condensing

Feature	S5120V3-28P-PWR-LI
Switching capacity	56Gbps
Forwarding capacity	41.7Mpps
CPU	1 Core, 800MHz
Flash/SDRAM	256MB/512MB
Dimensions (W × D × H)	440×260×43.6 mm
Weight	≤ 4 kg
Management port	1 console port
Networking interface	24×10/100/1000TX+4×SFP
Maximum Stacking bandwidth	16Gbps
Maximum stacking num	9
Port Surge	6KV
Input voltage	AC: The rated voltage range is 100V to 240V, 50/60Hz.
Total power consumption	MIN:
	AC: 15W
	MAX:
	AC: 294W (PoE 240W)
Fan number	1
MTBF(Year)	87.06
MTTR(Hour)	1
Operating temperature	-5℃ ~ 50℃(normal operating temperature)
	-5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km)
	-5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km)
Storage temperature	-40℃ ~ 70℃
Relative humidity (non-condensing)	5% RH to 95% RH, non-condensing

Main menu

MAXIMIZEBF

Explore Related Collections
