Level up your gaming experience Built with a high-quality controller and 3D TLC NAND flash, AORUS Gen4 5000E SSD delivers up to 5,000MB/s sequential read and 3,800MB/s sequential write performance. By utilizing Host Memory Buffer technology, the SSD controller can access the host DRAM without performance loss. As for features, AORUS Gen4 5000E SSD supports TRIM, SMART, and Over-Provision technologies to improve the reliability and durability of SSDs. AORUS Gen4 5000E SSD allows users to enjoy a smoother and faster gaming experience with more power efficiency. Key Features: Form Factor:  M.2 2280 Interface:  PCI-Express 4.0 x4, NVMe 1.4 Total Capacity:  500GB* Sequential Read Speed: up to 5,000MB/s** Sequential Write speed: up to 3,800MB/s** HMB (Host Memory Buffer) supported TRIM & S.M.A.R.T supported Energy-efficient   Product Specifications: Interface: PCI-Express 4.0x4, NVMe 1.4 Form Factor: M.2 2280 Total Capacity: 500GB NAND: 3D TLC NAND Flash Sequential Read speed: Up to 5,000 MB/s Sequential Write speed: Up to 3,800 MB/s Dimension: 80 x 22 x 2.3 mm Mean time between failure (MTBF): 1.5 million hours Power Consumption (Active): Average: R: 4W / W: 4W Power Consumption (Idle) (ASPT on): 20mW Temperature (Operating): 0°C to 70°C Temperature (Storage): -40°C to 85°C

Read more less

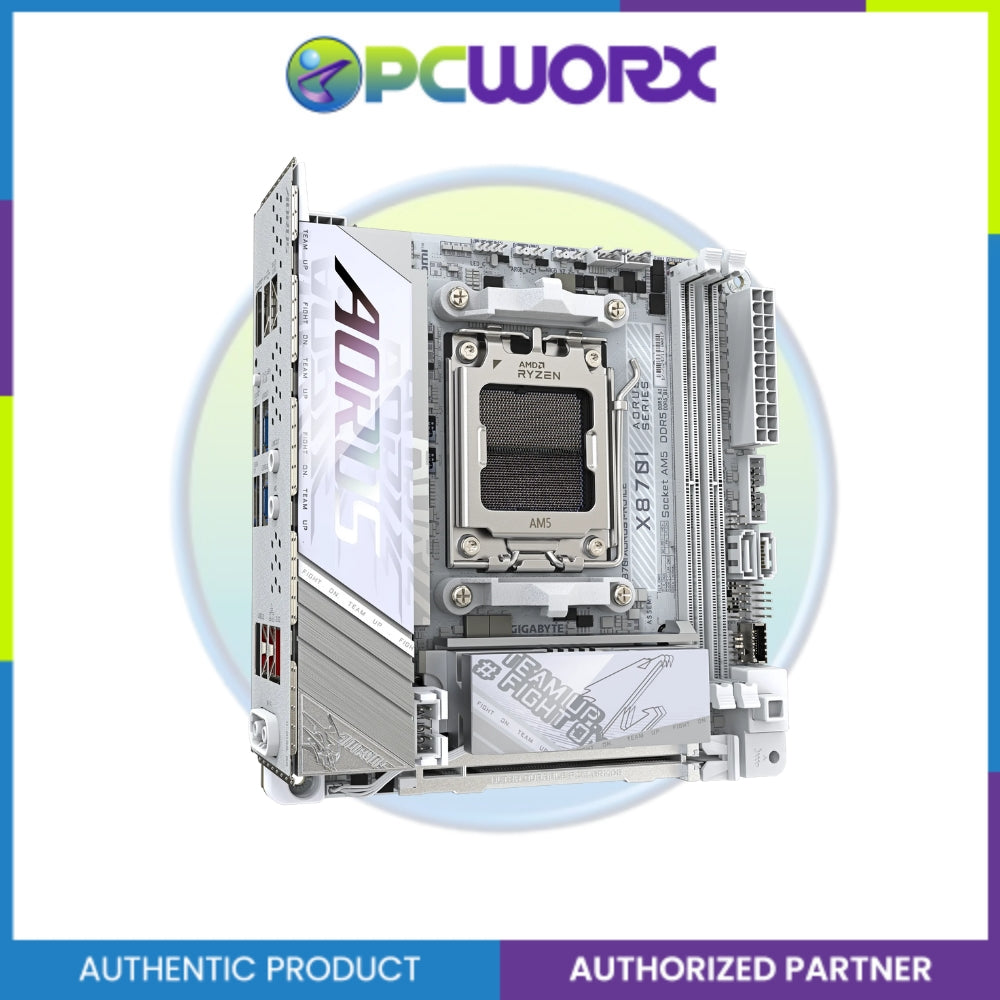

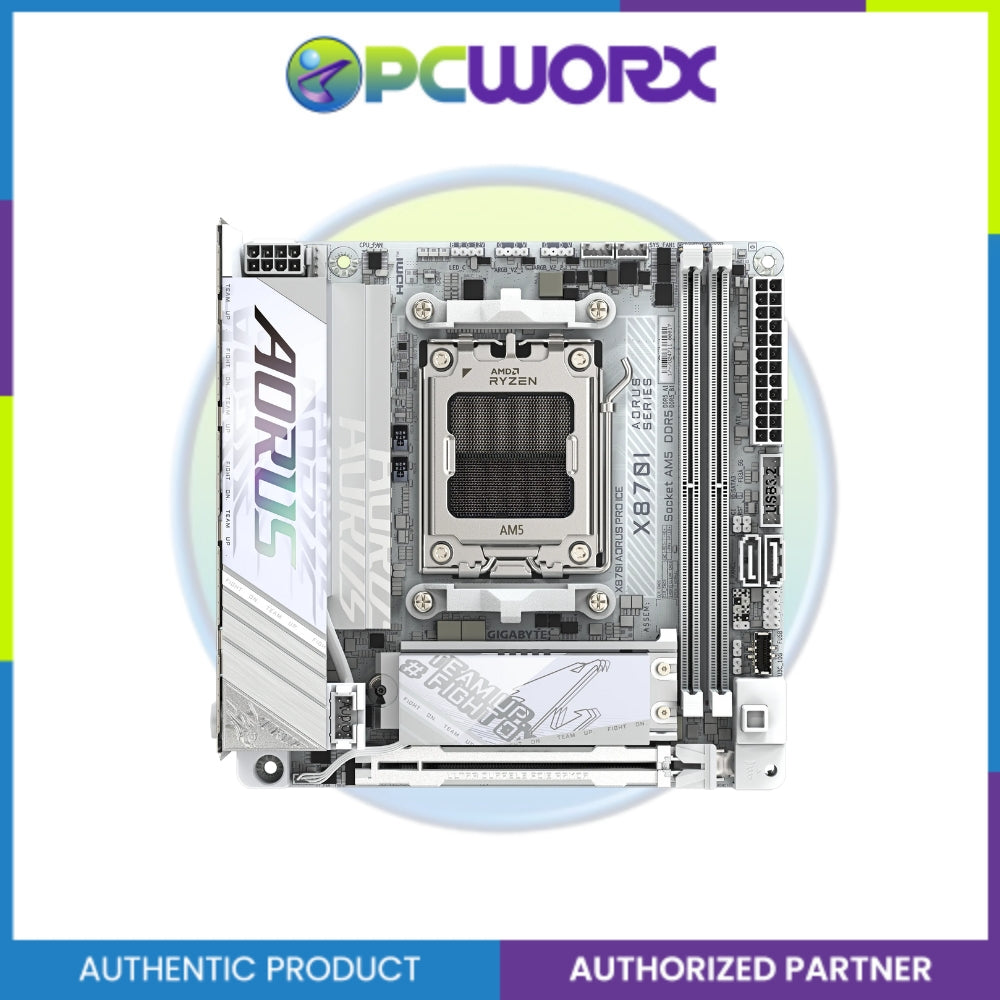

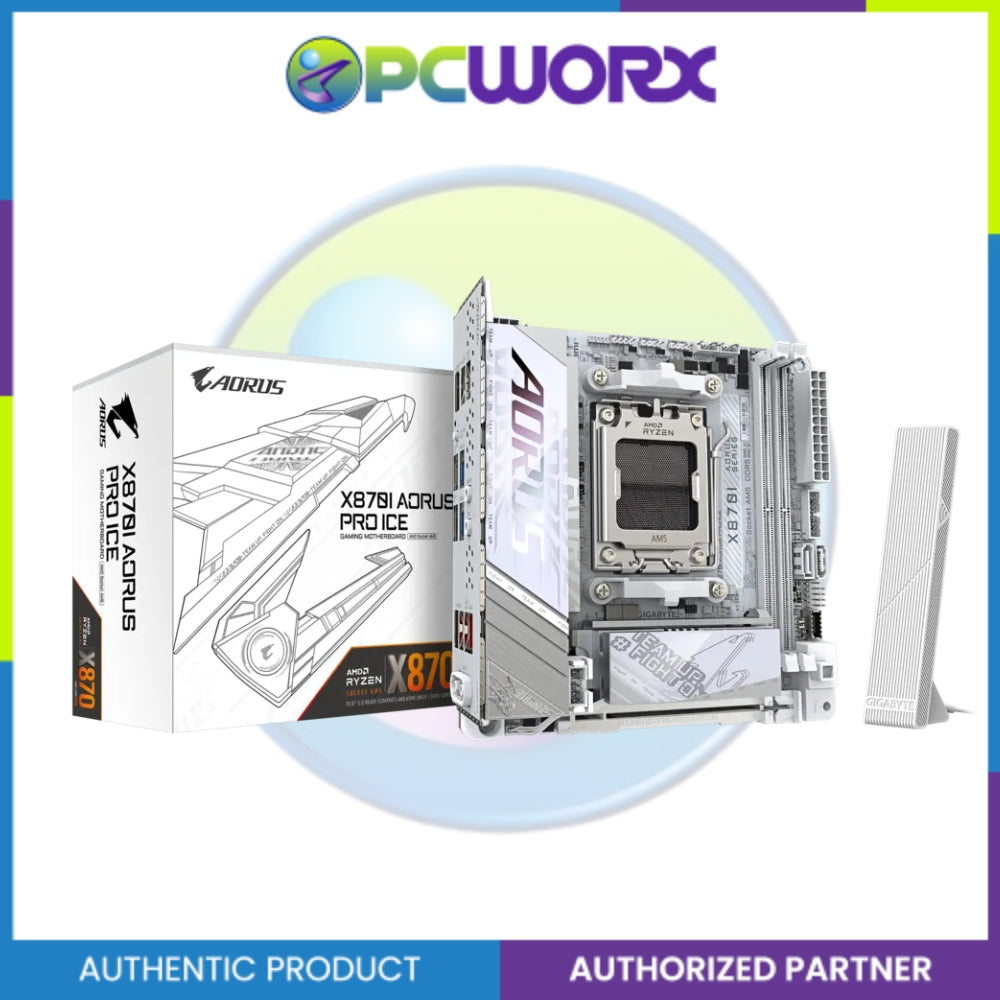

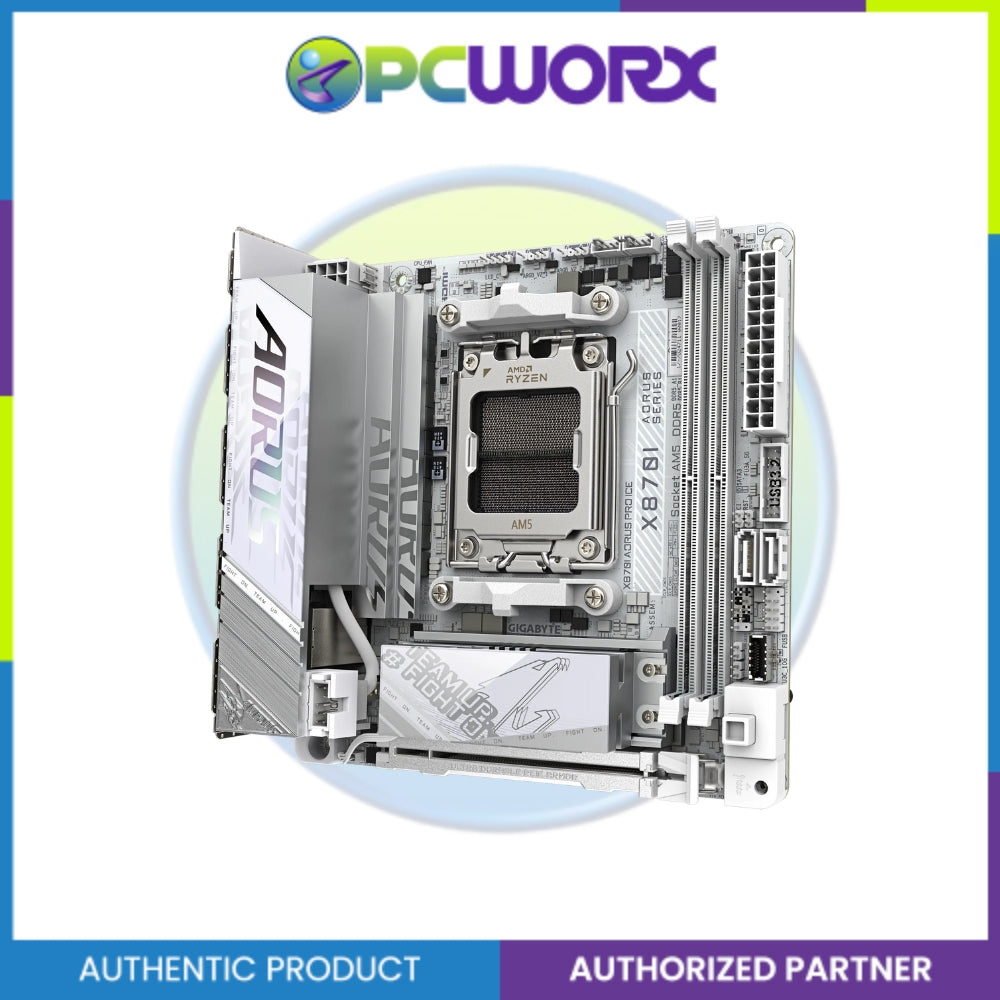

AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors Digital 8+2+1 phases VRM solution Dual Channel DDR5 : 2*DIMMs with AMD EXPO™Memory Module Support WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click : M.2 heatsinks with screwless design Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW. New Power Monitor in HWinfo for real-time monitoring on CPU power phases Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4 Efficient Thermal : VRM Thermal Armor Advanced  & M.2 Thermal Guard Ext. Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna Extended Connectivity : USB4 Type-C with DP-Alt, HDMI Reliable Audio : Realtek ALC4080 HD Audio & Audiophile Grade Capacitors PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card SPECIFICATION CPU  AMD Socket AM5, support for:AMD Ryzen™ 9000 Series Processors/AMD Ryzen™ 8000 Series Processors/AMD Ryzen™ 7000 Series Processors(Go to GIGABYTE's website for the latest CPU support list.) Chipset AMD X870 Memory  Support for DDR5 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules(The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) Onboard Graphics  Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz* Support for DisplayPort 1.4 version and HDR.Integrated Graphics Processor with AMD Radeon™ Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3, and HDR.** Support for native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.) Audio Realtek® ALC4080 CODECHigh Definition Audio2-channel LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Realtek® Wi-Fi 7 RTL8922AE- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.4- Support for 11be 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.)* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no supportdriver for Windows 10.)** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. Expansion Slots  1 x PCI Express x16 slot, integrated in the CPU:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 modeAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode* The PCIEX16 slot can only support a graphics card or an NVMe SSD. Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs2 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.RAID 0 and RAID 1 support for SATA storage devices USB  CPU+ASMedia USB4® controller:- 1 x USB4® USB Type-C® port on the back panelCPU:- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panelChipset:- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Internal I/O Connectors 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header1 x system fan header2 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header2 x M.2 Socket 3 connectors2 x SATA 6Gb/s connectors1 x front panel header1 x speaker header1 x front panel audio header (routed from the adapter card on the rear panel)1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x reset jumper1 x Clear CMOS jumper1 x chassis intrusion header Back Panel Connectors 1 x Q-Flash Plus button1 x HDMI port (Note)2 x antenna connectors (2T2R)1 x USB4® USB Type-C® port (DisplayPort (Note))1 x USB Type-C® port, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 2 Type-A ports (red)2 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x RJ-45 port2 x audio jacks(Note) Actual support may vary by CPU. I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install. BIOS 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup Bundled Software  Norton® Internet Security (OEM version)LAN bandwidth management software Operating System Support for Windows 11 64-bit Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm

Read more less

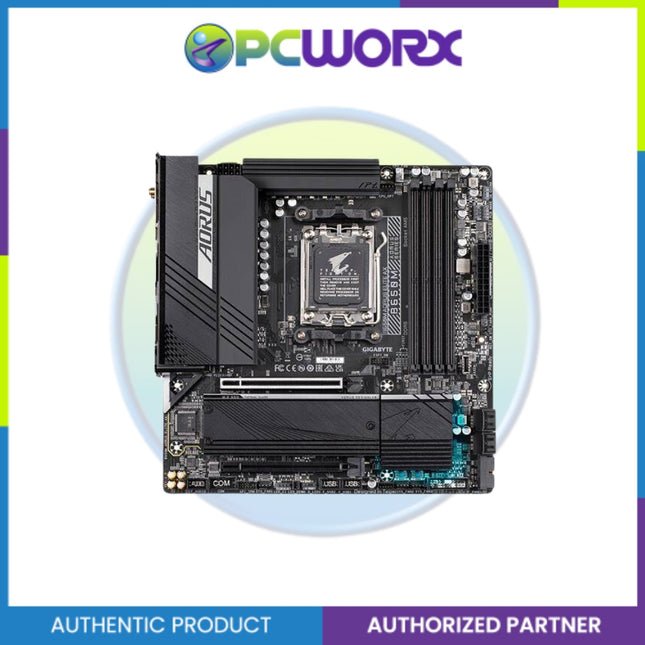

• X3D Turbo Mode : Unleash new era gaming performance• DDR5 OC up to 8400MT/s• AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors• Digital twin 8+2+1 phases VRM solution• Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support• WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation• EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design• EZ-Latch Click : M.2 heatsinks with screwless design• Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.• Ultra-Fast Storage : 1*M.2 slots, including PCIe 5.0 x4• Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.• Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna• Extended Connectivity : HDMI• PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect Specifications: CPU AMD Socket AM5, support for:AMD Ryzen™ 9000 Series Processors/AMD Ryzen™ 8000 Series Processors/AMD Ryzen™ 7000 Series Processors(Go to GIGABYTE's website for the latest CPU support list.) Chipset AMD B850 Memory Support for DDR5 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) Onboard Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3, and HDR.** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) Audio Realtek® ALC4080 CODECHigh Definition Audio2-channel LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Realtek® Wi-Fi 7 RTL8922AE- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.4- Support for 11be 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. Expansion Slots 1 x PCI Express x16 slot, integrated in the CPU:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 modeAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs2 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0 and RAID 1 support for SATA storage devices USB CPU:- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panelChipset:- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Internal I/O Connectors 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header1 x system fan header2 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header2 x M.2 Socket 3 connectors2 x SATA 6Gb/s connectors1 x front panel header1 x speaker header1 x front panel audio header (routed from the adapter card on the rear panel)1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x reset jumper1 x Clear CMOS jumper1 x chassis intrusion header Back Panel Connectors 1 x Q-Flash Plus button1 x HDMI port*2 x antenna connectors (2T2R)1 x USB Type-C® port, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 2 Type-A ports (red)2 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x RJ-45 port2 x audio jacks* Actual support may vary by CPU. I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control * Whether the fan speed control function is supported will depend on the fan you install. BIOS 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup Bundled Software Norton® Internet Security (OEM version)LAN bandwidth management software Operating System Support for Windows 11 64-bit Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm

Read more less

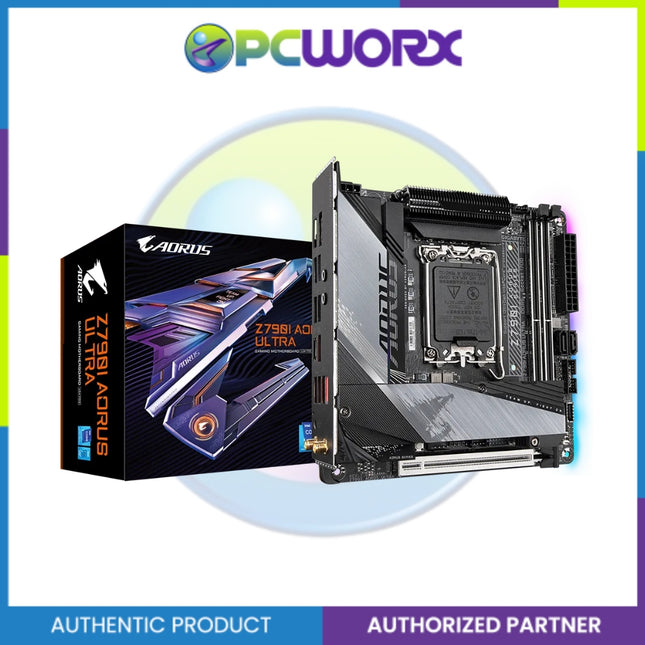

Intel® Socket LGA 1700: Support 13th and 12th Gen Series Processors Unparalleled Performance: Direct 10+1+2 Phases Digital VRM Solution Dual Channel DDR5: 2*SMD DIMMs with XMP 3.0 Memory Module Support Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard III:  To Ensure VRM Power Stability & M.2 SSD Performance EZ-Latch Plus: M.2 Connectors with Quick Release & Screwless Design Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax Extended Connectivity: DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card OUTSTANDING THERMAL DESIGN GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance. CONNECTIVITY GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.   Model Brand GIGABYTE Model Z790I AORUS ULTRA Supported CPU CPU Socket Type  LGA 1700 CPU Type Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold Chipsets Chipset  Intel Z790 Memory Number of Memory Slots 2x288pin (DDR5) Memory Standard DDR5 8000(O.C.) / 7800(O.C.) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4400 Maximum Memory Supported 96GB Channel Supported  Dual Channel Memory Feature Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules Expansion Slots PCI Express 5.0 x16 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 Storage Devices Serial ATA (SATA)  2 x SATA 6Gb/s M.2 1 x M.2 connector on the back of the GC-Z790I BTB PLUG (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)1 x M.2 connector on the front of GC-Z790I BTB PLUG (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) SATA RAID RAID 0 and RAID 1 support for SATA storage devices Additional RAID Controller RAID 0 and RAID 1 support for NVMe SSD storage devices Onboard Audio Audio Chipset  Realtek ALC4080 Onboard LAN Max LAN Speed 2.5Gbps Wireless LAN Intel Killer Wi-Fi 6E AX1690 Bluetooth Bluetooth 5.3 Rear Panel Ports Back I/O Ports 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Q-Flash Plus Button / 1 x USB 3.2 Gen 2x2 Type-C / 2 x Antenna Bracket / 2 x Audio Jacks / 2 x USB 2.0/1.1 / 2 x USB 3.2 Gen 1 / 3 x USB 3.2 Gen 2 Type-A Internal I/O Connectors Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header (Note 1) Other Connectors 1 x external power connector (Note 1)1 x CPU fan header1 x fan/water cooling pump header2 x system fan headers (SYS_FAN1/SYS_FAN2 (Note 1))1 x addressable LED strip header (Note 1)1 x RGB LED strip header2 x M.2 Socket 3 connectors (M2A_CPU (Note 2)/M2P_SB (Note 1))2 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header (routed from the adapter card on the rear panel)1 x speaker header1 x reset button (Note 1)1 x reset jumper1 x Clear CMOS jumper(Note 1) The connector is on the front of GC-Z790I BTB PLUG.(Note 2) The connector is on the back of GC-Z790I BTB PLUG. Software Feature Windows 11 Supported Physical Spec Form Factor Mini ITX Dimensions (W x L) 6.7" x 6.7" Power Pin 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector Features Features Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup

Read more less

Aorus Elite P1000W 80+ Platinum Modular Pcie 5.0 Power Supply The Gigabyte Aorus Elite P1000W 80+ Platinum Modular PCIe 5.0 Power Supply is a high-performance component designed to meet the demanding power needs of modern gaming and professional setups. Featuring 80+ Platinum certification, it ensures high efficiency, minimizing energy waste and heat output. Its modular design allows for customizable cable management, reducing clutter and improving airflow within your PC case. With PCIe 5.0 compatibility, it supports the latest graphics cards and other PCIe devices, delivering stable and reliable power for optimal system performance. Ideal for enthusiasts and professionals alike, the Aorus Elite P1000W combines robust construction with advanced features to support the most demanding computing tasks. SPECIFICATION Model GP-AE1000PM PG5 Type Intel Form Factor ATX 12V v3.0 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 15-6.5A Input Frequency 60-50 Hz Output Capacity 1000W Dimension 150 x 140 x 86mm Fan Type 120mm Fluid Dynamic Bearing (FDB) Fan 80 PLUS Platinum Efficiency 92% at typical load MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All black Connectors ATX/MB 20+4 Pin x 1 : 650mm*1 CPU/EPS 4+4 Pin x 2 : 700mm*2 PCI-e 16 Pin x 1: 700mm*1 PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1

Read more less

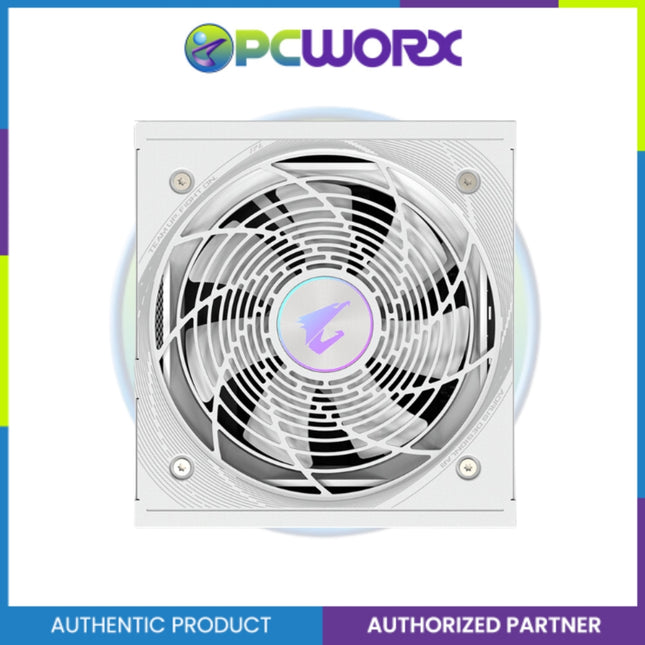

Aorus Elite P850W 80+ Platinum Modular Pcie 5.0 Power Supply The Gigabyte Aorus Elite P850W 80+ Platinum Modular PCIe 5.0 Power Supply is a high-performance PSU designed to meet the demanding needs of modern gaming and professional systems. Featuring an 80 Plus Platinum efficiency rating, it ensures minimal energy wastage and heat generation, contributing to both environmental conservation and long-term cost savings. SPECIFICATION Model GP-AE850PM PG5 Type Intel Form Factor ATX 12V v3.0 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 12-6A Input Frequency 60-50 Hz Output Capacity 850W Dimension 150 x 140 x 86mm Fan Type 120mm Fluid Dynamic Bearing (FDB) Fan 80 PLUS Platinum Efficiency 92% at typical load MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All white Connectors ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 :  700mm*2 PCI-e 16 Pin x 1: 700mm*1 PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 4 :500mm+150mm+150mm+150mm*1

Read more less

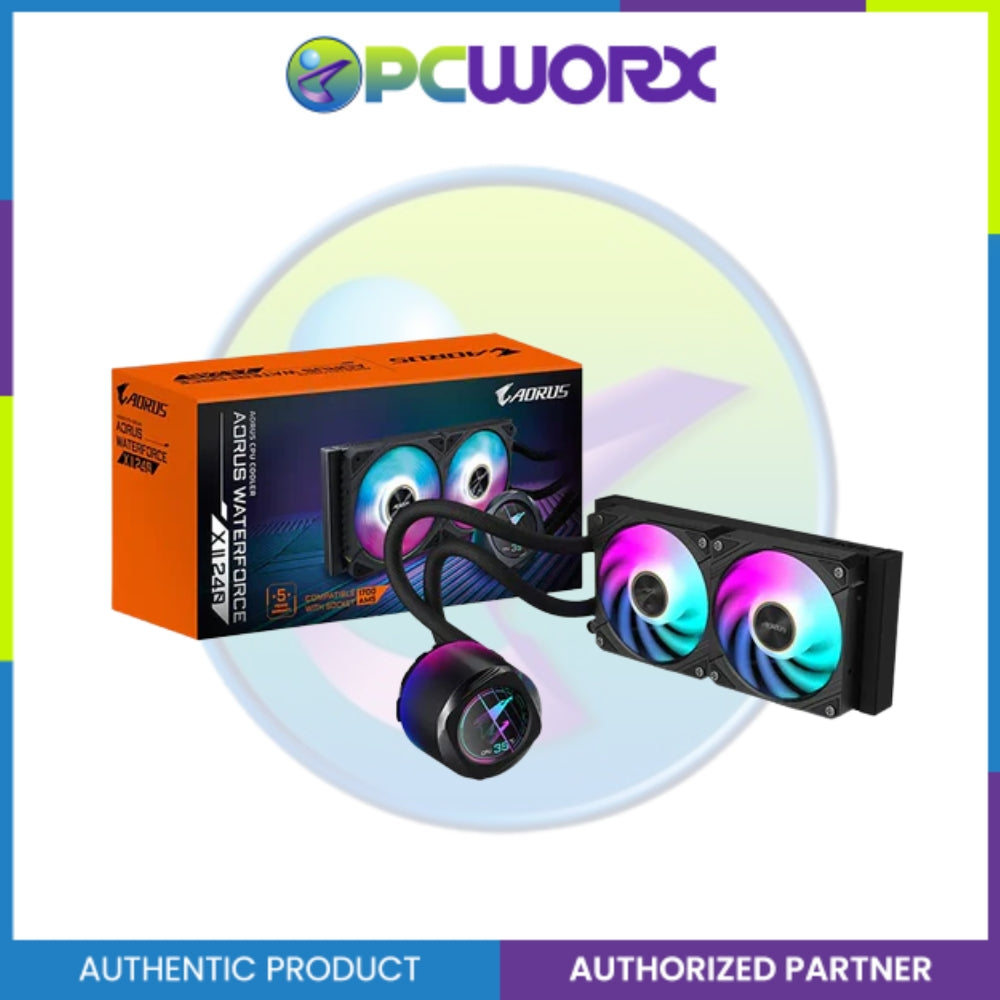

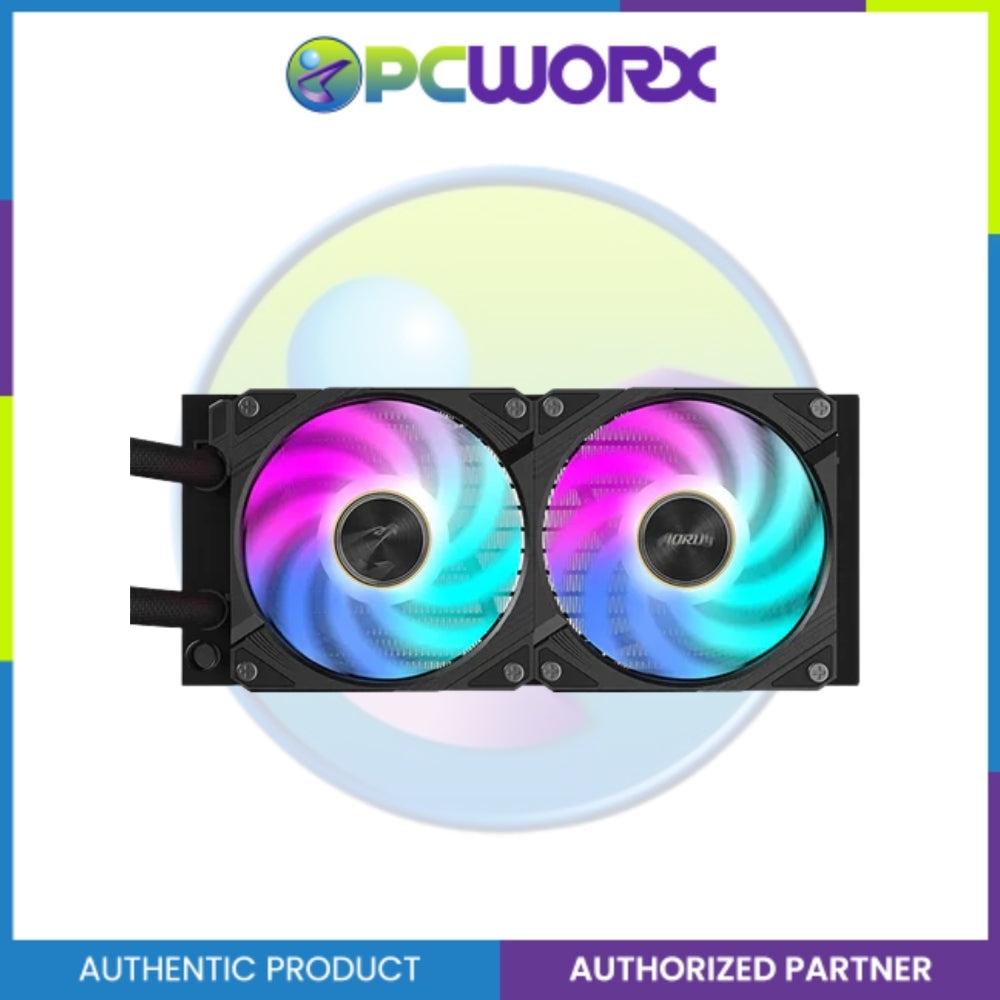

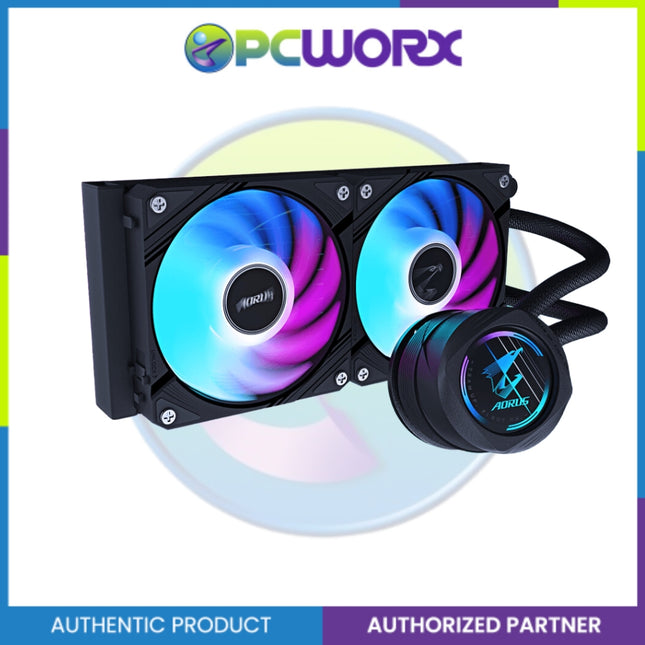

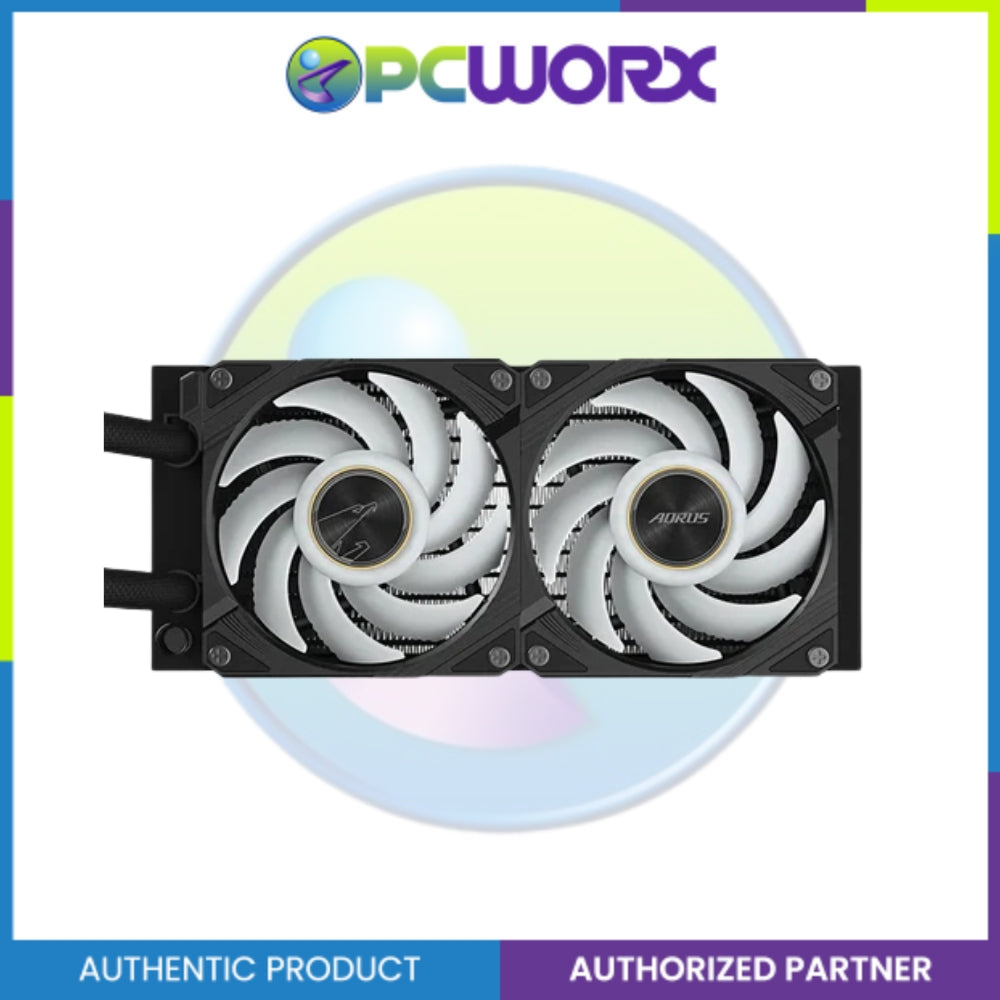

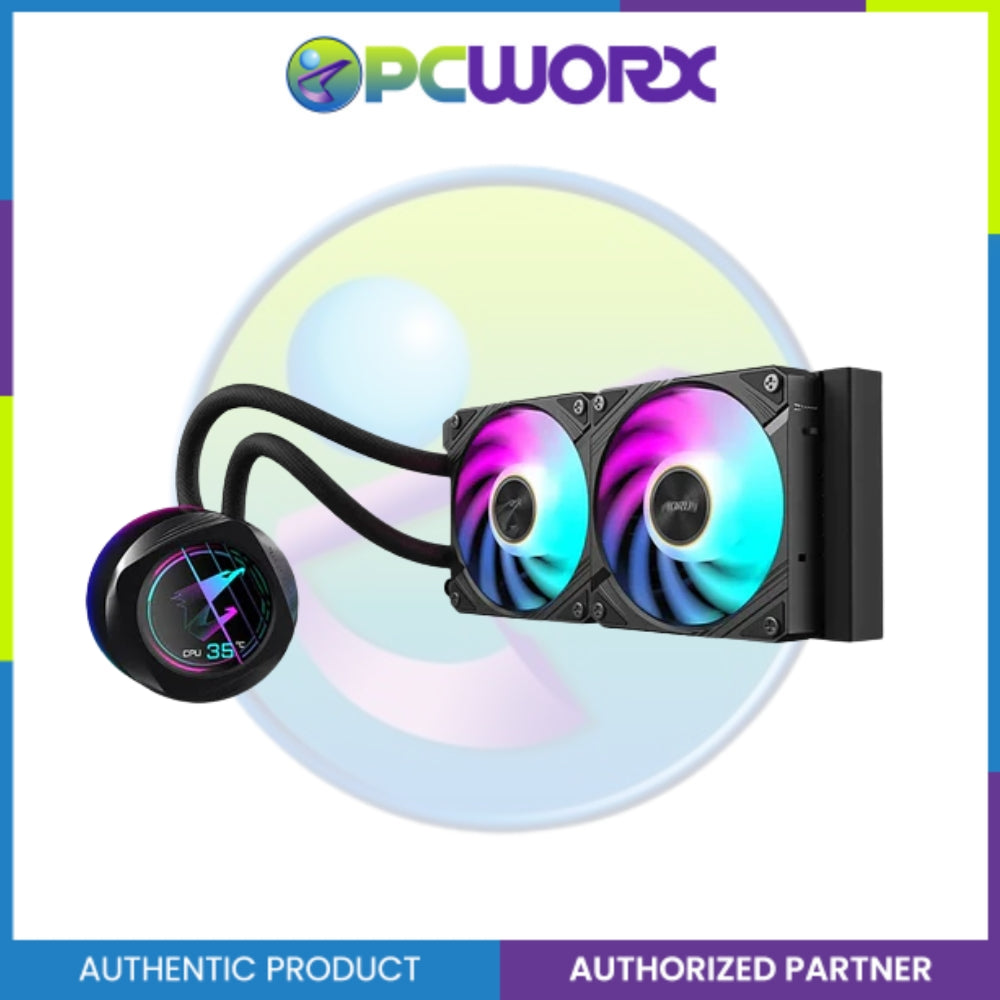

SPECIFICATION Radiator & Block Dimensions : 277 x 119 x 27mmPump Dimension : 87.6 x 87.6 x 77.7mmRadiator Material : AluminumBlock Material : Copper CPU Socket Intel 115x,1200,1700AMD TR4, AM5, AM4, sTR5 LCD Display 60 x 60mm Full Color LCD Fan Spec : 2 x 120mm ARGB FansSpeed : 800~2400 RPM +/-10%Bearing type : FDBAir Flow : 72 CFMAir Pressure : 3.15mmH20Noise Level : 12~37.5 dBA Software GCC

Read more less

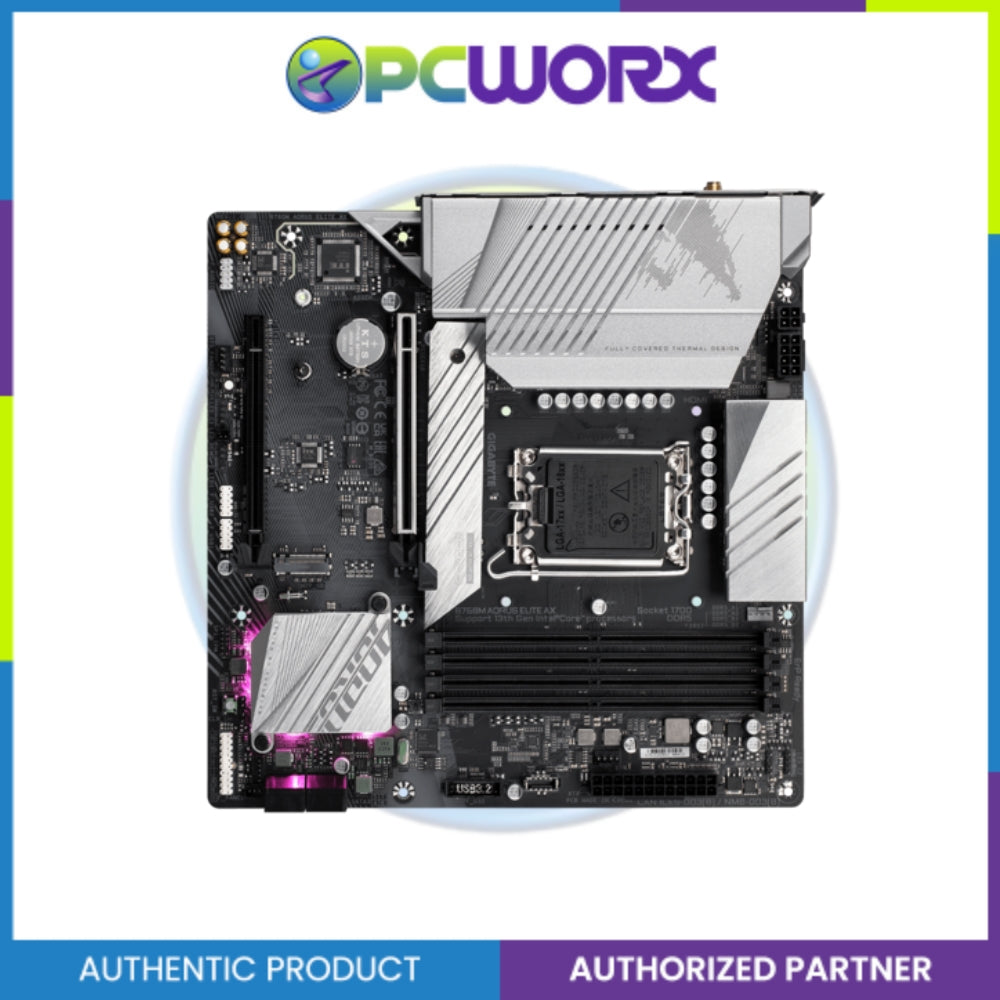

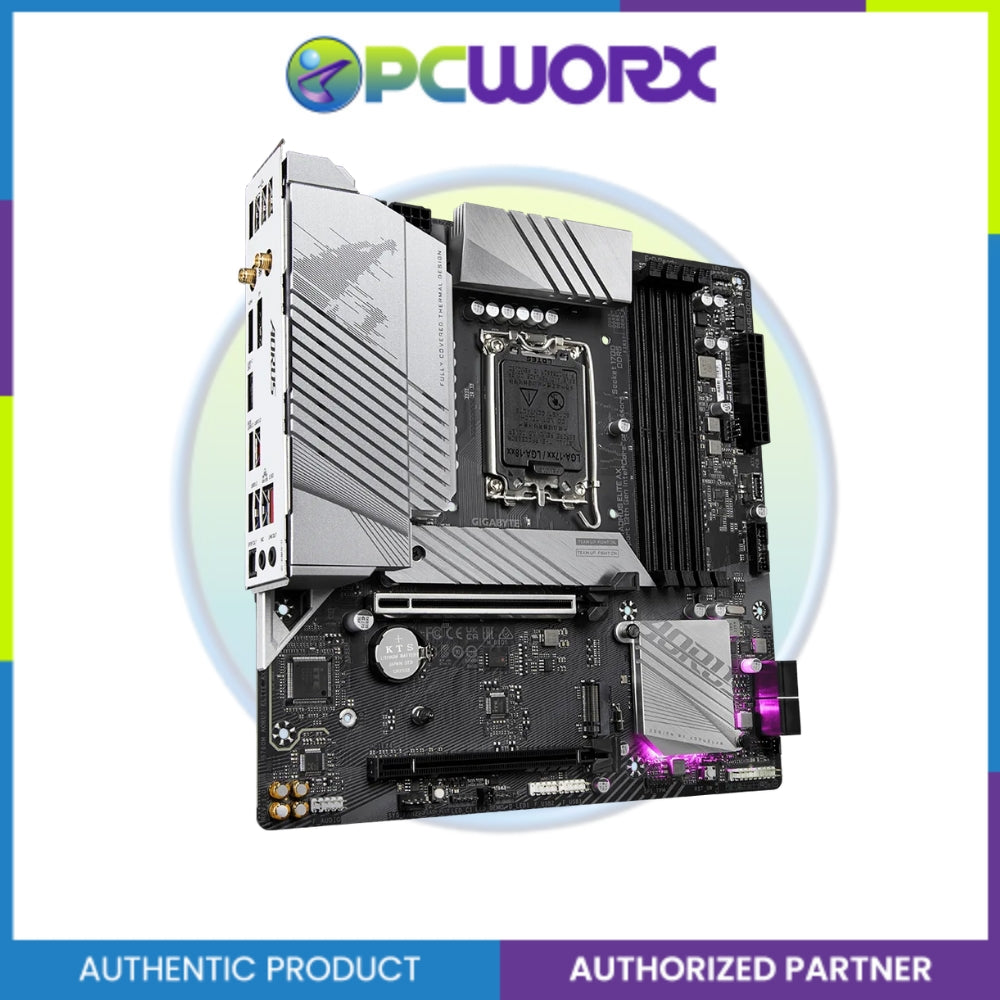

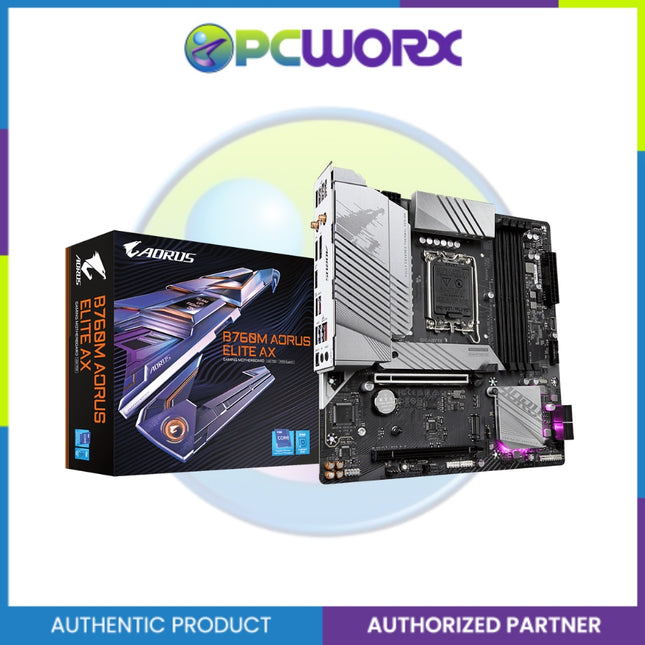

Supports Intel® Core™ 14th/ 13th /12th processors Unparalleled Performance：Twin 12*+1+1 Phases Digital VRM Solution Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & M.2 SSD Performance EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design Fast Networks： 2.5GbE LAN & Wi-Fi 6E 802.11ax Extended Connectivity：Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s, DP, HDMI Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card   Category Specification CPU LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*; L3 cache varies with CPU (*Refer to CPU Support List) Chipset Intel® B760 Express Chipset Memory Support for DDR5 7800(O.C.)/7600(O.C.)/7400(O.C.)/.../4000 MT/s; 4 × DDR5 DIMM sockets up to 192 GB (48 GB per DIMM); Dual channel; ECC & non-ECC support; XMP support Onboard Graphics Intel® HD Graphics support; 1 × HDMI (4096x2160@60Hz), 1 × DisplayPort (4096x2304@60Hz) Audio Realtek® Audio CODEC; High Definition; 2/4/5.1/7.1-channel; S/PDIF Out support LAN Realtek® 2.5GbE LAN (2.5/1/0.1 Gbps) Wireless Intel® Wi-Fi 6E AX211 / Realtek® Wi-Fi 6E RTL8852CE; Wi-Fi a/b/g/n/ac/ax 2.4/5/6 GHz; Bluetooth 5.3; 11ax 160MHz support Expansion Slots CPU: 1 × PCIe x16 (PCIe 4.0 x16); Chipset: 1 × PCIe x16 (PCIe 4.0 x4); AMD CrossFireX™ support Storage Interface CPU: 1 × M.2 Socket 3, type 2280 PCIe 4.0 x4/x2; Chipset: 1 × M.2 Socket 3 type 22110/2280 PCIe 4.0 x4/x2; 4 × SATA 6Gb/s; RAID 0/1/5/10 support USB USB Type-C (USB 3.2 Gen 2x2 & Gen 2); USB 3.2 Gen 2 Type-A; USB 3.2 Gen 1; USB 2.0; Internal headers; Thunderbolt™ connectors Internal I/O Connectors 24-pin ATX, 8-pin + 4-pin ATX 12V, CPU & system fan headers, LED headers, 2 × M.2, 4 × SATA, front panel headers, TPM header, Q-Flash Plus, reset, Clear CMOS jumper Back Panel Connectors 2 × SMA antenna, USB Type-C, USB 3.2 Gen 2/1, USB 2.0, HDMI, DisplayPort, RJ-45, optical S/PDIF, 2 × audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage, temperature, fan speed, water cooling flow, fan fail warning, fan control BIOS 1 × 256 Mbit flash; AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features GIGABYTE Control Center (GCC) support; Q-Flash & Q-Flash Plus Bundled Software Norton® Internet Security (OEM); LAN bandwidth management software Operating System Windows 11 64-bit / Windows 10 64-bit Form Factor Micro ATX; 24.4 × 24.4 cm

Read more less

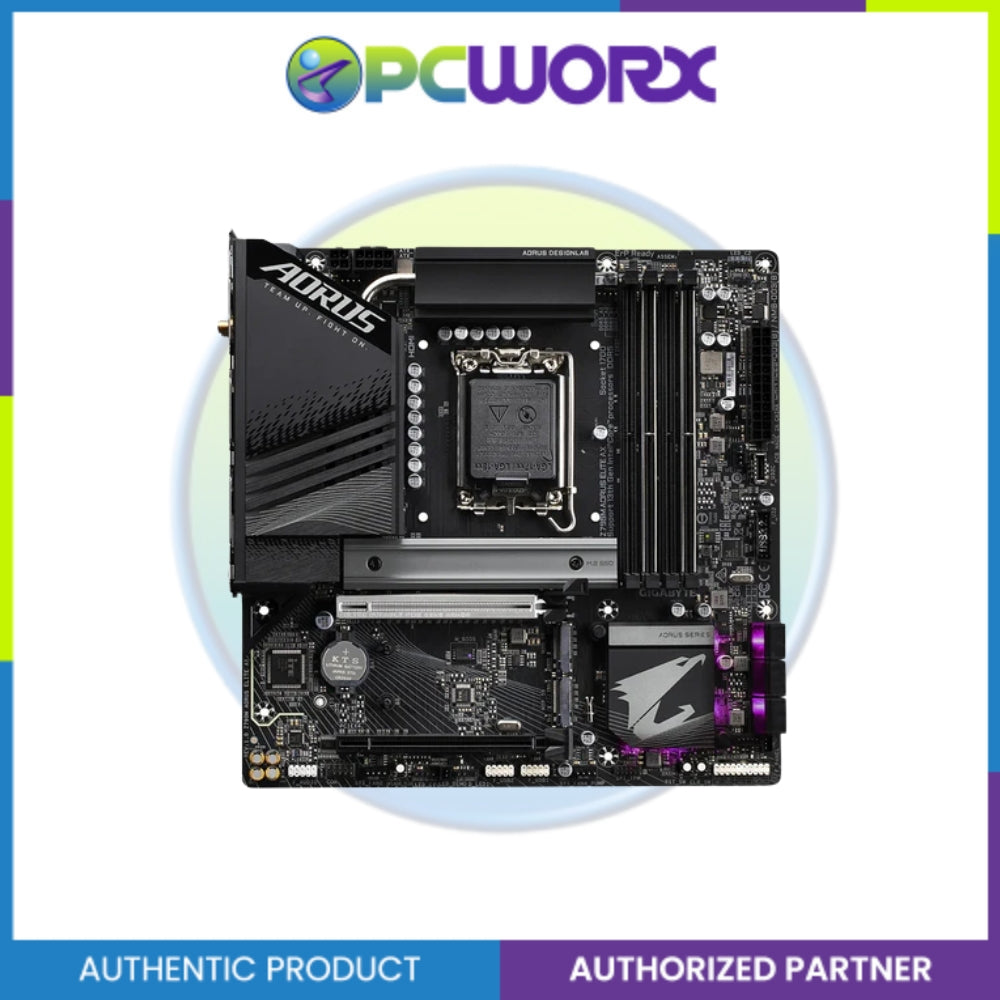

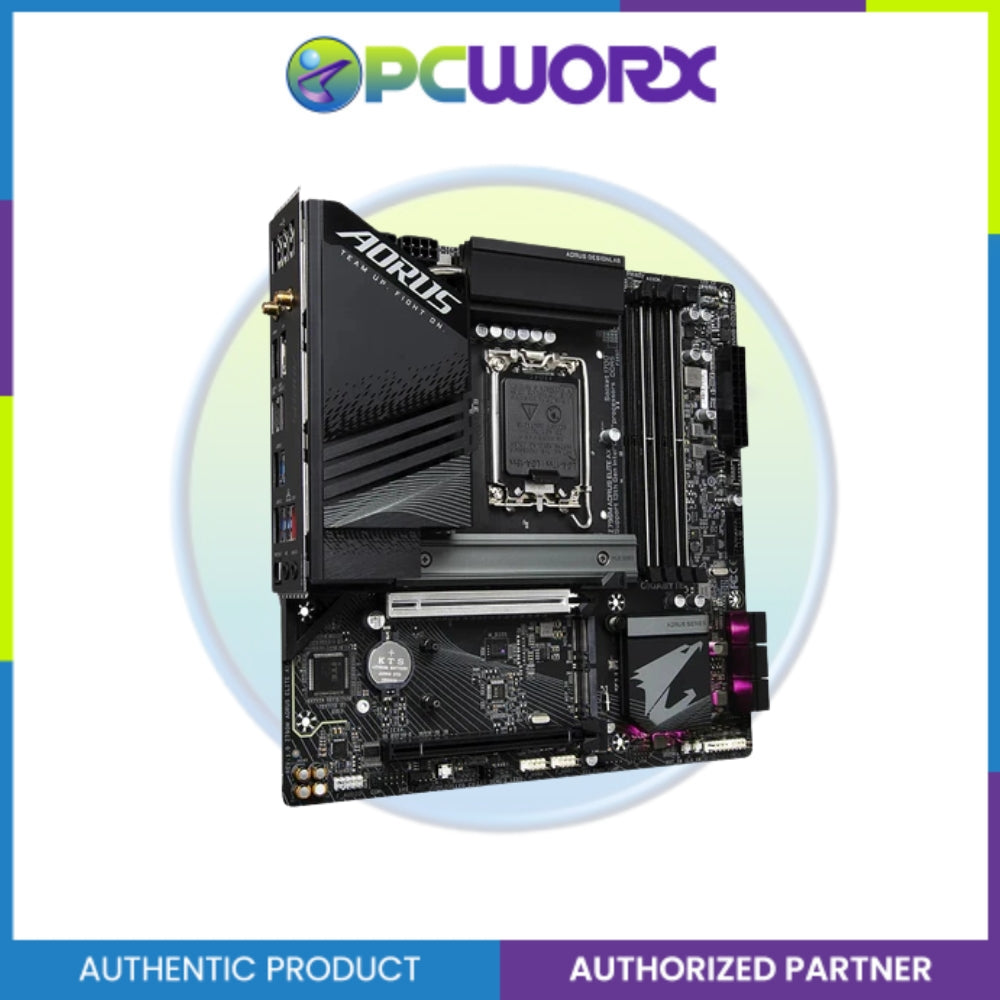

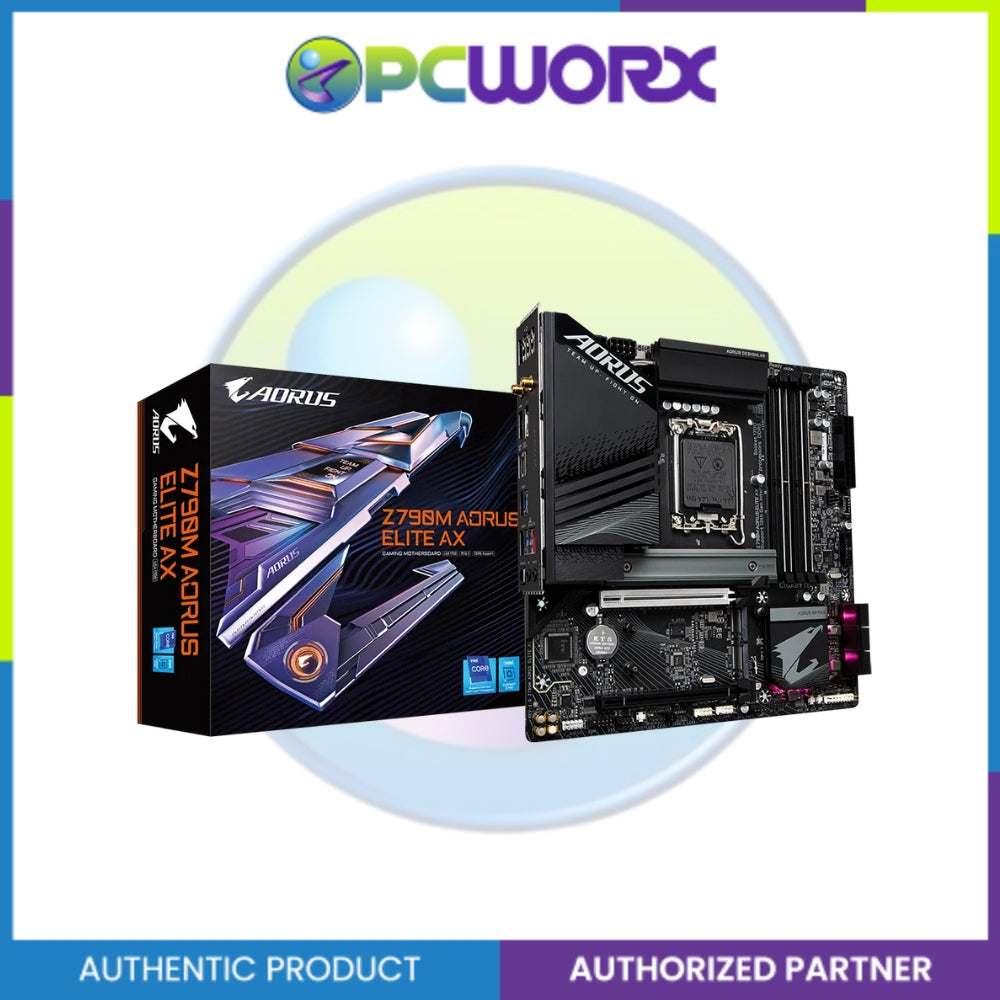

Key Feature Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors Unparalleled Performance：Twin 12*+1+1 Phases Digital VRM Solution Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & M.2 SSD Performance EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax Extended Connectivity：HDMI, DP, Rear USB-C® 20Gb/s, Front USB-C® 10Gb/s Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card Category Specification CPU LGA1700 socket: Supports 13th and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors. L3 cache varies with CPU. Refer to “CPU Support List” for details. Chipset Intel® Z790 Express Chipset Memory Supports DDR5 7600(O.C.)–4000 memory modules. 4 × DDR5 DIMM sockets (up to 192 GB, 48 GB per DIMM). Dual-channel architecture. Supports ECC (non-ECC mode) and non-ECC Un-buffered DIMMs. Supports Extreme Memory Profile (XMP). Performance depends on CPU/memory configuration. Onboard Graphics Integrated Intel® HD Graphics: 1 × HDMI (4096×2160@60 Hz, HDMI 2.0, HDCP 2.3), 1 × DisplayPort (4096×2304@60 Hz, DP 1.2, HDCP 2.3). Graphics support varies by CPU. Audio Realtek® ALC1200 CODEC, High Definition Audio, 2/4/5.1/7.1-channel, supports S/PDIF Out. LAN Realtek® 2.5 GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps). Wireless Communication Intel® Wi-Fi 6E AX211 (Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz). Bluetooth 5.3. Supports 11ax 160 MHz and up to 2.4 Gbps data rate. Expansion Slots CPU: 1 × PCI Express x16 (PCIe 5.0 x16). Chipset: 1 × PCI Express x16 (PCIe 4.0 x4). Supports AMD CrossFire™. Storage Interface CPU: 1 × M.2 (PCIe 4.0 x4/x2). Chipset: 2 × M.2 (PCIe 4.0 x4/x2, type 2280/22110) + 6 × SATA 6 Gb/s. Supports RAID 0/1/5/10 for NVMe and SATA devices. USB Rear I/O: 1 × USB Type-C (3.2 Gen 2x2), 1 × USB Type-A (3.2 Gen 2 red), 4 × USB 3.2 Gen 1, 4 × USB 2.0/1.1. Internal: 1 × USB Type-C (3.2 Gen 2), 1 × USB 3.2 Gen 1 header, 2 × USB 2.0 headers. Internal I/O Connectors 24-pin ATX, 8-pin + 4-pin ATX 12 V, CPU fan & pump headers, 3 system fan headers, 2 ARGB & 2 RGB LED headers, 3 M.2, 6 SATA, front panel/audio headers, USB headers (2.0/3.2/Type-C), Thunderbolt add-in connectors, TPM, serial port, reset/Q-Flash Plus/Clear CMOS buttons. Back Panel Connectors 1 × USB Type-C (3.2 Gen 2x2), 1 × USB 3.2 Gen 2 Type-A (red), 4 × USB 3.2 Gen 1, 4 × USB 2.0, 2 × SMA antenna connectors, 1 × HDMI 2.0, 1 × DisplayPort, 1 × RJ-45, 1 × optical S/PDIF Out, 2 × audio jacks. I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage, temperature, fan speed, and water flow rate detection. Supports fan fail warning and fan/pump speed control (dependent on installed hardware). BIOS 1 × 256 Mbit flash, AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. Unique Features GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup. Bundled Software Norton® Internet Security (OEM), LAN bandwidth management software. Operating System Supports Windows 11 64-bit and Windows 10 64-bit. Form Factor Micro ATX Form Factor – 24.4 cm × 24.4 cm.

Read more less

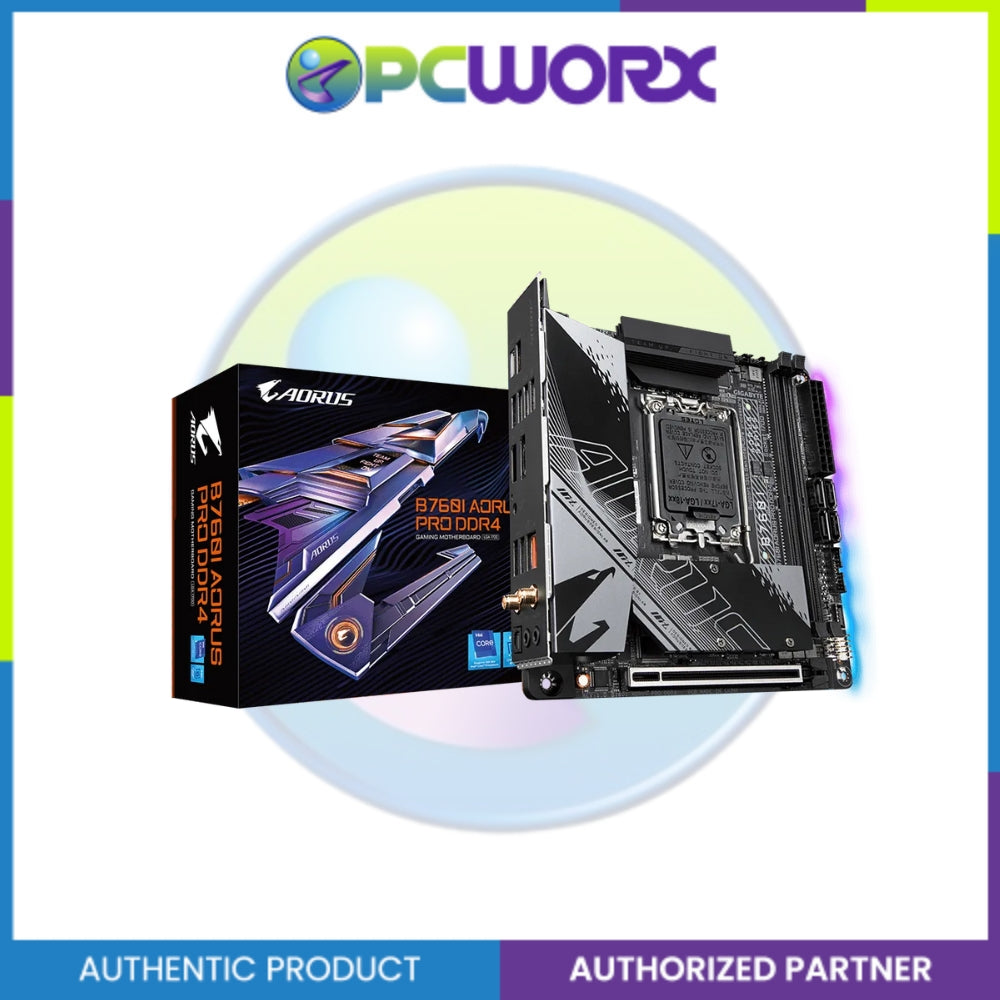

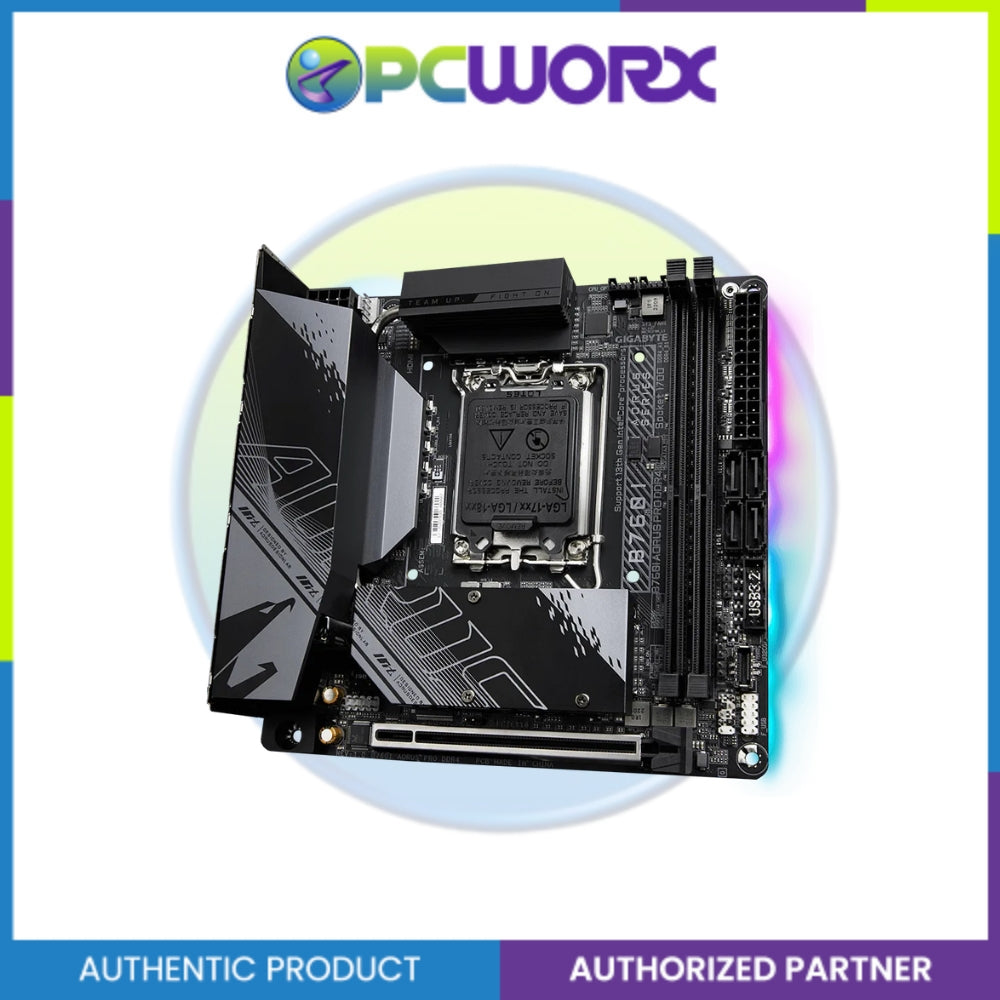

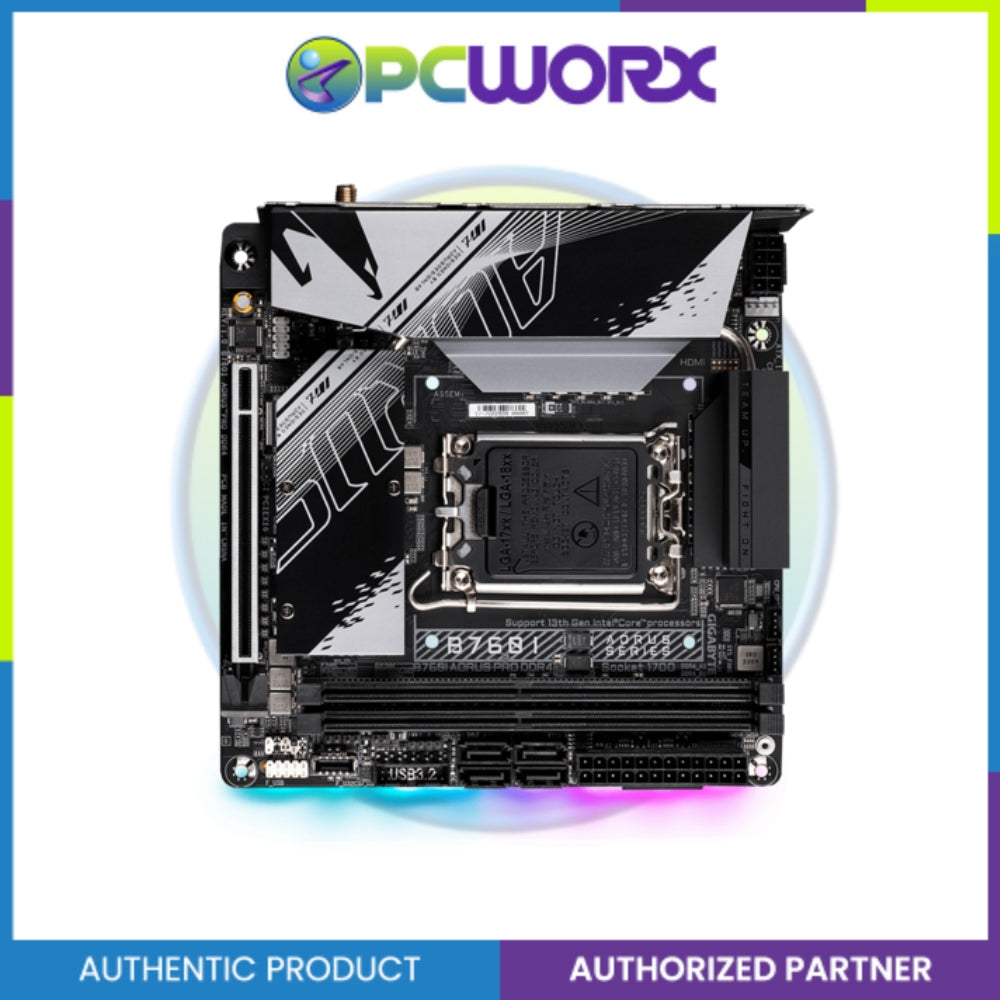

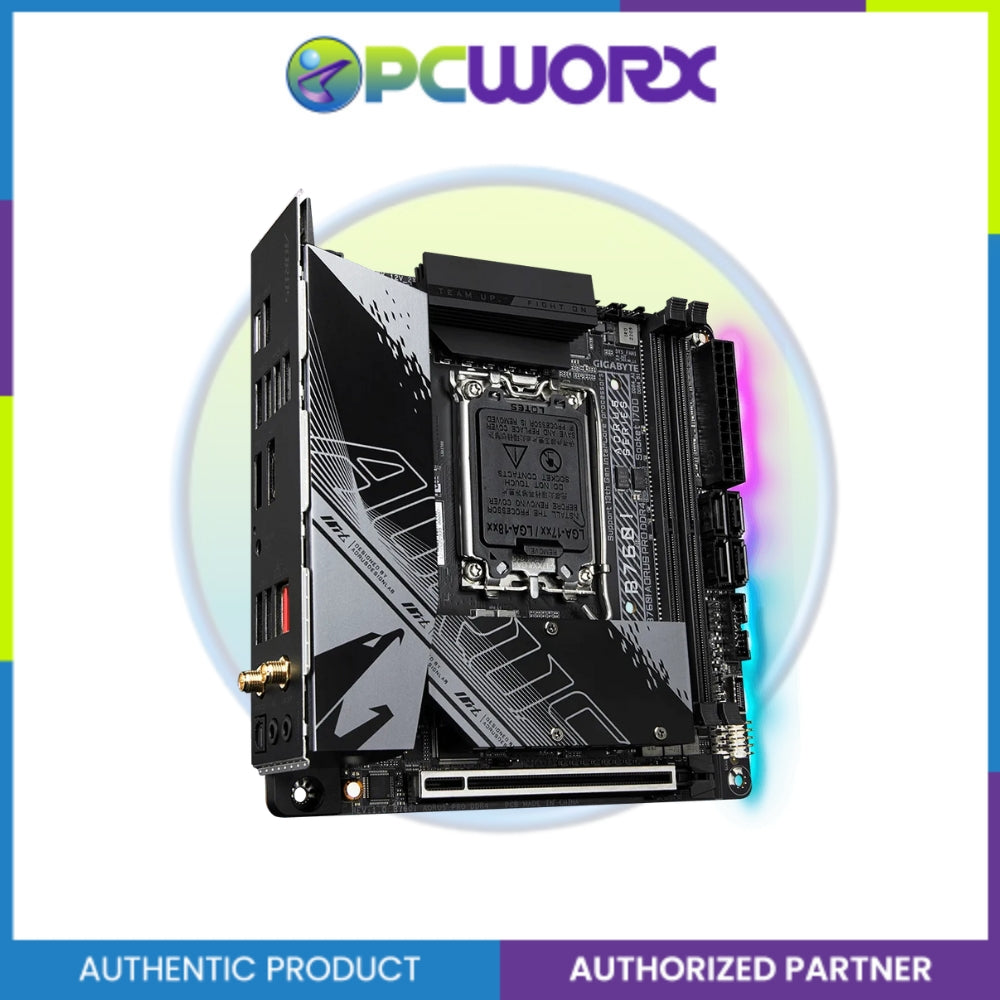

Supports Intel® Core™ 14th/ 13th /12th processors Unparalleled Performance：Direct 8+1+1 Phases Digital VRM Solution Dual Channel DDR4：2*DIMMs with XMP Memory Module Support Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design：Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate Fast Networks：Intel® 2.5GbE LAN & Wi-Fi 6 802.11ax Extended Connectivity：Front USB3.2 Gen 1 USB-C®, Rear USB-C® 10Gb/s, DP, HDMI RGB FUSION：Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card Key Feature Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors Unparalleled Performance：Direct 8+1+1 Phases Digital VRM Solution Dual Channel DDR4：2*DIMMs with XMP Memory Module Support Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design：Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate Fast Networks：Intel® 2.5GbE LAN & Wi-Fi 6 802.11ax Extended Connectivity：Front USB3.2 Gen 1 USB-C®, Rear USB-C® 10Gb/s, DP, HDMI RGB FUSION：Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card Category Specification CPU LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors. L3 cache varies with CPU. Refer to "CPU Support List" for details. Chipset Intel® B760 Express Chipset Memory Supports DDR4 5333(O.C.)–2133 MT/s memory modules. 2 × DDR4 DIMM sockets (up to 64 GB). Dual-channel architecture. Supports ECC (non-ECC mode) and non-ECC Un-buffered DIMMs. XMP supported. Onboard Graphics Integrated Intel® HD Graphics: 1 × DisplayPort (4096×2304@60 Hz, DP 1.2, HDCP 2.3), 1 × HDMI (4096×2160@60 Hz, HDMI 2.1, HDCP 2.3). Graphics support depends on CPU. Audio Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel support, S/PDIF Out supported. LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps). Wireless Communication Intel® Killer™ Wi-Fi 6 AX1650 (PCB rev 1.0): Wi-Fi a/b/g/n/ac/ax (2.4/5 GHz), Bluetooth 5.2. Intel® Wi-Fi 6E AX211 (PCB rev 1.1): Wi-Fi a/b/g/n/ac/ax (2.4/5/6 GHz), Bluetooth 5.3. Expansion Slots 1 × PCI Express x16 slot (PCIe 4.0 x16). Supports graphics card or NVMe SSD only. Storage Interface CPU: 1 × M.2 (PCIe 4.0 x4/x2). Chipset: 1 × M.2 (back side, PCIe 4.0 x4/x2). 4 × SATA 6 Gb/s connectors. Supports RAID 0/1/5/10. USB Rear I/O: 1 × USB Type-C (3.2 Gen 2), 1 × USB Type-A (3.2 Gen 2, red), 4 × USB 3.2 Gen 1, 2 × USB 2.0/1.1. Internal: 1 × USB Type-C (3.2 Gen 1), 1 × USB 3.2 Gen 1 header, 1 × USB 2.0 header. Internal I/O Connectors 24-pin ATX, 8-pin 12V power, CPU fan, CPU pump, system fan, RGB/ARGB headers, 2 × M.2, 4 × SATA, front panel/audio/speaker headers, reset jumper, Clear CMOS jumper, chassis intrusion header. Back Panel Connectors 1 × USB Type-C (3.2 Gen 2), 1 × USB 3.2 Gen 2 Type-A (red), 4 × USB 3.2 Gen 1, 2 × USB 2.0, 1 × DisplayPort, 1 × HDMI, Q-Flash Plus button, RJ-45 port, 2 × SMA antenna connectors, optical S/PDIF Out, 2 × audio jacks. I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage, temperature, fan speed, water cooling flow rate detection. Fan fail warning and speed control supported. BIOS 1 × 256 Mbit flash, licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. Unique Features GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus. Bundled Software Norton® Internet Security (OEM), LAN bandwidth management software. Operating System Windows 11 64-bit, Windows 10 64-bit. Form Factor Mini-ITX (17.0 cm × 17.0 cm).
