- Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
- Unparalleled Performance：Twin 12*+1+1 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity：HDMI, DP, Rear USB-C® 20Gb/s, Front USB-C® 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
| Category | Specification |
|---|
| CPU | LGA1700 socket: Supports 13th and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors. L3 cache varies with CPU. Refer to “CPU Support List” for details. |
| Chipset | Intel® Z790 Express Chipset |
| Memory | Supports DDR5 7600(O.C.)–4000 memory modules. 4 × DDR5 DIMM sockets (up to 192 GB, 48 GB per DIMM). Dual-channel architecture. Supports ECC (non-ECC mode) and non-ECC Un-buffered DIMMs. Supports Extreme Memory Profile (XMP). Performance depends on CPU/memory configuration. |
| Onboard Graphics | Integrated Intel® HD Graphics: 1 × HDMI (4096×2160@60 Hz, HDMI 2.0, HDCP 2.3), 1 × DisplayPort (4096×2304@60 Hz, DP 1.2, HDCP 2.3). Graphics support varies by CPU. |
| Audio | Realtek® ALC1200 CODEC, High Definition Audio, 2/4/5.1/7.1-channel, supports S/PDIF Out. |
| LAN | Realtek® 2.5 GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps). |
| Wireless Communication | Intel® Wi-Fi 6E AX211 (Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz). Bluetooth 5.3. Supports 11ax 160 MHz and up to 2.4 Gbps data rate. |
| Expansion Slots | CPU: 1 × PCI Express x16 (PCIe 5.0 x16). Chipset: 1 × PCI Express x16 (PCIe 4.0 x4). Supports AMD CrossFire™. |
| Storage Interface | CPU: 1 × M.2 (PCIe 4.0 x4/x2). Chipset: 2 × M.2 (PCIe 4.0 x4/x2, type 2280/22110) + 6 × SATA 6 Gb/s. Supports RAID 0/1/5/10 for NVMe and SATA devices. |
| USB | Rear I/O: 1 × USB Type-C (3.2 Gen 2x2), 1 × USB Type-A (3.2 Gen 2 red), 4 × USB 3.2 Gen 1, 4 × USB 2.0/1.1. Internal: 1 × USB Type-C (3.2 Gen 2), 1 × USB 3.2 Gen 1 header, 2 × USB 2.0 headers. |
| Internal I/O Connectors | 24-pin ATX, 8-pin + 4-pin ATX 12 V, CPU fan & pump headers, 3 system fan headers, 2 ARGB & 2 RGB LED headers, 3 M.2, 6 SATA, front panel/audio headers, USB headers (2.0/3.2/Type-C), Thunderbolt add-in connectors, TPM, serial port, reset/Q-Flash Plus/Clear CMOS buttons. |

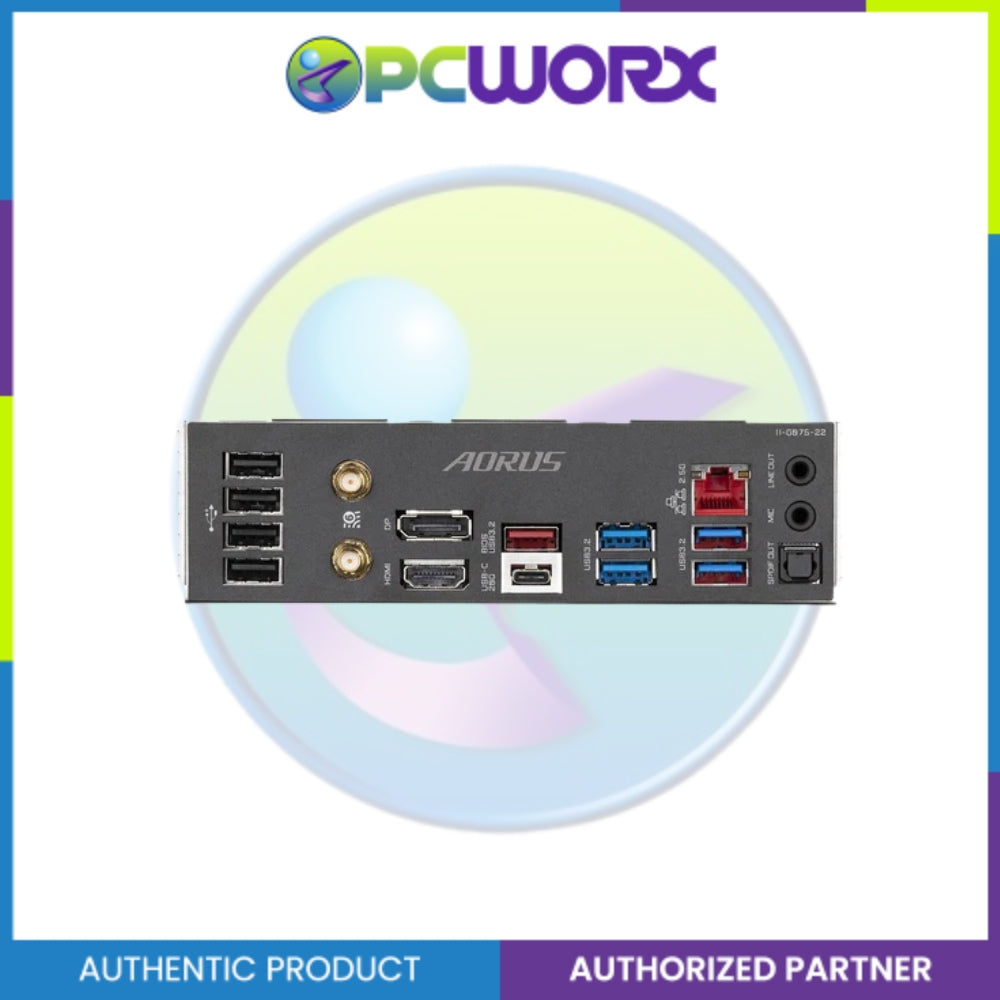

| Back Panel Connectors | 1 × USB Type-C (3.2 Gen 2x2), 1 × USB 3.2 Gen 2 Type-A (red), 4 × USB 3.2 Gen 1, 4 × USB 2.0, 2 × SMA antenna connectors, 1 × HDMI 2.0, 1 × DisplayPort, 1 × RJ-45, 1 × optical S/PDIF Out, 2 × audio jacks. |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, and water flow rate detection. Supports fan fail warning and fan/pump speed control (dependent on installed hardware). |
| BIOS | 1 × 256 Mbit flash, AMI UEFI BIOS. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0. |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup. |
| Bundled Software | Norton® Internet Security (OEM), LAN bandwidth management software. |
| Operating System | Supports Windows 11 64-bit and Windows 10 64-bit. |
| Form Factor | Micro ATX Form Factor – 24.4 cm × 24.4 cm. |
