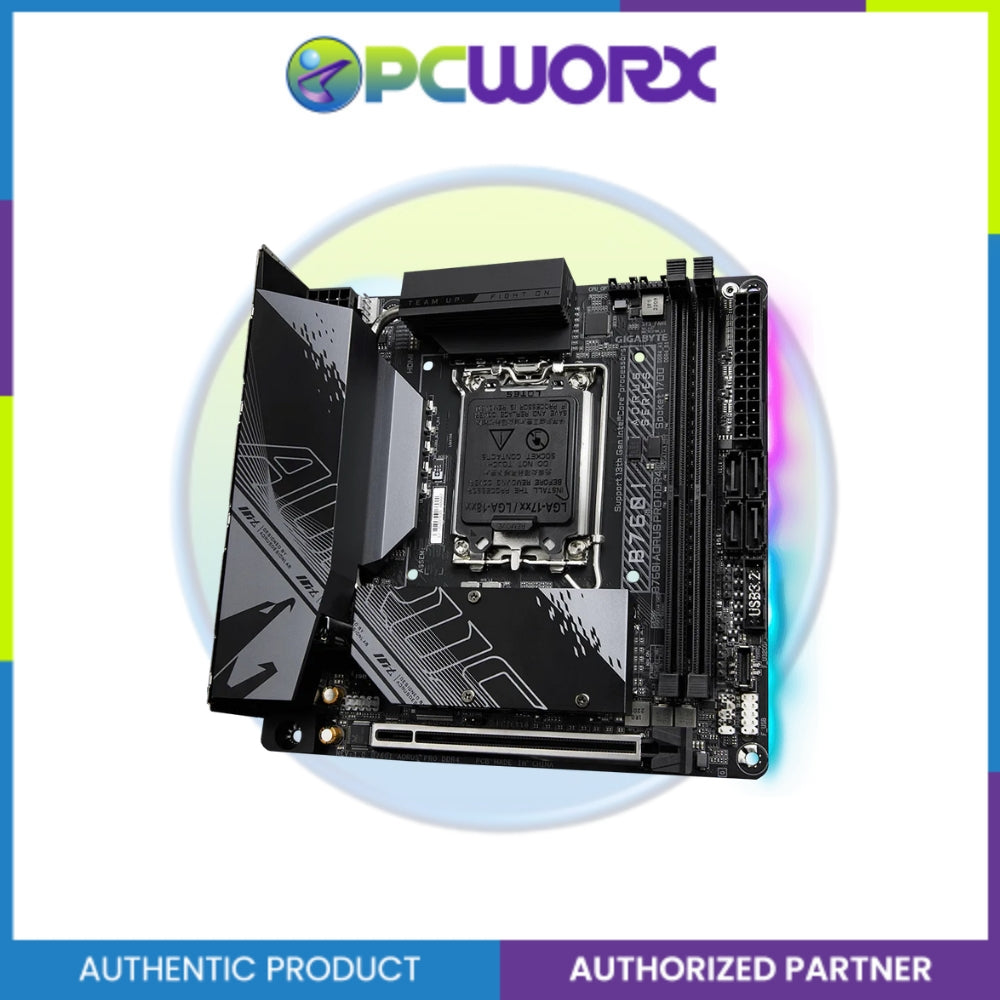

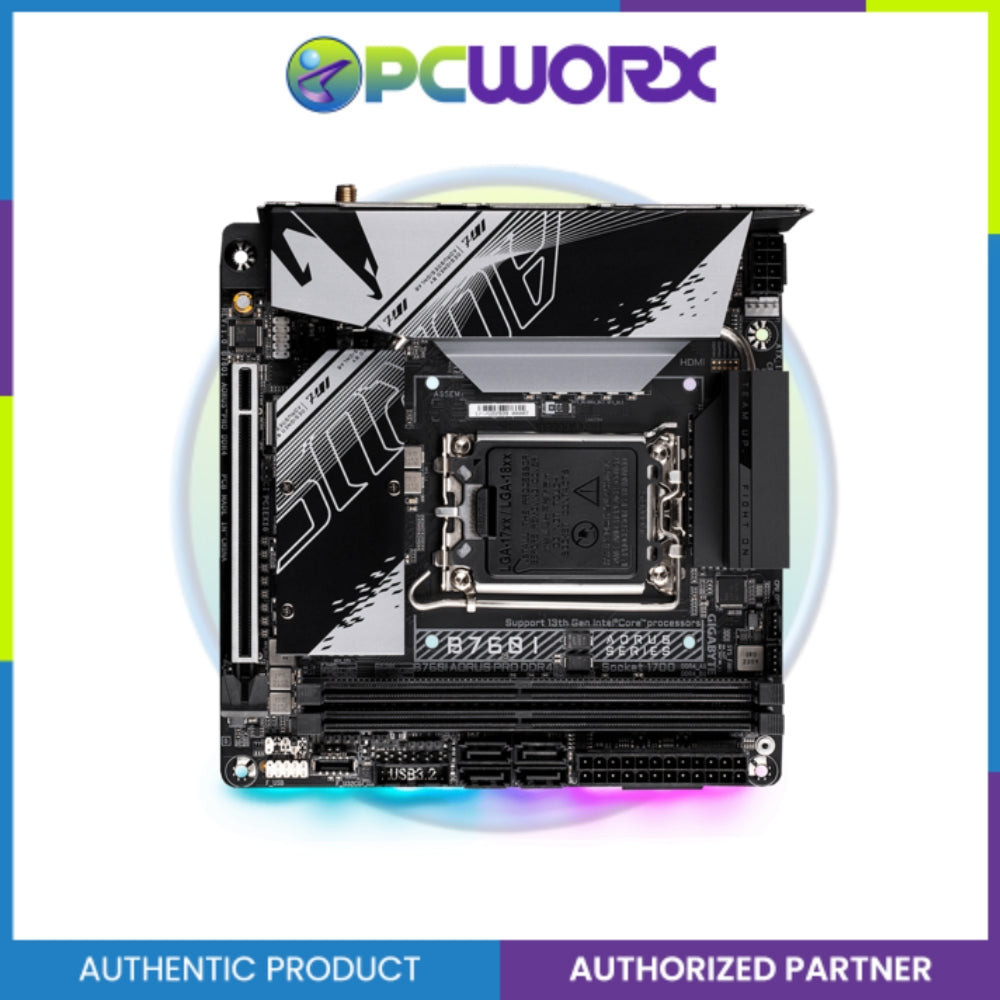

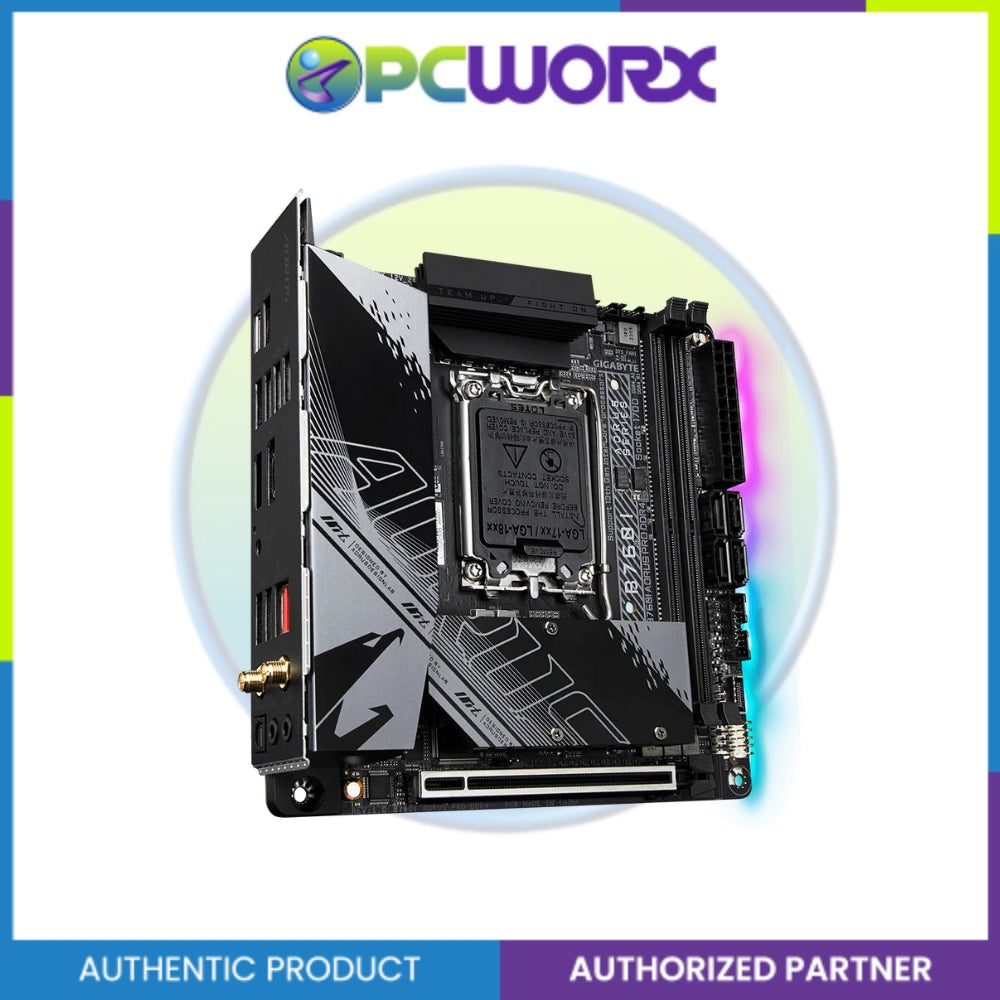

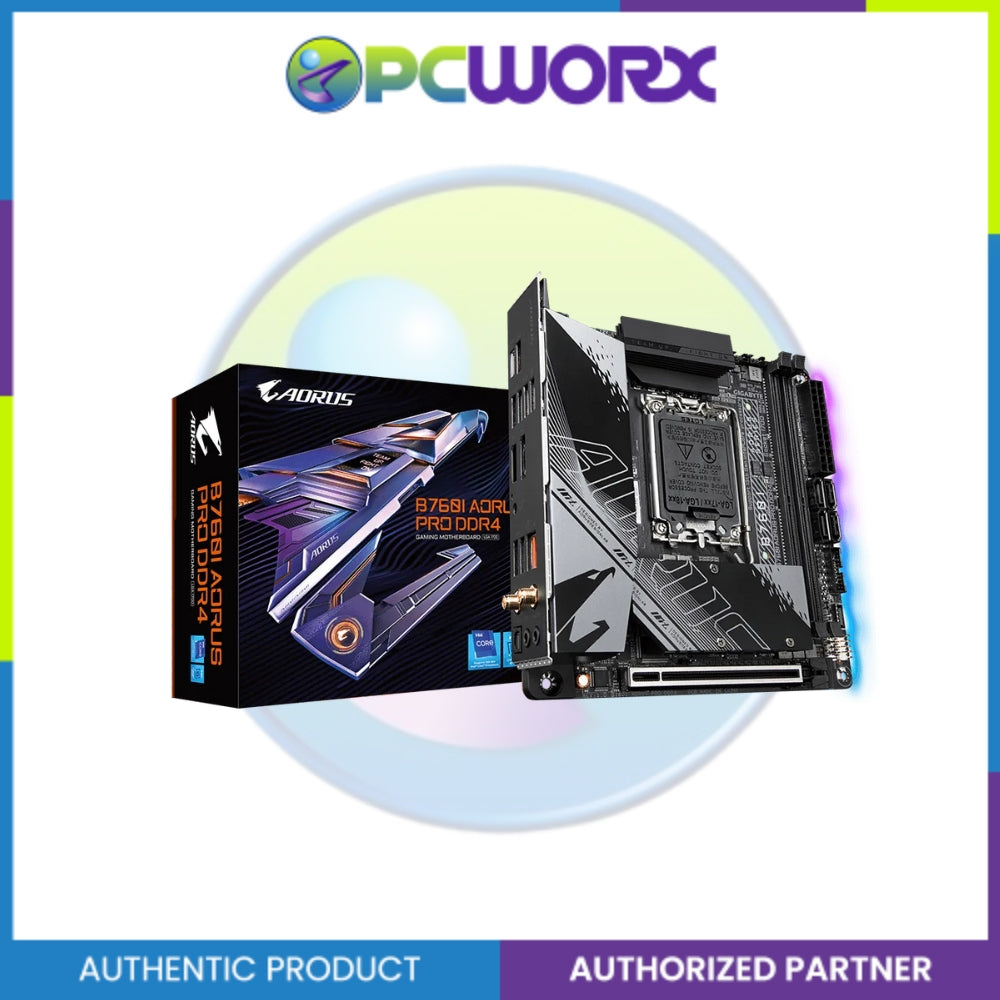

Gigabyte GA-B760I-AORUS-PRO-DDR4 LGA1700 Mini-ITX
Gigabyte GA-B760I-AORUS-PRO-DDR4 LGA1700 Mini-ITX
Gigabyte GA-B760I-AORUS-PRO-DDR4 LGA1700 Mini-ITX
Gigabyte GA-B760I-AORUS-PRO-DDR4 LGA1700 Mini-ITX

Gigabyte GA-B760I-AORUS-PRO-DDR4 LGA1700 Mini-ITX

(0)
SKU: 0000057681

₱13,869.00

Out of stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between June 08 and June 10.

In stock and ready to ship

Delivery Information

Metro Manila: 2–3 days | Provincial: 3–7 days

Main Office Branch only

Same Day Delivery

Same-Day Delivery Available

Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only

Processing only during office hours from Main Office 9am - 5pm
Gigabyte GA-B760I-AORUS-PRO-DDR4 LGA1700 Mini-ITX

₱13,869.00

₱13,869.00

Authorized Seller

100% Original Authentic Product

  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Unparalleled Performance：Direct 8+1+1 Phases Digital VRM Solution
  • Dual Channel DDR4：2*DIMMs with XMP Memory Module Support
  • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design：Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate
  • Fast Networks：Intel® 2.5GbE LAN & Wi-Fi 6 802.11ax
  • Extended Connectivity：Front USB3.2 Gen 1 USB-C®, Rear USB-C® 10Gb/s, DP, HDMI
  • RGB FUSION：Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Key Feature
  • Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
  • Unparalleled Performance：Direct 8+1+1 Phases Digital VRM Solution
  • Dual Channel DDR4：2*DIMMs with XMP Memory Module Support
  • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design：Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink, Aluminum Baseplate
  • Fast Networks：Intel® 2.5GbE LAN & Wi-Fi 6 802.11ax
  • Extended Connectivity：Front USB3.2 Gen 1 USB-C®, Rear USB-C® 10Gb/s, DP, HDMI
  • RGB FUSION：Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Category Specification
CPU LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors. L3 cache varies with CPU. Refer to "CPU Support List" for details.
Chipset Intel® B760 Express Chipset
Memory Supports DDR4 5333(O.C.)–2133 MT/s memory modules. 2 × DDR4 DIMM sockets (up to 64 GB). Dual-channel architecture. Supports ECC (non-ECC mode) and non-ECC Un-buffered DIMMs. XMP supported.
Onboard Graphics Integrated Intel® HD Graphics: 1 × DisplayPort (4096×2304@60 Hz, DP 1.2, HDCP 2.3), 1 × HDMI (4096×2160@60 Hz, HDMI 2.1, HDCP 2.3). Graphics support depends on CPU.
Audio Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel support, S/PDIF Out supported.
LAN Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps).
Wireless Communication Intel® Killer™ Wi-Fi 6 AX1650 (PCB rev 1.0): Wi-Fi a/b/g/n/ac/ax (2.4/5 GHz), Bluetooth 5.2. Intel® Wi-Fi 6E AX211 (PCB rev 1.1): Wi-Fi a/b/g/n/ac/ax (2.4/5/6 GHz), Bluetooth 5.3.
Expansion Slots 1 × PCI Express x16 slot (PCIe 4.0 x16). Supports graphics card or NVMe SSD only.
Storage Interface CPU: 1 × M.2 (PCIe 4.0 x4/x2). Chipset: 1 × M.2 (back side, PCIe 4.0 x4/x2). 4 × SATA 6 Gb/s connectors. Supports RAID 0/1/5/10.
USB Rear I/O: 1 × USB Type-C (3.2 Gen 2), 1 × USB Type-A (3.2 Gen 2, red), 4 × USB 3.2 Gen 1, 2 × USB 2.0/1.1. Internal: 1 × USB Type-C (3.2 Gen 1), 1 × USB 3.2 Gen 1 header, 1 × USB 2.0 header.
Internal I/O Connectors 24-pin ATX, 8-pin 12V power, CPU fan, CPU pump, system fan, RGB/ARGB headers, 2 × M.2, 4 × SATA, front panel/audio/speaker headers, reset jumper, Clear CMOS jumper, chassis intrusion header.
Back Panel Connectors 1 × USB Type-C (3.2 Gen 2), 1 × USB 3.2 Gen 2 Type-A (red), 4 × USB 3.2 Gen 1, 2 × USB 2.0, 1 × DisplayPort, 1 × HDMI, Q-Flash Plus button, RJ-45 port, 2 × SMA antenna connectors, optical S/PDIF Out, 2 × audio jacks.
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage, temperature, fan speed, water cooling flow rate detection. Fan fail warning and speed control supported.
BIOS 1 × 256 Mbit flash, licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0.
Unique Features GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus.
Bundled Software Norton® Internet Security (OEM), LAN bandwidth management software.
Operating System Windows 11 64-bit, Windows 10 64-bit.
Form Factor Mini-ITX (17.0 cm × 17.0 cm).
