| Intel® Socket LGA 1700: |
Support 13th and 12th Gen Series Processors |
| Unparalleled Performance: |
Direct 10+1+2 Phases Digital VRM Solution |
| Dual Channel DDR5: |
2*SMD DIMMs with XMP 3.0 Memory Module Support |
| Next Generation Storage: |
2*PCIe 4.0 x4 M.2 Connectors |
| Advanced Thermal Design & M.2 Thermal Guard III:
|
To Ensure VRM Power Stability & M.2 SSD Performance |
| EZ-Latch Plus: |
M.2 Connectors with Quick Release & Screwless Design |
| Fast Networks: |
2.5GbE LAN & Wi-Fi 6E 802.11ax |
| Extended Connectivity: |
DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s |
| Smart Fan 6: |
Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP |
| Q-Flash Plus: |
Update BIOS Without Installing the CPU, Memory and Graphics Card |
OUTSTANDING THERMAL DESIGN
GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

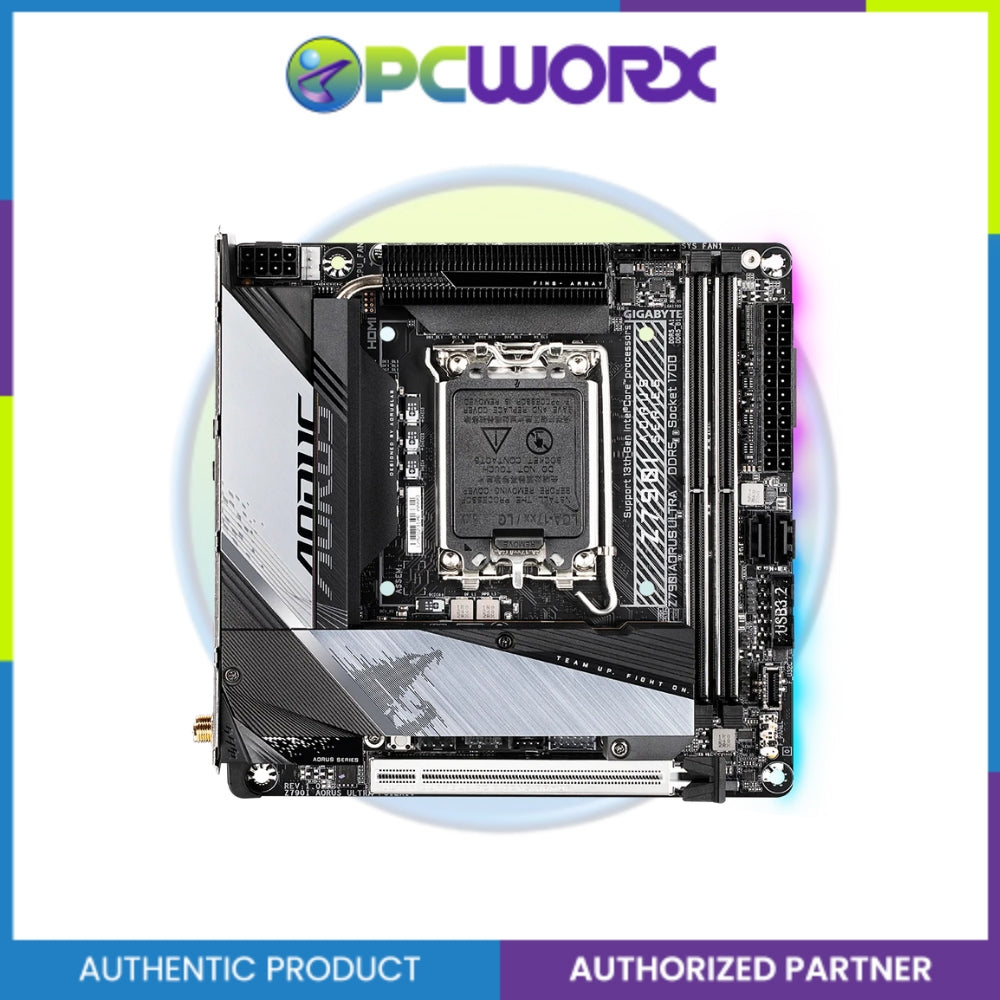

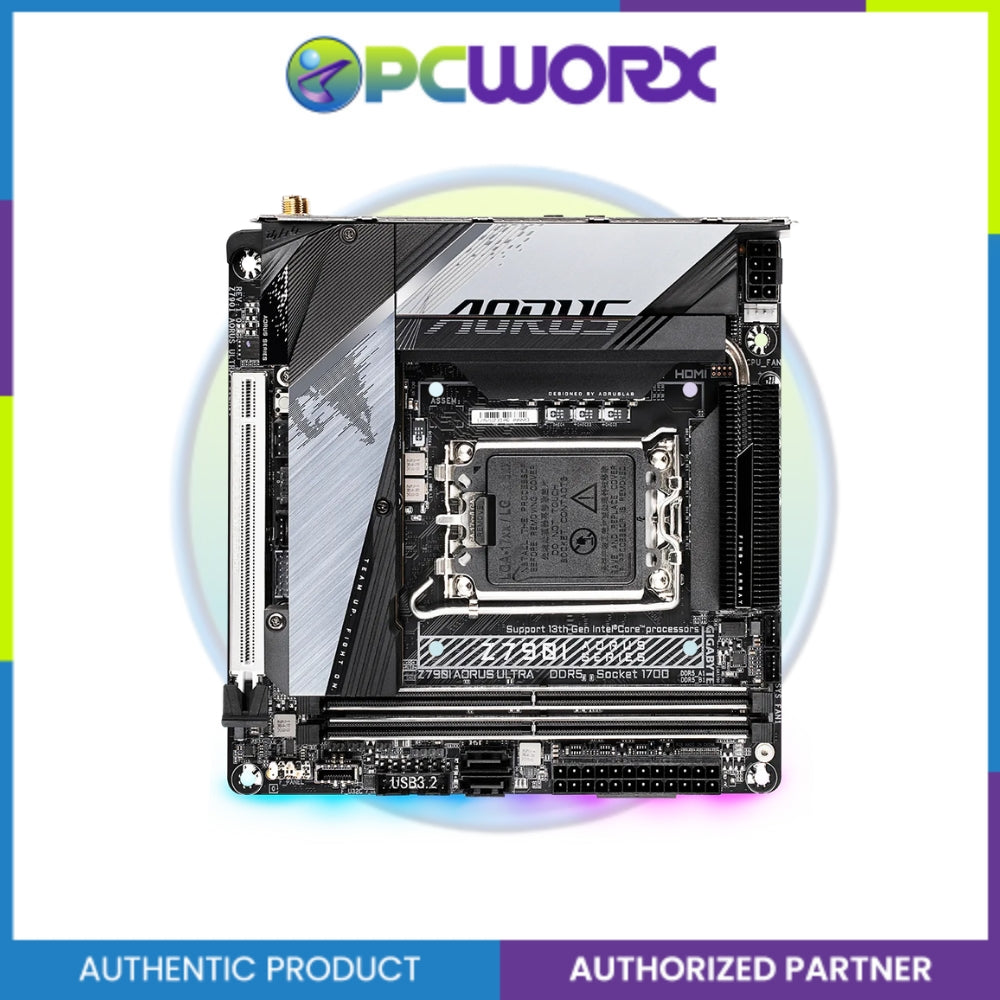

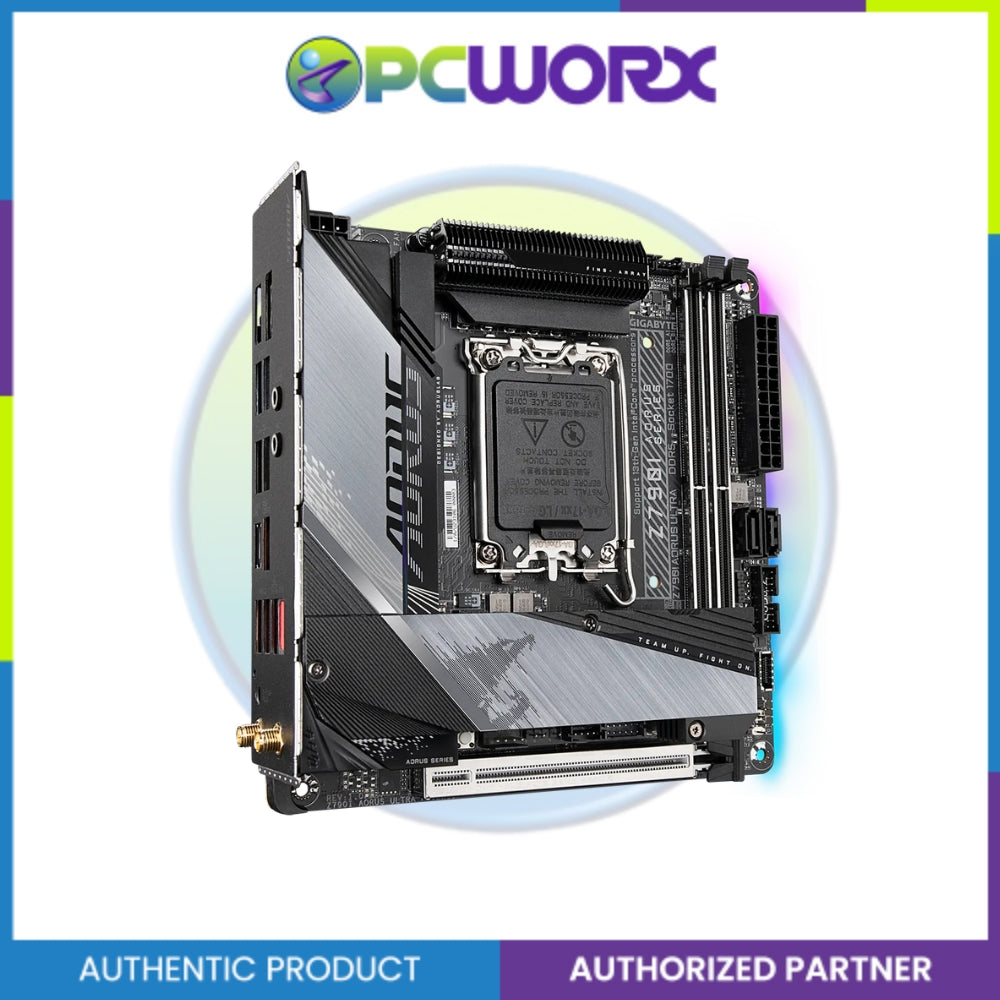

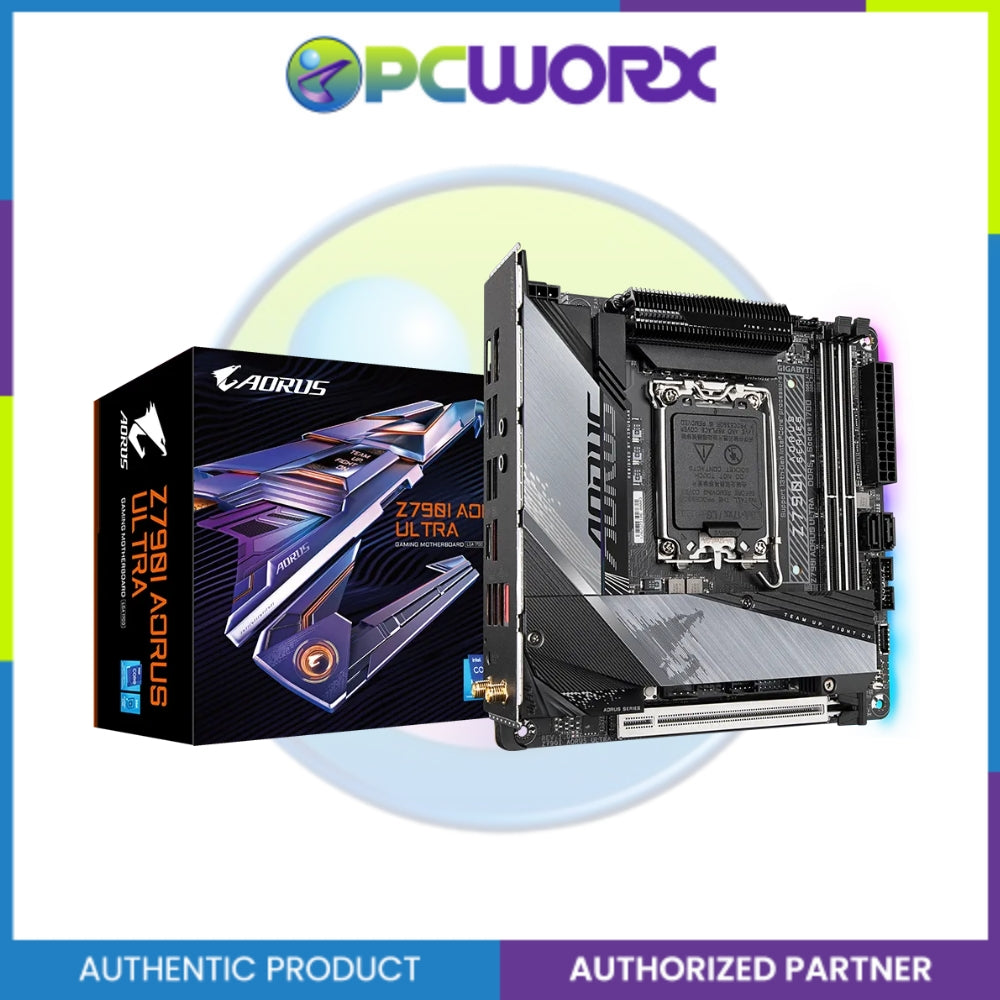

Model
| Brand |
GIGABYTE |
| Model |
Z790I AORUS ULTRA |
Supported CPU
| CPU Socket Type
|
LGA 1700 |
| CPU Type |
Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold |
Chipsets
| Chipset
|
Intel Z790 |
Memory
| Number of Memory Slots |
2x288pin (DDR5) |
| Memory Standard |
DDR5 8000(O.C.) / 7800(O.C.) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4400 |
| Maximum Memory Supported |
96GB |
| Channel Supported
|
Dual Channel |
| Memory Feature |
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules |
Expansion Slots
| PCI Express 5.0 x16 |
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 |
Storage Devices
| Serial ATA (SATA)
|
2 x SATA 6Gb/s |
| M.2 |
1 x M.2 connector on the back of the GC-Z790I BTB PLUG (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector on the front of GC-Z790I BTB PLUG (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
| SATA RAID |
RAID 0 and RAID 1 support for SATA storage devices |
| Additional RAID Controller |
RAID 0 and RAID 1 support for NVMe SSD storage devices |
Onboard Audio
| Audio Chipset
|
Realtek ALC4080 |
Onboard LAN
| Max LAN Speed |
2.5Gbps |
| Wireless LAN |
Intel Killer Wi-Fi 6E AX1690 |
| Bluetooth |
Bluetooth 5.3 |

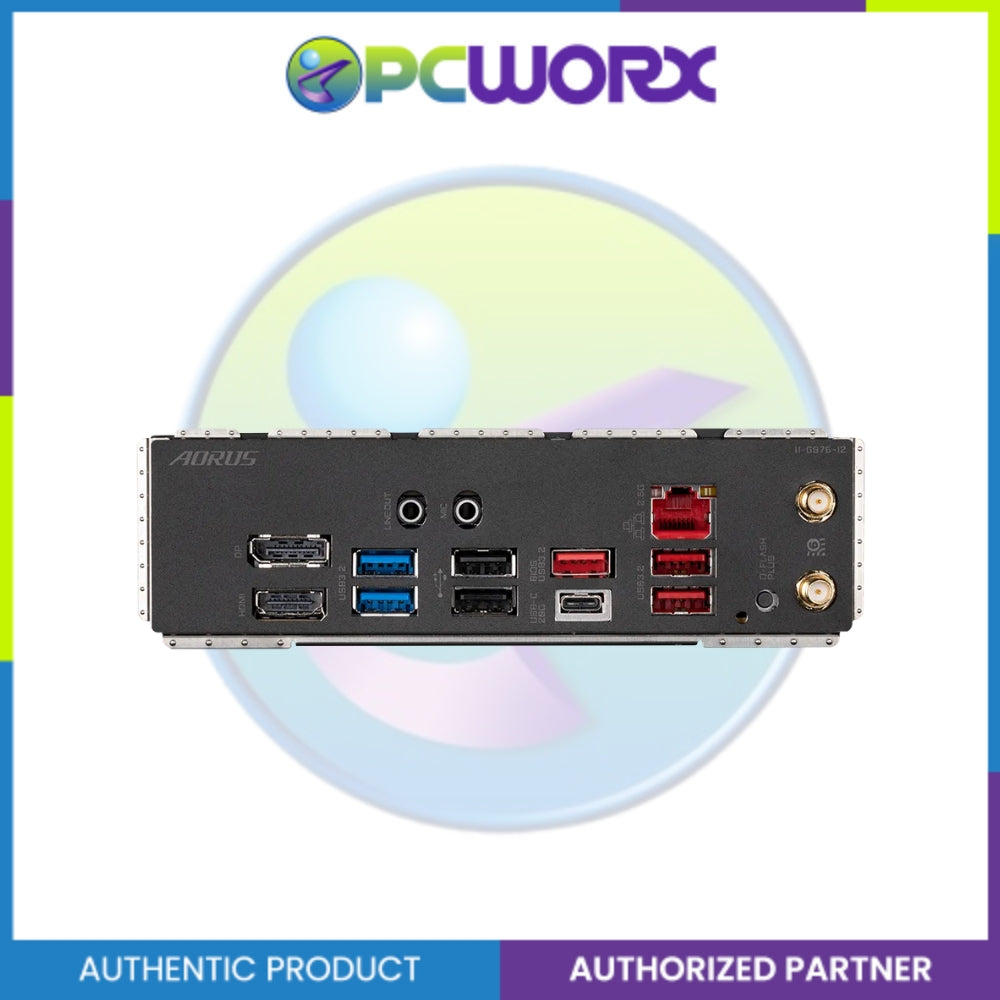

Rear Panel Ports
| Back I/O Ports |
1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Q-Flash Plus Button / 1 x USB 3.2 Gen 2x2 Type-C / 2 x Antenna Bracket / 2 x Audio Jacks / 2 x USB 2.0/1.1 / 2 x USB 3.2 Gen 1 / 3 x USB 3.2 Gen 2 Type-A |
Internal I/O Connectors
| Onboard USB |
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header (Note 1) |
| Other Connectors |
1 x external power connector (Note 1)
1 x CPU fan header
1 x fan/water cooling pump header
2 x system fan headers (SYS_FAN1/SYS_FAN2 (Note 1))
1 x addressable LED strip header (Note 1)
1 x RGB LED strip header
2 x M.2 Socket 3 connectors (M2A_CPU (Note 2)/M2P_SB (Note 1))
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header (routed from the adapter card on the rear panel)
1 x speaker header
1 x reset button (Note 1)
1 x reset jumper
1 x Clear CMOS jumper
(Note 1) The connector is on the front of GC-Z790I BTB PLUG.
(Note 2) The connector is on the back of GC-Z790I BTB PLUG. |
Software Feature
| Windows 11 |
Supported |
Physical Spec
| Form Factor |
Mini ITX |
| Dimensions (W x L) |
6.7" x 6.7" |
| Power Pin |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector |
Features
| Features |
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup |
