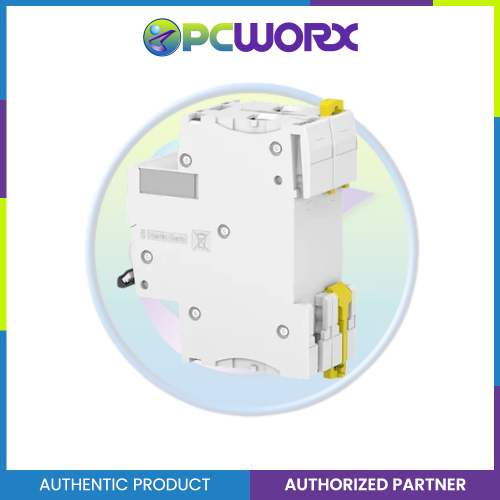

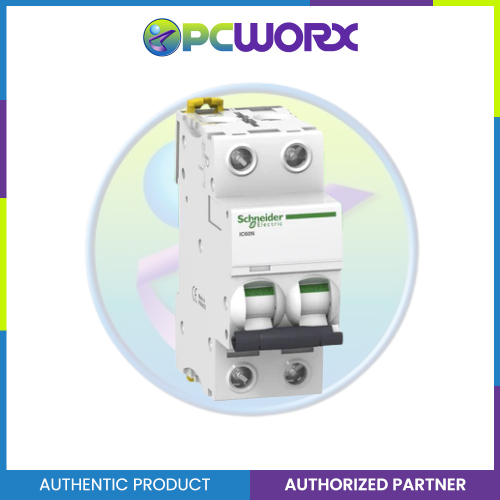

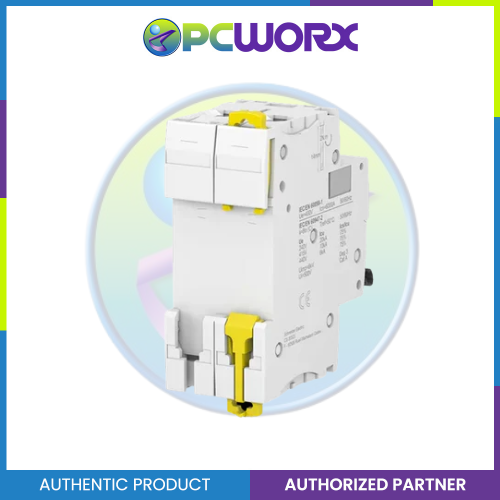

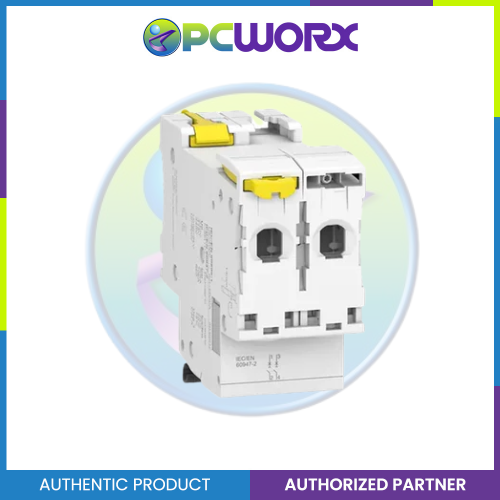

Schneider Acti9 IEC 2P 25A C DIN-Rail Type Miniature Circuit Breaker 440V 10kAIC (A9F74225)
Schneider Acti9 IEC 2P 25A C DIN-Rail Type Miniature Circuit Breaker 440V 10kAIC (A9F74225)
Schneider Acti9 IEC 2P 25A C DIN-Rail Type Miniature Circuit Breaker 440V 10kAIC (A9F74225)
Schneider Acti9 IEC 2P 25A C DIN-Rail Type Miniature Circuit Breaker 440V 10kAIC (A9F74225)
Schneider Acti9 IEC 2P 25A C DIN-Rail Type Miniature Circuit Breaker 440V 10kAIC (A9F74225)

Schneider Acti9 IEC 2P 25A C DIN-Rail Type Miniature Circuit Breaker 440V 10kAIC (A9F74225)

(0)
SKU: 0000064455

β‚±834.96

In stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between May 07 and May 09.

In stock and ready to ship

Delivery Information

Metro Manila: 2–3 days | Provincial: 3–7 days

Main Office Branch only

Same Day Delivery

Same-Day Delivery Available

Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only

Processing only during office hours from Main Office 9am - 5pm
Schneider Acti9 IEC 2P 25A C DIN-Rail Type Miniature Circuit Breaker 440V 10kAIC (A9F74225)

β‚±834.96

β‚±834.96

Authorized Seller

100% Original Authentic Product

Category Parameter Specification
Main Device application Distribution
Range Acti9
Product name Acti9 iC60
Product or component type Miniature circuit-breaker
Device short name IC60N
Poles description 2P
Number of protected poles 2
Rated current [In] 25 A
Network type AC / DC
Trip unit technology Thermal-magnetic
Curve code C
Breaking capacity 6 kA Icn at 400 V AC 50/60 Hz (EN/IEC 60898-1)
36 kA Icu at 12…133 V AC 50/60 Hz (EN/IEC 60947-2)
20 kA Icu at 220…240 V AC 50/60 Hz (EN/IEC 60947-2)
10 kA Icu at 380…415 V AC 50/60 Hz (EN/IEC 60947-2)
6 kA Icu at 440 V AC 50/60 Hz (EN/IEC 60947-2)
10 kA Icu at ≀125 V DC (EN/IEC 60947-2)
Utilisation category Category A (EN / IEC 60947-2)
Suitability for isolation Yes (EN / IEC 60898-1 & 60947-2)
Standards IEC 60898-1, IEC 60947-2, EN 60898-1, EN 60947-2
Complementary Network frequency 50/60 Hz
Magnetic tripping limit 8 Γ— In Β±20 %
Rated service breaking capacity [Ics] 15 kA (75% Icu) at 220…240 V AC (EN/IEC 60947-2)
7.5 kA (75% Icu) at 380…415 V AC (EN/IEC 60947-2)
4.5 kA (75% Icu) at 440 V AC (EN/IEC 60947-2)
27 kA (75% Icu) at 12…133 V AC (EN/IEC 60947-2)
6 kA (100% Icn) at 400 V AC (EN/IEC 60898-1)
10 kA (100%) at 72…125 V DC (EN/IEC 60947-2)
Limitation class Class 3 (EN / IEC 60898-1)
Rated insulation voltage [Ui] 500 V AC 50/60 Hz (EN / IEC 60947-2)
Rated impulse withstand voltage [Uimp] 6 kV (EN / IEC 60947-2)
Contact position indicator Yes
Control type Toggle
Local signalling Trip indicator
Mounting mode Fixed
Mounting support DIN rail
Comb busbar compatibility Top or bottom: Yes
Number of 9 mm pitches 4
Dimensions & Physical Height 85 mm
Width 36 mm
Depth 78.5 mm
Net weight 0.25 kg
Colour White
Mechanical durability 20,000 cycles
Electrical durability 10,000 cycles
Connections Terminal type Single terminal (top or bottom)
Rigid conductor size 1…25 mmΒ²
Flexible conductor size 1…16 mmΒ²
Wire stripping length 14 mm
Tightening torque 2 NΒ·m
Earth-leakage protection Separate block
Environment IP degree of protection IP20 (IEC / EN 60529)
Pollution degree 3 (IEC / EN 60947-2)
Overvoltage category IV
Tropicalisation 2 (IEC 60068-1)
Relative humidity 95 % at 55 Β°C
Operating altitude 0…2000 m
Operating temperature -35…70 Β°C
Storage temperature -40…85 Β°C
