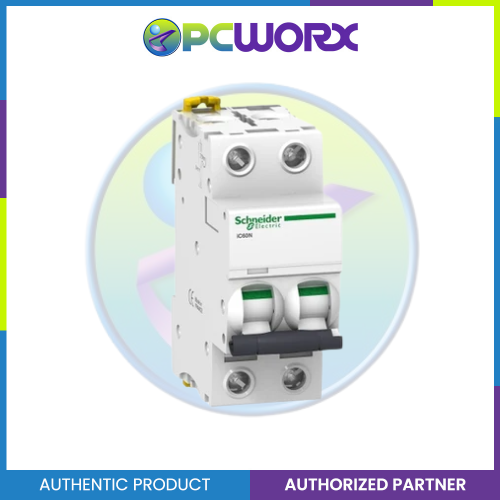

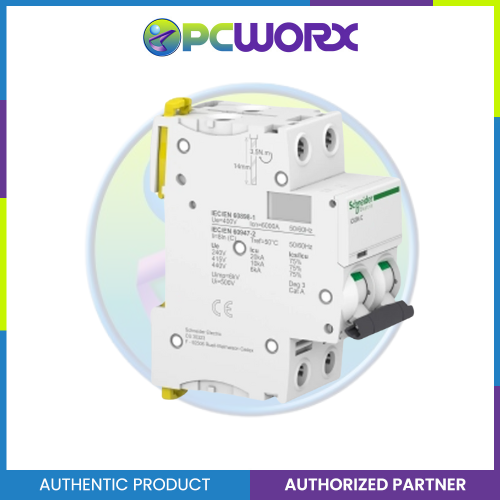

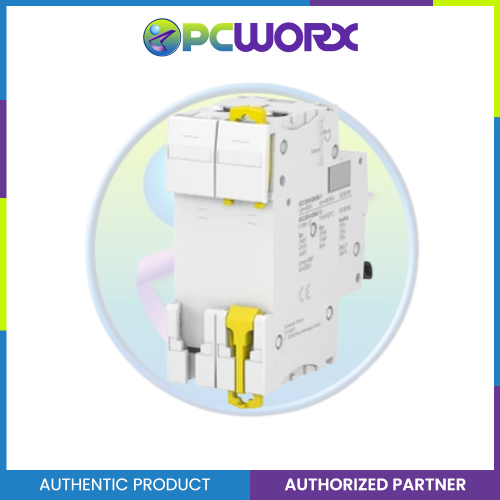

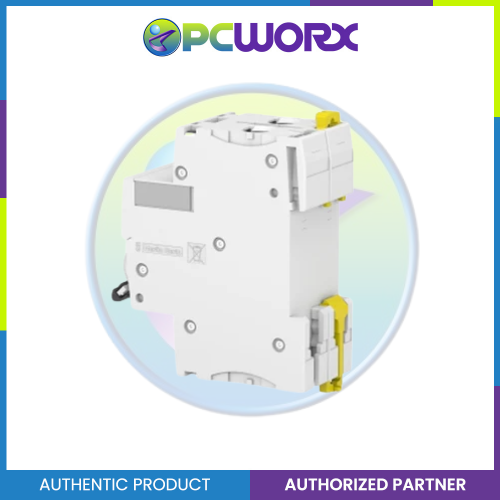

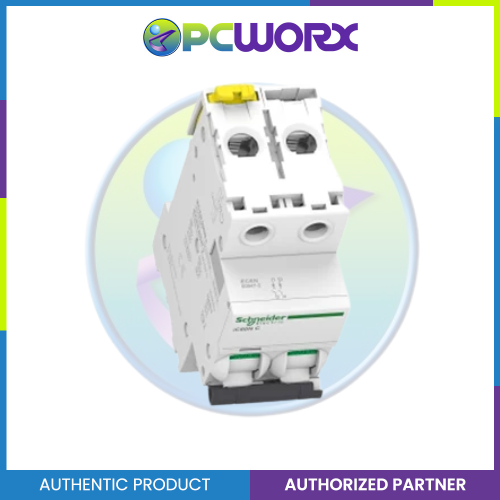

Schneider Acti9 IEC, 2-Pole 63A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74263)
Schneider Acti9 IEC, 2-Pole 63A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74263)
Schneider Acti9 IEC, 2-Pole 63A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74263)
Schneider Acti9 IEC, 2-Pole 63A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74263)
Schneider Acti9 IEC, 2-Pole 63A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74263)

Schneider Acti9 IEC, 2-Pole 63A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74263)

(0)
SKU: 0000064458

β‚±1,276.80

color_family: White
Out of stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between March 16 and March 18.

In stock and ready to ship

Delivery Information

Metro Manila: 2–3 days | Provincial: 3–7 days

Main Office Branch only

Same Day Delivery

Same-Day Delivery Available

Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only

Processing only during office hours from Main Office 9am - 5pm
Schneider Acti9 IEC, 2-Pole 63A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74263)

β‚±1,276.80

β‚±1,276.80

Choose option
color_family: White - Sold out
  • White - Sold out

Authorized Seller

100% Original Authentic Product

Specifications
Main
Device application
Distribution
Range
Acti9
Product name
Acti9 iC60
Product or component type
Miniature circuit-breaker
Device short name
IC60N
Poles description
2P
Number of protected poles
2
[In] rated current
63 A
Network type
DC
AC
Trip unit technology
Thermal-magnetic
Curve code
C
Breaking capacity
6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
36 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
10 kA Icu at <= 125 V DC conforming to EN/IEC 60947-2
10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
Utilisation category
Category A conforming to EN 60947-2
Category A conforming to IEC 60947-2
Suitability for isolation
Yes conforming to EN 60898-1
Yes conforming to EN 60947-2
Yes conforming to IEC 60898-1
Yes conforming to IEC 60947-2
Standards
IEC 60898-1
EN 60947-2
EN 60898-1
IEC 60947-2
Complementary
Network frequency
50/60 Hz
Magnetic tripping limit
8 x In +/- 20 %
[Ics] rated service breaking capacity
15 kA 75 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz
7.5 kA 75 % conforming to EN 60947-2 - 380...415 V AC 50/60 Hz
4.5 kA 75 % conforming to EN 60947-2 - 440 V AC 50/60 Hz
15 kA 75 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz
7.5 kA 75 % conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz
4.5 kA 75 % conforming to IEC 60947-2 - 440 V AC 50/60 Hz
27 kA 75 % conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz
27 kA 75 % conforming to EN 60947-2 - 12...133 V AC 50/60 Hz
6000 A 100 % conforming to EN 60898-1 - 400 V AC 50/60 Hz
6000 A 100 % conforming to IEC 60898-1 - 400 V AC 50/60 Hz
10 kA 100 % conforming to IEC 60947-2 - 72...125 V DC
10 kA 100 % conforming to EN 60947-2 - 72...125 V DC
Limitation class
3
[Ui] rated insulation voltage
500 V AC 50/60 Hz conforming to EN 60947-2
500 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage
6 kV conforming to EN 60947-2
6 kV conforming to IEC 60947-2
Contact position indicator
Yes
Control type
Toggle
Local signalling
Trip indicator
Mounting mode
Fixed
Mounting support
DIN rail
Comb busbar and distribution block compatibility
Top or bottom: YES
9 mm pitches
4
Height
85 mm
Width
36 mm
Depth
78.5 mm
Net weight
0.25 kg
Colour
White
Mechanical durability
20000 cycles
Electrical durability
10000 cycles
Connections - terminals
Single terminal (top or bottom) 1…35 mmΒ² rigid
Single terminal (top or bottom) 1…25 mmΒ² flexible
Wire stripping length
14 mm for top or bottom connection
Tightening torque
3.5 N.m top or bottom
Earth-leakage protection
Separate block
Environment
IP degree of protection
IP20 conforming to IEC 60529
IP20 conforming to EN 60529
Pollution degree
3 conforming to EN 60947-2
3 conforming to IEC 60947-2
Overvoltage category
IV
Tropicalisation
2 conforming to IEC 60068-1
Relative humidity
95 % at 55 Β°C
Operating altitude
0...2000 m
Ambient air temperature for operation
-35…70 Β°C
Ambient air temperature for storage
-40…85 Β°C
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
7.500 cm
Package 1 Width
3.600 cm
Package 1 Length
9.500 cm
Package 1 Weight
252.000 g
Unit Type of Package 2
BB1
Number of Units in Package 2
6
Package 2 Height
8.000 cm
Package 2 Width
10.000 cm
Package 2 Length
22.500 cm
Package 2 Weight
1.572 kg
Unit Type of Package 3
S03
Number of Units in Package 3
66
Package 3 Height
30.000 cm
Package 3 Width
30.000 cm
Package 3 Length
40.000 cm
Package 3 Weight
17.900 kg
