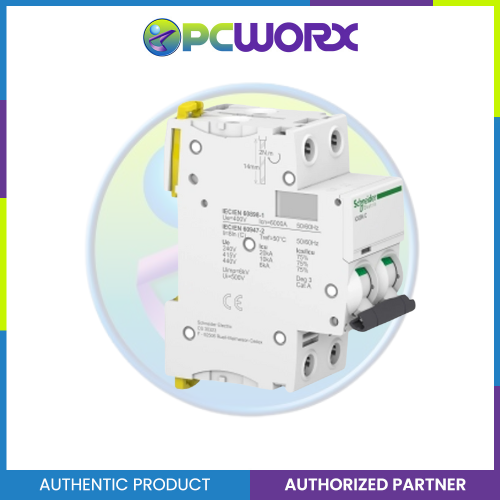

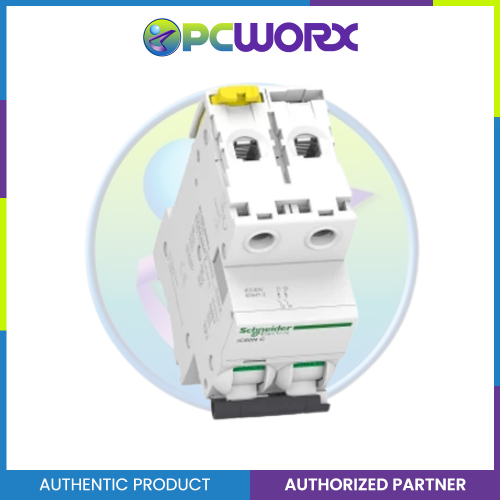

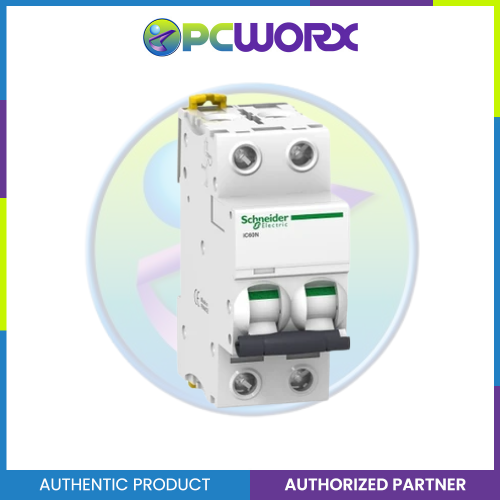

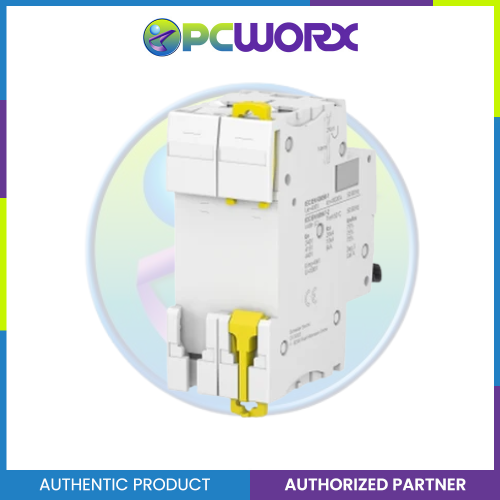

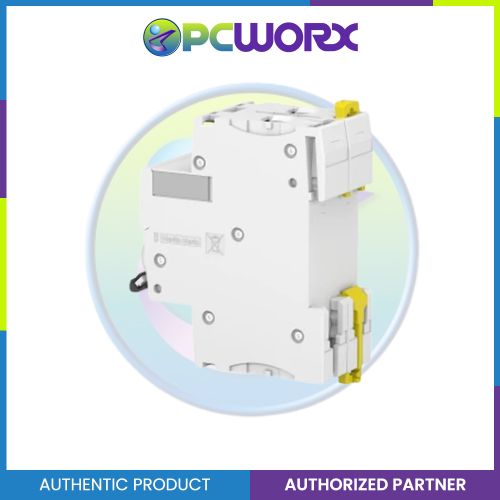

Schneider Acti9 IEC, 2-Pole 6A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74206)
Schneider Acti9 IEC, 2-Pole 6A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74206)
Schneider Acti9 IEC, 2-Pole 6A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74206)
Schneider Acti9 IEC, 2-Pole 6A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74206)
Schneider Acti9 IEC, 2-Pole 6A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74206)

Schneider Acti9 IEC, 2-Pole 6A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74206)

(0)
SKU: 0000064453

β‚±787.92

color_family: White
In stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between March 16 and March 18.

In stock and ready to ship

Delivery Information

Metro Manila: 2–3 days | Provincial: 3–7 days

Main Office Branch only

Same Day Delivery

Same-Day Delivery Available

Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only

Processing only during office hours from Main Office 9am - 5pm
Schneider Acti9 IEC, 2-Pole 6A DIN-Rail Type Circuit Breaker 230/400V 10 KAIC (A9F74206)

β‚±787.92

β‚±787.92

Choose option
color_family: White
  • White

Authorized Seller

100% Original Authentic Product

Specification Details
Device Application Distribution
Range Acti9
Product Name Acti9 iC60
Product Type Miniature circuit-breaker
Device Short Name IC60N
Poles Description 2P
Number of Protected Poles 2
Rated Current [In] 6 A
Network Type AC, DC
Trip Unit Technology Thermal-magnetic
Curve Code C
Breaking Capacity 6000 A Icn at 400 V AC 50/60 Hz (EN/IEC 60898-1)
36 kA Icu at 12–133 V AC 50/60 Hz (EN/IEC 60947-2)
10 kA Icu ≀125 V DC (EN/IEC 60947-2)
10 kA Icu at 380–415 V AC 50/60 Hz (EN/IEC 60947-2)
20 kA Icu at 220–240 V AC 50/60 Hz (EN/IEC 60947-2)
6 kA Icu at 440 V AC 50/60 Hz (EN/IEC 60947-2)
Utilisation Category Category A (EN 60947-2, IEC 60947-2)
Suitability for Isolation Yes (EN/IEC 60898-1, EN/IEC 60947-2)
Standards EN 60898-1, IEC 60898-1, EN 60947-2, IEC 60947-2
Network Frequency 50/60 Hz
Magnetic Tripping Limit 8 Γ— In Β±20%
Rated Service Breaking Capacity [Ics] See Breaking Capacity table above for details (various % and voltages)
Limitation Class 3 (EN/IEC 60898-1)
Rated Insulation Voltage [Ui] 500 V AC 50/60 Hz (EN/IEC 60947-2)
Rated Impulse Withstand Voltage [Uimp] 6 kV (EN/IEC 60947-2)
Contact Position Indicator Yes
Control Type Toggle
Local Signalling Trip indicator
Mounting Mode Fixed
Mounting Support DIN rail
Comb Busbar & Distribution Block Compatibility Top or bottom: Yes
9 mm Pitches 4
Dimensions (HxWxD) 85 Γ— 36 Γ— 78.5 mm
Net Weight 0.25 kg
Colour White
Mechanical Durability 20,000 cycles
Electrical Durability 10,000 cycles
Connections – Terminals Single terminal (top/bottom) 1–25 mmΒ² rigid, 1–16 mmΒ² flexible
Wire Stripping Length 14 mm
Tightening Torque 2 N.m (top/bottom)
Earth-Leakage Protection Separate block
IP Degree of Protection IP20 (IEC/EN 60529)
Pollution Degree 3 (EN/IEC 60947-2)
Overvoltage Category IV
Tropicalisation 2 (IEC 60068-1)
Relative Humidity 95% at 55 Β°C
Operating Altitude 0–2000 m
Ambient Air Temperature for Operation -35…70 Β°C
Ambient Air Temperature for Storage -40…85 Β°C
Packing Units – PCE 1 unit, 7.5 Γ— 3.7 Γ— 9.5 cm, 213 g
Packing Units – BB1 6 units, 8.5 Γ— 10 Γ— 22.5 cm, 1.346 kg
Packing Units – S03 66 units, 30 Γ— 30 Γ— 40 cm, 15.293 kg
