₱914.76
| Specifications | |

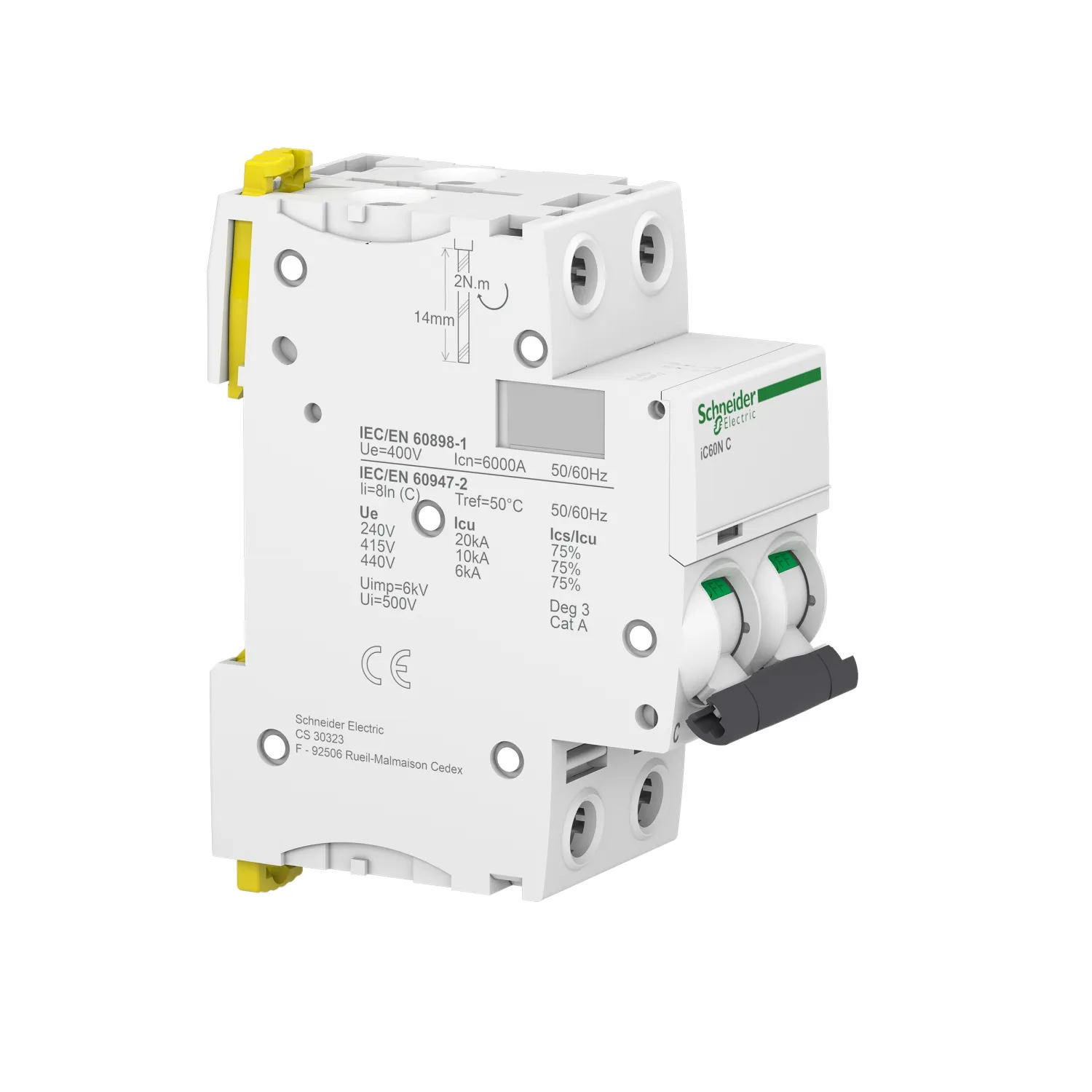

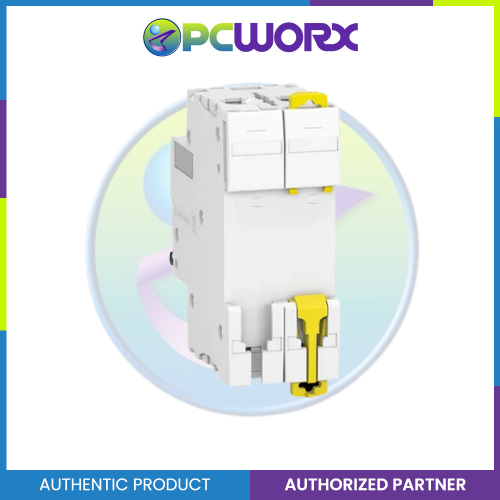

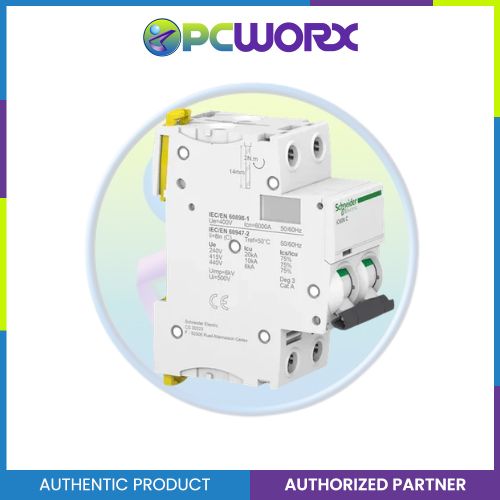

| Model: | Acti9 iC60N |
| Catalog Number: | A9F74216 |
| Poles: | 2P |
| Rated Current: | 16A |
| Tripping Characteristic: | Type C |
| Nominal AC Voltage: | 500V AC |
| Rated AC Voltage (Ue): | Up to 440 VAC |
| Performance & Electrical Features | |
| Interrupting Capacity: | 10 kA (IEC 60947-2) |
| Breaking Capacity (IEC 60898-1): | 6kA at 400V AC |
| Electrical Life: | 10,000 cycles |
| Mechanical Life: | 20,000 cycles |
| VisiTrip™: | Indicates the faulty circuit for quick diagnosis |
| VisiSafe™: | Ensures the downstream circuit is always safe |
| Communication Ready: | With Acti9 Smartlink |
| Installation & Environmental | |
| Mounting: | DIN-rail mount |
| Dimensions: | 36mm (W) x 85mm (H) x 78.5mm (D) |
| Operating Temperature: | -35°C to 70°C |
| Storage Temperature: | -40°C to 85°C |
| Degree of Protection (IP): | IP20 |
| Standards Compliance | |
| Industry Standards: | Fully compliant with IEC/EN 60898-1 and IEC/EN 60947-2 |
₱914.76
Estimated delivery between March 16 and March 18.
Delivery Information
Metro Manila: 2–3 days | Provincial: 3–7 days
Main Office Branch only
Same Day Delivery
Same-Day Delivery Available
Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only
Processing only during office hours from Main Office 9am - 5pm
₱914.76
₱914.76
Authorized Seller
100% Original Authentic Product
| Specifications | |
| Model: | Acti9 iC60N |
| Catalog Number: | A9F74216 |
| Poles: | 2P |
| Rated Current: | 16A |
| Tripping Characteristic: | Type C |
| Nominal AC Voltage: | 500V AC |
| Rated AC Voltage (Ue): | Up to 440 VAC |
| Performance & Electrical Features | |
| Interrupting Capacity: | 10 kA (IEC 60947-2) |
| Breaking Capacity (IEC 60898-1): | 6kA at 400V AC |
| Electrical Life: | 10,000 cycles |
| Mechanical Life: | 20,000 cycles |
| VisiTrip™: | Indicates the faulty circuit for quick diagnosis |
| VisiSafe™: | Ensures the downstream circuit is always safe |
| Communication Ready: | With Acti9 Smartlink |
| Installation & Environmental | |
| Mounting: | DIN-rail mount |
| Dimensions: | 36mm (W) x 85mm (H) x 78.5mm (D) |
| Operating Temperature: | -35°C to 70°C |
| Storage Temperature: | -40°C to 85°C |
| Degree of Protection (IP): | IP20 |
| Standards Compliance | |
| Industry Standards: | Fully compliant with IEC/EN 60898-1 and IEC/EN 60947-2 |
Authencity Guaranteed
We only sell authentic products from verified brand partners and retail partners globally.
