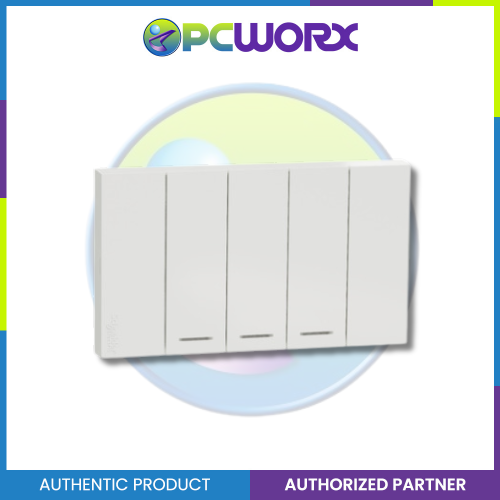

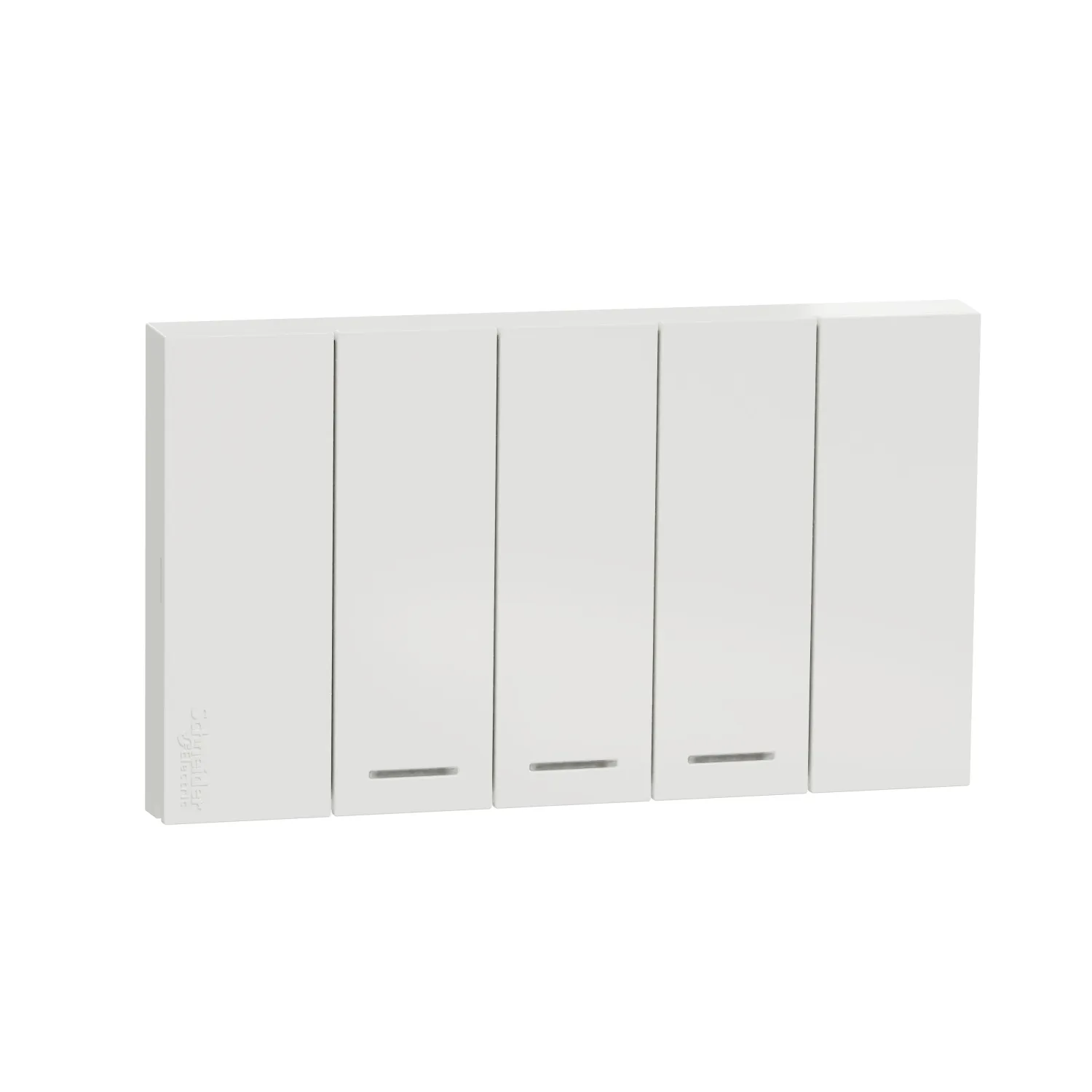

Schneider A7033F_WE Switch 16AX 250V~ 3G 1W SW w Fluo S, WE

Description

Description

Specifications

Main
Range of product AvatarOn A
Product or component type Switch
load type Resistive load
Inductive
Fluorescent load
Colour tint White (WE)
Colour tint White
Complementary
Device presentation Complete product
Rated current 16 AX at 250 V AC 50 Hz
Switch function 1-way
Switch application Control switch
Number of gangs 3 gangs
Clamping connection capacity 2 x 1.5 mm² for solid cable(s)
2 x 2.5 mm² for stranded cable(s)
2 x 4 mm²
Connections - terminals Screwless type terminals
Local signalling Fluorescent (white)
Material PC: dolly
PC 10 % GF: base
PC 10 % GF: base cover
Device mounting Flush
Width 120 mm
Height 70 mm
Depth 33 mm
Embedding depth 22 mm
Environment
IP degree of protection IP20
Maximum ambient air temperature for operation 45 °C
Ambient air temperature for storage -5…60 °C
Operating altitude <= 2000 m
Relative humidity 0…95 %
Standards IEC 60669-1
Product certifications IEC
TIS
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.2 cm
Package 1 Width 7 cm
Package 1 Length 12 cm
Package 1 Weight 128 g
Unit Type of Package 2 BB1
Number of Units in Package 2 10
Package 2 Height 8.8 cm
Package 2 Width 18.5 cm
Package 2 Length 26.5 cm
Package 2 Weight 1.386 kg
Unit Type of Package 3 S03
Number of Units in Package 3 60
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 8.966 kg

Schneider A7033F_WE Switch 16AX 250V~ 3G 1W SW w Fluo S, WE

Product form

Specifications Main Range of product AvatarOn A Product or component type Switch load type Resistive loadInductiveFluorescent load Colour tint White... Read more

Free pickup in our shop(s)

SKU: 0000064557

2 in stock

₱210.00 Excl. VAT

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO

    • Guaranteed secure & safe checkout.
    Description

    Description

    Specifications

    Main
    Range of product AvatarOn A
    Product or component type Switch
    load type Resistive load
    Inductive
    Fluorescent load
    Colour tint White (WE)
    Colour tint White
    Complementary
    Device presentation Complete product
    Rated current 16 AX at 250 V AC 50 Hz
    Switch function 1-way
    Switch application Control switch
    Number of gangs 3 gangs
    Clamping connection capacity 2 x 1.5 mm² for solid cable(s)
    2 x 2.5 mm² for stranded cable(s)
    2 x 4 mm²
    Connections - terminals Screwless type terminals
    Local signalling Fluorescent (white)
    Material PC: dolly
    PC 10 % GF: base
    PC 10 % GF: base cover
    Device mounting Flush
    Width 120 mm
    Height 70 mm
    Depth 33 mm
    Embedding depth 22 mm
    Environment
    IP degree of protection IP20
    Maximum ambient air temperature for operation 45 °C
    Ambient air temperature for storage -5…60 °C
    Operating altitude <= 2000 m
    Relative humidity 0…95 %
    Standards IEC 60669-1
    Product certifications IEC
    TIS
    Packing Units
    Unit Type of Package 1 PCE
    Number of Units in Package 1 1
    Package 1 Height 3.2 cm
    Package 1 Width 7 cm
    Package 1 Length 12 cm
    Package 1 Weight 128 g
    Unit Type of Package 2 BB1
    Number of Units in Package 2 10
    Package 2 Height 8.8 cm
    Package 2 Width 18.5 cm
    Package 2 Length 26.5 cm
    Package 2 Weight 1.386 kg
    Unit Type of Package 3 S03
    Number of Units in Package 3 60
    Package 3 Height 30 cm
    Package 3 Width 30 cm
    Package 3 Length 40 cm
    Package 3 Weight 8.966 kg
