β±834.96
| Category | Specification | Details |
|---|---|---|
| Main | Device application | Distribution |
| Range | Acti9 | |

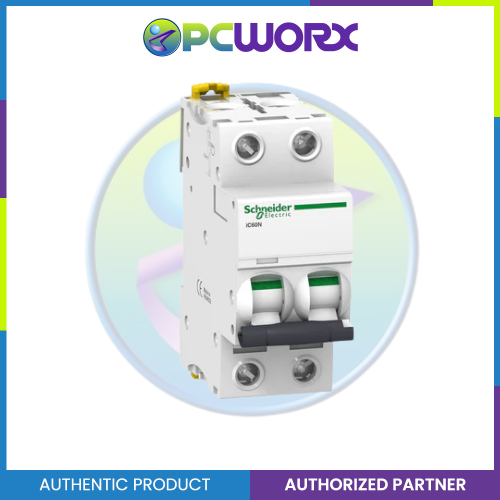

| Product name | Acti9 iC60 | |
| Product or component type | Miniature circuit-breaker | |
| Device short name | IC60N | |
| Poles description | 2P | |
| Number of protected poles | 2 | |
| Rated current [In] | 40 A | |
| Network type | AC / DC | |
| Trip unit technology | Thermal-magnetic | |
| Curve code | C | |
| Breaking capacity | 6000 A Icn at 400 V AC (EN/IEC 60898-1)36 kA Icu at 12β133 V AC10 kA Icu β€125 V DC10 kA Icu at 380β415 V AC20 kA Icu at 220β240 V AC6 kA Icu at 440 V AC | |
| Utilisation category | Category A (EN/IEC 60947-2) | |
| Suitability for isolation | Yes (EN/IEC 60898-1, EN/IEC 60947-2) | |
| Standards | EN 60898-1, EN 60947-2, IEC 60898-1, IEC 60947-2 | |
| Complementary | Network frequency | 50/60 Hz |
| Magnetic tripping limit | 8 Γ In Β±20% | |
| Rated service breaking capacity [Ics] | Up to 27 kA (75%) and 10 kA (100%) depending on voltage and standard | |
| Limitation class | Class 3 (EN/IEC 60898-1) | |
| Rated insulation voltage [Ui] | 500 V AC | |
| Impulse withstand voltage [Uimp] | 6 kV | |
| Contact position indicator | Yes | |
| Control type | Toggle | |
| Local signalling | Trip indicator | |
| Mounting mode | Fixed | |
| Mounting support | DIN rail | |
| Comb busbar compatibility | Top or bottom | |
| 9 mm pitches | 4 | |
| Physical | Height | 85 mm |
| Width | 36 mm | |
| Depth | 78.5 mm | |
| Net weight | 0.25 kg | |
| Colour | White | |
| Durability | Mechanical durability | 20,000 cycles |
| Electrical durability | 10,000 cycles | |
| Connections | Terminal type | Single terminal (top or bottom) |
| Conductor size | 1β35 mmΒ² rigid / 1β25 mmΒ² flexible | |
| Wire stripping length | 14 mm | |
| Tightening torque | 3.5 NΒ·m | |
| Earth-leakage protection | Separate block | |
| Environment | IP degree of protection | IP20 (IEC/EN 60529) |
| Pollution degree | 3 | |
| Overvoltage category | IV | |
| Tropicalisation | Class 2 | |
| Relative humidity | 95% at 55 Β°C | |
| Operating altitude | 0β2000 m | |
| Operating temperature | β35 to 70 Β°C | |
| Storage temperature | β40 to 85 Β°C | |
| Packing Units | Package 1 | PCE β 1 unit β 7.5 Γ 3.5 Γ 9.5 cm β 239 g |
| Package 2 | BB1 β 6 units β 8.0 Γ 9.6 Γ 22.5 cm β 1.493 kg | |
| Package 3 | S03 β 66 units β 30 Γ 30 Γ 40 cm β 17.009 kg |
