β±496.00
| Category | Specification |
|---|---|
| Device Application | Distribution |
| Range | Acti9 |

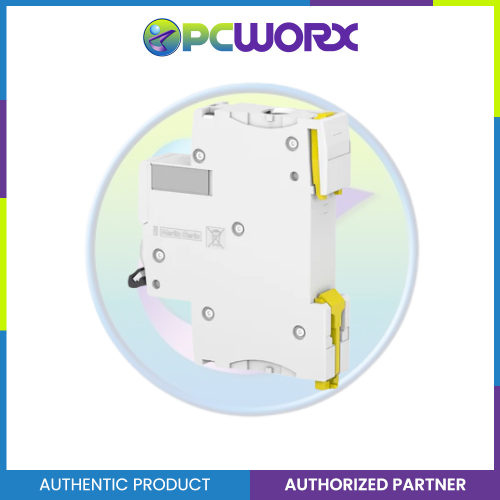

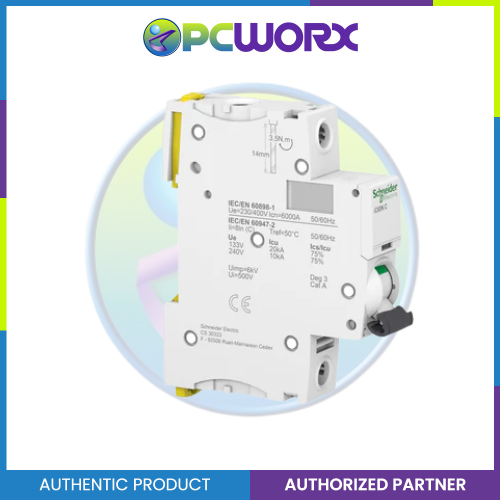

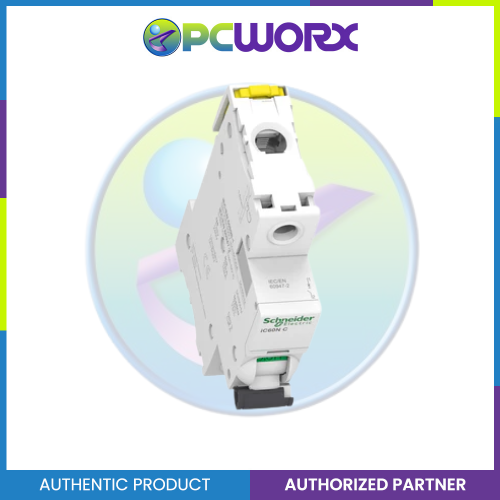

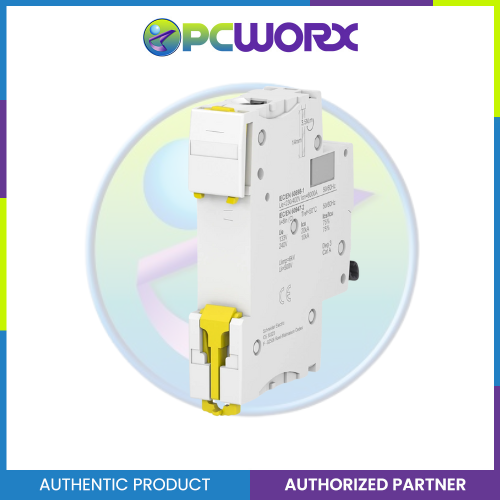

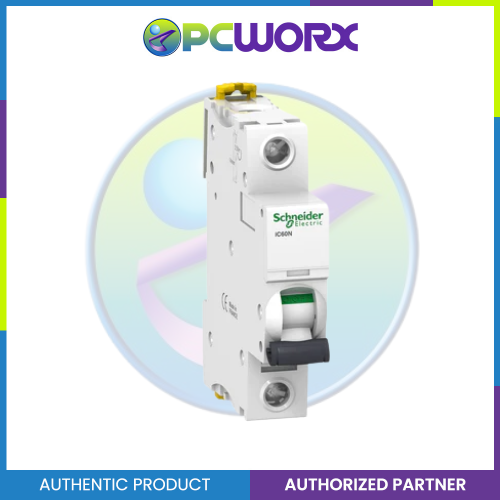

| Product Name | Acti9 iC60 |
| Product / Component Type | Miniature circuit-breaker |
| Device Short Name | IC60N |
| Poles Description | 1P |
| Number of Protected Poles | 1 |
| Rated Current (In) | 32 A |
| Network Type | AC / DC |
| Trip Unit Technology | Thermal-magnetic |
| Curve Code | C |
| Utilisation Category | Category A (EN / IEC 60947-2) |
| Suitability for Isolation | Yes (EN / IEC 60898-1, EN / IEC 60947-2) |
| Standards | EN 60947-2, IEC 60947-2, EN 60898-1, IEC 60898-1 |
| Parameter | Specification |
|---|---|
| Breaking Capacity (Icn) | 6 kA at 230 V AC 50/60 Hz (EN/IEC 60898-1) |
| Breaking Capacity (Icu) | Up to 36 kA depending on voltage (EN/IEC 60947-2) |
| Rated Service Breaking Capacity (Ics) | Up to 27 kA (75 %) depending on voltage and standard |
| Limitation Class | Class 3 (EN / IEC 60898-1) |
| Magnetic Tripping Limit | 8 Γ In Β±20 % |
| Item | Specification |
|---|---|
| Network Frequency | 50/60 Hz |
| Rated Insulation Voltage (Ui) | 500 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Contact Position Indicator | Yes |
| Control Type | Toggle |
| Local Signalling | Trip indicator |
| Earth-leakage Protection | Without |
| Item | Specification |
|---|---|
| Mounting Mode | Fixed |
| Mounting Support | DIN rail |
| Busbar Compatibility | Top or bottom: Yes |
| 9 mm Pitches | 2 |
| Height | 85 mm |
| Width | 18 mm |
| Depth | 78.5 mm |
| Net Weight | 0.215 kg |
| Colour | White |
| Mechanical Durability | 20,000 cycles |
| Electrical Durability | 10,000 cycles |
| Item | Specification |
|---|---|
| Terminal Type | Single terminal (top or bottom) |
| Rigid Conductor Size | 1β35 mmΒ² |
| Flexible Conductor Size | 1β25 mmΒ² |
| Wire Stripping Length | 14 mm |
| Tightening Torque | 3.5 NΒ·m |
| Item | Specification |
|---|---|
| IP Degree of Protection | IP20 (IEC / EN 60529) |
| Pollution Degree | 3 (IEC / EN 60947-2) |
| Overvoltage Category | IV |
| Tropicalisation | 2 (IEC 60068-1) |
| Relative Humidity | 95 % at 55 Β°C |
| Operating Altitude | 0β2000 m |
| Operating Temperature | β35β¦70 Β°C |
| Storage Temperature | β40β¦85 Β°C |
| Package | Unit Type | Units per Package | Height | Width | Length | Weight |
|---|---|---|---|---|---|---|
| Package 1 | PCE | 1 | 2.0 cm | 7.5 cm | 9.5 cm | 120.5 g |
| Package 2 | BB1 | 12 | 8.0 cm | 10.0 cm | 22.5 cm | 1.500 kg |
| Package 3 | S03 | 132 | 30 cm | 30 cm | 40 cm | 16.876 kg |
