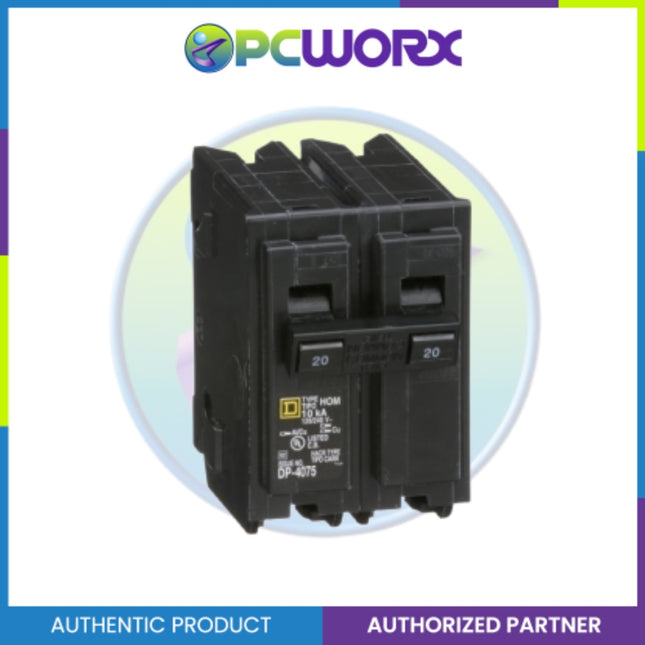

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 20A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed. Category Attribute Value Main Product Miniature circuit-breaker Main Range Homeline Main Current Rating 20 A Main Certifications UL listed Main Voltage Rating 120/240 V AC Main Mounting Type Plug-in Main Number of Poles 2P Main Short Circuit Current Rating 10 kA Main Number of Spaces 2 Main Circuit Breaker Type Standard Main Ratings HACR rated Main Electrical Connection Clamp terminal for 2 cables Main Wire Size 1 × AWG 14…AWG 8 (aluminium/copper)2 × AWG 14…AWG 10 (copper) Complementary Tightening torque 4.0 N·m for 2.5…10 mm² (AWG 16…AWG 14)4.0 N·m for 4…20 mm² (AWG 12…AWG 4) Complementary Height 79.50 mm Complementary Width 50.8 mm Complementary Depth 75.69 mm Environment Ambient air temperature for operation 40 °C Packing Units Unit Type of Package 1 PCE Packing Units Number of Units in Package 1 1 Packing Units Package 1 Height 7.874 cm Packing Units Package 1 Width 5.080 cm Packing Units Package 1 Length 7.620 cm Packing Units Package 1 Weight 294.835 g Packing Units Unit Type of Package 2 BB1 Packing Units Number of Units in Package 2 5 Packing Units Package 2 Height 7.874 cm Packing Units Package 2 Width 7.874 cm Packing Units Package 2 Length 25.654 cm Packing Units Package 2 Weight 1.551 kg Packing Units Unit Type of Package 3 CAR Packing Units Number of Units in Package 3 50 Packing Units Package 3 Height 27.178 cm Packing Units Package 3 Width 17.018 cm Packing Units Package 3 Length 42.418 cm Packing Units Package 3 Weight 15.672 kg

Read more less

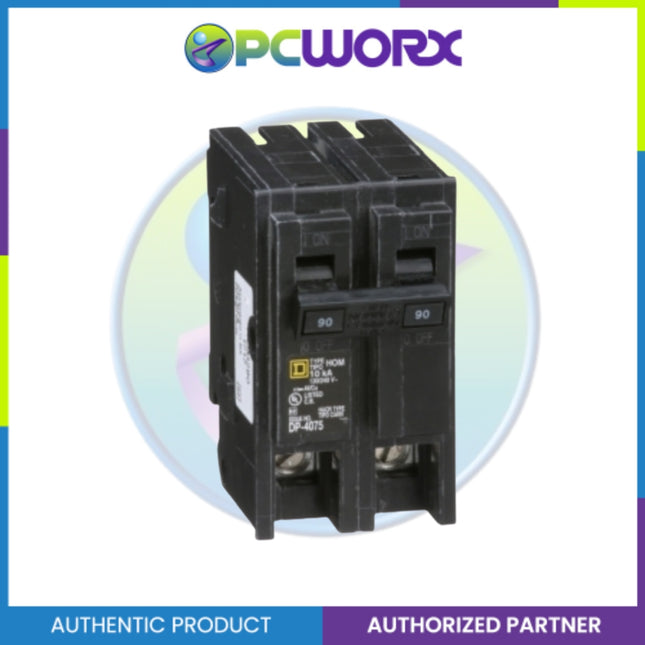

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 30A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed. Category Attribute Value Main Product Miniature circuit-breaker Main Range Homeline Main Current Rating 30 A Main Certifications UL listed Main Voltage Rating 120/240 V AC Main Mounting Type Plug-in Main Number of Poles 2P Main Short Circuit Current Rating 10 kA Main Number of Spaces 2 Main Circuit Breaker Type Standard Main Ratings HACR rated Main Electrical Connection Clamp terminal for 2 cables Main Wire Size 1 × AWG 14…AWG 8 (aluminium/copper)2 × AWG 14…AWG 10 (copper) Complementary Tightening torque 4.0 N·m for 2.5…10 mm² (AWG 16…AWG 14)4.0 N·m for 4…20 mm² (AWG 12…AWG 4) Complementary Height 79.50 mm Complementary Width 50.8 mm Complementary Depth 75.69 mm Environment Ambient air temperature for operation 40 °C Packing Units Unit Type of Package 1 PCE Packing Units Number of Units in Package 1 1 Packing Units Package 1 Height 7.874 cm Packing Units Package 1 Width 5.080 cm Packing Units Package 1 Length 7.620 cm Packing Units Package 1 Weight 294.835 g Packing Units Unit Type of Package 2 BB1 Packing Units Number of Units in Package 2 5 Packing Units Package 2 Height 7.874 cm Packing Units Package 2 Width 7.874 cm Packing Units Package 2 Length 25.654 cm Packing Units Package 2 Weight 1.542 kg Packing Units Unit Type of Package 3 CAR Packing Units Number of Units in Package 3 50 Packing Units Package 3 Height 27.178 cm Packing Units Package 3 Width 17.018 cm Packing Units Package 3 Length 42.418 cm Packing Units Package 3 Weight 15.762 kg

Read more less

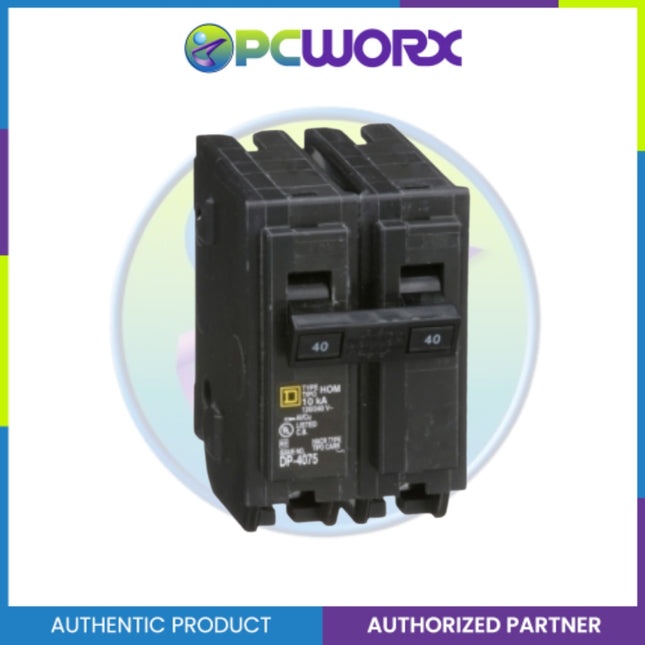

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 40A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed. Category Attribute Value Main Product Miniature circuit-breaker Main Range Homeline Main Current Rating 40 A Main Certifications UL listed Main Voltage Rating 120/240 V AC Main Mounting Type Plug-in Main Number of Poles 2P Main Short Circuit Current Rating 10 kA Main Number of Spaces 2 Main Circuit Breaker Type Standard Main Ratings HACR rated Main Electrical Connection Box lugs Main Wire Size 1 × AWG 8…AWG 2 (aluminium/copper) Complementary Tightening torque 4.6 N·m (AWG 8…AWG 2) Complementary Height 79.50 mm Complementary Width 50.8 mm Complementary Depth 75.69 mm Environment Ambient air temperature for operation 40 °C Packing Units Unit Type of Package 1 PCE Packing Units Number of Units in Package 1 1 Packing Units Package 1 Height 4.06 cm Packing Units Package 1 Width 6.6 cm Packing Units Package 1 Length 7.87 cm Packing Units Package 1 Weight 317.52 g Packing Units Unit Type of Package 2 BB1 Packing Units Number of Units in Package 2 5 Packing Units Package 2 Height 8.128 cm Packing Units Package 2 Width 6.604 cm Packing Units Package 2 Length 25.908 cm Packing Units Package 2 Weight 1.624 kg Packing Units Unit Type of Package 3 CAR Packing Units Number of Units in Package 3 50 Packing Units Package 3 Height 26.416 cm Packing Units Package 3 Width 17.526 cm Packing Units Package 3 Length 42.164 cm Packing Units Package 3 Weight 16.624 kg

Read more less

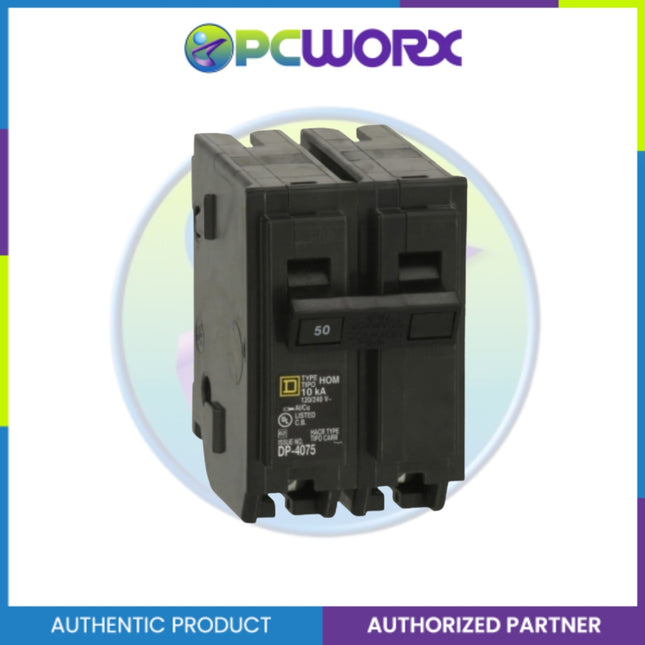

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 50A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.   Category Attribute Value Main Product Miniature circuit-breaker Main Range Homeline Main Current Rating 50 A Main Certifications UL listed Main Voltage Rating 120/240 V AC Main Mounting Type Plug-in Main Number of Poles 2P Main Short Circuit Current Rating 10 kA Main Number of Spaces 2 Main Circuit Breaker Type Standard Main Ratings HACR rated Main Electrical Connection Box lugs Main Wire Size 1 × AWG 8…AWG 2 (aluminium/copper) Complementary Tightening torque 4.6 N·m (AWG 8…AWG 2) Complementary Height 79.50 mm Complementary Width 50.8 mm Complementary Depth 75.69 mm Environment Ambient air temperature for operation 40 °C Packing Units Unit Type of Package 1 PCE Packing Units Number of Units in Package 1 1 Packing Units Package 1 Height 5.080 cm Packing Units Package 1 Width 7.620 cm Packing Units Package 1 Length 7.874 cm Packing Units Package 1 Weight 317.514 g Packing Units Unit Type of Package 2 BB1 Packing Units Number of Units in Package 2 5 Packing Units Package 2 Height 10.160 cm Packing Units Package 2 Width 10.160 cm Packing Units Package 2 Length 25.400 cm Packing Units Package 2 Weight 1.624 kg Packing Units Unit Type of Package 3 CAR Packing Units Number of Units in Package 3 50 Packing Units Package 3 Height 27.432 cm Packing Units Package 3 Width 17.272 cm Packing Units Package 3 Length 41.910 cm Packing Units Package 3 Weight 16.520 kg

Read more less

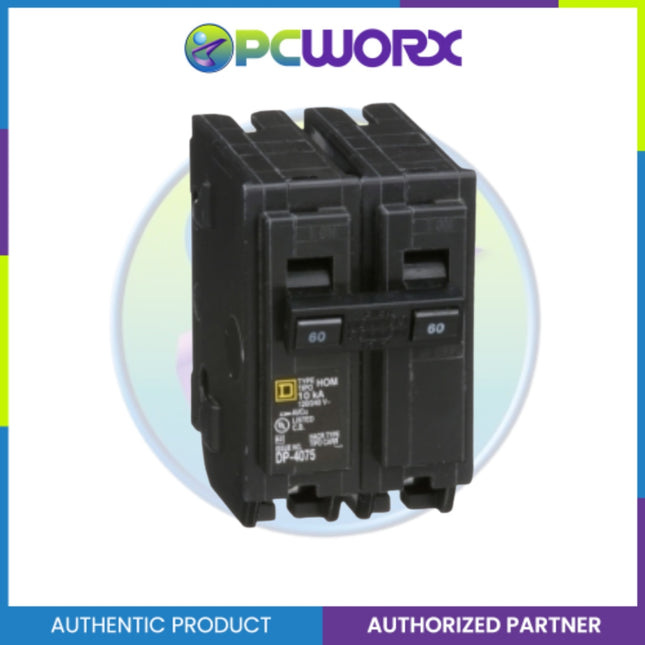

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 60A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 1 wires. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.   Category Attribute Value Main Product Miniature circuit-breaker Main Range Homeline Main Current Rating 60 A Main Certifications UL listed Main Voltage Rating 120/240 V AC Main Mounting Type Plug-in Main Number of Poles 2P Main Short Circuit Current Rating 10 kA Main Number of Spaces 2 Main Circuit Breaker Type Standard Main Ratings HACR rated Main Electrical Connection Box lugs Main Wire Size 1 × AWG 8…AWG 2 (aluminium/copper) Complementary Tightening torque 4.6 N·m (AWG 8…AWG 2) Complementary Height 79.50 mm Complementary Width 50.8 mm Complementary Depth 75.69 mm Environment Ambient air temperature for operation 40 °C Packing Units Unit Type of Package 1 PCE Packing Units Number of Units in Package 1 1 Packing Units Package 1 Height 7.950 cm Packing Units Package 1 Width 5.080 cm Packing Units Package 1 Length 7.620 cm Packing Units Package 1 Weight 317.514 g

Read more less

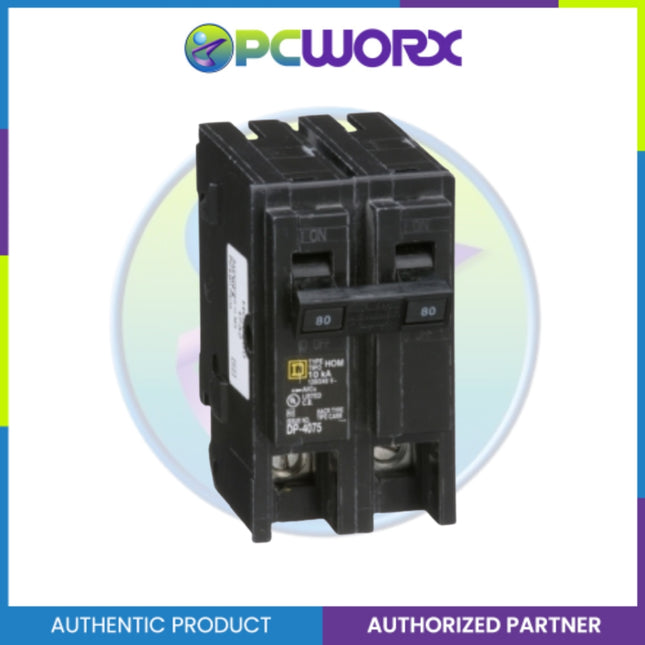

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 80A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 1 wires. The box lugs will accept a wire range of 4 AWG to 2/0 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.   Category Attribute Value Main Product Miniature circuit-breaker Main Range Homeline Main Current Rating 80 A Main Certifications UL listed Main Voltage Rating 120/240 V AC Main Mounting Type Plug-in Main Number of Poles 2P Main Short Circuit Current Rating 10 kA Main Number of Spaces 2 Main Circuit Breaker Type Standard Main Ratings HACR rated Main Electrical Connection Box lugs Main Wire Size 1 × AWG 4…AWG 2/0 (aluminium/copper) Complementary Tightening torque 4.8 N·m (AWG 4…2/0 kcmil) Complementary Height 79.50 mm Complementary Width 50.8 mm Complementary Depth 75.69 mm Environment Ambient air temperature for operation 40 °C Packing Units Unit Type of Package 1 PCE Packing Units Number of Units in Package 1 1 Packing Units Package 1 Height 5.842 cm Packing Units Package 1 Width 8.636 cm Packing Units Package 1 Length 9.652 cm Packing Units Package 1 Weight 385.553 g (~0.386 kg)

Read more less

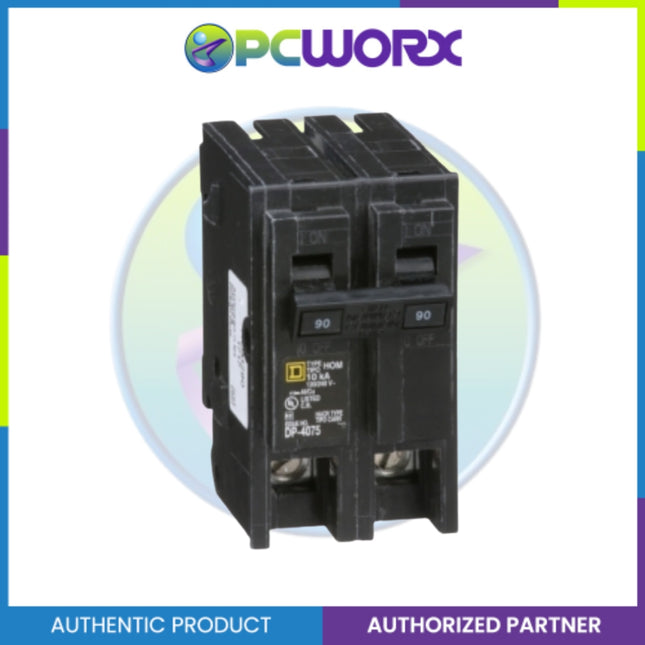

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 90A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 1 wires. The box lugs will accept a wire range of 4 AWG to 2/0 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.   Category Attribute Value Main Product Miniature circuit-breaker Main Range Homeline Main Current Rating 90 A Main Certifications UL listed Main Voltage Rating 120/240 V AC Main Mounting Type Plug-in Main Number of Poles 2P Main Short Circuit Current Rating 10 kA Main Number of Spaces 2 Main Circuit Breaker Type Standard Main Ratings HACR rated Main Electrical Connection Box lugs Main Wire Size 1 × AWG 4…AWG 2/0 (aluminium/copper) Complementary Tightening torque 4.8 N·m (AWG 4…2/0 kcmil) Complementary Height 79.50 mm Complementary Width 50.8 mm Complementary Depth 75.69 mm Environment Ambient air temperature for operation 40 °C Packing Units Unit Type of Package 1 PCE Packing Units Number of Units in Package 1 1 Packing Units Package 1 Height 5.842 cm Packing Units Package 1 Width 8.636 cm Packing Units Package 1 Length 9.652 cm Packing Units Package 1 Weight 387.821 g (~0.388 kg)

Read more less

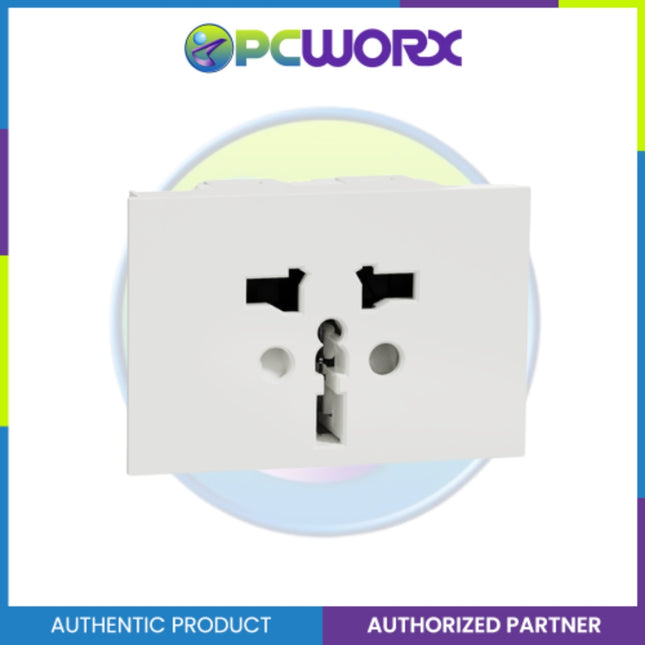

Descriptions Schneider Electric Avatar On socket-outlet M3T426_IS_WE is a complete product in color white. And its rated current is 16A. Its matching mounting box can be recessed into the surface of the wall with flush type. The connection terminals of this socket-outlet are screw terminal. It is 46.6 mm in width, 69.3 mm in height, and 33.85 mm in depth. It reaches IP20 degree of protection too. Being made of polycarbonate material, this socket-outlet is quite reliable and resistant. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish. SPECIFICATIONS MAIN Range of product AvatarOn A Product or component type Socket-outlet Device presentation Complete product Colour tint White Colour tint White Complementary Rated current 16 A at 250 V AC 50...60 Hz Socket number 1 Clamping connection capacity 2 x 1.5...2 x 4 mm² for solid cable(s)   2 x 1.5...2 x 4 mm² for stranded cable(s) Connections - terminals Screw terminal Material Polycarbonate cover   Polycarbonate base Device mounting Flush Width 46.6 mm Height 69.3 mm Depth 33.85 mm Embedding depth 23.05 mm Environment IP degree of protection IP20 Maximum ambient air temperature for operation 35 °C Ambient air temperature for storage -5…45 °C Relative humidity 0…95 % Operating altitude < 2000 m Standards IEC 60884-1 Product certifications IEC Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 3.4 cm Package 1 Width 4.7 cm Package 1 Length 7.0 cm Package 1 Weight 53.0 g Unit Type of Package 2 BB1 Number of Units in Package 2 10 Package 2 Height 9.1 cm Package 2 Width 8.9 cm Package 2 Length 25.5 cm Package 2 Weight 859.0 g Unit Type of Package 3 S03 Number of Units in Package 3 120 Package 3 Height 30.0 cm Package 3 Width 30.0 cm Package 3 Length 40.0 cm Package 3 Weight 7.523 kg

Read more less

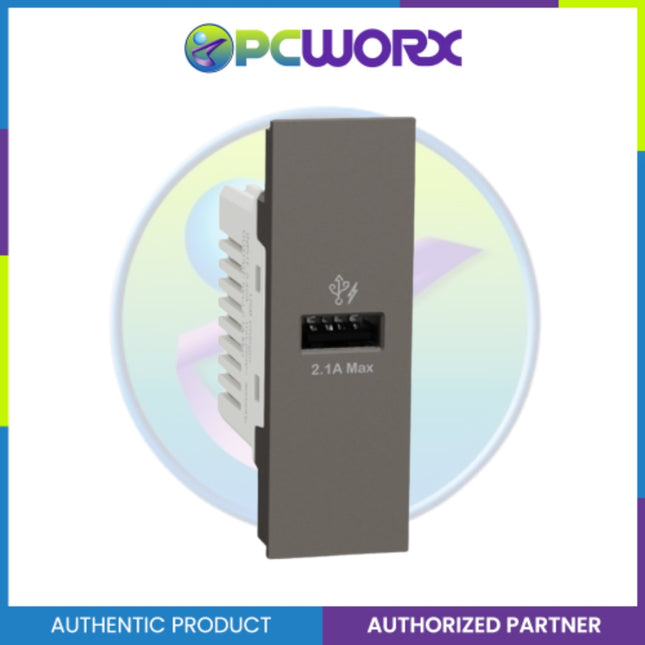

SPECIFICATIONS Main Range of product AvatarOn A Product or component type USB charger Mounting mode Flush-mounted Integrated connection type 1 USB port 5 V AC/DC, maximum load current: 2.1 A Complementary Device presentation Complete product Colour tint Black Surface finish Matt surface treatment Painted Ambient air temperature for operation -5…45 °C Ambient air temperature for storage -5…60 °C relative humidity 0…95 % [Ue] rated operational voltage 110...220 V 50...60 Hz Input power 10.5 W maximum load current with 2 outputs used simultaneously 2.1 A Material PC (UL94 V-0) Clamping connection capacity 0.5...4 mm² for solid or flexible cable(s) Height 69.3 mm Width 23.1 mm Depth 35.5 mm Embedding depth 24.5 mm Environment Standards IEC 62368-1 Product certifications IEC IP degree of protection IP20 Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 3.6 cm Package 1 Width 2.3 cm Package 1 Length 7.0 cm Package 1 Weight 34.0 g Unit Type of Package 2 BB1 Number of Units in Package 2 20 Package 2 Height 9.1 cm Package 2 Width 8.9 cm Package 2 Length 25.5 cm Package 2 Weight 747.0 g Unit Type of Package 3 S03 Number of Units in Package 3 240 Package 3 Height 30.0 cm Package 3 Width 30.0 cm Package 3 Length 40.0 cm Package 3 Weight 9.614 kg

Read more less

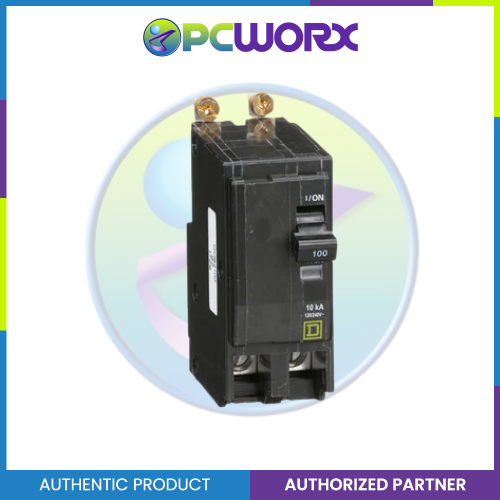

Specifications Main Product Miniature circuit-breaker Range QO Current Rating 100 A Voltage Rating 120/240 V AC 120 V AC Mounting Type Bolt-on Number of Poles 2P Circuit Breaker Type Standard Ratings HACR rated Electrical Connection Box lugs Complementary Interrupt Rating 10 kA at 120/240 V AC 10 kA at 120 V AC Number of Panel Spaces 2 Wire Size AWG 4...AWG 2/0 copper or aluminium Tightening Torque 5.6 N.m Height 89 mm Width 38 mm Depth 74 mm Net weight 0.340 kg Environment Certifications UL listed CSA Ambient Rating 40 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 4.064 cm Package 1 Width 8.382 cm Package 1 Length 9.906 cm Package 1 Weight 326.586 g Unit Type of Package 2 CAR Number of Units in Package 2 51 Package 2 Height 9.906 cm Package 2 Width 35.306 cm Package 2 Length 52.832 cm Package 2 Weight 16.896 kg

Read more less

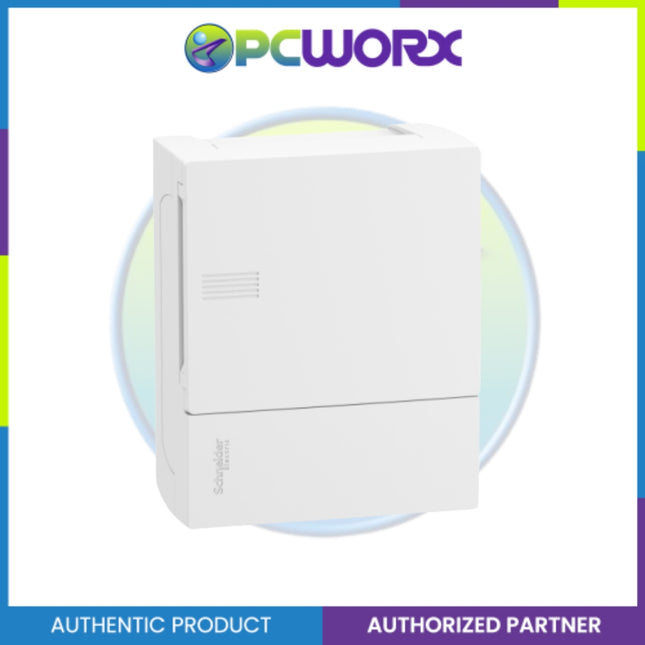

This Resi9 MP enclosure is a surface mounted modular enclosure. This plastic enclosure is composed of 1 row of 6 modules of 18mm. It can accommodate all types of modular switchgear. The IP degree of protection is IP40. It is provided with a plain white door. The color of the front face is white (RAL 9003). It is intended for new or renovated installation in residential. It is equipped with 35 mm asymmetrical rail. It comes with 1 earth and 1 neutral terminal blocks with screwed connection terminals. The earth terminal block provides 4 outgoers (1x16mm² + 2x10mm² + 1x6mm²). The neutral one provides 4 outgoers (1x16mm² + 2x10mm² + 1x6mm²). The In rated current is up to 63A. It complies with IEC 60439-1 and 3, IEC 60670-1 and 24 standards. The total dimensions are (W) 160mm x (H) 198mm x (D) 95mm. The enclosure is made from techno plastic (back part and front face). The door is made from techno plastic. The resistance of the plastic to flames and to abnormal heat is 650°C for the door, the back part and the front face. The IK degree of protection is IK07. The operating temperature is -25°C to 60°C. SPECIFICATIONS Range Resi9 product name Resi9 MP Product or component typed Enclosure Enclosure type Modular enclosure Nb of 18 mm modules per row 6 Nb of horizontal rows 1 Type of door Plain Width Outside: 160 mm Height Outside: 198 mm Depth Outside : 95 mm Complementary Enclosure mounting Surface 9 mm pitches 12 Total number of 18 mm modules 6 [In] rated current 63 A Type of rail 35 mm asymmetrical rail Mounting plate description Without mounting plate cable entry 1 trunking flange 1 bare flange Terminal block function Earth / neutral Number of terminal blocks 1 earth (screwed) with 4 outgoers 1 neutral (screwed) with 4 outgoers Distribution block outgoers 1 x 16 mm² for earth 1 x 16 mm² for neutral 1 x 6 mm² for earth 1 x 6 mm² for neutral 2 x 10 mm² for earth 2 x 10 mm² for neutral Enclosure material Back part: techno plastic Door: techno plastic Front face: techno plastic Internal depth 74 mm Color Door: white (RAL 9003) Front face: white (RAL 9003) Market segment small commercial residential
