β±780.36

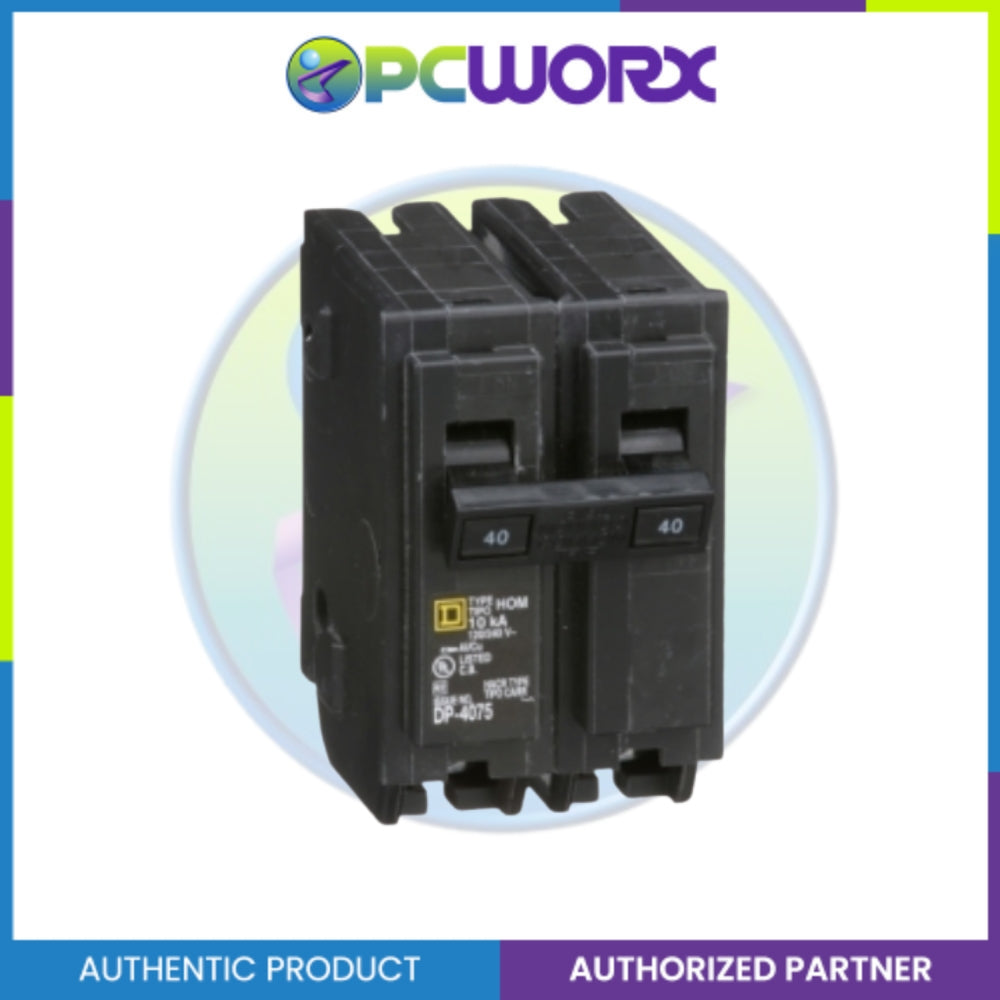

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 40A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
| Category | Attribute | Value |
|---|
| Main | Product | Miniature circuit-breaker |
| Main | Range | Homeline |
| Main | Current Rating | 40 A |
| Main | Certifications | UL listed |
| Main | Voltage Rating | 120/240 V AC |
| Main | Mounting Type | Plug-in |
| Main | Number of Poles | 2P |
| Main | Short Circuit Current Rating | 10 kA |
| Main | Number of Spaces | 2 |
| Main | Circuit Breaker Type | Standard |
| Main | Ratings | HACR rated |
| Main | Electrical Connection | Box lugs |
| Main | Wire Size | 1 Γ AWG 8β¦AWG 2 (aluminium/copper) |
| Complementary | Tightening torque | 4.6 NΒ·m (AWG 8β¦AWG 2) |
| Complementary | Height | 79.50 mm |
| Complementary | Width | 50.8 mm |
| Complementary | Depth | 75.69 mm |
| Environment | Ambient air temperature for operation | 40 Β°C |
| Packing Units | Unit Type of Package 1 | PCE |
| Packing Units | Number of Units in Package 1 | 1 |
| Packing Units | Package 1 Height | 4.06 cm |
| Packing Units | Package 1 Width | 6.6 cm |
| Packing Units | Package 1 Length | 7.87 cm |
| Packing Units | Package 1 Weight | 317.52 g |
| Packing Units | Unit Type of Package 2 | BB1 |
| Packing Units | Number of Units in Package 2 | 5 |
| Packing Units | Package 2 Height | 8.128 cm |
| Packing Units | Package 2 Width | 6.604 cm |
| Packing Units | Package 2 Length | 25.908 cm |
| Packing Units | Package 2 Weight | 1.624 kg |
| Packing Units | Unit Type of Package 3 | CAR |
| Packing Units | Number of Units in Package 3 | 50 |
| Packing Units | Package 3 Height | 26.416 cm |
| Packing Units | Package 3 Width | 17.526 cm |
| Packing Units | Package 3 Length | 42.164 cm |
| Packing Units | Package 3 Weight | 16.624 kg |
β±780.36
Estimated delivery between May 11 and May 13.
Delivery Information
Metro Manila: 2β3 days | Provincial: 3β7 days
Main Office Branch only
Same Day Delivery
Same-Day Delivery Available
Processing starts 1β2 hours after checkout MonβSat | Main Office Branch only
Processing only during office hours from Main Office 9am - 5pm
β±780.36
β±780.36
Authorized Seller
100% Original Authentic Product
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 40A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.
