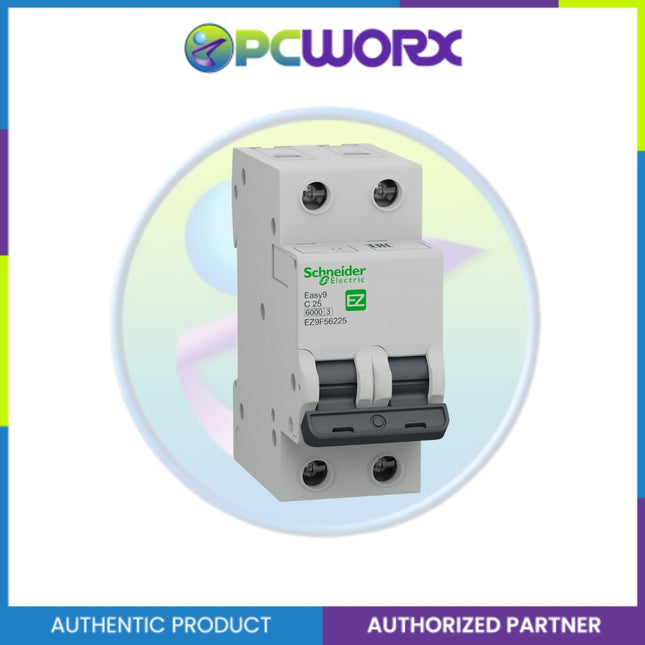

Description This Easy9 product is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles and 25A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10000A at 220VAC conforming to IEC 60898-1 standard. It is compliant with IEC 60898-1 standard. This product has a protection against short circuit and a protection of cable against overloads. It has a fault tripping indication on the front panel by the position of the handle (O-I engraved). This product is dedicated for residential and small commercial buildings. It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 10000 cycles. The Ue operational voltage is 220VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 66.5mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C. Specification: Range: Easy9 Device application: Distribution Product or component type: Miniature circuit-breaker Device short name: Easy9 MCB Poles: 2P Number of protected poles: 2 [In] rated current: 25 A network type: AC Trip unit technology: Thermal-magnetic Curve code: C Breaking capacity: 10000 A Icn at 220 V AC 50/60 Hz conforming to IEC 60898-1 6000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1 Suitability for isolation: Yes conforming to IEC 60898-1 Complementary Network frequency: 50/60 Hz [Ue] rated operational voltage: 220 V AC 50/60 Hz 400 V AC 50/60 Hz Magnetic tripping limit: 5...10 x In [Ics] rated service breaking capacity: 6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 [Ui] rated insulation voltage: 500 V AC 50/60 Hz conforming to IEC 60898-1 [Uimp] rated impulse withstand voltage: 4 kV conforming to IEC 60898-1 Contact position indicator: Yes Control type: Toggle Local signalling: Without Mounting mode: Clip-on Mounting support: DIN rail Mounting support: 9 mm pitches DIN rail: 4 Height: 81 mm Width: 36 mm Depth: 66.5 mm Colour: Grey (RAL 7035) Mechanical durability: 10000 cycles Electrical durability: 4000 cycles Connections - terminals: Tunnel type terminal (top or bottom) 1…25 mm² rigid Tunnel type terminal (top or bottom) 1…16 mm² flexible Tightening torque: 2 N.m top or bottom Earth-leakage protection: Without Environment Standards: IEC 60898-1 Product certifications: CE IP degree of protection: IP20 conforming to IEC 60529 Pollution degree: 2 Tropicalisation: 2 Relative humidity: 95 % at -5…60 °C Ambient air temperature for operation: -5…60 °C Ambient air temperature for storage: -40…85 °C -40…85 °C: Packing Units: Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 7.6 cm Package 1 Width: 3.6 cm Package 1 Length: 8.5 cm Package 1 Weight: 210 g Unit Type of Package 2: BB2 Number of Units in Package 2: 6 Package 2 Height: 8.5 cm Package 2 Width: 9 cm Package 2 Length: 22 cm Package 2 Weight: 1368 g

Read more less

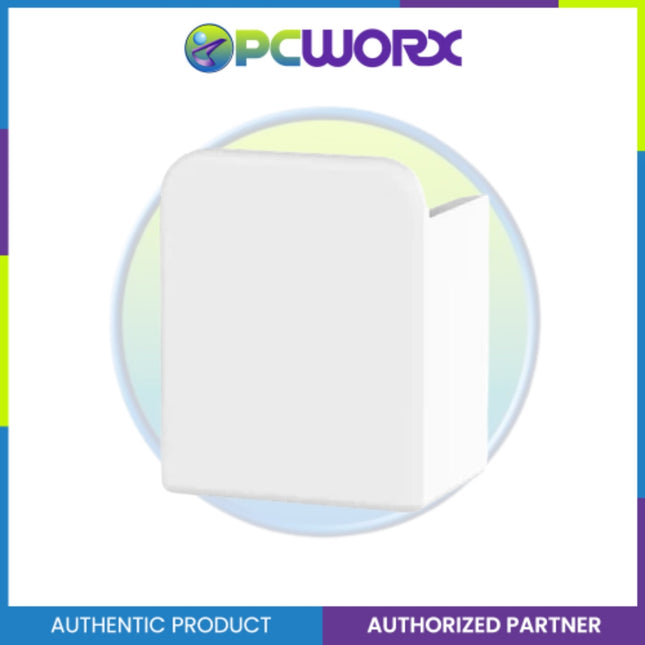

DESCRIPTION This Easy9 product is a comb busbar side cover. It is suitable with 2P devices. It is a set of 10 covers. This tooth cover is compatible with Easy9 MCB, RCCB, RCBO and switch products. SPECIFICATIONS Main Range Easy9 Product or component type Comb busbar side cover Accessory / separate part category Insulation accessory Poles description 2P Quantity per set Set of 10 Complementary Range compatibility Easy9 Easy9 XP comb busbar Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 1.500 cm Package 1 Width 4.000 cm Package 1 Length 11.500 cm Package 1 Weight 7.000 g Unit Type of Package 2 S02 Number of Units in Package 2 100 Package 2 Height 15.000 cm Package 2 Width 30.000 cm Package 2 Length 40.000 cm Package 2 Weight 1.068 kg

Read more less

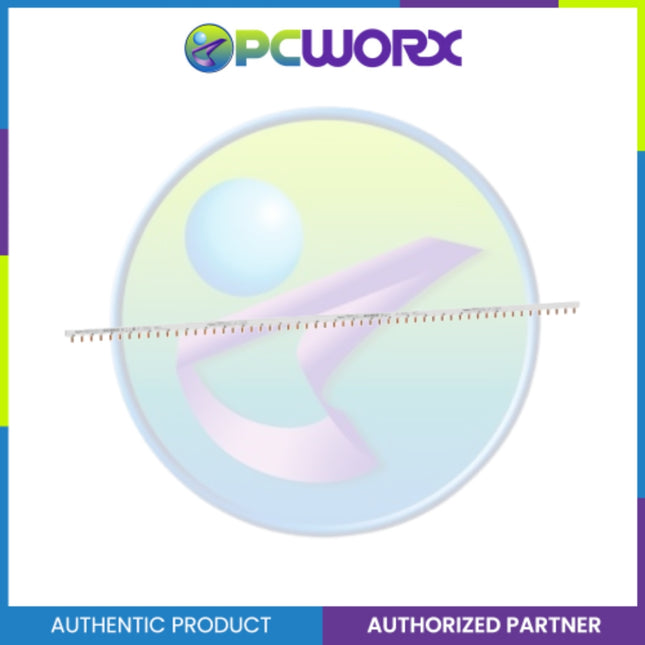

DESCRIPTIONS This Easy9 product is a horizontal comb busbar 57 modules. It is dedicated to 2L installations. It is a set of 1 device. It is suitable for 28 devices (1P+N or 2P). This comb busbar is compatible with Easy9 MCB, RCCB, RCBO and switch products. The total number of modules of 18mm is 57. The Ue rated operational voltage is 230VAC (phase to neutral) and 400VAC (phase to phase). The Ui rated insulation voltage is 500VAC. The operating frequency is 50Hz. Its width is 114 pitches of 9mm. The color is light grey (RAL7035). The degree of protection is IP20. The pollution degree is 3. According to IEC 60695-2-1 standard, the fire resistance is self-extinguishing at 850°C within 30s. SPECIFICATIONS Main Range Easy9 Product or component type Comb busbar Mounting mode Horizontal Accessory / separate part category Connection accessory Lines description 2L Length in 18 mm modules 57 Standards IEC 60439-1 IEC 60664 Complementary Number of ways 28 ways 2 L Poles configuration for 1 way 1 x 2P Connection pitch 18 mm Connector type Tooth Distance between way 36 mm Insulation Insulated Device presentation Cuttable Provided equipment 2 end piece [Ie] rated operational current 63 A at 40 °C [Ue] rated operational voltage 230 V AC 50 Hz Ph/N   400 V AC 50 Hz Ph/Ph [Ui] rated insulation voltage 500 V AC conforming to IEC 61439-1 Mounting location Top on tunnel type terminals 9 mm pitches 114 Width 1000 mm Colour Light grey (RAL 7035) Range compatibility Easy9 Easy9 XP Environment Fire resistance 850 °C ( 30 s ) conforming to IEC 60695-2-1 Pollution degree 2 Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 1.000 cm Package 1 Width 2.500 cm Package 1 Length 100.000 cm Package 1 Weight 300.000 g Unit Type of Package 2 BB1 Number of Units in Package 2 5 Package 2 Height 5.200 cm Package 2 Width 9.000 cm Package 2 Length 106.700 cm Package 2 Weight 1.702 kg Unit Type of Package 3 P12 Number of Units in Package 3 270 Package 3 Height 75.000 cm Package 3 Width 80.000 cm Package 3 Length 120.000 cm Package 3 Weight 101.100 kg

Read more less

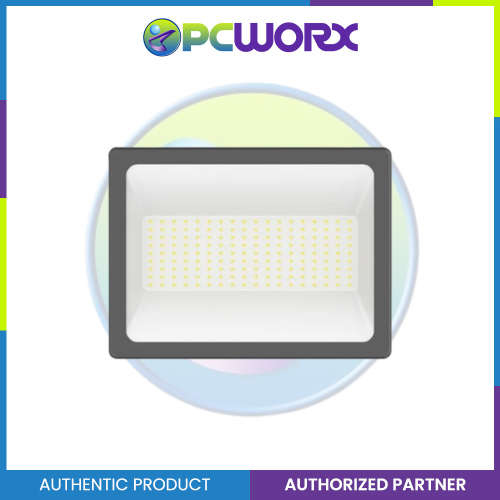

Specifications Main Range Mureva Range of product Mureva lights Product or component type Floodlight Device application Ware-houses and parking garages Residential Media device support Public areas Secure lighting Stadiums and arenas Complementary Type of installation Outdoor Total system power 100 W Light source LED [Ue] rated operational voltage 230 V AC Power factor 0.9 Colour rendering index Ra=80 Luminous flux 10000 lm Bulb lifespan 50000 h Colour temperature 4000 K Colour tint Black Electrical insulation class Class F Beam angle 110 ° Shape Rectangular Height 288.4 mm Width 216.4 mm Depth 39.3 mm Net weight 1.95 kg Environment Environmental characteristic Weatherproof IP degree of protection IP65 IK degree of protection IK05 Ambient air temperature for operation -30…45 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 6.000 cm Package 1 Width 23.500 cm Package 1 Length 30.000 cm Package 1 Weight 2.058 kg Unit Type of Package 2 S04 Number of Units in Package 2 6 Package 2 Height 30.000 cm Package 2 Width 40.000 cm Package 2 Length 60.000 cm Package 2 Weight 13.832 kg Unit Type of Package 3 P12 Number of Units in Package 3 48 Package 3 Height 75.000 cm Package 3 Width 80.000 cm Package 3 Length 120.000 cm Package 3 Weight 124.656 kg

Read more less

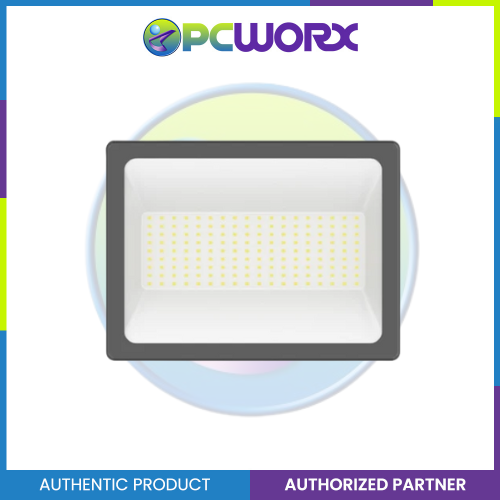

Specifications Main Range Mureva Range of product Mureva lights Product or component type Floodlight Device application Ware-houses and parking garages Residential Media device support Public areas Secure lighting Stadiums and arenas Complementary Type of installation Outdoor Total system power 20 W Light source LED [Ue] rated operational voltage 230 V AC Power factor 0.7 Colour rendering index Ra=80 Luminous flux 2000 lm Bulb lifespan 50000 h Colour temperature 4000 K Colour tint Black Electrical insulation class Class F Beam angle 110 ° Shape Rectangular Height 163.4 mm Width 121.4 mm Depth 26.0 mm Net weight 530 g Environment Environmental characteristic Weatherproof IP degree of protection IP65 IK degree of protection IK05 Ambient air temperature for operation -30…45 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 5.000 cm Package 1 Width 13.500 cm Package 1 Length 17.400 cm Package 1 Weight 620.000 g Unit Type of Package 2 S03 Number of Units in Package 2 20 Package 2 Height 30.000 cm Package 2 Width 30.000 cm Package 2 Length 40.000 cm Package 2 Weight 13.187 kg Unit Type of Package 3 P12 Number of Units in Package 3 320 Package 3 Height 75.000 cm Package 3 Width 80.000 cm Package 3 Length 120.000 cm Package 3 Weight 221.992 kg

Read more less

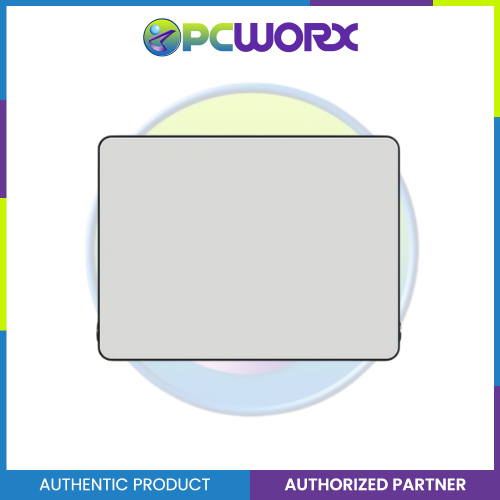

Specifications Main Range Mureva Range of product Mureva lights Product or component type Floodlight Device application Ware-houses and parking garages Residential Media device support Public areas Secure lighting Stadiums and arenas Complementary Type of installation Outdoor Total system power 30 W Light source LED [Ue] rated operational voltage 230 V AC Power factor 0.9 Colour rendering index Ra=80 Luminous flux 3000 lm Bulb lifespan 50000 h Colour temperature 4000 K Colour tint Black Electrical insulation class Class F Beam angle 110 ° Shape Rectangular Height 189.4 mm Width 141.4 mm Depth 26.5 mm Net weight 780 g Environment Environmental characteristic Weatherproof IP degree of protection IP65 IK degree of protection IK05 Ambient air temperature for operation -30…45 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 5.500 cm Package 1 Width 15.500 cm Package 1 Length 20.000 cm Package 1 Weight 775.000 g Unit Type of Package 2 S04 Number of Units in Package 2 15 Package 2 Height 30.000 cm Package 2 Width 40.000 cm Package 2 Length 60.000 cm Package 2 Weight 12.190 kg Unit Type of Package 3 P12 Number of Units in Package 3 120 Package 3 Height 75.000 cm Package 3 Width 80.000 cm Package 3 Length 120.000 cm Package 3 Weight 110.520 kg

Read more less

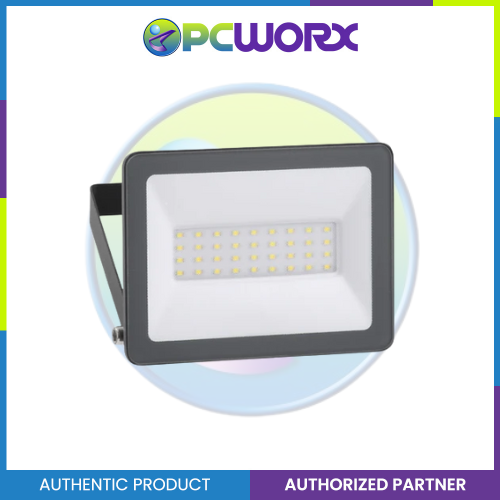

Specifications Main Range Mureva Range of product Mureva lights Product or component type Floodlight Device application Ware-houses and parking garages Residential Media device support Public areas Secure lighting Stadiums and arenas Complementary Type of installation Outdoor Total system power 30 W Light source LED [Ue] rated operational voltage 230 V AC Power factor 0.9 Colour rendering index Ra=80 Luminous flux 3000 lm Bulb lifespan 50000 h Colour temperature 6500 K Colour tint Black Electrical insulation class Class F Beam angle 110 ° Shape Rectangular Height 189.4 mm Width 141.4 mm Depth 26.5 mm Net weight 780 g Environment Environmental characteristic Weatherproof IP degree of protection IP65 IK degree of protection IK05 Ambient air temperature for operation -30…45 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 5.500 cm Package 1 Width 15.500 cm Package 1 Length 20.000 cm Package 1 Weight 778.000 g Unit Type of Package 2 S04 Number of Units in Package 2 15 Package 2 Height 30.000 cm Package 2 Width 40.000 cm Package 2 Length 60.000 cm Package 2 Weight 13.213 kg

Read more less

Specifications Main Range Mureva Range of product Mureva lights Product or component type Floodlight Device application Ware-houses and parking garages Residential Media device support Public areas Secure lighting Stadiums and arenas Complementary Type of installation Outdoor Total system power 50 W Light source LED [Ue] rated operational voltage 230 V AC Power factor 0.9 Colour rendering index Ra=80 Luminous flux 5000 lm Bulb lifespan 50000 h Colour temperature 4000 K Colour tint Black Electrical insulation class Class F Beam angle 110 ° Shape Rectangular Height 215.4 mm Width 161.4 mm Depth 31.0 mm Net weight 1.02 kg Environment Environmental characteristic Weatherproof IP degree of protection IP65 IK degree of protection IK05 Ambient air temperature for operation -30…45 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 22.5 cm Package 1 Width 22.5 cm Package 1 Length 22.5 cm Package 1 Weight 1.15 kg Unit Type of Package 2 S03 Number of Units in Package 2 10 Package 2 Height 30 cm Package 2 Width 30 cm Package 2 Length 40 cm Package 2 Weight 11.941 kg Unit Type of Package 3 P12 Number of Units in Package 3 160 Package 3 Height 75 cm Package 3 Width 80 cm Package 3 Length 120 cm Package 3 Weight 203.056 kg

Read more less

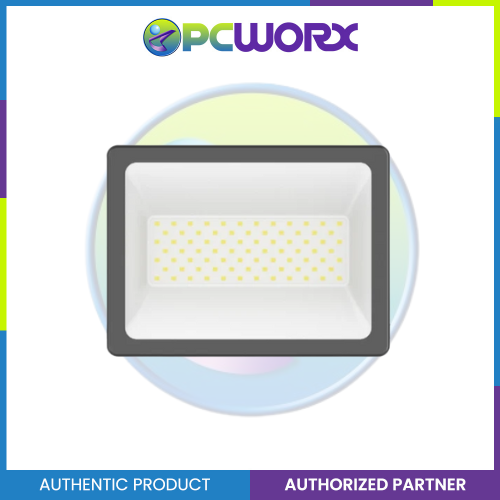

Specifications Main Range Mureva Range of product Mureva lights Product or component type Floodlight Device application Ware-houses and parking garages Residential Media device support Public areas Secure lighting Stadiums and arenas Complementary Type of installation Outdoor Total system power 50 W Light source LED [Ue] rated operational voltage 230 V AC Power factor 0.9 Colour rendering index Ra=80 Luminous flux 5000 lm Bulb lifespan 50000 h Colour temperature 6500 K Colour tint Black Electrical insulation class Class F Beam angle 110 ° Shape Rectangular Height 215.4 mm Width 161.4 mm Depth 31.0 mm Net weight 1.02 kg Environment Environmental characteristic Weatherproof IP degree of protection IP65 IK degree of protection IK05 Ambient air temperature for operation -30…45 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 4.8 cm Package 1 Width 17 cm Package 1 Length 22.5 cm Package 1 Weight 1.15 kg Unit Type of Package 2 S03 Number of Units in Package 2 10 Package 2 Height 30 cm Package 2 Width 30 cm Package 2 Length 40 cm Package 2 Weight 11.941 kg Unit Type of Package 3 P12 Number of Units in Package 3 160 Package 3 Height 75 cm Package 3 Width 80 cm Package 3 Length 120 cm Package 3 Weight 203.056 kg

Read more less

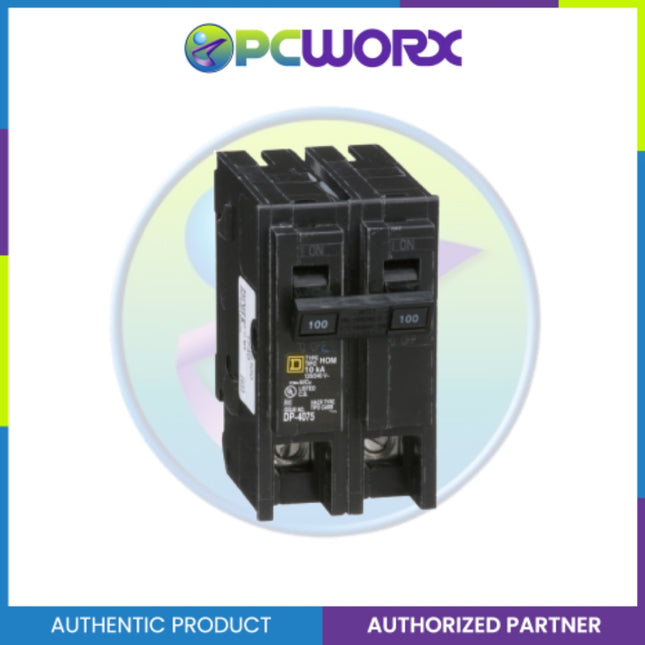

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 100A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 4 AWG to 2/0 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed. Category Attribute Value Main Product Miniature circuit-breaker Main Range Homeline Main Current Rating 100 A Main Certifications UL listed Main Voltage Rating 120/240 V AC Main Mounting Type Plug-in Main Number of Poles 2P Main Short Circuit Current Rating 10 kA Main Number of Spaces 2 Main Circuit Breaker Type Standard Main Ratings HACR rated Main Electrical Connection Box lugs Main Wire Size 1 × AWG 4…AWG 2/0 (aluminium/copper) Complementary Tightening torque 4.8 N·m (AWG 4…2/0 kcmil) Complementary Height 79.50 mm Complementary Width 50.8 mm Complementary Depth 75.69 mm Environment Ambient air temperature for operation 40 °C Packing Units Unit Type of Package 1 PCE Packing Units Number of Units in Package 1 1 Packing Units Package 1 Height 8.636 cm Packing Units Package 1 Width 5.842 cm Packing Units Package 1 Length 9.652 cm Packing Units Package 1 Weight 430.913 g Packing Units Unit Type of Package 2 CAR Packing Units Number of Units in Package 2 36 Packing Units Package 2 Height 9.652 cm Packing Units Package 2 Width 35.56 cm Packing Units Package 2 Length 52.832 cm Packing Units Package 2 Weight 14.265 kg Packing Units Unit Type of Package 3 PAL Packing Units Number of Units in Package 3 1728 Packing Units Package 3 Height 101.6 cm Packing Units Package 3 Width 101.6 cm Packing Units Package 3 Length 121.92 cm Packing Units Package 3 Weight 674.491 kg

Read more less

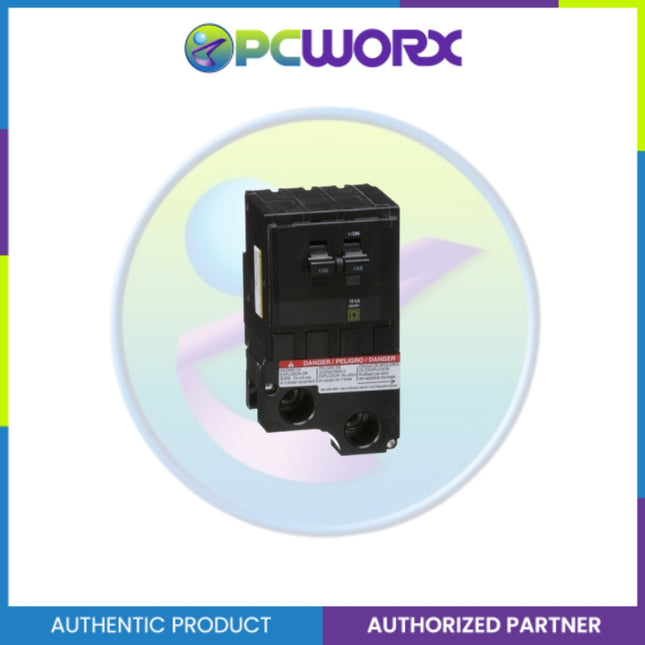

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 150A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555   Specification Details Product Miniature circuit-breaker Range QO Current Rating 150 A Voltage Rating 120/240 V AC; 120 V AC Mounting Type Plug-in Number of Poles 2P Circuit Breaker Type Standard Ratings HACR rated Electrical Connection Box lugs Interrupt Rating 10 kA at 120/240 V AC; 10 kA at 120 V AC Number of Panel Spaces 4 Wire Size AWG 1...300 kcmil copper or aluminium Tightening Torque 28.3 N.m Height 89 mm Width 38 mm Depth 74 mm Net Weight 1.193 kg Certifications UL listed; CSA Ambient Rating 40 °C Unit Type of Package PCE Number of Units in Package 1 Package Height 12.192 cm Package Width 17.526 cm Package Length 20.066 cm Package Weight 1.139 kg
