APC Back-UPS (BX1600MI-MS) 1600VA, 230V, AVR, Universal Sockets APC UPS

PCWORX

APC Back-UPS (BX1600MI-MS) 1600VA, 230V, AVR, Universal Sockets APC UPS

(0)

₱14,835.00

Low in stock

Receives in 6 days.

APC Back-UPS (BX750MI-MS) 750VA, 230V, AVR, Universal Sockets | APC UPS

PCWORX

APC Back-UPS (BX750MI-MS) 750VA, 230V, AVR, Universal Sockets | APC UPS

(0)

₱8,351.08

In stock

Receives in 6 days.

APC Back-UPS (BX950MI-MS) 950VA, 230V, AVR, IEC Sockets | APC UPS

PCWORX

APC Back-UPS (BX950MI-MS) 950VA, 230V, AVR, IEC Sockets | APC UPS

(0)

₱10,548.00

In stock

Receives in 6 days.

APC BGM2200-MSX 2200VA/1320W Back-UPS Pro RGB Gaming UPS (BEST SELLER)

PCWORX

APC BGM2200-MSX 2200VA/1320W Back-UPS Pro RGB Gaming UPS (BEST SELLER)

(0)

From ₱24,192.00

In stock

Receives in 6 days.

Apc Bv800i-Ms Easy Ups Bv 800va, Avr, Universal Outlet, 230v

PCWORX

Apc Bv800i-Ms Easy Ups Bv 800va, Avr, Universal Outlet, 230v

(0)

₱4,025.00

In stock

Receives in 6 days.

APC BVX1200LI-MS Easy Back UPS 1200VA/650Watts 230V AVR Universal Sockets UPS

PCWORX

APC BVX1200LI-MS Easy Back UPS 1200VA/650Watts 230V AVR Universal Sockets UPS

(0)

₱7,020.00

Cold-start capable - Provides temporary battery power when the utility power is out.
Boost Automatic Voltage Regulation (AVR) - Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Transformer-block spaced outlets - Protect equipment with input transformer blocks without blocking access to other receptacles.
Sleek design - Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.

PROTECTION

Battery backup and surge protection - Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Battery and surge protected outlets - Back up and protect your hardware and data during power outages, surges and spikes.

MANAGEABILITY

LED Indicators - Provide easy-to-read status of the unit and utility power conditions.
Audible alarms - Provides notification of changing utility power and UPS power conditions

Specifications
Power Capacity:	1200VA / 650 Watts
Voltage:	230V (Nominal Input & Output)
Topology:	Line-Interactive
Output Connections:
1 x IEC 320 C13 (Battery Backup)
4 x Universal (Battery Backup)
Waveform Type:	Stepped approximation to a sinewave
Transfer Time:	6 ms typical / 10 ms maximum
Runtime:	5 minutes at 50% load
Features
Automatic Voltage Regulation (AVR):	Corrects voltage fluctuations without draining the battery.
Computer Grade Surge Protection:	Protects against damaging power surges and spikes.
Quick Mute:	Allows for silencing of audible alarms during a power event.
LED Indicators:	Provides easy visual confirmation of the UPS's functional status.
Design:	Slim and modern, can be placed upright, flat, or wall-mounted.
Additional Information
Input Connection:	IEC 60320 C14
Cord Length:	1.2 meters
Battery:	Maintenance-free sealed Lead-Acid battery
Regulatory Approvals:	CE, CB, EN/IEC 62040-1, EN/IEC 62040-2.

Low in stock

Receives in 6 days.

APC BVX650I-PH 650VA / 360 Watts 4 Nema Circuit Breaker | APC UPS

PCWORX

APC BVX650I-PH 650VA / 360 Watts 4 Nema Circuit Breaker | APC UPS

(0)

₱2,250.00

Power capacity : 360 W / 650 VA

Battery Backup : 4 battery backup with surge protection outlets for multi-device power protection

Automatic Voltage Regulation (AVR)

Boost and Trim” AVR instantly corrects voltage fluctuations without using the battery, saving battery life for power outages

Circuit Breaker Reset

Push the circuit breaker button to reset for easy recovery from circuit overloads, protecting the UPS and connected electronics from electrical damage

Automatic Diagnostic Testing

Periodic battery self-test ensures early detection of a battery that needs to be replaced, ensuring your unit is ready when you need it

Generator Compatible

Provides clean instant battery power to prevent frequency variations from affecting the connected load

Specification	Details
UPS Model	BVX650I-PH
Power Capacity	360 W / 650 VA
Nominal Output Voltage	230 VAC ± 10%
Topology	Line Interactive
Transfer Time	4–6 ms typical, 10 ms max
Output Connections	(4) NEMA 5-15R Battery Backup Outlets
Nominal Input Voltage	230 VAC
Input Voltage Range	140 – 300 VAC
Frequency	50 Hz / 60 Hz ± 5 Hz
Input Circuit Breaker	5 A
Cord Length	1.2 m
AC Power Surge Protection	All Outlets
LED Indicators	LED Status display with online : on battery
Alarms	On battery : low battery : overload continuous tone alarm
Battery Type	Maintenance-free, sealed lead-acid battery, leak proof
Dimensions (H x W x D)	14.2 cm x 10.1 cm x 30 cm
Audible Noise at 1m from Unit	40 dBA max

In stock

Receives in 6 days.

PCWORX

APC BVX900LI-MS Easy Back UPS 900VA/480Watts 230V AVR Universal Sockets

(0)

₱5,290.00

Specifications

Main Input Voltage	230 V AC 1 phase
Main Output Voltage	230 V AC 1 phase
Rated power in W	480 W
Rated power in VA	900 VA
Product or component type	Uninterruptible power supply (UPS)
Input Connection Type	IEC 60320 C14
output connection type	2 universal 1 IEC 60320 C13
Cable length	1.2 m
Number of cables	1
Battery type	Lead-acid battery
Provided equipment	User manual

Batteries & Runtime


Number of battery filled slots	0
Number of battery free slots	0
Battery recharge time	8 h
Battery voltage	12 V
Battery capacity	9.0 Ah
Battery life	2…3 year(s)

Extended runtime	0

General
Max runtime	120 min
Number of power module free slots	0
Number of power module filled slots	0
Redundant	No
UPS size	WS

Physical
Colour	Black
Height	16 cm
Width	12 cm
Depth	35.5 cm
Net weight	6 kg
Mounting support	Floor
Mounting preference	No preference
Mounting mode	Not rack-mountable
Two post mountable	0
USB compatible	No

Input
Network frequency	50/60 Hz +/- 5 Hz auto-sensing
Input voltage limits	140...300 V 230 V AC
Cos phi	0.53

Output
Maximum configurable power in W	480 W
Output frequency	50/60 Hz +/- 1 Hz sync to mains
UPS type	Line interactive
Wave type	Stepped approximation to a sinewave
Full load runtime	00:01:00 480 W
Graph display	1
Half load runtime	00:06:30 240 W
Maximum configurable power in VA	900 VA
Transfer time	6 ms typical : 10 ms maximum

Conformance
Product certifications	CE
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Equipment protection policy	Lifetime : 50000 euros

Environmental
Ambient air temperature for operation	0…40 °C
Relative humidity	0…95 % non-condensing
Operating altitude	0...3000 m
Ambient air temperature for storage	-15…40 °C
Storage Relative Humidity	0…95 % non-condensing
Storage altitude	0…3000 m
Acoustic level	40 dBA
IP degree of protection	IP20

Surge Protection and Filtering
Surge energy rate	273 J

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	25 cm
Package 1 Width	43 cm
Package 1 Length	19.7 cm
Package 1 Weight	6.5 kg
SCC14	10731304404368

Out of stock

Receives in 6 days.

APC BX1200MI-MS 1200VA 650 Watts 230V Line Interactive w/ AVR | APC UPS

PCWORX

APC BX1200MI-MS 1200VA 650 Watts 230V Line Interactive w/ AVR | APC UPS

(0)

₱13,000.00

In stock

Receives in 6 days.

APC BX2200MI-MS 2200VA/1200 Watts 230V Line Interactive w/ AVR UPS

PCWORX

APC BX2200MI-MS 2200VA/1200 Watts 230V Line Interactive w/ AVR UPS

(0)

₱17,728.00

In stock

Receives in 6 days.

APC Power Supply BV650I-MS 650VA/375Watts Line Interactive with AVR | APC UPS

PCWORX

APC Power Supply BV650I-MS 650VA/375Watts Line Interactive with AVR | APC UPS

(0)

₱3,960.00

In stock

Receives in 6 days.

APC SRV Smart UPS Easy UPS On-Line 1000VA/2000VA/3000VA | Uninterrupted Power Supply | APC UPS

PCWORX

APC SRV Smart UPS Easy UPS On-Line 1000VA/2000VA/3000VA | Uninterrupted Power Supply | APC UPS

(0)

From ₱15,960.00

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV203. The Easy UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

UPS Specifications – Model: SRV

Feature	Specification
Model	SRV
Output Capacity	1000VA, 230V, 900W / 2000VA, 230V, 1800W / 3000VA, 230V, 2700W
Output (on battery)	220–240V, 50/60Hz ± 0.5Hz
Main Input Voltage	230V
Other Input Voltage	220–240V
Main Output Voltage	230V
Other Output Voltage	220–240V
Rated Power (W)	900W, 1800W, 2700W
Rated Power (VA)	1000VA
Input Connection Type	IEC 60320 C14
Output Connection Type	3 × IEC 60320 C13
Cable Length	1.5 m
Number of Cables	1
Provided Equipment	1 × IEC 60320 C13 to Schuko cable, 1 × IEC 60320 C13 to C14 cable, 1 × USB cable, 1 × RS‑232 configuration cable, user manual
Battery Type	Lead‑acid
Battery Voltage	24V
Number of Battery Filled Slots	0
Number of Battery Free Slots	0
Battery Recharge Time	4 h
Battery Life	3–5 years
Battery Charger Power	30 W (rated)
Input Voltage Limits	110–285V (half load), 180–285V (full load)
Network Frequency	40–70 Hz auto sensing
Maximum Configurable Power	1000 VA / 900 W
Output Frequency	50/60 Hz ± 3 Hz (sync to mains)
Harmonic Distortion	3%
UPS Type	Double conversion online
Wave Type	Sine wave
Efficiency	88% (full load)
Additional Information	Configurable for 220, 230, or 240V nominal output
Bypass Type	Internal bypass (automatic and manual)
Crest Factor	3:1

Low in stock

Receives in 6 days.

APC SRV2KI-E Easy Smart UPS On-Line SRV 2000VA 1800 Watts

PCWORX

APC SRV2KI-E Easy Smart UPS On-Line SRV 2000VA 1800 Watts

(0)

₱33,300.00

Low in stock

Receives in 6 days.

APC UPS BR1600SI Black Pro 1600VA 960W Line Interactive - GAMING UPS

PCWORX

APC UPS BR1600SI Black Pro 1600VA 960W Line Interactive - GAMING UPS

(0)

₱33,350.00

In stock

Receives in 6 days.

APC UPS BV1000I-MS 1000VA/600Watts Line Interactive | APC UPS

PCWORX

APC UPS BV1000I-MS 1000VA/600Watts Line Interactive | APC UPS

(0)

₱4,980.00

In stock

Receives in 6 days.

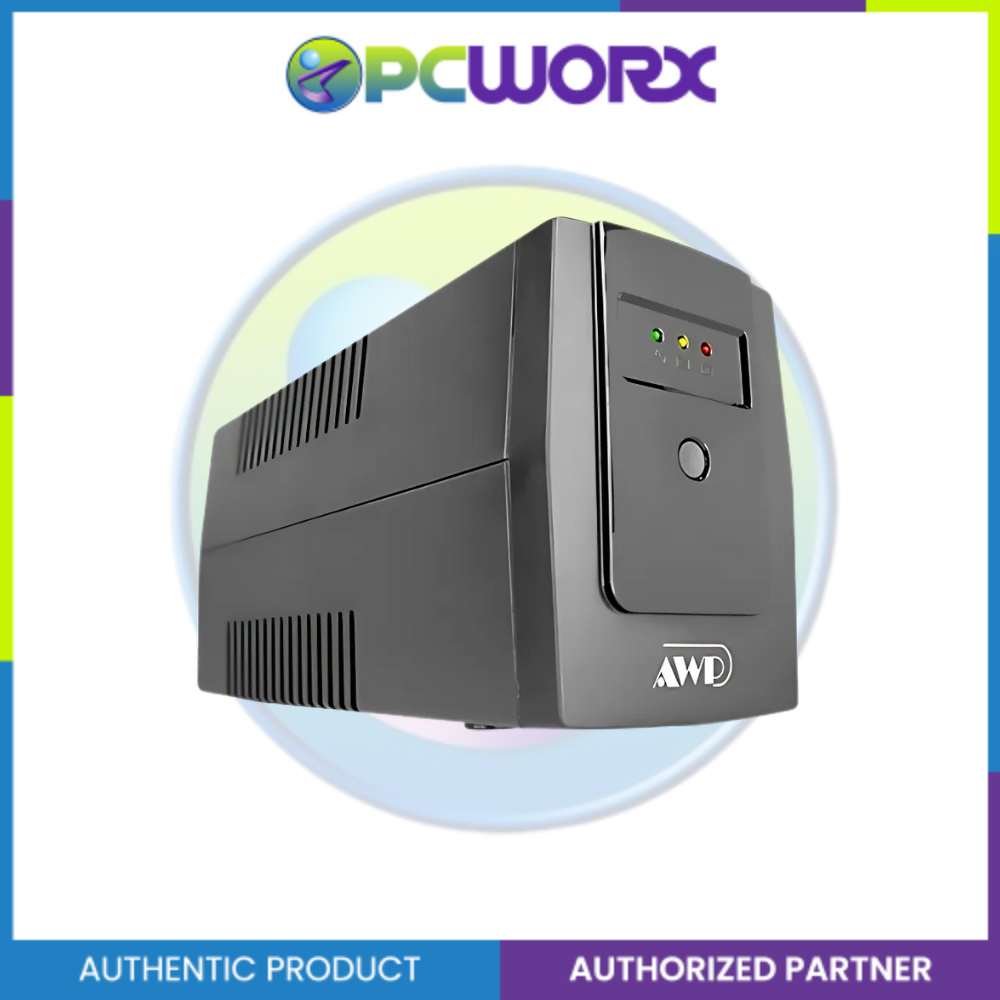

AWP AID1000 Aide 600W/1000VA UPS with AVR Uninterruptible Power Supply (4 Sockets)

PCWORX

AWP AID1000 Aide 600W/1000VA UPS with AVR Uninterruptible Power Supply (4 Sockets)

(0)

₱2,357.50

Out of stock

Receives in 6 days.

Awp Aid650 Aide Series Entry Level Line Interactive Ups

PCWORX

Awp Aid650 Aide Series Entry Level Line Interactive Ups

(0)

₱1,529.50

Out of stock

Receives in 6 days.

Eaton 5A 1200I-NEMA 1200VA/650Watts Line Interactive UPS

PCWORX

Eaton 5A 1200I-NEMA 1200VA/650Watts Line Interactive UPS

(0)

₱6,000.00

Low in stock

Receives in 6 days.

Eaton 5A 1500I-NEMA 1500VA/900Watts Line Interactive UPS

PCWORX

Eaton 5A 1500I-NEMA 1500VA/900Watts Line Interactive UPS

(0)

₱9,000.00

Low in stock

Receives in 6 days.

Eaton 5A 2200I-NEMA 2200VA/1200Watts Line Interactive UPS

PCWORX

Eaton 5A 2200I-NEMA 2200VA/1200Watts Line Interactive UPS

(0)

₱11,760.00

In stock

Receives in 6 days.

Eaton 5A 700VA/360Watts Tower UPS Line Interactive

PCWORX

Eaton 5A 700VA/360Watts Tower UPS Line Interactive

(0)

₱2,200.00

Low in stock

Receives in 6 days.

Eaton 5A 900I-NEMA 900VA 480W Tower Single-Phase Line Interactive UPS

PCWORX

Eaton 5A 900I-NEMA 900VA 480W Tower Single-Phase Line Interactive UPS

(0)

₱4,200.00

Low in stock

Receives in 6 days.

Etonix Enit 650N 650VA/360W Line-Interactive UPS

PCWORX

Etonix Enit 650N 650VA/360W Line-Interactive UPS

(0)

₱1,380.00

Out of stock

Receives in 6 days.

PCWORX

INTEX IT-M850VA 850VA/ 480W UPS

(0)

₱2,496.00

Out of stock

Receives in 6 days.

PCWORX

Secure 1000VA/ 700Watts UPS

(0)

₱2,967.00

Low in stock

Receives in 6 days.

Specifications
Model:	BX1600MI-MS
Power Capacity:	1600VA / 900 Watts
Topology:	Line-Interactive
Waveform Type:	Stepped approximation to a sinewave
Output Voltage:	230V
Output Connections:	4 Universal outlets (Battery Backup)
Input Frequency:	50/60Hz +/- 0.5Hz
Runtime at ½ Load:	6.5 minutes
Runtime at Full Load:	1 minute
Transfer Time:	6 ms typical, 10 ms maximum
Battery Type:	Maintenance-free sealed Lead-Acid
Battery Recharge Time:	8 hours
Data Line Protection:	RJ45 Gigabit
Software:	PowerChute Personal Edition
Surge Energy Protection:	273 Joules

Specifications

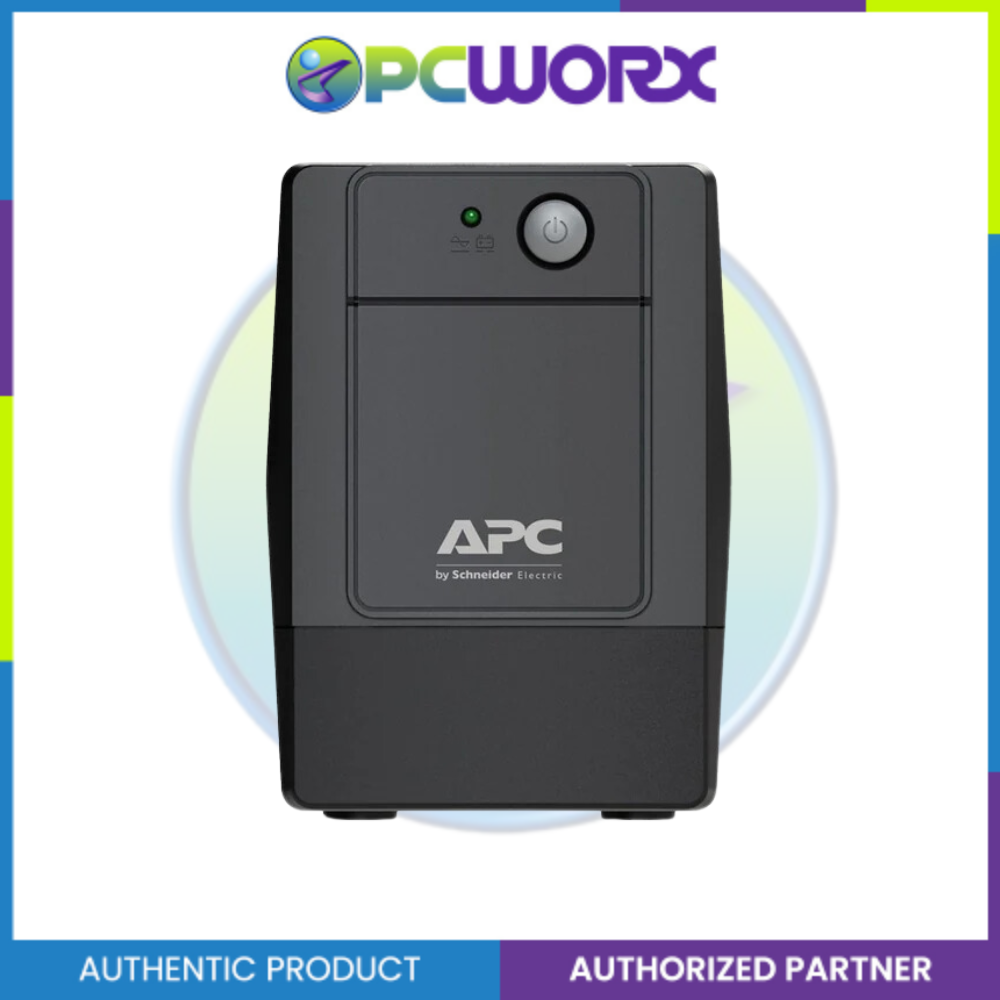

Model:	APC Back-UPS BX750MI-MS
Power Capacity:	750VA / 410 Watts
Input/Output Voltage:	230V
Topology:	Line-Interactive
Waveform:	Stepped approximation to a sinewave
Output Connections:
2 x Universal Sockets (Battery Backup)
1 x IEC 60320 C13 (Battery Backup)
Automatic Voltage Regulation (AVR):	Yes
Features and Benefits
Battery Backup:	Provides power to essential equipment during power outages.
Surge Protection:	Protects devices from damaging power surges and spikes.
Universal Sockets:	Accommodates various device plugs.
Line-Interactive Design:	Offers efficient power management.
AVR:	Automatically regulates voltage without switching to battery for minor fluctuations.

Specifications:
Model:	BX950MI-MS
Capacity:	950 VA
Rated Power:	520 W (480 W load)
Input Voltage:	230 V
Output Voltage:	230 V
UPS Type:	Line-interactive
Waveform:	Stepped approximation to a sine wave
Transfer Time:	6 ms typical
Outlets:	2 Universal outlets and 2 IEC (C13) outlets
Features:
Automatic Voltage Regulation (AVR)
Battery-protected and surge-protected outlets
Surge-only protection for non-critical equipment
Automatic battery self-test
Status LED for On Line and On Battery modes
Distinct low-battery alarm
RJ45 10/100/1000 Base-T Ethernet data line protection

General specifications
Model:	BGM2200-MSX
Output Capacity:	2200VA / 1320W
UPS Type:	Line-interactive
Wave Type:	Pure sine wave
Input Voltage:	230 V AC 1 phase
Output Voltage:	230 V 1 phase
Features
Outlets:	6 total (3 universal and 3 IEC C13), with 4 providing battery backup and surge protection, and 2 providing surge protection only
Surge Protection:	1080 Joules
RGB Lighting:	Yes
Automatic Voltage Regulation (AVR):	Corrects for voltage fluctuations without using the battery
Input Connection:	C19/C21
Performance and battery
Output Frequency:	50/60 Hz +/- 3 Hz, synced to mains
Battery Type:	User-replaceable lead-acid battery
Battery Recharge Time:	Approximately 16 hours
Full Load Runtime:	Approximately 30 minutes (based on 1320W load)
Estimated Runtime:	A connected gaming PC will have a shorter runtime; a high-power gaming PC will have only a few minutes, while lower-power devices like a router could get 30-45+ minutes

Power and electrical specifications
Power Rating:	1200VA / 650 Watts
Topology:	Line-interactive
Waveform:	Stepped approximation to a sinewave
Output Voltage:	230V
Input Voltage:	230V
Input Frequency:	50/60 Hz +/- 5 Hz auto-sensing
Output Frequency:	50/60 Hz +/- 1 Hz sync to mains
Transfer Time:	6 ms typical / 10 ms maximum
Surge Energy Rating:	273 Joules
Connections and runtime
Output Connections:	4 universal sockets (battery backup + surge) and 1 IEC C13 (battery backup)
Input Connection:	IEC C14
Power Cord:	1.2 meters
Full Load Runtime:	Approximately 1 minute at 650W
Other features
Automatic Voltage Regulation (AVR):	Corrects voltage fluctuations without using the battery
Battery:	Lead-acid, typical recharge time of 8 hours, expected life of 1-2 years
Warranty:	2-year manufacturer warranty

Main menu

Product comparison

Specifications
Power Capacity:	800VA / 450 Watts
Voltage:	230V nominal input and output
Output Connections:	4 Universal Receptacles (all battery backup)
Topology:	Line Interactive
Waveform Type:	Stepped approximation to a sinewave
Transfer Time:	6ms typical, 10ms maximum
Input Connection:	IEC-320 C14
Battery:	Maintenance-free sealed Lead-Acid
Features & Management
Automatic Voltage Regulation (AVR):	Corrects for voltage fluctuations without switching to battery power.
Universal Outlets:	Standardized connections for various plug types.
Control Panel:	LED Status display for power conditions (On Line, On Battery).
Audible Alarms:	Provides alerts for low battery, overload, and being on battery.

Specifications:
Power Capacity:	2200VA / 1200 Watts
Topology:	Line-Interactive
Output Voltage:	230V (On Battery: 230V +/- 10% at 100% load)
Waveform:	Stepped approximation to a sinewave
Output Connections:	4 Universal outlets for battery backup
Automatic Voltage Regulation (AVR):	Corrects voltage fluctuations by increasing or decreasing output voltage without using the battery, conserving its power.
Data Line Protection:	Includes RJ45 Gigabit ports for network surge protection
Runtime:
Typical Backup Time (½ Load):	8.5 minutes
Typical Backup Time (Full Load):	1 minute
Batteries:
Type:	Maintenance-free, sealed Lead-Acid
Recharge Time:	Approximately 8 hours for a typical recharge
Management:	Features intelligent battery management, with a periodic self-test to detect failing batteries and provide early warnings for replacement.

Specifications
Model:	BV650I-MS
Type:	Line-Interactive UPS
Power Capacity:	650VA / 375 Watts
Waveform Type:	Stepped approximation to a sinewave (Simulated Sine Wave)
Topology:	Line-Interactive
Output Connections:	Universal Outlets (4)
Protection Features
Automatic Voltage Regulation (AVR):
Surge Protection:	Offers protection against power surges.
EMI/RFI Filtering:	Filters out electrical noise.
Battery and Performance
Battery Type:	Maintenance-free sealed Lead-Acid battery
Battery Backup Time:	Up to 10 minutes at half load (variable).
Transfer Time:	6ms typical
User Interface
Control Panel:	LED Status display with On Line and On Battery indicators.
Alarms:	Audio and visual alarms for power failures, low battery, and overload.
Physical Characteristics
Dimensions:	330 x 140 x 100 mm (WxDxH)
Weight:	3.5 kg
Input Connection:	IEC-320 C14

Power specifications

Rated Power:	1800W / 2000VA
Output Voltage:	230V (configurable for 220V and 240V)
Input Voltage:	230V (with input voltage limits of 110–285V for half load and 180–285V for full load)
Wave Type:	Pure sine wave
Efficiency:	88% at full load
Bypass:	Internal bypass (automatic and manual)
Input/Output Connections:	1x IEC C14 input and 4x IEC C13 outputs

Key features

LCD Interface:	Provides detailed status information and configuration
Intelligent Card Slot:	Allows for network management card installation
ECO Mode:	Energy-saving mode for high efficiency
Battery:	48V battery voltage, with a 4-hour recharge time to 90% capacity
Communication:	USB and RS-232 ports are included
Certification:	Complies with safety standards like EN/IEC 62040-1 and EN/IEC 62040-2

Physical specifications

Form Factor:	Tower
Dimensions:
40 cm×14.5 cm×23.8 cm40 cm cross 14.5 cm cross 23.8 cm
40 cm×14.5 cm×23.8 cm
(LWH)
Weight:	17 kg
Color:	Black (RAL 7010)

General specifications

Model:	BR1600SI Black Pro
Topology:	Line-interactive with automatic voltage regulation (AVR)
Output Power Capacity:	1600VA / 960 Watts
Output Voltage:	230V
Output Frequency:
50/6050 / 60
50/60
Hz +/- 1 Hz sync to mains
Surge Energy Rating:	509 Joules
Surge Protection:	Yes, for power and data lines (RJ45)

Electrical and outlet specifications

Total Outlets:	8 IEC-C13 outlets
Battery Backup Outlets:	6
Surge Protection Only Outlets:	2
Input Connection:	1 x IEC-C14
Input Voltage Range:
176−294V176 minus 294 cap V
176−294𝑉
for main operations

Management and control

Interface:	USB (Type A and Type C for smart charging)
Control Panel:	Multifunction LCD status and control console
Alarms:	Audible alarms for on-battery, low battery, and overload conditions
Data Line Protection:	RJ45 10/100/1000 Base-T Ethernet protection

Battery specifications

Battery Type:	Sealed Lead-acid
Recharge Time:	16 hours
Expected Battery Life:	3-5 years
User-Replaceable Battery:	Yes, user-replaceable battery cartridge (APCRBC163)

Physical and environmental

Form Factor:	Tower
Operating Temperature:
0−40 °C0 minus 40 °C
0−40 °C
Operating Humidity:
0−95%0 minus 95 %
0−95%
(non-condensing)
Storage Temperature:
-15−45 °Cnegative 15 minus 45 °C
−15−45 °C
Storage Humidity:
0−95%0 minus 95 %
0−95%
(non-condensing)
Warranty:	2-year repair or replace warranty

Electrical and performance
Output Power Capacity:	1000VA / 600 Watts
Topology:	Line Interactive
Nominal Input Voltage:	230V
Nominal Output Voltage:	230V
Waveform Type:	Stepped approximation to a sine wave
Transfer Time:	6ms typical / 10ms maximum
Input Frequency:	50/60 Hz +/- 5 Hz auto-sensing
Output Frequency:	50/60 Hz +/- 1 Hz unsynchronized
Input Voltage Range:	170V – 280V
Surge Energy Rating:	156 Joules
Automatic Voltage Regulation (AVR):	Yes
Battery
Battery Type:	Maintenance-free sealed Lead-Acid
Battery Voltage:	12V
Typical Recharge Time:	8 hours
Expected Battery Life:	3–5 years
Replacement Battery:	RBC17
Physical and environmental
Outlets:	4 universal receptacles (battery backup & surge protection)
Dimensions (H x W x D):	9.25 cm x 16.05 cm x 30.5 cm
Net Weight:	5.7 kg
Color:	Black
Audible Noise:	40.0 dBA at 1 meter
Operating Temperature:	0°C to 40°C
Standard Warranty:	2-year

General specifications
Capacity:	1000VA / 600W

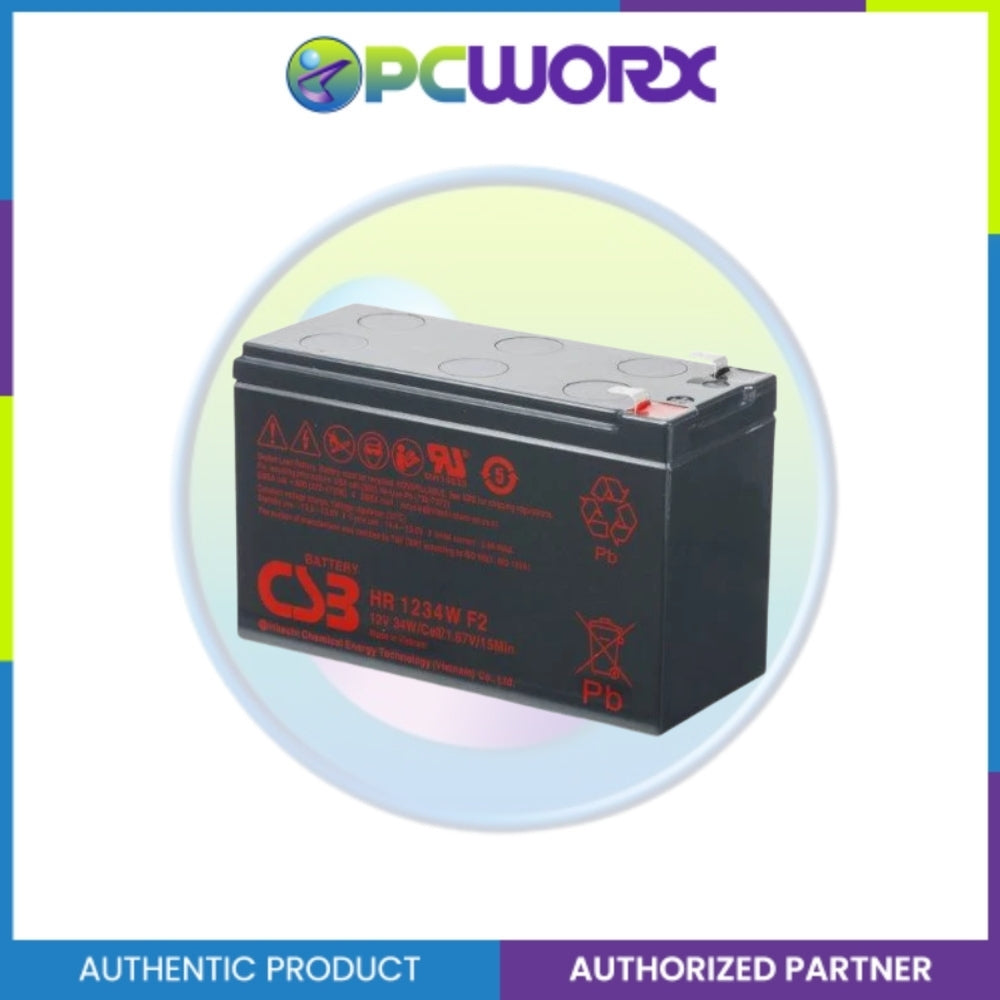

Battery:	1x 12V/9Ah
Sockets:	4x Universal Sockets
Form Factor:	Tower
Dimensions:	95 x 320 x 160mm
Weight:	5.8 Kg
Key features
Voltage Regulation:	Boost and buck AVR for voltage stabilization
Control:	Microprocessor-based digital control
Input:	Wide input voltage and frequency range
Indicators:	LED indicators for status
Protections:	Short circuit, overload, and battery overcharge/overdischarge protection
Charging:	Automatic charging in OFF mode and three-stage charging to shorten recharge time
Testing:	Power-on self-test and cold start function
Restart:	Auto restart when mains power is restored

Specifications
Ratings:	650VA / 390W
Battery:	1x 12V/7Ah
Interface:	4x US standard sockets
Form Factor:	Tower
Size:	95 x 320 x 160mm
Weight:	3.8 Kg
Features
Digital Control:	Microprocessor-based digital control
Voltage Regulation:	Boost and buck AVR for voltage stabilization
Frequency:	Auto sensing frequency
Input Voltage:	Wide input voltage range
Protection:	Overload and short circuit protection
Self-Test:	Power on self test
Cold Start:	Can start from battery power without mains connection
Charging:	Auto charging at off mode and intelligent battery management
Display:	LED or LCD display selectable
Restart:	Auto restart when mains power is restored

Specification
Technical Specification:	5A1200I
Rating (VA/W):	1200VA/650W
Form Factor:	Tower
Input Voltage Range:	140 – 300 VAC
Frequency:	50 / 60 Hz
Output Voltage:	230 VAC
Battery Wave Form:	Stepped sine wave
Output backup socket
DIN model:	(4) Schuko outlets
NEMA model:	(6) NEMA universal outlets
UNI model:	(4) Universal outlets
Surge protection:	Yes
Generator Compatible:	Yes
Mute by Power Key:	Yes
Circuit breaker:	Yes

Technical Specification : 5A1500I
Rating (VA / W) :	1500VA/900W
Form factor :	Tower
Input Voltage range :	140 – 300 VAC
Frequency :	50 / 60 Hz
Output Voltage :	230 VAC
Battery Wave Form :	Stepped sine wave
Output backup socket :	DIN model: (4) Schuko outlets , NEMA model: (6) NEMA universal outlets, UNI model: (4) Universal outlets
Surge protection :	Yes
Generator Compatible :	Yes
Mute by Power Key :	Yes
Circuit breaker :	Yes

Capacity:	850 VA
Input:	Voltage 230V AC
Voltage Range:	140-300 VAC
Frequancy Range:	50 Hz
OUT PUT:
Ac Voltage Regulation (Batt. Mode):	±10%
Frequency Range(Batt. Mode):	50 Hz± 1%
Transfer Time:	Typical 4-8ms, Max. 10ms
Waveform( Batt.Mode):	Simulated Sine Wave
Battery
Battery Type & Number
Backup Time ( One PC load )	40 min.
Typical Recharge time:	8 hours up to 90% capacity
INDICATORS:
AC Mode:	User Friendly LCD
Battery Mode:	User Friendly LCD
Fault:	User Friendly LCD
ALARM
Battery Mode:	Sounding every 10 seconds
Low Battery:	Sounding every seconds
Overload:	Sounding every 0.5 seconds
Fault:	Continuously sounding
PHYSICAL
Output Receptacles	Input output x 4
Dimensions DxWxH (mm):	290 x 142 x 98
Net Weight (Kgs):	4.8
ENVIRONMENT
Humidity:	0-90% RH @ 0-400C (non-condensing)
Noise Level:	less than 40dB

Specification
Technical Specification:	5A1500I
Rating (VA/W):	2200VA/1200Watts
Form Factor:	Tower
Input Voltage Range:	140 – 300 VAC
Frequency:	50 / 60 Hz
Output Voltage:	230 VAC
Battery Wave Form:	Stepped sine wave
Output backup socket
DIN model:	(4) Schuko outlets
NEMA model:	(6) NEMA universal outlets
UNI model:	(4) Universal outlets
Surge protection:	Yes
Generator Compatible:	Yes
Mute by Power Key:	Yes
Circuit breaker:	Yes

Model	5A700I
Rating (VA / W)	700VA / 360W
Form Factor	Tower
Input Voltage Range	140 – 300 VAC
Frequency	50 / 60 Hz
Output Voltage	230 VAC
Battery Wave Form	Stepped sine wave
Output Backup Socket	NEMA model: (4) NEMA universal outlets
Surge Protection	Yes
Generator Compatible	Yes
Mute by Power Key	Yes
Circuit Breaker	Yes

Product Features:
Model :	5A900I
Rating (VA/W) :	900VA/480W
Format:	Tower
Input voltage range :	140–300 VAC
Frequency range :	60/50 Hz (Auto sensing)
Surge protection :	Yes
Generator compatible :	Yes
Mute by power key :	Yes
Circuit breaker :	Yes
Output voltage :	230 VAC
Output voltage reg. (Battery mode) :	±10%
Battery wave form :	Stepped sine wave
Protection :	PCBA current sensor (F/W protection)
DIN model:	(2) Schuko outlets
NEMA model:	(4) NEMA Universal outlets
UNI model:	(2) Universal outlets
Battery Type:	12V/9Ah x1
Recharge time :	4–6 hours recover to 90% capacity

Power specifications

Capacity:	650VA / 360W
Input Voltage Range:	140V~300VAC
Output Voltage:	230VAC
±plus or minus
±
10% (in battery mode)
Output Waveform:	Modified sine wave
Transfer Time:	3-8ms typical (battery to line mode)

Battery and recharge

Battery Type:	12V/7Ah
Number of Batteries:	1
Backup Time:	Approximately 16 minutes at a 100W load
Recharge Time:	2-4 hours (to 90%)

Features and connectivity

Topology:	Line-Interactive
Output Sockets:	4-6 outlets (depending on the exact model), with some versions including both battery backup and surge-only outlets
Cold Start:	Available
Display:	LED indicators
Audible Alarm:	Yes
USB Interface:	Available on certain models for integration with power management software
Surge Suppression:	RJ11 and RJ45 options are available on some models

Capacity:	1000VA / 700 Watts
Input Voltage:	140-300VAC
Output Voltage:	220V/230V/240V (and sometimes 110V/120V/127V, depending on model)
Output Waveform:	Simulated Sine Wave
Transfer Time:	Typical 2-6ms
Frequency:	50/60 Hz (auto-sensing)
AVR:	Yes, for voltage stabilization
Protection:	Overload, overcharge, and discharge protection
Typical Recharge Time:	9-10 hours
Backup Time:	6-30 minutes (depending on load)

Main menu

MAXIMIZEBF

Explore Related Collections
