APC Back-UPS (BX1600MI-MS) 1600VA, 230V, AVR, Universal Sockets APC UPS

PCWORX

APC Back-UPS (BX1600MI-MS) 1600VA, 230V, AVR, Universal Sockets APC UPS

(0)

₱14,835.00

Low in stock

Receives in 5 days.

APC Back-UPS (BX750MI-MS) 750VA, 230V, AVR, Universal Sockets | APC UPS

PCWORX

APC Back-UPS (BX750MI-MS) 750VA, 230V, AVR, Universal Sockets | APC UPS

(0)

₱8,351.08

In stock

Receives in 5 days.

APC Back-UPS (BX950MI-MS) 950VA, 230V, AVR, IEC Sockets | APC UPS

PCWORX

APC Back-UPS (BX950MI-MS) 950VA, 230V, AVR, IEC Sockets | APC UPS

(0)

₱10,548.00

In stock

Receives in 5 days.

Apc Bv800i-Ms Easy Ups Bv 800va, Avr, Universal Outlet, 230v

PCWORX

Apc Bv800i-Ms Easy Ups Bv 800va, Avr, Universal Outlet, 230v

(0)

₱4,025.00

In stock

Receives in 5 days.

APC BVX1200LI-MS Easy Back UPS 1200VA/650Watts 230V AVR Universal Sockets UPS

PCWORX

APC BVX1200LI-MS Easy Back UPS 1200VA/650Watts 230V AVR Universal Sockets UPS

(0)

₱7,020.00

Cold-start capable - Provides temporary battery power when the utility power is out.
Boost Automatic Voltage Regulation (AVR) - Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Transformer-block spaced outlets - Protect equipment with input transformer blocks without blocking access to other receptacles.
Sleek design - Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.

PROTECTION

Battery backup and surge protection - Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Battery and surge protected outlets - Back up and protect your hardware and data during power outages, surges and spikes.

MANAGEABILITY

LED Indicators - Provide easy-to-read status of the unit and utility power conditions.
Audible alarms - Provides notification of changing utility power and UPS power conditions

Specifications
Power Capacity:	1200VA / 650 Watts
Voltage:	230V (Nominal Input & Output)
Topology:	Line-Interactive
Output Connections:
1 x IEC 320 C13 (Battery Backup)
4 x Universal (Battery Backup)
Waveform Type:	Stepped approximation to a sinewave
Transfer Time:	6 ms typical / 10 ms maximum
Runtime:	5 minutes at 50% load
Features
Automatic Voltage Regulation (AVR):	Corrects voltage fluctuations without draining the battery.
Computer Grade Surge Protection:	Protects against damaging power surges and spikes.
Quick Mute:	Allows for silencing of audible alarms during a power event.
LED Indicators:	Provides easy visual confirmation of the UPS's functional status.
Design:	Slim and modern, can be placed upright, flat, or wall-mounted.
Additional Information
Input Connection:	IEC 60320 C14
Cord Length:	1.2 meters
Battery:	Maintenance-free sealed Lead-Acid battery
Regulatory Approvals:	CE, CB, EN/IEC 62040-1, EN/IEC 62040-2.

In stock

Receives in 5 days.

PCWORX

APC BVX900LI-MS Easy Back UPS 900VA/480Watts 230V AVR Universal Sockets

(0)

₱5,290.00

Specifications

Main Input Voltage	230 V AC 1 phase
Main Output Voltage	230 V AC 1 phase
Rated power in W	480 W
Rated power in VA	900 VA
Product or component type	Uninterruptible power supply (UPS)
Input Connection Type	IEC 60320 C14
output connection type	2 universal 1 IEC 60320 C13
Cable length	1.2 m
Number of cables	1
Battery type	Lead-acid battery
Provided equipment	User manual

Batteries & Runtime


Number of battery filled slots	0
Number of battery free slots	0
Battery recharge time	8 h
Battery voltage	12 V
Battery capacity	9.0 Ah
Battery life	2…3 year(s)

Extended runtime	0

General
Max runtime	120 min
Number of power module free slots	0
Number of power module filled slots	0
Redundant	No
UPS size	WS

Physical
Colour	Black
Height	16 cm
Width	12 cm
Depth	35.5 cm
Net weight	6 kg
Mounting support	Floor
Mounting preference	No preference
Mounting mode	Not rack-mountable
Two post mountable	0
USB compatible	No

Input
Network frequency	50/60 Hz +/- 5 Hz auto-sensing
Input voltage limits	140...300 V 230 V AC
Cos phi	0.53

Output
Maximum configurable power in W	480 W
Output frequency	50/60 Hz +/- 1 Hz sync to mains
UPS type	Line interactive
Wave type	Stepped approximation to a sinewave
Full load runtime	00:01:00 480 W
Graph display	1
Half load runtime	00:06:30 240 W
Maximum configurable power in VA	900 VA
Transfer time	6 ms typical : 10 ms maximum

Conformance
Product certifications	CE
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Equipment protection policy	Lifetime : 50000 euros

Environmental
Ambient air temperature for operation	0…40 °C
Relative humidity	0…95 % non-condensing
Operating altitude	0...3000 m
Ambient air temperature for storage	-15…40 °C
Storage Relative Humidity	0…95 % non-condensing
Storage altitude	0…3000 m
Acoustic level	40 dBA
IP degree of protection	IP20

Surge Protection and Filtering
Surge energy rate	273 J

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	25 cm
Package 1 Width	43 cm
Package 1 Length	19.7 cm
Package 1 Weight	6.5 kg
SCC14	10731304404368

Out of stock

Receives in 5 days.

APC BX1200MI-MS 1200VA 650 Watts 230V Line Interactive w/ AVR | APC UPS

PCWORX

APC BX1200MI-MS 1200VA 650 Watts 230V Line Interactive w/ AVR | APC UPS

(0)

₱13,000.00

In stock

Receives in 5 days.

APC BX2200MI-MS 2200VA/1200 Watts 230V Line Interactive w/ AVR UPS

PCWORX

APC BX2200MI-MS 2200VA/1200 Watts 230V Line Interactive w/ AVR UPS

(0)

₱17,728.00

In stock

Receives in 5 days.

APC Power Supply BV650I-MS 650VA/375Watts Line Interactive with AVR | APC UPS

PCWORX

APC Power Supply BV650I-MS 650VA/375Watts Line Interactive with AVR | APC UPS

(0)

₱3,960.00

Low in stock

Receives in 5 days.

AWP AID1000 Aide 600W/1000VA UPS with AVR Uninterruptible Power Supply (4 Sockets)

PCWORX

AWP AID1000 Aide 600W/1000VA UPS with AVR Uninterruptible Power Supply (4 Sockets)

(0)

₱2,357.50

Out of stock

Receives in 5 days.

PCWORX

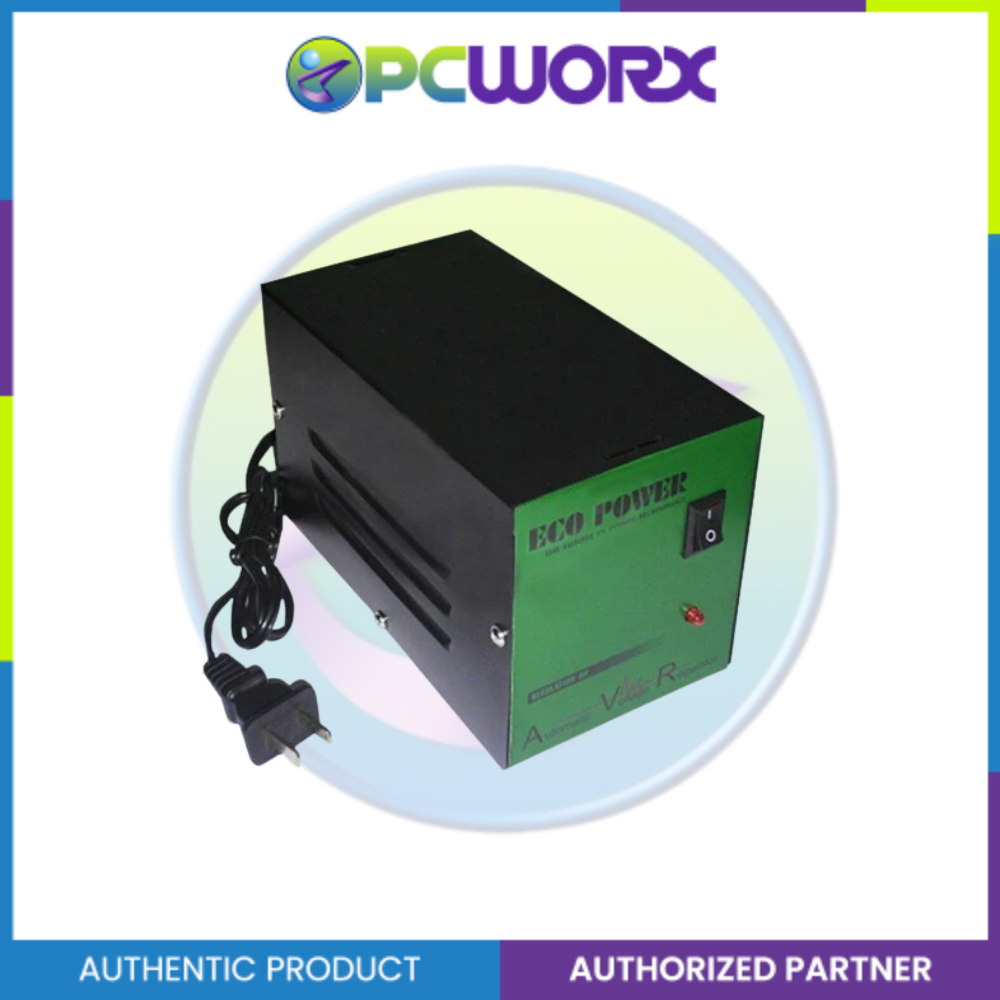

Eco 500watts with 110Volts | AVR

(0)

₱282.00

In stock

Receives in 5 days.

Noritsu Plus 4x220v Automatic Voltage Regulator | AVR

PCWORX

Noritsu Plus 4x220v Automatic Voltage Regulator | AVR

(0)

₱258.00

In stock

Receives in 5 days.

PCWORX

Secure 500watts AVR

(0)

₱270.00

In stock

Receives in 5 days.

Specifications
Model:	BX1600MI-MS
Power Capacity:	1600VA / 900 Watts
Topology:	Line-Interactive
Waveform Type:	Stepped approximation to a sinewave
Output Voltage:	230V
Output Connections:	4 Universal outlets (Battery Backup)
Input Frequency:	50/60Hz +/- 0.5Hz
Runtime at ½ Load:	6.5 minutes
Runtime at Full Load:	1 minute
Transfer Time:	6 ms typical, 10 ms maximum
Battery Type:	Maintenance-free sealed Lead-Acid
Battery Recharge Time:	8 hours
Data Line Protection:	RJ45 Gigabit
Software:	PowerChute Personal Edition
Surge Energy Protection:	273 Joules

Specifications
Model:	APC Back-UPS BX750MI-MS
Power Capacity:	750VA / 410 Watts
Input/Output Voltage:	230V
Topology:	Line-Interactive
Waveform:	Stepped approximation to a sinewave
Output Connections:
2 x Universal Sockets (Battery Backup)
1 x IEC 60320 C13 (Battery Backup)
Automatic Voltage Regulation (AVR):	Yes
Features and Benefits
Battery Backup:	Provides power to essential equipment during power outages.
Surge Protection:	Protects devices from damaging power surges and spikes.
Universal Sockets:	Accommodates various device plugs.
Line-Interactive Design:	Offers efficient power management.
AVR:	Automatically regulates voltage without switching to battery for minor fluctuations.

Specifications:
Model:	BX950MI-MS
Capacity:	950 VA
Rated Power:	520 W (480 W load)
Input Voltage:	230 V
Output Voltage:	230 V
UPS Type:	Line-interactive
Waveform:	Stepped approximation to a sine wave
Transfer Time:	6 ms typical
Outlets:	2 Universal outlets and 2 IEC (C13) outlets
Features:
Automatic Voltage Regulation (AVR)
Battery-protected and surge-protected outlets
Surge-only protection for non-critical equipment
Automatic battery self-test
Status LED for On Line and On Battery modes
Distinct low-battery alarm
RJ45 10/100/1000 Base-T Ethernet data line protection

Power and electrical specifications
Power Rating:	1200VA / 650 Watts
Topology:	Line-interactive
Waveform:	Stepped approximation to a sinewave
Output Voltage:	230V
Input Voltage:	230V
Input Frequency:	50/60 Hz +/- 5 Hz auto-sensing
Output Frequency:	50/60 Hz +/- 1 Hz sync to mains
Transfer Time:	6 ms typical / 10 ms maximum
Surge Energy Rating:	273 Joules
Connections and runtime
Output Connections:	4 universal sockets (battery backup + surge) and 1 IEC C13 (battery backup)
Input Connection:	IEC C14
Power Cord:	1.2 meters
Full Load Runtime:	Approximately 1 minute at 650W
Other features
Automatic Voltage Regulation (AVR):	Corrects voltage fluctuations without using the battery
Battery:	Lead-acid, typical recharge time of 8 hours, expected life of 1-2 years
Warranty:	2-year manufacturer warranty

Specifications:
Power Capacity:	2200VA / 1200 Watts
Topology:	Line-Interactive
Output Voltage:	230V (On Battery: 230V +/- 10% at 100% load)
Waveform:	Stepped approximation to a sinewave
Output Connections:	4 Universal outlets for battery backup
Automatic Voltage Regulation (AVR):	Corrects voltage fluctuations by increasing or decreasing output voltage without using the battery, conserving its power.
Data Line Protection:	Includes RJ45 Gigabit ports for network surge protection
Runtime:
Typical Backup Time (½ Load):	8.5 minutes
Typical Backup Time (Full Load):	1 minute
Batteries:
Type:	Maintenance-free, sealed Lead-Acid
Recharge Time:	Approximately 8 hours for a typical recharge
Management:	Features intelligent battery management, with a periodic self-test to detect failing batteries and provide early warnings for replacement.

Main menu

Product comparison

Specifications
Power Capacity:	800VA / 450 Watts
Voltage:	230V nominal input and output
Output Connections:	4 Universal Receptacles (all battery backup)
Topology:	Line Interactive
Waveform Type:	Stepped approximation to a sinewave
Transfer Time:	6ms typical, 10ms maximum
Input Connection:	IEC-320 C14
Battery:	Maintenance-free sealed Lead-Acid
Features & Management
Automatic Voltage Regulation (AVR):	Corrects for voltage fluctuations without switching to battery power.
Universal Outlets:	Standardized connections for various plug types.
Control Panel:	LED Status display for power conditions (On Line, On Battery).
Audible Alarms:	Provides alerts for low battery, overload, and being on battery.

Specifications
Model:	BV650I-MS
Type:	Line-Interactive UPS
Power Capacity:	650VA / 375 Watts
Waveform Type:	Stepped approximation to a sinewave (Simulated Sine Wave)
Topology:	Line-Interactive
Output Connections:	Universal Outlets (4)
Protection Features
Automatic Voltage Regulation (AVR):
Surge Protection:	Offers protection against power surges.
EMI/RFI Filtering:	Filters out electrical noise.
Battery and Performance
Battery Type:	Maintenance-free sealed Lead-Acid battery
Battery Backup Time:	Up to 10 minutes at half load (variable).
Transfer Time:	6ms typical
User Interface
Control Panel:	LED Status display with On Line and On Battery indicators.
Alarms:	Audio and visual alarms for power failures, low battery, and overload.
Physical Characteristics
Dimensions:	330 x 140 x 100 mm (WxDxH)
Weight:	3.5 kg
Input Connection:	IEC-320 C14

General specifications
Capacity:	1000VA / 600W
Battery:	1x 12V/9Ah
Sockets:	4x Universal Sockets
Form Factor:	Tower
Dimensions:	95 x 320 x 160mm
Weight:	5.8 Kg
Key features
Voltage Regulation:	Boost and buck AVR for voltage stabilization
Control:	Microprocessor-based digital control
Input:	Wide input voltage and frequency range
Indicators:	LED indicators for status
Protections:	Short circuit, overload, and battery overcharge/overdischarge protection
Charging:	Automatic charging in OFF mode and three-stage charging to shorten recharge time
Testing:	Power-on self-test and cold start function
Restart:	Auto restart when mains power is restored

Specifications
Power Output:	500 Watts
Voltage Ports:
3 x 220-volt sockets
1 x 110-volt socket
110V Load Capacity:	50 watts
Design & Features:
Fast response to voltage fluctuations
Durable metal casing
Convenient front panel power switch
Solid-state device design
Safety Standards:	FCC, CB, CCC, TUV, CE, C-tick, EMI, EMC, S-Intertek, CPT-AB15

Specifications & Features:
Capacity:	500 VA (Volts-Amperes)
Power Input:	220V AC
Output Sockets:	4 x 220V sockets
Type:	Automatic Voltage Regulator (AVR)
Protection:	Overload fuse protection with a 5A fuse
Design:	Advanced, solid-state design with a durable metal casing
Performance:	Ultra-fast response time and abnormal peak voltage regulation
User Interface:	Convenient front panel power switch

Specifications
Voltage:	220V input and output
Wattage:	500 watts
Maximum Capacity:	50VA (Volt-Amperes)
Fuse:	5A
Sockets:	3 x 220V outlets
Casing:	Compact, powder-coated metal case

Main menu

MAXIMIZEBF

Explore Related Collections
