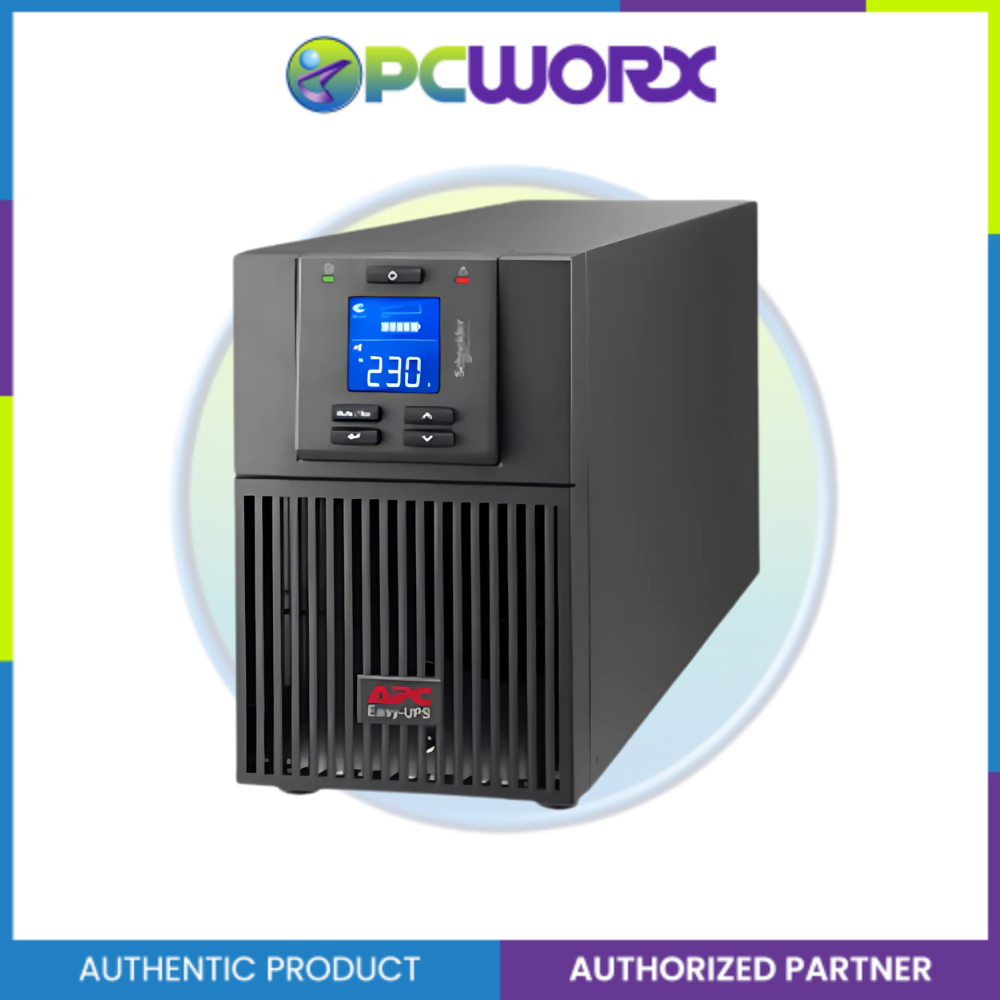

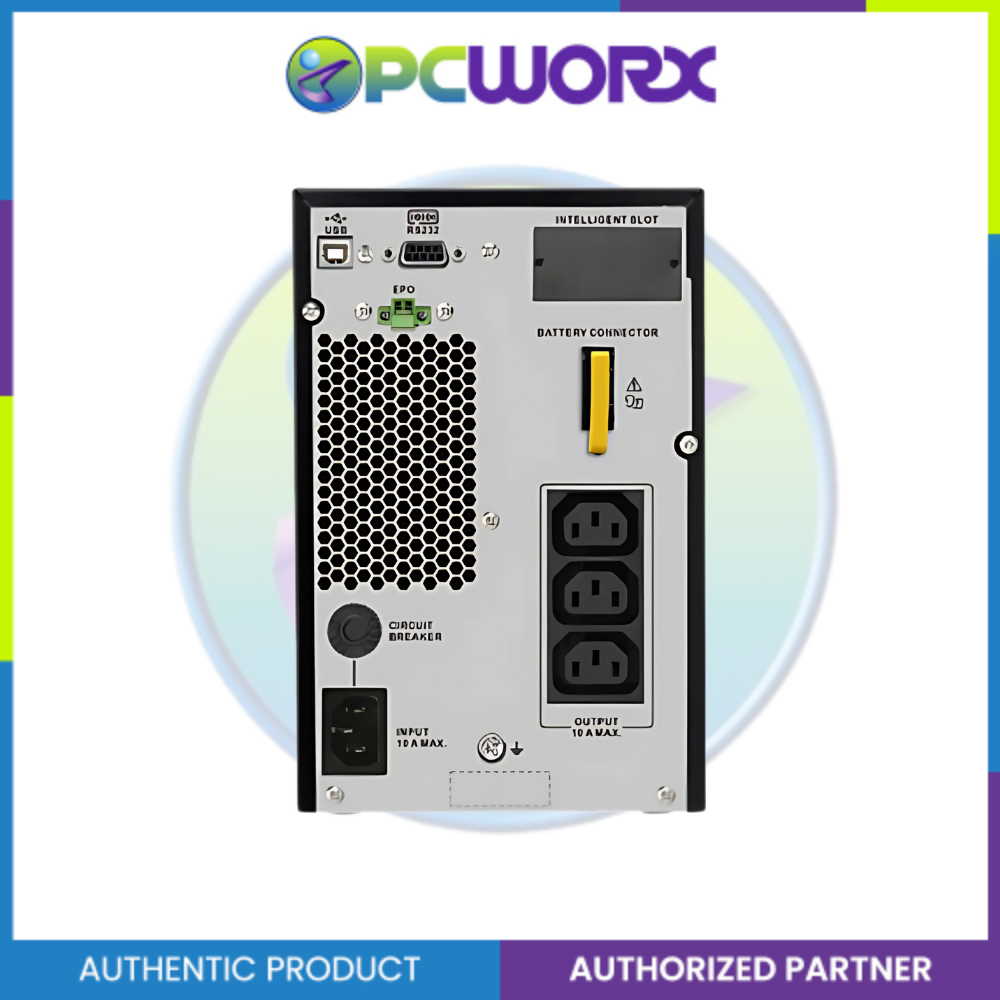

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV203. The Easy UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
UPS Specifications β Model: SRV
| Feature | Specification |
|---|---|
| Model | SRV |
| Output Capacity | 1000VA, 230V, 900W / 2000VA, 230V, 1800W / 3000VA, 230V, 2700W |
| Output (on battery) | 220β240V, 50/60Hz Β± 0.5Hz |
| Main Input Voltage | 230V |
| Other Input Voltage | 220β240V |
| Main Output Voltage | 230V |
| Other Output Voltage | 220β240V |
| Rated Power (W) | 900W, 1800W, 2700W |
| Rated Power (VA) | 1000VA |
| Input Connection Type | IEC 60320 C14 |
| Output Connection Type | 3 Γ IEC 60320 C13 |
| Cable Length | 1.5 m |
| Number of Cables | 1 |
| Provided Equipment | 1 Γ IEC 60320 C13 to Schuko cable, 1 Γ IEC 60320 C13 to C14 cable, 1 Γ USB cable, 1 Γ RSβ232 configuration cable, user manual |
| Battery Type | Leadβacid |
| Battery Voltage | 24V |
| Number of Battery Filled Slots | 0 |
| Number of Battery Free Slots | 0 |
| Battery Recharge Time | 4 h |
| Battery Life | 3β5 years |
| Battery Charger Power | 30 W (rated) |
| Input Voltage Limits | 110β285V (half load), 180β285V (full load) |
| Network Frequency | 40β70 Hz auto sensing |
| Maximum Configurable Power | 1000 VA / 900 W |
| Output Frequency | 50/60 Hz Β± 3 Hz (sync to mains) |
| Harmonic Distortion | 3% |
| UPS Type | Double conversion online |
| Wave Type | Sine wave |
| Efficiency | 88% (full load) |
| Additional Information | Configurable for 220, 230, or 240V nominal output |
| Bypass Type | Internal bypass (automatic and manual) |
| Crest Factor | 3:1 |
