| Specifications |
| Overview |
| Lead time |
| Usually in Stock |
| Main |
|
| Run time for load |
| 1320 |
|
| W |
|
| Min-max: 132-1320 W |
| 0min 28s |
|
| Max. Capacity Used |
| 100% |
|
| Main Input Voltage |
| 230 V AC 1 phase |
| Other Input Voltage |
| 230 V |
|
| Main Output Voltage |
| 230 V 1 phase |
| Rated power in W |
| 1320 W |
|
| Rated power in VA |
| 2200 VA |
|
| Product or component type |
| Uninterruptible power supply (UPS) |
| Input Connection Type |
| C19/C21 |
|

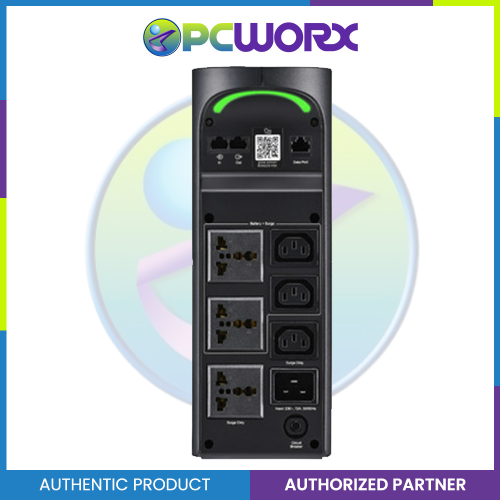

| output connection type |
| 3 IEC 60320 C13 surge |
| 3 universal surge |
| Cable length |
| 1.5 m |
|
| Number of cables |
| 1 |
|
| Battery type |
| Lead-acid battery |
| Batteries & Runtime |
| Run Time |
|
| View Runtime Graph |
| Efficiency |
| View Efficiency Graph |
| Number of battery filled slots |
| 1 |
|
| Number of battery free slots |
| 0 |
|
| Battery recharge time |
| 16 h |
|
| Number of battery replacement quantity |
| 1 |
|
| Battery voltage |
| 24 V |
|
| Overcurrent protection |
| 15 A |
|
| Battery charger power |
| 12 W rated |
| Battery life |
| 3…5 year(s) |
| General |
|
| Provided equipment |
| safety guide |
| USB cable |
| 2, power cable |
| 1, power adapter |
| product web sub-family |
| Gaming performance |
| Number preinstalled power module |
| 0 |
|
| Number of power module free slots |
| 0 |
|
| Redundant |
| No |
|
| Physical |
|
| Colour |
|
| White |
|
| Height |
|
| 292.1 mm |
|
| Width |
|
| 104.1 mm |
|
| Depth |
|
| 408.9 mm |
|
| Net weight |
| 12.24 kg |
|
| Mounting support |
| Floor |
|
| Mounting preference |
| No preference |
| Mounting mode |
| Not rack-mountable |
| Two post mountable |
| 0 |
|
| USB compatible |
| Yes |
|
| Mounting position |
| Vertical |
|
| Input |
|
| Network frequency |
| 50/60 Hz +/- 3 Hz |
| Plug standard |
| C19/C21 |
|
| Input voltage limits |
| 168...302 V |
| Maximum input current |
| 12:00 AM |
|
| Switching current capacity |
| 15 A |
|
| Input harmonic distortion |
| Less than 3 % for full load |
| Input protection type |
| Circuit breaker |
| Output |
|
| Maximum configurable power in W |
| 1320 W |
|
| Output frequency |
| 50/60 Hz +/- 3 Hz sync to mains |
| UPS type |
|
| Line interactive |
| Wave type |
| Sine wave |
| Full load runtime |
| 0:30:00 |
|
| Half load runtime |
| 0:04:19 |
|
| Maximum configurable power in VA |
| 2200 VA |
|
| Transfer time |
| 8 ms typical : 10 ms maximum |
| Conformance |
| Product certifications |
| CE |
|
| CB |
|
| Equipment protection policy |
| Lifetime : $150000 |
| Environmental |
| Ambient air temperature for operation |
| 0…40 °C |
|
| Relative humidity |
| 0…95 % |
|
| Operating altitude |
| 0...10000 ft |
| Ambient air temperature for storage |
| -15…40 °C |
|
| Storage Relative Humidity |
| 0…95 % |
|
| Storage altitude |
| 0.0000000000…3048.0000000000 m |
| Acoustic level |
| 45 dBA |
|
| IP degree of protection |
| IP20 |
|
| Communications & Management |
| Free slots |
| 0 |
|

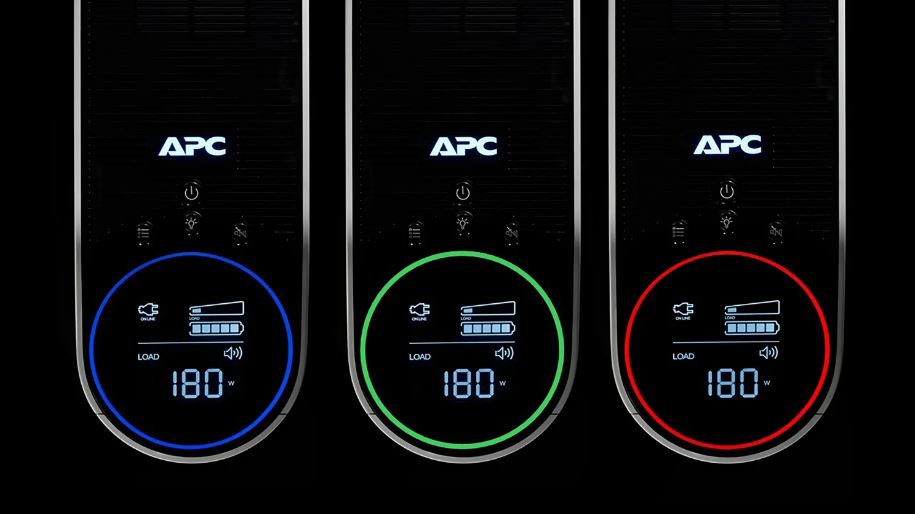

| control panel |
| Multifunction LCD status and control console |
| Alarm |
|
| Alarm when on battery :
|
distinctive low battery alarm : overload continuous tone alarm |
| Surge Protection and Filtering |
| Surge energy rate |
| 1080 J |
|
| Noise suppression |
| Full time multi-pole noise filtering :
|
5% of IEEE surge let-through : zero clamping response time: instantaneous |
| Packing Units |
| Unit Type of Package 1 |
| PCE |
|
| Number of Units in Package 1 |
| 1 |
|
| Package 1 Height |
| 15.5 cm |
|
| Package 1 Width |
| 35.5 cm |
|
| Package 1 Length |
| 48 cm |
|
| Package 1 Weight |
| 14.82 kg |
|
| SCC14 |
|
| 2.07E+13 |
|
| Contractual warranty |
| Warranty |
|
| 2 years repair or replace |
