NVMe M.2 SSD external hard drive enclosure 10Gbps
Do you have the latest technology in the field of data storage but you do not yet have the right housing? Then you can consider the latest Orico NVMe M.2 SSD housing. In combination with a unique transparent design and the latest technology, this is exactly the product you need. This housing is suitable for NVMe M.2 drives up to 2TB.
Extremely fast data transfer
The Orico NVMe M.2 SSD external hard drive enclosure features the latest 10Gbps USB 3.1 Gen2 Type-C interface. This results in very fast data exchange like never seen before. This way, high-quality images, VR technology and other large files can be exchanged quickly and easily.
M.2 interface VS MSATA interface
The M.2 interface is another alternative to the MSATA interface developed by Intel. The read and measure speed of the M.2 interface can reach up to 992 MB / s. The size of the M.2 interface is also different from that of the MSATA interface. The M.2 interface is only 2.75 mm thick and therefore a lot smaller than the MSATA.
Versatile in use
Thanks to the different screw holes, the NVMe M.2 housing can be used for different types of NVMe M.2 drives. It is possible to install the following disks: 22x30, 22x42, 22x60 and 22x80. Check in advance whether your NVMe M.2 disk fits in this Orico NVMe M.2 housing.
Compatible with PCIe NVMe M.2 M Key SSD with 2280, 2260, 2242, 2230 form factor: Samsung 950 Pro, PM951, PM981, SM961, 960 EVO, 960 Pro, 970 EVO, 970 Pro, WD Black, ADATA XPG, Corsair Force, Crucial, Intel Optane memory 600P, 760P, 900P, Toshiba OCZ RC100, Patriot, SK Hynix, Kingston, Mushkin Pilot, DREVO D1 XTREME Z370. Note: not suitable for SATA M.2 SSD.
Note: This enclosure is only suitable for NVME M.2 drives, including:
ADATA SPECTRIX S40G
ADATA SX6000 Lite and PRO
ADATA SX8200 PRO
ADATA XPG GAMMIX S5 / S11 PRO
ADATA XPG SPECTRIX S40G
KINGSTON S-A1000-M8 NVME 240/480/960 GB.
ORICO TROODON V500 SSD Series
LEXAR NM610
LEXAR NM520
VGEN HYPER NVME M.2 Series NV256VHY
SAMSUNG 950 PRO / SM961 (OEM)
SAMSUNG 960 PRO
SAMSUNG 970 EVO and EVO PLUS
WD BLACK PCI-e NVME SSD
WD BLUE SN500 NVME SSD
The NVMe M.2 hard drive enclosure is therefore NOT compatible with M.2 SATA drives.
Between the images you can find which disks are not compatible with this housing.
Installation:
1: Press and slide the back cover open.
2: Align the slot and insert the hard disk (not supplied).
3: Lock the screw on the back and fix the disk.
4: Place this in the housing and close the back cover.
Easy to connect to your phone / laptop
Connect the NVMe M.2 SSD housing to phones that have a Type-C interface such as the Huawei and the Meizu to easily increase the writing space. A number of smartphones from the Samsung brand also have the Type-C interface. Examples include the Samsung Galaxy S8 series, S9 series, S10 series and the Galaxy Note8 / Note9, the Huawei Mate 10 series, Mate 20 series and P20 series.
The NVMe M.2 SSD enclosure can also be use
DESCRIPTIONS:
2.5” SSD/HDD Enclosure Kit
What do you do with the old hard drive removed from your laptop? Don't throw it away, reuse it! Transcend's 2.5” SSD/HDD Enclosure Kit comes with all the tools you need to reuse the 2.5-inch hard drive removed from your notebook. Follow the step-by-step installation guide to find useful tips and assembly instructions. The kit also features a one-touch backup function, so download the Transcend Elite software from our website to better manage your data!
Appearance
Dimensions
129.5 mm x 80.8 mm x 18.8 mm (5.10" x 3.18" x 0.74")
Weight
108 g (3.8 oz)
Interface
USB Type
micro USB to USB Type A
Connection Interface
USB 3.1 Gen 1 (USB 5Gbps)
Bus Interface
SATA III 6Gb/s
Operating Environment
Operating Temperature
0°C (32°F) ~ 70°C (158°F)
Operating Voltage
5V
Note
Transcend 2.5” SATA III SSD and Elite software is required for One Touch Auto-backup function.
The enclosure is suitable for 2.5 inch HDD or SSD up to 9.5 mm in height.

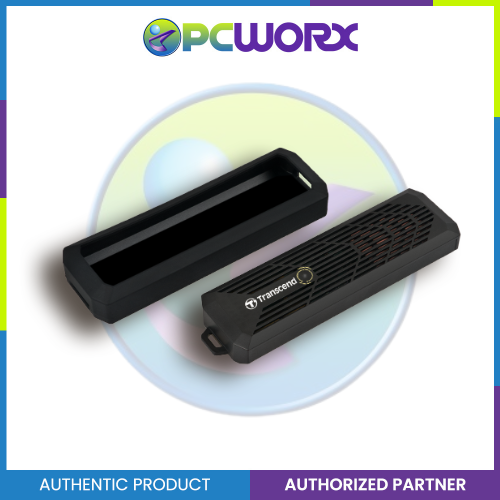

M.2 PCIe/SATA SSD Enclosure Kit
Transcend's CM10G is an enclosure designed specifically for M.2 PCIe or SATA SSDs. By following the tool-free installation guide, you can turn an M.2 PCIe/SATA SSD into a portable USB 10Gbps external drive to harness the full potential of your system.
Appearance
Dimensions
112.6 mm x 34.4 mm x 15.4 mm (4.43" x 1.35" x 0.61")
Weight
57 g (2.01 oz)
Interface
Connection Interface
USB 10Gbps
Operating Environment
Operating Temperature
0°C (32°F) ~ 60°C (140°F)
Storage Temperature
-40°C (-40°F) ~ 85°C (185°F)
Operating Voltage
5V
