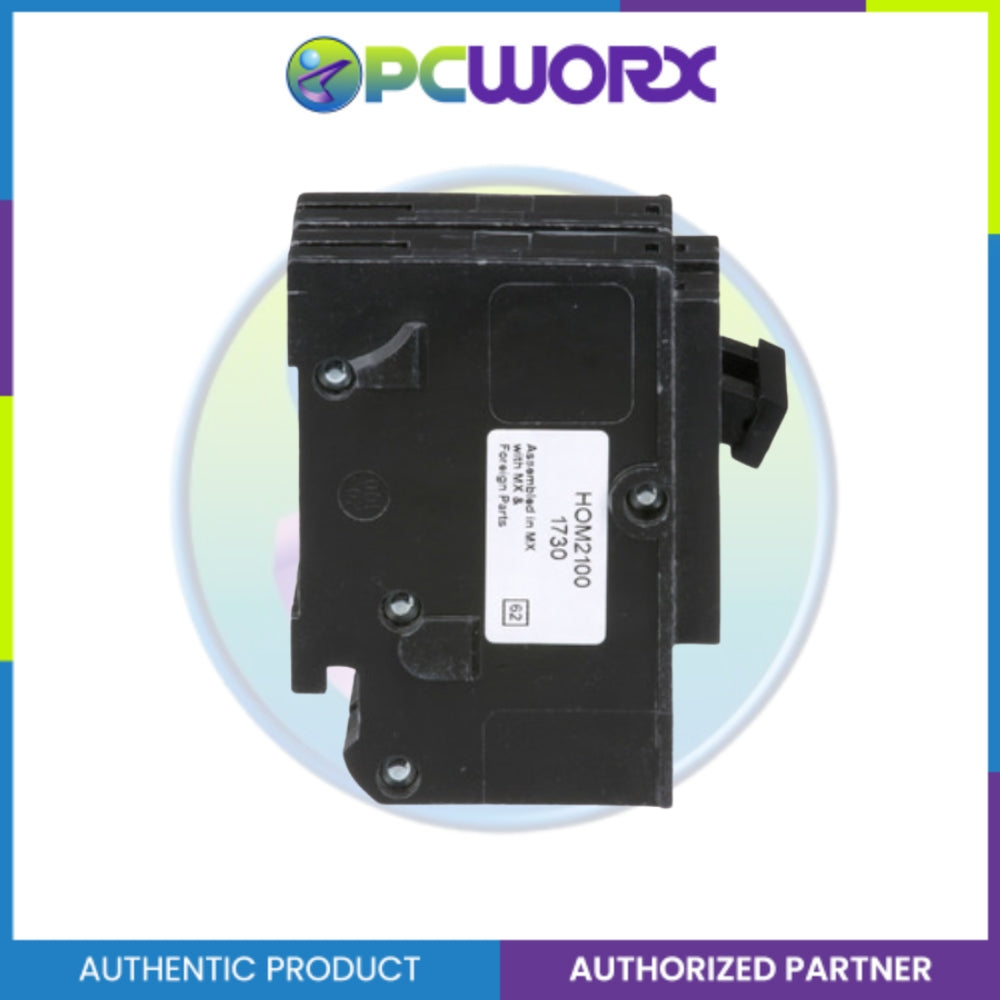

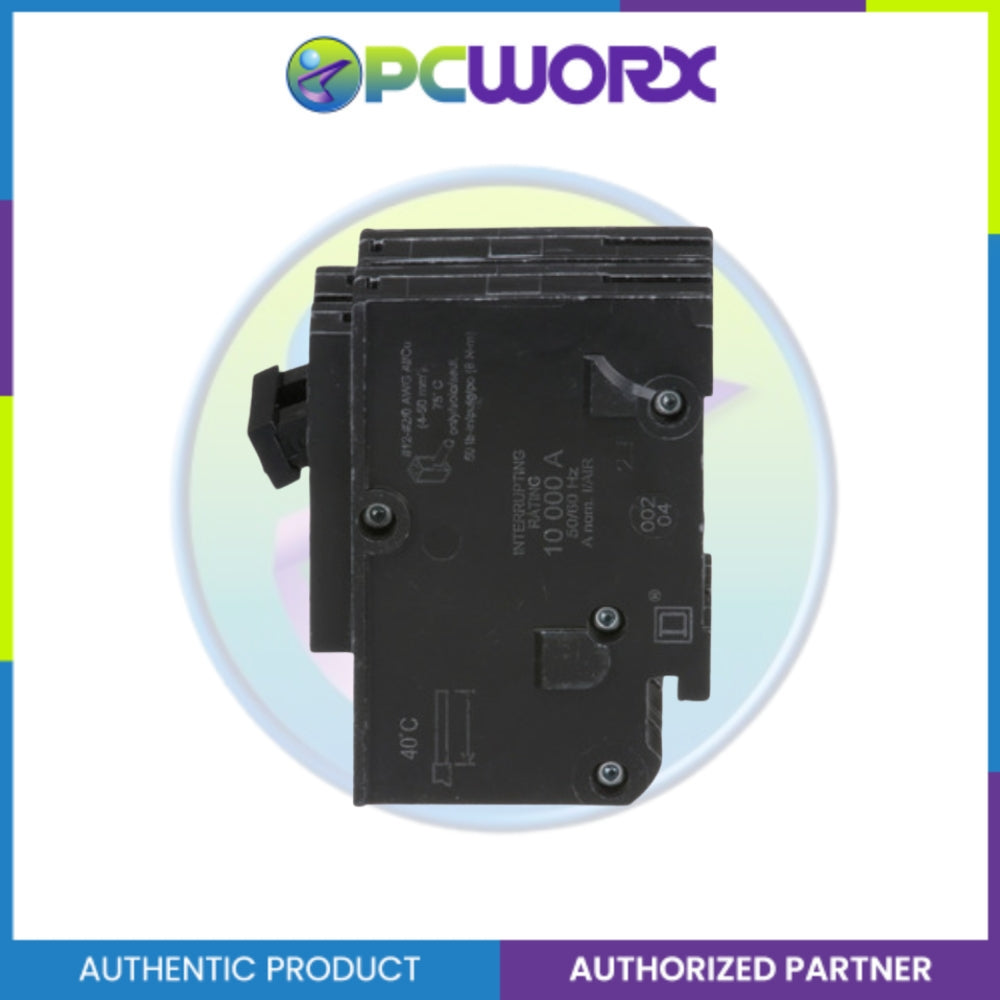

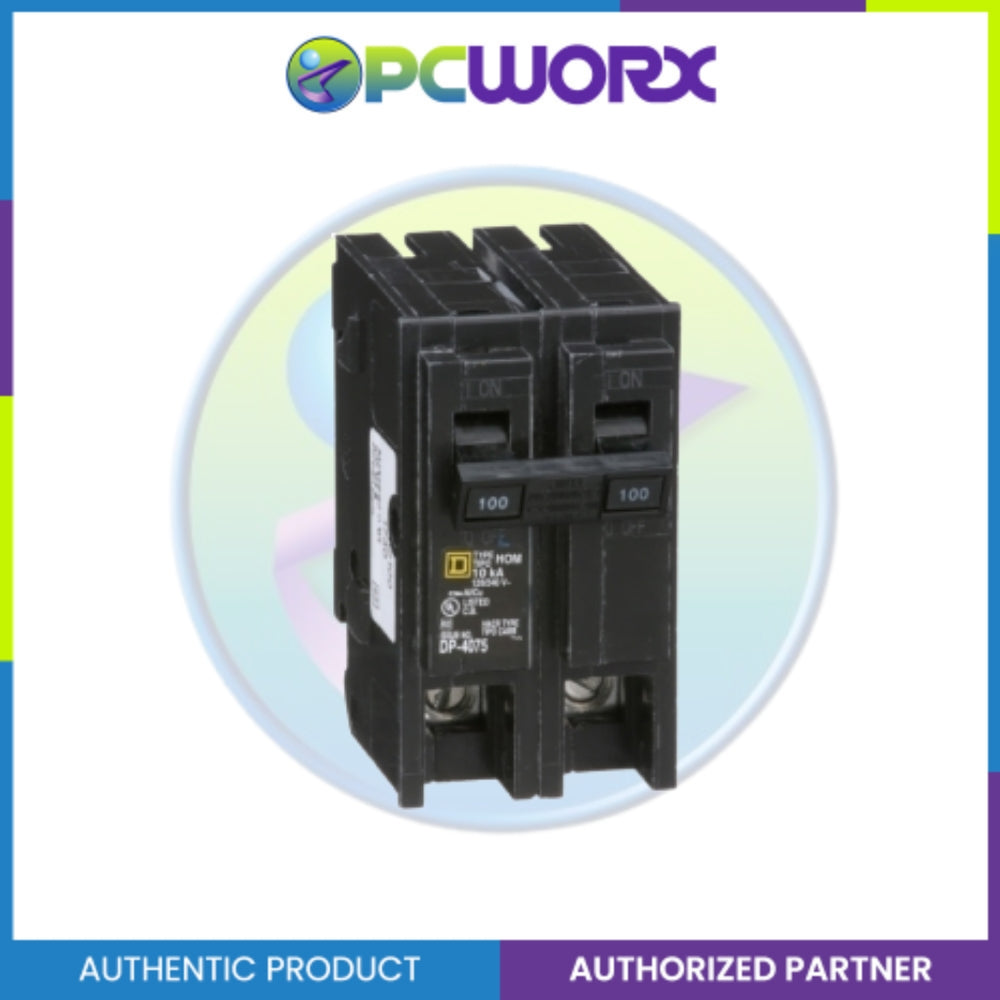

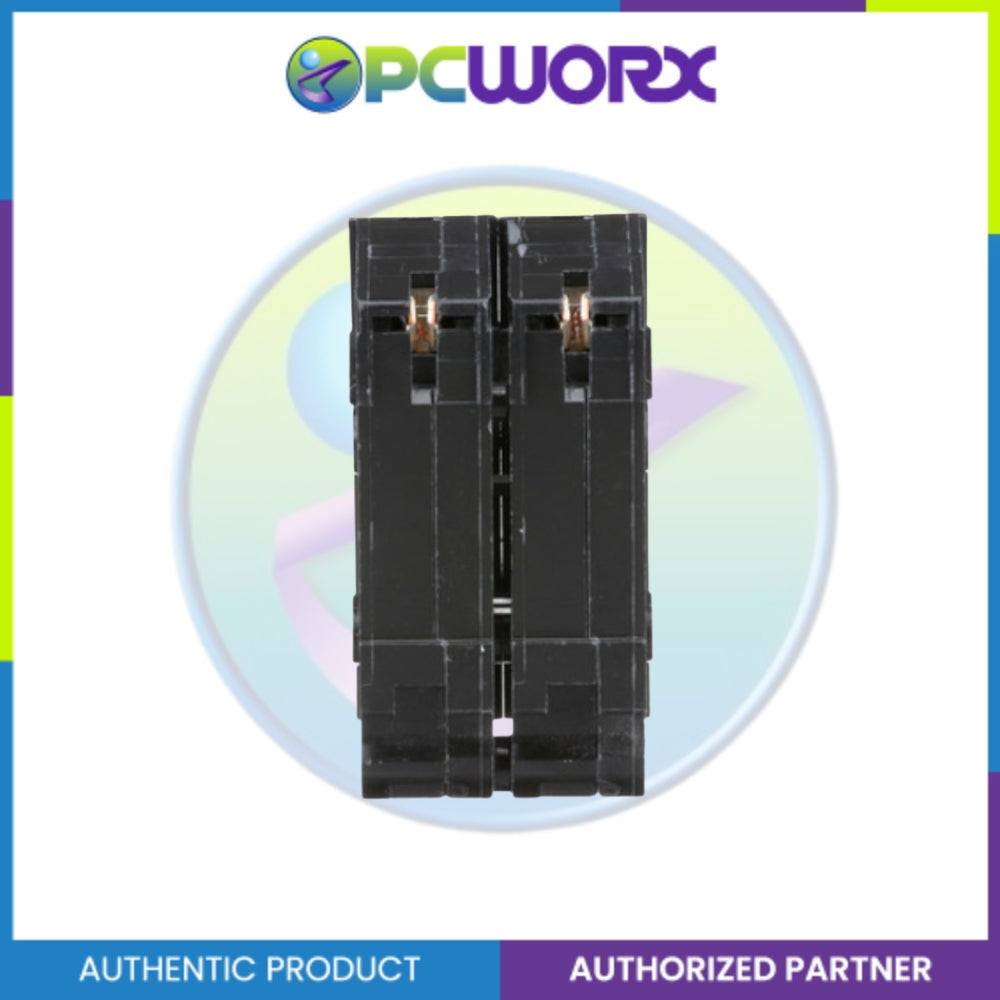

Schneider HOM2100 MINIATURE CIRCUIT BREAKER 120/240V 100A

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 100A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 4 AWG to 2/0 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Category Attribute Value
Main Product Miniature circuit-breaker
Main Range Homeline
Main Current Rating 100 A
Main Certifications UL listed
Main Voltage Rating 120/240 V AC
Main Mounting Type Plug-in
Main Number of Poles 2P
Main Short Circuit Current Rating 10 kA
Main Number of Spaces 2
Main Circuit Breaker Type Standard
Main Ratings HACR rated
Main Electrical Connection Box lugs
Main Wire Size 1 × AWG 4…AWG 2/0 (aluminium/copper)
Complementary Tightening torque 4.8 N·m (AWG 4…2/0 kcmil)
Complementary Height 79.50 mm
Complementary Width 50.8 mm
Complementary Depth 75.69 mm
Environment Ambient air temperature for operation 40 °C
Packing Units Unit Type of Package 1 PCE
Packing Units Number of Units in Package 1 1
Packing Units Package 1 Height 8.636 cm
Packing Units Package 1 Width 5.842 cm
Packing Units Package 1 Length 9.652 cm
Packing Units Package 1 Weight 430.913 g
Packing Units Unit Type of Package 2 CAR
Packing Units Number of Units in Package 2 36
Packing Units Package 2 Height 9.652 cm
Packing Units Package 2 Width 35.56 cm
Packing Units Package 2 Length 52.832 cm
Packing Units Package 2 Weight 14.265 kg
Packing Units Unit Type of Package 3 PAL
Packing Units Number of Units in Package 3 1728
Packing Units Package 3 Height 101.6 cm
Packing Units Package 3 Width 101.6 cm
Packing Units Package 3 Length 121.92 cm
Packing Units Package 3 Weight 674.491 kg

Schneider HOM2100 MINIATURE CIRCUIT BREAKER 120/240V 100A

Product form

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed... Read more

Free pickup in our shop(s)

SKU: 0000064489

5 in stock

₱1,617.60

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description

    Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 100A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 4 AWG to 2/0 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

    Category Attribute Value
    Main Product Miniature circuit-breaker
    Main Range Homeline
    Main Current Rating 100 A
    Main Certifications UL listed
    Main Voltage Rating 120/240 V AC
    Main Mounting Type Plug-in
    Main Number of Poles 2P
    Main Short Circuit Current Rating 10 kA
    Main Number of Spaces 2
    Main Circuit Breaker Type Standard
    Main Ratings HACR rated
    Main Electrical Connection Box lugs
    Main Wire Size 1 × AWG 4…AWG 2/0 (aluminium/copper)
    Complementary Tightening torque 4.8 N·m (AWG 4…2/0 kcmil)
    Complementary Height 79.50 mm
    Complementary Width 50.8 mm
    Complementary Depth 75.69 mm
    Environment Ambient air temperature for operation 40 °C
    Packing Units Unit Type of Package 1 PCE
    Packing Units Number of Units in Package 1 1
    Packing Units Package 1 Height 8.636 cm
    Packing Units Package 1 Width 5.842 cm
    Packing Units Package 1 Length 9.652 cm
    Packing Units Package 1 Weight 430.913 g
    Packing Units Unit Type of Package 2 CAR
    Packing Units Number of Units in Package 2 36
    Packing Units Package 2 Height 9.652 cm
    Packing Units Package 2 Width 35.56 cm
    Packing Units Package 2 Length 52.832 cm
    Packing Units Package 2 Weight 14.265 kg
    Packing Units Unit Type of Package 3 PAL
    Packing Units Number of Units in Package 3 1728
    Packing Units Package 3 Height 101.6 cm
    Packing Units Package 3 Width 101.6 cm
    Packing Units Package 3 Length 121.92 cm
    Packing Units Package 3 Weight 674.491 kg
