| Range |
Easy9 |
| Product or component type |

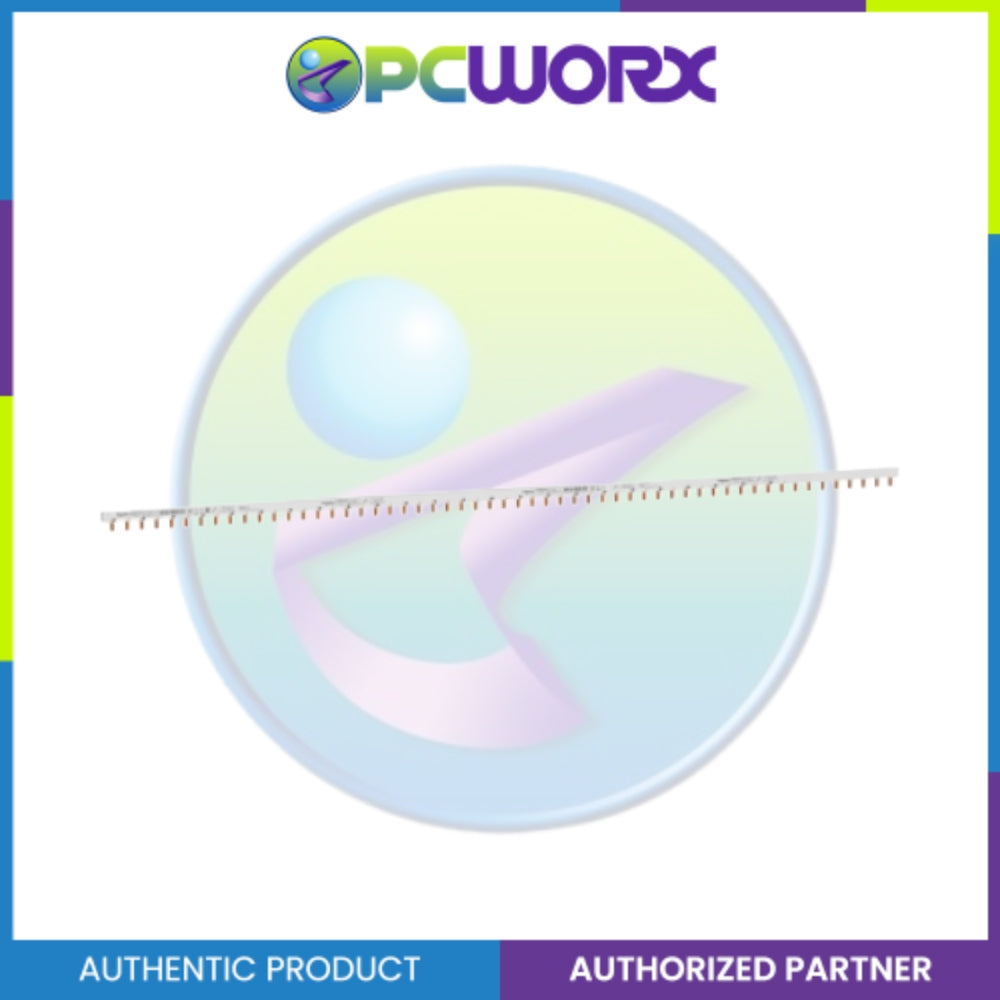

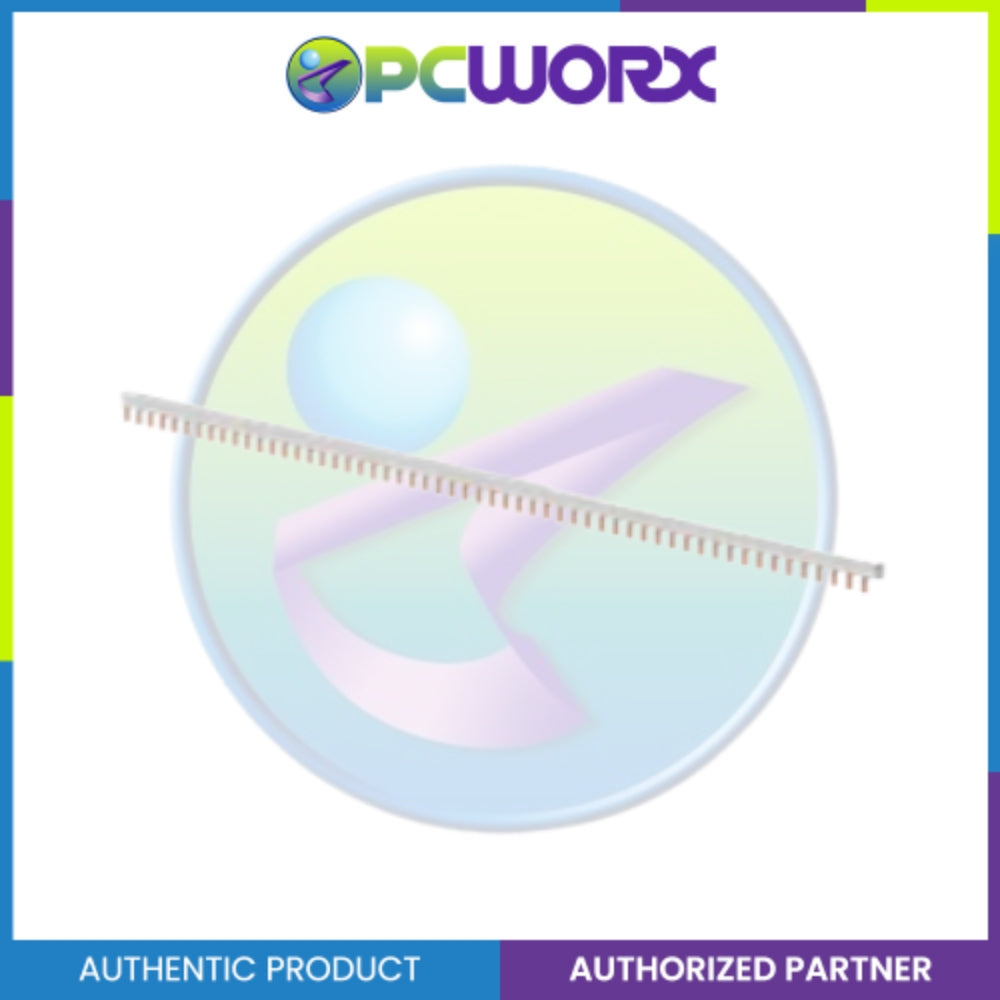

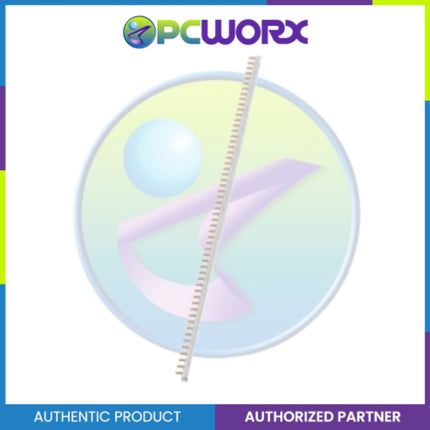

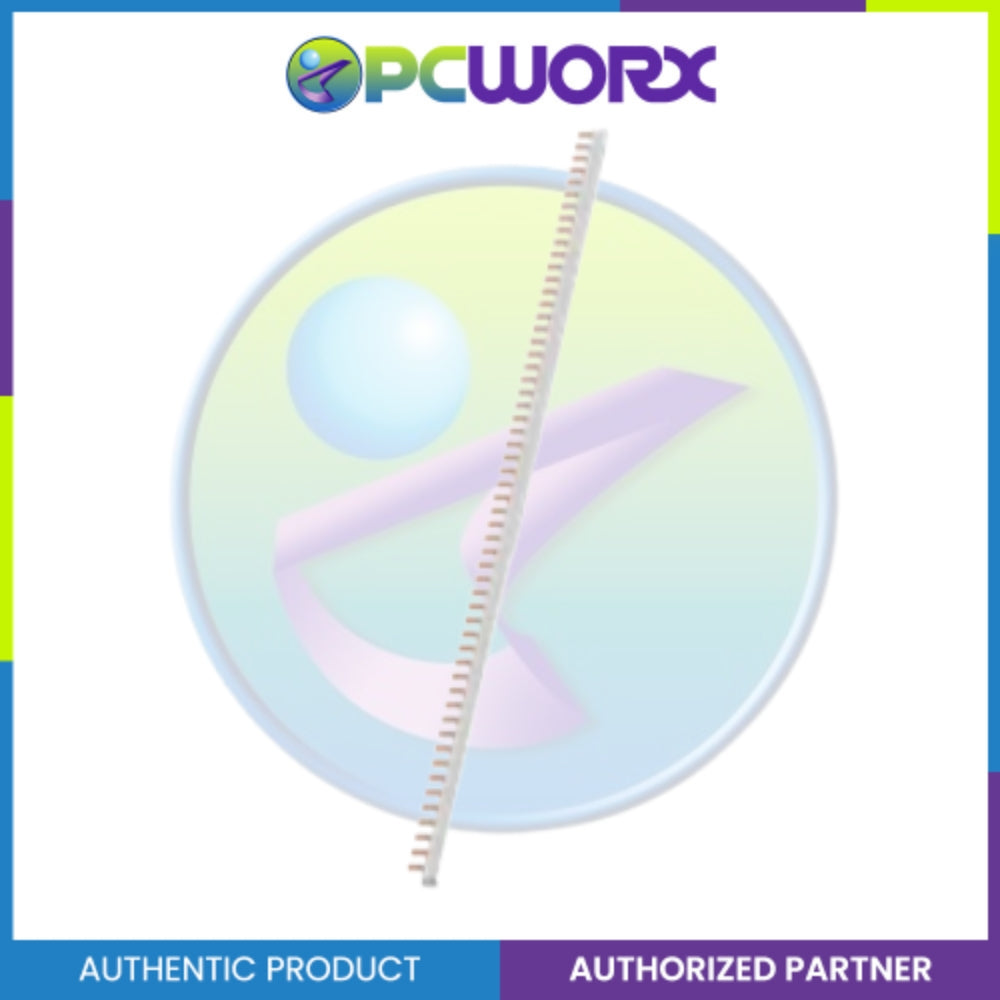

Comb busbar |
| Mounting mode |
Horizontal |
| Accessory / separate part category |
Connection accessory |
| Lines description |
2L |
| Length in 18 mm modules |
57 |
| Standards |
IEC 60439-1 |
|
IEC 60664 |
| Complementary |
|
| Number of ways |
28 ways 2 L |
| Poles configuration for 1 way |
1 x 2P |
| Connection pitch |
18 mm |
| Connector type |
Tooth |
| Distance between way |
36 mm |
| Insulation |
Insulated |
| Device presentation |
Cuttable |
| Provided equipment |
2 end piece |
| [Ie] rated operational current |
63 A at 40 °C |
| [Ue] rated operational voltage |
230 V AC 50 Hz Ph/N |
| |
400 V AC 50 Hz Ph/Ph |
| [Ui] rated insulation voltage |
500 V AC conforming to IEC 61439-1 |
| Mounting location |
Top on tunnel type terminals |
| 9 mm pitches |
114 |
| Width |
1000 mm |
| Colour |
Light grey (RAL 7035) |
| Range compatibility |
Easy9 Easy9 XP |
| Environment |
|
| Fire resistance |
850 °C ( 30 s ) conforming to IEC 60695-2-1 |
| Pollution degree |
2 |
| Packing Units |
|
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
1.000 cm |
| Package 1 Width |
2.500 cm |
| Package 1 Length |
100.000 cm |
| Package 1 Weight |
300.000 g |
| Unit Type of Package 2 |
BB1 |
| Number of Units in Package 2 |
5 |
| Package 2 Height |
5.200 cm |
| Package 2 Width |
9.000 cm |
| Package 2 Length |
106.700 cm |
| Package 2 Weight |
1.702 kg |
| Unit Type of Package 3 |
P12 |
| Number of Units in Package 3 |
270 |
| Package 3 Height |
75.000 cm |
| Package 3 Width |
80.000 cm |
| Package 3 Length |
120.000 cm |
| Package 3 Weight |
101.100 kg |
