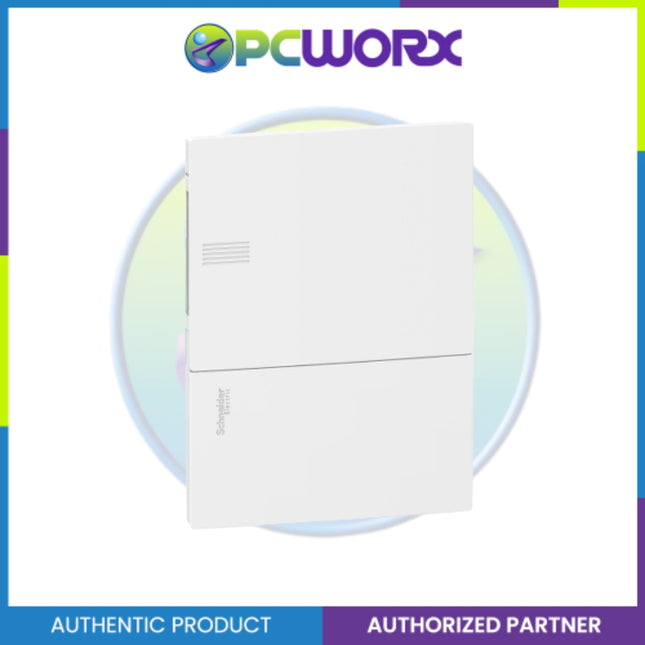

This Resi9 MP enclosure is a flush mounted modular enclosure. This enclosure is composed of 1 row of 6 modules of 18mm. It can accommodate all types of modular switchgear. The IP degree of protection is IP40. It is provided with a plain white door. The color of the front face is white (RAL 9003). It is intended for new or renovated installation in residential. It is equipped with 35 mm asymmetrical rail. It comes with 1 earth and 1 neutral terminal blocks with screwed connection terminals. The earth terminal block provides 4 outgoers (1x16mm² + 2x10mm² + 1x6mm²). The neutral one provides 4 outgoers (1x16mm² + 2x10mm² + 1x6mm²). The In rated current is up to 63A. It complies with IEC 60439-1 and 3, IEC 60670-1 and 24 standards. The total dimensions are (W) 186mm x (H) 252mm x (D) 98mm. The enclosure is made from techno plastic (back part and front face). The door is made from techno plastic. The resistance of the plastic to flames and to abnormal heat is 750°C for the door and the front face and 850°C for the back part. The IK degree of protection is IK07. The operating temperature is -25°C to 60°C. SPECIFICATIONS Main Range Resi9 product name Resi9 MP Product or component type Enclosure enclosure type Modular enclosure Nb of 18 mm modules per row 6 Nb of horizontal rows 1 Type of door Plain Width Wall: 162 mm   Outside: 186 mm Height Wall: 228 mm   Outside: 252 mm Depth Outside: 18 mm Wall: 80 mm Total: 98 mm Enclosure mounting Flush 9 mm pitches 12 Total number of 18 mm modules 6 [In] rated current 63 A Type of rail 35 mm asymmetrical rail Mounting plate description Without mounting plate cable entry Pre-cutted holes Terminal block function Earth / neutral Number of terminal blocks 1 earth (screwed) with 4 outgoers   1 neutral (screwed) with 4 outgoers Distribution block outgoers 1 x 16 mm² for earth 1 x 16 mm² for neutral 1 x 6 mm² for earth 1 x 6 mm² for neutral 2 x 10 mm² for earth   2 x 10 mm² for neutral Enclosure material Back part: techno plastic Door: techno plastic   Front face: techno plastic Internal depth 76 mm Color Door: white (RAL 9003)   Front face: white (RAL 9003) Market segment Residential Small commercial Environment Standards IEC 61439-1 IEC 61439-3 IEC 60670-1   IEC 60670-24 Quality labels IMQ Fire resistance Door: 650 °C Back part: 650 °C   Front face: 650 °C IP degree of protection IP40 IK degree of protection IK07 Ambient air temperature for operation -25…60 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 9.700 cm Package 1 Width 18.600 cm Package 1 Length 25.200 cm Package 1 Weight 579.000 g Unit Type of Package 2 BB1 Number of Units in Package 2 12 Package 2 Height 52.000 cm Package 2 Width 30.000 cm Package 2 Length 40.000 cm Package 2 Weight 7.825 kg Unit Type of Package 3 P12 Number of Units in Package 3 192 Package 3 Height 120.000 cm Package 3 Width 80.000 cm Package 3 Length 120.000 cm Package 3 Weight 137.208 kg

Read more less

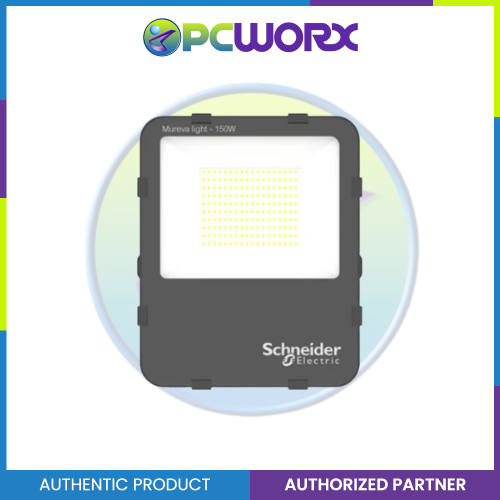

Specifications Main Range Mureva Range of product Mureva lights Product or component type Floodlight Device application Ware-houses and parking garages Residential Media device support Public areas Secure lighting Stadiums and arenas Complementary Type of installation Outdoor Total system power 150 W Light source LED [Ue] rated operational voltage 230 V AC Power factor 0.9 Colour rendering index Ra=80 Luminous flux 18000 lm Bulb lifespan 50000 h Colour temperature 6500 K Colour tint Black Provided equipment Sensor Electrical insulation class Class E Beam angle 110 ° Shape Rectangular Height 342.0 mm Width 278.0 mm Depth 61.0 mm Net weight 4.05 kg Environment Environmental characteristic Weatherproof IP degree of protection IP65 IK degree of protection IK06 Ambient air temperature for operation -30…45 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 11 cm Package 1 Width 32.4 cm Package 1 Length 40 cm Package 1 Weight 4.542 kg Unit Type of Package 2 S04 Number of Units in Package 2 2 Package 2 Height 30 cm Package 2 Width 40 cm Package 2 Length 60 cm Package 2 Weight 10.518 kg Unit Type of Package 3 P12 Number of Units in Package 3 16 Package 3 Height 75 cm Package 3 Width 80 cm Package 3 Length 120 cm Package 3 Weight 96.144 kg

Read more less

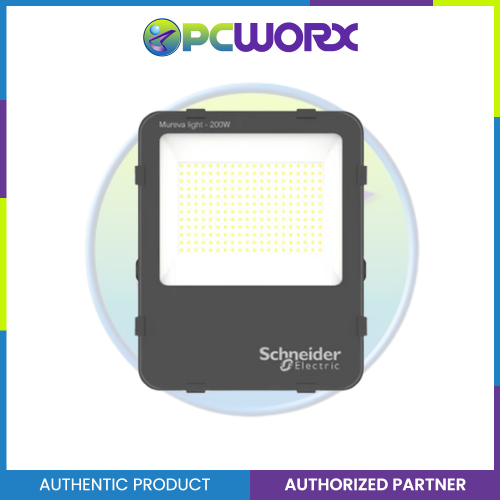

Specifications Main Range Mureva Range of product Mureva lights Product or component type Floodlight Device application Ware-houses and parking garages Residential Media device support Public areas Secure lighting Stadiums and arenas Complementary Type of installation Outdoor Total system power 200 W Light source LED [Ue] rated operational voltage 230 V AC Power factor 0.9 Colour rendering index Ra=80 Luminous flux 24000 lm Bulb lifespan 50000 h Colour temperature 6500 K Colour tint Black Provided equipment Sensor Electrical insulation class Class E Beam angle 110 ° Shape Rectangular Height 342.0 mm Width 278.0 mm Depth 61.0 mm Net weight 4.9 kg Environment Environmental characteristic Weatherproof IP degree of protection IP65 IK degree of protection IK06 Ambient air temperature for operation -30…45 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 11.6 cm Package 1 Width 34.2 cm Package 1 Length 42.4 cm Package 1 Weight 5.524 kg Unit Type of Package 2 S04 Number of Units in Package 2 2 Package 2 Height 30 cm Package 2 Width 40 cm Package 2 Length 60 cm Package 2 Weight 12.47 kg Unit Type of Package 3 P12 Number of Units in Package 3 16 Package 3 Height 75 cm Package 3 Width 80 cm Package 3 Length 120 cm Package 3 Weight 111.76 kg

Read more less

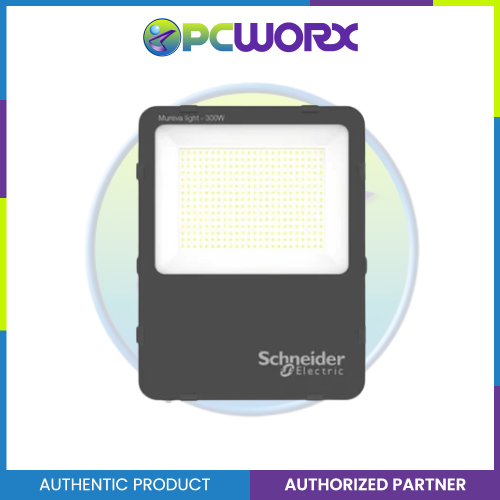

Specifications Main Range Mureva Range of product Mureva lights Product or component type Floodlight Device application Ware-houses and parking garages Residential Media device support Public areas Secure lighting Stadiums and arenas Complementary Type of installation Outdoor Total system power 300 W Light source LED [Ue] rated operational voltage 230 V AC Power factor 0.9 Colour rendering index Ra=80 Luminous flux 36000 lm Bulb lifespan 50000 h Colour temperature 6500 K Colour tint Black Provided equipment Sensor Electrical insulation class Class E Beam angle 110 ° Shape Rectangular Height 439.0 mm Width 339.0 mm Depth 71.0 mm Net weight 7.64 kg Environment Environmental characteristic Weatherproof IP degree of protection IP65 IK degree of protection IK06 Ambient air temperature for operation -30…45 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 30.000 cm Package 1 Width 40.000 cm Package 1 Length 60.000 cm Package 1 Weight 10.076 kg Unit Type of Package 2 P12 Number of Units in Package 2 8 Package 2 Height 75.000 cm Package 2 Width 80.000 cm Package 2 Length 120.000 cm Package 2 Weight 93.608 kg

Read more less

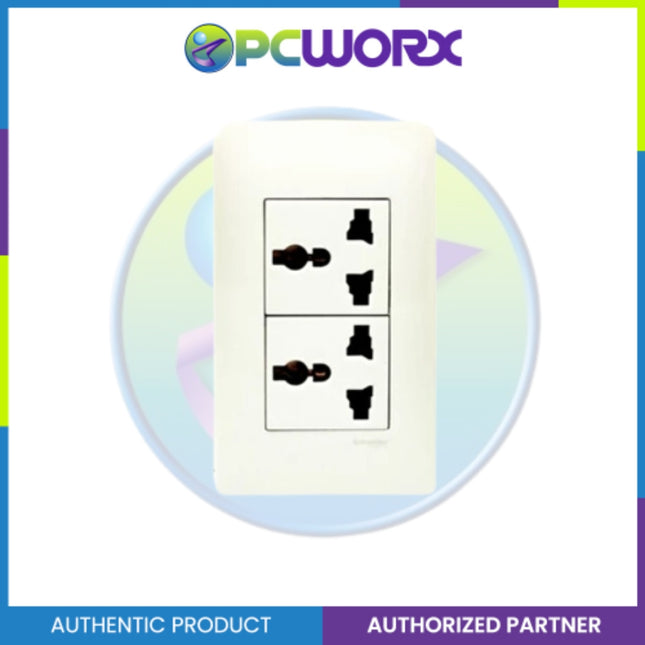

Product Details: Material is made from Polycarbonate, high quality plastic with the following features: 1. Highly durable; scratch proof2. Non - combustible material3. Designed with UV protection for a lasting exterior design4. Highly flexible material Product Range: S-Flexi Function: 2 Gang Universal Outlet Rating:                   13A at 250V AC 50/60Hz

Read more less

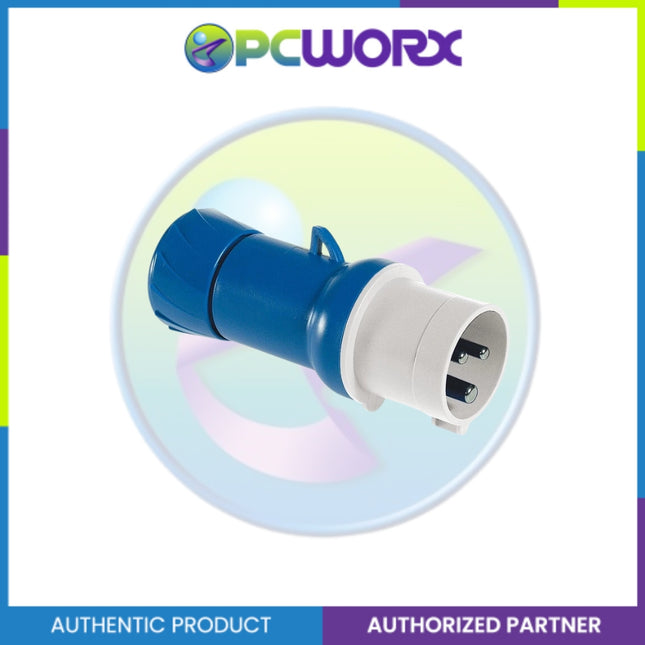

Specification Details Range PratiKa Product Type Wander plug Device Short Name PratiKa plug Plug/Socket Category Low voltage Poles Description 2P + E Network Type AC Outlet Standard Industrial Plug/Socket Shape Straight Rated Current [In] 32 A Rated Operational Voltage [Ue] 200…250 V Network Frequency 50/60 Hz Ground Lug Position 6 h Housing Material Self-extinguishing engineering polymer Contacts Material Brass sleeves Connections / Terminals Captive screws Cable Cross Section 2.5…10 mm² Cable Outer Diameter 11.5…21 mm Cable Entry Fair lead, Cable gland Thread Type Pg 21 Net Weight 0.2 kg Height 152 mm Width 76 mm Depth 76 mm Colour / Voltage Colour Grey (RAL 7035), Blue Standards IEC 60309-1, IEC 60309-2 IP Degree of Protection IP44 (IEC 60529) IK Degree of Protection IK08 (EN 62262) Fire Resistance 850 °C (IEC 60695-2-11) Relative Humidity 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C Operating Altitude 2000 m Ambient Temperature for Operation 25…40 °C (35 °C for 86400 s) Sustainability Green Premium product, REACh compliant, RoHS compliant, Mercury & Toxic heavy metal free, PVC free, WEEE compliant Unit Type of Package 1 PCE Number of Units per Package 1 Package Weight 205 g Package Dimensions (H × W × L) 5.5 × 6.2 × 16 cm

Read more less

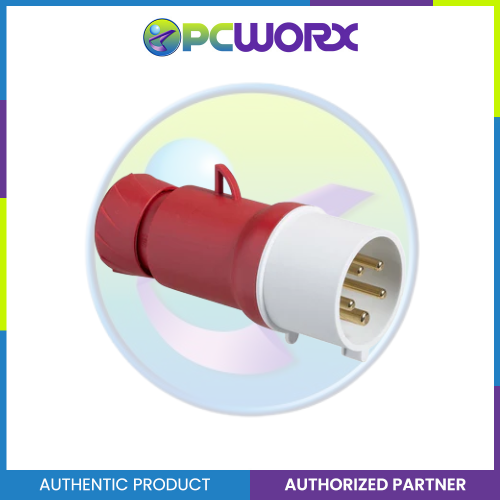

Mureva Wander Plug – Specifications Section Parameter Value Main Range Mureva Product or component type Wander plug Device short name Mureva plug Plug / socket category Low voltage Poles description 3P + N + E Network type AC Outlet standard Industrial Complementary Plug / socket / control station shape Straight Rated current (In) 32 A Rated operational voltage (Ue) 380…415 V Network frequency 50/60 Hz Ground lug clockwise position 6 h Plug / socket material Housing: self-extinguishing engineering polymer Contacts material Sleeves: brass Connections – terminals Captive screws Cable cross section 2.5…10 mm² Cable outer diameter 11.5…21 mm Cable entry Cable gland, fair lead Thread type Pg 21 Net weight 0.25 kg Dimensions (H × W × D) 160 × 86 × 86 mm Colour Grey (RAL 7035) Voltage colour Red Environment Standards IEC 60309-1IEC 60309-2 IP degree of protection IP44 (IEC 60529) IK degree of protection IK08 (EN 62262) Fire resistance 850 °C (IEC 60695-2-11) Relative humidity 50% at 40 °C70% at 30 °C90% at 20 °C Operating altitude ≤ 2000 m Ambient air temperature (operation) -25…40 °C35 °C (86400 s) Packing Units Unit type – Package 1 PCE Units per Package 1 1 Package 1 dimensions (H × W × L) 7.0 × 7.0 × 17.0 cm Package 1 weight 263 g

Read more less

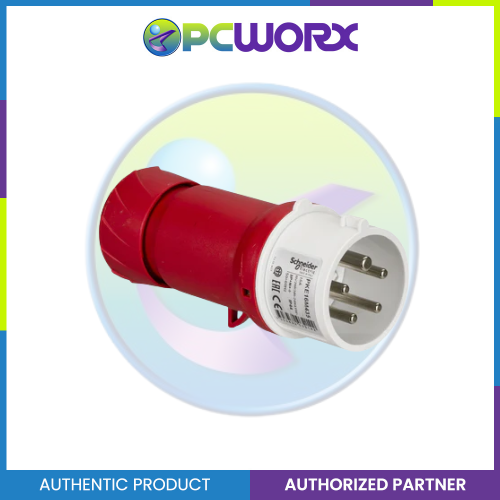

Feature Details Range Mureva Product or component type Wander plug Device short name Mureva plug Plug, socket category Low voltage Poles description 3P + N + E Network type AC Outlet standard Industrial Plug, socket, control station shape Straight Rated current [In] 16 A Rated operational voltage [Ue] 380…415 V Network frequency 50/60 Hz Ground lug clockwise position 6 h Plug/socket material Housing: self-extinguishing engineering polymer Contacts material Sleeves: brass Connections - terminals Captive screws Cable cross section 1…4 mm² Cable outer diameter 8…15 mm Cable entry Fair lead Cable gland thread type Pg 21 Net weight 0.19 kg Height 142 mm Width 74 mm Depth 74 mm Colour Grey (RAL 7035) Voltage colour Red Standards IEC 60309-1, IEC 60309-2 IP degree of protection IP44 conforming to IEC 60529 IK degree of protection IK08 conforming to EN 62262 Fire resistance 850 °C conforming to IEC 60695-2-11 Relative humidity 50% at 40 °C; 70% at 30 °C; 90% at 20 °C Operating altitude 2000 m Ambient air temperature for operation 35 °C (86400 s); -25…40 °C Package 1 Unit Type PCE Number of Units 1 Package Height 6.5 cm Package Width 6.5 cm Package Length 15.5 cm Package Weight 191.6 g

Read more less

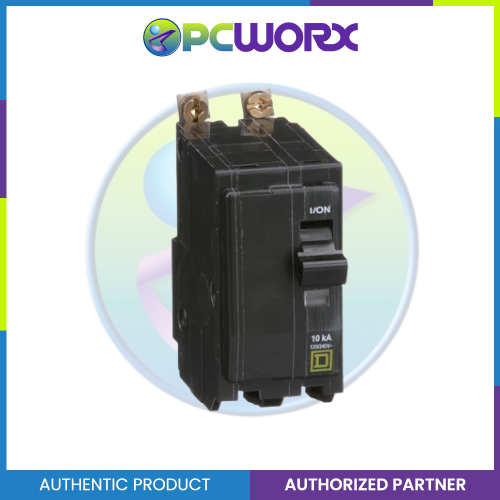

Specification Details Product Miniature circuit-breaker Range QO Current Rating 15 A Voltage Rating 120/240 V AC, 120 V AC Mounting Type Bolt-on Number of Poles 2P Circuit Breaker Type Standard Ratings HACR rated Electrical Connection Pressure plate Interrupt Rating 10 kA at 120/240 V AC10 kA at 120 V AC Number of Panel Spaces 2 Wire Size AWG 14…AWG 8 copper or aluminium Tightening Torque 4 N·m Height 76 mm Width 38 mm Depth 74 mm Net Weight 0.272 kg Certifications UL listed, CSA Ambient Rating 40 °C Package Type (Package 1) PCE Units per Package 1 1 Package 1 Dimensions (H × W × L) 3.81 × 8.382 × 8.636 cm Package 1 Weight 272 g

Read more less

Specifications Main Product Miniature circuit-breaker Range QO Current Rating 20 A Voltage Rating 120/240 V AC 120 V AC Mounting Type Bolt-on Number of Poles 2P Circuit Breaker Type Standard Ratings HACR rated Electrical Connection Pressure plate Complementary Interrupt Rating 10 kA at 120/240 V AC 10 kA at 120 V AC Number of Panel Spaces 2 Wire Size AWG 14...AWG 8 copper or aluminium Tightening Torque 4 N.m Height 76 mm Width 38 mm Depth 74 mm Net weight 0.249 kg Environment Certifications UL listed CSA Ambient Rating 40 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 6.6 cm Package 1 Width 3.81 cm Package 1 Length 7.62 cm Package 1 Weight 249.48 g Unit Type of Package 2 BB1 Number of Units in Package 2 5 Package 2 Height 8.382 cm Package 2 Width 3.81 cm Package 2 Length 19.304 cm Package 2 Weight 1.27 kg Unit Type of Package 3 CAR Number of Units in Package 3 50 Package 3 Height 20.828 cm Package 3 Width 20.066 cm Package 3 Length 43.434 cm Package 3 Weight 12.905 kg

Read more less

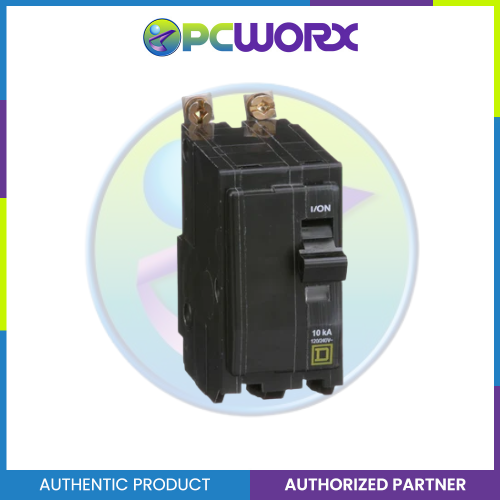

Specifications Main Product Miniature circuit-breaker Range QO Current Rating 30 A Voltage Rating 120/240 V AC 120 V AC Mounting Type Bolt-on Number of Poles 2P Circuit Breaker Type Standard Ratings HACR rated Electrical Connection Pressure plate Complementary Interrupt Rating 10 kA at 120/240 V AC 10 kA at 120 V AC Number of Panel Spaces 2 Wire Size AWG 14...AWG 8 copper or aluminium Tightening Torque 4 N.m Height 76 mm Width 38 mm Depth 74 mm Net weight 0.249 kg Environment Certifications UL listed CSA Ambient Rating 40 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 8.636 cm Package 1 Width 3.810 cm Package 1 Length 8.128 cm Package 1 Weight 272.155 g Unit Type of Package 2 BB1 Number of Units in Package 2 5 Package 2 Height 8.382 cm Package 2 Width 9.144 cm Package 2 Length 19.558 cm Package 2 Weight 1.270 kg Unit Type of Package 3 CAR Number of Units in Package 3 50 Package 3 Height 21.082 cm Package 3 Width 19.304 cm Package 3 Length 43.688 cm Package 3 Weight 12.678 kg

Read more less

Specifications Main Product Miniature circuit-breaker Range QO Current Rating 30 A Voltage Rating 120/240 V AC 120 V AC Mounting Type Bolt-on Number of Poles 2P Circuit Breaker Type Standard Ratings HACR rated Electrical Connection Pressure plate Complementary Interrupt Rating 10 kA at 120/240 V AC 10 kA at 120 V AC Number of Panel Spaces 2 Wire Size AWG 14...AWG 8 copper or aluminium Tightening Torque 4 N.m Height 76 mm Width 38 mm Depth 74 mm Net weight 0.249 kg Environment Certifications UL listed CSA Ambient Rating 40 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 8.636 cm Package 1 Width 3.810 cm Package 1 Length 8.128 cm Package 1 Weight 272.155 g Unit Type of Package 2 BB1 Number of Units in Package 2 5 Package 2 Height 8.382 cm Package 2 Width 9.144 cm Package 2 Length 19.558 cm Package 2 Weight 1.270 kg Unit Type of Package 3 CAR Number of Units in Package 3 50 Package 3 Height 21.082 cm Package 3 Width 19.304 cm Package 3 Length 43.688 cm Package 3 Weight 12.678 kg
