₱938.28

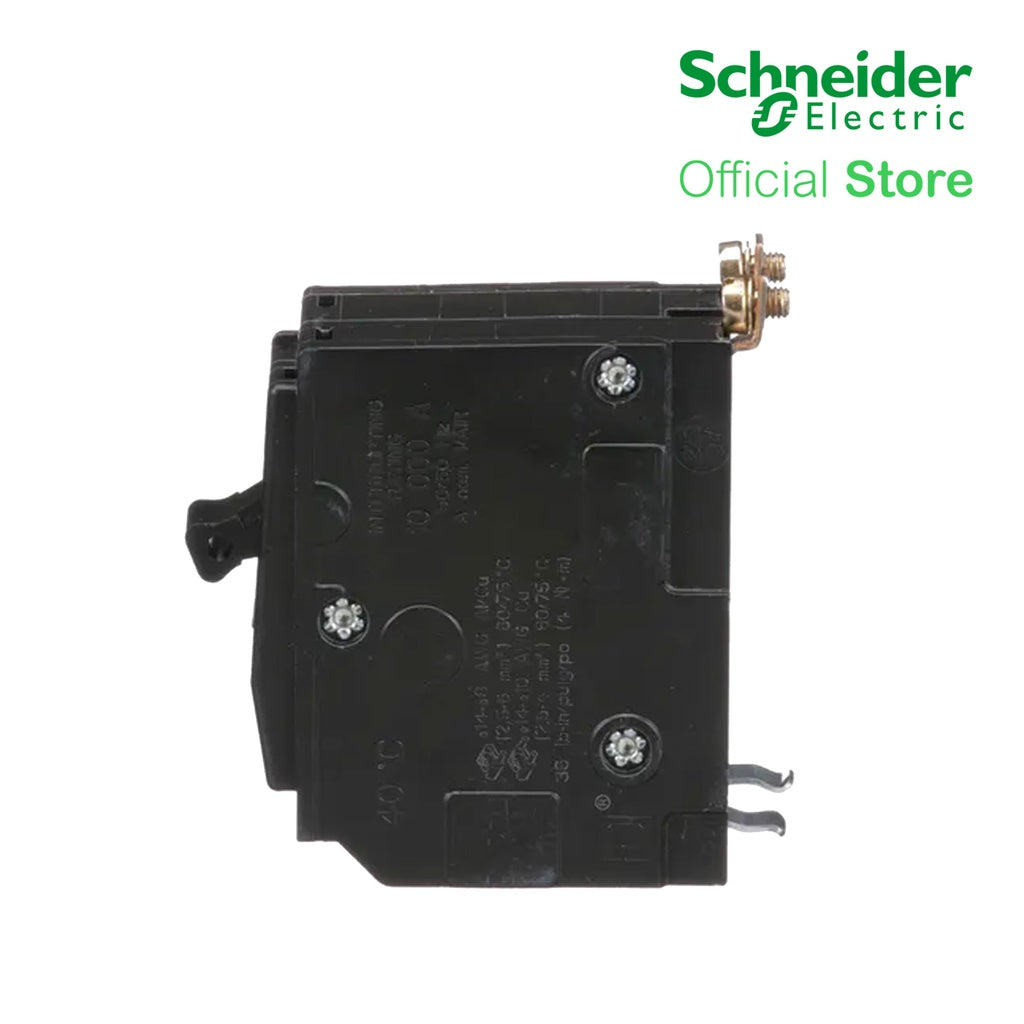

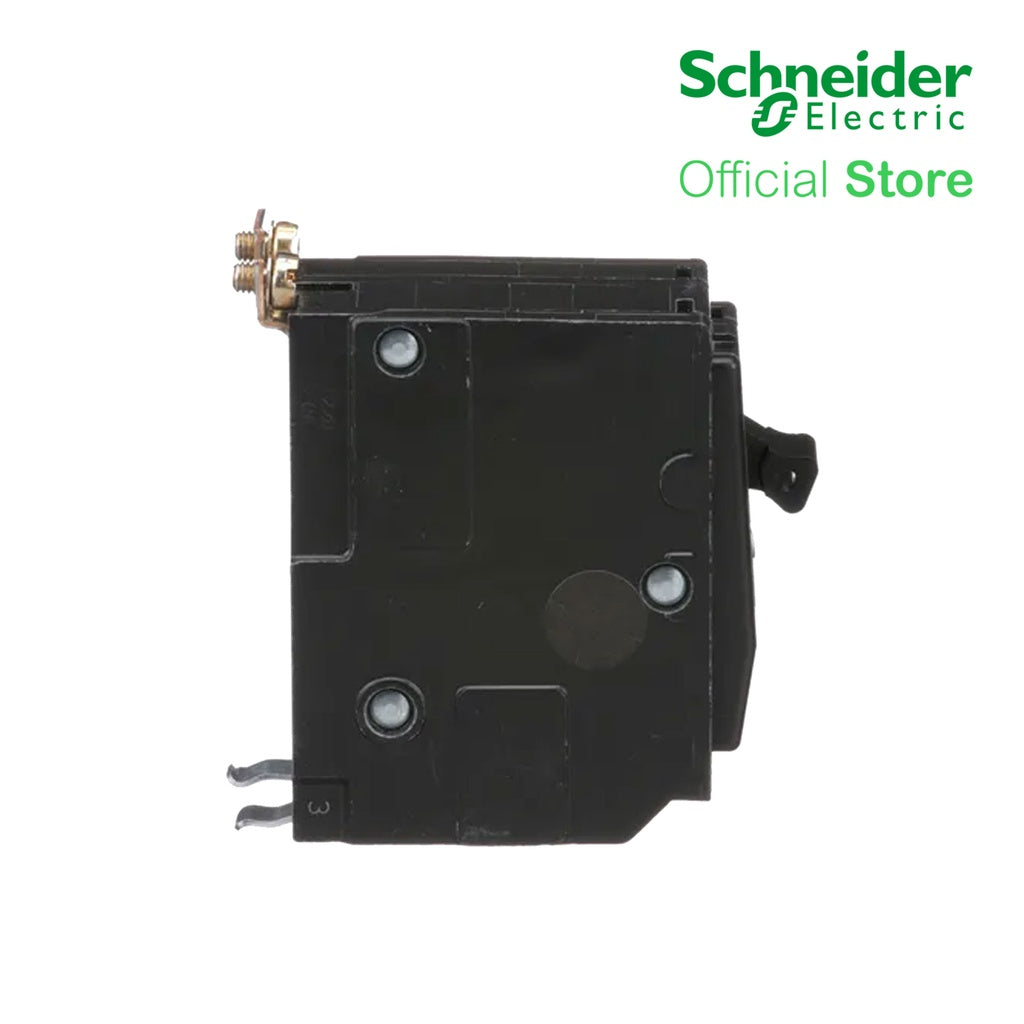

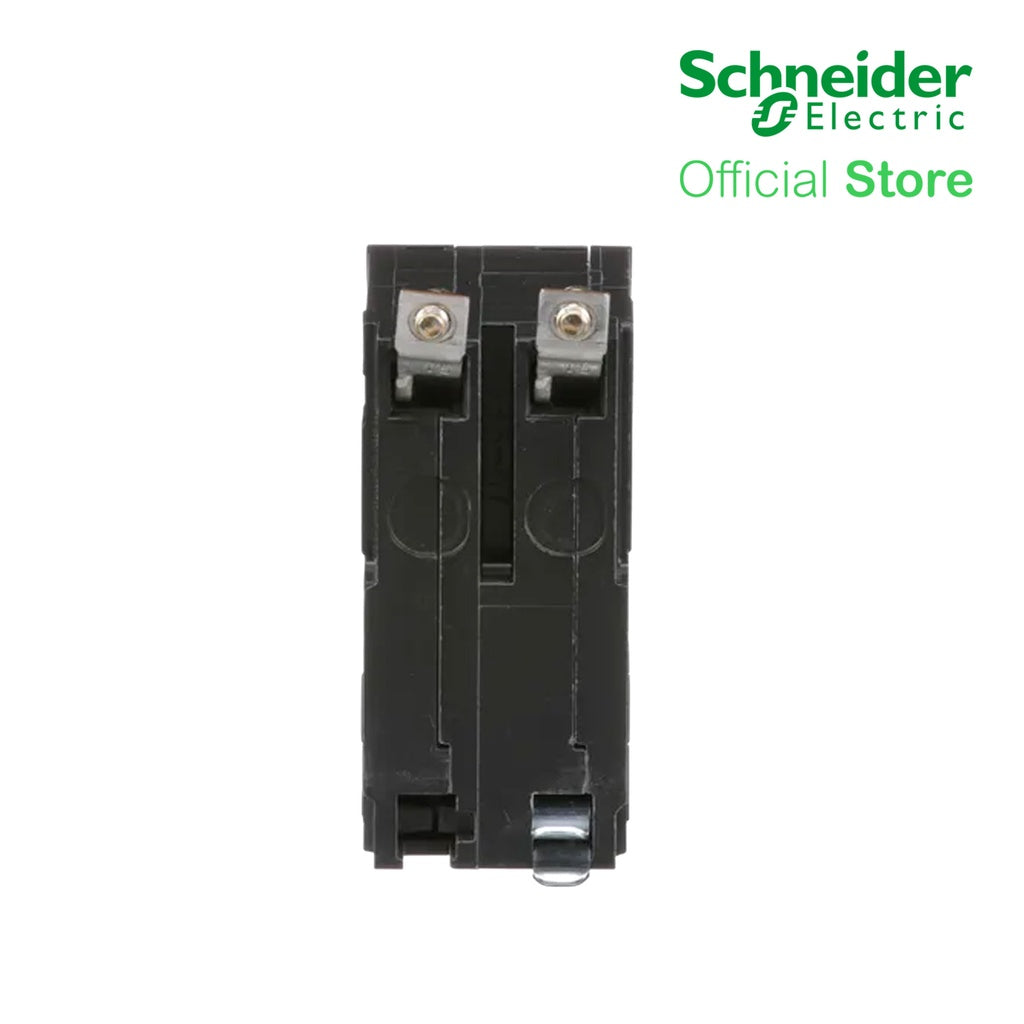

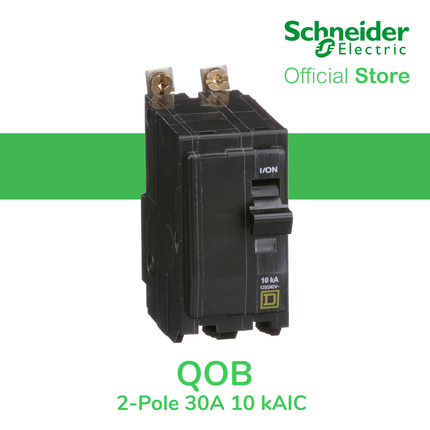

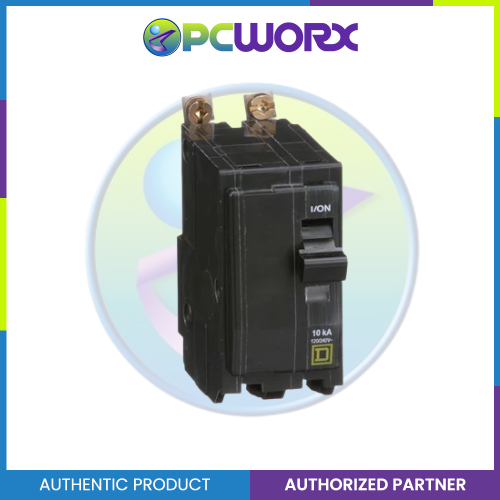

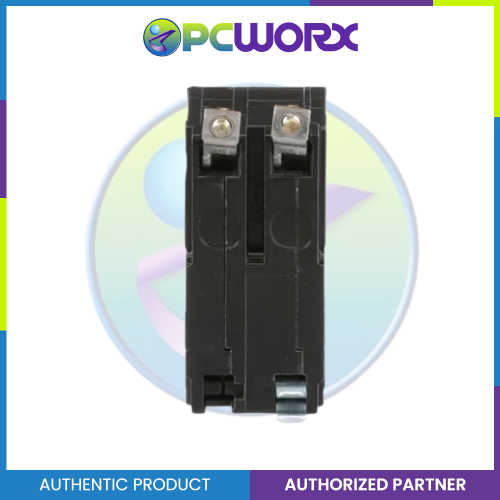

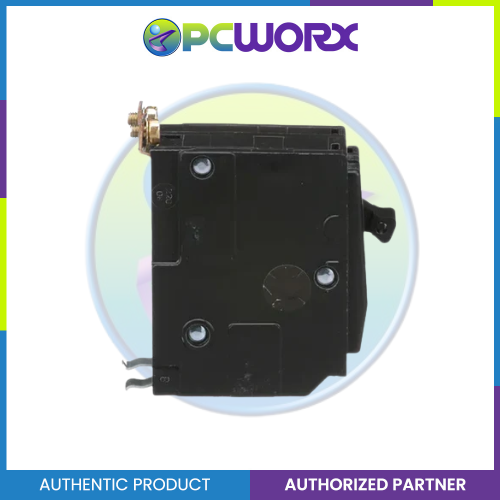

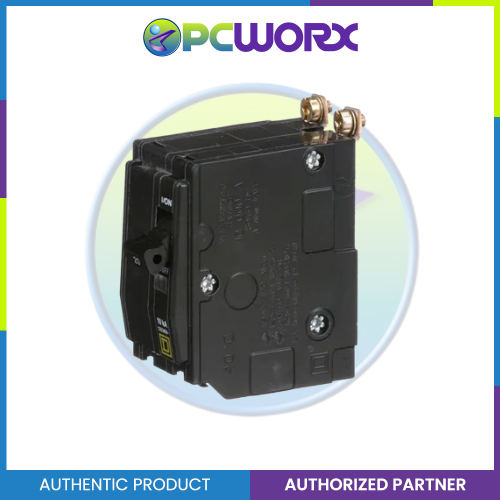

QO Miniature Circuit Breaker – Specifications| Category | Specification |
|---|---|
| Product Type | Miniature circuit breaker |
| Range | QO |
| Current Rating | 30 A |
| Voltage Rating | 120/240 V AC, 120 V AC |
| Mounting Type | Bolt-on |
| Number of Poles | 2P |
| Circuit Breaker Type | Standard |
| Ratings | HACR rated |
| Electrical Connection | Pressure plate |
| Interrupt Rating | 10 kA @ 120/240 V AC 10 kA @ 120 V AC |
| Number of Panel Spaces | 2 |
| Compatible Wire Size | AWG 14 – AWG 8 (Copper or Aluminium) |
| Tightening Torque | 4 N·m |
| Ambient Temperature Rating | 40 °C |
| Certifications | UL Listed, CSA |
| Parameter | Specification |
|---|---|
| Height | 76 mm |
| Width | 38 mm |
| Depth | 74 mm |
| Net Weight | 0.249 kg |
| Package Type | Quantity | Dimensions (H × W × L) | Weight |
|---|---|---|---|
| PCE | 1 | 8.636 × 3.810 × 8.128 cm | 272.155 g |
| BB1 | 5 | 8.382 × 9.144 × 19.558 cm | 1.270 kg |
| CAR | 50 | 21.082 × 19.304 × 43.688 cm | 12.678 kg |
