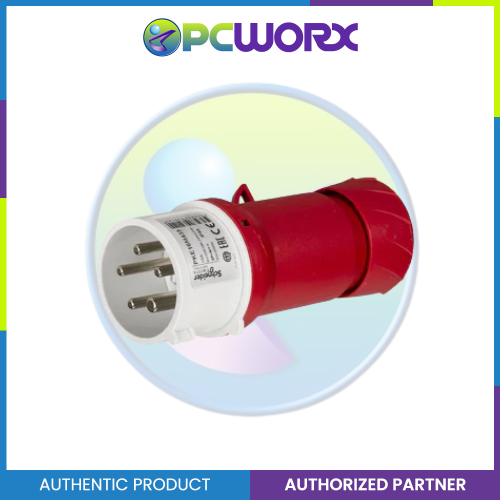

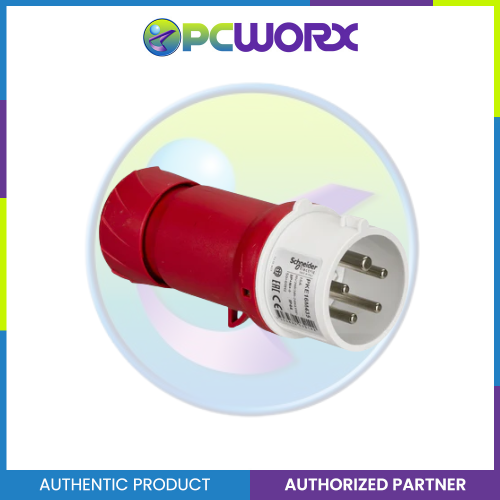

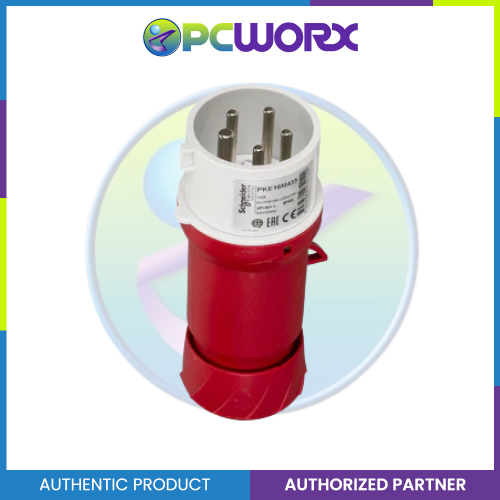

Schneider PratiKa Wander Plug - Straight - 16 A - 3P + N + E - 380...415 V AC - IP44 Red PKE16M435

Description

Feature Details
Range Mureva
Product or component type Wander plug
Device short name Mureva plug
Plug, socket category Low voltage
Poles description 3P + N + E
Network type AC
Outlet standard Industrial
Plug, socket, control station shape Straight
Rated current [In] 16 A
Rated operational voltage [Ue] 380…415 V
Network frequency 50/60 Hz
Ground lug clockwise position 6 h
Plug/socket material Housing: self-extinguishing engineering polymer
Contacts material Sleeves: brass
Connections - terminals Captive screws
Cable cross section 1…4 mm²
Cable outer diameter 8…15 mm
Cable entry Fair lead
Cable gland thread type Pg 21
Net weight 0.19 kg
Height 142 mm
Width 74 mm
Depth 74 mm
Colour Grey (RAL 7035)
Voltage colour Red
Standards IEC 60309-1, IEC 60309-2
IP degree of protection IP44 conforming to IEC 60529
IK degree of protection IK08 conforming to EN 62262
Fire resistance 850 °C conforming to IEC 60695-2-11
Relative humidity 50% at 40 °C; 70% at 30 °C; 90% at 20 °C
Operating altitude 2000 m
Ambient air temperature for operation 35 °C (86400 s); -25…40 °C
Package 1
Unit Type PCE
Number of Units 1
Package Height 6.5 cm
Package Width 6.5 cm
Package Length 15.5 cm
Package Weight 191.6 g


Schneider PratiKa Wander Plug - Straight - 16 A - 3P + N + E - 380...415 V AC - IP44 Red PKE16M435

Product form

Feature Details Range Mureva Product or component type Wander plug Device short name Mureva plug Plug, socket category Low voltage... Read more

Free pickup in our shop(s)

SKU: 0000064527

5 in stock

₱336.00

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description

    Feature Details
    Range Mureva
    Product or component type Wander plug
    Device short name Mureva plug
    Plug, socket category Low voltage
    Poles description 3P + N + E
    Network type AC
    Outlet standard Industrial
    Plug, socket, control station shape Straight
    Rated current [In] 16 A
    Rated operational voltage [Ue] 380…415 V
    Network frequency 50/60 Hz
    Ground lug clockwise position 6 h
    Plug/socket material Housing: self-extinguishing engineering polymer
    Contacts material Sleeves: brass
    Connections - terminals Captive screws
    Cable cross section 1…4 mm²
    Cable outer diameter 8…15 mm
    Cable entry Fair lead
    Cable gland thread type Pg 21
    Net weight 0.19 kg
    Height 142 mm
    Width 74 mm
    Depth 74 mm
    Colour Grey (RAL 7035)
    Voltage colour Red
    Standards IEC 60309-1, IEC 60309-2
    IP degree of protection IP44 conforming to IEC 60529
    IK degree of protection IK08 conforming to EN 62262
    Fire resistance 850 °C conforming to IEC 60695-2-11
    Relative humidity 50% at 40 °C; 70% at 30 °C; 90% at 20 °C
    Operating altitude 2000 m
    Ambient air temperature for operation 35 °C (86400 s); -25…40 °C
    Package 1
    Unit Type PCE
    Number of Units 1
    Package Height 6.5 cm
    Package Width 6.5 cm
    Package Length 15.5 cm
    Package Weight 191.6 g
