| Main
|
|
| Range:
|
PratiKa |
| Product or component type:
|

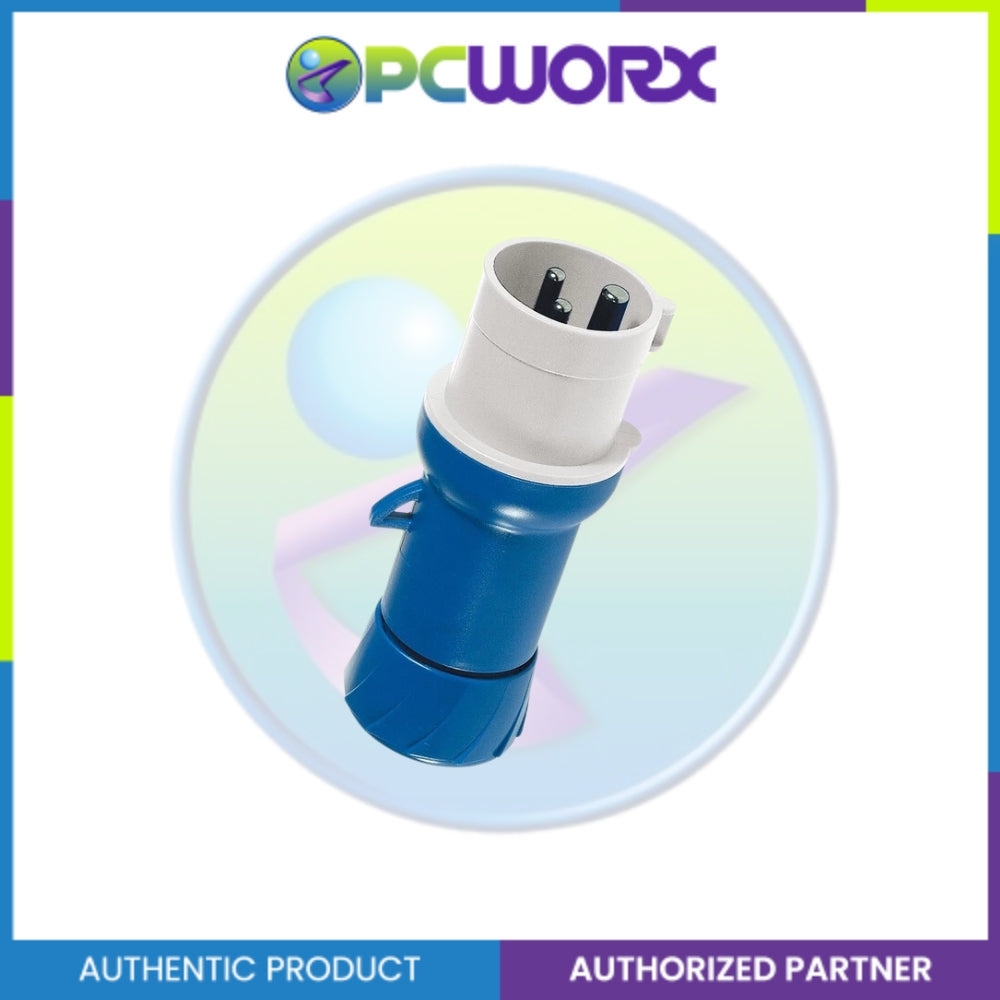

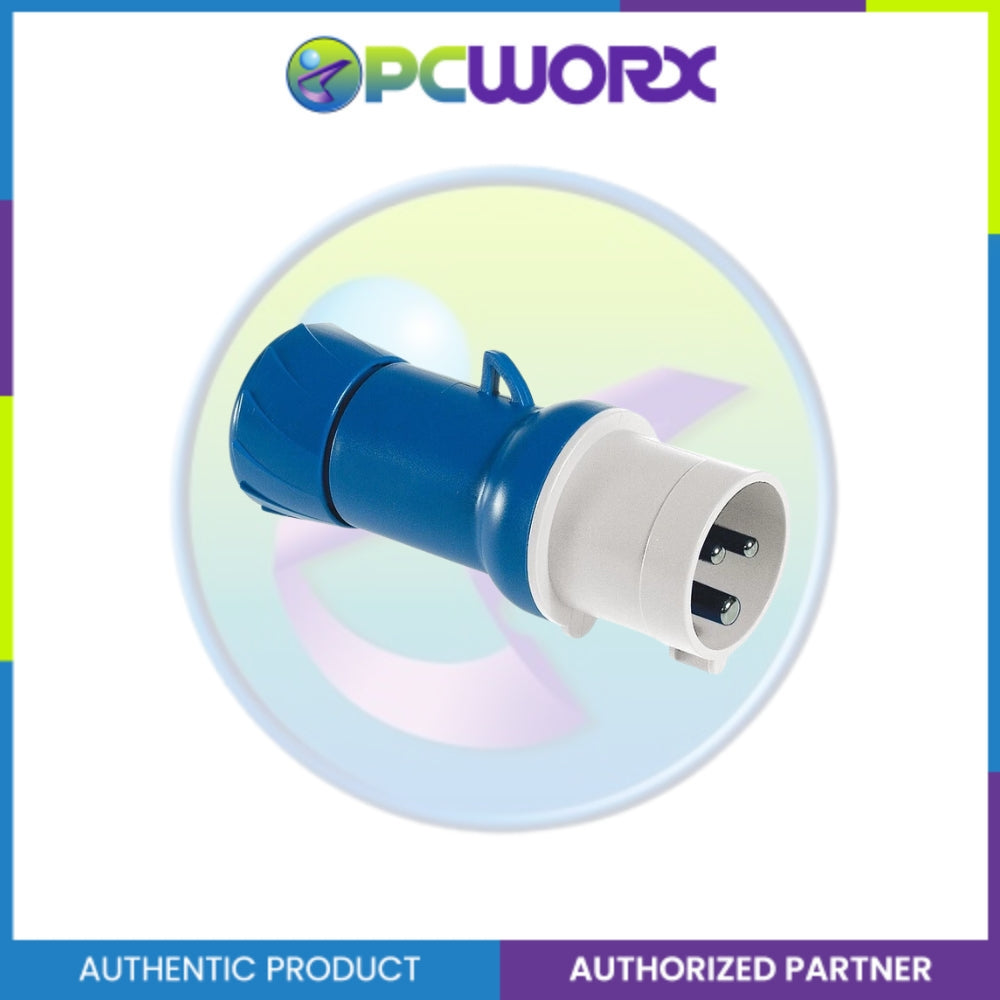

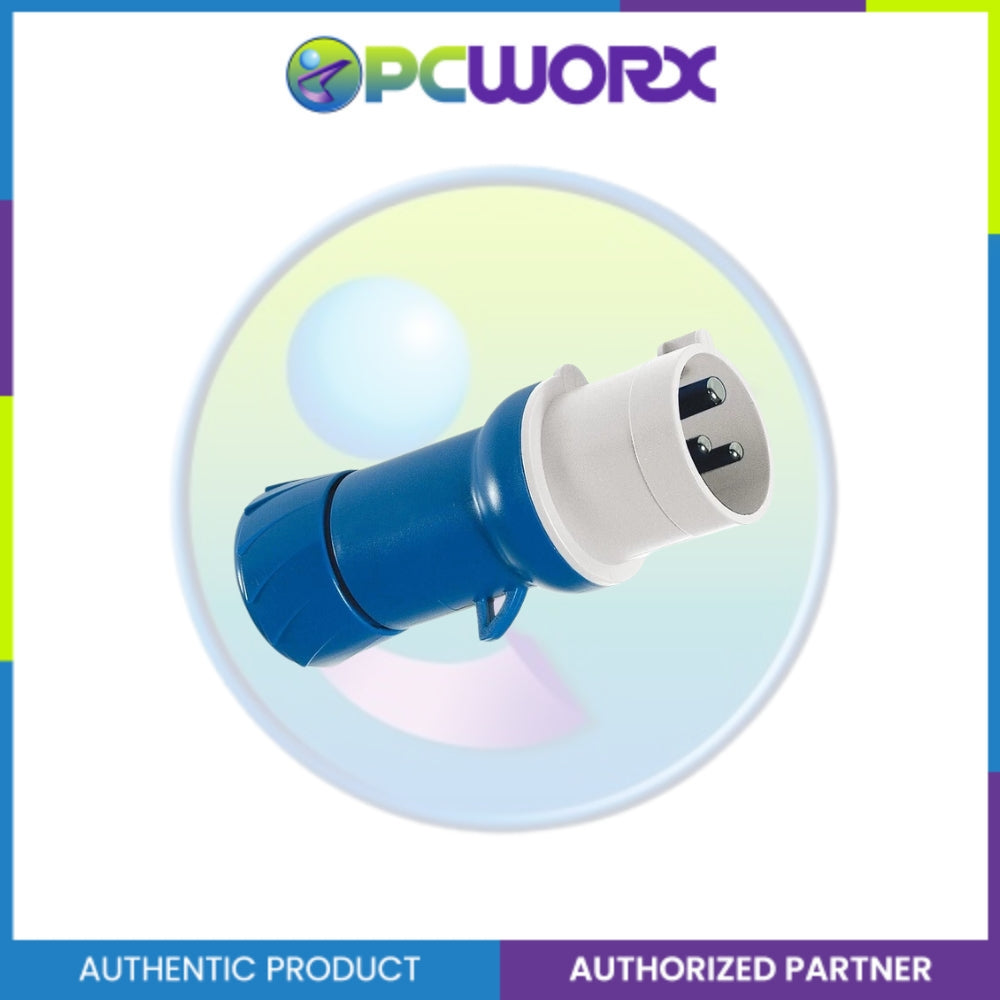

Wander plug |
| Device short name:
|
PratiKa plug |
| Plug, socket category:
|
Low voltage |
| Poles description: |
2P + E |
| Network type: |
AC |
| Outlet standard:
|
Industrial |
| 𝗖𝗼𝗺𝗽𝗹𝗲𝗺𝗲𝗻𝘁𝗮𝗿𝘆 |
|
| Plug, socket, control station shape:
|
Straight |
| [In] rated current:
|
32 A |
| [Ue] rated operational voltage:
|
200...250 V |
| Network frequency: |
50/60 Hz |
| Ground lug clockwise position:
|
6 h |
| Plug, socket material:
|
Housing: self-extinguishing engineering polymer |
| Contacts material: Sleeves:
|
brass |
| Connections - terminals: |
Captive screws |
| Cable cross section:
|
2.5…10 mm² |
| Cable outer diameter:
|
11.5…21 mm |
| Cable entry:
|
Fair lead |
|
Cable gland |
| Thread type:
|
Pg 21 |
| Net weight: |
0.2 kg |
| Height:
|
152 mm |
| Width: |
76 mm |
| Depth:
|
76 mm |
|
Grey (RAL 7035) |
| Value colour:
|
Blue |
| Environment
|
|
| Standards:
|
IEC 60309-2 |
|
IEC 60309-1 |
| IP degree of protection:
|
IP44 conforming to IEC 60529 |
| IK degree of protection:
|
IK08 conforming to EN 62262 |
| Fire resistance:
|
850 °C conforming to IEC 60695-2-11 |
| Relative humidity:
|
50 % at 40 °C |
|
70 % at 30 °C |
|
90 % at 20 °C |
| Operating altitude: |
2000 m |
| Ambient air temperature for operation:
|
35 °C ( 86400 s ) |
|
25…40 °C |
| 𝗢𝗳𝗳𝗲𝗿 𝗦𝘂𝘀𝘁𝗮𝗶𝗻𝗮𝗯𝗶𝗹𝗶𝘁𝘆 |
|
| Sustainable offer status:
|
Green Premium product |
| REACh Regulation:
|
REACh Declaration |
| REACh free of SVHC:
|
Yes |
| • EU RoHS Directive:
|
Compliant |
|
EU RoHS Declaration |
| Toxic heavy metal free: |
Yes |
| Mercury free:
|
Yes |
| RoHS exemption information:
|
Yes |
| China RoHS Regulation:
|
China RoHS declaration |
|
Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Environmental Disclosure:
|
Product Environmental Profile |
| Circularity Profile:
|
End of Life Information |
| WEEE:
|
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| PVC free:
|
Yes |
| Circularity Profile: |
End of Life Information |
| 𝗗𝗜𝗠𝗘𝗡𝗦𝗜𝗢𝗡𝗦 |
|
| Unit Type of Package: |
1 PCE |
| Number of Units in Package: |
1 |
| Weight: |
205 g |
|
Height: |
5.5 cm |
| width: |
6.2 cm |
| Length: |
16 cm |
| Height:
|
5.5 cm |
| Width: |
6.2 cm |
|
Length: |
16 cm |
