β±669.48

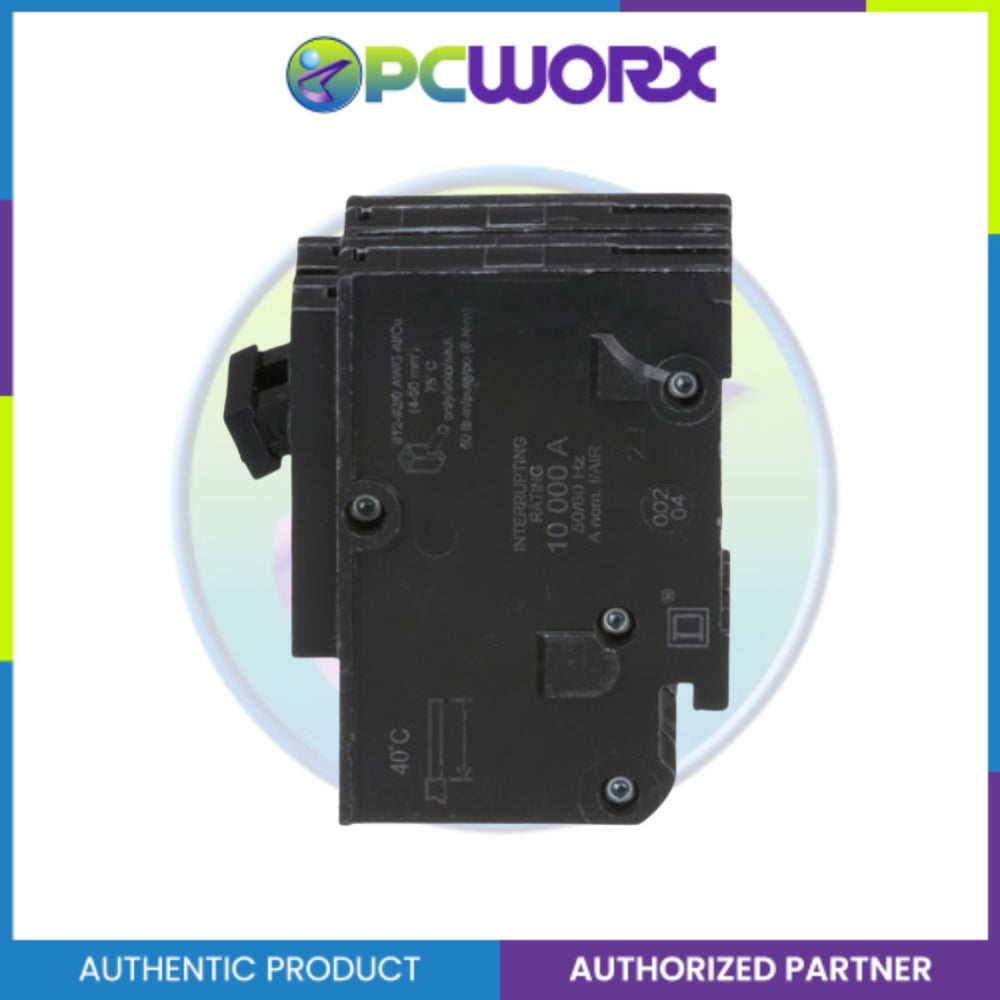

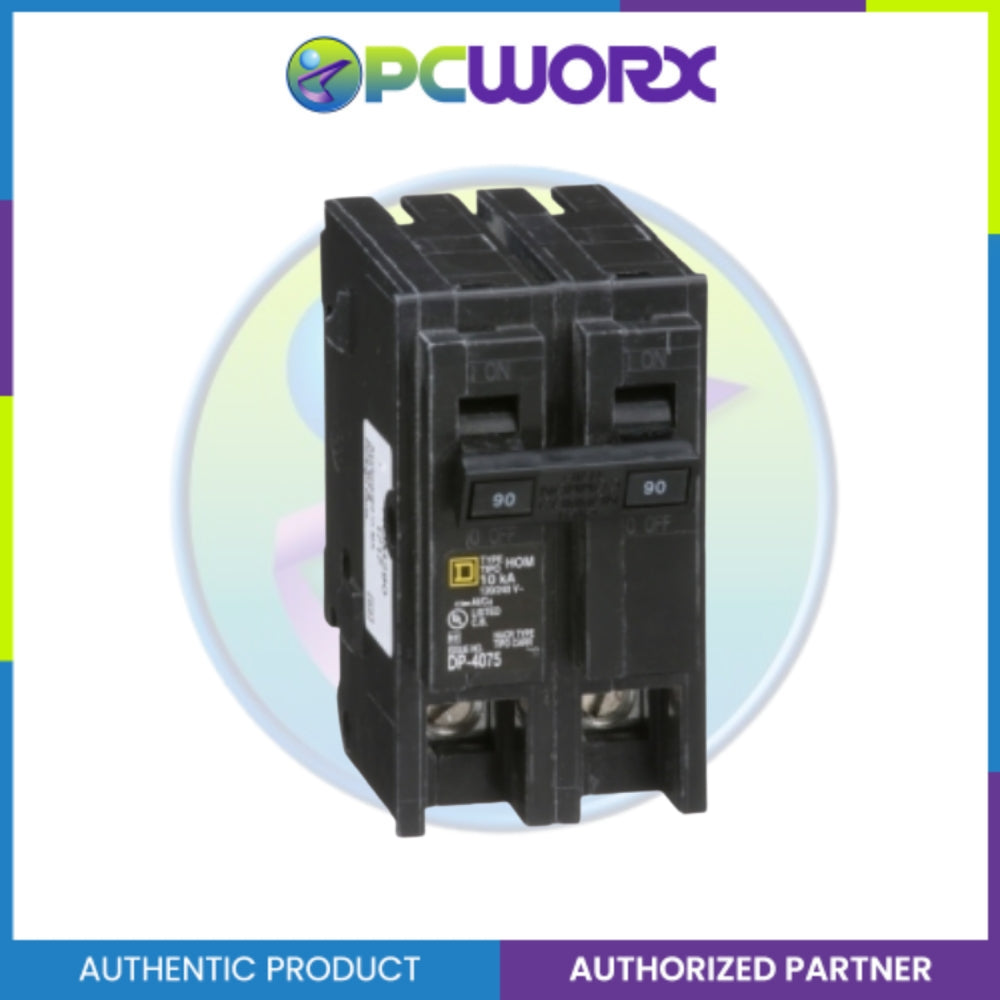

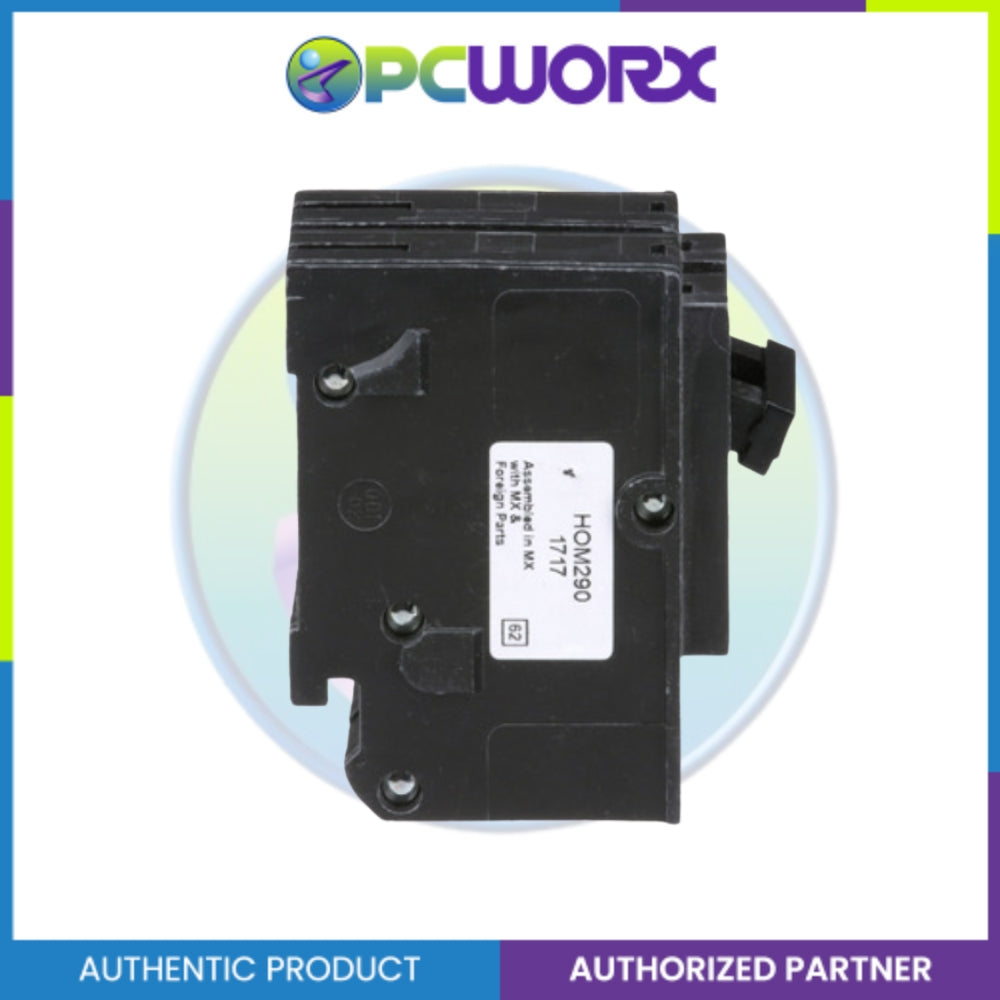

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 30A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.| Category | Attribute | Value |
|---|---|---|
| Main | Product | Miniature circuit-breaker |
| Range | Homeline | |
| Current Rating | 30 A | |
| Certifications | UL listed | |
| Voltage Rating | 120/240 V AC | |
| Mounting Type | Plug-in | |
| Number of Poles | 2P | |
| Short Circuit Current Rating | 10 kA | |
| Number of Spaces | 2 | |
| Circuit Breaker Type | Standard | |
| Ratings | HACR rated | |
| Electrical Connection | Clamp terminal for 2 cables | |
| Wire Size | 1 Γ AWG 14β¦AWG 8 (aluminium/copper)2 Γ AWG 14β¦AWG 10 (copper) | |
| Complementary | Tightening torque | 4.0 NΒ·m for 2.5β¦10 mmΒ² (AWG 16β¦AWG 14)4.0 NΒ·m for 4β¦20 mmΒ² (AWG 12β¦AWG 4) |
| Height | 79.50 mm | |
| Width | 50.8 mm | |
| Depth | 75.69 mm | |
| Environment | Ambient air temperature for operation | 40 Β°C |
| Packing Units | Unit Type of Package 1 | PCE |
| Number of U |
β±669.48
Estimated delivery between June 07 and June 09.
Delivery Information
Metro Manila: 2β3 days | Provincial: 3β7 days
Main Office Branch only
Same Day Delivery
Same-Day Delivery Available
Processing starts 1β2 hours after checkout MonβSat | Main Office Branch only
Processing only during office hours from Main Office 9am - 5pm
β±669.48
β±669.48
Authorized Seller
100% Original Authentic Product
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 30A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.| Category | Attribute | Value |
|---|---|---|
| Main | Product | Miniature circuit-breaker |
| Range | Homeline | |
| Current Rating | 30 A | |
| Certifications | UL listed | |
| Voltage Rating | 120/240 V AC | |
| Mounting Type | Plug-in | |
| Number of Poles | 2P | |
| Short Circuit Current Rating | 10 kA | |
| Number of Spaces | 2 | |
| Circuit Breaker Type | Standard | |
| Ratings | HACR rated | |
| Electrical Connection | Clamp terminal for 2 cables | |
| Wire Size | 1 Γ AWG 14β¦AWG 8 (aluminium/copper)2 Γ AWG 14β¦AWG 10 (copper) | |
| Complementary | Tightening torque | 4.0 NΒ·m for 2.5β¦10 mmΒ² (AWG 16β¦AWG 14)4.0 NΒ·m for 4β¦20 mmΒ² (AWG 12β¦AWG 4) |
| Height | 79.50 mm | |
| Width | 50.8 mm | |
| Depth | 75.69 mm | |
| Environment | Ambient air temperature for operation | 40 Β°C |
| Packing Units | Unit Type of Package 1 | PCE |
| Number of U |
