β±831.60

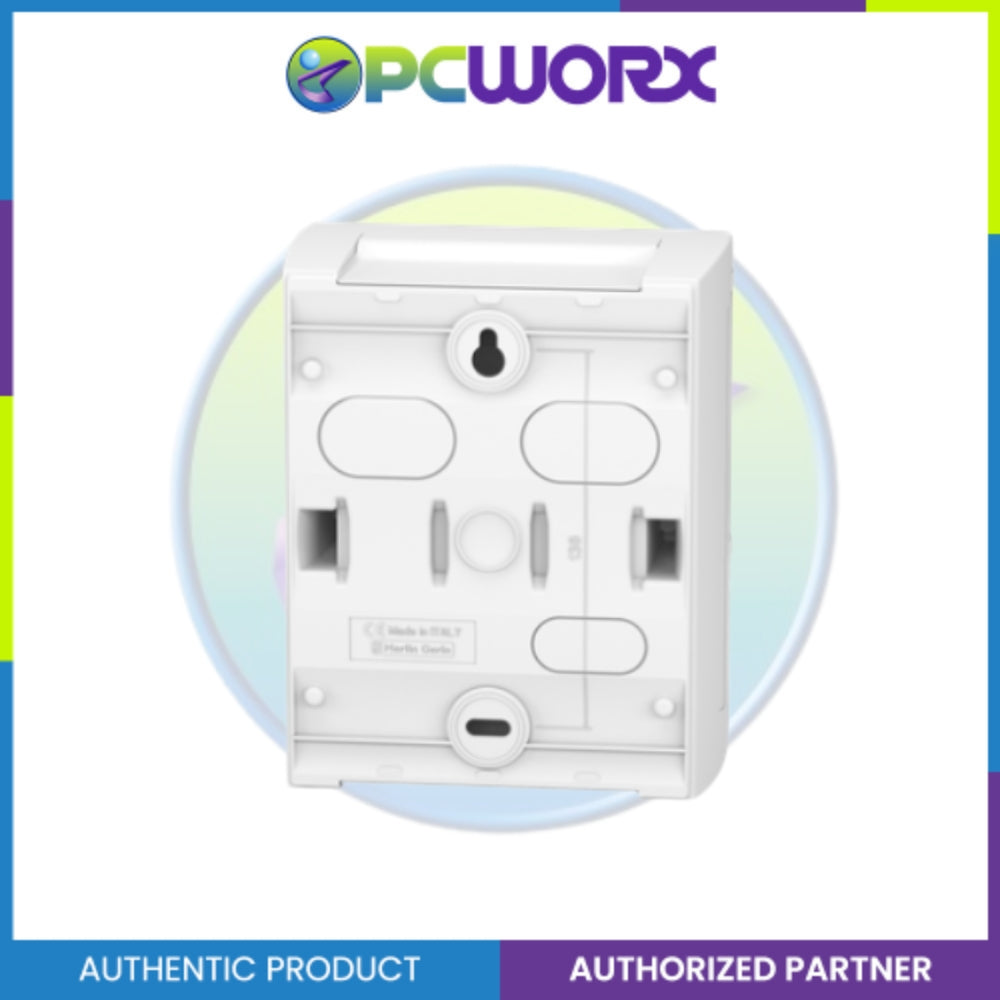

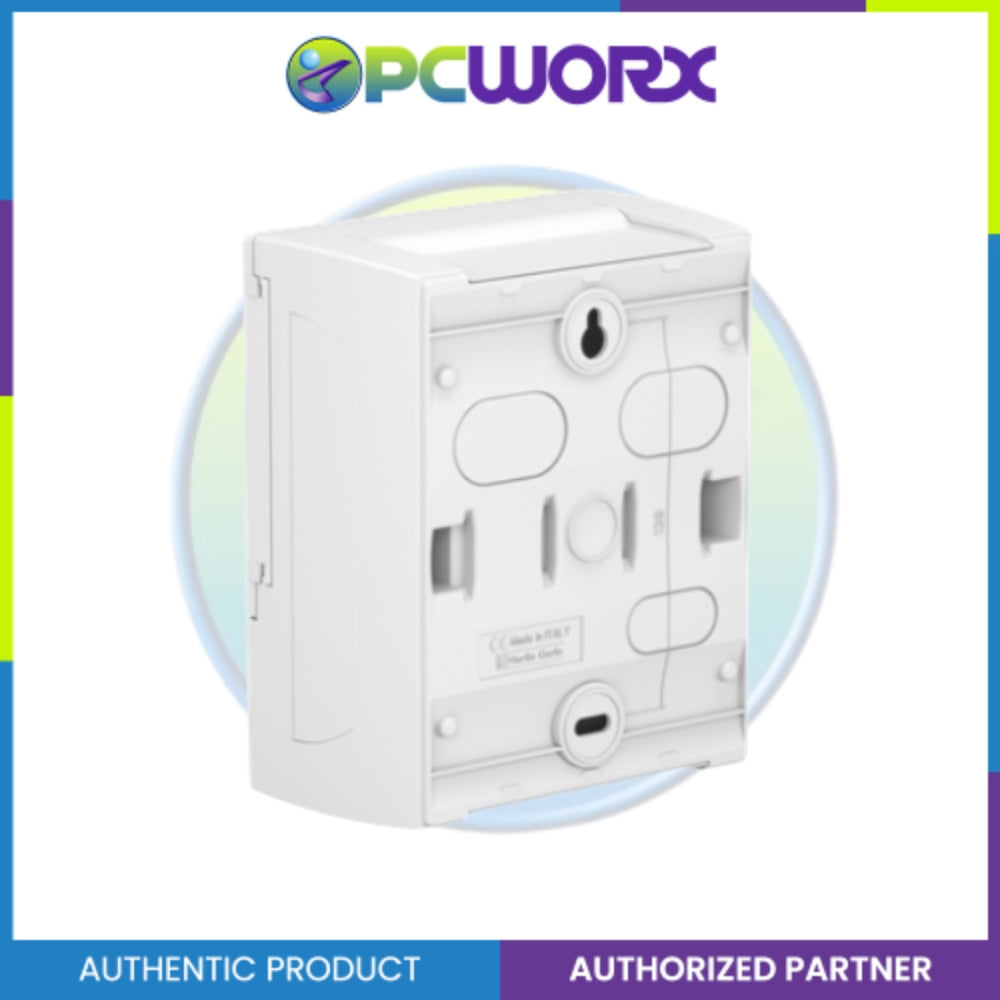

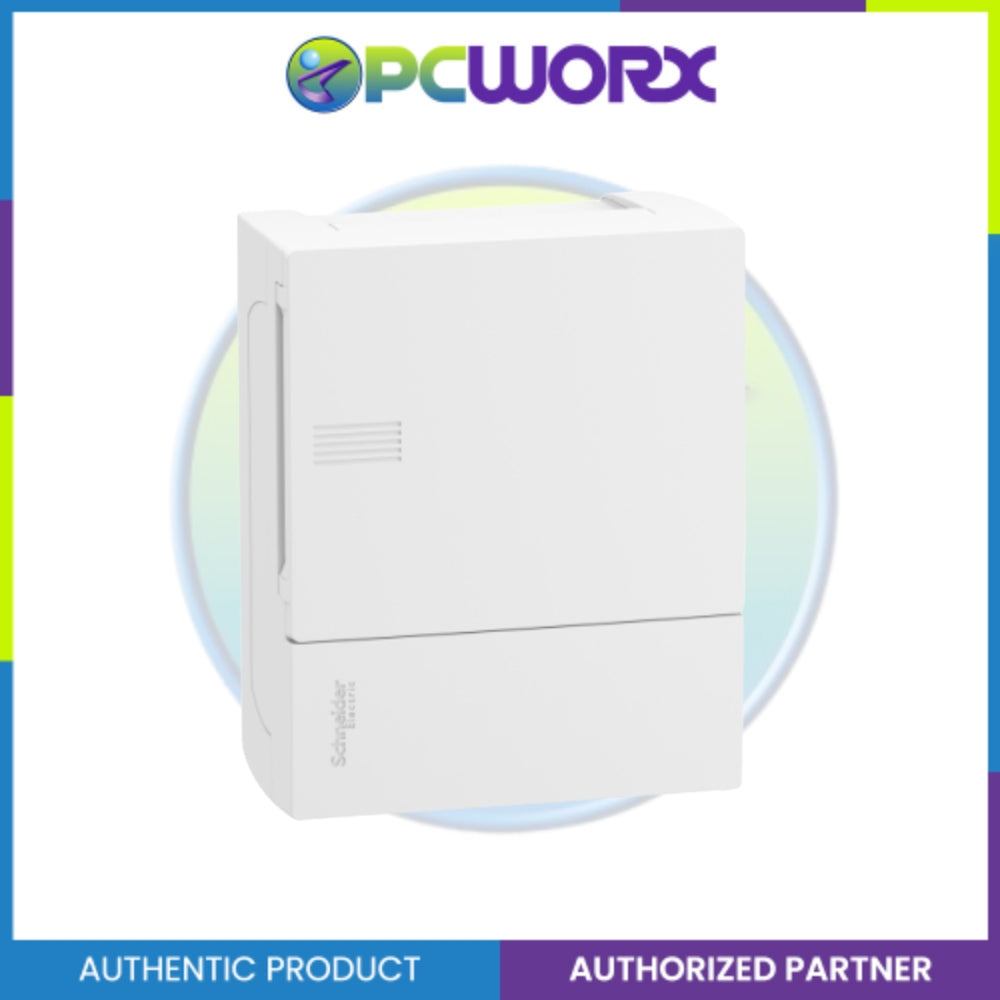

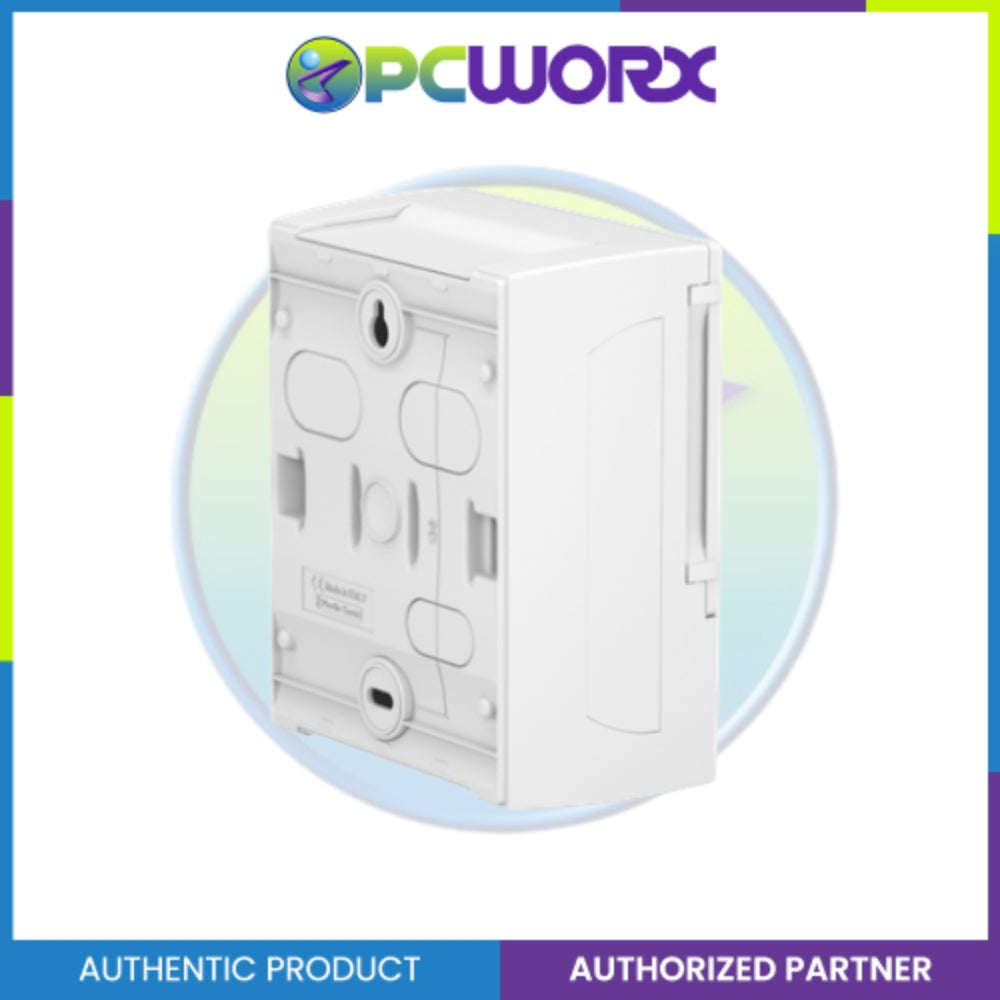

This Resi9 MP enclosure is a surface mounted modular enclosure. This plastic enclosure is composed of 1 row of 6 modules of 18mm. It can accommodate all types of modular switchgear. The IP degree of protection is IP40. It is provided with a plain white door. The color of the front face is white (RAL 9003). It is intended for new or renovated installation in residential. It is equipped with 35 mm asymmetrical rail. It comes with 1 earth and 1 neutral terminal blocks with screwed connection terminals. The earth terminal block provides 4 outgoers (1x16mmΒ² + 2x10mmΒ² + 1x6mmΒ²). The neutral one provides 4 outgoers (1x16mmΒ² + 2x10mmΒ² + 1x6mmΒ²). The In rated current is up to 63A. It complies with IEC 60439-1 and 3, IEC 60670-1 and 24 standards. The total dimensions are (W) 160mm x (H) 198mm x (D) 95mm. The enclosure is made from techno plastic (back part and front face). The door is made from techno plastic. The resistance of the plastic to flames and to abnormal heat is 650Β°C for the door, the back part and the front face. The IK degree of protection is IK07. The operating temperature is -25Β°C to 60Β°C.
| Range | Resi9 |
| product name | Resi9 MP |
| Product or component typed | Enclosure |
| Enclosure type | Modular enclosure |
| Nb of 18 mm modules per row | 6 |
| Nb of horizontal rows | 1 |
| Type of door | Plain |
| Width | Outside: 160 mm |
| Height | Outside: 198 mm |
| Depth | Outside : 95 mm |
| Complementary | |
| Enclosure mounting | Surface |
| 9 mm pitches | 12 |
| Total number of 18 mm modules | 6 |
| [In] rated current | 63 A |
| Type of rail | 35 mm asymmetrical rail |
| Mounting plate description | Without mounting plate |
| cable entry | 1 trunking flange |
| 1 bare flange | |
| Terminal block function | Earth / neutral |
| Number of terminal blocks | 1 earth (screwed) with 4 outgoers |
| 1 neutral (screwed) with 4 outgoers | |
| Distribution block outgoers | 1 x 16 mmΒ² for earth |
| 1 x 16 mmΒ² for neutral | |
| 1 x 6 mmΒ² for earth | |
| 1 x 6 mmΒ² for neutral | |
| 2 x 10 mmΒ² for earth | |
| 2 x 10 mmΒ² for neutral | |
| Enclosure material | Back part: techno plastic |
| Door: techno plastic | |
| Front face: techno plastic | |
| Internal depth | 74 mm |
| Color | Door: white (RAL 9003) |
| Front face: white (RAL 9003) | |
| Market segment | small commercial |
| residentialΒ |
