Description
Descriptions

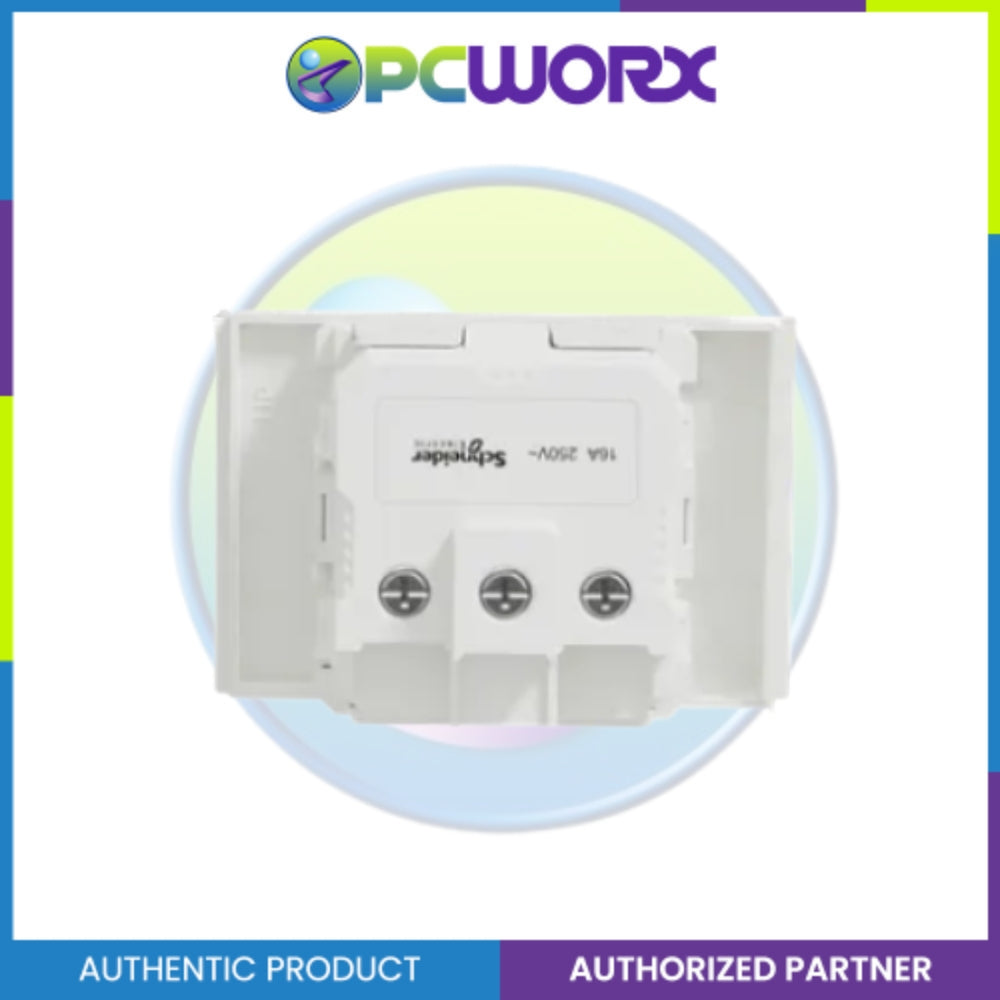

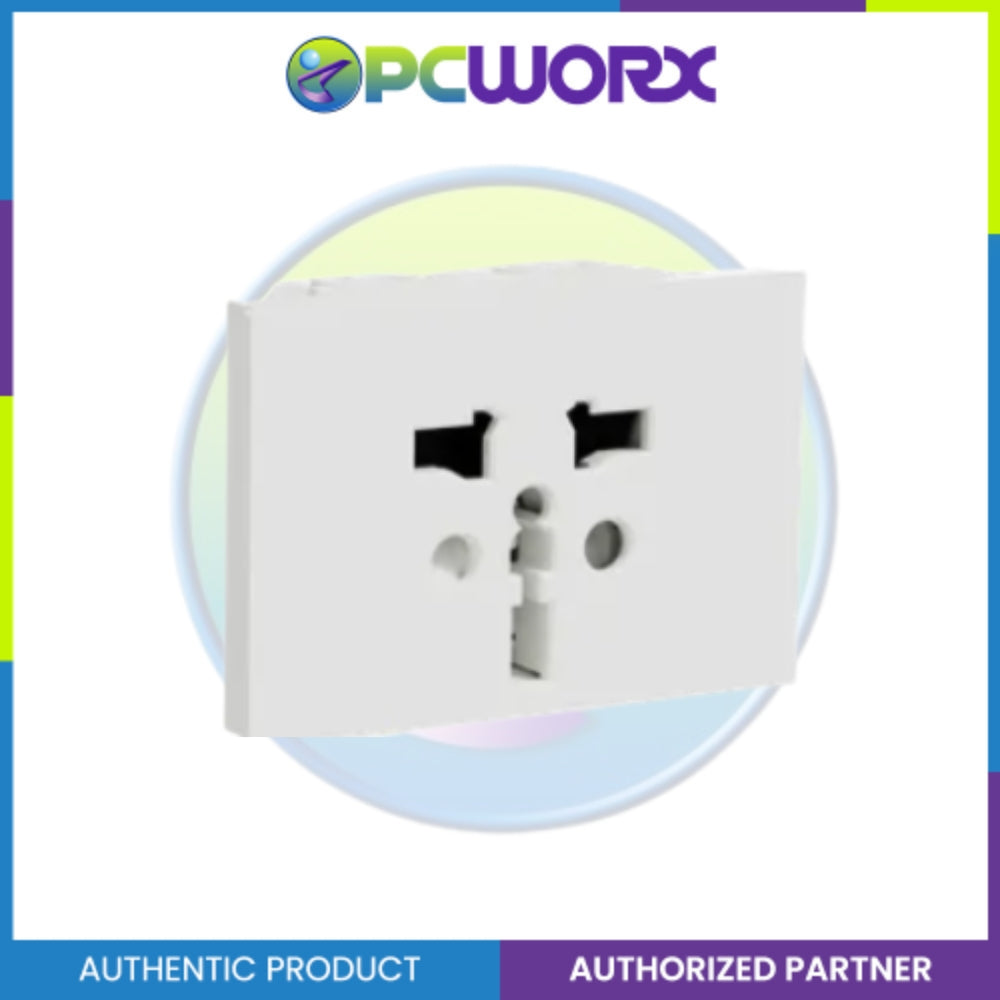

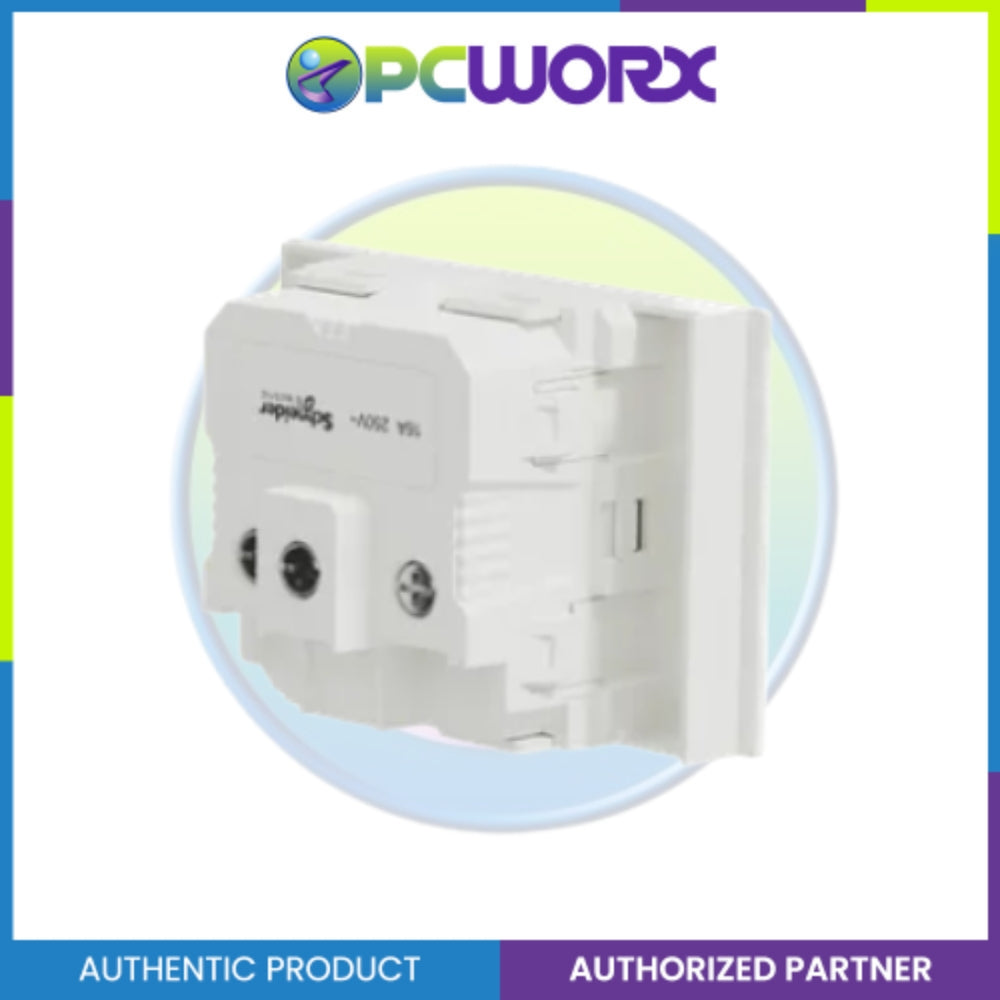

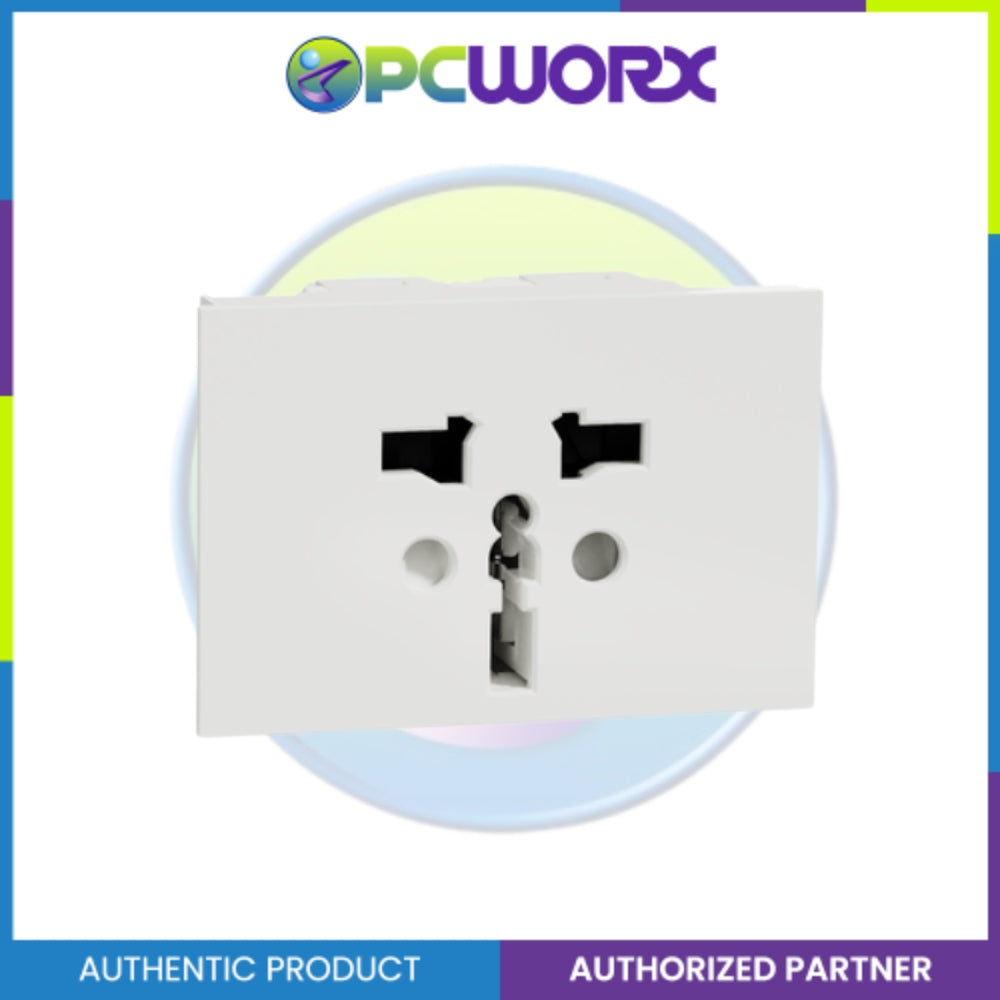

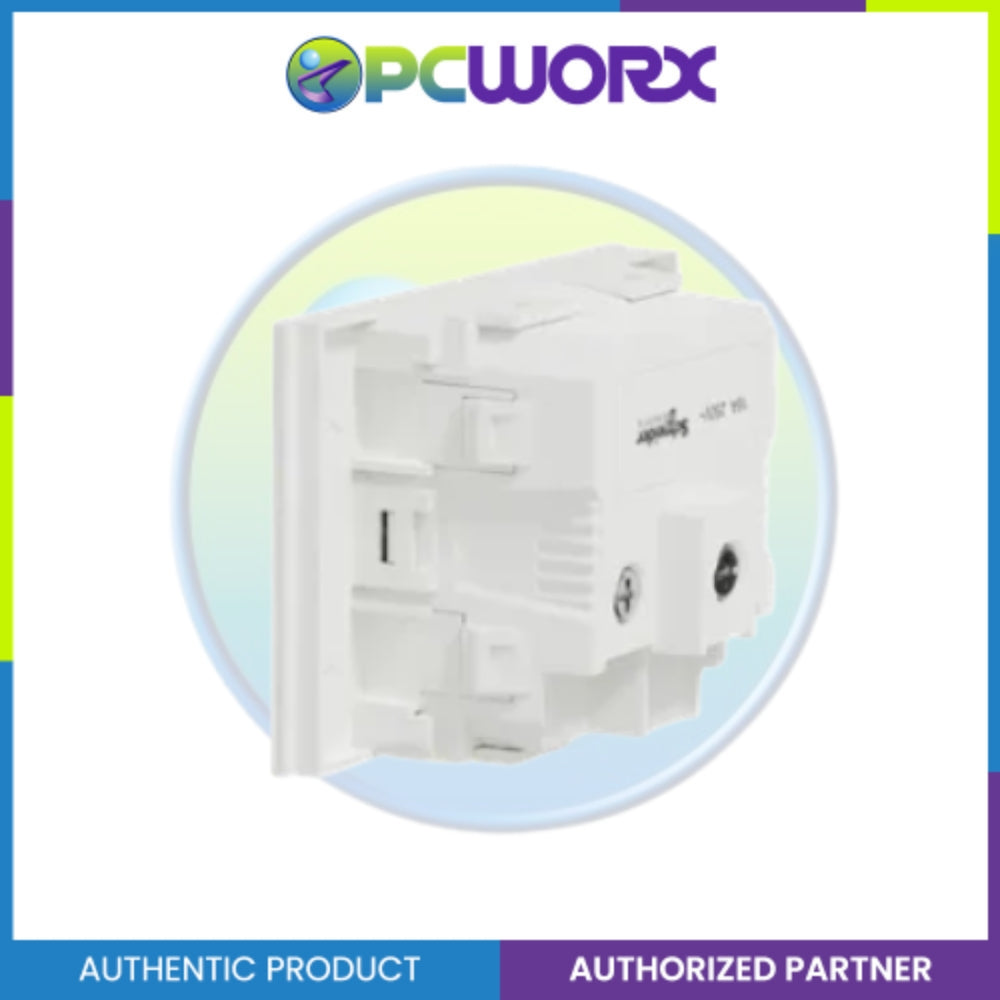

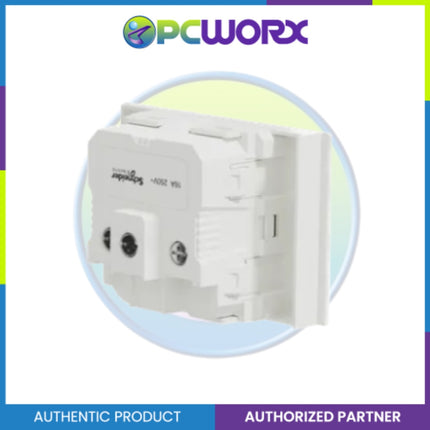

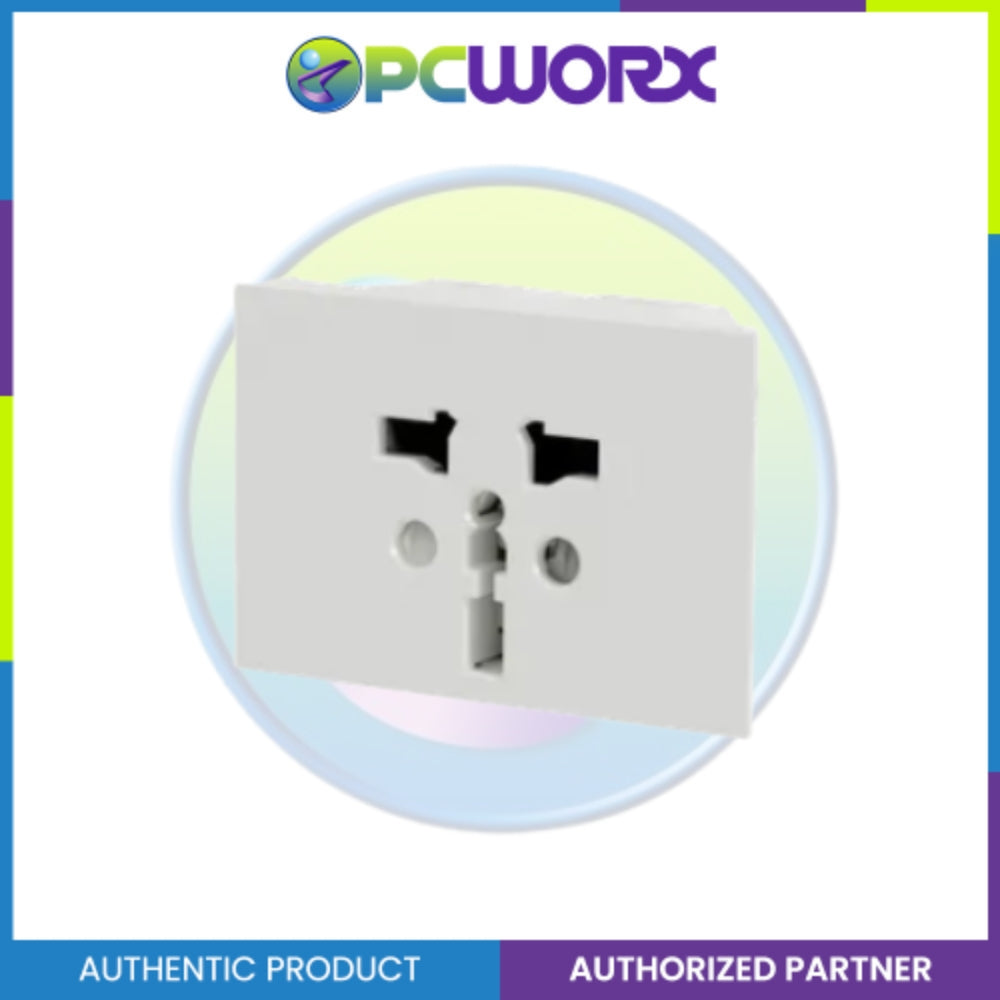

Schneider Electric Avatar On socket-outlet M3T426_IS_WE is a complete product in color white. And its rated current is 16A. Its matching mounting box can be recessed into the surface of the wall with flush type. The connection terminals of this socket-outlet are screw terminal. It is 46.6 mm in width, 69.3 mm in height, and 33.85 mm in depth. It reaches IP20 degree of protection too. Being made of polycarbonate material, this socket-outlet is quite reliable and resistant. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.
SPECIFICATIONS
|
|
|
| Range of product |
AvatarOn A |
| Product or component type |
Socket-outlet |
| Device presentation |
Complete product |
| Colour tint |
White |
| Colour tint |
White |
| Complementary |
|
| Rated current |
16 A at 250 V AC 50...60 Hz |
| Socket number |
1 |
| Clamping connection capacity |
2 x 1.5...2 x 4 mm² for solid cable(s) |
| |
2 x 1.5...2 x 4 mm² for stranded cable(s) |
| Connections - terminals |
Screw terminal |
| Material |
Polycarbonate cover |
| |
Polycarbonate base |
| Device mounting |
Flush |
| Width |
46.6 mm |
| Height |
69.3 mm |
| Depth |
33.85 mm |
| Embedding depth |
23.05 mm |
| Environment |
|
| IP degree of protection |
IP20 |
| Maximum ambient air temperature for operation |
35 °C |
| Ambient air temperature for storage |
-5…45 °C |
| Relative humidity |
0…95 % |
| Operating altitude |
< 2000 m |
| Standards |
IEC 60884-1 |
| Product certifications |
IEC |
| Packing Units |
|
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
3.4 cm |
| Package 1 Width |
4.7 cm |
| Package 1 Length |
7.0 cm |
| Package 1 Weight |
53.0 g |
| Unit Type of Package 2 |
BB1 |
| Number of Units in Package 2 |
10 |
| Package 2 Height |
9.1 cm |
| Package 2 Width |
8.9 cm |
| Package 2 Length |
25.5 cm |
| Package 2 Weight |
859.0 g |
| Unit Type of Package 3 |
S03 |
| Number of Units in Package 3 |
120 |
| Package 3 Height |
30.0 cm |
| Package 3 Width |
30.0 cm |
| Package 3 Length |
40.0 cm |
| Package 3 Weight |
7.523 kg |
