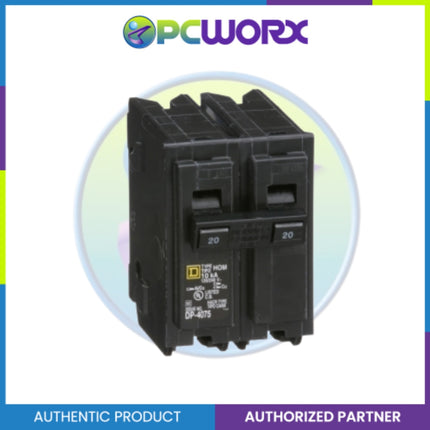

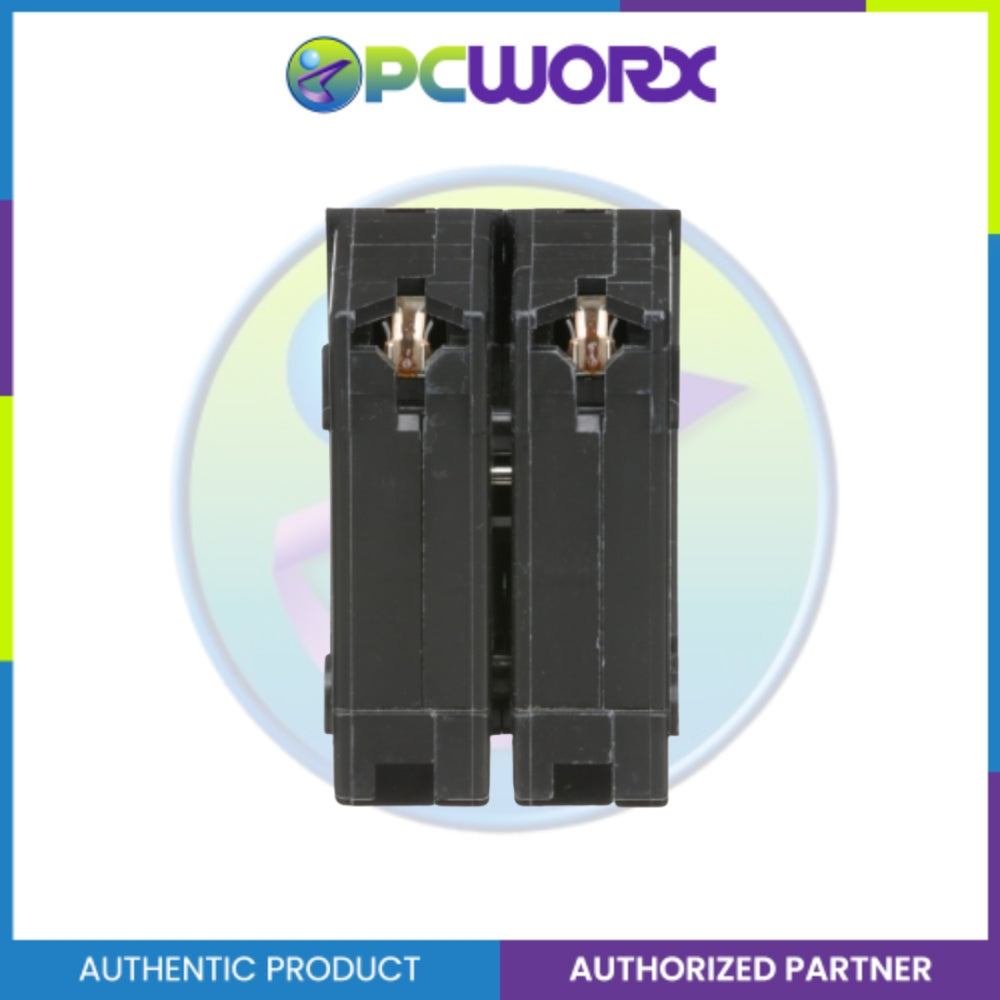

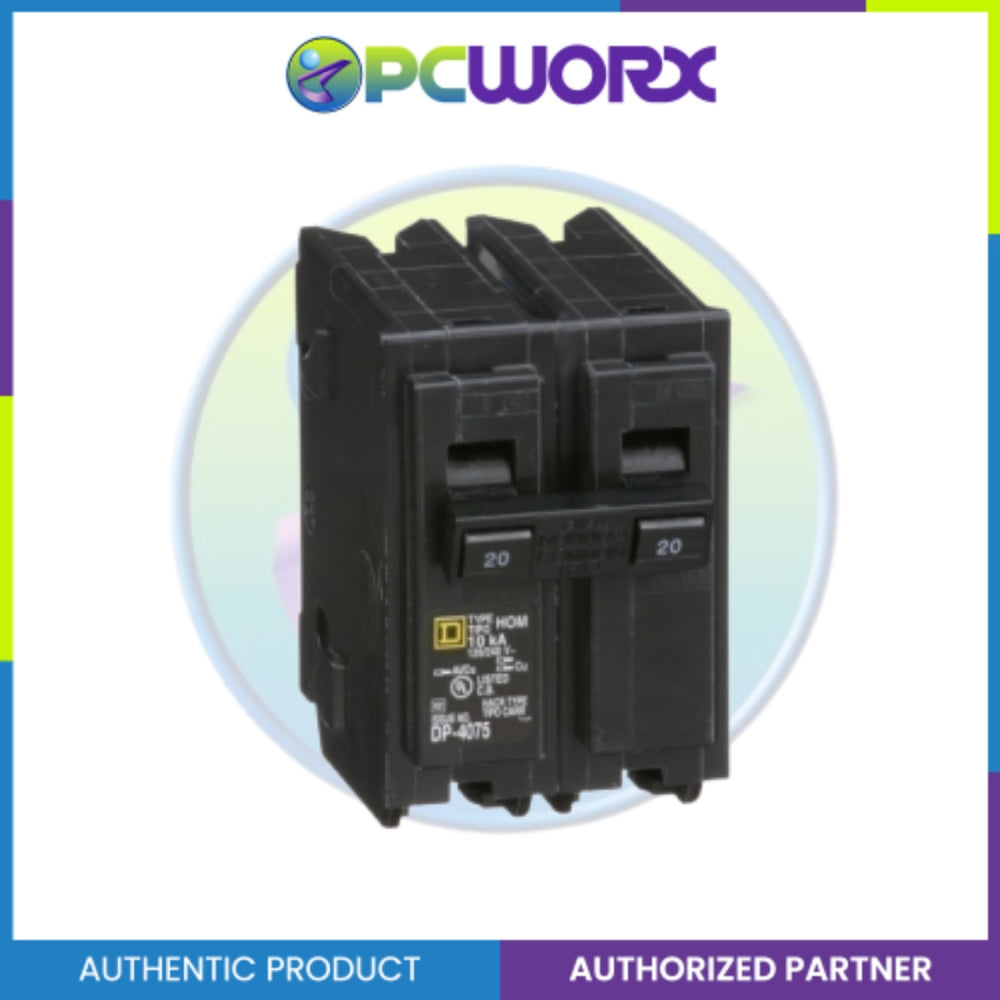

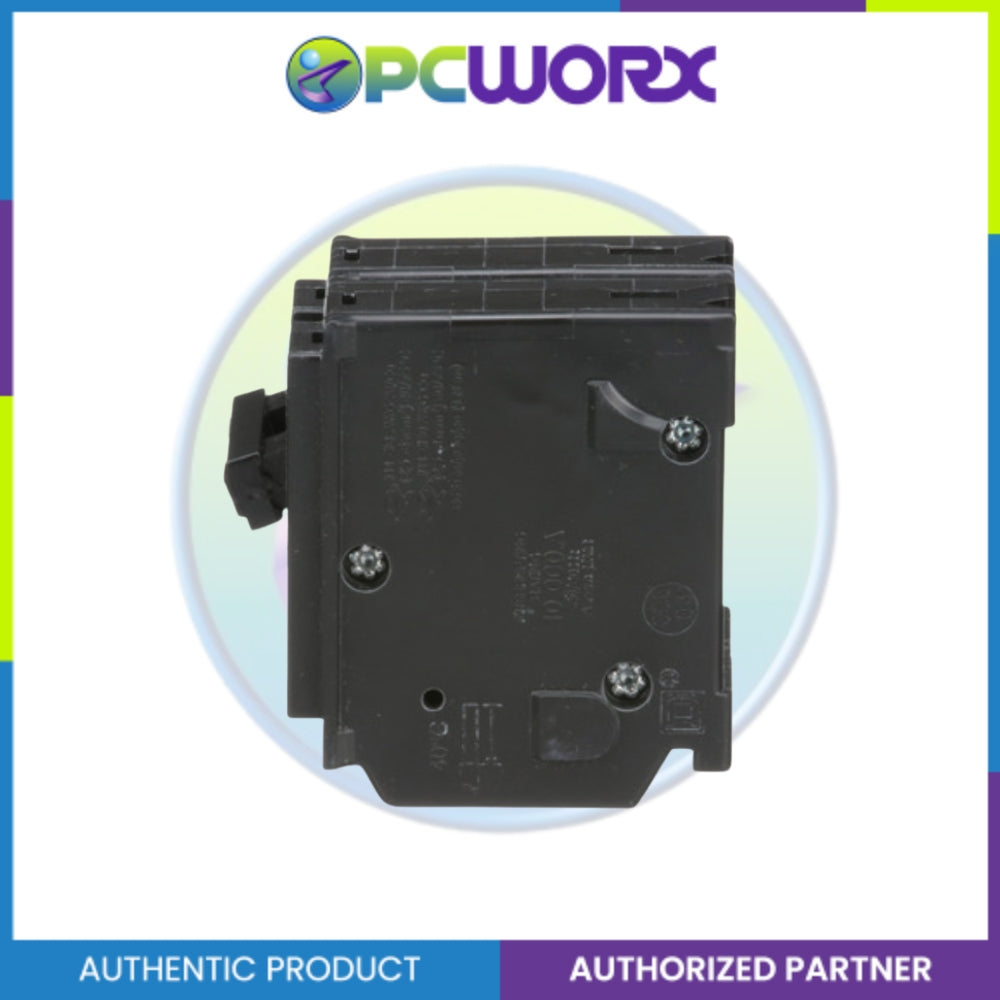

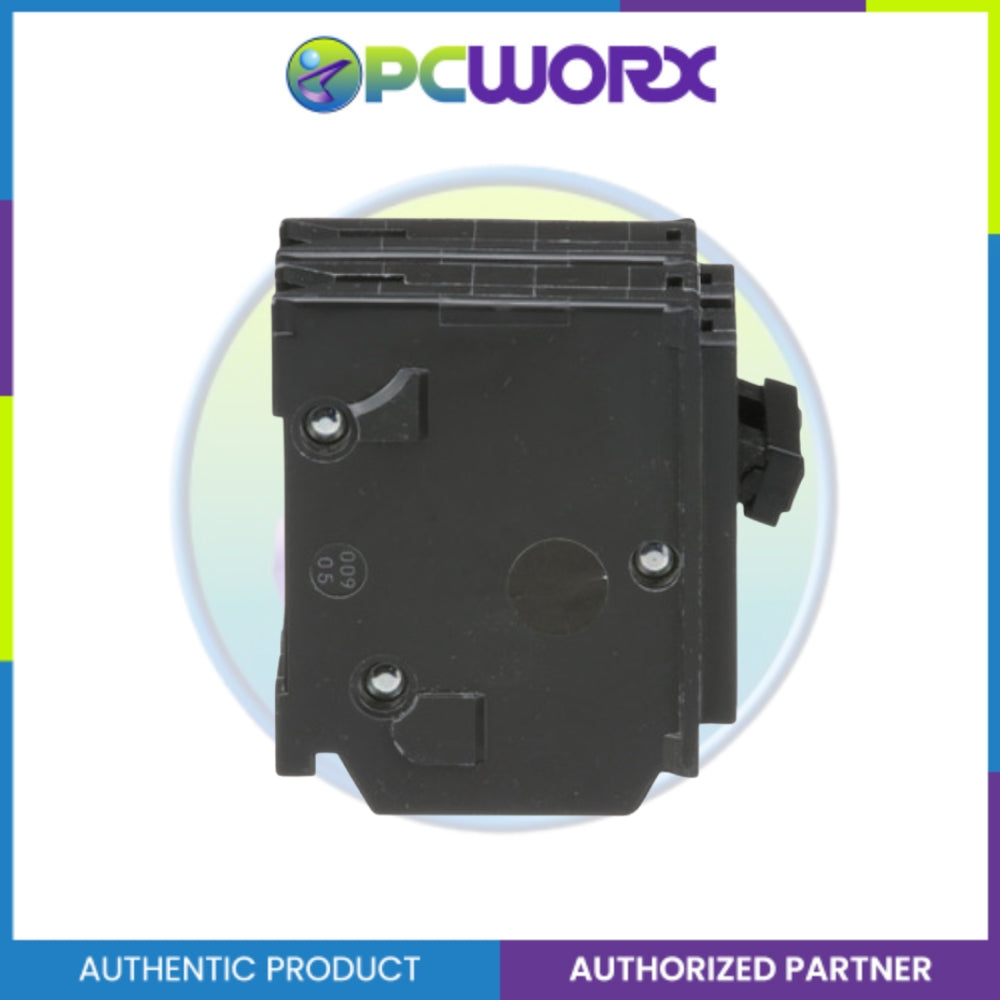

Schneider HOM220 MINIATURE CIRCUIT BREAKER 120/240V 20A

Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 20A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Category Attribute Value
Main Product Miniature circuit-breaker
Main Range Homeline
Main Current Rating 20 A
Main Certifications UL listed
Main Voltage Rating 120/240 V AC
Main Mounting Type Plug-in
Main Number of Poles 2P
Main Short Circuit Current Rating 10 kA
Main Number of Spaces 2
Main Circuit Breaker Type Standard
Main Ratings HACR rated
Main Electrical Connection Clamp terminal for 2 cables
Main Wire Size 1 × AWG 14…AWG 8 (aluminium/copper)
2 × AWG 14…AWG 10 (copper)
Complementary Tightening torque 4.0 N·m for 2.5…10 mm² (AWG 16…AWG 14)
4.0 N·m for 4…20 mm² (AWG 12…AWG 4)
Complementary Height 79.50 mm
Complementary Width 50.8 mm
Complementary Depth 75.69 mm
Environment Ambient air temperature for operation 40 °C
Packing Units Unit Type of Package 1 PCE
Packing Units Number of Units in Package 1 1
Packing Units Package 1 Height 7.874 cm
Packing Units Package 1 Width 5.080 cm
Packing Units Package 1 Length 7.620 cm
Packing Units Package 1 Weight 294.835 g
Packing Units Unit Type of Package 2 BB1
Packing Units Number of Units in Package 2 5
Packing Units Package 2 Height 7.874 cm
Packing Units Package 2 Width 7.874 cm
Packing Units Package 2 Length 25.654 cm
Packing Units Package 2 Weight 1.551 kg
Packing Units Unit Type of Package 3 CAR
Packing Units Number of Units in Package 3 50
Packing Units Package 3 Height 27.178 cm
Packing Units Package 3 Width 17.018 cm
Packing Units Package 3 Length 42.418 cm
Packing Units Package 3 Weight 15.672 kg
