Specifications Main Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 2P Number of protected poles 2 [In] rated current 63 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 10000 A Icn at 220 V AC 50/60 Hz conforming to IEC 60898-1 6000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1 Suitability for isolation Yes conforming to IEC 60898-1 Complementary Network frequency 50/60 Hz [Ue] rated operational voltage 220 V AC 50/60 Hz 400 V AC 50/60 Hz Magnetic tripping limit 5...10 x In [Ics] rated service breaking capacity 6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 [Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to IEC 60898-1 [Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60898-1 Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail 9 mm pitches 4 Height 81 mm Width 36 mm Depth 66.5 mm Colour Grey (RAL 7035) Mechanical durability 10000 cycles Electrical durability 4000 cycles Connections - terminals Tunnel type terminal (top or bottom) 1…25 mm² flexible Tunnel type terminal (top or bottom) 1…35 mm² rigid Tightening torque 3.5 N.m top or bottom Earth-leakage protection Without Environment Standards IEC 60898-1 Product certifications CE IP degree of protection IP20 conforming to IEC 60529 Pollution degree 2 Tropicalisation 2 Relative humidity 95 % at -5…60 °C Ambient air temperature for operation -5…60 °C Ambient air temperature for storage -40…85 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 7.500 cm Package 1 Width 3.500 cm Package 1 Length 8.500 cm Package 1 Weight 246.000 g Unit Type of Package 2 BB1 Number of Units in Package 2 6 Package 2 Height 8.000 cm Package 2 Width 9.000 cm Package 2 Length 22.500 cm Package 2 Weight 1.545 kg Unit Type of Package 3 S03 Number of Units in Package 3 72 Package 3 Height 30.000 cm Package 3 Width 30.000 cm Package 3 Length 40.000 cm Package 3 Weight 19.166 kg

Read more less

Category Parameter Specification Main Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 3P Number of protected poles 3 Rated current [In] 20 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 10 kA Icn at 220 V AC 50/60 Hz (IEC 60898-1) 6 kA Icn at 400 V AC 50/60 Hz (IEC 60898-1) Suitability for isolation Yes (IEC 60898-1) Complementary Network frequency 50 Hz Rated operational voltage [Ue] 220 V AC 50/60 Hz 400 V AC 50/60 Hz Magnetic tripping limit 5…10 × In Rated service breaking capacity [Ics] 6 kA (100% Icn) at 400 V AC 50/60 Hz Rated insulation voltage [Ui] 500 V AC 50/60 Hz Rated impulse withstand voltage [Uimp] 4 kV Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail Number of 9 mm pitches 6 Dimensions Height 81 mm Width 54 mm Depth 66.5 mm Physical Colour Grey (RAL 7035) Mechanical durability 10,000 cycles Electrical durability 4,000 cycles Connections Terminal type Tunnel type (top or bottom) Rigid conductor size 1…25 mm² Flexible conductor size 1…16 mm² Tightening torque 2 N·m Environment Standards IEC 60898-1 Product certifications CE, VDE IP degree of protection IP20 (IEC 60529) Pollution degree 2 Tropicalisation 2 Relative humidity 95% at -5…60 °C Operating temperature -5…60 °C Storage temperature -40…85 °C Packing Units Unit type of Package 1 PCE Number of units in Package 1 1 Package 1 height 7.5 cm Package 1 width 5.5 cm Package 1 length 8.2 cm Package 1 weight 290 g

Read more less

Specifications Main Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 3P Number of protected poles 3 [In] rated current 25 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 10000 A Icn at 220 V AC 50/60 Hz conforming to IEC 60898-1 6000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1 Suitability for isolation Yes conforming to IEC 60898-1 Complementary Network frequency 50 Hz [Ue] rated operational voltage 220 V AC 50/60 Hz 400 V AC 50/60 Hz Magnetic tripping limit 5...10 x In [Ics] rated service breaking capacity 6 kA 100 % x Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1 [Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to IEC 60898-1 [Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60898-1 Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail 9 mm pitches 6 Height 81 mm Width 54 mm Depth 66.5 mm Colour Grey (RAL 7035) Mechanical durability 10000 cycles Electrical durability 4000 cycles Connections - terminals Tunnel type terminal (top or bottom) 1…25 mm² rigid Tunnel type terminal (top or bottom) 1…16 mm² flexible Tightening torque 2 N.m top or bottom Environment Standards IEC 60898-1 Product certifications VDE CE IP degree of protection IP20 conforming to IEC 60529 Pollution degree 2 Tropicalisation 2 Relative humidity 95 % at -5…60 °C Ambient air temperature for operation -5…60 °C Ambient air temperature for storage -40…85 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 7.000 cm Package 1 Width 8.000 cm Package 1 Length 5.000 cm Package 1 Weight 280.000 g Unit Type of Package 2 BB1 Number of Units in Package 2 4 Package 2 Height 8.000 cm Package 2 Width 9.000 cm Package 2 Length 22.000 cm Package 2 Weight 1.372 kg Unit Type of Package 3 S03 Number of Units in Package 3 48 Package 3 Height 30.000 cm Package 3 Width 30.000 cm Package 3 Length 40.000 cm Package 3 Weight 15.600 kg

Read more less

Easy9 Miniature Circuit Breaker – Specifications Section Parameter Value Main Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 3P Number of protected poles 3 Rated current (In) 32 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 10,000 A Icn at 220 V AC, 50/60 Hz (IEC 60898-1)6,000 A Icn at 400 V AC, 50/60 Hz (IEC 60898-1) Suitability for isolation Yes, conforming to IEC 60898-1 Complementary Network frequency 50 Hz Rated operational voltage (Ue) 220 V AC, 50/60 Hz400 V AC, 50/60 Hz Magnetic tripping limit 5…10 × In Rated service breaking capacity (Ics) 6 kA, 100% × Icn at 400 V AC, 50/60 Hz (IEC 60898-1) Rated insulation voltage (Ui) 500 V AC, 50/60 Hz (IEC 60898-1) Rated impulse withstand voltage (Uimp) 4 kV (IEC 60898-1) Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail 9 mm pitches 6 Height 81 mm Width 54 mm Depth 66.5 mm Colour Grey (RAL 7035) Mechanical durability 10,000 cycles Electrical durability 4,000 cycles Connections – terminals Tunnel type terminal (top/bottom), 1–25 mm² flexibleTunnel type terminal (top/bottom), 1–35 mm² rigid Tightening torque 3.5 N·m (top or bottom) Environment Standards IEC 60898-1 Product certifications VDECE IP degree of protection IP20 (IEC 60529) Pollution degree 2 Tropicalisation 2 Relative humidity 95% at -5…60 °C Ambient air temperature (operation) -5…60 °C Ambient air temperature (storage) -40…85 °C Packing Units Unit type – Package 1 PCE Units per Package 1 1 Package 1 dimensions (H × W × L) 7.5 × 5.5 × 8.5 cm Package 1 weight 297 g

Read more less

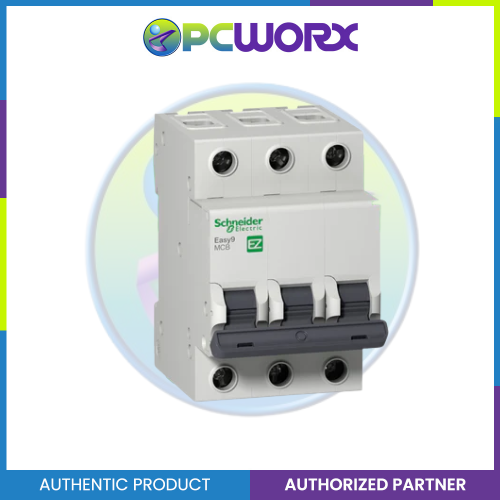

Specifications Main Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 3P Number of protected poles 3 [In] rated current 40 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 10000 A Icn at 220 V AC 50/60 Hz conforming to IEC 60898-1 6000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1 Suitability for isolation Yes conforming to IEC 60898-1 Complementary Network frequency 50/60 Hz [Ue] rated operational voltage 220 V AC 50/60 Hz 400 V AC 50/60 Hz Magnetic tripping limit 5...10 x In [Ics] rated service breaking capacity 6 kA 100 % x Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1 [Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to IEC 60898-1 [Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60898-1 Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail 9 mm pitches 6 Height 81 mm Width 54 mm Depth 66.5 mm Colour Grey (RAL 7035) Mechanical durability 10000 cycles Electrical durability 4000 cycles Connections - terminals Tunnel type terminal (top or bottom) 1…25 mm² flexible Tunnel type terminal (top or bottom) 1…35 mm² rigid Tightening torque 3.5 N.m top or bottom Earth-leakage protection Without Environment Standards IEC 60898-1 Product certifications CE VDE IP degree of protection IP20 conforming to IEC 60529 Pollution degree 2 Tropicalisation 2 Relative humidity 95 % at -5…60 °C Ambient air temperature for operation -5…60 °C Ambient air temperature for storage -40…85 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 7.500 cm Package 1 Width 5.500 cm Package 1 Length 8.500 cm Package 1 Weight 353.000 g Unit Type of Package 2 BB1 Number of Units in Package 2 4 Package 2 Height 8.200 cm Package 2 Width 9.000 cm Package 2 Length 23.000 cm Package 2 Weight 1.489 kg Unit Type of Package 3 S03 Number of Units in Package 3 48 Package 3 Height 30.000 cm Package 3 Width 30.000 cm Package 3 Length 40.000 cm Package 3 Weight 18.494 kg

Read more less

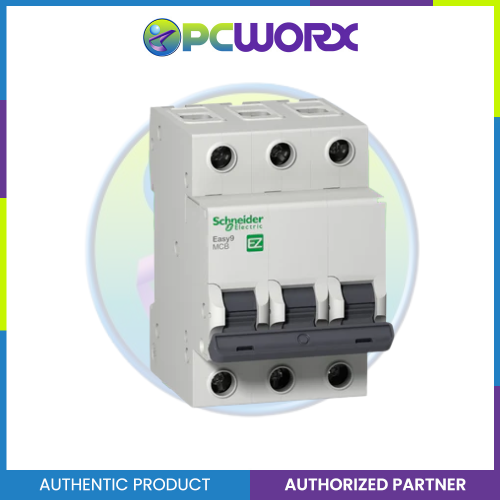

Category Parameter Specification Main Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 3P Number of protected poles 3 Rated current [In] 50 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 10 kA at 220 V AC 50/60 Hz (IEC 60898-1) 6 kA at 400 V AC 50/60 Hz (IEC 60898-1) Suitability for isolation Yes (IEC 60898-1) Complementary Network frequency 50/60 Hz Rated operational voltage [Ue] 220 V AC 50/60 Hz 400 V AC 50/60 Hz Magnetic tripping limit 5…10 × In Rated service breaking capacity [Ics] 6 kA (100% Icn) at 400 V AC 50/60 Hz Rated insulation voltage [Ui] 500 V AC 50/60 Hz Rated impulse withstand voltage [Uimp] 4 kV Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail Number of 9 mm pitches 6 Dimensions Height 81 mm Width 54 mm Depth 66.5 mm Physical Colour Grey (RAL 7035) Mechanical durability 10,000 cycles Electrical durability 4,000 cycles Connections Terminal type Tunnel type (top or bottom) Flexible conductor size 1…25 mm² Rigid conductor size 1…35 mm² Tightening torque 3.5 N·m Protection Earth-leakage protection Without Environment Standards IEC 60898-1 Product certifications VDE, CE IP degree of protection IP20 (IEC 60529) Pollution degree 2 Tropicalisation 2 Relative humidity 95% at -5…60 °C Operating temperature -5…60 °C Storage temperature -40…85 °C Packing Units Unit type of Package 1 PCE Number of units in Package 1 1 Package 1 height 8.0 cm Package 1 width 9.0 cm Package 1 length 2.5 cm Package 1 weight 358 g

Read more less

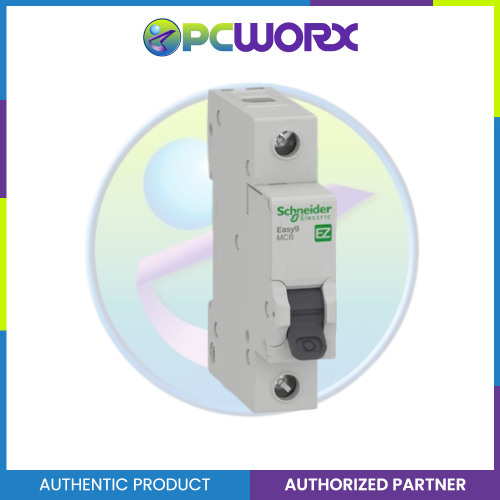

Specifications Main Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 1P Number of protected poles 1 [In] rated current 16 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 6000 A Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 10000 A Icn at 127 V AC 50/60 Hz conforming to IEC 60898-1 Suitability for isolation Yes conforming to IEC 60898-1 Complementary Network frequency 50 Hz [Ue] rated operational voltage 230 V AC 50 Hz 127 V AC 50 Hz Magnetic tripping limit 5...10 x In [Ics] rated service breaking capacity 6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 [Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to IEC 60898-1 [Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60898-1 Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail 9 mm pitches 2 Height 81 mm Width 18 mm Depth 66.5 mm Colour Grey (RAL 7035) Mechanical durability 10000 cycles Electrical durability 4000 cycles Connections - terminals Tunnel type terminal (top or bottom) 1…25 mm² rigid Tunnel type terminal (top or bottom) 1…16 mm² flexible Tightening torque 2 N.m top or bottom Environment Standards IEC 60898-1 Product certifications CE VDE IP degree of protection IP20 conforming to IEC 60529 Pollution degree 2 Tropicalisation 2 Relative humidity 95 % at -5…60 °C Ambient air temperature for operation -5…60 °C Ambient air temperature for storage -40…85 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 7.300 cm Package 1 Width 1.800 cm Package 1 Length 8.500 cm Package 1 Weight 95.000 g Unit Type of Package 2 BB1 Number of Units in Package 2 12 Package 2 Height 8.500 cm Package 2 Width 9.200 cm Package 2 Length 22.300 cm Package 2 Weight 1.195 kg Unit Type of Package 3 S03 Number of Units in Package 3 144 Package 3 Height 30.000 cm Package 3 Width 30.000 cm Package 3 Length 40.000 cm Package 3 Weight 14.887 kg

Read more less

Parameter Specification Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 1P Number of protected poles 1 Rated current [In] 32 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 6 kA Icn at 230 V AC 50/60 Hz (IEC 60898-1) 10 kA Icn at 127 V AC 50/60 Hz (IEC 60898-1) Suitability for isolation Yes (IEC 60898-1)

Read more less

Category Parameter Specification Main Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 1P Number of protected poles 1 Rated current [In] 40 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 6 kA Icn at 230 V AC 50/60 Hz (IEC 60898-1) 10 kA Icn at 127 V AC 50/60 Hz (IEC 60898-1) Suitability for isolation Yes (IEC 60898-1) Complementary Network frequency 50/60 Hz Rated operational voltage [Ue] 230 V AC 50 Hz 127 V AC 50 Hz Magnetic tripping limit 5…10 × In Rated service breaking capacity [Ics] 6 kA (100% Icn) at 230 V AC 50/60 Hz Rated insulation voltage [Ui] 500 V AC 50/60 Hz Rated impulse withstand voltage [Uimp] 4 kV Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail Number of 9 mm pitches 2 Dimensions Height 81 mm Width 18 mm Depth 66.5 mm Physical Colour Grey (RAL 7035) Mechanical durability 10,000 cycles Electrical durability 4,000 cycles Connections Terminal type Tunnel type (top or bottom) Flexible conductor size 1…25 mm² Rigid conductor size 1…35 mm² Tightening torque 3.5 N·m Earth-leakage protection Without Environment Standards IEC 60898-1 Product certifications VDE, CE IP degree of protection IP20 (IEC 60529) Pollution degree 2 Tropicalisation 2 Relative humidity 95% at -5…60 °C Operating temperature -5…60 °C Storage temperature -40…85 °C Packing Units Unit type of Package 1 PCE Number of units in Package 1 1 Package 1 height 7.5 cm Package 1 width 1.8 cm Package 1 length 8.5 cm Package 1 weight 119 g

Read more less

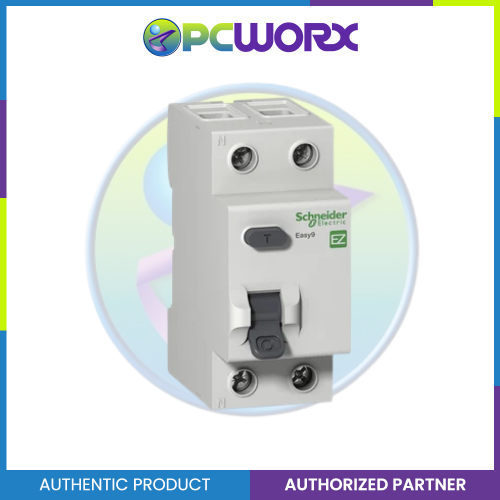

Category Parameter Specification Main Range of product Easy9 Product or component type Residual current circuit breaker (RCCB) Device short name Easy9 RCCB Poles 2P Neutral position Left Rated current [In] 25 A Network type AC Earth-leakage sensitivity 30 mA Earth-leakage protection time delay Instantaneous Earth-leakage protection class Type AC Rated breaking and making capacity 500 A Rated conditional short-circuit current 6000 A with Easy9 MCB (25 A) Complementary Device location in system Outgoer Network frequency 50/60 Hz Rated operational voltage [Ue] 230 V AC 50/60 Hz Residual current tripping technology Voltage independent Rated insulation voltage [Ui] 440 V AC Rated impulse withstand voltage [Uimp] 4 kV Surge current 250 A Contact position indicator Yes Control type Toggle Mounting mode Clip-on Mounting support DIN rail Comb busbar compatibility Top: Yes Connection pitch 18 mm between phases Number of 9 mm pitches 4 Dimensions Height 82 mm Width 36 mm Depth 72 mm Physical Colour Grey (RAL 7035) Mechanical durability 5,000 cycles Electrical durability 2,000 cycles at 230 V AC 50/60 Hz Connections Terminal type Tunnel type (top or bottom) Rigid conductor size 1…35 mm² Flexible conductor size 1…25 mm² Tightening torque 3.5 N·m Environment Standards IEC 61008-1 Product certifications CE IP degree of protection IP20 Pollution degree 2 Tropicalisation 2 Relative humidity 95% at 55 °C Operating temperature -5…60 °C Storage temperature -40…85 °C Packing Units Unit type of Package 1 PCE Number of units in Package 1 1 Package 1 height 8.5 cm Package 1 width 4.0 cm Package 1 length 9.0 cm Package 1 weight 200 g

Read more less

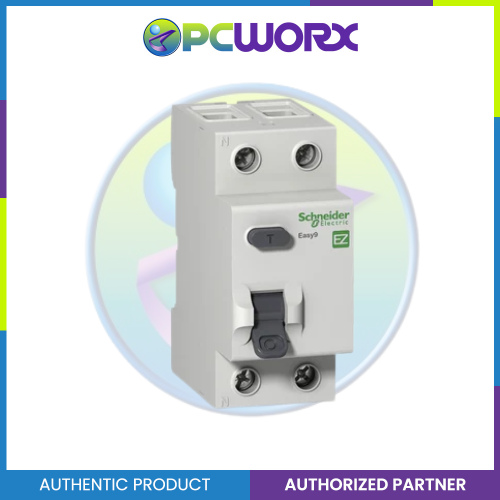

Category Parameter Specification Main Range of product Easy9 Product or component type Residual current circuit breaker (RCCB) Device short name Easy9 RCCB Poles 2P Neutral position Left Rated current [In] 63 A Network type AC Earth-leakage sensitivity 30 mA Earth-leakage protection time delay Instantaneous Earth-leakage protection class Type AC Rated breaking and making capacity 500 A Rated conditional short-circuit current 6000 A with Easy9 MCB (63 A) Complementary Device location in system Outgoer Network frequency 50/60 Hz Rated operational voltage [Ue] 230 V AC 50/60 Hz Residual current tripping technology Voltage independent Rated insulation voltage [Ui] 440 V AC Rated impulse withstand voltage [Uimp] 4 kV Surge current 250 A Contact position indicator Yes Control type Toggle Mounting mode Clip-on Mounting support DIN rail Comb busbar compatibility Top: Yes Connection pitch 18 mm between phases / 9 mm pitches Number of 9 mm pitches 4 Dimensions Height 82 mm Width 36 mm Depth 72 mm Physical Colour Grey (RAL 7035) Mechanical durability 5000 cycles Electrical durability 2000 cycles at 230 V AC 50/60 Hz Connections Terminal type Tunnel type (top or bottom) Rigid conductor size 1…35 mm² Flexible conductor size 1…25 mm² Tightening torque 3.5 N·m (top or bottom) Environment Standards IEC 61008-1 Product certification CE IP degree of protection IP20 Pollution degree 2 Tropicalisation 2 Relative humidity 95% at 55 °C Operating temperature -5…60 °C Storage temperature -40…85 °C Packing Units Unit type of Package 1 PCE Number of units in Package 1 1 Package 1 height 4.0 cm Package 1 width 8.5 cm Package 1 length 9.0 cm Package 1 weight 211 g

Read more less

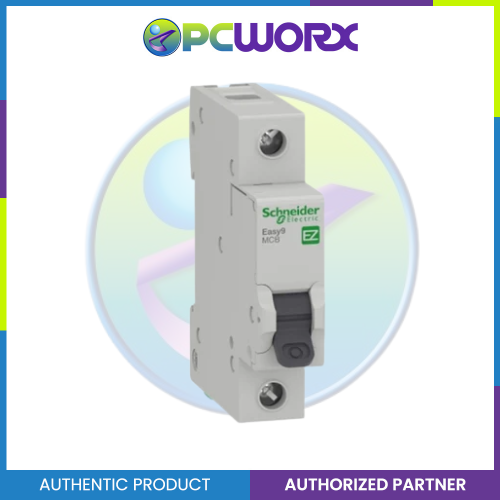

Specifications Main Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 1P Number of protected poles 1 [In] rated current 40 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 10000 A Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 10000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1 Suitability for isolation Yes conforming to IEC 60898-1 Complementary Network frequency 50/60 Hz [Ue] rated operational voltage 230 V AC 50/60 Hz Magnetic tripping limit 5...10 x In [Ics] rated service breaking capacity 7500 A 75 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 Limitation class 3 conforming to IEC 60898-1 [Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to IEC 60898-1 [Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60898-1 Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail 9 mm pitches 2 Height 81 mm Width 18 mm Depth 66.5 mm Colour Grey (RAL 7035) Mechanical durability 20000 cycles Electrical durability 4000 cycles Connections - terminals Tunnel type terminal (top or bottom) 1…25 mm² flexible Tunnel type terminal (top or bottom) 1…35 mm² rigid Wire stripping length 14 mm for top or bottom connection Tightening torque 3.5 N.m top or bottom Earth-leakage protection Without Environment Standards IEC 60898-1 Product certifications CE IP degree of protection IP20 conforming to IEC 60529 Pollution degree 2 Tropicalisation 2 Relative humidity 95 % at -5…60 °C Ambient air temperature for operation -5…60 °C Ambient air temperature for storage -40…85 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 7.4 cm Package 1 Width 1.8 cm Package 1 Length 8.5 cm Package 1 Weight 120.0 g Unit Type of Package 2 BB1 Number of Units in Package 2 12 Package 2 Height 8.8 cm Package 2 Width 7.8 cm Package 2 Length 22.6 cm Package 2 Weight 1440 g Unit Type of Package 3 S03 Number of Units in Package 3 144 Package 3 Height 30 cm Package 3 Width 30 cm Package 3 Length 40 cm Package 3 Weight 17.28 kg

Read more less
