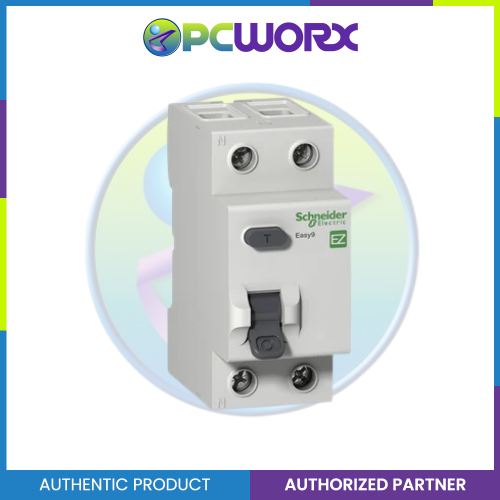

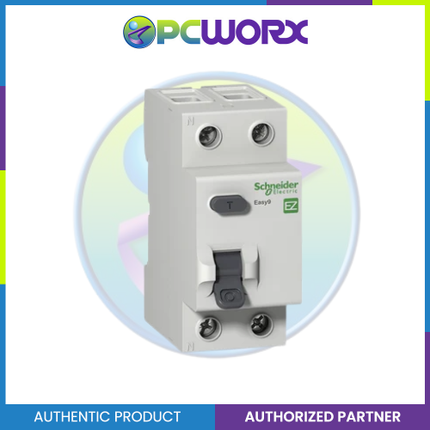

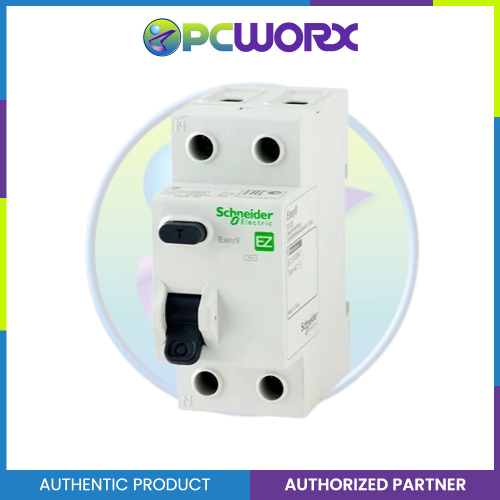

| Specifications |
| Main |
|
| Range of product |
| Easy9 |
|
| Product or component type |
| Residual current circuit breaker (RCCB) |
| Device short name |
| Easy9 RCCB |
| Poles |
|
| 2P |
|
| Neutral position |
| Left |
|
| [In] rated current |
| 25 A |
|
| [In] rated current |
| 25 A |
|
| Network type |
| AC |
|
| Earth-leakage sensitivity |
| 30 mA |
|
| Earth-leakage protection time delay |
| Instantaneous |
| Earth-leakage protection class |
| Type AC |
|
| Rated breaking and making capacity |
| 500 A |
|
| Rated conditional short-circuit current |
| Easy9 MCB: 6000 A 25 A |
| Complementary |
| Device location in system |
| Outgoer |
|
| Network frequency |
| 50/60 Hz |
|
| [Ue] rated operational voltage |
| 230 V AC 50/60 Hz |
| Residual current tripping technology |
| Voltage independent |
| [Ui] rated insulation voltage |
| 440 V AC |
|
| [Uimp] rated impulse withstand voltage |
| 4 kV |
|
| Surge current |
| 250 A |
|
| Contact position indicator |
| Yes |
|
| Control type |
| Toggle |
|
| Mounting mode |
| Clip-on |
|
| Mounting support |
| DIN rail |
|
| Comb busbar and distribution block compatibility |
| Top: YES |
|
| Connection pitch |
| 18 mm between phases |
| 9 mm pitches |
| 4 |
|
| Height |
|
| 82 mm |
|
| Width |
|
| 36 mm |
|
| Depth |
|
| 72 mm |
|
| Colour |
|
| Grey (RAL 7035) |
| Mechanical durability |
| 5000 cycles |
| Electrical durability |
| AC: 2000 cycles 230 V AC 50/60 Hz |
| Connections - terminals |
| Tunnel type terminal (top or bottom) 1…35 mm² rigid |
| Tunnel type terminal (top or bottom) 1…25 mm² flexible |
| Tightening torque |
| 3.5 N.m top or bottom |
| Environment |
| Standards |
| IEC 61008-1 |
| Product certifications |
| CE |
|
| IP degree of protection |
| IP20 |
|
| Pollution degree |
| 2 conforming to IEC 61008-1 |
| Tropicalisation |
| 2 |
|
| Relative humidity |
| 95 % at 55 °C |
| Ambient air temperature for operation |
| -5…60 °C |
|
| Ambient air temperature for storage |
| -40…85 °C |
|
| Packing Units |
| Unit Type of Package 1 |
| PCE |
|
| Number of Units in Package 1 |
| 1 |
|
| Package 1 Height |
| 8.500 cm |
|
| Package 1 Width |
| 4.000 cm |
|
| Package 1 Length |
| 9.000 cm |
|
| Package 1 Weight |
| 200.000 g |
|
| Unit Type of Package 2 |
| BB1 |
|
| Number of Units in Package 2 |
| 6 |
|
| Package 2 Height |
| 9.200 cm |
|
| Package 2 Width |
| 10.000 cm |
| Package 2 Length |
| 25.400 cm |
| Package 2 Weight |
| 1.247 kg |
|
| Unit Type of Package 3 |
| S03 |
|
| Number of Units in Package 3 |
| 54 |
|
| Package 3 Height |
| 30.000 cm |
| Package 3 Width |
| 30.000 cm |
| Package 3 Length |
| 40.000 cm |
| Package 3 Weight |
| 11.862 kg |
|
