| Main |
Range |
Easy9 |
|
Device application |
Distribution |
|
Product or component type |

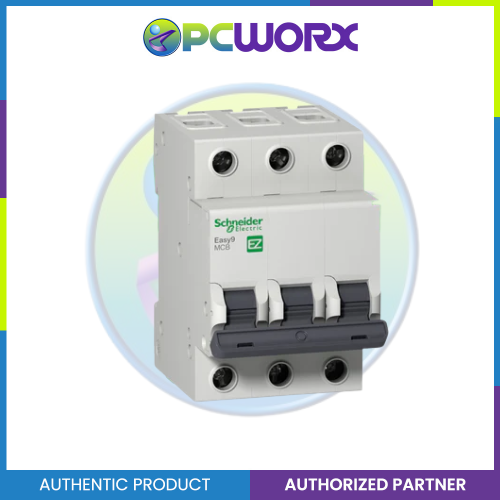

Miniature circuit-breaker |
|
Device short name |
Easy9 MCB |
|
Poles |
3P |
|
Number of protected poles |
3 |
|
Rated current (In) |
32 A |
|
Network type |
AC |
|
Trip unit technology |
Thermal-magnetic |
|
Curve code |
C |
|
Breaking capacity |
10,000 A Icn at 220 V AC, 50/60 Hz (IEC 60898-1)
6,000 A Icn at 400 V AC, 50/60 Hz (IEC 60898-1) |
|
Suitability for isolation |
Yes, conforming to IEC 60898-1 |
| Complementary |
Network frequency |
50 Hz |
|
Rated operational voltage (Ue) |
220 V AC, 50/60 Hz
400 V AC, 50/60 Hz |
|
Magnetic tripping limit |
5…10 × In |
|
Rated service breaking capacity (Ics) |
6 kA, 100% × Icn at 400 V AC, 50/60 Hz (IEC 60898-1) |
|
Rated insulation voltage (Ui) |
500 V AC, 50/60 Hz (IEC 60898-1) |
|
Rated impulse withstand voltage (Uimp) |
4 kV (IEC 60898-1) |
|
Contact position indicator |
Yes |
|
Control type |
Toggle |
|
Local signalling |
Without |
|
Mounting mode |
Clip-on |
|
Mounting support |
DIN rail |
|
9 mm pitches |
6 |
|
Height |
81 mm |
|
Width |
54 mm |
|
Depth |
66.5 mm |
|
Colour |
Grey (RAL 7035) |
|
Mechanical durability |
10,000 cycles |
|
Electrical durability |
4,000 cycles |
|
Connections – terminals |
Tunnel type terminal (top/bottom), 1–25 mm² flexible
Tunnel type terminal (top/bottom), 1–35 mm² rigid |
|
Tightening torque |
3.5 N·m (top or bottom) |
| Environment |
Standards |
IEC 60898-1 |
|
Product certifications |
VDE
CE |
|
IP degree of protection |
IP20 (IEC 60529) |
|
Pollution degree |
2 |
|
Tropicalisation |
2 |
|
Relative humidity |
95% at -5…60 °C |
|
Ambient air temperature (operation) |
-5…60 °C |
|
Ambient air temperature (storage) |
-40…85 °C |
| Packing Units |
Unit type – Package 1 |
PCE |
|
Units per Package 1 |
1 |
|
Package 1 dimensions (H × W × L) |
7.5 × 5.5 × 8.5 cm |
|
Package 1 weight |
297 g |
