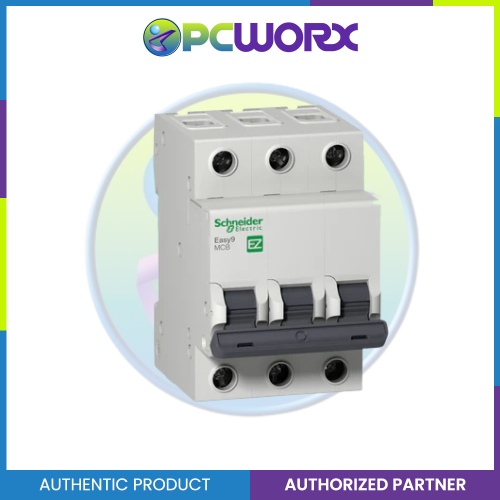

Schneider Easy9 IEC 3P 40A C DIN-Rail Type Miniature Circuit Breaker 400V 6kAIC (EZ9F56340)

(0)

SKU: 0000064487

₱959.00

color_family: White

White

In stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between June 05 and June 07.

In stock and ready to ship

Metro Manila: 2–3 days | Provincial: 3–7 days

Main Office Branch only

Same-Day Delivery Available

Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only

Processing only during office hours from Main Office 9am - 5pm

Schneider Easy9 IEC 3P 40A C DIN-Rail Type Miniature Circuit Breaker 400V 6kAIC (EZ9F56340)

₱959.00

Choose option

Authorized Seller

100% Original Authentic Product

This Easy9 product is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles and 40A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10000A at 220VAC conforming to IEC 60898-1 standard. It is compliant with IEC 60898-1 standard. This product has a protection against short circuit and a protection of cable against overloads. It has a fault tripping indication on the front panel by the position of the handle (O-I engraved). This product is dedicated for residential and small commercial buildings. It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 10000 cycles. The Ue operational voltage is 220VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 6 pitches of 9mm. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 66.5mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C.

Main Specifications

Parameter	Value
Range	Easy9
Device application	Distribution
Product or component type	Miniature circuit-breaker
Device short name	Easy9 MCB
Poles	3P
Number of protected poles	3
Rated current $[In]$	40 A
Network type	AC
Trip unit technology	Thermal-magnetic
Curve code	C
Suitability for isolation	Yes (IEC 60898-1)

Breaking Capacity

Voltage	Breaking Capacity
220 V AC 50/60 Hz	10,000 A Icn
400 V AC 50/60 Hz	6,000 A Icn
Standard	IEC 60898-1

Electrical Characteristics

Parameter	Value
Network frequency	50/60 Hz
Rated operational voltage $[Ue]$	220 V AC / 400 V AC
Magnetic tripping limit	5…10 × In
Rated service breaking capacity $[Ics]$	6 kA (100% Icn) at 400 V
Rated insulation voltage $[Ui]$	500 V AC
Rated impulse withstand voltage $[Uimp]$	4 kV

Mechanical & Functional Characteristics

Parameter	Value
Contact position indicator	Yes
Control type	Toggle
Local signalling	Without
Mounting mode	Clip-on
Mounting support	DIN rail
9 mm pitches	6
Earth-leakage protection	Without

Dimensions & Appearance

Parameter	Value
Height	81 mm
Width	54 mm
Depth	66.5 mm
Colour	Grey (RAL 7035)

Durability

Parameter	Value
Mechanical durability	10,000 cycles
Electrical durability	4,000 cycles

Connections

Parameter	Value
Terminal type	Tunnel type (top or bottom)
Flexible conductor	1…25 mm²
Rigid conductor	1…35 mm²
Tightening torque	3.5 N·m

Environmental Specifications

Parameter	Value
Standards	IEC 60898-1
Certifications	CE, VDE
IP degree of protection	IP20 (IEC 60529)
Pollution degree	2
Tropicalisation	2
Relative humidity	95% at -5…60 °C
Operating temperature	-5…60 °C
Storage temperature	-40…85 °C

Packing Units

Package 1

Parameter	Value
Unit type	PCE
Units per package	1
Dimensions (H×W×L)	7.5 × 5.5 × 8.5 cm
Weight	353 g
