Specification Details Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 2P Number of protected poles 2 [In] rated current 10:00 AM Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 10000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1 Suitability for isolation Yes conforming to IEC 60898-1 Network frequency 50/60 Hz [Ue] rated operational voltage 400 V AC 50/60 Hz Magnetic tripping limit 5...10 x In [Ics] rated service breaking capacity 7500 A 75 % x Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1 [Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to IEC 60898-1 [Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60898-1 Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail 9 mm pitches 4 Height 81 mm Width 36 mm Depth 66.5 mm Colour Grey (RAL 7035) Mechanical durability 10000 cycles Electrical durability 4000 cycles Connections - terminals Tunnel type terminal (top or bottom) 1…25 mm² rigid; 1…16 mm² flexible Tightening torque 2 N.m top or bottom Earth-leakage protection Without Standards IEC 60898-1 Product certifications CE IP degree of protection IP20 conforming to IEC 60529 Pollution degree 2 Tropicalisation 2 Relative humidity 95 % at -5…60 °C Ambient air temperature for operation -5…60 °C Ambient air temperature for storage -40…85 °C Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 7.6 cm Package 1 Width 3.6 cm Package 1 Length 8.5 cm Package 1 Weight 211.0 g

Read more less

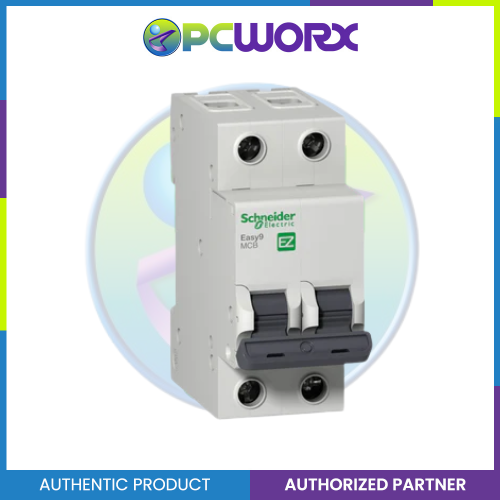

Category Specification Details Main Range Easy9 Device application Distribution Product / component type Miniature circuit-breaker Device short name Easy9 MCB Poles 2P Number of protected poles 2 Rated current [In] 10 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 10,000 A Icn at 220 V AC 50/60 Hz (IEC 60898-1) 6,000 A Icn at 400 V AC 50/60 Hz (IEC 60898-1) Suitability for isolation Yes (IEC 60898-1) Complementary Network frequency 50/60 Hz Rated operational voltage [Ue] 220 V AC / 400 V AC Magnetic tripping limit 5…10 × In Service breaking capacity [Ics] 6 kA at 230 V AC (100% Icn) Rated insulation voltage [Ui] 500 V AC Rated impulse withstand voltage [Uimp] 4 kV Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail 9 mm pitches 4 Height 81 mm Width 36 mm Depth 66.5 mm Colour Grey (RAL 7035) Mechanical durability 10,000 cycles Electrical durability 4,000 cycles Terminal type Tunnel terminal (top/bottom) Terminal capacity (rigid) 1–25 mm² Terminal capacity (flexible) 1–16 mm² Tightening torque 2 N·m (top or bottom) Earth-leakage protection Without Environment Standards IEC 60898-1 Certifications CE IP degree of protection IP20 (IEC 60529) Pollution degree 2 Tropicalisation 2 Relative humidity 95% at −5…60°C Operating temperature −5…60°C Storage temperature −40…85°C Packing Units Unit type PCE Units per package 1 Package height 7.0 cm Package width 8.0 cm Package length 4.0 cm Package weight 198 g

Read more less

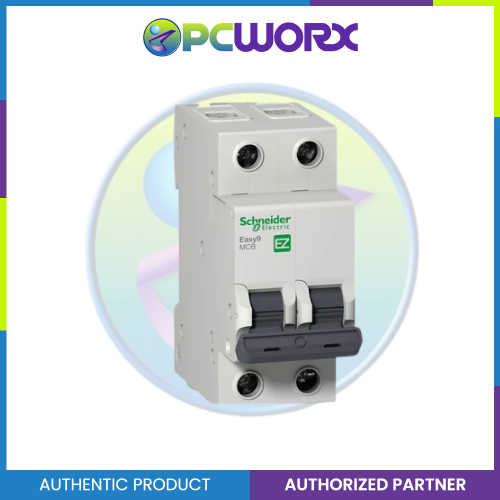

Category Parameter Specification Main Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 2P Number of protected poles 2 Rated current [In] 16 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 10 kA Icn at 400 V AC 50/60 Hz (IEC 60898-1) Suitability for isolation Yes (IEC 60898-1) Complementary Network frequency 50/60 Hz Rated operational voltage [Ue] 400 V AC 50/60 Hz Magnetic tripping limit 5…10 × In Rated service breaking capacity [Ics] 7.5 kA (75% Icn) at 400 V AC Rated insulation voltage [Ui] 500 V AC 50/60 Hz Rated impulse withstand voltage [Uimp] 4 kV Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail 9 mm pitches 4 Height 81 mm Width 36 mm Depth 66.5 mm Colour Grey (RAL 7035) Mechanical durability 10,000 cycles Electrical durability 4,000 cycles Connections – rigid cable 1…25 mm² Connections – flexible cable 1…16 mm² Tightening torque 2 N·m Earth-leakage protection Without Environment Standards IEC 60898-1 Product certifications CE IP degree of protection IP20 (IEC 60529) Pollution degree 2 Tropicalisation 2 Relative humidity 95% at -5…60 °C Operating temperature -5…60 °C Storage temperature -40…85 °C Packing Unit type of package 1 PCE Number of units in package 1 1 Package 1 height 7.6 cm Package 1 width 3.6 cm Package 1 length 8.5 cm Package 1 weight 211 g

Read more less

Category Parameter Specification Main Range Easy9 Device Application Distribution Product or Component Type Miniature Circuit-Breaker Device Short Name Easy9 MCB Poles 2P Number of Protected Poles 2 Rated Current [In] 16 A Network Type AC Trip Unit Technology Thermal-magnetic Curve Code C Breaking Capacity 10 kA Icn at 220 V AC 50/60 Hz (IEC 60898-1)6 kA Icn at 400 V AC 50/60 Hz (IEC 60898-1) Suitability for Isolation Yes, conforming to IEC 60898-1 Complementary Network Frequency 50/60 Hz Rated Operational Voltage [Ue] 220 V AC 50/60 Hz400 V AC 50/60 Hz Magnetic Tripping Limit 5…10 × In Rated Service Breaking Capacity [Ics] 6 kA (100% × Icn) at 230 V AC 50/60 Hz (IEC 60898-1) Rated Insulation Voltage [Ui] 500 V AC 50/60 Hz (IEC 60898-1) Rated Impulse Withstand Voltage [Uimp] 4 kV (IEC 60898-1) Contact Position Indicator Yes Control Type Toggle Local Signalling Without Mounting Mode Clip-on Mounting Support

Read more less

Category Specification Main Range Easy9 Device application Distribution Product / component type Miniature circuit-breaker Device short name Easy9 MCB Poles 2P Number of protected poles 2 Rated current [In] 20 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 10,000 A Icn @ 220 V AC 50/60 Hz (IEC 60898-1) 6,000 A Icn @ 400 V AC 50/60 Hz (IEC 60898-1) Suitability for isolation Yes (IEC 60898-1) Complementary Network frequency 50/60 Hz Rated operational voltage [Ue] 220 V AC 50/60 Hz 400 V AC 50/60 Hz Magnetic tripping limit 5…10 × In Service breaking capacity [Ics] 6 kA (100% × Icn) @ 230 V AC 50/60 Hz (IEC 60898-1) Rated insulation voltage [Ui] 500 V AC 50/60 Hz (IEC 60898-1) Rated impulse withstand voltage [Uimp] 4 kV (IEC 60898-1) Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail 9 mm pitches 4 Height 81 mm Width 36 mm Depth 66.5 mm Colour Grey (RAL 7035) Mechanical durability 10,000 cycles Electrical durability 4,000 cycles Connections – terminals Tunnel terminal (top/bottom) 1–25 mm² rigid Tunnel terminal (top/bottom) 1–16 mm² flexible Tightening torque 2 N·m (top/bottom) Earth-leakage protection Without Environment Standards IEC 60898-1 Product certifications CE IP degree of protection IP20 (IEC 60529) Pollution degree 2 Tropicalisation 2 Relative humidity 95% at –5…60 °C Ambient temperature (operation) –5…60 °C Ambient temperature (storage) –40…85 °C Packing Units Package type 1 PCE Units per package 1 1 Package 1 (H × W × L) 7.500 cm × 3.000 cm × 8.300 cm Package 1 weight 193 g

Read more less

Category Specification Main Range Easy9 Device application Distribution Product / component type Miniature circuit-breaker Device short name Easy9 MCB Poles 2P Number of protected poles 2 Rated current [In] 20 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 10,000 A Icn @ 400 V AC 50/60 Hz (IEC 60898-1) Suitability for isolation Yes (IEC 60898-1) Complementary Network frequency 50/60 Hz Rated operational voltage [Ue] 400 V AC 50/60 Hz Magnetic tripping limit 5…10 × In Service breaking capacity [Ics] 7,500 A (75% × Icn) @ 400 V AC 50/60 Hz (IEC 60898-1) Rated insulation voltage [Ui] 500 V AC 50/60 Hz (IEC 60898-1) Rated impulse withstand voltage [Uimp] 4 kV (IEC 60898-1) Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail 9 mm pitches 4 Height 81 mm Width 36 mm Depth 66.5 mm Colour Grey (RAL 7035) Mechanical durability 10,000 cycles Electrical durability 4,000 cycles Connections – terminals Tunnel terminal (top/bottom) 1–25 mm² rigid Tunnel terminal (top/bottom) 1–16 mm² flexible Tightening torque 2 N·m (top/bottom) Earth-leakage protection Without Environment Standards IEC 60898-1 Product certifications CE IP degree of protection IP20 (IEC 60529) Pollution degree 2 Tropicalisation 2 Relative humidity 95% at –5…60 °C Ambient temperature (operation) –5…60 °C Ambient temperature (storage) –40…85 °C Packing Units Package type 1 PCE Units per package 1 1 Package 1 (H × W × L) 7.6 cm × 3.6 cm × 8.5 cm Package 1 weight 211 g

Read more less

Specifications Main Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 2P Number of protected poles 2 [In] rated current 32 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 10000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1 Suitability for isolation Yes conforming to IEC 60898-1 Complementary Network frequency 50/60 Hz [Ue] rated operational voltage 400 V AC 50/60 Hz Magnetic tripping limit 5...10 x In [Ics] rated service breaking capacity 7500 A 75 % x Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1 [Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to IEC 60898-1 [Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60898-1 Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail 9 mm pitches 4 Height 81 mm Width 36 mm Depth 66.5 mm Colour Grey (RAL 7035) Mechanical durability 10000 cycles Electrical durability 4000 cycles Connections - terminals Tunnel type terminal (top or bottom) 1…25 mm² flexible Tunnel type terminal (top or bottom) 1…35 mm² rigid Tightening torque 3.5 N.m top or bottom Earth-leakage protection Without Environment Standards IEC 60898-1 Product certifications CE IP degree of protection IP20 conforming to IEC 60529 Pollution degree 2 Tropicalisation 2 Relative humidity 95 % at -5…60 °C Ambient air temperature for operation -5…60 °C Ambient air temperature for storage -40…85 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 7.6 cm Package 1 Width 3.6 cm Package 1 Length 8.5 cm Package 1 Weight 220.0 g Unit Type of Package 2 BB1 Number of Units in Package 2 6 Package 2 Height 8.8 cm Package 2 Width 7.8 cm Package 2 Length 22.6 cm Package 2 Weight 1428 g Unit Type of Package 3 S03 Number of Units in Package 3 72 Package 3 Height 30 cm Package 3 Width 30 cm Package 3 Length 40 cm Package 3 Weight 15.84 kg

Read more less

Category Specification Main Range Easy9 Device application Distribution Product / component type Miniature circuit-breaker Device short name Easy9 MCB Poles 2P Number of protected poles 2 Rated current [In] 32 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 10,000 A Icn @ 220 V AC 50/60 Hz (IEC 60898-1) 6,000 A Icn @ 400 V AC 50/60 Hz (IEC 60898-1) Suitability for isolation Yes (IEC 60898-1) Complementary Network frequency 50/60 Hz Rated operational voltage [Ue] 220 V AC 50/60 Hz 400 V AC 50/60 Hz Magnetic tripping limit 5…10 × In Service breaking capacity [Ics] 6 kA (100% × Icn) @ 230 V AC 50/60 Hz (IEC 60898-1) Rated insulation voltage [Ui] 500 V AC 50/60 Hz (IEC 60898-1) Rated impulse withstand voltage [Uimp] 4 kV (IEC 60898-1) Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail 9 mm pitches 4 Height 81 mm Width 36 mm Depth 66.5 mm Colour Grey (RAL 7035) Mechanical durability 10,000 cycles Electrical durability 4,000 cycles Connections – terminals Tunnel terminal (top/bottom) 1–25 mm² flexible Tunnel terminal (top/bottom) 1–35 mm² rigid Tightening torque 3.5 N·m (top/bottom) Earth-leakage protection Without Environment Standards IEC 60898-1 Product certifications CE IP degree of protection IP20 (IEC 60529) Pollution degree 2 Tropicalisation 2 Relative humidity 95% at –5…60 °C Ambient temperature (operation) –5…60 °C Ambient temperature (storage) –40…85 °C Packing Units Unit Type Package 1 PCE Units in Package 1 1 Package 1 (H × W × L) 3.600 cm × 8.500 cm × 7.600 cm Package 1 Weight 198 g

Read more less

Easy9 Miniature Circuit Breaker – Specifications Section Parameter Value Main Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 2P Number of protected poles 2 Rated current (In) 40 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 10,000 A Icn at 400 V AC, 50/60 Hz (IEC 60898-1) Suitability for isolation Yes, conforming to IEC 60898-1 Complementary Network frequency 50/60 Hz Rated operational voltage (Ue) 400 V AC, 50/60 Hz Magnetic tripping limit 5…10 × In Rated service breaking capacity (Ics) 7,500 A (75% × Icn) at 400 V AC, 50/60 Hz (IEC 60898-1) Rated insulation voltage (Ui) 500 V AC, 50/60 Hz (IEC 60898-1) Rated impulse withstand voltage (Uimp) 4 kV (IEC 60898-1) Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail 9 mm pitches 4 Height 81 mm Width 36 mm Depth 66.5 mm Colour Grey (RAL 7035) Mechanical durability 10,000 cycles Electrical durability 4,000 cycles Connections – terminals Tunnel type terminal (top/bottom), 1–25 mm² flexibleTunnel type terminal (top/bottom), 1–35 mm² rigid Wire stripping length 14 mm (top or bottom connection) Tightening torque 3.5 N·m (top or bottom) Earth-leakage protection Without Environment Standards IEC 60898-1 Product certifications CE IP degree of protection IP20 (IEC 60529) Pollution degree 2 Tropicalisation 2 Relative humidity 95% at -5…60 °C Ambient air temperature (operation) -5…60 °C Ambient air temperature (storage) -40…85 °C Packing Units Unit type – Package 1 PCE Units per Package 1 1 Package 1 dimensions (H × W × L) 7.6 × 3.6 × 8.5 cm Package 1 weight 238 g

Read more less

Category Specification Main Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 2P Number of protected poles 2 Rated current [In] 40 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 10000 A Icn at 220 V AC 50/60 Hz (IEC 60898-1) 6000 A Icn at 400 V AC 50/60 Hz (IEC 60898-1) Suitability for isolation Yes (IEC 60898-1) Complementary Network frequency 50/60 Hz Rated operational voltage [Ue] 220 V AC 50/60 Hz 400 V AC 50/60 Hz Magnetic tripping limit 5…10 × In Rated service breaking capacity [Ics] 6 kA (100% × Icn) at 230 V AC (IEC 60898-1) Rated insulation voltage [Ui] 500 V AC (IEC 60898-1) Rated impulse withstand voltage [Uimp] 4 kV (IEC 60898-1) Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail 9 mm pitches 4 Height 81 mm Width 36 mm Depth 66.5 mm Colour Grey (RAL 7035) Mechanical durability 10,000 cycles Electrical durability 4,000 cycles Connections – terminals Tunnel type (top or bottom) 1–25 mm² flexible Tunnel type (top or bottom) 1–35 mm² rigid Tightening torque 3.5 N·m (top or bottom) Earth-leakage protection Without Environment Standards IEC 60898-1 Product certifications CE IP degree of protection IP20 (IEC 60529) Pollution degree 2 Tropicalisation 2 Relative humidity 95% at −5…60 °C Ambient air temperature (operation) −5…60 °C Ambient air temperature (storage) −40…85 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 3.600 cm Package 1 Width 7.600 cm Package 1 Length 8.500 cm Package 1 Weight 240 g

Read more less

Easy9 Miniature Circuit Breaker – Specifications Table Section Parameter Value Main Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 2P Number of protected poles 2 Rated current (In) 50 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 10,000 A Icn at 220 V AC, 50/60 Hz (IEC 60898-1)6,000 A Icn at 400 V AC, 50/60 Hz (IEC 60898-1) Suitability for isolation Yes, conforming to IEC 60898-1 Complementary Network frequency 50/60 Hz Rated operational voltage (Ue) 220 V AC, 50/60 Hz400 V AC, 50/60 Hz Magnetic tripping limit 5…10 × In Rated service breaking capacity (Ics) 6 kA, 100% × Icn at 230 V AC, 50/60 Hz (IEC 60898-1) Rated insulation voltage (Ui) 500 V AC, 50/60 Hz (IEC 60898-1) Rated impulse withstand voltage (Uimp) 4 kV (IEC 60898-1) Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail 9 mm pitches 4 Height 81 mm Width 36 mm Depth 66.5 mm Colour Grey (RAL 7035) Mechanical durability 10,000 cycles Electrical durability 4,000 cycles Connections – terminals Tunnel type terminal (top or bottom), 1–25 mm² flexibleTunnel type terminal (top or bottom), 1–35 mm² rigid Tightening torque 3.5 N·m (top or bottom) Earth-leakage protection Without Environment Standards IEC 60898-1 Product certifications CE IP degree of protection IP20 (IEC 60529) Pollution degree 2 Tropicalisation 2 Relative humidity 95% at -5…60 °C Ambient air temperature (operation) -5…60 °C Ambient air temperature (storage) -40…85 °C Packing Units Unit type – Package 1 PCE Units per Package 1 1 Package 1 dimensions (H × W × L) 4.0 × 8.0 × 8.0 cm Package 1 weight 241 g

Read more less

Specifications Main Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 2P Number of protected poles 2 [In] rated current 63 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 10000 A Icn at 220 V AC 50/60 Hz conforming to IEC 60898-1 6000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1 Suitability for isolation Yes conforming to IEC 60898-1 Complementary Network frequency 50/60 Hz [Ue] rated operational voltage 220 V AC 50/60 Hz 400 V AC 50/60 Hz Magnetic tripping limit 5...10 x In [Ics] rated service breaking capacity 6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 [Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to IEC 60898-1 [Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60898-1 Contact position indicator Yes Control type Toggle Local signalling Without Mounting mode Clip-on Mounting support DIN rail 9 mm pitches 4 Height 81 mm Width 36 mm Depth 66.5 mm Colour Grey (RAL 7035) Mechanical durability 10000 cycles Electrical durability 4000 cycles Connections - terminals Tunnel type terminal (top or bottom) 1…25 mm² flexible Tunnel type terminal (top or bottom) 1…35 mm² rigid Tightening torque 3.5 N.m top or bottom Earth-leakage protection Without Environment Standards IEC 60898-1 Product certifications CE IP degree of protection IP20 conforming to IEC 60529 Pollution degree 2 Tropicalisation 2 Relative humidity 95 % at -5…60 °C Ambient air temperature for operation -5…60 °C Ambient air temperature for storage -40…85 °C Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 7.500 cm Package 1 Width 3.500 cm Package 1 Length 8.500 cm Package 1 Weight 246.000 g Unit Type of Package 2 BB1 Number of Units in Package 2 6 Package 2 Height 8.000 cm Package 2 Width 9.000 cm Package 2 Length 22.500 cm Package 2 Weight 1.545 kg Unit Type of Package 3 S03 Number of Units in Package 3 72 Package 3 Height 30.000 cm Package 3 Width 30.000 cm Package 3 Length 40.000 cm Package 3 Weight 19.166 kg

Read more less
