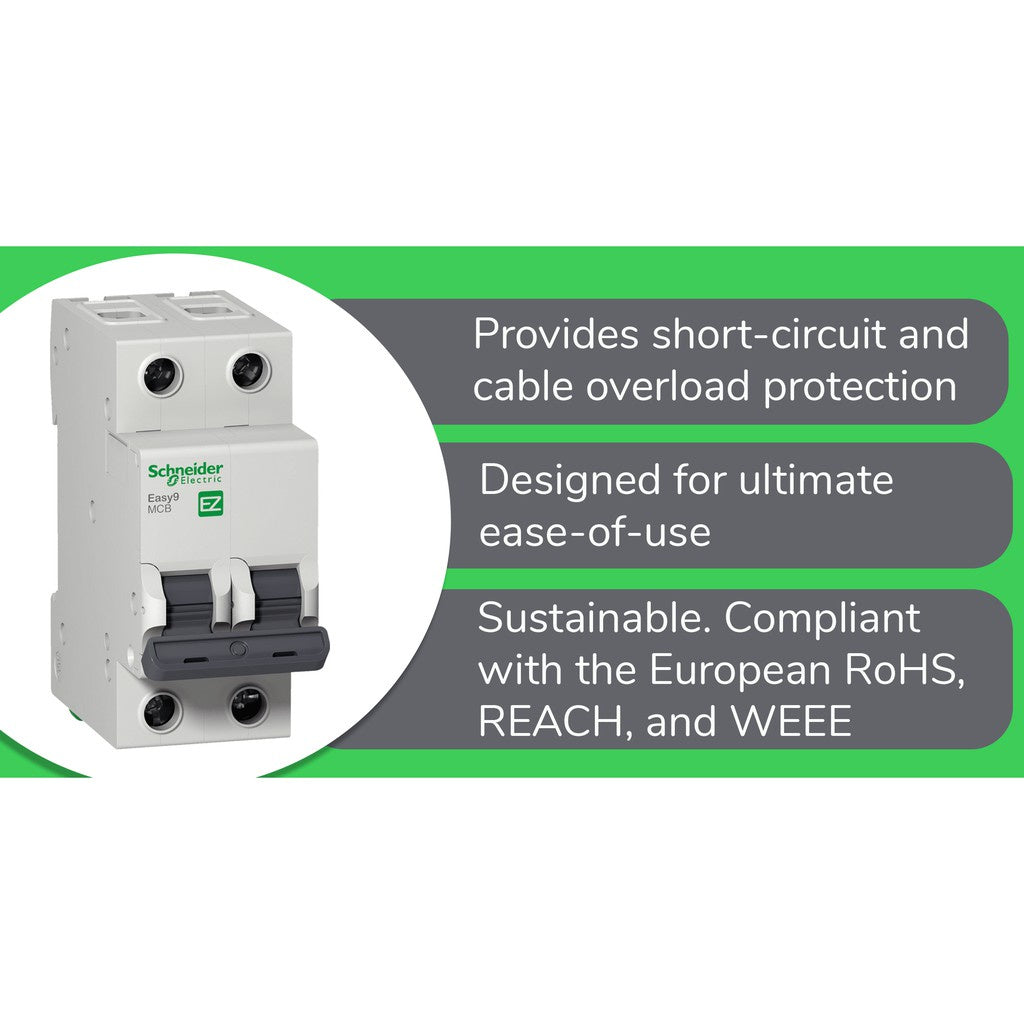

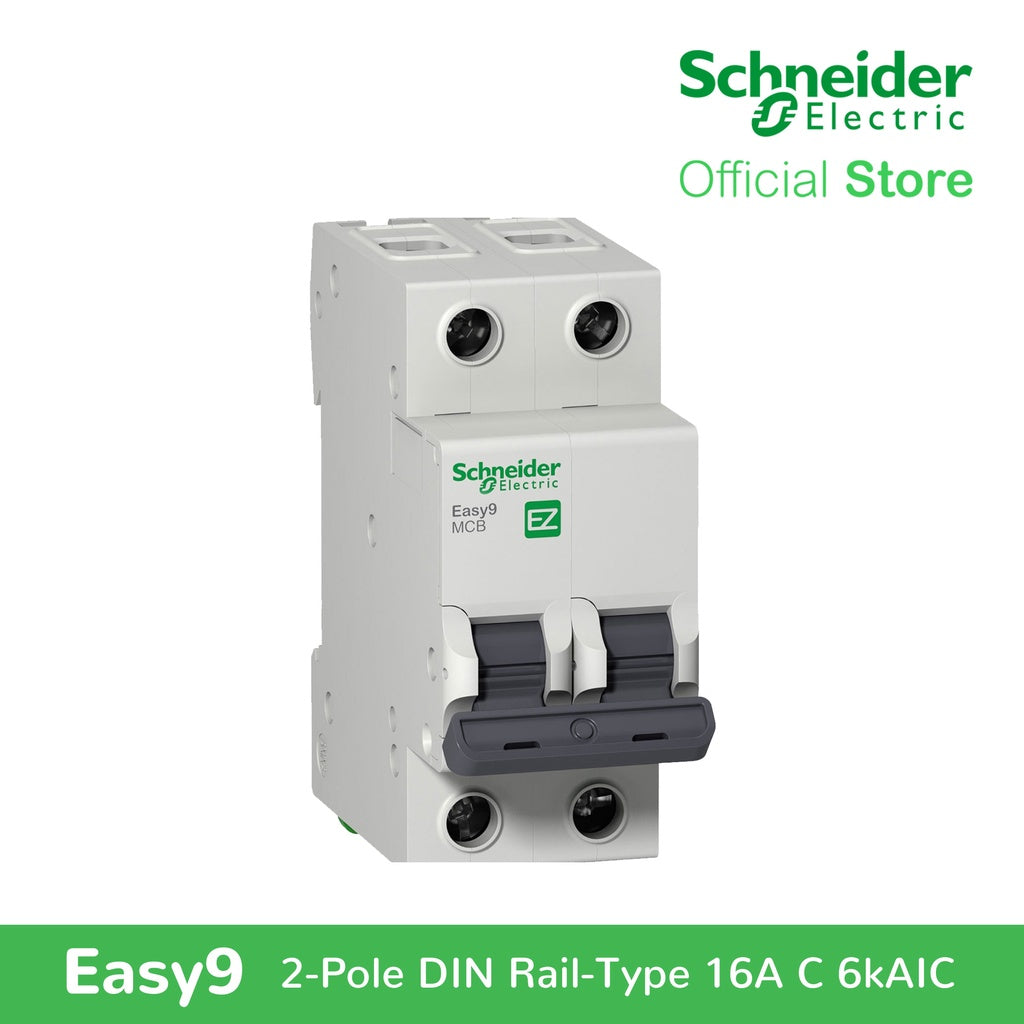

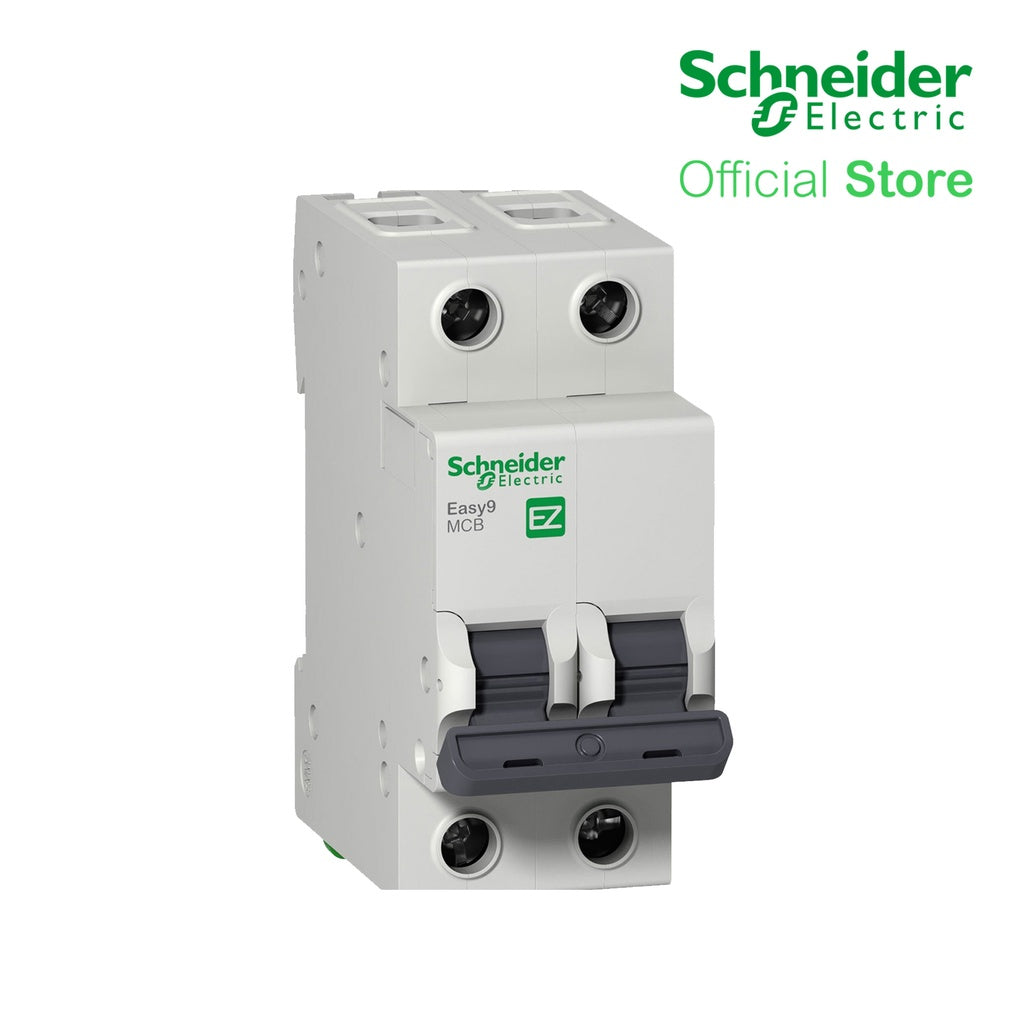

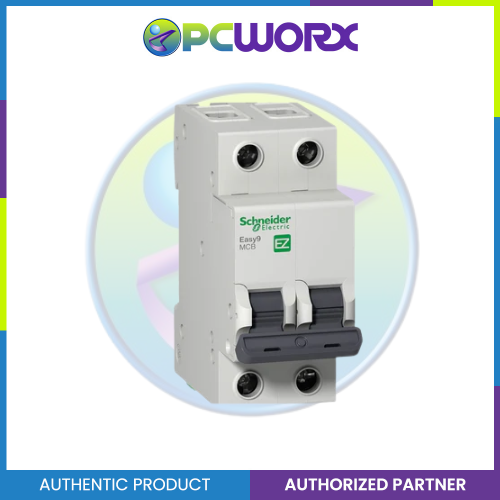

Schneider Easy9 IEC 2P 16A C DIN-Rail Type Miniature Circuit Breaker 230V 6kAIC (EZ9F56216)

Schneider Easy9 IEC 2P 16A C DIN-Rail Type Miniature Circuit Breaker 230V 6kAIC (EZ9F56216)

(0)
SKU: 0000064477

β‚±288.00

color_family: White
In stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between June 05 and June 07.

In stock and ready to ship

Delivery Information

Metro Manila: 2–3 days | Provincial: 3–7 days

Main Office Branch only

Same Day Delivery

Same-Day Delivery Available

Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only

Processing only during office hours from Main Office 9am - 5pm
Schneider Easy9 IEC 2P 16A C DIN-Rail Type Miniature Circuit Breaker 230V 6kAIC (EZ9F56216)

β‚±288.00

β‚±288.00

Choose option
color_family: White
  • White

Authorized Seller

100% Original Authentic Product

Category Parameter Specification
Main Range Easy9
Device Application Distribution
Product or Component Type Miniature Circuit-Breaker
Device Short Name Easy9 MCB
Poles 2P
Number of Protected Poles 2
Rated Current [In] 16 A
Network Type AC
Trip Unit Technology Thermal-magnetic
Curve Code C
Breaking Capacity 10 kA Icn at 220 V AC 50/60 Hz (IEC 60898-1)6 kA Icn at 400 V AC 50/60 Hz (IEC 60898-1)
Suitability for Isolation Yes, conforming to IEC 60898-1
Complementary Network Frequency 50/60 Hz
Rated Operational Voltage [Ue] 220 V AC 50/60 Hz400 V AC 50/60 Hz
Magnetic Tripping Limit 5…10 Γ— In
Rated Service Breaking Capacity [Ics] 6 kA (100% Γ— Icn) at 230 V AC 50/60 Hz (IEC 60898-1)
Rated Insulation Voltage [Ui] 500 V AC 50/60 Hz (IEC 60898-1)
Rated Impulse Withstand Voltage [Uimp] 4 kV (IEC 60898-1)
Contact Position Indicator Yes
Control Type Toggle
Local Signalling Without
Mounting Mode Clip-on
Mounting Support
