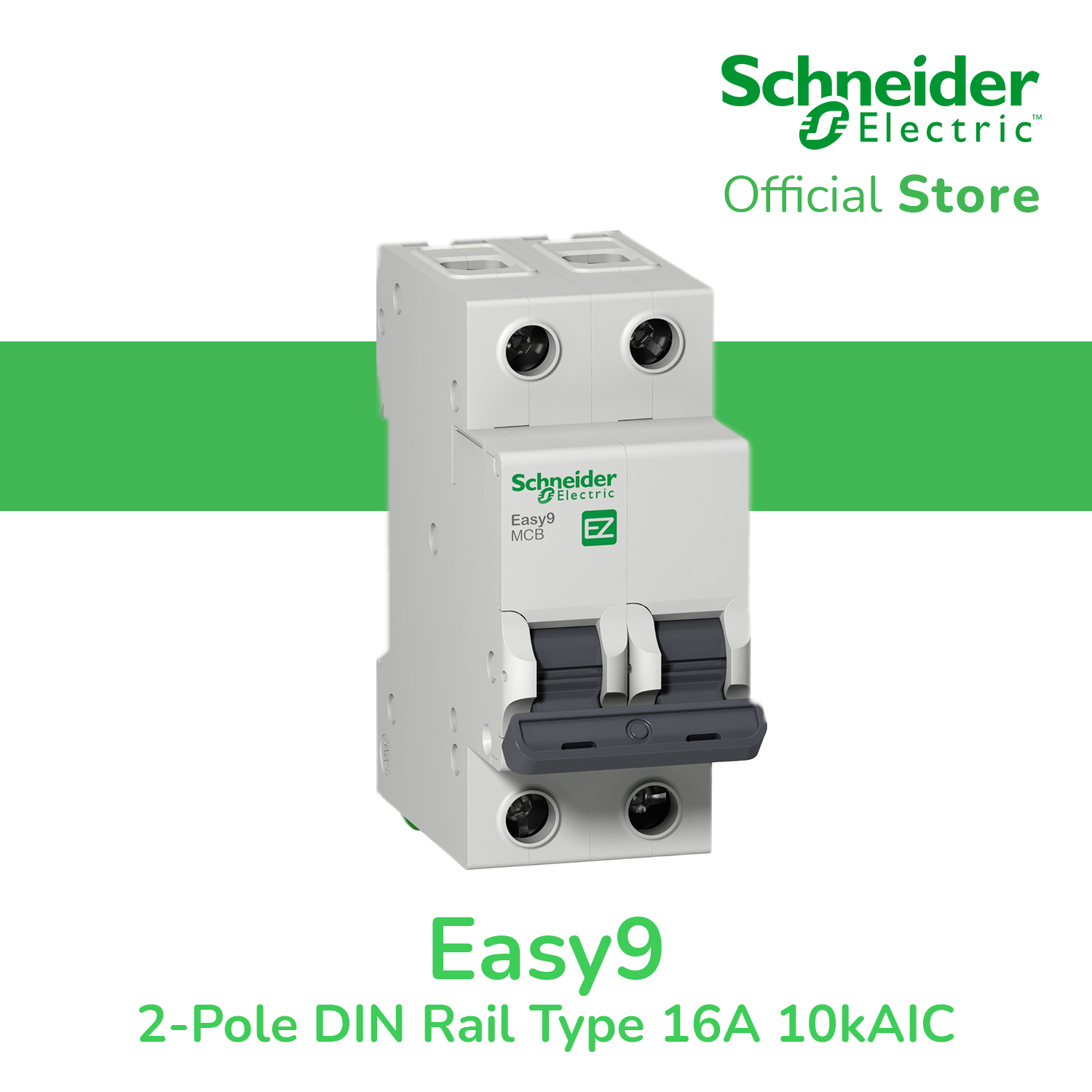

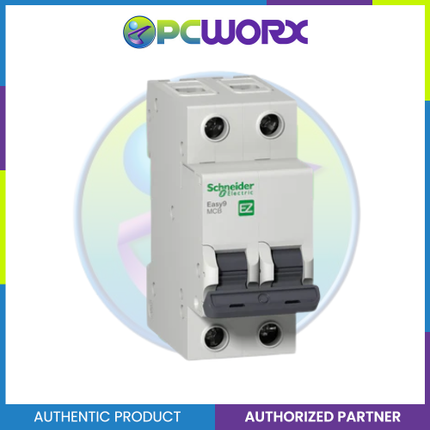

Schneider Easy9 IEC 2P 16A C DIN-Rail Type Miniature Circuit Breaker 230V 10kAIC (EZ9F51216)

Description

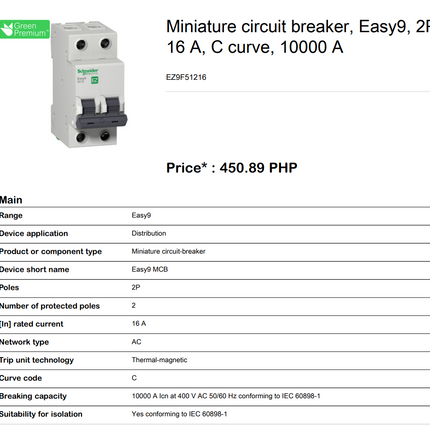

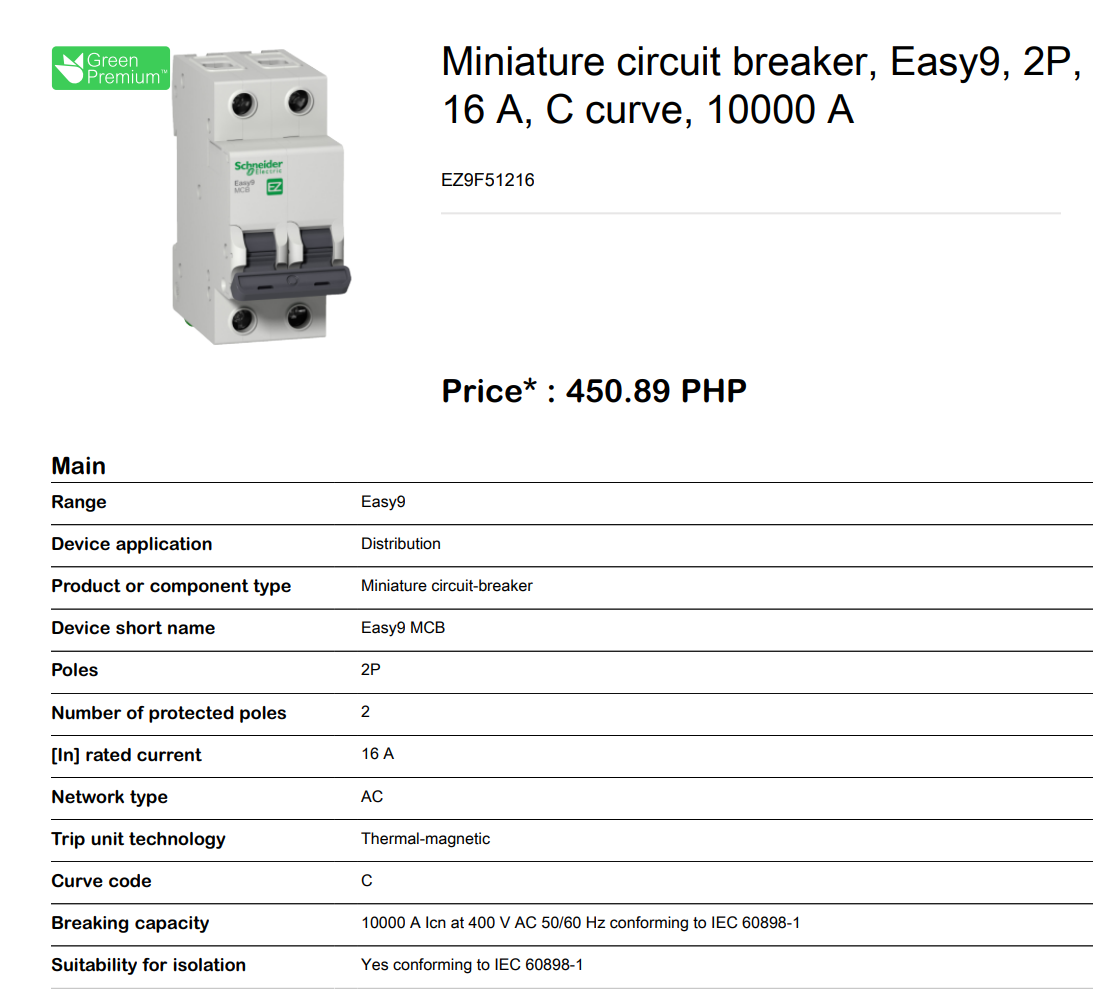

Category Parameter Specification
Main Range Easy9
Device application Distribution
Product or component type Miniature circuit-breaker
Device short name Easy9 MCB
Poles 2P
Number of protected poles 2
Rated current [In] 16 A
Network type AC
Trip unit technology Thermal-magnetic
Curve code C
Breaking capacity 10 kA Icn at 400 V AC 50/60 Hz (IEC 60898-1)
Suitability for isolation Yes (IEC 60898-1)

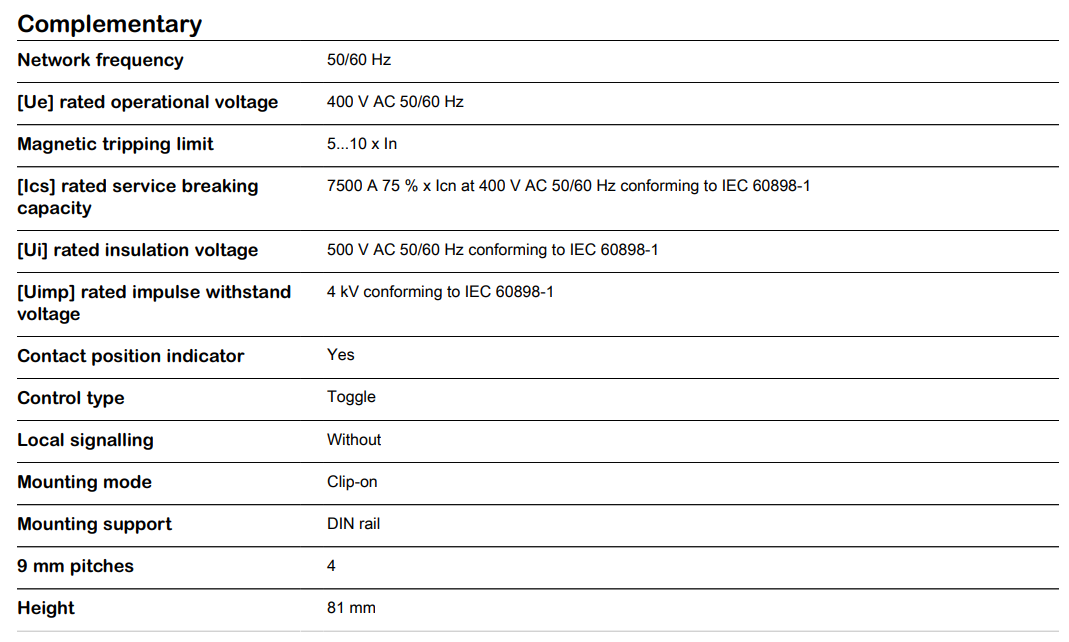

Complementary Network frequency 50/60 Hz
Rated operational voltage [Ue] 400 V AC 50/60 Hz
Magnetic tripping limit 5…10 × In
Rated service breaking capacity [Ics] 7.5 kA (75% Icn) at 400 V AC
Rated insulation voltage [Ui] 500 V AC 50/60 Hz
Rated impulse withstand voltage [Uimp] 4 kV
Contact position indicator Yes
Control type Toggle
Local signalling Without
Mounting mode Clip-on
Mounting support DIN rail
9 mm pitches 4
Height 81 mm
Width 36 mm
Depth 66.5 mm
Colour Grey (RAL 7035)
Mechanical durability 10,000 cycles
Electrical durability 4,000 cycles
Connections – rigid cable 1…25 mm²
Connections – flexible cable 1…16 mm²
Tightening torque 2 N·m
Earth-leakage protection Without
Environment Standards IEC 60898-1
Product certifications CE
IP degree of protection IP20 (IEC 60529)
Pollution degree 2
Tropicalisation 2
Relative humidity 95% at -5…60 °C
Operating temperature -5…60 °C
Storage temperature -40…85 °C
Packing Unit type of package 1 PCE
Number of units in package 1 1
Package 1 height 7.6 cm
Package 1 width 3.6 cm
Package 1 length 8.5 cm
Package 1 weight 211 g


Schneider Easy9 IEC 2P 16A C DIN-Rail Type Miniature Circuit Breaker 230V 10kAIC (EZ9F51216)

Product form

Category Parameter Specification Main Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB... Read more

Free pickup in our shop(s)

SKU: 0000064464

5 in stock

₱588.00
