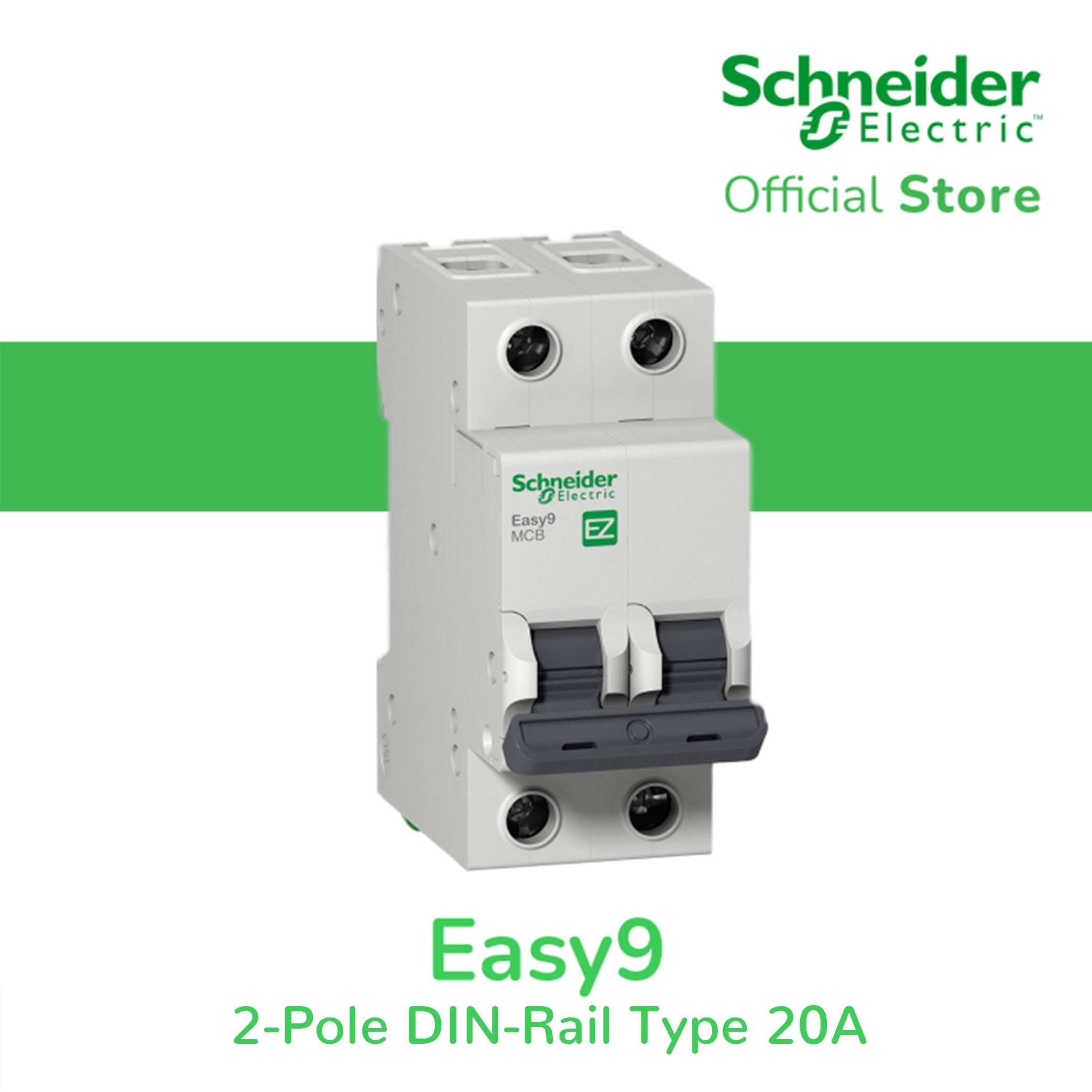

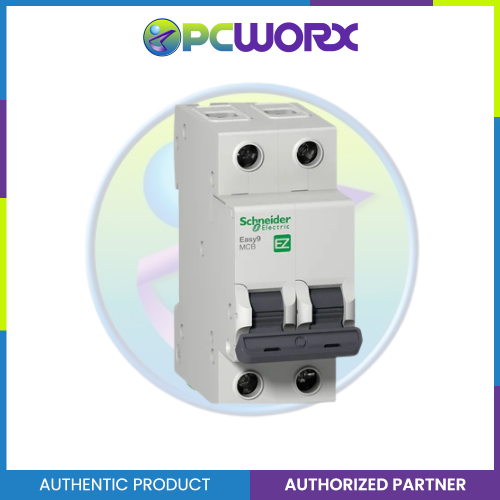

Schneider Easy9 IEC 2P 20A C DIN-Rail Type Miniature Circuit Breaker 220/400V 10kAIC EZ9F56220

Schneider Easy9 IEC 2P 20A C DIN-Rail Type Miniature Circuit Breaker 220/400V 10kAIC EZ9F56220

(0)
SKU: 0000064478

β‚±331.20

color_family: White
In stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between June 05 and June 07.

In stock and ready to ship

Delivery Information

Metro Manila: 2–3 days | Provincial: 3–7 days

Main Office Branch only

Same Day Delivery

Same-Day Delivery Available

Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only

Processing only during office hours from Main Office 9am - 5pm
Schneider Easy9 IEC 2P 20A C DIN-Rail Type Miniature Circuit Breaker 220/400V 10kAIC EZ9F56220

β‚±331.20

β‚±331.20

Choose option
color_family: White
  • White

Authorized Seller

100% Original Authentic Product

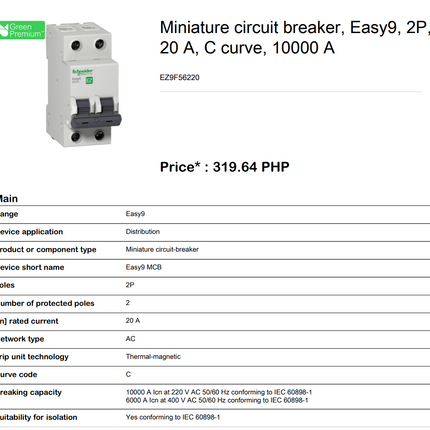

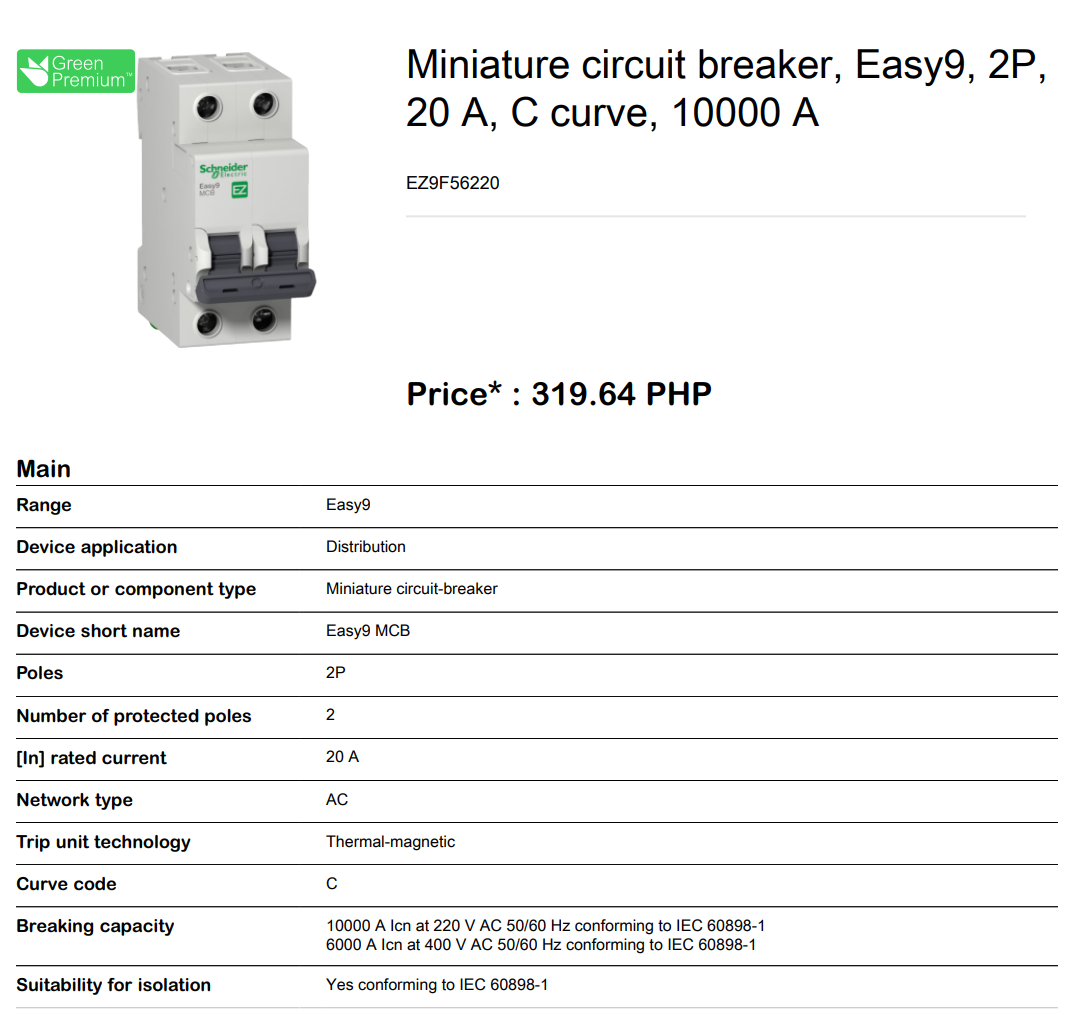

Category Specification
Main
Range Easy9
Device application Distribution
Product / component type Miniature circuit-breaker
Device short name Easy9 MCB
Poles 2P
Number of protected poles 2
Rated current [In] 20 A
Network type AC
Trip unit technology Thermal-magnetic
Curve code C
Breaking capacity 10,000 A Icn @ 220 V AC 50/60 Hz (IEC 60898-1)
6,000 A Icn @ 400 V AC 50/60 Hz (IEC 60898-1)
Suitability for isolation Yes (IEC 60898-1)

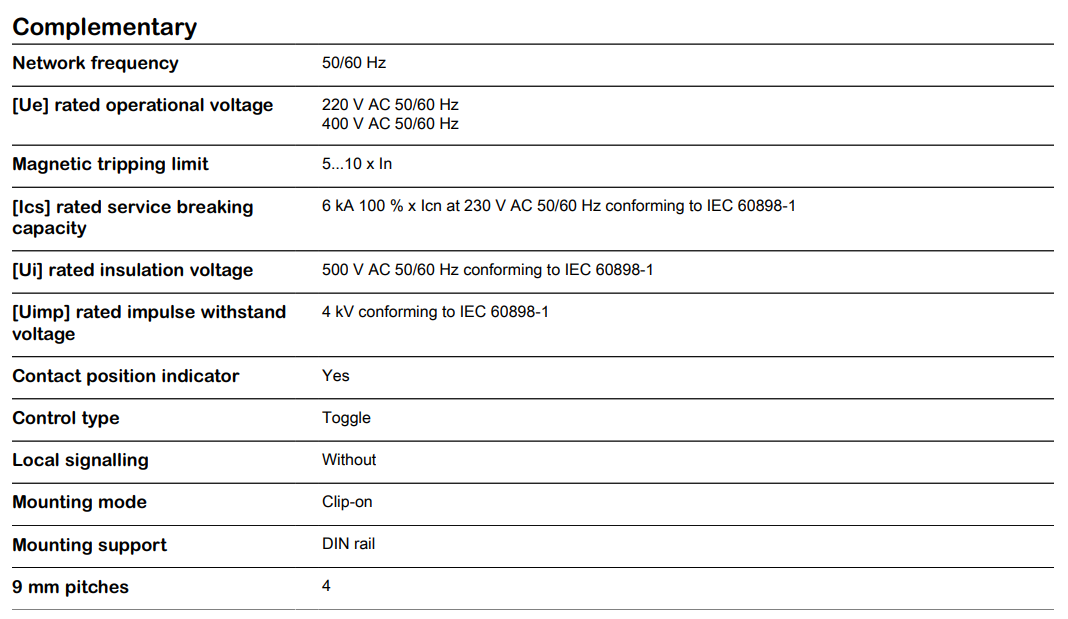

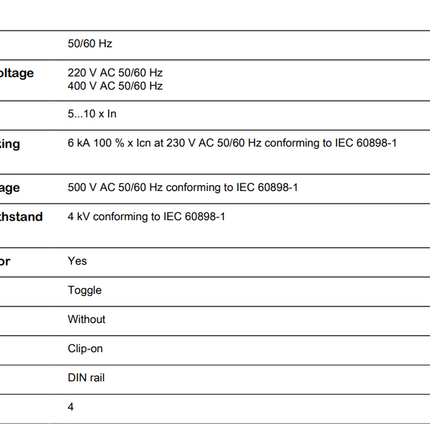

Complementary
Network frequency 50/60 Hz
Rated operational voltage [Ue] 220 V AC 50/60 Hz
400 V AC 50/60 Hz
Magnetic tripping limit 5…10 Γ— In
Service breaking capacity [Ics] 6 kA (100% Γ— Icn) @ 230 V AC 50/60 Hz (IEC 60898-1)
Rated insulation voltage [Ui] 500 V AC 50/60 Hz (IEC 60898-1)
Rated impulse withstand voltage [Uimp] 4 kV (IEC 60898-1)
Contact position indicator Yes
Control type Toggle
Local signalling Without
Mounting mode Clip-on
Mounting support DIN rail
9 mm pitches 4
Height 81 mm
Width 36 mm
Depth 66.5 mm
Colour Grey (RAL 7035)
Mechanical durability 10,000 cycles
Electrical durability 4,000 cycles
Connections – terminals Tunnel terminal (top/bottom) 1–25 mmΒ² rigid
Tunnel terminal (top/bottom) 1–16 mmΒ² flexible
Tightening torque 2 NΒ·m (top/bottom)
Earth-leakage protection Without
Environment
Standards IEC 60898-1
Product certifications CE
IP degree of protection IP20 (IEC 60529)
Pollution degree 2
Tropicalisation 2
Relative humidity 95% at –5…60 Β°C
Ambient temperature (operation) –5…60 Β°C
Ambient temperature (storage) –40…85 Β°C
Packing Units
Package type 1 PCE
Units per package 1 1
Package 1 (H Γ— W Γ— L) 7.500 cm Γ— 3.000 cm Γ— 8.300 cm
Package 1 weight 193 g
