₱618.00

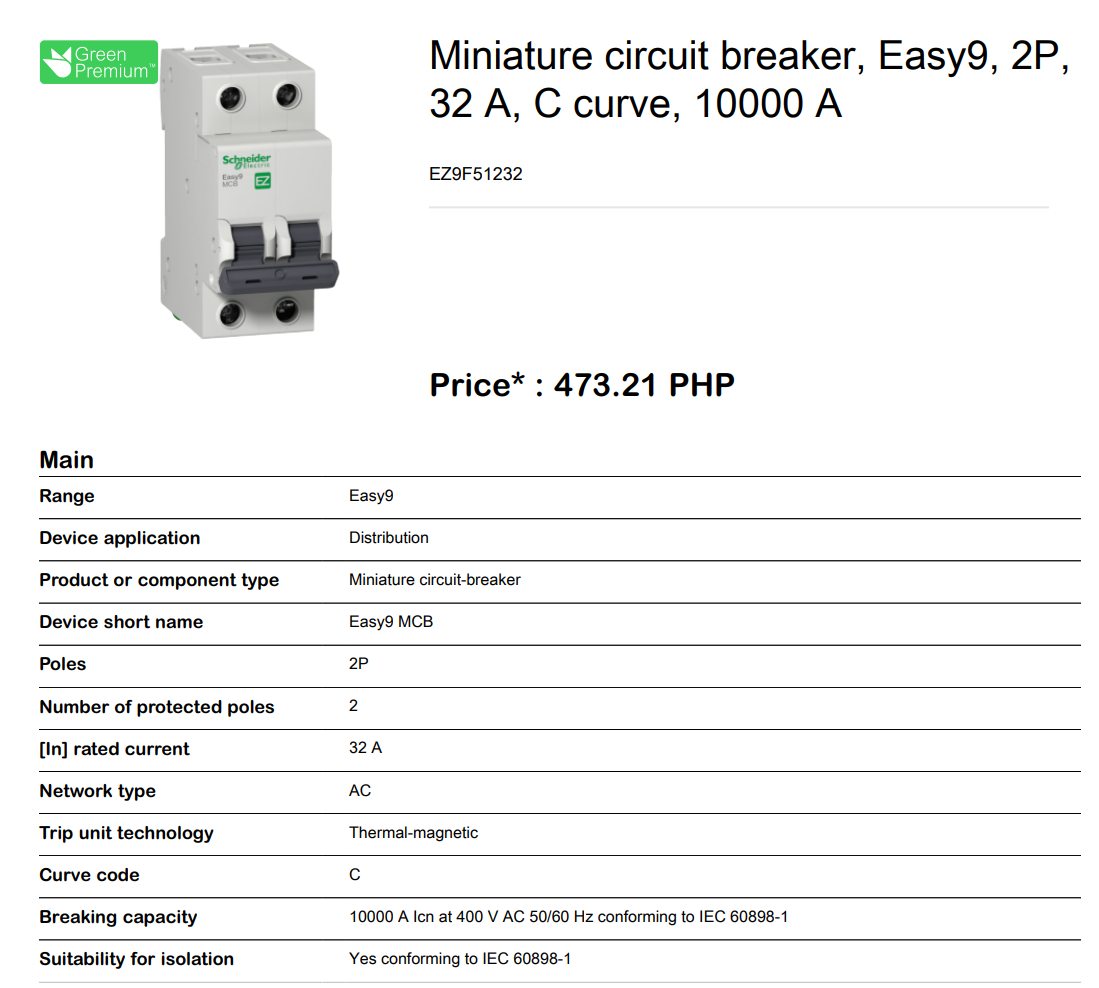

| Category | Specification |
|---|---|
| Range | Easy9 |
| Device Application | Distribution |
| Product / Component Type | Miniature circuit-breaker |
| Device Short Name | Easy9 MCB |
| Poles | 2P |
| Number of Protected Poles | 2 |
| Rated Current (In) | 32 A |
| Network Type | AC |
| Trip Unit Technology | Thermal-magnetic |
| Curve Code | C |
| Breaking Capacity | 10,000 A (Icn) at 400 V AC 50/60 Hz, IEC 60898-1 |
| Suitability for Isolation | Yes, IEC 60898-1 compliant |

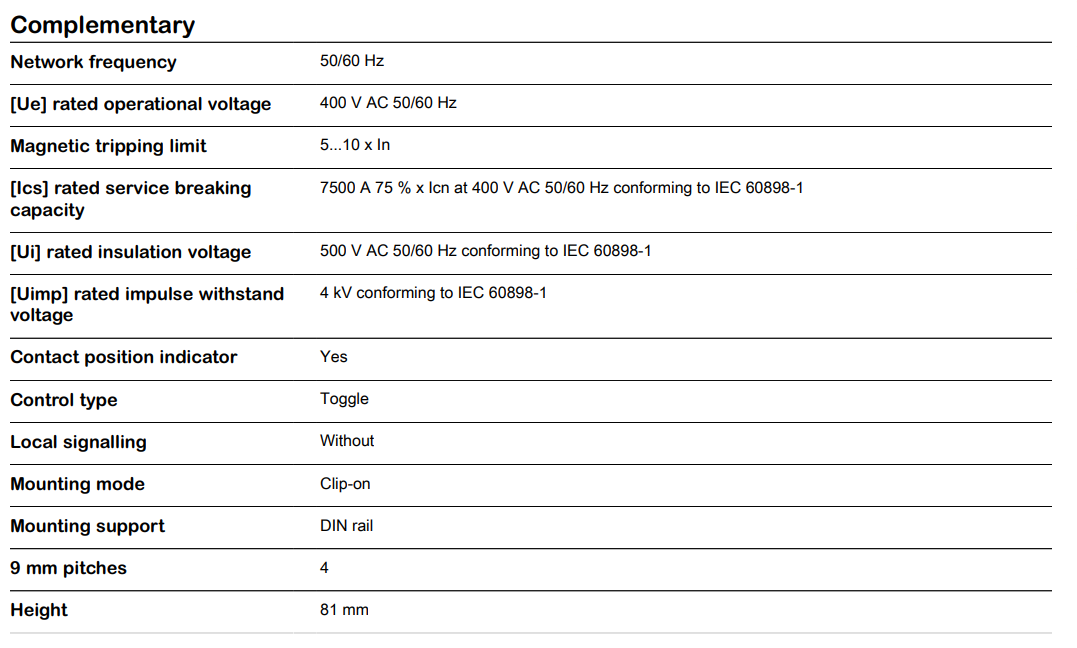

| Network Frequency | 50/60 Hz |
| Rated Operational Voltage (Ue) | 400 V AC 50/60 Hz |
| Magnetic Tripping Limit | 5…10 × In |
| Rated Service Breaking Capacity (Ics) | 7,500 A (75 % × Icn) at 400 V AC 50/60 Hz |
| Rated Insulation Voltage (Ui) | 500 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Contact Position Indicator | Yes |
| Control Type | Toggle |
| Local Signalling | Without |
| Mounting Mode | Clip-on |
| Mounting Support | DIN rail |
| 9 mm Pitches | 4 |
| Height | 81 mm |
| Width | 36 mm |
| Depth | 66.5 mm |
| Colour | Grey (RAL 7035) |
| Mechanical Durability | 10,000 cycles |
| Electrical Durability | 4,000 cycles |
| Connections – Terminals | Tunnel terminal (top/bottom): 1–25 mm² flexible; 1–35 mm² rigid |
| Tightening Torque | 3.5 N·m (top or bottom) |
| Earth-leakage Protection | Without |
| Standards | IEC 60898-1 |
| Product Certifications | CE |
| IP Degree of Protection | IP20 (IEC 60529) |
| Pollution Degree | 2 |
| Tropicalisation | 2 |
| Relative Humidity | 95 % at −5…60 °C |
| Ambient Temperature (Operation) | −5…60 °C |
| Ambient Temperature (Storage) | −40…85 °C |
| Package | Unit Type | Units per Package | Height | Width | Length | Weight |
|---|---|---|---|---|---|---|
| Package 1 | PCE | 1 | 7.6 cm | 3.6 cm | 8.5 cm | 220 g |
| Package 2 | BB1 | 6 | 8.8 cm | 7.8 cm | 22.6 cm | 1.428 kg |
| Package 3 | S03 | 72 | 30 cm | 30 cm | 40 cm | 15.84 kg |
₱618.00
Estimated delivery between June 05 and June 07.
Delivery Information
Metro Manila: 2–3 days | Provincial: 3–7 days
Main Office Branch only
Same Day Delivery
Same-Day Delivery Available
Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only
Processing only during office hours from Main Office 9am - 5pm
₱618.00
₱618.00
Authorized Seller
100% Original Authentic Product
| Category | Specification |
|---|---|
| Range | Easy9 |
| Device Application | Distribution |
| Product / Component Type | Miniature circuit-breaker |
| Device Short Name | Easy9 MCB |
| Poles | 2P |
| Number of Protected Poles | 2 |
| Rated Current (In) | 32 A |
| Network Type | AC |
| Trip Unit Technology | Thermal-magnetic |
| Curve Code | C |
| Breaking Capacity | 10,000 A (Icn) at 400 V AC 50/60 Hz, IEC 60898-1 |
| Suitability for Isolation | Yes, IEC 60898-1 compliant |
| Network Frequency | 50/60 Hz |
| Rated Operational Voltage (Ue) | 400 V AC 50/60 Hz |
| Magnetic Tripping Limit | 5…10 × In |
| Rated Service Breaking Capacity (Ics) | 7,500 A (75 % × Icn) at 400 V AC 50/60 Hz |
| Rated Insulation Voltage (Ui) | 500 V AC 50/60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Contact Position Indicator | Yes |
| Control Type | Toggle |
| Local Signalling | Without |
| Mounting Mode | Clip-on |
| Mounting Support | DIN rail |
| 9 mm Pitches | 4 |
| Height | 81 mm |
| Width | 36 mm |
| Depth | 66.5 mm |
| Colour | Grey (RAL 7035) |
| Mechanical Durability | 10,000 cycles |
| Electrical Durability | 4,000 cycles |
| Connections – Terminals | Tunnel terminal (top/bottom): 1–25 mm² flexible; 1–35 mm² rigid |
| Tightening Torque | 3.5 N·m (top or bottom) |
| Earth-leakage Protection | Without |
| Standards | IEC 60898-1 |
| Product Certifications | CE |
| IP Degree of Protection | IP20 (IEC 60529) |
| Pollution Degree | 2 |
| Tropicalisation | 2 |
| Relative Humidity | 95 % at −5…60 °C |
| Ambient Temperature (Operation) | −5…60 °C |
| Ambient Temperature (Storage) | −40…85 °C |
| Package | Unit Type | Units per Package | Height | Width | Length | Weight |
|---|---|---|---|---|---|---|
| Package 1 | PCE | 1 | 7.6 cm | 3.6 cm | 8.5 cm | 220 g |
| Package 2 | BB1 | 6 | 8.8 cm | 7.8 cm | 22.6 cm | 1.428 kg |
| Package 3 | S03 | 72 | 30 cm | 30 cm | 40 cm | 15.84 kg |
Authencity Guaranteed
We only sell authentic products from verified brand partners and retail partners globally.

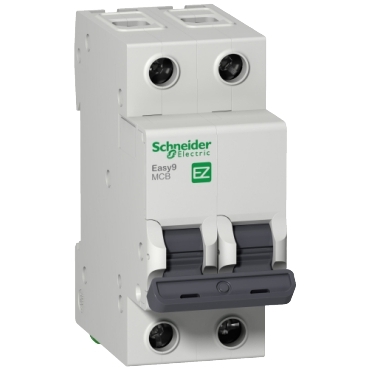

![Schneider Electric MCB Easy9 _Easy9 miniature circuit breaker- 2P - 32 A - C curve - 10000 A - 230 V [EZ9F51232]](https://www.hsedubai.com/web/image/product.product/107780/image_1024/%5BEZ9F51232%5D%20Schneider%20Electric%20MCB%20Easy9%20_Easy9%20miniature%20circuit%20breaker-%202P%20-%2032%20A%20-%20C%20curve%20-%2010000%20A%20-%20230%20V%20%5BEZ9F51232%5D?unique=100a815)
