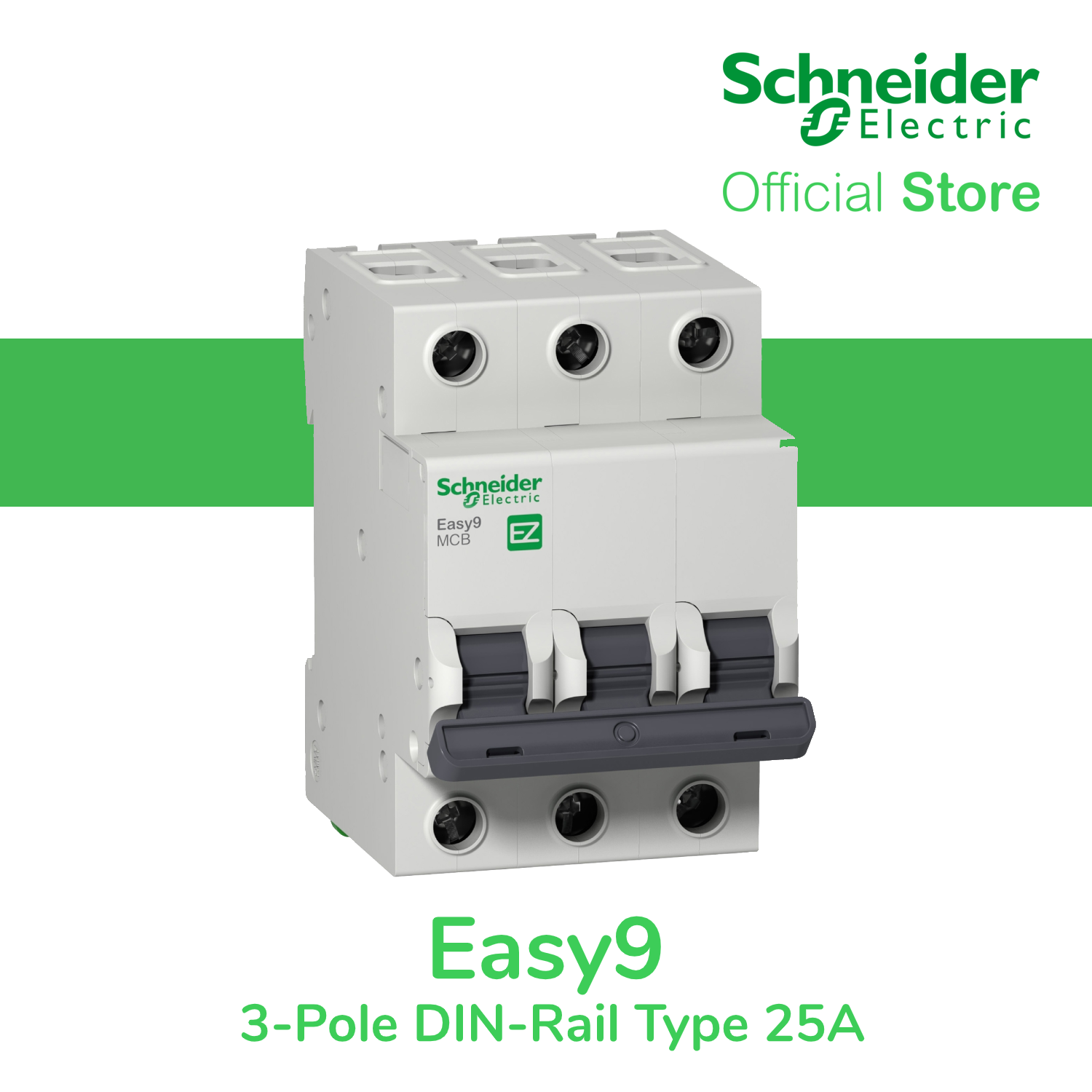

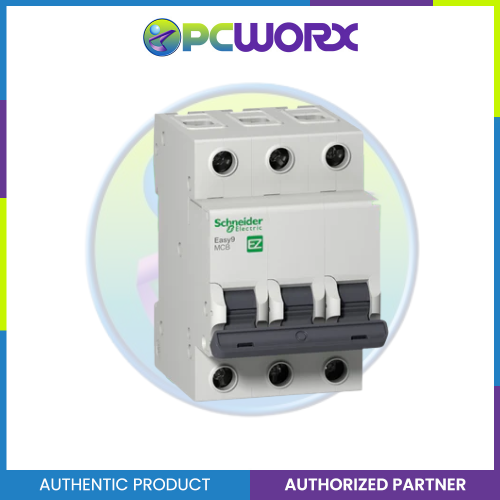

Schneider Easy9 IEC 3P 25A C DIN-Rail Type Miniature Circuit Breaker 400V 6kAIC EZ9F56325

Schneider Easy9 IEC 3P 25A C DIN-Rail Type Miniature Circuit Breaker 400V 6kAIC EZ9F56325

(0)
SKU: 0000064485

₱530.04

color_family: White
In stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between June 05 and June 07.

In stock and ready to ship

Delivery Information

Metro Manila: 2–3 days | Provincial: 3–7 days

Main Office Branch only

Same Day Delivery

Same-Day Delivery Available

Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only

Processing only during office hours from Main Office 9am - 5pm
Schneider Easy9 IEC 3P 25A C DIN-Rail Type Miniature Circuit Breaker 400V 6kAIC EZ9F56325

₱530.04

₱530.04

Choose option
color_family: White
  • White

Authorized Seller

100% Original Authentic Product

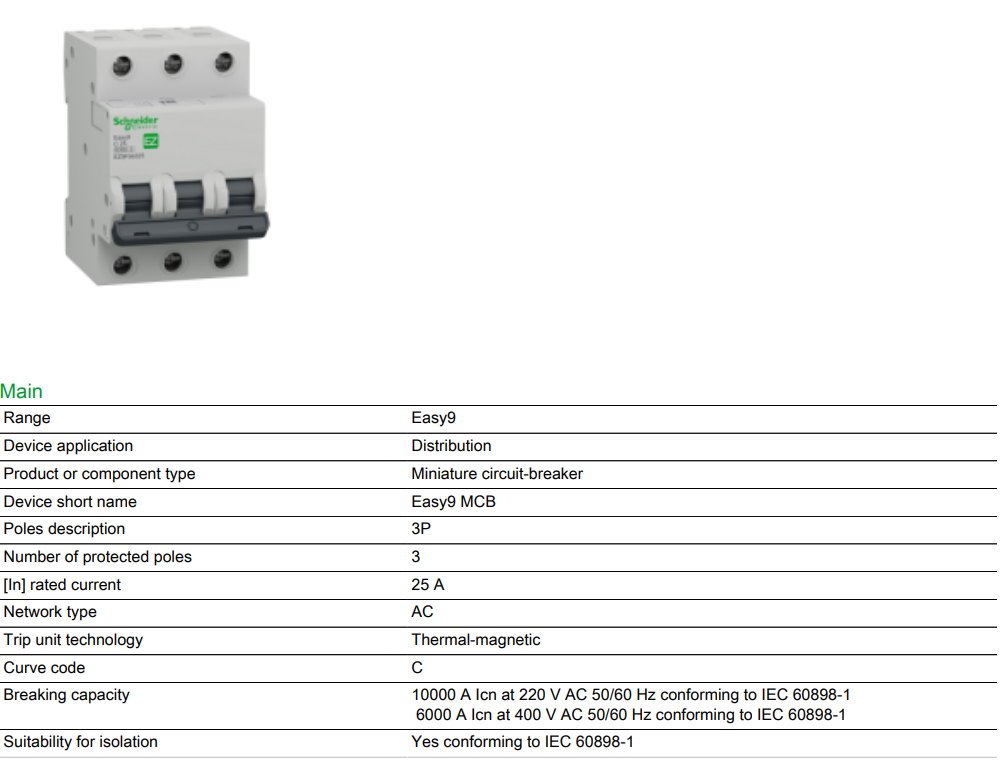

Specifications

Range Easy9
Device application Distribution
Product or component type Miniature circuit-breaker
Device short name Easy9 MCB
Poles 3P
Number of protected poles 3
[In] rated current 25 A
Network type AC
Trip unit technology Thermal-magnetic
Curve code C
Breaking capacity 10000 A Icn at 220 V AC 50/60 Hz conforming to IEC 60898-1
6000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1
Suitability for isolation Yes conforming to IEC 60898-1

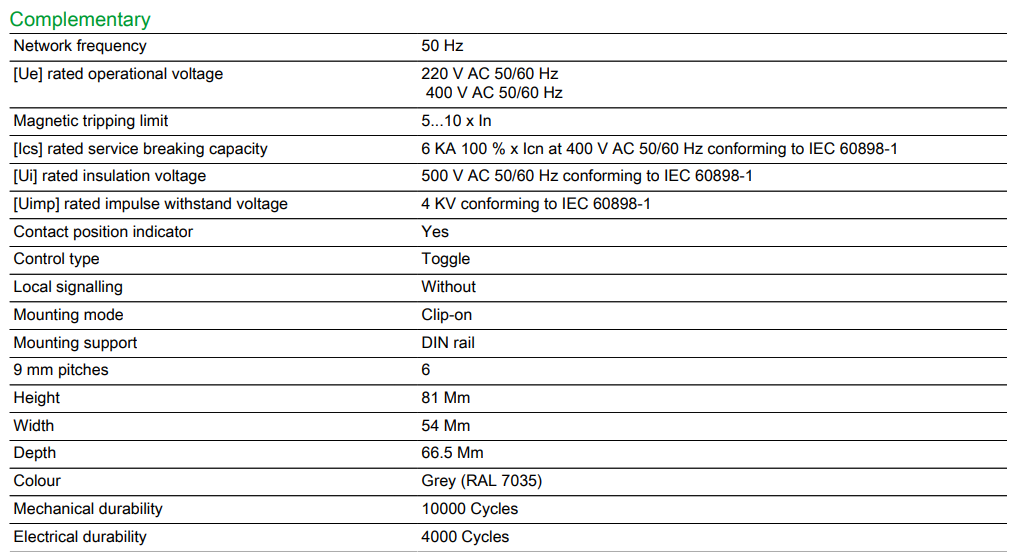

Complementary
Network frequency 50 Hz
[Ue] rated operational voltage 220 V AC 50/60 Hz
400 V AC 50/60 Hz
Magnetic tripping limit 5...10 x In
[Ics] rated service breaking capacity 6 kA 100 % x Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1
[Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to IEC 60898-1
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60898-1
Contact position indicator Yes
Control type Toggle
Local signalling Without
Mounting mode Clip-on
Mounting support DIN rail
9 mm pitches 6
Height 81 mm
Width 54 mm
Depth 66.5 mm
Colour Grey (RAL 7035)
Mechanical durability 10000 cycles
Electrical durability 4000 cycles
Connections - terminals Tunnel type terminal (top or bottom) 1…25 mm² rigid
Tunnel type terminal (top or bottom) 1…16 mm² flexible
Tightening torque 2 N.m top or bottom
Environment
Standards IEC 60898-1
Product certifications VDE
CE
IP degree of protection IP20 conforming to IEC 60529
Pollution degree 2
Tropicalisation 2
Relative humidity 95 % at -5…60 °C
Ambient air temperature for operation -5…60 °C
Ambient air temperature for storage -40…85 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.000 cm
Package 1 Width 8.000 cm
Package 1 Length 5.000 cm
Package 1 Weight 280.000 g
