| Main |
Range of product |
Easy9 |
|
Product or component type |

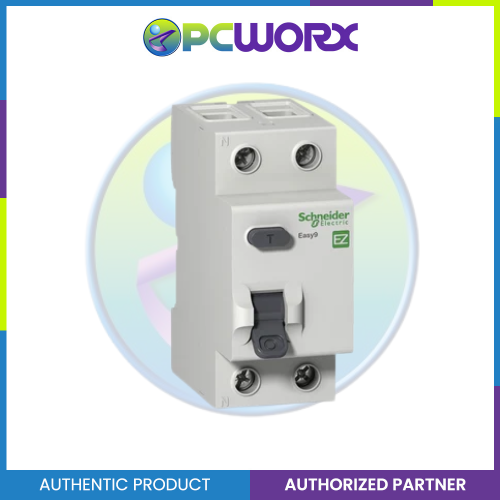

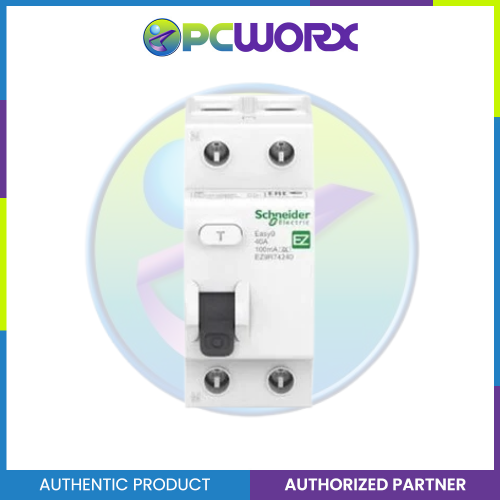

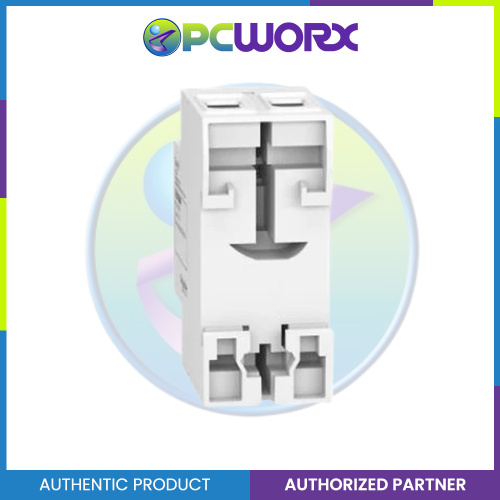

Residual current circuit breaker (RCCB) |
|
Device short name |
Easy9 RCCB |
|
Poles |
2P |
|
Neutral position |
Left |
|
Rated current [In] |
63 A |
|
Network type |
AC |
|
Earth-leakage sensitivity |
30 mA |
|
Earth-leakage protection time delay |
Instantaneous |
|
Earth-leakage protection class |
Type AC |
|
Rated breaking and making capacity |
500 A |
|
Rated conditional short-circuit current |
6000 A with Easy9 MCB (63 A) |
| Complementary |
Device location in system |
Outgoer |
|
Network frequency |
50/60 Hz |
|
Rated operational voltage [Ue] |
230 V AC 50/60 Hz |
|
Residual current tripping technology |
Voltage independent |
|
Rated insulation voltage [Ui] |
440 V AC |
|
Rated impulse withstand voltage [Uimp] |
4 kV |
|
Surge current |
250 A |
|
Contact position indicator |
Yes |
|
Control type |
Toggle |
|
Mounting mode |
Clip-on |
|
Mounting support |
DIN rail |
|
Comb busbar compatibility |
Top: Yes |
|
Connection pitch |
18 mm between phases / 9 mm pitches |
|
Number of 9 mm pitches |
4 |
| Dimensions |
Height |
82 mm |
|
Width |
36 mm |
|
Depth |
72 mm |
| Physical |
Colour |
Grey (RAL 7035) |
|
Mechanical durability |
5000 cycles |
|
Electrical durability |
2000 cycles at 230 V AC 50/60 Hz |
| Connections |
Terminal type |
Tunnel type (top or bottom) |
|
Rigid conductor size |
1…35 mm² |
|
Flexible conductor size |
1…25 mm² |
|
Tightening torque |
3.5 N·m (top or bottom) |
| Environment |
Standards |
IEC 61008-1 |
|
Product certification |
CE |
|
IP degree of protection |
IP20 |
|
Pollution degree |
2 |
|
Tropicalisation |
2 |
|
Relative humidity |
95% at 55 °C |
|
Operating temperature |
-5…60 °C |
|
Storage temperature |
-40…85 °C |
| Packing Units |
Unit type of Package 1 |
PCE |
|
Number of units in Package 1 |
1 |
|
Package 1 height |
4.0 cm |
|
Package 1 width |
8.5 cm |
|
Package 1 length |
9.0 cm |
|
Package 1 weight |
211 g |
