Aorus Elite P850W 80+ Platinum Modular Pcie 5.0 Power Supply The Gigabyte Aorus Elite P850W 80+ Platinum Modular PCIe 5.0 Power Supply is a high-performance PSU designed to meet the demanding needs of modern gaming and professional systems. Featuring an 80 Plus Platinum efficiency rating, it ensures minimal energy wastage and heat generation, contributing to both environmental conservation and long-term cost savings. SPECIFICATION Model GP-AE850PM PG5 Type Intel Form Factor ATX 12V v3.0 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 12-6A Input Frequency 60-50 Hz Output Capacity 850W Dimension 150 x 140 x 86mm Fan Type 120mm Fluid Dynamic Bearing (FDB) Fan 80 PLUS Platinum Efficiency 92% at typical load MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All white Connectors ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 :  700mm*2 PCI-e 16 Pin x 1: 700mm*1 PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 4 :500mm+150mm+150mm+150mm*1

Read more less

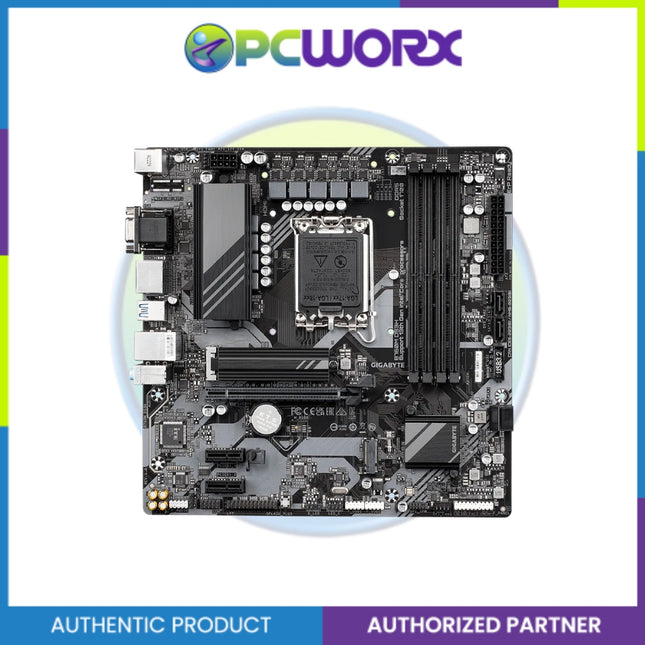

Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors Unparalleled Performance：Hybrid 6+2+1 Phases Digital VRM Solution Dual Channel DDR5：4*DIMMs XMP Memory Module Support Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors M.2 Thermal Guard：To Ensure M.2 SSD Performance EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design Fast Networks：2.5GbE LAN Extended Connectivity：Rear USB-C® 10Gb/s, DP, HDMI Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU(Please refer "CPU Support List" for more information.) Chipset Intel® B760 Express Chipset Memory Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz km1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.0 version and HDCP 2.3.1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.31 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version.(Graphics specifications may vary depending on CPU support.)Support for up to quad-display at the same time Audio Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Expansion Slots CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 Storage Interface CPU:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)2 x USB 2.0/1.1 ports on the back panelChipset+2 USB 2.0 Hubs:4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers1 x addressable LED strip header1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x parallel port header1 x S/PDIF Out header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port1 x D-Sub port1 x HDMI port2 x DisplayPorts3 x USB 3.2 Gen 1 ports1 x USB Type-C® port, with USB 3.2 Gen 2 support1 x RJ-45 port3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install. BIOS 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash Plus Bundled Software  Norton® Internet Security (OEM version)LAN bandwidth management software Operating System Support for Windows 11 64-bitSupport for Windows 10 64-bit Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Read more less

SPECIFICATION Radiator & Block Dimensions : 277 x 119 x 27mmPump Dimension : 87.6 x 87.6 x 77.7mmRadiator Material : AluminumBlock Material : Copper CPU Socket Intel 115x,1200,1700AMD TR4, AM5, AM4, sTR5 LCD Display 60 x 60mm Full Color LCD Fan Spec : 2 x 120mm ARGB FansSpeed : 800~2400 RPM +/-10%Bearing type : FDBAir Flow : 72 CFMAir Pressure : 3.15mmH20Noise Level : 12~37.5 dBA Software GCC

Read more less

Supports Intel® Core™ 14th/ 13th /12th processors Unparalleled Performance：Twin 12*+1+1 Phases Digital VRM Solution Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & M.2 SSD Performance EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design Fast Networks： 2.5GbE LAN & Wi-Fi 6E 802.11ax Extended Connectivity：Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s, DP, HDMI Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card   Category Specification CPU LGA1700 socket: Support for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*; L3 cache varies with CPU (*Refer to CPU Support List) Chipset Intel® B760 Express Chipset Memory Support for DDR5 7800(O.C.)/7600(O.C.)/7400(O.C.)/.../4000 MT/s; 4 × DDR5 DIMM sockets up to 192 GB (48 GB per DIMM); Dual channel; ECC & non-ECC support; XMP support Onboard Graphics Intel® HD Graphics support; 1 × HDMI (4096x2160@60Hz), 1 × DisplayPort (4096x2304@60Hz) Audio Realtek® Audio CODEC; High Definition; 2/4/5.1/7.1-channel; S/PDIF Out support LAN Realtek® 2.5GbE LAN (2.5/1/0.1 Gbps) Wireless Intel® Wi-Fi 6E AX211 / Realtek® Wi-Fi 6E RTL8852CE; Wi-Fi a/b/g/n/ac/ax 2.4/5/6 GHz; Bluetooth 5.3; 11ax 160MHz support Expansion Slots CPU: 1 × PCIe x16 (PCIe 4.0 x16); Chipset: 1 × PCIe x16 (PCIe 4.0 x4); AMD CrossFireX™ support Storage Interface CPU: 1 × M.2 Socket 3, type 2280 PCIe 4.0 x4/x2; Chipset: 1 × M.2 Socket 3 type 22110/2280 PCIe 4.0 x4/x2; 4 × SATA 6Gb/s; RAID 0/1/5/10 support USB USB Type-C (USB 3.2 Gen 2x2 & Gen 2); USB 3.2 Gen 2 Type-A; USB 3.2 Gen 1; USB 2.0; Internal headers; Thunderbolt™ connectors Internal I/O Connectors 24-pin ATX, 8-pin + 4-pin ATX 12V, CPU & system fan headers, LED headers, 2 × M.2, 4 × SATA, front panel headers, TPM header, Q-Flash Plus, reset, Clear CMOS jumper Back Panel Connectors 2 × SMA antenna, USB Type-C, USB 3.2 Gen 2/1, USB 2.0, HDMI, DisplayPort, RJ-45, optical S/PDIF, 2 × audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage, temperature, fan speed, water cooling flow, fan fail warning, fan control BIOS 1 × 256 Mbit flash; AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features GIGABYTE Control Center (GCC) support; Q-Flash & Q-Flash Plus Bundled Software Norton® Internet Security (OEM); LAN bandwidth management software Operating System Windows 11 64-bit / Windows 10 64-bit Form Factor Micro ATX; 24.4 × 24.4 cm

Read more less

B650M D3HP AX AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors Unparalleled Performance：5+2+2 Phases Digital VRM Solution Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector EZ-Latch：PCIe x16 Slot with Quick Release Design Fast Networks：Wi-Fi 6E 802.11ax & 2.5GbE LAN Extended Connectivity：2*DP, HDMI Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card Category Specification CPU AMD Socket AM5; Supports Ryzen™ 7000 / 8000 / 9000 Series Chipset AMD B650 Memory DDR5 8000(OC)–4800 MT/s; 4× DIMM up to 256GB; Dual-channel; Supports EXPO & XMP Onboard Graphics Radeon™ Graphics (CPU dependent) • 2× DisplayPort 3840×2160@144Hz • 1× HDMI 4096×2160@60Hz Supports triple-display Audio Realtek® Audio CODEC; HD Audio; 2/4/5.1/7.1-channel LAN Realtek® 2.5GbE LAN Wireless Realtek® Wi-Fi 6E RTL8852CE Wi-Fi 2.4/5/6GHz, BT 5.3, 11ax 160MHz Expansion Slots 1× PCIe x16 (CPU): • Ryzen 7000/9000: PCIe 4.0 x16 • Ryzen 8000 P1: PCIe 4.0 x8 • Ryzen 8000 P2: PCIe 4.0 x4 Chipset: 1× PCIe 3.0 x1 Storage • 1× M.2 (M2A_CPU) PCIe 4.0 x4/x2 • 1× M.2 (M2C_SB) PCIe 4.0 x4/x2 (22110/2280) • 4× SATA 6Gb/s • RAID 0/1/10 USB CPU: • 1× USB-C (USB 3.2 Gen 1, rear) • 1× USB 3.2 Gen 1 (rear) • 1× USB 2.0 (rear) Chipset: • 2× USB 3.2 Gen 1 (rear) • 1× USB-C (USB 3.2 Gen 1, internal) • 2× USB 3.2 Gen 1 (internal) • 5× USB 2.0 (1 rear, 4 internal) Internal I/O 24-pin ATX, 8-pin 12V CPU fan, 2× system fan 2× ARGB, 1× RGB 2× M.2 4× SATA Front panel, audio USB-C (3.2 Gen1), USB 3.2 Gen1, USB 2.0 TPM header Q-Flash Plus button Reset jumper, Clear CMOS Back Panel PS/2 1× USB-C (3.2 Gen1) 3× USB 3.2 Gen1 2× USB 2.0 HDMI, 2× DP RJ-45 LAN 3× audio jacks I/O Controller iTE® Controller Chip H/W Monitoring Voltage, Temperature, Fan speed, Fan fail, Speed control BIOS 256Mbit AMI UEFI; PnP 1.0a, DMI 2.7, ACPI 5.0 Unique Features GIGABYTE Control Center (GCC); Q-Flash; Q-Flash Plus Bundled Software Norton Internet Security; LAN management tools OS Support Windows 11 64-bit; Windows 10 64-bit Form Factor Micro ATX; 24.4 cm × 24.4 cm

Read more less

Category Details Panel Size (diagonal) 27" SS IPS Display Viewing Area (HxV) 596.74 × 335.66 mm Panel Backlight / Type Edge Display Surface Non-glare Color Saturation 100% sRGB True Resolution 2560 × 1440 (QHD) Pixel Pitch 0.2331 × 0.2331 mm Brightness 300 cd/m² (TYP) Contrast Ratio 41,667:1 Viewing Angle 178° (H) / 178° (V) Display Colors 16.7M Response Time 1ms (MPRT) Refresh Rate 165Hz / OC 170Hz HDR HDR Ready Flicker-free Yes Connectivity 2 × HDMI 2.0, 1 × DisplayPort 1.4, 1 × Earphone Jack Speaker N/A CPU Support LGA1700, 12th–14th Gen Intel Core, Pentium Gold, Celeron; L3 cache varies with CPU Chipset Intel® Z790 Express Memory Support DDR5 4000–7600(O.C.), 4 × DIMM up to 192 GB, dual channel, ECC/non-ECC support, XMP support Onboard Graphics Intel HD Graphics: HDMI max 4096×2160@60Hz, DisplayPort max 4096×2304@60Hz Audio Realtek ALC1220, HD Audio, 2/4/5.1/7.1-channel, S/PDIF Out LAN Realtek 2.5GbE LAN Wireless Intel Wi-Fi 6E AX211 or Realtek RTL8852CE, Bluetooth 5.3, 2.4/5/6 GHz, 11ax 160MHz Expansion Slots CPU: 1 × PCIe x16 (PCIe 5.0, x16) Chipset: 1 × PCIe x16 (PCIe 4.0, x4) Storage Interface CPU: 1 × M.2 PCIe 4.0 x4/x2 Chipset: 2 × M.2 PCIe 4.0 x4/x2, 6 × SATA 6Gb/s, RAID 0/1/5/10 USB Ports 1 × USB-C 3.2 Gen 2x2 (back), 1 × USB-C 3.2 Gen 2 (internal), 1 × USB 3.2 Gen 2 Type-A (red, back), 6 × USB 3.2 Gen 1, 8 × USB 2.0 Internal I/O Connectors 24-pin ATX, 8-pin + 4-pin CPU, CPU fan headers, system fan headers, RGB headers, M.2 connectors, SATA connectors, front panel headers, USB headers, Thunderbolt connectors, TPM, serial, reset/Q-Flash/Clear CMOS buttons Back Panel Connectors USB-C, USB-A, USB 3.2 Gen 1/2, USB 2.0, SMA antennas, HDMI 2.0, DisplayPort, RJ-45, optical S/PDIF, 2 × audio jacks I/O Controller iTE I/O Controller Chip H/W Monitoring Voltage, temperature, fan speed, water flow, fan fail warning, fan/pump speed control BIOS GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup Bundled Software Norton Internet Security OEM, LAN bandwidth management software Operating System Windows 11 / 10 64-bit Form Factor Micro ATX, 24.4 × 24.4 cm

Read more less

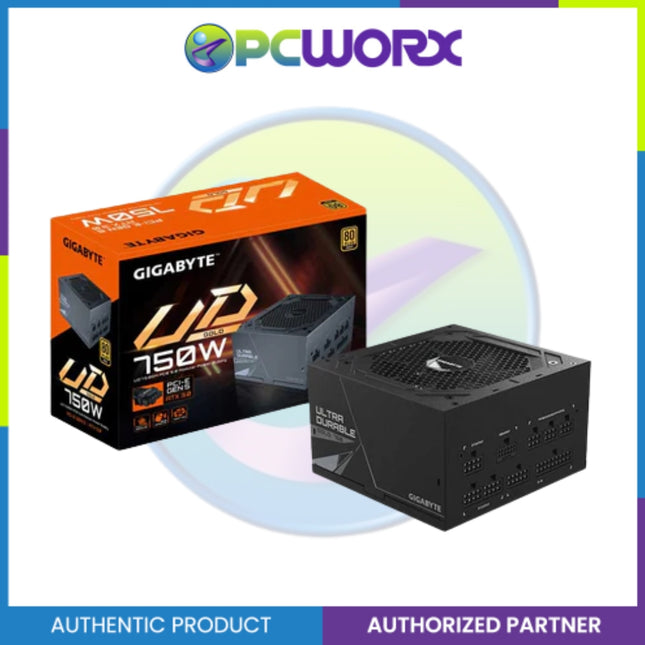

GP-UD750GM PG5 Power Supply Specifications Category Details Model GP-UD750GM PG5 Type Intel Form Factor ATX 12V v3.0 PFC Active PFC (>0.9 typical) Input Voltage 100–240 Vac (full range) Input Current 12–6A Input Frequency 50–60 Hz Output Capacity 750W Dimensions 150 × 140 × 86 mm Fan Type 120mm Hydraulic Bearing (HYB) fan 80 PLUS Rating Gold Efficiency 90% at typical load MTBF >100,000 hours Protection OVP, OPP, SCP, UVP, OCP, OTP Power Good Signal 100–150 ms Hold-Up Time >16 ms Cable Type Flat, all black Connectors ATX/MB 20+4 Pin × 1: 610 mm CPU/EPS 4+4 Pin × 2: 600 mm + 200 mm PCIe 16-Pin × 1: 700 mm PCIe 6+2 Pin × 4: 600 mm + 150 mm × 2 SATA × 8: 600 mm + 150 mm + 150 mm + 150 mm × 2 4-Pin Peripheral × 3 + 4-Pin Floppy × 1: 500 mm + 120 mm + 120 mm + 150 mm

Read more less

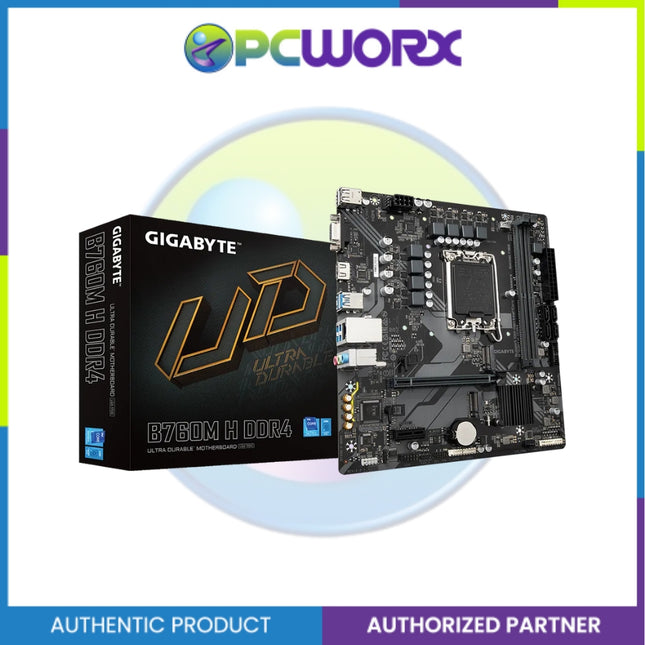

Category Specification CPU LGA1700 socket: Support for 14th, 13th, 12th Gen Intel® Core™, Pentium® Gold, Celeron®; L3 cache varies by CPU Chipset Intel® B760 Express Chipset Memory DDR4 3200/3000/2933/2666/2400/2133 MT/s; 2 x DDR4 DIMM slots up to 64GB; Dual channel; Supports ECC/non-ECC, XMP Onboard Graphics Intel® HD Graphics: 1 x D-Sub 1920x1200@60Hz, 1 x HDMI 4096x2160@60Hz; HDMI 2.1, HDCP 2.3 Audio Realtek® Audio CODEC; High Definition; 2/4/5.1/7.1-channel; S/PDIF Out support LAN Realtek® GbE LAN chip, 1 Gbps Expansion Slots CPU: 1 x PCIe x16 (PCIe 4.0) for GPU/NVMe; Chipset: 1 x PCIe x1 (PCIe 3.0) Storage Interface CPU: 1 x M.2 PCIe 4.0 x4/x2 (M2A_CPU); Chipset: 1 x M.2 PCIe 4.0 x4/x2 (M2P_SB), 4 x SATA 6Gb/s; RAID 0/1/5/10 support USB Chipset: 6 x USB 3.2 Gen 1 (4 back, 2 internal); 6 x USB 2.0/1.1 (2 back, 4 internal) Internal I/O Connectors 1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 CPU fan, 2 system fans, 1 RGB header, 2 x M.2 sockets, 4 x SATA 6Gb/s, front panel/audio/USB headers, S/PDIF, TPM, serial, Clear CMOS Back Panel Connectors 2 x USB 2.0/1.1, 1 x D-Sub, 1 x HDMI, 4 x USB 3.2 Gen 1, 1 x RJ-45, 3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage, temperature, fan speed, water cooling flow, fan fail warning, fan control BIOS 128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features GIGABYTE Control Center (GCC), Q-Flash support Bundled Software Norton® Internet Security (OEM), LAN bandwidth management software Operating System Windows 11 64-bit, Windows 10 64-bit Form Factor Micro ATX; 23.0cm x 21.5cm

Read more less

KEY FEATURE Optimized Airflow DesignRGB Fusion with ARGB Connector HubSupport Motherboards up to E-ATXUp to 360mm Liquid Cooling CompatibleSupport Vertical GPU InstallationFull-Size Tempered Glass Side PanelWith USB 3.0 x2 and USB 3.1 Type-C x1 on I/O panelPre-installed 4 ARGB fans OPTIMIZED AIRFLOW DESIGN The GIGABYTE C301 GLASS WHITE V2 comes with the large mesh front and the vented top panel, delivering generous airflow for optimized cooling with premium aesthetics. ARGB CONNECTOR HUB The built-in ARGB connector hub is equipped with six 5V 3-pin connectors, enabling users to expand their RGB light stripes, create a superb cooling system as well as a fantastic and gorgeous rig. TEMPERED GLASS SIDE PANEL Built with 4mm black tempered glass on side panel, GIGABYTE C301 GLASS WHITE V2 is an attractive, versatile chassis that can be a stunning showpiece for your PC parts. The non-drilled glass design effectively reduces the risk of fragmentation, allowing users to remove it with ease and safety, also extending the product lifespan. EASY TO INSTALL.EASY TO USE. PSU SHROUD DESIGN Enjoy a clean look by hiding the PSU and those messy power cables inside the PSU shroud, while separating the PSU heat from the rest of the internal system. With the window design on the left side of the shroud, users can show off the cool outlook of PSU. DETACHABLE DUST FILTER The filters keep your PC from accumulating dust, while maintaining optimal cooling performance. The top magnetic filter, along with the removable filter at the bottom, make maintenance easy. Specification Details Case Form Factor Mid Tower M/B Type Mini ITX / Micro ATX / ATX / E-ATX Color White Materials Steel, Plastic, Glass Dimensions H=486 W=220 D=473 mm (±1% error) Expansion Slots 7 5.25" Drive Bays None 3.5"/2.5" Drive Bays 2 2.5" Drive Bays 2 I/O Panel USB 3.1 Gen2 Type-C x1 / USB 3.0 x2 / Audio In & Out (HD Audio) / LED Switch Pre-installed Fans Front: 120mm x3 (ARGB & PWM), Rear: 120mm x1 (ARGB & PWM), Fan splitter cable included Radiator Support Front: Max 360mm, Top: Max 360mm, Rear: Max 120mm Power Supply Type Standard ATX (Not included) Maximum Compatibility CPU Height: 170mm, GPU Length: 400mm, PSU Length: 180mm Vertical GPU Mount Yes (VGA holder bracket: 100mm total clearance) Requires PCIe Riser Cable Dust Filters Top, Bottom RGB Lighting Yes (Support RGB Fusion) Weight N.W. 7.8 kg, G.W. 9.0 kg Package Dimensions H=530 W=282 D=530 mm Accessories Manual, Accessories kit

Read more less

Category Specification CPU AMD Socket AM4, supports Ryzen™ 5000/5000 G/4000 G/3000/3000 G-Series processors Chipset AMD B550 Memory 4 x DDR4 DIMM sockets, up to 128 GB, DDR4 2133–4733 MHz (OC), dual channel, ECC & non-ECC support, XMP support Onboard Graphics 1 x DisplayPort 1.4 (max 5120x2880@60Hz), 1 x HDMI 2.1 (max 4096x2160@60Hz), max shared memory 16 GB Audio Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, configurable via software LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Expansion Slots 1 x PCIe x16 (CPU), 1 x PCIe x1 (Chipset) Storage Interface 2 x M.2 (M2A_CPU PCIe 4.0/3.0, M2B_SB PCIe 3.0), 4 x SATA 6Gb/s (RAID 0/1/10) USB Ports CPU: 4 x USB 3.2 Gen1 (back) Chipset: 2 x USB 3.2 Gen1 (internal), 6 x USB 2.0/1.1 (4 back, 2 internal) Internal I/O Connectors 24-pin ATX, 8-pin CPU 12V, CPU/system fan headers, 2 x M.2 sockets, 4 x SATA, front panel & audio headers, USB 3.2/2.0 headers, TPM header, Clear CMOS jumper Back Panel Connectors PS/2, DisplayPort, HDMI, 4 x USB 3.2 Gen1, 4 x USB 2.0/1.1, RJ-45, 3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage, Temperature, Fan speed, Fan fail warning, Fan speed control (depends on cooler) BIOS 128 Mbit Flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 Unique Features APP Center, @BIOS, EasyTune, Smart Backup, System Info Viewer, Q-Flash Bundled Software Norton® Internet Security (OEM), LAN bandwidth management software Operating System Support Windows 11 64-bit, Windows 10 64-bit Form Factor Micro ATX, 24.4 x 24.4 cm
