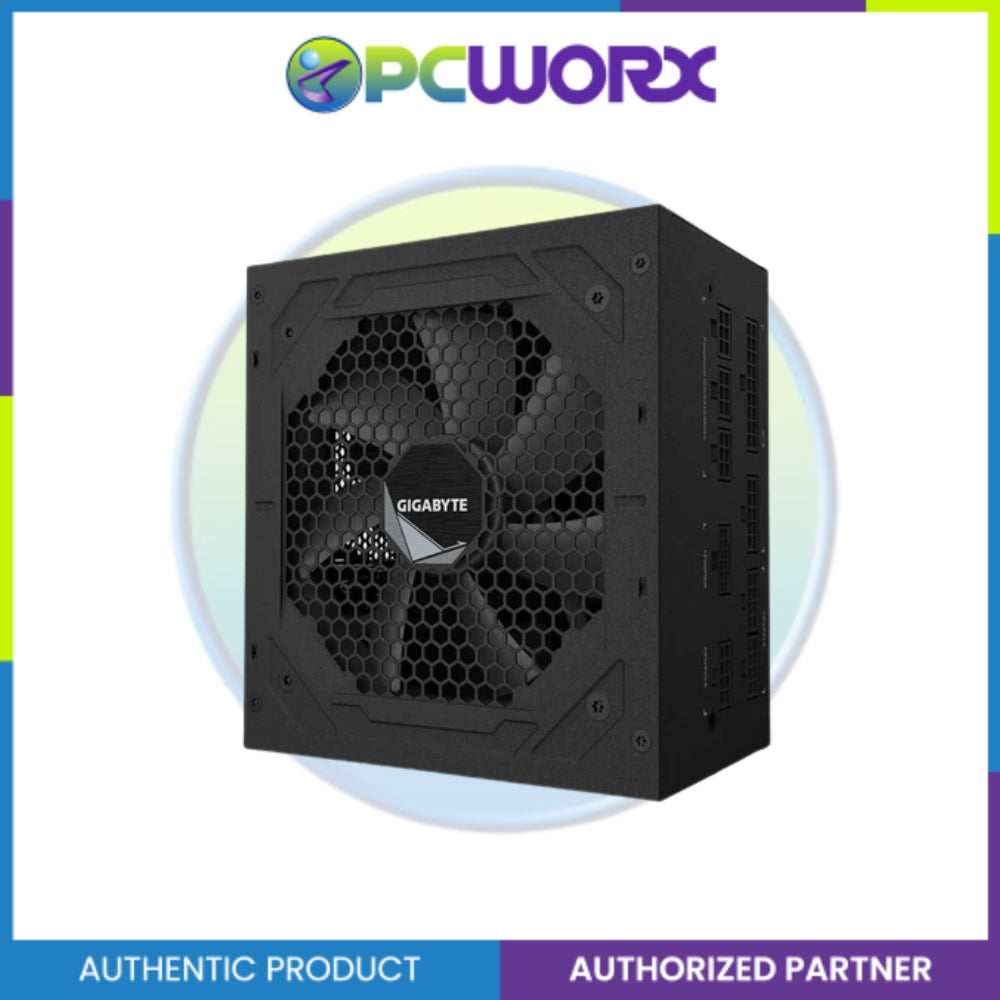

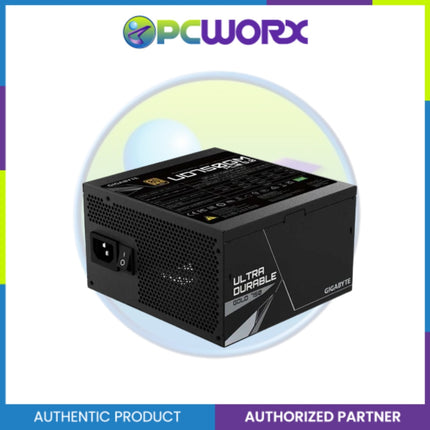

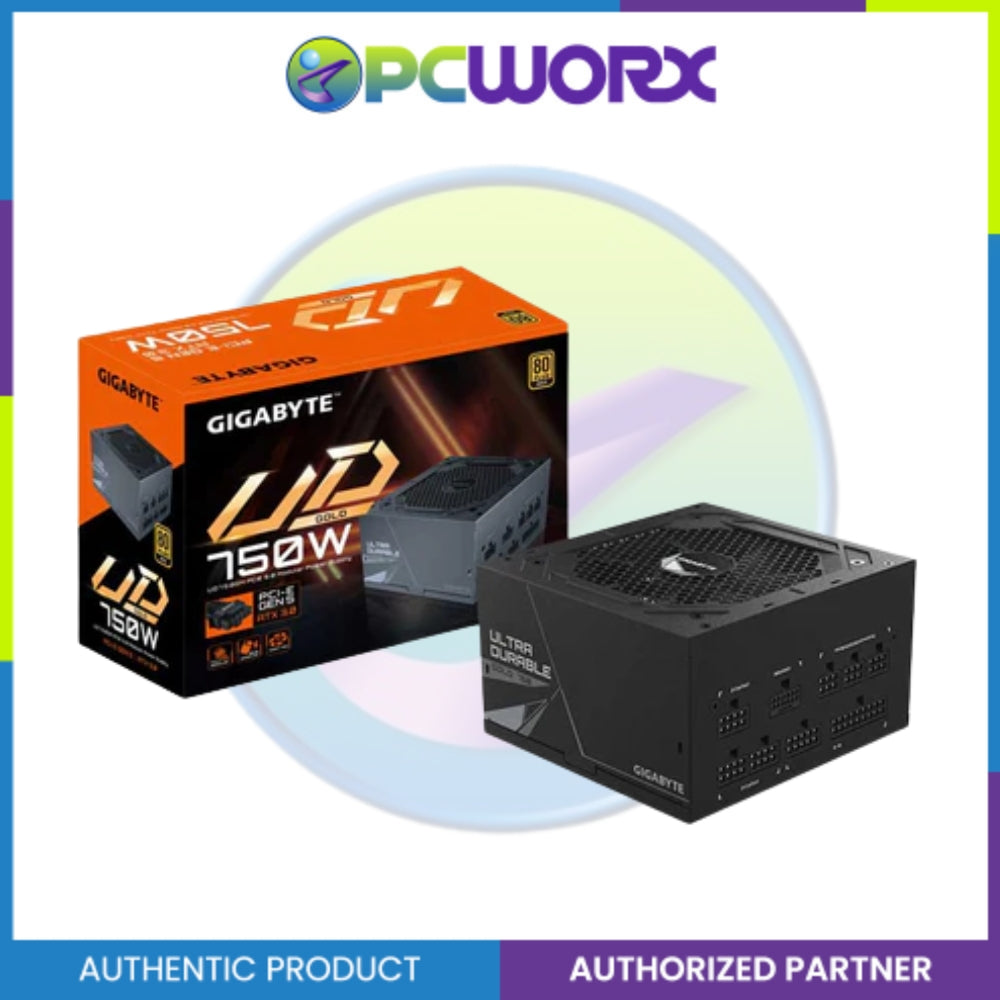

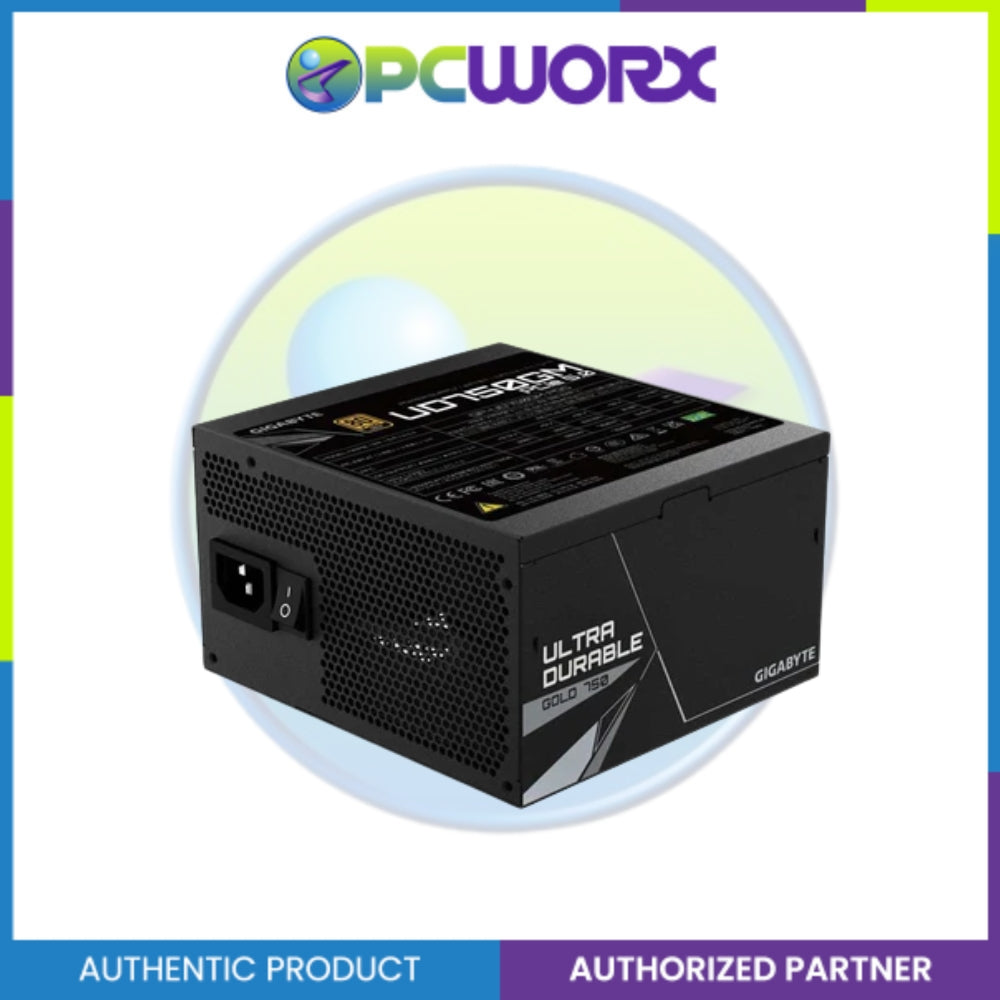

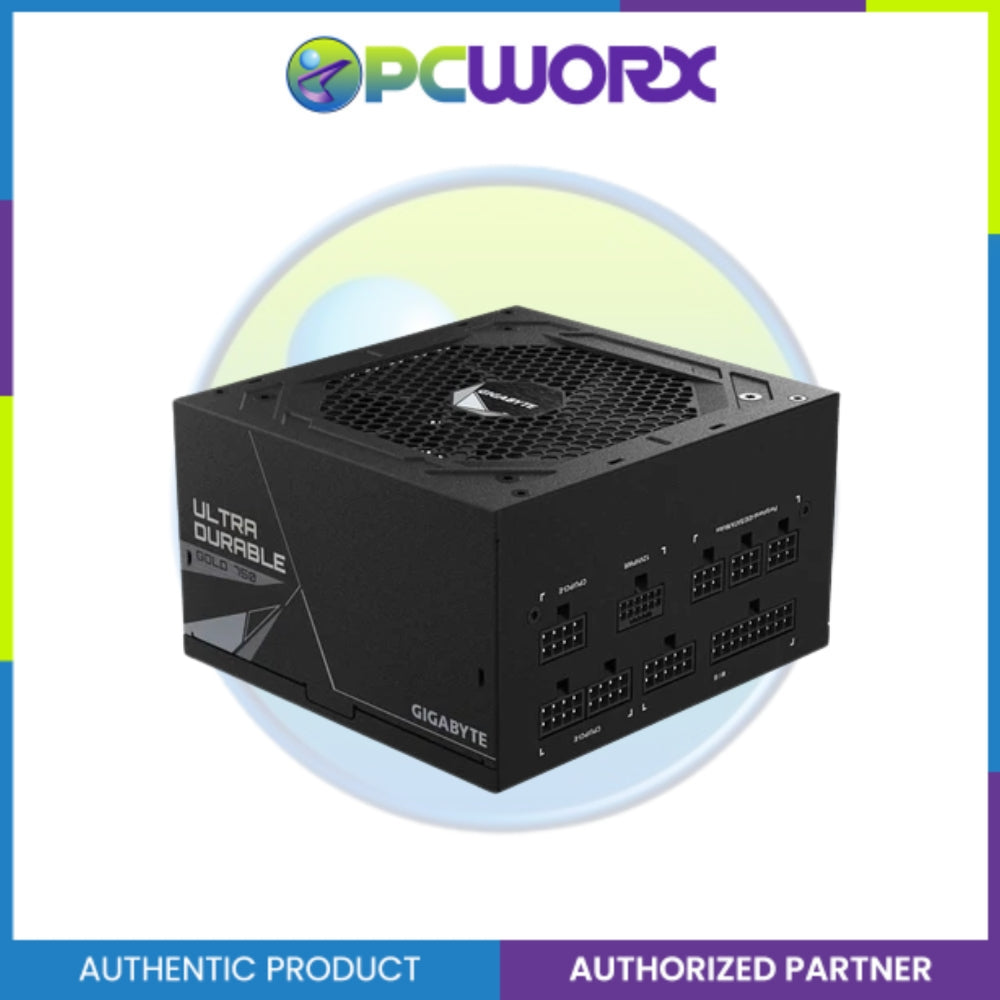

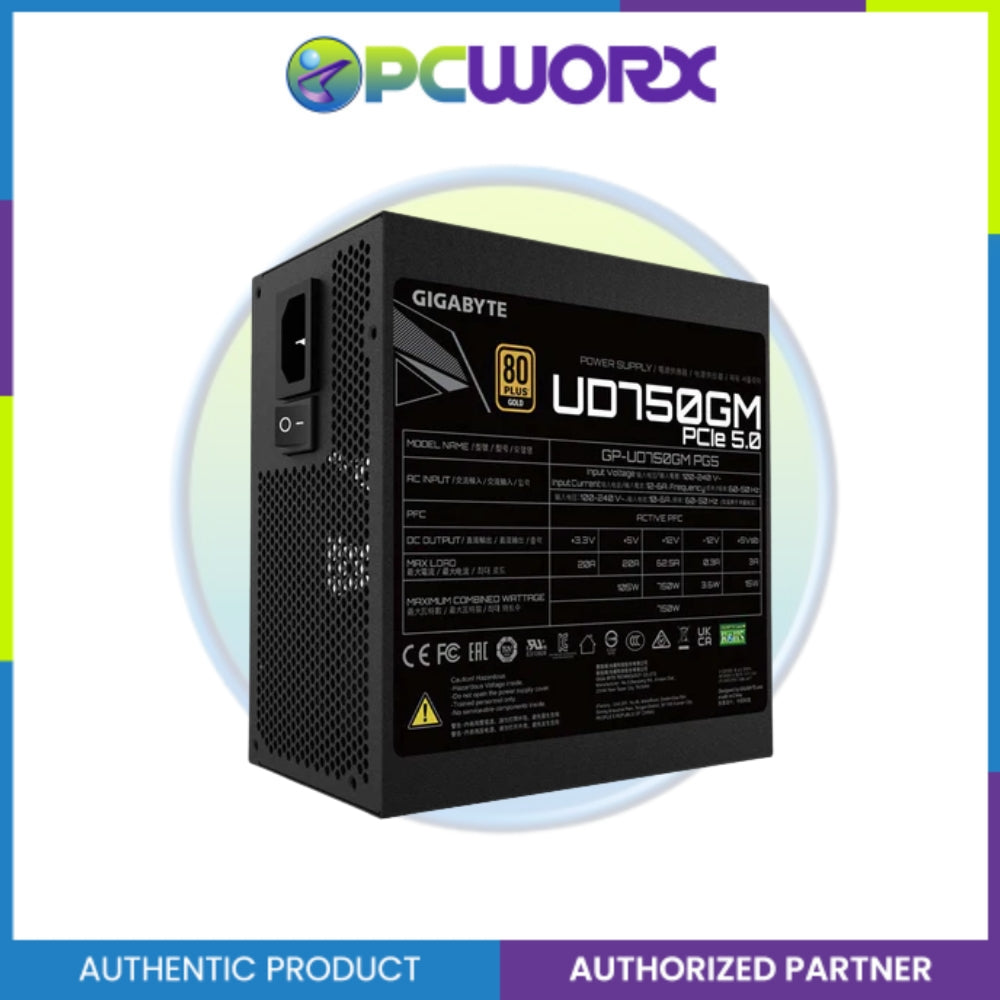

Gigabyte GP-UD750GM-PG5 750WATTS 80 PLUS GOLD PCIE GEN 5.0 ATX 3.0 MODULAR

Description

GP-UD750GM PG5 Power Supply Specifications

Category Details
Model GP-UD750GM PG5
Type Intel Form Factor ATX 12V v3.0
PFC Active PFC (>0.9 typical)
Input Voltage 100–240 Vac (full range)
Input Current 12–6A
Input Frequency 50–60 Hz
Output Capacity 750W
Dimensions 150 × 140 × 86 mm

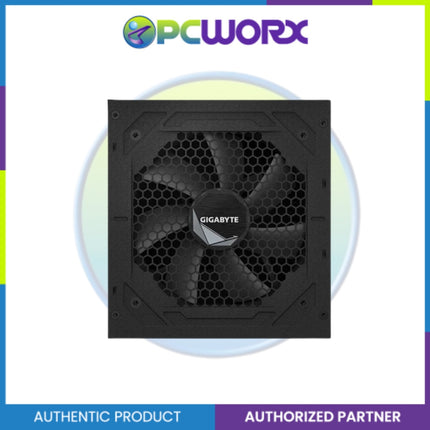

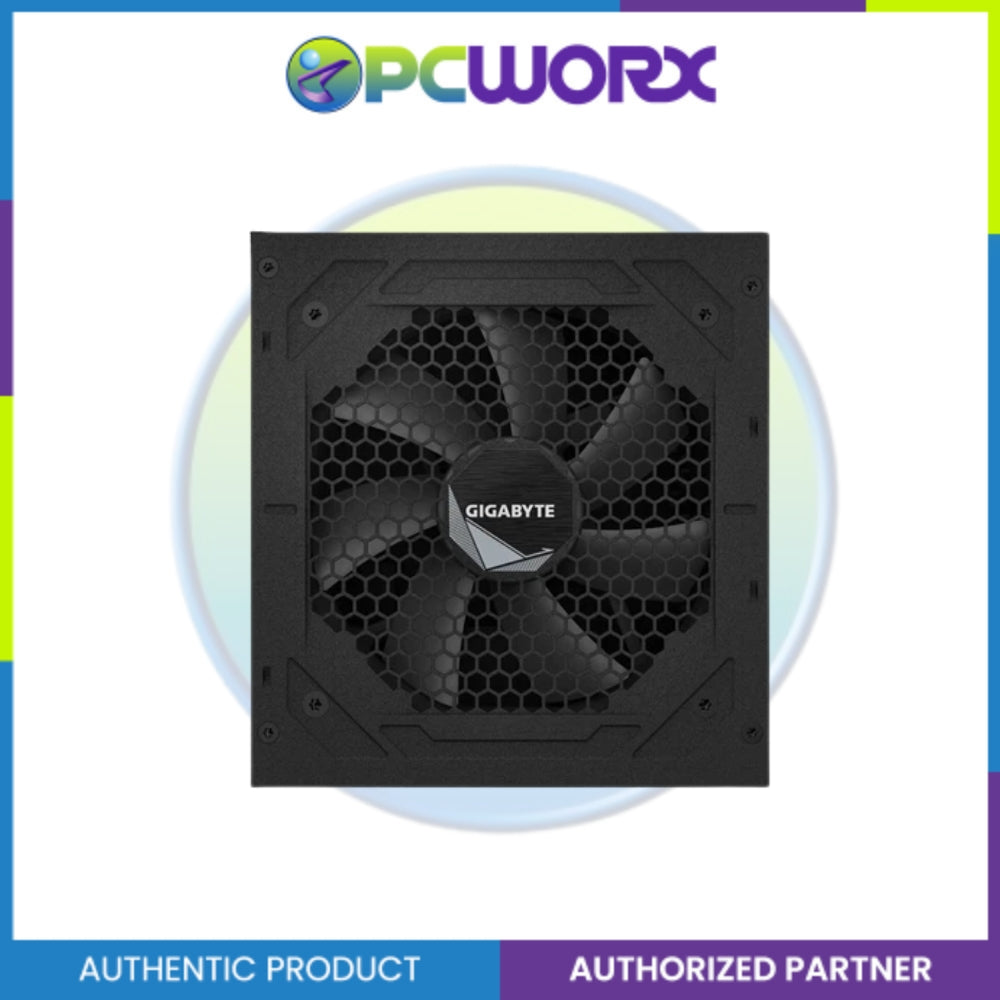

Fan Type 120mm Hydraulic Bearing (HYB) fan
80 PLUS Rating Gold
Efficiency 90% at typical load
MTBF >100,000 hours
Protection OVP, OPP, SCP, UVP, OCP, OTP
Power Good Signal 100–150 ms
Hold-Up Time >16 ms
Cable Type Flat, all black

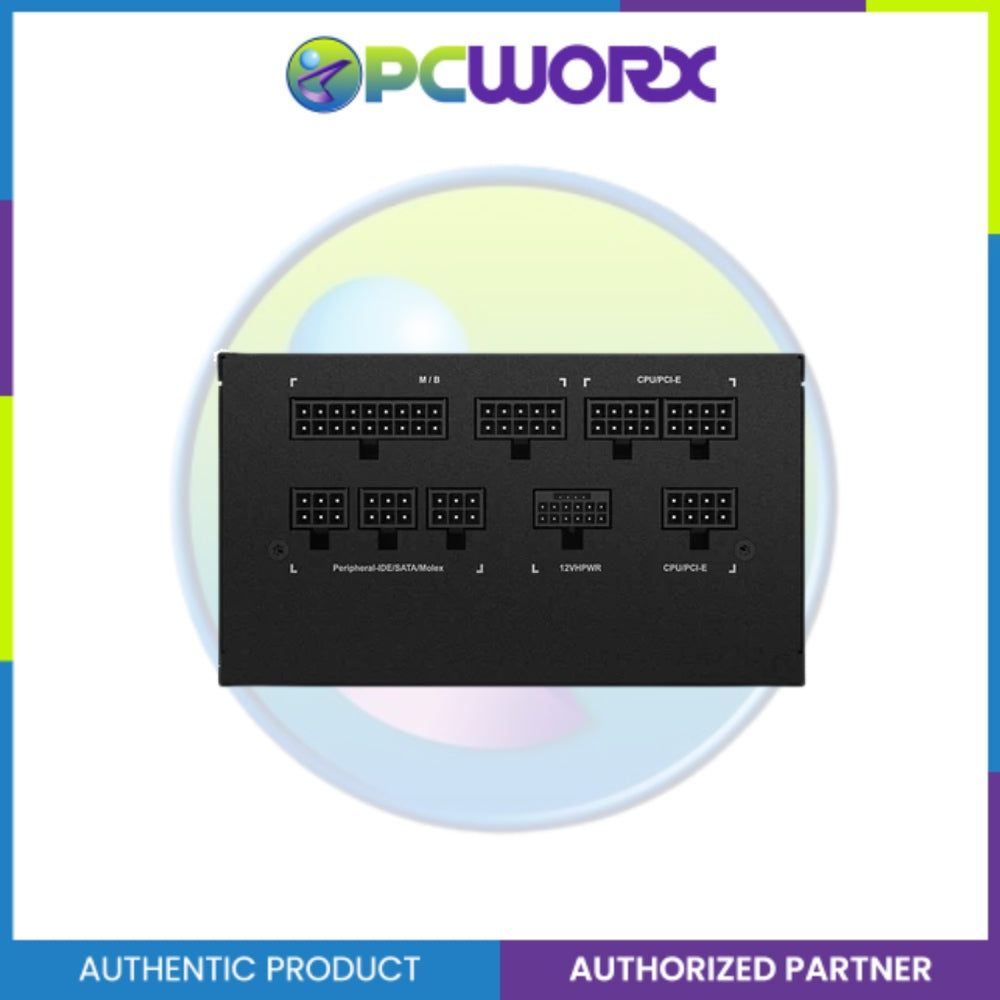

Connectors ATX/MB 20+4 Pin × 1: 610 mm
CPU/EPS 4+4 Pin × 2: 600 mm + 200 mm
PCIe 16-Pin × 1: 700 mm
PCIe 6+2 Pin × 4: 600 mm + 150 mm × 2
SATA × 8: 600 mm + 150 mm + 150 mm + 150 mm × 2
4-Pin Peripheral × 3 + 4-Pin Floppy × 1: 500 mm + 120 mm + 120 mm + 150 mm

Gigabyte GP-UD750GM-PG5 750WATTS 80 PLUS GOLD PCIE GEN 5.0 ATX 3.0 MODULAR

Product form

GP-UD750GM PG5 Power Supply Specifications Category Details Model GP-UD750GM PG5 Type Intel Form Factor ATX 12V v3.0 PFC Active PFC... Read more

Free pickup in our shop(s)

SKU: 0000062617

1 in stock

₱5,646.50

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.

    Description

    GP-UD750GM PG5 Power Supply Specifications

    Category Details
    Model GP-UD750GM PG5
    Type Intel Form Factor ATX 12V v3.0
    PFC Active PFC (>0.9 typical)
    Input Voltage 100–240 Vac (full range)
    Input Current 12–6A
    Input Frequency 50–60 Hz
    Output Capacity 750W
    Dimensions 150 × 140 × 86 mm
    Fan Type 120mm Hydraulic Bearing (HYB) fan
    80 PLUS Rating Gold
    Efficiency 90% at typical load
    MTBF >100,000 hours
    Protection OVP, OPP, SCP, UVP, OCP, OTP
    Power Good Signal 100–150 ms
    Hold-Up Time >16 ms
    Cable Type Flat, all black
    Connectors ATX/MB 20+4 Pin × 1: 610 mm
    CPU/EPS 4+4 Pin × 2: 600 mm + 200 mm
    PCIe 16-Pin × 1: 700 mm
    PCIe 6+2 Pin × 4: 600 mm + 150 mm × 2
    SATA × 8: 600 mm + 150 mm + 150 mm + 150 mm × 2
    4-Pin Peripheral × 3 + 4-Pin Floppy × 1: 500 mm + 120 mm + 120 mm + 150 mm
